0-51 — OIL PUMP AND OIL STRAINER (#43506) — 21 parça

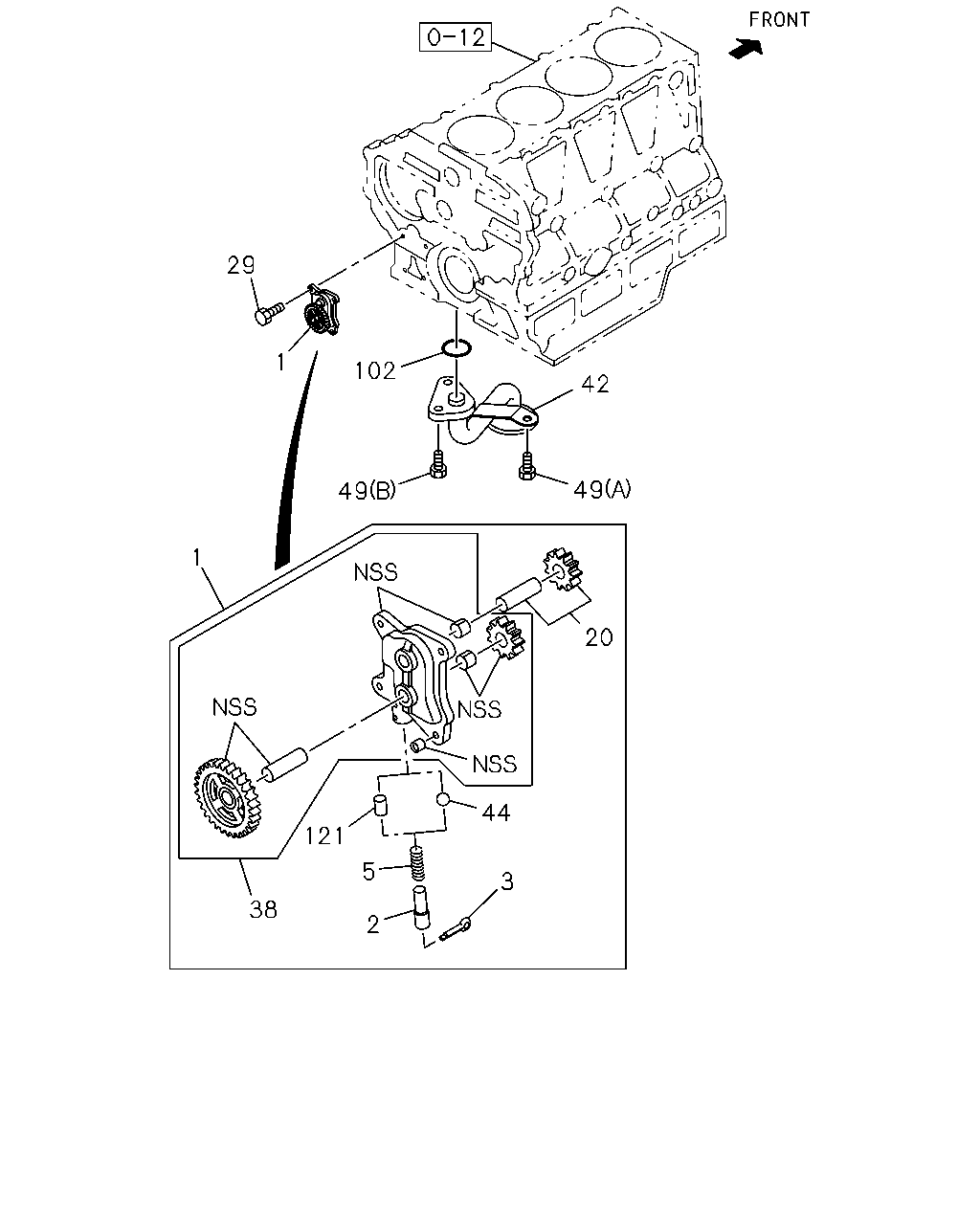

çizim 48736
29 1 102 42 49 49 1 20 44 121 5 3 38 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL 8-97147-338-2 01 1 0009- ●
1 PUMP ASM; OIL 8-97075-283-2 01 1 0009- ●
2 SEAT; SPR
THA 		5-13165-004-0 01 1 0009-0112 ● ●
3 PIN; SPLIT
OD=3.7 L=30 		9-08114-030-0 01 1 0009- ● ●
5 SPRING; COIL 8-97147-503-0 01 1 0009-0112 ●
5 SPRING; COIL 5-09580-098-0 01 1 0009-0112 ●
5 SPRING; COIL 5-09580-098-0 01 1 0201- ● ●
20 GEAR; DRIVE,OIL PUMP
Z=9 		8-97078-736-0 01 1 0009- ● ●
29 BOLT; OIL PUMP
M8X25 FLANGE 		0-28090-825-0 02 1 0009- ● ●
29 BOLT; OIL PUMP
M8X30 FLANGE 		0-28090-830-0 02 1 0009- ● ●
38 CASE; OIL STRAINER 8-97147-505-0 01 1 0009- ●
38 CASE; OIL STRAINER 8-97133-330-0 01 1 0009- ●
42 STRAINER; OIL,OIL PUMP 8-97230-894-0 01 1 0009- ● ●
44 BALL; RELIEF VLV 5-09843-003-0 01 1 0009-0112 ●
44 BALL; RELIEF VLV 5-09843-003-0 01 1 0201- ● ●
49 BOLT; STRAINER,OIL PUMP
(A) M10X80 		8-97071-956-0 01 1 0009- ● ●
49 BOLT; STRAINER,OIL PUMP
(B) M8X14 		8-97073-782-0 01 1 0009- ● ●
102 GASKET; STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.2 		8-97137-501-0 01 1 0009-0211 ● ●
102 GASKET; STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 		8-94399-398-0 01 1 0212- ● ●
102 GASKET; STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 		8-94399-398-0 01 1 0212- ● ●
121 VALVE; RELIEF,OIL PUMP
THA 		8-94235-567-1 01 1 0009-0112 ●
