0-50 — OIL COOLER AND OIL FILTER (#43505) — 50 parça

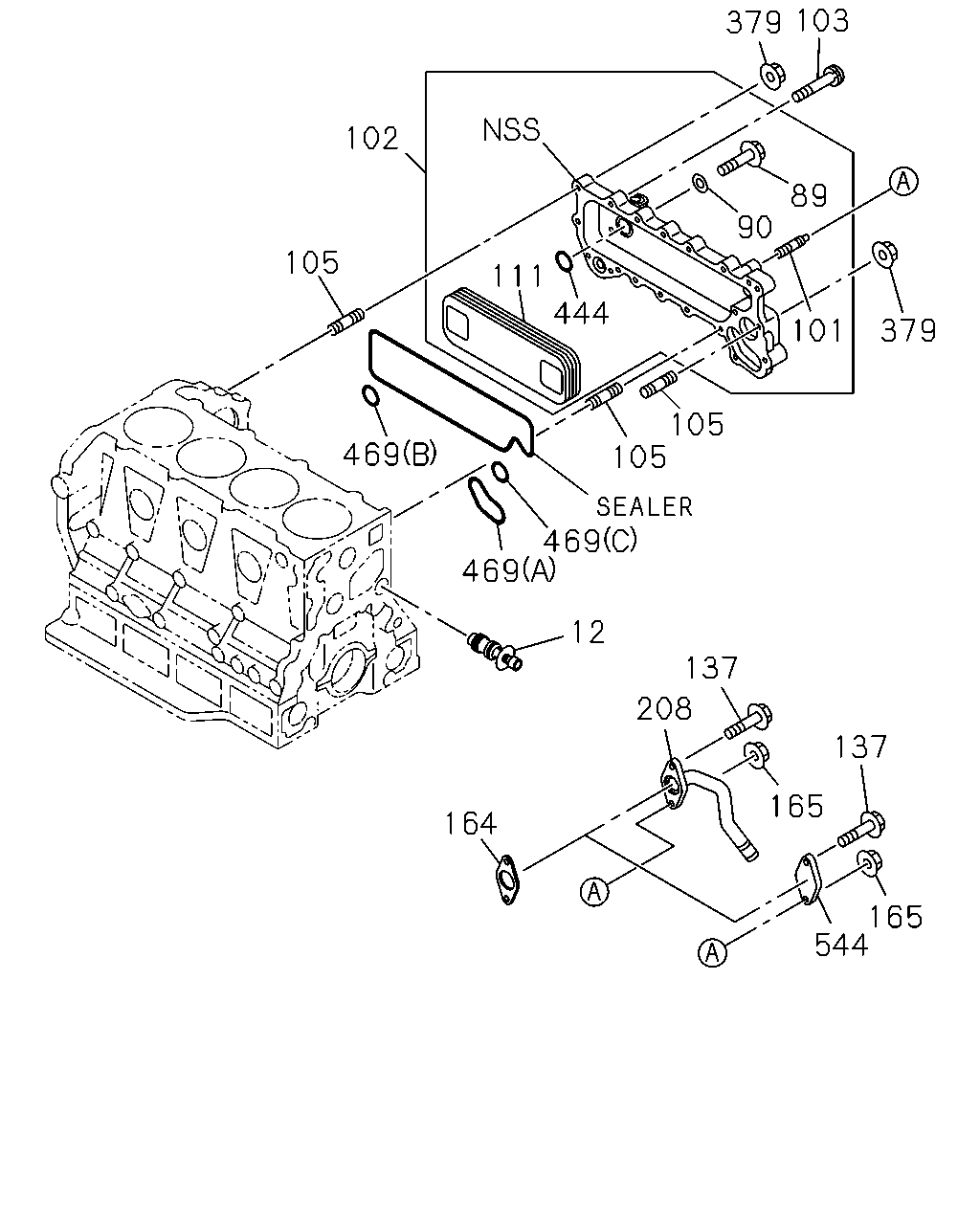

çizim 48046
103 379 102 89 90 105 111 444 379 101 105 105 469 469 469 12 137 208 137 165 164 165 544
BalonParca AdiParca NoAdetTipApplied Date A B
12 VALVE ASM; BYPASS 8-97075-754-0 01 1 0009-0107 ● ●
12 VALVE ASM; BYPASS 8-97013-566-2 01 1 0108- ● ●
89 BOLT; ELEMENT TO CASE
M8X16 FLANGE 		0-28080-816-0 04 1 0009- ● ●
90 GASKET; BOLT,OIL COOLER
THA 		1-21729-043-0 04 1 0009- ● ●
101 STUD; OIL COOLER TO PIPE
M8X20 L=38 		0-49740-820-0 01 1 0009-0206 ● ●
102 COOLER ASM; OIL 8-97212-334-0 01 1 0009-0206 ●
102 COOLER ASM; OIL 8-97333-783-0 01 1 0207- ●
102 COOLER ASM; OIL 8-97212-763-0 01 1 0009-0206 ●
102 COOLER ASM; OIL 8-97333-784-0 01 1 0207-0208 ●
102 COOLER ASM; OIL 8-97333-877-0 01 1 0209- ●
102 COOLER ASM; OIL 8-97333-783-0 01 1 0207- ●
102 COOLER ASM; OIL 8-97333-784-0 01 1 0207-0208 ●
102 COOLER ASM; OIL 8-97333-877-0 01 1 0209- ●
103 BOLT; OIL COOLER
M8X20 FLANGE 		0-28080-820-0 07 1 0009- ●
103 BOLT; OIL COOLER
M8X35 FLANGE 		0-28080-835-0 07 1 0009- ●
103 BOLT; OIL COOLER
M8X20 FLANGE 		0-28080-820-0 08 1 0009- ●
103 BOLT; OIL COOLER
M8X35 FLANGE 		0-28080-835-0 08 1 0009- ●
105 STUD; OIL COOLER
M8X52 L=63 		8-97016-314-0 03 1 0009- ● ●
111 CORE; OIL COOLER 8-97222-512-0 01 1 0009-0206 ●
111 CORE; OIL COOLER 8-97334-101-0 01 1 0207- ●
111 CORE; OIL COOLER 8-97033-802-0 01 1 0009-0206 ●
111 CORE; OIL COOLER 8-97334-100-0 01 1 0207- ●
111 CORE; OIL COOLER 8-97334-101-0 01 1 0207- ●
111 CORE; OIL COOLER 8-97334-100-0 01 1 0207- ●
137 BOLT
M8X20 FLANGE 		0-28680-820-0 01 1 0009-0206 ● ●
137 BOLT
M8X20 FLANGE 		0-28680-820-0 02 1 0207- ● ●
137 BOLT
M8X20 FLANGE 		0-28680-820-0 02 1 0207- ● ●
164 GASKET; HTR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97146-684-0 01 1 0009- ● ●
165 NUT; HTR PIPE
M8 FLANGE 		0-91150-108-0 01 1 0009-0206 ● ●
208 PIPE; WATER,HTR
AIR CONDITIONER MANUAL CONT<C60> 		8-97146-519-0 01 1 0009- ●
379 NUT; OIL COOLER
M8 FLANGE 		0-91150-108-0 03 1 0009- ● ●
444 GASKET; ELEMENT TO BODY 8-97028-586-0 02 1 0009- ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94338-878-1 01 1 0009- ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8 		8-94399-713-0 01 1 0009-0211 ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=9.8 		8-94399-339-0 01 1 0212- ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.35 		8-97137-500-0 01 1 0009-0211 ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.2 		9-09566-226-0 01 1 0212- ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=9.8 		8-94399-339-0 01 1 0212- ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.2 		9-09566-226-0 01 1 0212- ● ●
544 COVER; HEATER
EXC. AIR CONDITIONER MANUAL CONT<C60> 		8-97147-028-0 01 1 0009- ● ●

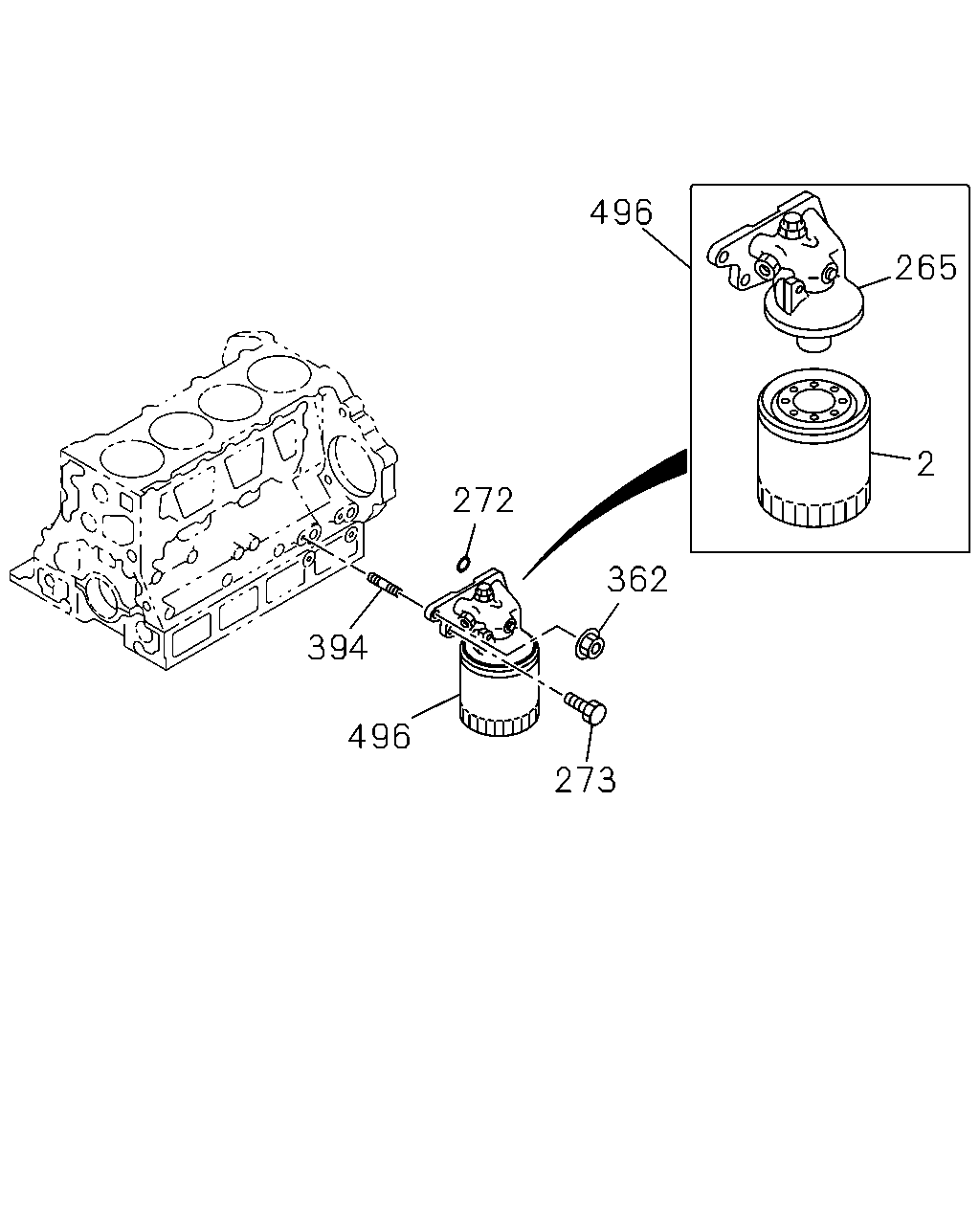

çizim 51212
496 265 2 272 362 394 496 273
BalonParca AdiParca NoAdetTipApplied Date A B
2 ELEMENT; OIL FILTER 8-97148-270-1 01 1 0009- ● ●
2 ELEMENT; OIL FILTER
BESTFIX 		5-86750-140-0 01 1 0009- ● ●
265 BODY; OIL FILTER 8-97096-677-3 01 1 0009- ● ●
272 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1 		8-94399-676-0 02 1 0009-0211 ● ●
272 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1 		8-94399-399-0 02 1 0212- ● ●
272 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1 		8-94399-399-0 02 1 0212- ● ●
273 BOLT; OIL FILTER
M10X30 FLANGE 		0-28781-030-0 02 1 0009- ● ●
362 NUT; OIL FILTER
M10 FLANGE 		0-91150-110-0 02 1 0009- ● ●
394 STUD; OIL FILTER
M10X25 L=40 		0-49841-025-0 02 1 0009- ● ●
496 FILTER ASM; OIL 8-97148-268-2 01 1 0009- ● ●
