0-42 — FUEL PUMP AND PIPE (#43504) — 61 parça

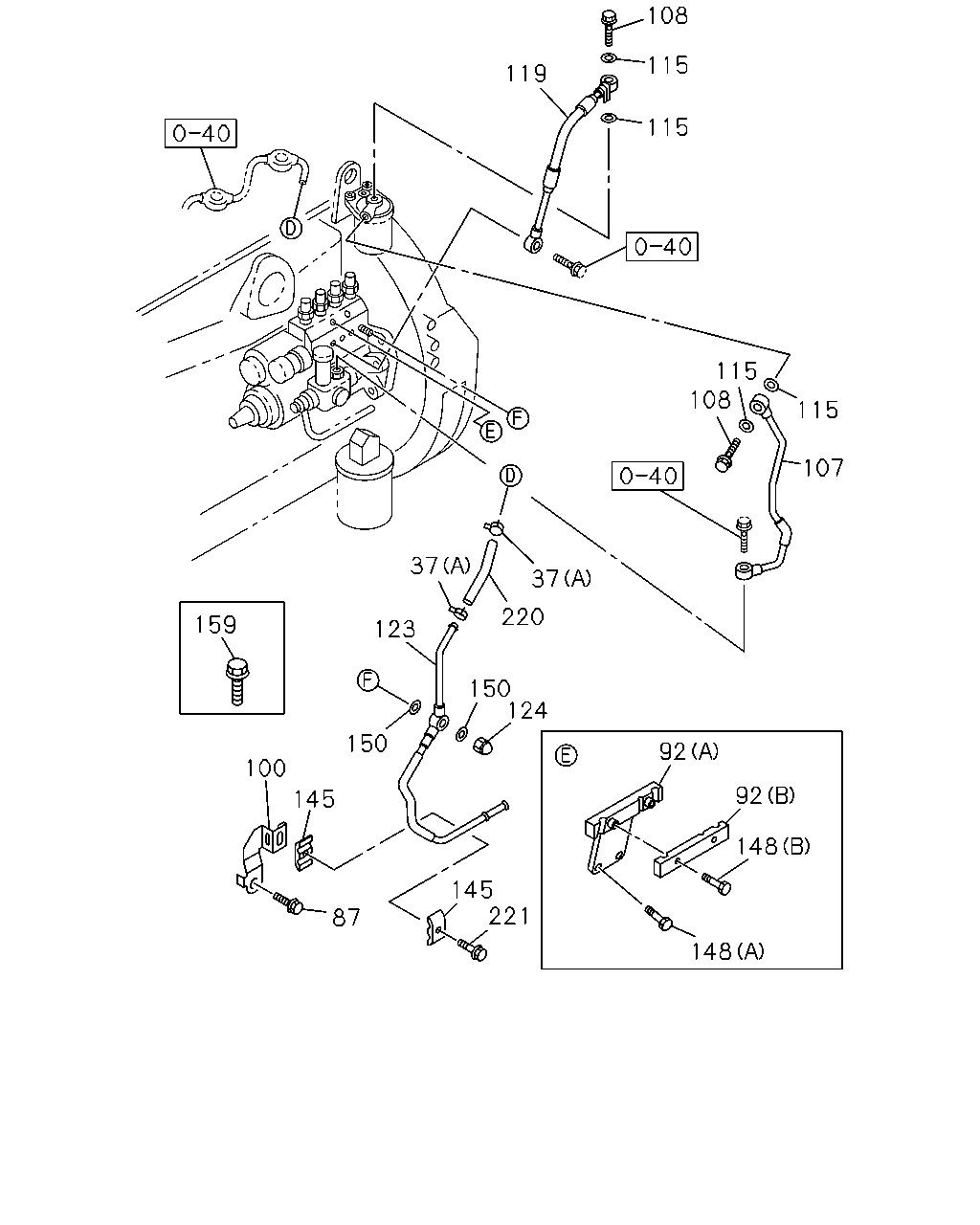

108 115 119 115 115 108 115 107 37 37 220 159 123 150 124 150 92 100 92 145 148 145 221 87 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	CLIP; FUEL HOSE (A) ID=12	8-94238-610-0	02	1	0009-	●	●
37	CLIP; FUEL HOSE (B) L=140	5-09707-031-1	01	1	0009-	●
87	BOLT; STAY,FUEL PIPE M8X12 FLANGE	0-28080-812-0	01	1	0009-	●	●
92	BRACKET; FUEL PIPE (A)	8-97166-995-1	01	1	0009-		●
92	BRACKET; FUEL PIPE (B)	8-97173-465-1	01	1	0009-		●
100	CLIP; "B",FUEL PIPE	8-97108-315-0	01	1	0009-	●	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-97210-721-1	01	1	0009-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-97148-967-3	01	1	0009-		●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	0009-0112	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	0201-	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0009-0112		●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=23.0	9-09572-014-0	04	1	0009-0112	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=23.0	9-09572-014-0	04	1	0201-	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=23.0	9-09572-014-0	02	1	0009-0112		●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=23.0	9-09572-014-0	04	1	0201-	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-97211-323-1	01	1	0009-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-97211-149-0	01	1	0009-0210		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-97357-237-0	01	1	0211-		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-97357-237-0	01	1	0211-		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-97223-179-0	01	1	0009-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-97148-970-2	01	1	0009-		●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	0009-	●
145	CLIP; FUEL PIPE ID=6.1 & 9.6	8-97016-323-0	02	1	0009-	●	●
148	BOLT; BRKT (A) M8X16 FLANGE	0-28090-816-0	02	1	0009-0306		●
148	BOLT; BRKT M8X16 FLANGE	0-28090-816-0	01	1	0307-		●
148	BOLT; BRKT (B) M6X25 FLANGE	0-28680-625-0	02	1	0009-		●
148	BOLT; BRKT M8X16 FLANGE	0-28090-816-0	01	1	0307-		●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=23.0	9-09572-014-0	02	1	0009-	●	●
159	BOLT; CLIP M6X12 FLANGE	0-28080-612-0	01	1	0009-		●
220	HOSE; FUEL	8-97208-874-0	01	1	0009-	●
220	HOSE; FUEL L=180 SERVICED BY L=3000	0-01256-300-0	01	1	0009-		●
221	BOLT; FUEL PIPE M6X40 FLANGE	0-28680-640-0	01	1	0009-	●	●
243	STUD; BRKT M6X14,M8X17 L=42	5-09309-006-1	01	1	0307-		●
243	STUD; BRKT M6X14,M8X17 L=42	5-09309-006-1	01	1	0307-		●

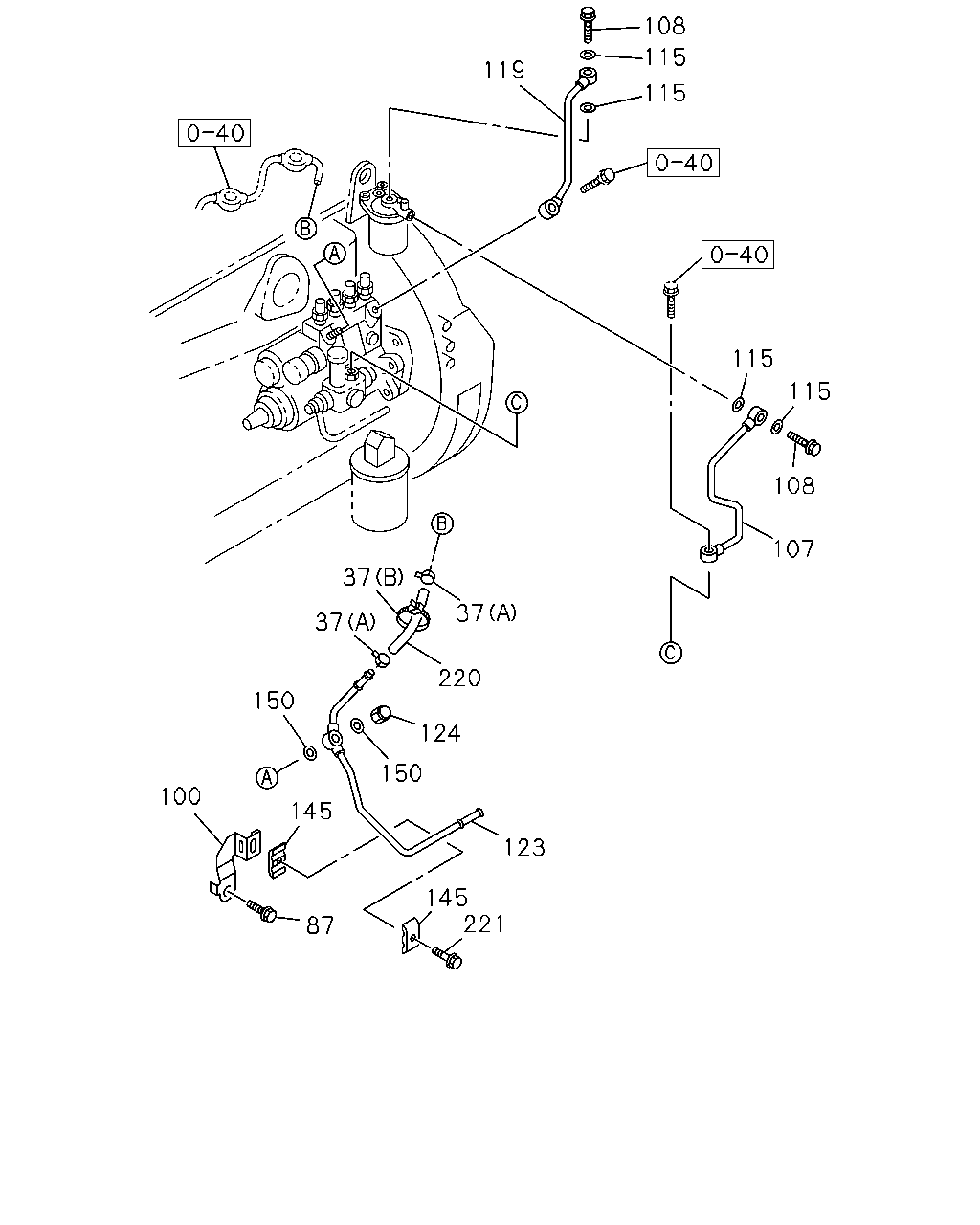

108 115 119 115 115 115 108 107 37 37 37 220 150 124 150 100 145 123 145 221 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	CLIP; FUEL HOSE (A) ID=12	8-94238-610-0	02	1	0009-	●	●
37	CLIP; FUEL HOSE (B) L=140	5-09707-031-1	01	1	0009-	●
87	BOLT; STAY,FUEL PIPE M8X12 FLANGE	0-28080-812-0	01	1	0009-	●	●
100	CLIP; "B",FUEL PIPE	8-97108-315-0	01	1	0009-	●	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-97210-721-1	01	1	0009-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-97148-967-3	01	1	0009-		●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	0009-0112	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	0201-	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0009-0112		●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=23.0	9-09572-014-0	04	1	0009-0112	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=23.0	9-09572-014-0	04	1	0201-	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=23.0	9-09572-014-0	02	1	0009-0112		●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=23.0	9-09572-014-0	04	1	0201-	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-97211-323-1	01	1	0009-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-97211-149-0	01	1	0009-0210		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-97357-237-0	01	1	0211-		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-97357-237-0	01	1	0211-		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-97223-179-0	01	1	0009-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-97148-970-2	01	1	0009-		●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	0009-	●
145	CLIP; FUEL PIPE ID=6.1 & 9.6	8-97016-323-0	02	1	0009-	●	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=23.0	9-09572-014-0	02	1	0009-	●	●
220	HOSE; FUEL	8-97208-874-0	01	1	0009-	●
220	HOSE; FUEL L=180 SERVICED BY L=3000	0-01256-300-0	01	1	0009-		●
221	BOLT; FUEL PIPE M6X40 FLANGE	0-28680-640-0	01	1	0009-	●	●
243	STUD; BRKT M6X14,M8X17 L=42	5-09309-006-1	01	1	0307-		●
243	STUD; BRKT M6X14,M8X17 L=42	5-09309-006-1	01	1	0307-		●
