◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50819 - NPR/NQR(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#43502) — 227 parça
çizim 48276
2 2 2 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 BOLT; INJ PUMP
(A) M10X70 FLANGE 		0-28181-070-0 01 1 0009- ● ●
2 BOLT; INJ PUMP
(B) M12X70 FLANGE 		0-28181-270-0 01 1 0009- ● ●
2 BOLT; INJ PUMP
(C) M12X90 FLANGE 		0-28181-290-0 01 1 0009- ●
2 BOLT; INJ PUMP
(D) M14X27 FLANGE 		1-09675-086-0 02 1 0009- ●
2 BOLT; INJ PUMP
(E) M14X30 		8-97203-957-0 01 1 0009- ●
2 BOLT; INJ PUMP
(F) M12X110 		0-28186-211-0 01 1 0009- ●
2 BOLT; INJ PUMP
(G) M14X27 FLANGE 		1-09675-086-0 01 1 0009- ●
45 ROD; PUSH,NOZZLE HOLDER 1-15341-008-0 04 1 0009- ●
45 ROD; PUSH,NOZZLE HOLDER 1-15341-008-0 04 1 0009- ●
47 SPACER; NOZZLE SPRING,NOZZLE HOLDER 8-97223-340-0 04 1 0009- ●
47 SPACER; NOZZLE SPRING,NOZZLE HOLDER 8-97223-340-0 04 1 0009- ●
138 SPRING; NOZZLE LWR,NOZZLE HOLDER 1-15343-004-0 04 1 0009- ●
138 SPRING; NOZZLE LWR,NOZZLE HOLDER 1-15343-004-0 04 1 0009- ●
272 NOZZLE KIT; INJ 8-97352-267-0 04 1 0009- ●
272 NOZZLE KIT; INJ 8-97352-267-0 04 1 0009- ●
364 VALVE; OVER FLOW,INJ PUMP 1-15619-321-0 01 1 0212- ●
364 VALVE; OVER FLOW,INJ PUMP 1-15619-321-0 01 1 0212- ●

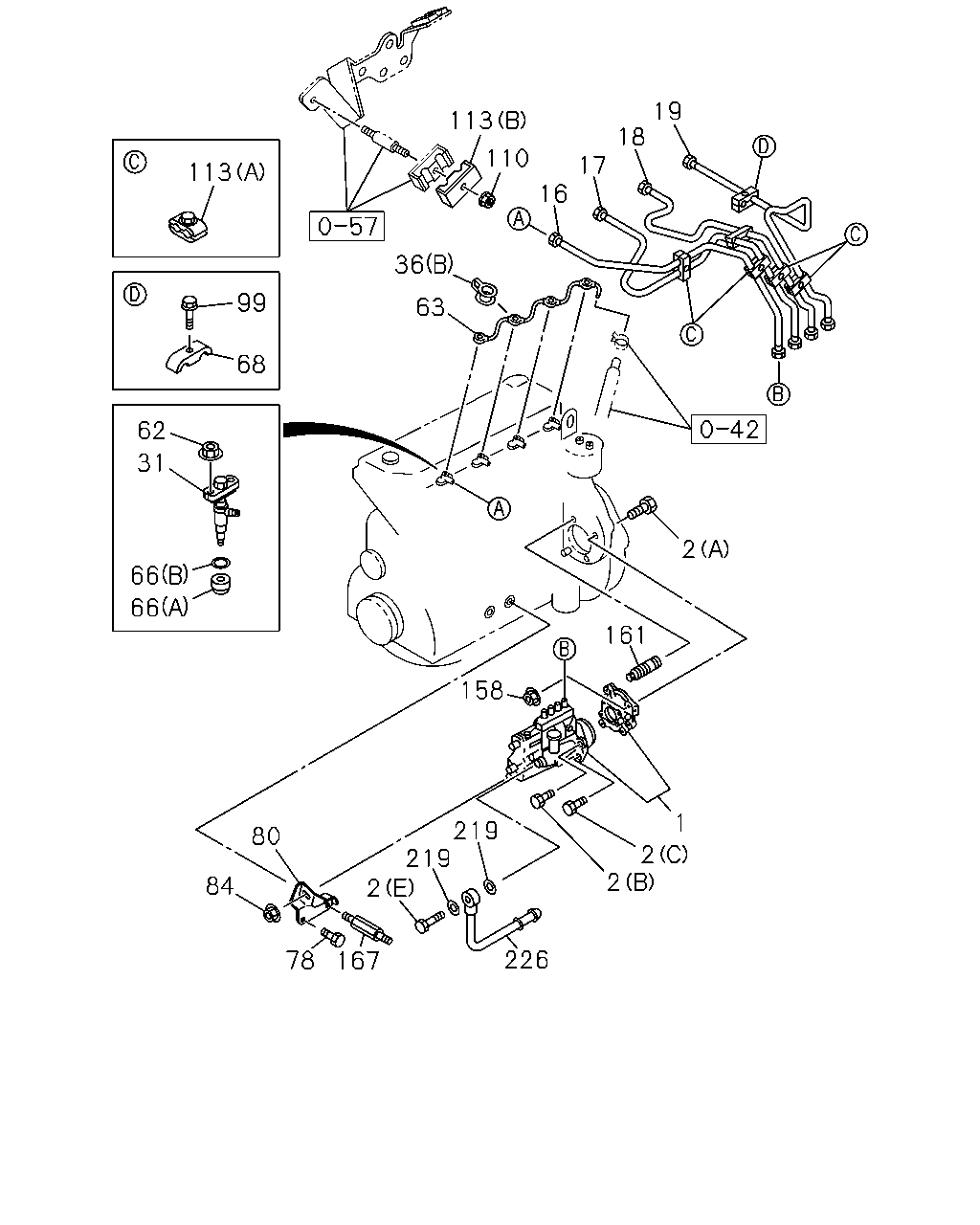

çizim 51826
19 18 113 110 17 113 16 36 99 63 68 62 31 2 66 66 161 158 1 219 219 2 80 2 2 84 226 78 167
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97178-485-5 01 1 0009- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97212-189-1 01 1 0009- ●
2 BOLT; INJ PUMP
(A) M10X70 FLANGE 		0-28181-070-0 01 1 0009- ● ●
2 BOLT; INJ PUMP
(B) M12X70 FLANGE 		0-28181-270-0 01 1 0009- ● ●
2 BOLT; INJ PUMP
(C) M12X90 FLANGE 		0-28181-290-0 01 1 0009- ●
2 BOLT; INJ PUMP
(D) M14X27 FLANGE 		1-09675-086-0 02 1 0009- ●
2 BOLT; INJ PUMP
(E) M14X30 		8-97203-957-0 01 1 0009- ●
2 BOLT; INJ PUMP
(F) M12X110 		0-28186-211-0 01 1 0009- ●
2 BOLT; INJ PUMP
(G) M14X27 FLANGE 		1-09675-086-0 01 1 0009- ●
16 PIPE; INJ NO.1 8-97209-493-1 01 1 0009- ●
16 PIPE; INJ NO.1 8-97148-963-4 01 1 0009- ●
17 PIPE; INJ NO.2 8-97209-494-1 01 1 0009- ●
17 PIPE; INJ NO.2 8-97148-964-3 01 1 0009- ●
18 PIPE; INJ NO.3 8-97209-495-1 01 1 0009- ●
18 PIPE; INJ NO.3 8-97148-965-4 01 1 0009- ●
19 PIPE; INJ NO.4 8-97209-496-1 01 1 0009- ●
19 PIPE; INJ NO.4 8-97148-966-3 01 1 0009- ●
31 NOZZLE ASM; INJ 8-97200-570-3 04 1 0009-0304 ●
31 NOZZLE ASM; INJ 8-97367-553-0 04 1 0305- ●
31 NOZZLE ASM; INJ 8-97148-960-1 04 1 0009- ●
31 NOZZLE ASM; INJ 8-97367-553-0 04 1 0305- ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.6 		8-94395-214-0 04 1 0009- ● ●
45 ROD; PUSH,NOZZLE HOLDER 1-15341-008-0 04 1 0009- ●
45 ROD; PUSH,NOZZLE HOLDER 1-15341-008-0 04 1 0009- ●
47 SPACER; NOZZLE SPRING,NOZZLE HOLDER 8-97223-340-0 04 1 0009- ●
47 SPACER; NOZZLE SPRING,NOZZLE HOLDER 8-97223-340-0 04 1 0009- ●
62 NUT; NOZZLE HOLDER
M8 FLANGE 		0-91150-108-0 08 1 0009- ● ●
63 PIPE; FUEL,NOZZLE LEAK OFF 8-97148-969-2 01 1 0009- ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) THA 		8-94326-439-0 04 1 0009- ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		8-97171-332-0 04 1 0009- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		8-97171-922-0 04 1 0009- ●
68 CLIP; INJ PIPE 1-09701-091-0 01 1 0009- ●
68 CLIP; INJ PIPE 8-97213-049-0 06 1 0009- ●
78 BOLT; BRKT TO C/BL
M10X20 FLANGE 		0-28781-020-0 01 1 0009- ● ●
80 BRACKET; PUMP 8-97136-677-0 01 1 0009- ●
80 BRACKET; PUMP 8-97148-958-1 01 1 0009- ●
84 NUT; BRKT TO BRKT
M10 FLANGE 		0-91150-210-0 01 1 0009- ●
84 NUT; BRKT TO BRKT
M12 FLANGE 		0-91150-212-0 01 1 0009- ●
99 BOLT; CLIP,INJ,PIPE
M6X25 FLANGE 		0-28080-625-0 01 1 0009-0009 ●
99 BOLT; CLIP,INJ,PIPE
M6X25 FLANGE 		0-28680-625-0 01 1 0009- ●
110 NUT; CLIP
M6 FLANGE 		0-91150-106-0 01 1 0009- ●
113 CLIP; INJ PIPE
(A) 		8-97213-050-0 04 1 0009- ●
113 CLIP; INJ PIPE
(B) 		8-97213-481-0 01 1 0009- ●
113 CLIP; INJ PIPE
(A) 		8-97213-050-0 05 1 0009- ●
138 SPRING; NOZZLE LWR,NOZZLE HOLDER 1-15343-004-0 04 1 0009- ●
138 SPRING; NOZZLE LWR,NOZZLE HOLDER 1-15343-004-0 04 1 0009- ●
158 NUT; INJ PUMP
M10 FLANGE 		0-91150-110-0 02 1 0009- ● ●
158 NUT; INJ PUMP
M12 FLANGE 		0-91250-112-0 01 1 0009- ●
161 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97066-386-1 02 1 0009-0212 ● ●
161 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0301- ● ●
161 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0301- ● ●
167 SPACER; GUIDE TUBE 8-97065-515-2 01 1 0009- ●
219 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 		1-09630-085-0 02 1 0009- ●
226 PIPE; FUEL 8-97203-567-0 01 1 0009- ●
272 NOZZLE KIT; INJ 8-97352-267-0 04 1 0009- ●
272 NOZZLE KIT; INJ 8-97352-267-0 04 1 0009- ●
364 VALVE; OVER FLOW,INJ PUMP 1-15619-321-0 01 1 0212- ●
364 VALVE; OVER FLOW,INJ PUMP 1-15619-321-0 01 1 0212- ●
çizim 51829
31 32 34 36 36 58 140 44 43 146 46 33 35
BalonParca AdiParca NoAdetTipApplied Date A B
31 NOZZLE ASM; INJ 8-97200-570-3 04 1 0009-0304 ●
31 NOZZLE ASM; INJ 8-97367-553-0 04 1 0305- ●
31 NOZZLE ASM; INJ 8-97148-960-1 04 1 0009- ●
31 NOZZLE ASM; INJ 8-97367-553-0 04 1 0305- ●
32 HOLDER ASM; NOZZLE 8-97078-783-1 04 1 0009-0304 ●
32 HOLDER ASM; NOZZLE 8-97352-048-0 04 1 0305- ●
32 HOLDER ASM; NOZZLE 8-97078-783-1 04 1 0009-0304 ●
32 HOLDER ASM; NOZZLE 8-97352-048-0 04 1 0305- ●
32 HOLDER ASM; NOZZLE 8-94311-966-2 04 1 0009- ●
33 NOZZLE; INJ 8-97148-961-1 04 1 0009- ●
34 BOLT; EYE,NOZZLE HOLDER
M8X18 EYE BOLT 		1-09675-037-1 04 1 0009- ●
34 BOLT; EYE,NOZZLE HOLDER
M8X18 EYE BOLT 		1-09675-037-1 04 1 0009- ●
34 BOLT; EYE,NOZZLE HOLDER 1-15339-009-0 04 1 0009- ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 1-15349-041-0 04 1 0009- ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 1-15349-041-0 04 1 0009- ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 8-94174-184-0 04 1 0009- ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.6 		8-94395-214-0 04 1 0009- ● ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER 8-97223-339-0 04 1 0009-0304 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER 8-97361-697-0 04 1 0305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER 8-97349-452-0 04 1 0009- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER 8-97223-339-0 04 1 0009-0304 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER 8-97361-697-0 04 1 0305- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER 8-97349-452-0 04 1 0009- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER 8-94329-555-0 04 1 0009- ●
44 SPRING; NOZZLE,NOZZLE HOLDER 1-15343-003-0 04 1 0009- ●
44 SPRING; NOZZLE,NOZZLE HOLDER 1-15343-003-0 04 1 0009- ●
44 SPRING; NOZZLE,NOZZLE HOLDER 8-94174-141-0 04 1 0009- ●
45 ROD; PUSH,NOZZLE HOLDER 1-15341-008-0 04 1 0009- ●
45 ROD; PUSH,NOZZLE HOLDER 1-15341-008-0 04 1 0009- ●
46 PIN; NOZZLE SET,NOZZLE HOLDER 8-94174-139-0 08 1 0009- ●
47 SPACER; NOZZLE SPRING,NOZZLE HOLDER 8-97223-340-0 04 1 0009- ●
47 SPACER; NOZZLE SPRING,NOZZLE HOLDER 8-97223-340-0 04 1 0009- ●
58 FLANGE; INJ,NOZZLE HOLDER 8-97065-713-0 04 1 0009- ● ●
138 SPRING; NOZZLE LWR,NOZZLE HOLDER 1-15343-004-0 04 1 0009- ●
138 SPRING; NOZZLE LWR,NOZZLE HOLDER 1-15343-004-0 04 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.20 		1-15349-004-0 04 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.40 		1-15349-042-0 AR 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.50 		1-15349-043-0 AR 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.52 		1-15349-044-0 AR 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.54 		1-15349-045-0 AR 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.56 		1-15349-046-0 AR 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.58 		1-15349-047-0 AR 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.60 		1-15349-048-0 AR 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.70 		1-15349-049-0 AR 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.10 		8-97116-029-0 AR 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.20 		8-97116-032-0 AR 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.30 		8-97116-033-0 AR 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.40 		8-97116-034-0 AR 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.50 		8-97116-035-0 AR 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.51 		8-97116-036-0 AR 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.52 		8-97116-037-0 AR 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.53 		8-97116-038-0 AR 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.54 		8-97116-039-0 AR 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.55 		8-97116-040-0 AR 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.56 		8-97116-041-0 AR 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.57 		8-97116-042-0 AR 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.58 		8-97116-043-0 AR 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.59 		8-97116-044-0 AR 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.20 		1-15349-004-0 04 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.40 		1-15349-042-0 AR 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.50 		1-15349-043-0 AR 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.52 		1-15349-044-0 AR 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.54 		1-15349-045-0 AR 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.56 		1-15349-046-0 AR 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.58 		1-15349-047-0 AR 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.60 		1-15349-048-0 AR 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.70 		1-15349-049-0 AR 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.10 		8-97116-029-0 AR 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.20 		8-97116-032-0 AR 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.30 		8-97116-033-0 AR 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.40 		8-97116-034-0 AR 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.50 		8-97116-035-0 AR 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.51 		8-97116-036-0 AR 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.52 		8-97116-037-0 AR 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.53 		8-97116-038-0 AR 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.54 		8-97116-039-0 AR 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.55 		8-97116-040-0 AR 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.56 		8-97116-041-0 AR 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.57 		8-97116-042-0 AR 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.58 		8-97116-043-0 AR 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.59 		8-97116-044-0 AR 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.10 THA 		8-97027-432-0 AR 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.20 THA 		8-97027-433-0 AR 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.30 THA 		8-97027-434-0 AR 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.40 THA 		8-97027-435-0 AR 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.50 THA 		8-97027-436-0 AR 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.52 THA 		8-97027-437-0 AR 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.54 THA 		8-97027-438-0 AR 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.56 THA 		8-97027-439-0 AR 1 0009- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.58 THA 		8-97027-440-0 AR 1 0009- ●
146 SPACER; NOZZLE 8-94344-439-0 04 1 0009- ●
272 NOZZLE KIT; INJ 8-97352-267-0 04 1 0009- ●
272 NOZZLE KIT; INJ 8-97352-267-0 04 1 0009- ●
364 VALVE; OVER FLOW,INJ PUMP 1-15619-321-0 01 1 0212- ●
364 VALVE; OVER FLOW,INJ PUMP 1-15619-321-0 01 1 0212- ●

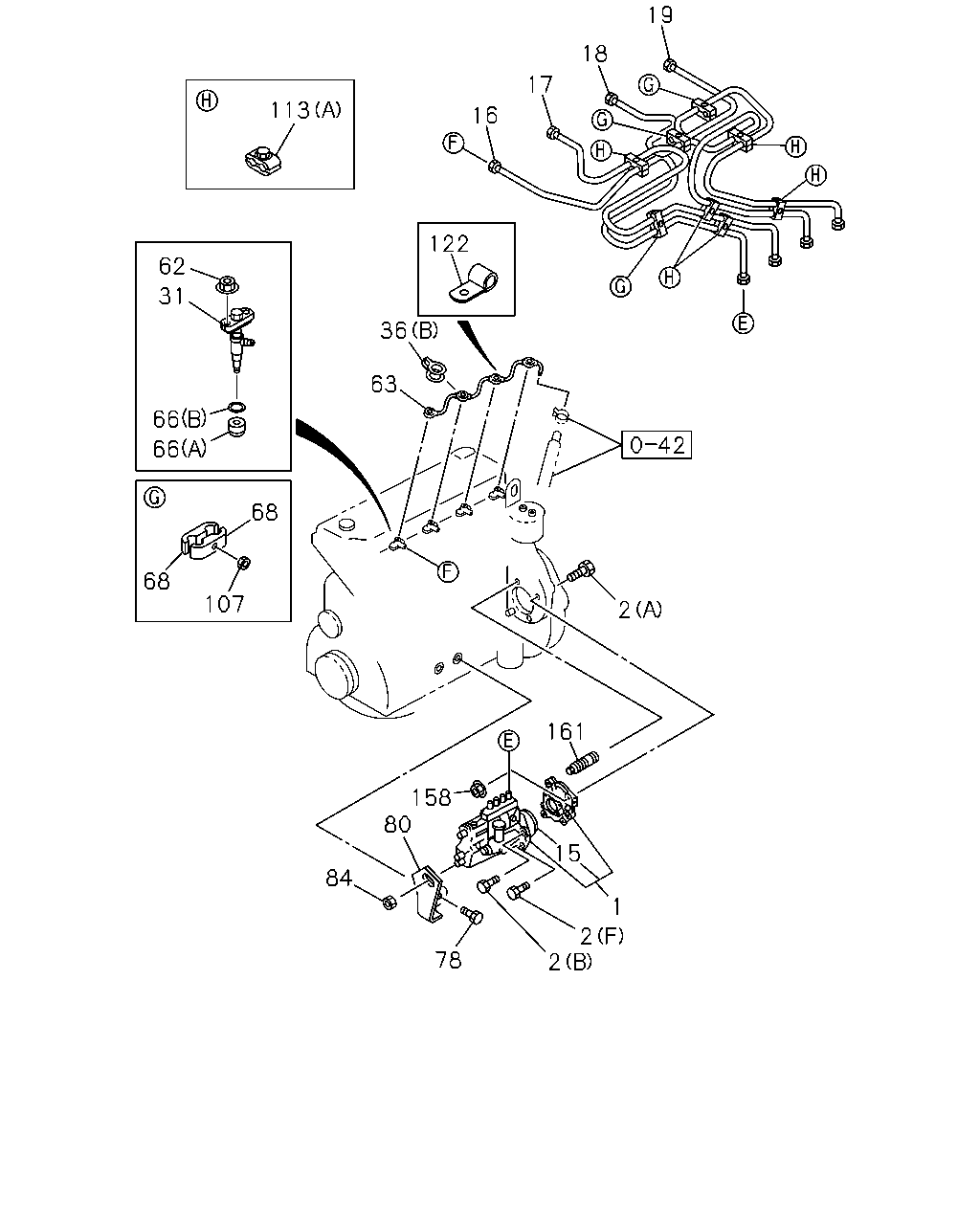

çizim 52025
19 18 17 113 16 122 62 31 36 63 66 66 68 68 107 2 161 158 80 15 84 1 2 2 78
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97178-485-5 01 1 0009- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97212-189-1 01 1 0009- ●
2 BOLT; INJ PUMP
(A) M10X70 FLANGE 		0-28181-070-0 01 1 0009- ● ●
2 BOLT; INJ PUMP
(B) M12X70 FLANGE 		0-28181-270-0 01 1 0009- ● ●
2 BOLT; INJ PUMP
(C) M12X90 FLANGE 		0-28181-290-0 01 1 0009- ●
2 BOLT; INJ PUMP
(D) M14X27 FLANGE 		1-09675-086-0 02 1 0009- ●
2 BOLT; INJ PUMP
(E) M14X30 		8-97203-957-0 01 1 0009- ●
2 BOLT; INJ PUMP
(F) M12X110 		0-28186-211-0 01 1 0009- ●
2 BOLT; INJ PUMP
(G) M14X27 FLANGE 		1-09675-086-0 01 1 0009- ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-97219-000-0 01 1 0009-0211 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-97367-625-0 01 1 0212- ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-97367-625-0 01 1 0212- ●
16 PIPE; INJ NO.1 8-97209-493-1 01 1 0009- ●
16 PIPE; INJ NO.1 8-97148-963-4 01 1 0009- ●
17 PIPE; INJ NO.2 8-97209-494-1 01 1 0009- ●
17 PIPE; INJ NO.2 8-97148-964-3 01 1 0009- ●
18 PIPE; INJ NO.3 8-97209-495-1 01 1 0009- ●
18 PIPE; INJ NO.3 8-97148-965-4 01 1 0009- ●
19 PIPE; INJ NO.4 8-97209-496-1 01 1 0009- ●
19 PIPE; INJ NO.4 8-97148-966-3 01 1 0009- ●
31 NOZZLE ASM; INJ 8-97200-570-3 04 1 0009-0304 ●
31 NOZZLE ASM; INJ 8-97367-553-0 04 1 0305- ●
31 NOZZLE ASM; INJ 8-97148-960-1 04 1 0009- ●
31 NOZZLE ASM; INJ 8-97367-553-0 04 1 0305- ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.6 		8-94395-214-0 04 1 0009- ● ●
45 ROD; PUSH,NOZZLE HOLDER 1-15341-008-0 04 1 0009- ●
45 ROD; PUSH,NOZZLE HOLDER 1-15341-008-0 04 1 0009- ●
47 SPACER; NOZZLE SPRING,NOZZLE HOLDER 8-97223-340-0 04 1 0009- ●
47 SPACER; NOZZLE SPRING,NOZZLE HOLDER 8-97223-340-0 04 1 0009- ●
62 NUT; NOZZLE HOLDER
M8 FLANGE 		0-91150-108-0 08 1 0009- ● ●
63 PIPE; FUEL,NOZZLE LEAK OFF 8-97148-969-2 01 1 0009- ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) THA 		8-94326-439-0 04 1 0009- ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		8-97171-332-0 04 1 0009- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		8-97171-922-0 04 1 0009- ●
68 CLIP; INJ PIPE 1-09701-091-0 01 1 0009- ●
68 CLIP; INJ PIPE 8-97213-049-0 06 1 0009- ●
78 BOLT; BRKT TO C/BL
M10X20 FLANGE 		0-28781-020-0 01 1 0009- ● ●
80 BRACKET; PUMP 8-97136-677-0 01 1 0009- ●
80 BRACKET; PUMP 8-97148-958-1 01 1 0009- ●
84 NUT; BRKT TO BRKT
M10 FLANGE 		0-91150-210-0 01 1 0009- ●
84 NUT; BRKT TO BRKT
M12 FLANGE 		0-91150-212-0 01 1 0009- ●
107 NUT; INJ PIPE CLIP
M5 FLANGE 		8-94178-699-0 03 1 0009- ●
113 CLIP; INJ PIPE
(A) 		8-97213-050-0 04 1 0009- ●
113 CLIP; INJ PIPE
(B) 		8-97213-481-0 01 1 0009- ●
113 CLIP; INJ PIPE
(A) 		8-97213-050-0 05 1 0009- ●
122 CLIP; LEAK OFF PIPE 9-09524-662-0 01 1 0009- ●
138 SPRING; NOZZLE LWR,NOZZLE HOLDER 1-15343-004-0 04 1 0009- ●
138 SPRING; NOZZLE LWR,NOZZLE HOLDER 1-15343-004-0 04 1 0009- ●
158 NUT; INJ PUMP
M10 FLANGE 		0-91150-110-0 02 1 0009- ● ●
158 NUT; INJ PUMP
M12 FLANGE 		0-91250-112-0 01 1 0009- ●
161 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97066-386-1 02 1 0009-0212 ● ●
161 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0301- ● ●
161 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0301- ● ●
272 NOZZLE KIT; INJ 8-97352-267-0 04 1 0009- ●
272 NOZZLE KIT; INJ 8-97352-267-0 04 1 0009- ●
364 VALVE; OVER FLOW,INJ PUMP 1-15619-321-0 01 1 0212- ●
364 VALVE; OVER FLOW,INJ PUMP 1-15619-321-0 01 1 0212- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
