0-37 — TURBOCHARGER (#43501) — 15 parça

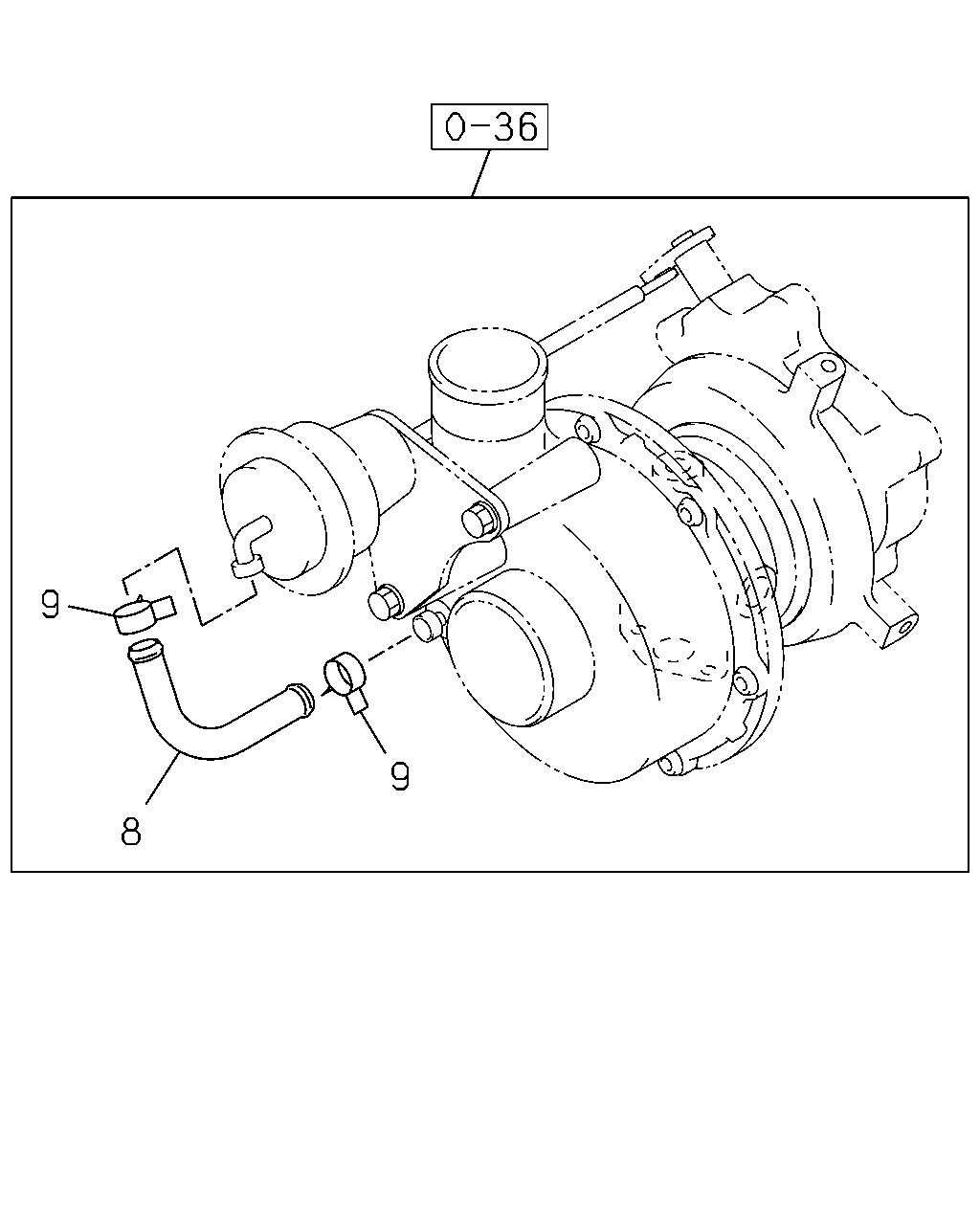

9 9 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	HOSE; ACTUATOR TO BLOWER HSG,TC ASM PART: A = 8-97208-352-0, C = 8-97326-752-0	8-97213-591-0	01	1	-
8	HOSE; ACTUATOR TO BLOWER HSG,TC ASM PART: B = 8-97208-966-3	8-97215-553-0	01	1	-
9	CLIP; ACTUATOR HOSE,TURBOCHARGER ASM PART: A = 8-97208-352-0, B = 8-97208-966-3, C = 8-97326-752-0	8-97182-742-0	02	1	-
11	HOUSING ASM; TURBOCHARGER ASM PART: A = 8-97208-352-0	8-97213-584-0	01	1	-
11	HOUSING ASM; TURBOCHARGER ASM PART: C = 8-97326-752-0	8-97326-280-0	01	1	-

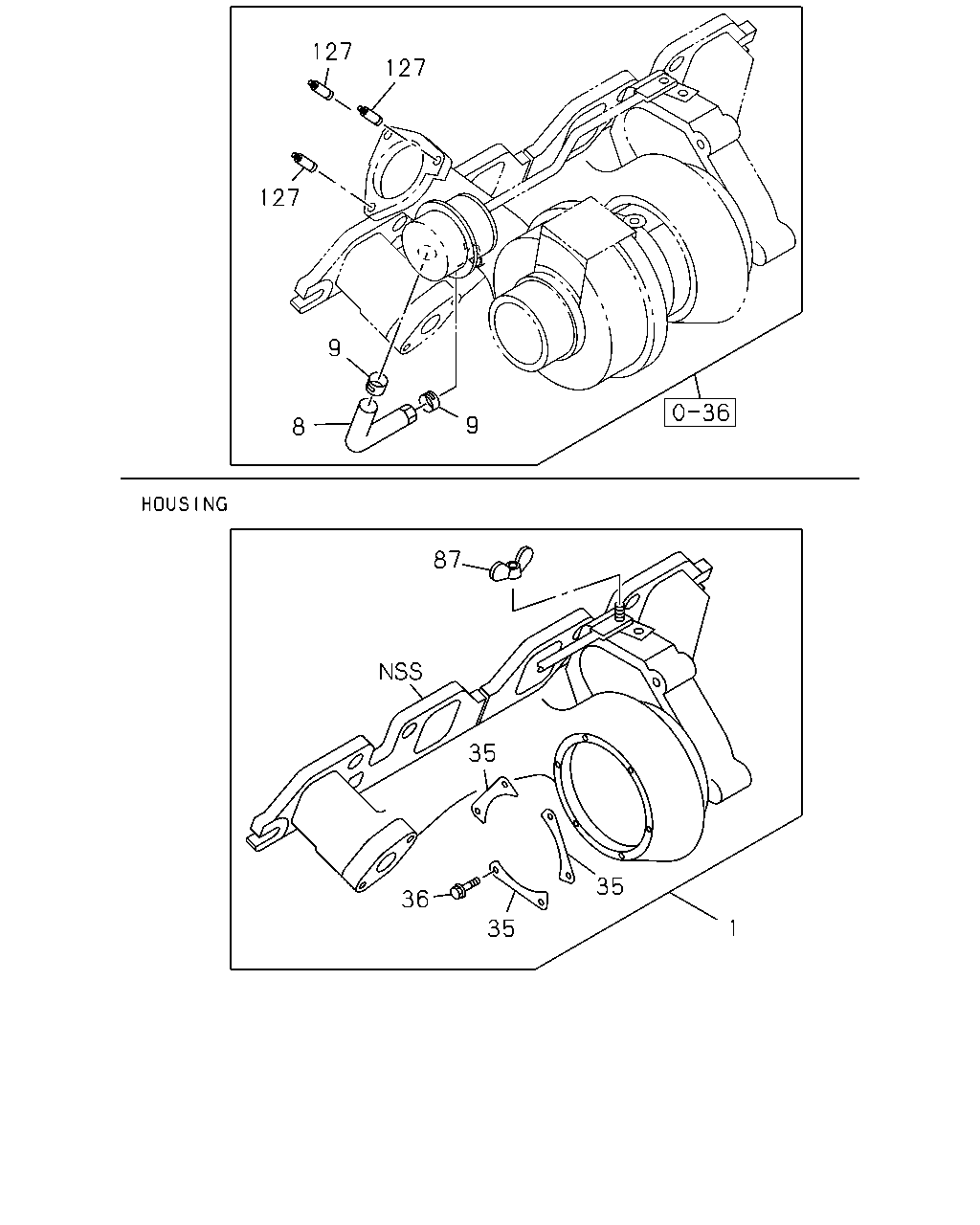

127 127 127 9 9 8 87 35 35 36 35 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: A = 8-97208-352-0, C = 8-97326-752-0	8-97223-905-0	01	1	-
8	HOSE; ACTUATOR TO BLOWER HSG,TC ASM PART: A = 8-97208-352-0, C = 8-97326-752-0	8-97213-591-0	01	1	-
8	HOSE; ACTUATOR TO BLOWER HSG,TC ASM PART: B = 8-97208-966-3	8-97215-553-0	01	1	-
9	CLIP; ACTUATOR HOSE,TURBOCHARGER ASM PART: A = 8-97208-352-0, B = 8-97208-966-3, C = 8-97326-752-0	8-97182-742-0	02	1	-
11	HOUSING ASM; TURBOCHARGER ASM PART: A = 8-97208-352-0	8-97213-584-0	01	1	-
11	HOUSING ASM; TURBOCHARGER ASM PART: C = 8-97326-752-0	8-97326-280-0	01	1	-
35	CLAMP; TURBINE HSG,TURBOCHARGER ASM PART: A = 8-97208-352-0, C = 8-97326-752-0	8-97213-590-0	02	1	-
36	BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE ASM PART: A = 8-97208-352-0, C = 8-97326-752-0	8-97213-579-0	04	1	-
87	RING; ACTUATOR,TURBOCHARGER ASM PART: A = 8-97208-352-0, C = 8-97326-752-0	8-97213-588-0	01	1	-
127	STUD; TURBOCHARGER ASM PART: A = 8-97208-352-0, C = 8-97326-752-0	8-97213-578-0	03	1	-
