0-36 — TURBOCHARGER SYSTEM (#43500) — 117 parça

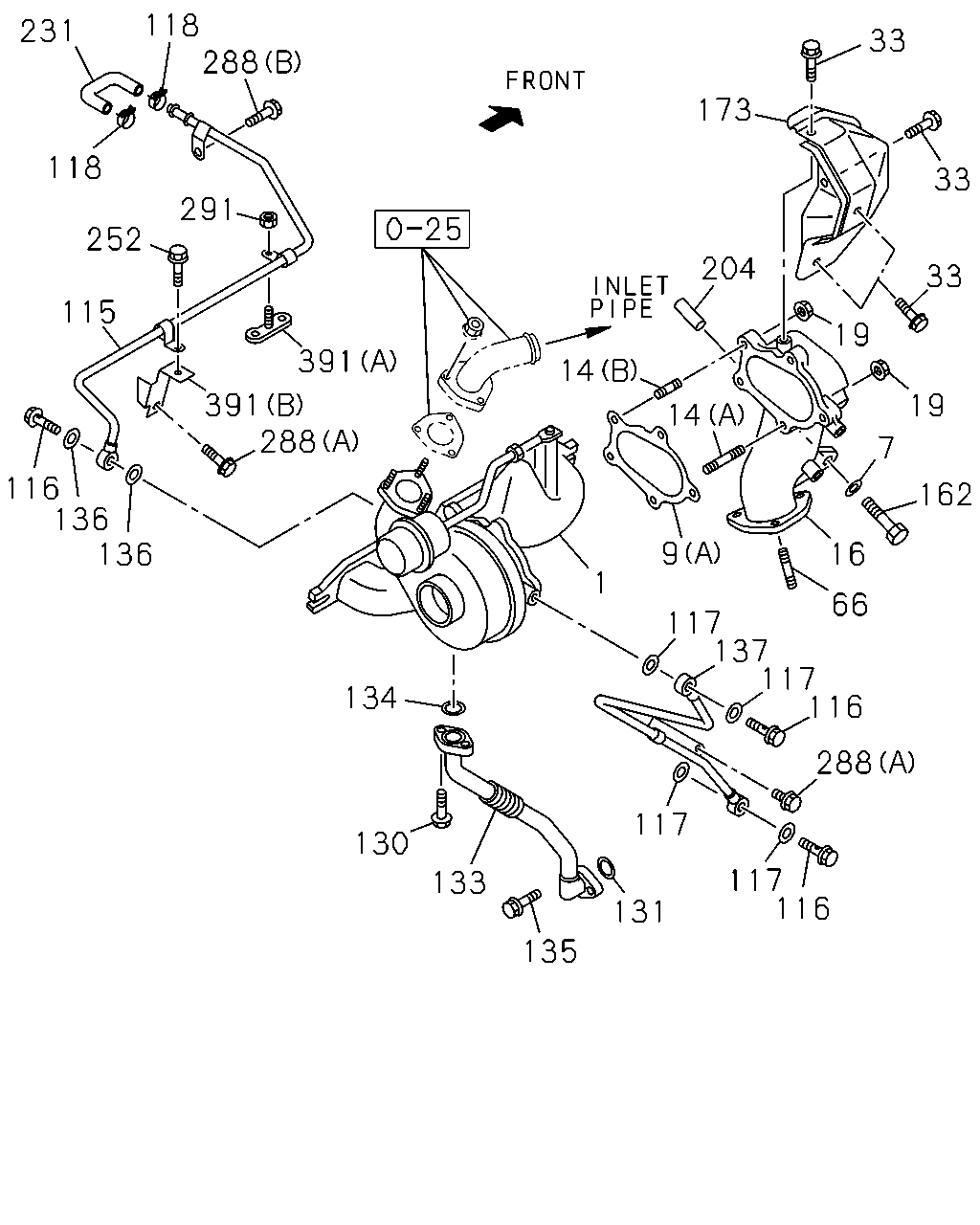

118 288 231 33 173 118 33 291 252 204 33 115 19 391 14 391 288 19 14 7 116 136 136 162 9 16 1 66 117 137 117 116 134 288 117 130 117 116 133 131 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97208-352-0	01	1	0009-0111	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97326-752-0	01	1	0112-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97208-966-3	01	1	0009-		●
7	WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0009-	●	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97039-777-1	01	1	0009-	●	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97063-602-0	01	1	0009-0307		●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97326-466-0	01	1	0308-		●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97326-466-0	01	1	0308-		●
14	STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0009-	●	●
14	STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0009-	●	●
16	ADAPTER; EXH PIPE	8-97178-488-1	01	1	0009-	●
16	ADAPTER; EXH PIPE	8-97039-749-1	01	1	0009-		●
19	NUT; EXH PIPE,TURBOCHARGER M8 FLANGE	8-94170-486-0	05	1	0009-	●	●
33	BOLT; HEAT PROTECTOR M6X12 FLANGE	8-97108-669-0	04	1	0009-	●
33	BOLT; HEAT PROTECTOR M6X12 FLANGE	8-97108-669-0	06	1	0009-		●
66	STUD; EXH PIPE M10X25 L=40	9-04411-025-0	03	1	0009-	●	●
115	PIPE; WATER,TURBOCHARGER OUT	8-97210-077-2	01	1	0009-	●
115	PIPE; WATER,TURBOCHARGER OUT	8-97229-039-0	01	1	0009-		●
116	BOLT; WATER PIPE M14X30 EYE-BOLT	8-94455-144-0	03	1	0009-	●	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	04	1	0009-	●	●
118	CLIP; WATER HOSE ID=15.5 THA	8-94221-519-0	02	1	0009-	●	●
130	BOLT; OIL PIPE TO TURBOCHARGER DRAIN M6X20 W/LK WASHER	0-50040-620-0	02	1	0009-	●	●
131	GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	9-09565-228-0	01	1	0009-0211	●	●
131	GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	9-09566-228-0	01	1	0212-	●	●
131	GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	9-09566-228-0	01	1	0212-	●	●
133	PIPE; OIL DRAIN,TURBOCHARGER	8-97178-508-1	01	1	0009-	●
133	PIPE; OIL DRAIN,TURBOCHARGER	8-97148-925-1	01	1	0009-		●
134	GASKET; OIL PIPE,TURBOCHARGER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0009-	●	●
135	BOLT; OIL PIPE TO C/BL M8X20 FLANGE	0-28080-820-0	02	1	0009-	●	●
136	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	02	1	0009-	●	●
137	PIPE; WATER,TURBOCHARGER IN	8-97229-036-0	01	1	0009-	●
137	PIPE; WATER,TURBOCHARGER IN	8-97148-945-3	01	1	0009-0308		●
137	PIPE; WATER,TURBOCHARGER IN	8-97357-769-0	01	1	0309-		●
137	PIPE; WATER,TURBOCHARGER IN	8-97357-769-0	01	1	0309-		●
162	BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0009-	●	●
173	PROTECTOR; HEAT,FUEL PIPE	8-97178-497-2	01	1	0009-	●
173	PROTECTOR; HEAT,FUEL PIPE	8-97250-282-0	01	1	0009-0205		●
173	PROTECTOR; HEAT,FUEL PIPE	8-97351-167-0	01	1	0206-		●
173	PROTECTOR; HEAT,FUEL PIPE	8-97351-167-0	01	1	0206-		●
204	COLLAR; PIPE ADAPTER	8-97214-384-0	01	1	0009-	●	●
231	HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0009-	●	●
252	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	01	1	0009-	●
252	BOLT; BRKT M12X19	8-97079-809-0	01	1	0009-		●
288	BOLT; WATER PIPE CLIP (A) M8X12 FLANGE	0-28080-812-0	03	1	0009-	●	●
288	BOLT; WATER PIPE CLIP (B) M10X16 FLANGE	0-28181-016-0	01	1	0009-	●
291	NUT; PIPE TO BRKT M8 FLANGE	0-91150-108-0	01	1	0009-	●
391	BRACKET; WATER PIPE (A)	8-97210-078-0	01	1	0009-	●
391	BRACKET; WATER PIPE (B)	8-97221-061-0	01	1	0009-	●
391	BRACKET; WATER PIPE	8-97068-554-0	01	1	0009-		●

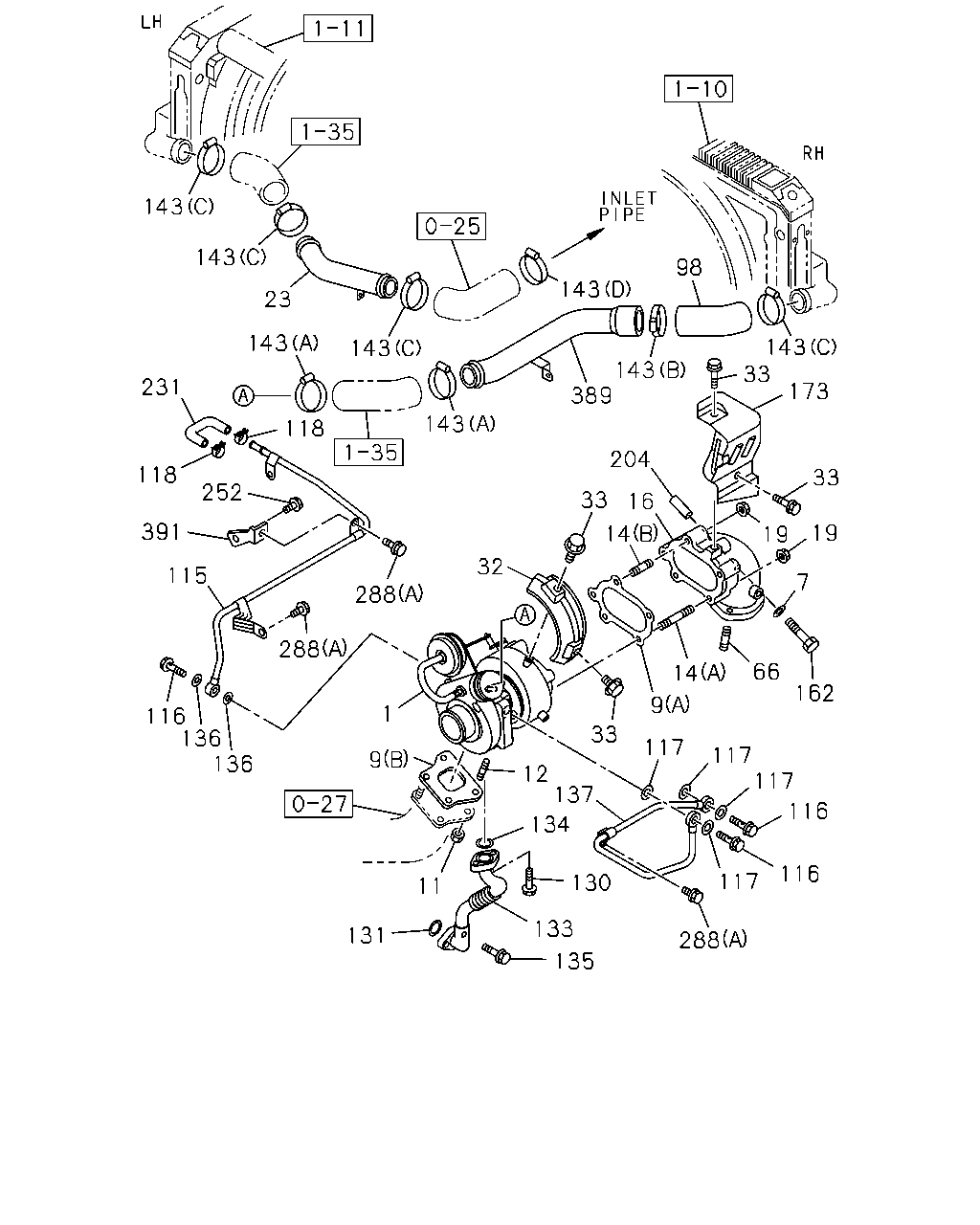

143 143 98 143 23 143 143 33 143 143 389 231 173 143 118 204 118 33 252 33 16 391 19 14 19 32 115 7 288 288 66 14 162 9 1 116 136 136 33 117 117 117 9 12 137 116 134 116 117 130 11 133 131 288 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97208-352-0	01	1	0009-0111	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97326-752-0	01	1	0112-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97208-966-3	01	1	0009-		●
7	WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0009-	●	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97039-777-1	01	1	0009-	●	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97063-602-0	01	1	0009-0307		●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97326-466-0	01	1	0308-		●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97326-466-0	01	1	0308-		●
11	NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	0009-		●
12	STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	0009-		●
14	STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0009-	●	●
14	STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0009-	●	●
16	ADAPTER; EXH PIPE	8-97178-488-1	01	1	0009-	●
16	ADAPTER; EXH PIPE	8-97039-749-1	01	1	0009-		●
19	NUT; EXH PIPE,TURBOCHARGER M8 FLANGE	8-94170-486-0	05	1	0009-	●	●
23	PIPE; INTAKE,TURBOCHARGER CHARGE AIR COOLER<6PL>	8-97189-601-1	01	1	0009-		●
32	PROTECTOR; HEAT,TURBOCHARGER	8-97064-417-1	01	1	0009-0205		●
32	PROTECTOR; HEAT,TURBOCHARGER	8-97351-168-0	01	1	0206-		●
32	PROTECTOR; HEAT,TURBOCHARGER	8-97351-168-0	01	1	0206-		●
33	BOLT; HEAT PROTECTOR M6X12 FLANGE	8-97108-669-0	04	1	0009-	●
33	BOLT; HEAT PROTECTOR M6X12 FLANGE	8-97108-669-0	06	1	0009-		●
66	STUD; EXH PIPE M10X25 L=40	9-04411-025-0	03	1	0009-	●	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL>	8-97221-536-1	01	1	0009-		●
115	PIPE; WATER,TURBOCHARGER OUT	8-97210-077-2	01	1	0009-	●
115	PIPE; WATER,TURBOCHARGER OUT	8-97229-039-0	01	1	0009-		●
116	BOLT; WATER PIPE M14X30 EYE-BOLT	8-94455-144-0	03	1	0009-	●	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	04	1	0009-	●	●
118	CLIP; WATER HOSE ID=15.5 THA	8-94221-519-0	02	1	0009-	●	●
130	BOLT; OIL PIPE TO TURBOCHARGER DRAIN M6X20 W/LK WASHER	0-50040-620-0	02	1	0009-	●	●
131	GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	9-09565-228-0	01	1	0009-0211	●	●
131	GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	9-09566-228-0	01	1	0212-	●	●
131	GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	9-09566-228-0	01	1	0212-	●	●
133	PIPE; OIL DRAIN,TURBOCHARGER	8-97178-508-1	01	1	0009-	●
133	PIPE; OIL DRAIN,TURBOCHARGER	8-97148-925-1	01	1	0009-		●
134	GASKET; OIL PIPE,TURBOCHARGER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0009-	●	●
135	BOLT; OIL PIPE TO C/BL M8X20 FLANGE	0-28080-820-0	02	1	0009-	●	●
136	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	02	1	0009-	●	●
137	PIPE; WATER,TURBOCHARGER IN	8-97229-036-0	01	1	0009-	●
137	PIPE; WATER,TURBOCHARGER IN	8-97148-945-3	01	1	0009-0308		●
137	PIPE; WATER,TURBOCHARGER IN	8-97357-769-0	01	1	0309-		●
137	PIPE; WATER,TURBOCHARGER IN	8-97357-769-0	01	1	0309-		●
143	CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (A) ID=50-69	1-09707-135-0	02	1	0009-0303		●
143	CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> ID=77-95	1-09707-114-0	01	1	0304-0307		●
143	CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> ID=77-95	1-09707-198-0	01	1	0308-		●
143	CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (B) ID=58-79	1-09707-136-0	01	1	0009-0303		●
143	CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> ID=58-79 THA	8-94126-771-0	01	1	0304-0307		●
143	CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> ID=58-76 THA	1-09707-203-0	01	1	0308-		●
143	CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (C) ID=68-89	1-09707-137-0	04	1	0009-0303		●
143	CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> ID=68-85 THA	8-94320-428-0	04	1	0304-0307		●
143	CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> ID=68-85	1-09707-202-0	04	1	0308-		●
143	CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (D) ID=77-99	1-09707-141-0	01	1	0009-0303		●
143	CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> ID=50-69 THA	8-94316-991-0	02	1	0304-0307		●
143	CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> ID=50-65 THA	1-09707-204-0	02	1	0308-		●
162	BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0009-	●	●
173	PROTECTOR; HEAT,FUEL PIPE	8-97178-497-2	01	1	0009-	●
173	PROTECTOR; HEAT,FUEL PIPE	8-97250-282-0	01	1	0009-0205		●
173	PROTECTOR; HEAT,FUEL PIPE	8-97351-167-0	01	1	0206-		●
173	PROTECTOR; HEAT,FUEL PIPE	8-97351-167-0	01	1	0206-		●
204	COLLAR; PIPE ADAPTER	8-97214-384-0	01	1	0009-	●	●
231	HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0009-	●	●
252	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	01	1	0009-	●
252	BOLT; BRKT M12X19	8-97079-809-0	01	1	0009-		●
288	BOLT; WATER PIPE CLIP (A) M8X12 FLANGE	0-28080-812-0	03	1	0009-	●	●
288	BOLT; WATER PIPE CLIP (B) M10X16 FLANGE	0-28181-016-0	01	1	0009-	●
389	PIPE; INL,TURBOCHARGER TO CAC CHARGE AIR COOLER<6PL>	8-97204-013-1	01	1	0009-		●
391	BRACKET; WATER PIPE (A)	8-97210-078-0	01	1	0009-	●
391	BRACKET; WATER PIPE (B)	8-97221-061-0	01	1	0009-	●
391	BRACKET; WATER PIPE	8-97068-554-0	01	1	0009-		●
