0-31 — THERMOSTAT AND HOUSING (#4350) — 186 parça

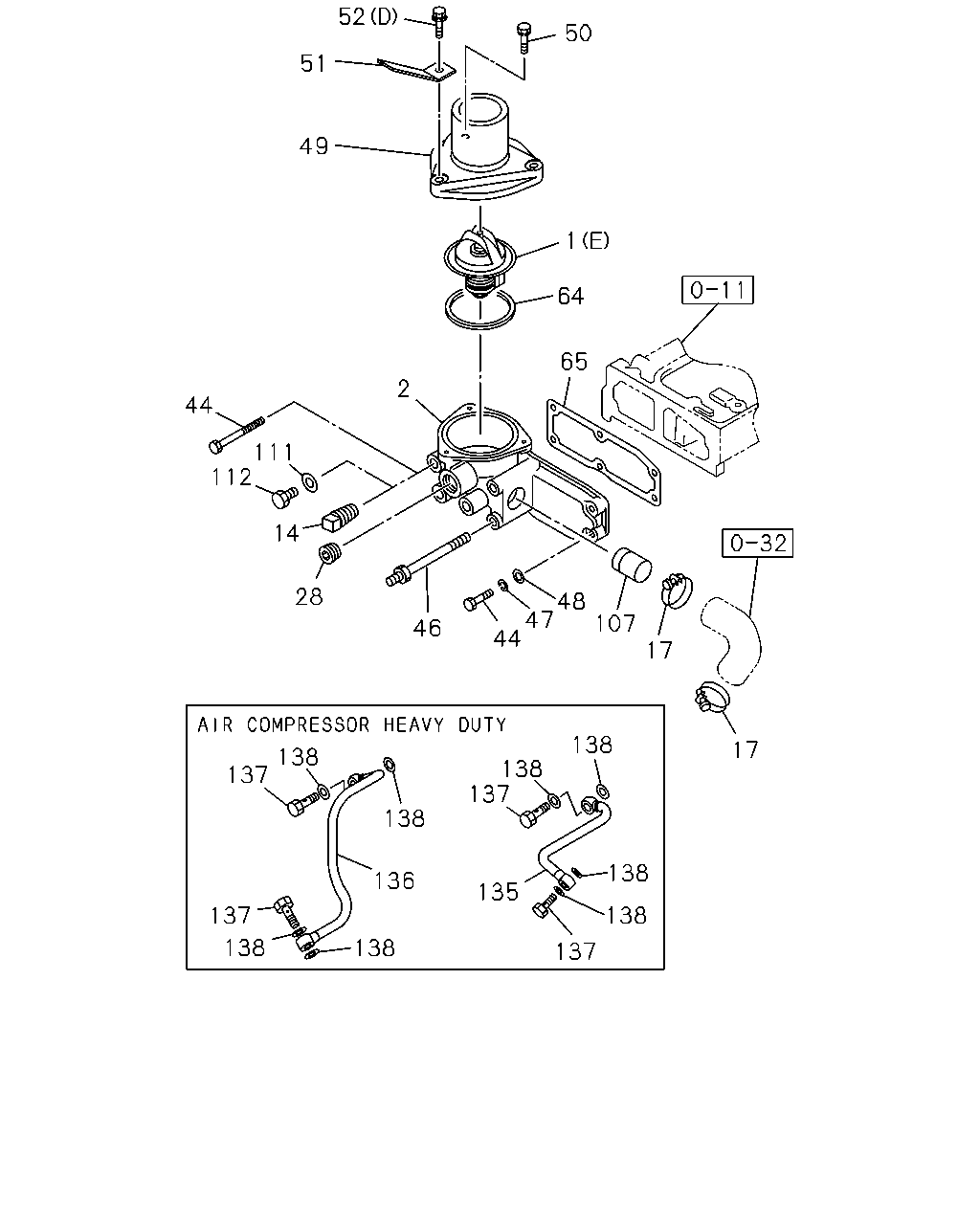

çizim 5453
52 50 51 49 1 64 65 2 44 111 112 14 28 48 47 44 107 46 17 138 17 138 138 137 137 138 138 136 135 138 137 138 138 137
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 THERMOSTAT
FLYWHEEL HSG SAE #2<E4C> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (E) 76.5C(OPEN) 		1-13770-074-0 01 1 9401-9504 ●
1 THERMOSTAT
(E) 82C(OPEN) 		1-13770-070-0 01 1 9101-9108 ● ● ●
1 THERMOSTAT
(E) 82C(OPEN) 		1-13770-073-0 01 1 9109-9312 ● ● ●
1 THERMOSTAT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. FLYWHEEL HSG SAE #2<E4C>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (E) 82C(OPEN) 		1-13770-073-0 01 1 9401-9504 ●
1 THERMOSTAT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (E) 82C(OPEN) 		1-13770-073-0 01 1 9401-9504 ●
1 THERMOSTAT
(E) 82C(OPEN) 		1-13770-073-0 01 1 9401-9504 ● ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-94397-310-0 01 1 9505-9702 ●
1 THERMOSTAT
EXC. THERMOSTAT DELETE<E6B> (A) 82 CELSIUS 		8-94397-310-0 01 1 9703-9709 ● ●
1 THERMOSTAT
EXC. THERMOSTAT DELETE<E6B> (A) 82 CELSIUS 		8-94397-310-0 01 1 9710-0105 ● ● ●
1 THERMOSTAT
EXC. THERMOSTAT DELETE<E6B> (C) 82 CELSIUS 		8-97602-048-1 01 1 0106-0203 ● ● ●
1 THERMOSTAT
(C) 82 CELSIUS 		8-97602-048-3 01 1 0204- ● ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94397-311-0 01 1 9505-9702 ●
1 THERMOSTAT
EXC. THERMOSTAT DELETE<E6B> (B) 82 CELSIUS 		8-94397-311-0 01 1 9703-9709 ● ●
1 THERMOSTAT
EXC. THERMOSTAT DELETE<E6B> (B) 82 CELSIUS 		8-94397-311-0 01 1 9710-9807 ● ● ●
1 THERMOSTAT
EXC. THERMOSTAT DELETE<E6B> (B) 82 CELSIUS 		8-94392-817-0 01 1 9808-0105 ● ● ●
1 THERMOSTAT
EXC. THERMOSTAT DELETE<E6B> (D) 82 CELSIUS 		8-97602-037-0 01 1 0106-0112 ● ● ●
1 THERMOSTAT
EXC. THERMOSTAT DELETE<E6B> (D) 82 CELSIUS 		8-97602-393-0 01 1 0201-0203 ● ● ●
1 THERMOSTAT
(D) 82 CELSIUS 		8-97602-393-1 01 1 0204-1501 ● ● ●
1 THERMOSTAT
(D) 82 CELSIUS 		8-98295-921-0 01 1 1502- ● ● ●
2 HOUSING; THERMOSTAT 1-13716-125-2 01 1 9101-9108 ● ● ●
2 HOUSING; THERMOSTAT 1-13716-131-2 01 1 9109-9504 ● ● ●
14 PLUG; SW
PT3/8 		9-09204-517-0 01 1 9101-9504 ● ● ●
14 PLUG; SW
PT3/8 		8-94397-338-0 01 1 9505-9702 ●
14 PLUG; SW
PT1/4 		1-09605-019-0 01 1 9703-9709 ●
14 PLUG; SW
PT1/4 		1-09605-019-0 01 1 9710-1008 ● ●
14 PLUG; SW
PT3/8 		8-94397-338-0 01 1 9703-9709 ● ●
14 PLUG; SW
PT3/8 		8-94397-338-0 01 1 9710- ● ● ●
17 CLIP; WATER HOSE
ID=40 		5-09704-046-0 02 1 9101-9504 ● ● ●
28 PLUG; HTR
PT3/4 		9-09664-005-0 01 1 9101-9504 ● ● ●
28 PLUG; HTR
PT3/4 		1-09605-020-0 01 1 9505-0005 ●
44 BOLT; HSG TO HD
M10X95 		0-10806-095-0 02 1 9101-9504 ● ● ●
44 BOLT; HSG TO HD
M10X35 W/LK&PL WASHER 		0-50141-035-0 03 1 9101-9504 ● ● ●
46 STUD; HSG 1-09300-046-0 01 1 9101-9504 ● ● ●
47 WASHER; LK,THERMOSTAT HSG
ID=10.2 		9-09150-510-0 03 1 9101-9504 ● ● ●
48 WASHER; PL,THERMOSTAT HSG
ID=10.5 OD=18 		9-09160-510-0 03 1 9101-9504 ● ● ●
49 PIPE; WATER OUTLET 1-13713-037-0 01 1 9101-9108 ● ● ●
49 PIPE; WATER OUTLET 1-13713-040-0 01 1 9109-9504 ● ● ●
49 PIPE; WATER OUTLET 8-94396-176-1 01 1 9505-0105 ●
49 PIPE; WATER OUTLET 8-97602-045-0 01 1 0106-0212 ●
49 PIPE; WATER OUTLET 8-94390-520-1 01 1 9703-9709 ●
49 PIPE; WATER OUTLET 8-94390-520-1 01 1 9710-0105 ● ●
49 PIPE; WATER OUTLET 8-97602-040-0 01 1 0106-0212 ● ●
49 PIPE; WATER OUTLET 8-97602-040-0 01 1 0301- ● ● ●
50 BOLT; OUTLET PIPE
M8X22 W/LK&PL WASHER 		0-50140-822-0 02 1 9101-9504 ● ● ●
51 CLIP; JOINT,THERMOSTAT
L=63 		1-09700-418-1 01 1 9101-9504 ● ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 9703-9709 ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 9710-0203 ●
51 CLIP; JOINT,THERMOSTAT
EURO2 SPECIFICATION<THN> ID=18 L=44 		8-94225-185-0 01 1 9710-0203 ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 0204-0801 ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-97367-985-1 01 1 0802- ● ●
52 BOLT; JOINT,THERMOSTAT
(D) M8X25 W/LK&PL WASHER 		0-50140-825-0 01 1 9101-9504 ● ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X79 FLANGE 		8-94311-617-1 02 1 9505-9611 ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 02 1 9612-9709 ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X35 FLANGE 		0-28080-835-0 01 1 9505-0212 ●
52 BOLT; JOINT,THERMOSTAT
(C) M8X85 FLANGE 		8-97023-062-0 01 1 9505-9709 ●
52 BOLT; JOINT,THERMOSTAT
(C) M8X85 FLANGE 		8-97023-062-0 01 1 9710-9805 ● ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X22 FLANGE 		0-28080-822-0 01 1 9703-9706 ●
52 BOLT; JOINT,THERMOSTAT
(C) M8X85 FLANGE 		8-97023-062-0 01 1 9806- ● ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X22 FLANGE 		0-28080-822-0 01 1 9707-9709 ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28680-825-0 01 1 9710-9802 ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28680-825-0 01 1 9804-9805 ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 03 1 9703-9709 ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 02 1 9710-9805 ● ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28680-825-0 01 1 9806-0212 ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0301-0512 ● ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0601-1108 ● ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1109- ● ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 02 1 9806-0512 ● ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28050-880-0 02 1 0601- ● ● ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-13743-016-0 01 1 9101-9504 ● ● ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94370-480-0 02 1 9505-9702 ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94370-480-0 02 1 9703-9709 ● ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94370-480-0 02 1 9710-0105 ● ● ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> ID=49.5 OD=56.5 		8-97300-793-0 02 1 0106-0203 ●
65 GASKET; HSG TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-13741-010-0 01 1 9101-9504 ● ● ●
107 PIPE; WATER,BYPASS 5-13721-015-2 01 1 9101-9504 ● ● ●
111 GASKET; PLUG,WATER PIPE HOLE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> ID=14.2 OD=20.0 		9-09571-414-0 01 1 9101-9504 ● ● ●
111 GASKET; PLUG,WATER PIPE HOLE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=14.2 OD=20.0 		9-09571-414-0 01 1 9101-9504 ● ● ●
112 PLUG
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> M14X9 		9-99202-314-0 01 1 9101-9504 ● ● ●
112 PLUG
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M14X9 		9-99202-314-0 01 1 9101-9504 ● ● ●
112 PLUG 8-94390-527-0 01 1 9703-9709 ●
112 PLUG 8-94390-527-0 01 1 9710-0212 ● ●
112 PLUG 8-94390-527-0 01 1 0301- ● ● ●
135 PIPE; WATER,OIL COOLER TO AIR CMPR
AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-13721-253-1 01 1 9101-9303 ●
135 PIPE; WATER,OIL COOLER TO AIR CMPR
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-13721-253-1 01 1 9101-9303 ●
135 PIPE; WATER,OIL COOLER TO AIR CMPR
AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-13721-253-1 01 1 9304-9504 ● ●
136 PIPE; WATER,AIR CMPR TO THERMOSTAT HSG
AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-13721-281-0 01 1 9101-9303 ●
136 PIPE; WATER,AIR CMPR TO THERMOSTAT HSG
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-13721-281-0 01 1 9101-9303 ●
136 PIPE; WATER,AIR CMPR TO THERMOSTAT HSG
AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-13721-281-0 01 1 9304-9504 ● ●
137 BOLT; EYE,WATER PIPE
AIR COMPRESSOR HEAVY DUTY<E1Q> M14X27 EYE-BOLT 		1-09675-193-0 04 1 9101-9303 ●
137 BOLT; EYE,WATER PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14X27 EYE-BOLT 		1-09675-193-0 04 1 9101-9303 ●
137 BOLT; EYE,WATER PIPE
AIR COMPRESSOR HEAVY DUTY<E1Q> M14X27 EYE-BOLT 		1-09675-193-0 04 1 9304-9504 ● ●
138 GASKET; WATER PIPE
AIR COMPRESSOR HEAVY DUTY<E1Q> ID=14.2 OD=19.2 		1-09630-085-0 08 1 9101-9303 ●
138 GASKET; WATER PIPE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2 OD=19.2 		1-09630-085-0 08 1 9101-9303 ●
138 GASKET; WATER PIPE
AIR COMPRESSOR HEAVY DUTY<E1Q> ID=14.2 OD=19.2 		1-09630-085-0 08 1 9304-9504 ● ●

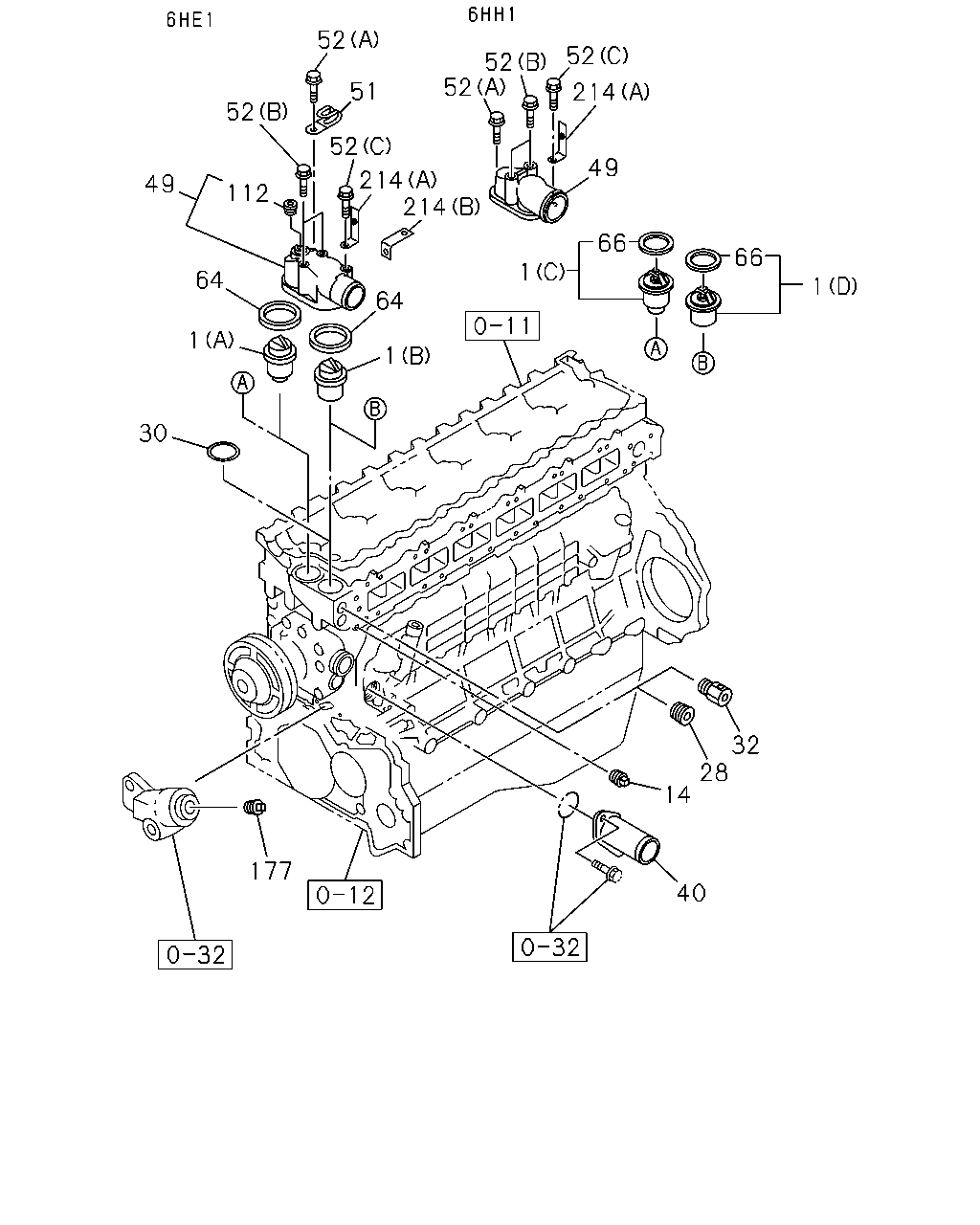

çizim 37814
52 52 52 52 51 214 52 52 49 214 214 49 112 66 66 1 64 1 64 1 1 30 32 28 14 177 40
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 THERMOSTAT
FLYWHEEL HSG SAE #2<E4C> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (E) 76.5C(OPEN) 		1-13770-074-0 01 1 9401-9504 ●
1 THERMOSTAT
(E) 82C(OPEN) 		1-13770-070-0 01 1 9101-9108 ● ● ●
1 THERMOSTAT
(E) 82C(OPEN) 		1-13770-073-0 01 1 9109-9312 ● ● ●
1 THERMOSTAT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. FLYWHEEL HSG SAE #2<E4C>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (E) 82C(OPEN) 		1-13770-073-0 01 1 9401-9504 ●
1 THERMOSTAT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (E) 82C(OPEN) 		1-13770-073-0 01 1 9401-9504 ●
1 THERMOSTAT
(E) 82C(OPEN) 		1-13770-073-0 01 1 9401-9504 ● ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-94397-310-0 01 1 9505-9702 ●
1 THERMOSTAT
EXC. THERMOSTAT DELETE<E6B> (A) 82 CELSIUS 		8-94397-310-0 01 1 9703-9709 ● ●
1 THERMOSTAT
EXC. THERMOSTAT DELETE<E6B> (A) 82 CELSIUS 		8-94397-310-0 01 1 9710-0105 ● ● ●
1 THERMOSTAT
EXC. THERMOSTAT DELETE<E6B> (C) 82 CELSIUS 		8-97602-048-1 01 1 0106-0203 ● ● ●
1 THERMOSTAT
(C) 82 CELSIUS 		8-97602-048-3 01 1 0204- ● ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94397-311-0 01 1 9505-9702 ●
1 THERMOSTAT
EXC. THERMOSTAT DELETE<E6B> (B) 82 CELSIUS 		8-94397-311-0 01 1 9703-9709 ● ●
1 THERMOSTAT
EXC. THERMOSTAT DELETE<E6B> (B) 82 CELSIUS 		8-94397-311-0 01 1 9710-9807 ● ● ●
1 THERMOSTAT
EXC. THERMOSTAT DELETE<E6B> (B) 82 CELSIUS 		8-94392-817-0 01 1 9808-0105 ● ● ●
1 THERMOSTAT
EXC. THERMOSTAT DELETE<E6B> (D) 82 CELSIUS 		8-97602-037-0 01 1 0106-0112 ● ● ●
1 THERMOSTAT
EXC. THERMOSTAT DELETE<E6B> (D) 82 CELSIUS 		8-97602-393-0 01 1 0201-0203 ● ● ●
1 THERMOSTAT
(D) 82 CELSIUS 		8-97602-393-1 01 1 0204-1501 ● ● ●
1 THERMOSTAT
(D) 82 CELSIUS 		8-98295-921-0 01 1 1502- ● ● ●
14 PLUG; SW
PT3/8 		9-09204-517-0 01 1 9101-9504 ● ● ●
14 PLUG; SW
PT3/8 		8-94397-338-0 01 1 9505-9702 ●
14 PLUG; SW
PT1/4 		1-09605-019-0 01 1 9703-9709 ●
14 PLUG; SW
PT1/4 		1-09605-019-0 01 1 9710-1008 ● ●
14 PLUG; SW
PT3/8 		8-94397-338-0 01 1 9703-9709 ● ●
14 PLUG; SW
PT3/8 		8-94397-338-0 01 1 9710- ● ● ●
28 PLUG; HTR
PT3/4 		9-09664-005-0 01 1 9101-9504 ● ● ●
28 PLUG; HTR
PT3/4 		1-09605-020-0 01 1 9505-0005 ●
30 SPACER
ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		8-94393-517-0 02 1 9601-0203 ●
32 CONNECTOR; HTR 8-94395-851-1 01 1 9703-9709 ●
32 CONNECTOR; HTR 8-94395-851-1 01 1 9710-1008 ● ●
32 CONNECTOR; HTR 8-98177-501-0 01 1 1009- ● ●
40 DUCT; WATER,SUCTION 8-94397-005-2 01 1 9505-9702 ●
40 DUCT; WATER,SUCTION 8-94397-005-2 01 1 9703-9709 ● ●
40 DUCT; WATER,SUCTION 8-94397-005-2 01 1 9710- ● ● ●
49 PIPE; WATER OUTLET 1-13713-037-0 01 1 9101-9108 ● ● ●
49 PIPE; WATER OUTLET 1-13713-040-0 01 1 9109-9504 ● ● ●
49 PIPE; WATER OUTLET 8-94396-176-1 01 1 9505-0105 ●
49 PIPE; WATER OUTLET 8-97602-045-0 01 1 0106-0212 ●
49 PIPE; WATER OUTLET 8-94390-520-1 01 1 9703-9709 ●
49 PIPE; WATER OUTLET 8-94390-520-1 01 1 9710-0105 ● ●
49 PIPE; WATER OUTLET 8-97602-040-0 01 1 0106-0212 ● ●
49 PIPE; WATER OUTLET 8-97602-040-0 01 1 0301- ● ● ●
51 CLIP; JOINT,THERMOSTAT
L=63 		1-09700-418-1 01 1 9101-9504 ● ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 9703-9709 ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 9710-0203 ●
51 CLIP; JOINT,THERMOSTAT
EURO2 SPECIFICATION<THN> ID=18 L=44 		8-94225-185-0 01 1 9710-0203 ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 0204-0801 ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-97367-985-1 01 1 0802- ● ●
52 BOLT; JOINT,THERMOSTAT
(D) M8X25 W/LK&PL WASHER 		0-50140-825-0 01 1 9101-9504 ● ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X79 FLANGE 		8-94311-617-1 02 1 9505-9611 ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 02 1 9612-9709 ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X35 FLANGE 		0-28080-835-0 01 1 9505-0212 ●
52 BOLT; JOINT,THERMOSTAT
(C) M8X85 FLANGE 		8-97023-062-0 01 1 9505-9709 ●
52 BOLT; JOINT,THERMOSTAT
(C) M8X85 FLANGE 		8-97023-062-0 01 1 9710-9805 ● ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X22 FLANGE 		0-28080-822-0 01 1 9703-9706 ●
52 BOLT; JOINT,THERMOSTAT
(C) M8X85 FLANGE 		8-97023-062-0 01 1 9806- ● ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X22 FLANGE 		0-28080-822-0 01 1 9707-9709 ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28680-825-0 01 1 9710-9802 ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28680-825-0 01 1 9804-9805 ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 03 1 9703-9709 ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 02 1 9710-9805 ● ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28680-825-0 01 1 9806-0212 ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0301-0512 ● ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0601-1108 ● ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1109- ● ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 02 1 9806-0512 ● ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28050-880-0 02 1 0601- ● ● ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-13743-016-0 01 1 9101-9504 ● ● ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94370-480-0 02 1 9505-9702 ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94370-480-0 02 1 9703-9709 ● ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94370-480-0 02 1 9710-0105 ● ● ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> ID=49.5 OD=56.5 		8-97300-793-0 02 1 0106-0203 ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. THERMOSTAT DELETE<E6B> ID=49.5 OD=56.5 		8-97300-793-0 02 1 0106-0203 ● ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 02 1 0204-1501 ● ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-98280-281-0 02 1 1502- ● ● ●
112 PLUG
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> M14X9 		9-99202-314-0 01 1 9101-9504 ● ● ●
112 PLUG
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M14X9 		9-99202-314-0 01 1 9101-9504 ● ● ●
112 PLUG 8-94390-527-0 01 1 9703-9709 ●
112 PLUG 8-94390-527-0 01 1 9710-0212 ● ●
112 PLUG 8-94390-527-0 01 1 0301- ● ● ●
177 PLUG; PIPE,WATER DUCT
PT1/2 		9-09204-521-0 01 1 9505-9510 ●
177 PLUG; PIPE,WATER DUCT
PT1/2 		9-09204-521-0 01 1 9601-9702 ●
177 PLUG; PIPE,WATER DUCT
PT1/2 		9-09204-521-0 01 1 9703-9709 ● ●
177 PLUG; PIPE,WATER DUCT
PT1/2 		9-09204-521-0 01 1 9710- ● ● ●
214 BRACKET; HARNESS
(A) 		8-94393-074-1 02 1 9505-9702 ●
214 BRACKET; HARNESS
(A) 		8-94393-074-1 02 1 9703-9706 ● ●
214 BRACKET; HARNESS
(A) 		8-94393-074-1 01 1 9707-9709 ●
214 BRACKET; HARNESS
(A) 		8-94393-074-1 01 1 9710- ● ●
214 BRACKET; HARNESS
(A) 		8-94393-074-1 02 1 9707- ●
214 BRACKET; HARNESS
(B) L=50 		1-47475-663-1 01 1 9707-9709 ●
214 BRACKET; HARNESS
(B) L=50 		1-47475-663-1 01 1 9710- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
