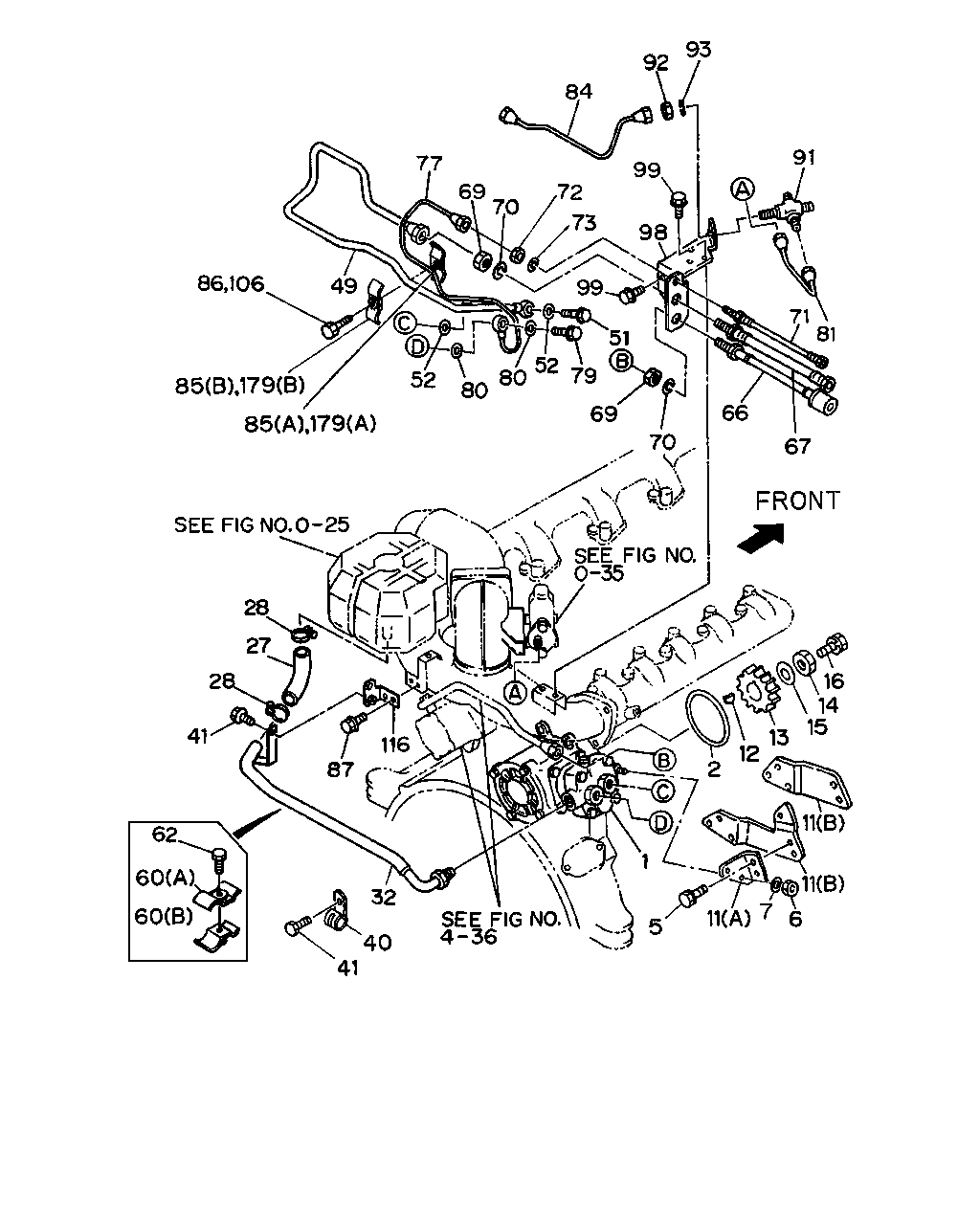

0-38B — AIR COMPRESSOR PIPING; ENGINE SIDE (#435) — 124 parça

93 92 91 84 99 77 70 69 72 73 98 49 86 106 52 85 179 85 179 80 80 52 79 51 99 71 81 67 66 69 70 28 16 14 15 13 12 2 11 11 11 7 6 1 5 116 87 27 28 41 62 60 60 32 40 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-177-0	01	1	8712-8901	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19100-212-1	01	1	8902-9001	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19100-177-2	01	1	8902-9001	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-212-2	01	1	9002-9307		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-177-4	01	1	9002-9307		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-177-5	01	1	9308-		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-247-0	01	1	8712-9001	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	9002-		●
5	BOLT; AIR CMPR FIX M12X40	9-01991-240-0	08	1	8712-9001	●
5	BOLT; AIR CMPR FIX AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M10X22 W/LK WASHER	9-01931-022-0	03	1	8902-9001	●
5	BOLT; AIR CMPR FIX AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M10X20	9-01971-020-0	02	1	8902-9001	●
5	BOLT; AIR CMPR FIX M12X40	9-01991-240-0	04	1	9002-9005		●
5	BOLT; AIR CMPR FIX M12X40 W/LK&PL WASHER	0-50151-240-0	04	1	9006-		●
5	BOLT; AIR CMPR FIX AIR COMPRESSOR HEAVY DUTY(E1Q) M10X20	0-28021-020-0	02	1	9002-9002		●
5	BOLT; AIR CMPR FIX AIR COMPRESSOR HEAVY DUTY(E1Q) M10X20 FLANGE	0-28081-020-0	02	1	9003-9306		●
5	BOLT; AIR CMPR FIX AIR COMPRESSOR HEAVY DUTY(E1Q) M10X20 W/LK&PL WASHER	0-50141-020-0	02	1	9307-9307		●
5	BOLT; AIR CMPR FIX AIR COMPRESSOR HEAVY DUTY(E1Q) M10X18	8-94399-729-1	03	1	9002-9104		●
5	BOLT; AIR CMPR FIX AIR COMPRESSOR HEAVY DUTY(E1Q) M10X18 FLANGE	0-28181-018-0	03	1	9105-9307		●
6	NUT; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M10	9-09111-510-0	02	1	8902-9001	●
6	NUT; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M10 FLANGE	0-91150-210-0	02	1	9002-9307		●
7	WASHER; LK,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=10.2	9-09150-510-0	02	1	8902-9001	●
11	BRACKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-19187-018-0	01	1	8902-9001	●
11	BRACKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19187-018-0	01	1	9002-9307		●
11	BRACKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	1-19187-019-1	01	1	8902-9001	●
11	BRACKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19187-023-0	01	1	9002-9307		●
12	KEY; AIR CMPR GEAR	9-08055-516-0	01	1	8712-	●	●
13	GEAR; AIR CMPR DRIVE Z=26	1-12524-044-0	01	1	8712-	●	●
14	NUT; GEAR M20	9-99111-520-0	01	1	8712-	●	●
15	WASHER; GEAR ID=21	9-09164-520-0	01	1	8712-	●	●
16	ADAPTER	1-12539-010-0	01	1	8712-	●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY VAR2(E6A) L=55	1-09360-784-0	01	1	8902-9001	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) L=55	1-09360-766-0	01	1	8902-9001	●
27	HOSE; AIR CMPR,SUCTION	1-09360-858-0	01	1	9002-9011		●
27	HOSE; AIR CMPR,SUCTION	1-09360-896-0	01	1	9012-		●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	02	1	9002-		●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	8712-8901	●
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=28.5	1-09707-150-0	02	1	8902-9001	●
28	CLIP; HOSE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=26	1-09707-091-0	02	1	8902-9001	●
32	PIPE; AIR,AIR CMPR	1-19191-885-1	01	1	8712-8901	●
32	PIPE; AIR,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19192-287-0	01	1	8902-9001	●
32	PIPE; AIR,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19191-885-1	01	1	8902-9001	●
32	PIPE; AIR,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19192-461-0	01	1	9002-9011		●
32	PIPE; AIR,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19192-551-0	01	1	9012-9307		●
32	PIPE; AIR,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19192-450-0	01	1	9002-9011		●
32	PIPE; AIR,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19192-548-0	01	1	9012-9307		●
32	PIPE; AIR,AIR CMPR	1-19192-548-1	01	1	9308-		●
40	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=21 L=28	1-09700-673-0	01	1	8902-9001	●
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M6X14	9-01910-614-0	01	1	8902-9001	●
41	BOLT; CLIP M6X12	0-28020-612-0	01	1	9002-9005		●
41	BOLT; CLIP M6X12 FLANGE	0-28080-612-0	01	1	9006-		●
49	PIPE; AIR,CHARGE	1-19191-802-1	01	1	8712-8901	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19191-802-1	01	1	8902-9001	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19192-284-1	01	1	8902-9001	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19192-284-1	01	1	9002-9212		●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19192-759-0	01	1	9301-9307		●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19191-802-1	01	1	9002-9212		●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19192-760-0	01	1	9301-9307		●
49	PIPE; AIR,CHARGE	1-19192-760-0	01	1	9308-		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	8712-8909	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-1	01	1	8910-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	8712-	●	●
60	CLIP; AIR PIPE (A) WO/NUT	1-09709-001-1	02	1	8712-8901	●
60	CLIP; AIR PIPE (B) W/NUT	1-09709-002-1	02	1	8712-8901	●
60	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A) WO/NUT	1-09700-985-0	02	1	8902-9001	●
60	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B) ID=12 & 21 L=30 W/NUT	1-09700-986-0	02	1	8902-9001	●
60	CLIP; AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A) WO/NUT	1-09709-001-1	02	1	8902-9001	●
60	CLIP; AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B) W/NUT	1-09709-002-1	02	1	8902-9001	●
60	CLIP; AIR PIPE (A) WO/NUT	1-09700-985-0	02	1	9002-		●
60	CLIP; AIR PIPE (B) ID=12 & 21 L=30 W/NUT	1-09700-986-0	02	1	9002-		●
62	BOLT; CLIP M6X25	9-01910-625-0	02	1	8712-8905	●
62	BOLT; CLIP M6X30	0-28020-630-0	02	1	8906-9005	●	●
62	BOLT; CLIP M6X30 FLANGE	0-28080-630-0	02	1	9006-		●
66	HOSE; FLEX,POWER STRG L=360	1-09364-458-0	01	1	8712-8910	●
66	HOSE; FLEX,POWER STRG L=360	0-09538-360-0	01	1	8911-9001	●
66	HOSE; FLEX,POWER STRG L=360	0-09538-360-0	01	1	9002-		●
67	HOSE; FLEX,AIR CHARGE L=420	0-07806-420-1	01	1	8712-9001	●
67	HOSE; FLEX,AIR CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) L=480	0-07806-480-1	01	1	9002-9307		●
67	HOSE; FLEX,AIR CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) L=420	0-07806-420-1	01	1	9002-9307		●
67	HOSE; FLEX,AIR CHARGE L=420	0-07806-420-1	01	1	9308-		●
69	NUT; FLEX HOSE M20	9-99111-420-0	02	1	8712-	●	●
70	WASHER; LK ID=20.2	9-09150-520-0	02	1	8712-	●	●
71	HOSE; FLEX,AIR GOV L=320	0-07120-320-0	01	1	8712-	●	●
72	NUT; GOV HOSE M12	9-09840-280-0	01	1	8712-	●	●
73	WASHER; LK,GOV HOSE ID=12.2	9-09150-512-0	01	1	8712-	●	●
77	PIPE; AIR,GOV	1-19191-806-0	01	1	8712-8901	●
77	PIPE; AIR,GOV EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19191-806-0	01	1	8902-9001	●
77	PIPE; AIR,GOV AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19192-285-0	01	1	8902-9001	●
77	PIPE; AIR,GOV AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19192-285-0	01	1	8902-9307		●
77	PIPE; AIR,GOV EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19191-806-0	01	1	8902-9307		●
77	PIPE; AIR,GOV	1-19191-806-0	01	1	9308-		●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	8712-	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	8712-	●	●
81	PIPE; AIR,INT SHUTTER	1-19192-059-0	01	1	8712-	●	●
84	PIPE; AIR	1-19191-803-0	01	1	8712-8902	●
84	PIPE; AIR	1-19192-442-0	01	1	8903-	●	●
85	CLIP; PIPE (B) ID=8 & 12	9-09917-471-0	01	1	8712-9401	●	●
85	CLIP; PIPE (B) WO/NUT	1-09700-547-0	01	1	9402-		●
85	CLIP; PIPE (A) W/NUT	9-09917-472-0	01	1	8712-9401	●	●
85	CLIP; PIPE (A) W/NUT	1-09700-550-0	01	1	9402-		●
86	BOLT; CLIP M6X25	9-01910-625-0	01	1	8712-9001	●
86	BOLT; CLIP M6X25	0-28020-625-0	01	1	9002-9005		●
86	BOLT; CLIP M6X25 FLANGE	0-28080-625-0	01	1	9006-		●
87	BOLT; BRKT FIX M8X16 W/LK WASHER	9-01910-816-0	02	1	8712-9001	●
87	BOLT; BRKT FIX M8X14	0-28020-814-0	02	1	9002-9005		●
87	BOLT; BRKT FIX M8X14 FLANGE	0-28080-814-0	02	1	9006-9411		●
87	BOLT; BRKT FIX M8X16 FLANGE	0-28080-816-0	02	1	9412-		●
91	UNION; 4 WAY	9-09229-106-1	01	1	8712-	●	●
92	NUT; UNION M12	9-09840-280-0	01	1	8712-	●	●
93	WASHER; LK ID=12.2	9-09150-512-0	01	1	8712-	●	●
98	BRACKET; AIR & OIL PIPE	1-22518-065-1	01	1	8712-9001	●
98	BRACKET; AIR & OIL PIPE	1-22518-121-0	01	1	9002-		●
99	BOLT; BRKT AIR PIPE M8X16 W/LK WASHER	9-01910-816-0	04	1	8712-9001	●
99	BOLT; BRKT AIR PIPE M8X14	0-28020-814-0	04	1	9002-9005		●
99	BOLT; BRKT AIR PIPE M8X14 FLANGE	0-28080-814-0	04	1	9006-9411		●
99	BOLT; BRKT AIR PIPE M8X16 FLANGE	0-28080-816-0	04	1	9412-		●
106	BOLT; CLIP M6X25	9-01910-625-0	01	1	8712-9001	●
106	BOLT; CLIP M6X25	0-28020-625-0	01	1	9002-9005		●
106	BOLT; CLIP M6X25 FLANGE	0-28080-625-0	01	1	9006-		●
116	BRACKET; AIR PIPE	1-22196-172-0	01	1	8712-8902	●
116	BRACKET; AIR PIPE	1-22196-283-0	01	1	8903-9001	●
179	CLIP; PIPE (B) ID=8 & 12	9-09917-471-0	01	1	8712-9401	●	●
179	CLIP; PIPE (B) WO/NUT	1-09700-547-0	01	1	9402-		●
179	CLIP; PIPE (A) W/NUT	9-09917-472-0	01	1	8712-9401	●	●
179	CLIP; PIPE (A) W/NUT	1-09700-550-0	01	1	9402-		●
