0-31 — THERMOSTAT AND HOUSING (#43497) — 21 parça

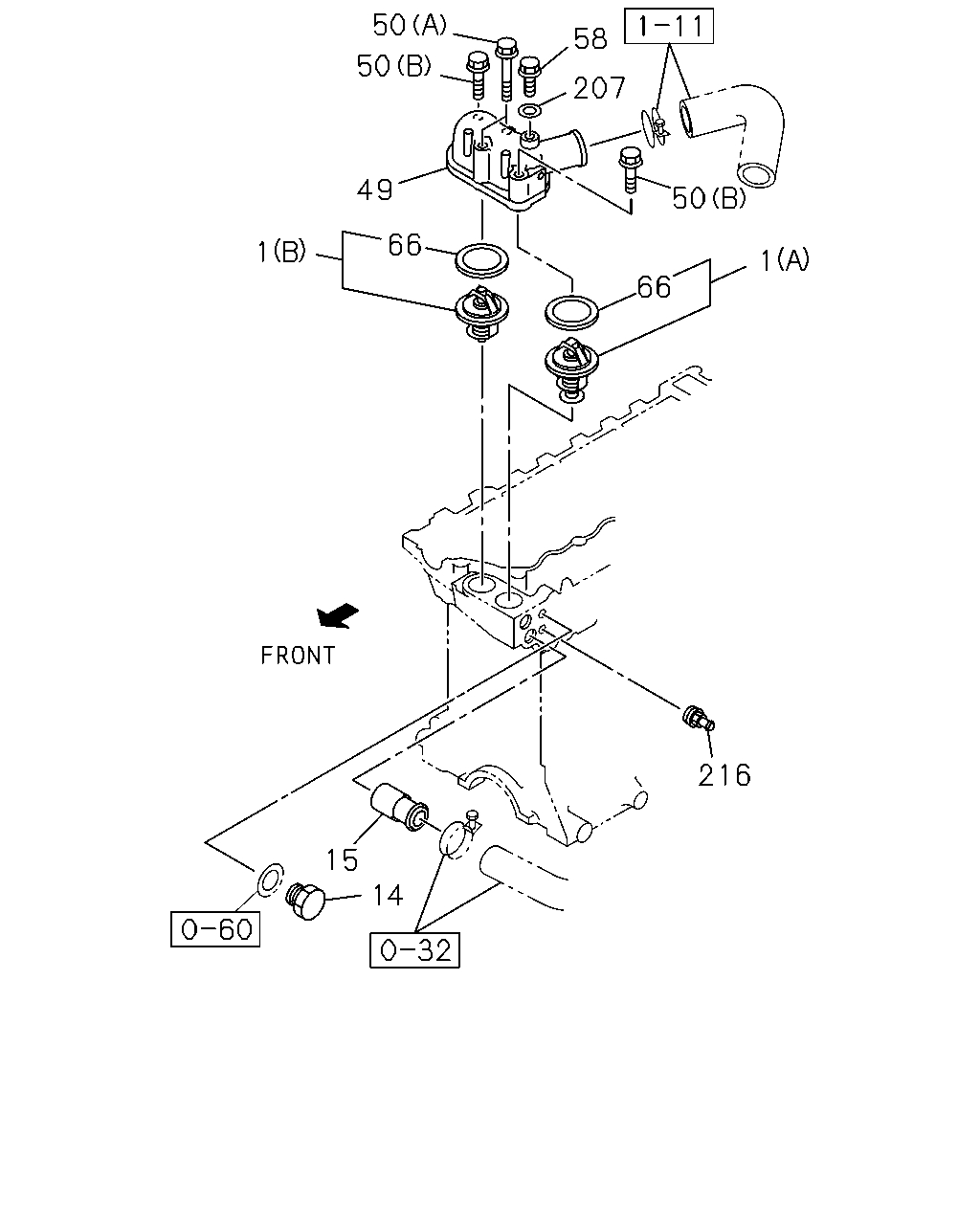

çizim 52067
50 58 50 207 49 50 66 1 1 66 216 15 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 THERMOSTAT
(B) 85?C 		8-97263-192-0 01 1 0009-0010 ●
1 THERMOSTAT
(B) 85?C 		8-97300-792-1 01 1 0011- ●
1 THERMOSTAT
(A) 82?C 		8-97263-193-0 01 1 0009-0010 ●
1 THERMOSTAT
(A) 82?C 		8-97300-789-2 01 1 0011- ●
1 THERMOSTAT
(B) 85?C 		8-97263-194-0 01 1 0009-0010 ●
1 THERMOSTAT
(B) 85?C 		8-97300-787-2 01 1 0011- ●
1 THERMOSTAT
(A) 82?C 		8-97263-191-0 01 1 0009-0010 ●
1 THERMOSTAT
(A) 82?C 		8-97300-790-1 01 1 0011- ●
14 PLUG; SW
PT3/8 THA 		5-09605-005-0 01 1 0009- ● ●
14 PLUG; SW
M16X8 PLUG 		9-09661-005-0 01 1 0009- ● ●
15 PIPE; BYPASS 8-94342-574-0 01 1 0009- ● ●
49 PIPE; WATER OUTLET 8-97200-620-0 01 1 0009- ● ●
50 BOLT; OUTLET PIPE
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0009- ● ●
50 BOLT; OUTLET PIPE
(B) M8X65 FLANGE 		1-09044-072-1 02 1 0009- ● ●
58 PLUG; WATER OUTLET PIPE
M8X16 		8-97021-211-1 01 1 0009- ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97231-848-0 02 1 0009-0010 ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97300-793-0 02 1 0011- ● ●
207 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=8.2 OD=13.2 		1-09630-082-0 01 1 0009- ● ●
216 PIPE ASM; WATER,TURBOCHARGER RETURN 8-97041-589-3 01 1 0009-0212 ● ●
216 PIPE ASM; WATER,TURBOCHARGER RETURN 8-97358-699-0 01 1 0301- ● ●
216 PIPE ASM; WATER,TURBOCHARGER RETURN 8-97358-699-0 01 1 0301- ● ●
