◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50819 - NPR/NQR(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-27 - EXHAUST MANIFOLD ▶
0-27 — EXHAUST MANIFOLD (#43494) — 13 parça

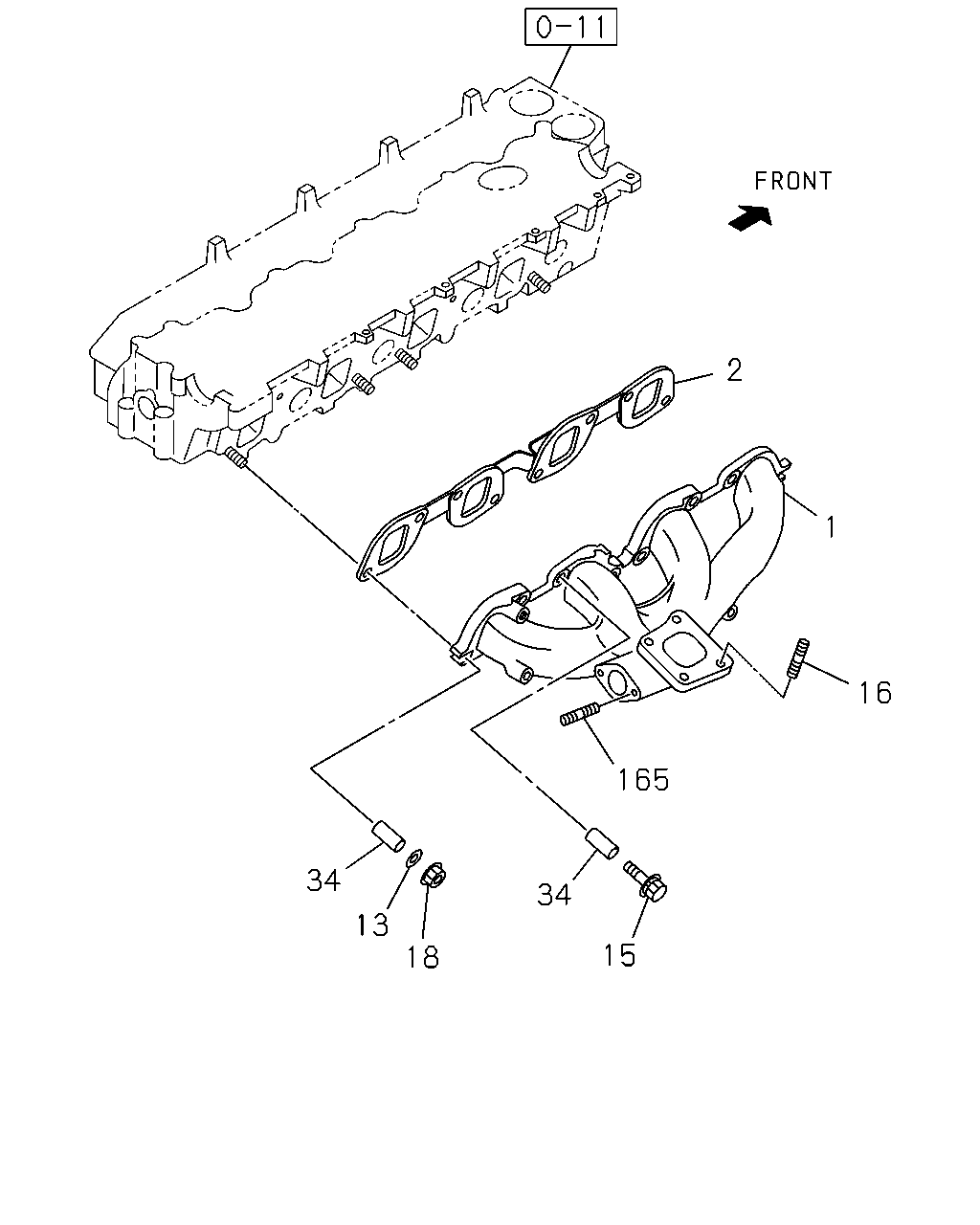

çizim 12438
2 1 16 165 34 34 13 15 18
BalonParca AdiParca NoAdetTipApplied Date A B
1 MANIFOLD; EXHAUST 8-97148-949-2 01 1 0009- ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97146-499-0 01 1 0009- ● ●
13 WASHER; LK,EXH MANIF
T=2.2 		1-09556-015-0 02 1 0009- ● ●
15 BOLT; EXH MANIF
M10X60 		8-97061-543-0 06 1 0009- ● ●
16 STUD; EXH PIPE TO MANIF
M10X25 L=40 		9-04731-025-0 02 1 0009- ●
18 NUT; EXH MANIF
M10 		9-09110-510-0 02 1 0009- ● ●
34 COLLAR; DIST,EXH MANIF
L=28 		8-97250-073-1 08 1 0009- ● ●
165 STUD; EGR PIPE
M8X22 L=33 		8-94257-319-0 02 1 0009- ●

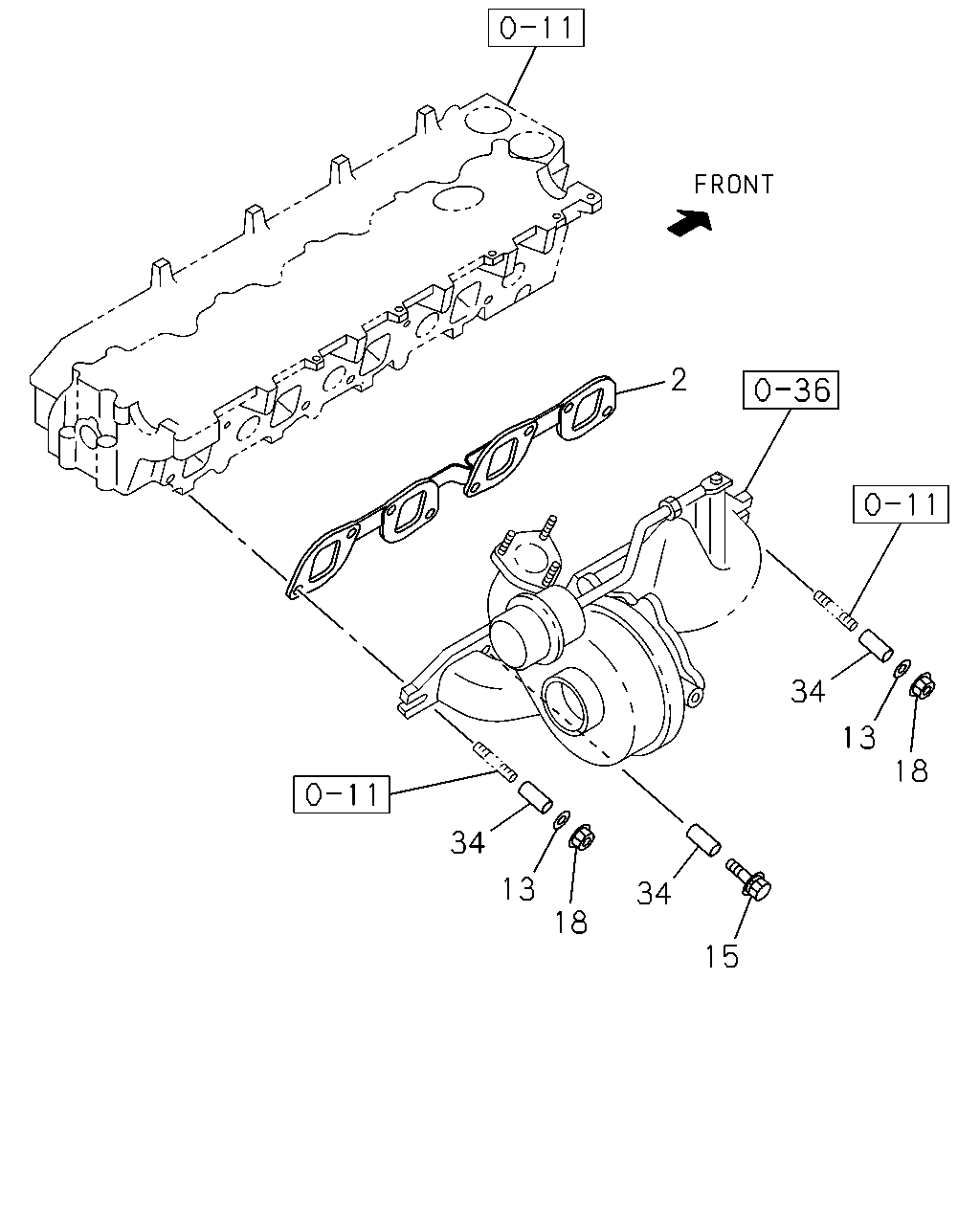

çizim 48030
2 34 13 18 34 13 34 18 15
BalonParca AdiParca NoAdetTipApplied Date A B
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97146-499-0 01 1 0009- ● ●
13 WASHER; LK,EXH MANIF
T=2.2 		1-09556-015-0 02 1 0009- ● ●
15 BOLT; EXH MANIF
M10X60 		8-97061-543-0 06 1 0009- ● ●
18 NUT; EXH MANIF
M10 		9-09110-510-0 02 1 0009- ● ●
34 COLLAR; DIST,EXH MANIF
L=28 		8-97250-073-1 08 1 0009- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
