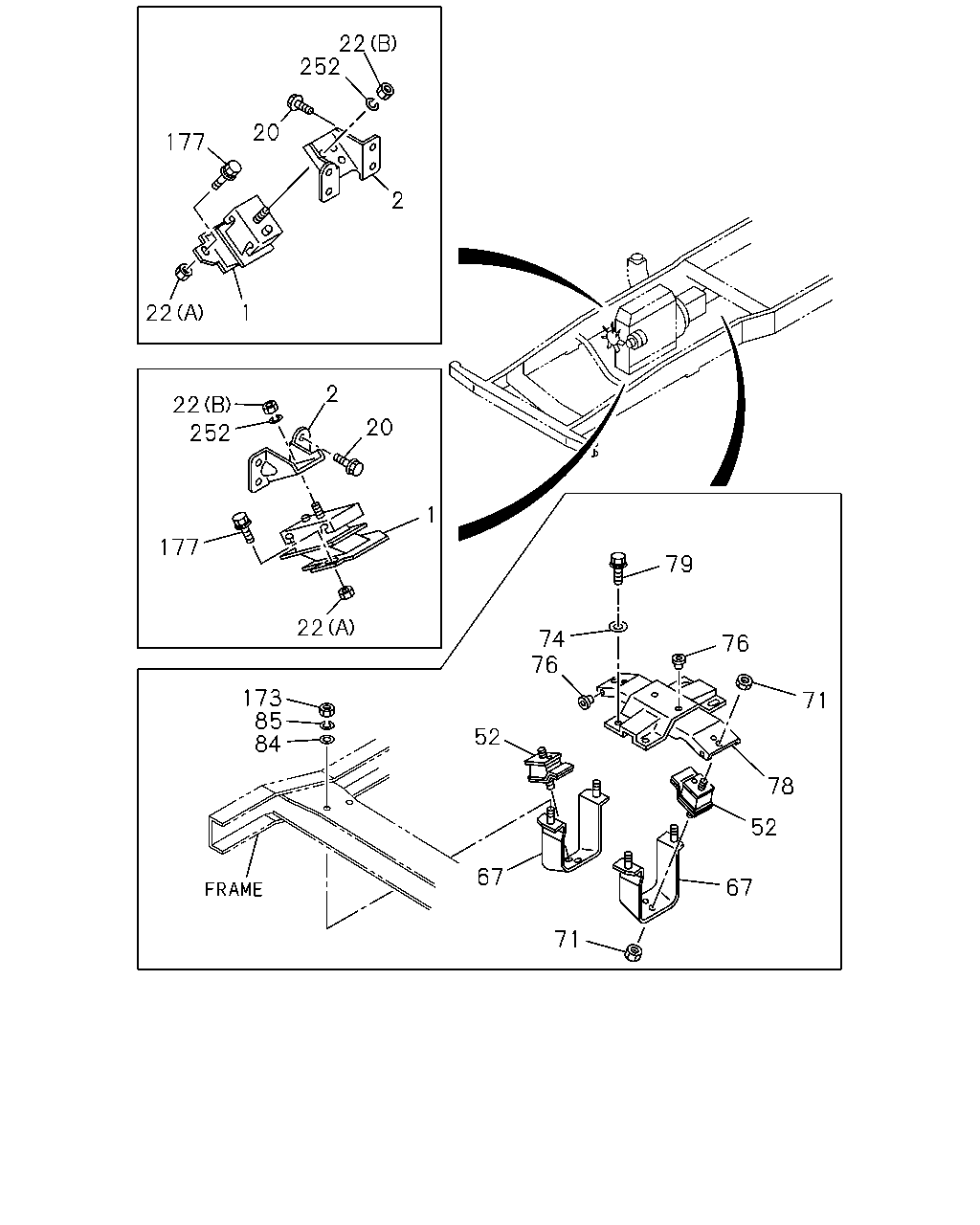

0-22 — ENGINE MOUNTING (#43492) — 30 parça

22 252 20 177 2 1 22 2 22 252 20 1 177 79 22 74 76 76 173 85 84 71 52 78 52 67 67 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	RUBBER; ENG FOOT,FRT FRAME STRAIGHT TYPE<7KJ> THA	8-97940-290-1	01	1	0009-	●
1	RUBBER; ENG FOOT,FRT FRAME STRAIGHT TYPE<7KJ> THA	8-97940-291-1	01	1	0009-	●
1	RUBBER; ENG FOOT,FRT EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97940-319-0	01	1	0009-	●
1	RUBBER; ENG FOOT,FRT EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97940-320-0	01	1	0009-	●
1	RUBBER; ENG FOOT,FRT	8-97187-416-0	01	1	0009-		●
1	RUBBER; ENG FOOT,FRT	8-97187-417-0	01	1	0009-		●
2	FOOT; ENG	8-97228-669-1	02	1	0009-	●	●
20	BOLT; ENG FOOT M10X20 FLANGE	0-28191-020-0	08	1	0009-	●	●
22	NUT; CUSHION RUBBER TO BRKT FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE	0-91150-210-0	04	1	0009-	●
22	NUT; CUSHION RUBBER TO BRKT (A) M10 FLANGE	0-91150-210-0	04	1	0009-		●
22	NUT; CUSHION RUBBER TO BRKT EXC. FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE	0-91150-210-0	02	1	0009-	●
22	NUT; CUSHION RUBBER TO BRKT (B) M12	9-99110-412-0	02	1	0009-	●	●
52	RUBBER; CUSHION,ENG MTG,RR	8-94111-903-0	02	1	0009-	●	●
67	BRACKET; SUPPORT,ENG MTG,RR FLOOR REMOTE SHIFT<M11>	8-94384-213-0	01	1	0009-	●
67	BRACKET; SUPPORT,ENG MTG,RR FLOOR REMOTE SHIFT<M11>	8-94384-214-0	01	1	0009-	●
67	BRACKET; SUPPORT,ENG MTG,RR EXC. FLOOR REMOTE SHIFT<M11>	8-97021-232-1	02	1	0009-	●
67	BRACKET; SUPPORT,ENG MTG,RR	8-94111-908-2	02	1	0009-		●
71	NUT; SUPPORT RUBBER TO BRKT M10 FLANGE	0-91150-110-0	04	1	0009-	●	●
74	WASHER; PL,SUPPORT RUBBER TO TRANS ID=10.5 OD=22	9-09164-610-0	02	1	0009-	●	●
76	STOPPER; ENG MTG RUBBER	8-94111-904-0	04	1	0009-0203	●	●
76	STOPPER; ENG MTG RUBBER	8-94111-904-0	02	1	0204-	●	●
78	BRACKET; ENG MTG,RR FLOOR REMOTE SHIFT<M11>	8-94112-891-2	01	1	0009-	●	●
78	BRACKET; ENG MTG,RR	8-94112-891-2	01	1	0009-		●
79	BOLT; SUPPORT RUBBER TO TRANS FLOOR REMOTE SHIFT<M11> M10X25 FLANGE	0-28081-025-0	04	1	0009-	●	●
79	BOLT; SUPPORT RUBBER TO TRANS M10X25 FLANGE	0-28081-025-0	04	1	0009-		●
84	WASHER; PL,ENG MTG RR TO FRAME ID=10.5 OD=32	9-09164-810-0	04	1	0009-	●	●
85	WASHER; LK,ENG MTG RR TO FRAME ID=10.2	9-09150-610-0	04	1	0009-	●	●
173	NUT; ENG MTG RR TO FRAME M10	9-09110-410-0	04	1	0009-	●	●
177	BOLT; BRKT TO CUSHION RUBBER M10X37.5	8-94468-733-1	04	1	0009-	●	●
252	WASHER; LK,SUPPORT RUBBER ID=12.2	9-09150-612-0	02	1	0009-	●	●
