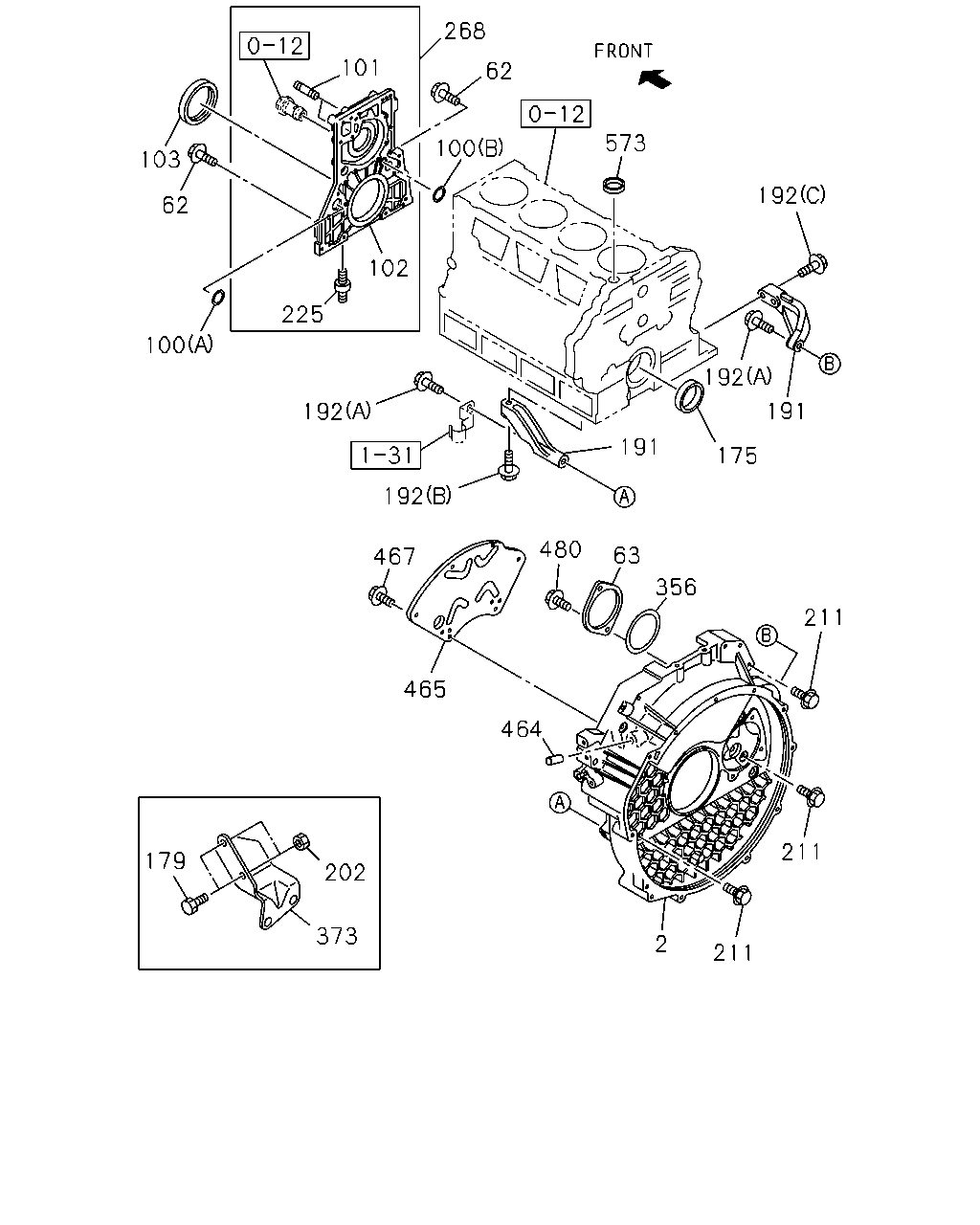

0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#43491) — 53 parça

268 101 62 573 100 103 192 62 102 225 100 192 191 192 191 175 192 480 63 467 356 211 465 464 211 179 202 373 2 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOUSING; FLYWHEEL	8-97209-886-3	01	1	0009-0308	●
2	HOUSING; FLYWHEEL	8-97364-901-0	01	1	0309-	●
2	HOUSING; FLYWHEEL	8-97364-901-0	01	1	0309-	●
2	HOUSING; FLYWHEEL	8-97241-584-0	01	1	0009-0308		●
2	HOUSING; FLYWHEEL	8-97364-899-2	01	1	0309-		●
2	HOUSING; FLYWHEEL	8-97364-899-2	01	1	0309-		●
62	BOLT; COVER M8X25 FLANGE	0-28680-825-0	06	1	0009-	●	●
62	BOLT; COVER M8X35 FLANGE	0-28680-835-0	05	1	0009-	●	●
62	BOLT; COVER M8X65 FLANGE	1-09044-072-1	03	1	0009-	●	●
63	COVER; P/S EXC. POWER STEERING<N40>	8-97126-392-0	01	1	0009-		●
100	GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=35.1	8-97028-748-1	01	1	0009-	●	●
100	GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=17.8	9-09561-318-0	01	1	0009-	●	●
101	STUD; WATER PUMP M8X18 L=29	8-97028-541-0	01	1	0009-	●	●
101	STUD; WATER PUMP M8X18 L=30	9-04110-818-0	01	1	0009-	●	●
102	RETAINER; FRT	8-97094-943-3	01	1	0009-		●
102	RETAINER; FRT	8-97148-938-1	01	1	0009-	●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94369-518-0	01	1	0009-0205	●	●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97329-780-0	01	1	0206-	●	●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97329-780-0	01	1	0206-	●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-637-0	01	1	0009-0205	●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0206-	●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0206-	●	●
179	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	02	1	0009-	●
191	STAY; FLYWHEEL HSG TURBOCHARGER<K51>	8-97167-292-0	01	1	0009-	●	●
191	STAY; FLYWHEEL HSG	8-97167-291-0	01	1	0009-	●
192	BOLT; STAY TO HSG TURBOCHARGER<K51> (B) M12X100 FLANGE	0-28181-200-0	01	1	0009-	●	●
192	BOLT; STAY TO HSG (A) M12X50 FLANGE	0-28181-250-0	01	1	0009-		●
192	BOLT; STAY TO HSG (C) M10X40 FLANGE	0-28181-040-0	02	1	0009-	●
192	BOLT; STAY TO HSG (A) M12X50 FLANGE	0-28181-250-0	02	1	0009-	●
202	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0009-	●
211	BOLT; HSG M10X40 FLANGE	0-28781-040-0	01	1	0009-	●	●
211	BOLT; HSG M12X30 FLANGE	8-97135-419-0	01	1	0009-	●	●
211	BOLT; HSG M12X70 FLANGE, W/PL WASHER	8-97114-779-0	09	1	0009-		●
211	BOLT; HSG M8X20,M8X65 L=90	8-97200-622-1	02	1	0009-		●
211	BOLT; HSG EXC. POWER STEERING<N40> M14X35 FLANGE	0-28791-435-0	01	1	0009-		●
211	BOLT; HSG M12X70 FLANGE, W/PL WASHER	8-97114-779-0	11	1	0009-	●
225	STUD; OIL PAN M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	03	1	0009-0012		●
225	STUD; OIL PAN M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	03	1	0101-		●
268	COVER; FRT	8-97259-417-0	01	1	0009-0012		●
268	COVER; FRT	8-97259-416-0	01	1	0101-		●
268	COVER; FRT	8-97148-937-1	01	1	0009-	●
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. POWER STEERING<N40>	8-97101-875-2	01	1	0009-		●
373	BRACKET; PUMP	8-97149-333-0	01	1	0009-	●
464	PIPE; PCV,FLYWHEEL HSG	8-94373-246-3	01	1	0009-	●	●
465	PLATE; FLYWHEEL HSG	8-94370-384-3	01	1	0009-0308		●
465	PLATE; FLYWHEEL HSG	8-97363-824-1	01	1	0309-		●
465	PLATE; FLYWHEEL HSG	8-97212-490-0	01	1	0009-0308	●
465	PLATE; FLYWHEEL HSG	8-97363-823-0	01	1	0309-	●
465	PLATE; FLYWHEEL HSG	8-97363-824-1	01	1	0309-		●
465	PLATE; FLYWHEEL HSG	8-97363-823-0	01	1	0309-	●
467	BOLT; PLATE M6X10 FLANGE	0-28080-610-0	06	1	0009-	●	●
480	BOLT; COVER EXC. POWER STEERING<N40> M10X28 FLANGE	0-28181-028-0	02	1	0009-		●
573	CUP; SEALING OD=19	8-94150-231-0	01	1	0009-	●	●
