Sayfa 0-15 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50819 - NPR/NQR(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-15 - CRANKSHAFT,PISTON AND FLYWHEEL ▶

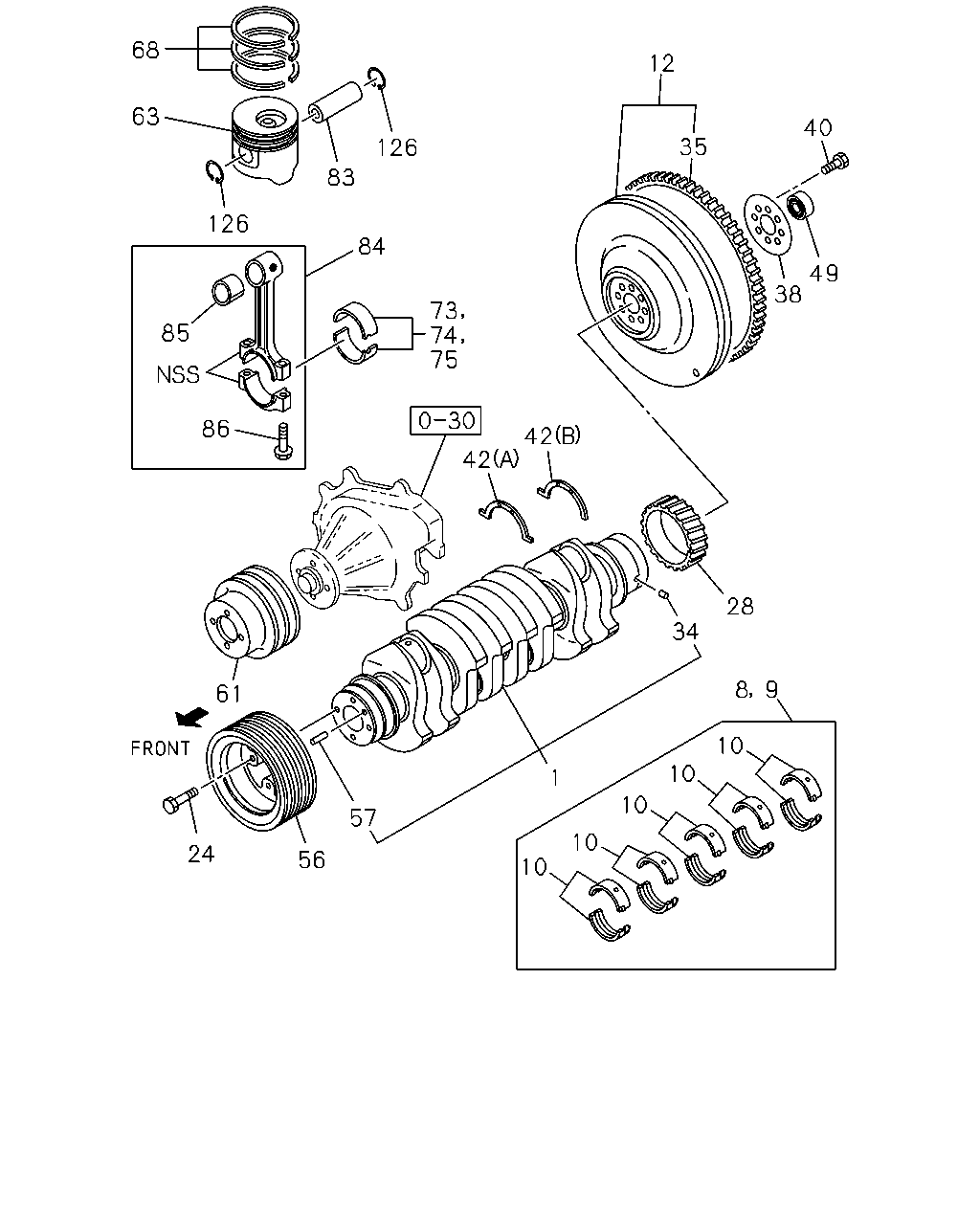

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#43490) — 63 parça

68 12 63 40 35 126 83 126 84 49 38 73 74 75 85 86 42 42 28 34 8 9 61 10 10 1 10 57 10 24 56 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CRANKSHAFT	8-97112-981-3	01	1	0009-	●
1	CRANKSHAFT	8-97165-483-0	01	1	0009-0212		●
1	CRANKSHAFT	8-97352-534-2	01	1	0301-		●
1	CRANKSHAFT	8-97352-534-2	01	1	0301-		●
8	METAL KIT; CRANKSHAFT,U/S=0.25	5-87310-546-0	01	1	0009-	●
9	METAL KIT; CRANKSHAFT,U/S=0.50	5-87310-547-0	01	1	0009-	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97219-456-0	05	1	0009-0303	●	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-0	05	1	0304-	●	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97219-457-0	05	1	0009-0303	●	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-0	05	1	0304-	●	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97219-458-0	05	1	0009-0303	●	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-0	05	1	0304-	●	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-0	05	1	0304-	●	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-0	05	1	0304-	●	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-0	05	1	0304-	●	●
12	FLYWHEEL	8-97115-782-0	01	1	0009-	●	●
24	BOLT; DAMPER M16X42	8-97028-733-0	04	1	0009-	●	●
28	GEAR; CR/SHF Z=42	8-97109-626-1	01	1	0009-	●
28	GEAR; CR/SHF Z=42	8-94394-342-4	01	1	0009-		●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0009-	●	●
35	GEAR; RING Z=138	8-97046-366-0	01	1	0009-	●	●
38	WASHER; FLYWHEEL	8-94310-615-0	01	1	0009-	●	●
40	BOLT; FLYWHEEL M16X42	8-97178-013-0	08	1	0009-	●	●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	0009-	●	●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	0009-	●	●
49	BEARING; PILOT	8-97031-741-0	01	1	0009-	●	●
56	PULLEY; CR/SHF DAMPER 4-GROOVE 4-GROOVE	8-97222-031-0	01	1	0009-0210	●	●
56	PULLEY; CR/SHF DAMPER 4-GROOVE	8-97088-478-4	01	1	0211-0211	●	●
56	PULLEY; CR/SHF DAMPER 4-GROOVE 4-GROOVE	8-97222-031-0	01	1	0009-0210	●	●
56	PULLEY; CR/SHF DAMPER 4-GROOVE	8-97088-478-4	01	1	0211-0211	●	●
56	PULLEY; CR/SHF DAMPER 4-GROOVE	8-97222-031-1	01	1	0009-0210	●	●
56	PULLEY; CR/SHF DAMPER 4-GROOVE	8-97222-031-2	02	1	0211-0211	●	●
56	PULLEY; CR/SHF DAMPER 4-GROOVE	8-97222-031-3	01	1	0211-	●	●
56	PULLEY; CR/SHF DAMPER 4-GROOVE	8-97222-031-2	02	1	0211-0211	●	●
56	PULLEY; CR/SHF DAMPER 4-GROOVE	8-97222-031-3	01	1	0211-	●	●
57	PIN; PULLEY OD=8 L=16	9-08150-816-0	02	1	0009-0212	●	●
57	PIN; PULLEY OD=8 L=20	9-08160-820-0	02	1	0301-0304	●	●
57	PIN; PULLEY OD=8 L=20	9-08150-820-0	02	1	0305-	●	●
57	PIN; PULLEY OD=8 L=20	9-08160-820-0	02	1	0301-0304	●	●
57	PIN; PULLEY OD=8 L=20	9-08150-820-0	02	1	0305-	●	●
61	PULLEY; FAN DRIVE 2-GROOVE	8-97174-757-3	01	1	0009-	●	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97219-032-0	04	1	0009-	●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97233-129-0	04	1	0009-0012		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97251-696-0	04	1	0101-		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97233-130-0	04	1	0009-0012		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97251-697-0	04	1	0101-		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97219-054-0	04	1	0009-	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97166-992-1	04	1	0009-		●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	0009-	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97045-801-0	04	1	0009-	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-1	04	1	0009-		●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-1	04	1	0009-		●
74	METAL SET; CONN ROD,U/S=0.25	8-97175-127-0	04	1	0009-	●
75	METAL SET; CONN ROD,U/S=0.50	8-97175-128-0	04	1	0009-	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	04	1	0009-	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	04	1	0009-		●
84	ROD ASM; CONN	8-97135-032-1	04	1	0009-	●
84	ROD ASM; CONN	8-94399-661-2	04	1	0009-		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	04	1	0009-	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	04	1	0009-		●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	0009-	●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94318-798-2	08	1	0009-	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	08	1	0009-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
