◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10676 - LT 111,112,132,133 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-30 - WATER PUMP AND CORROSION RESISTOR ▶
0-30 — WATER PUMP AND CORROSION RESISTOR (#4349) — 250 parça

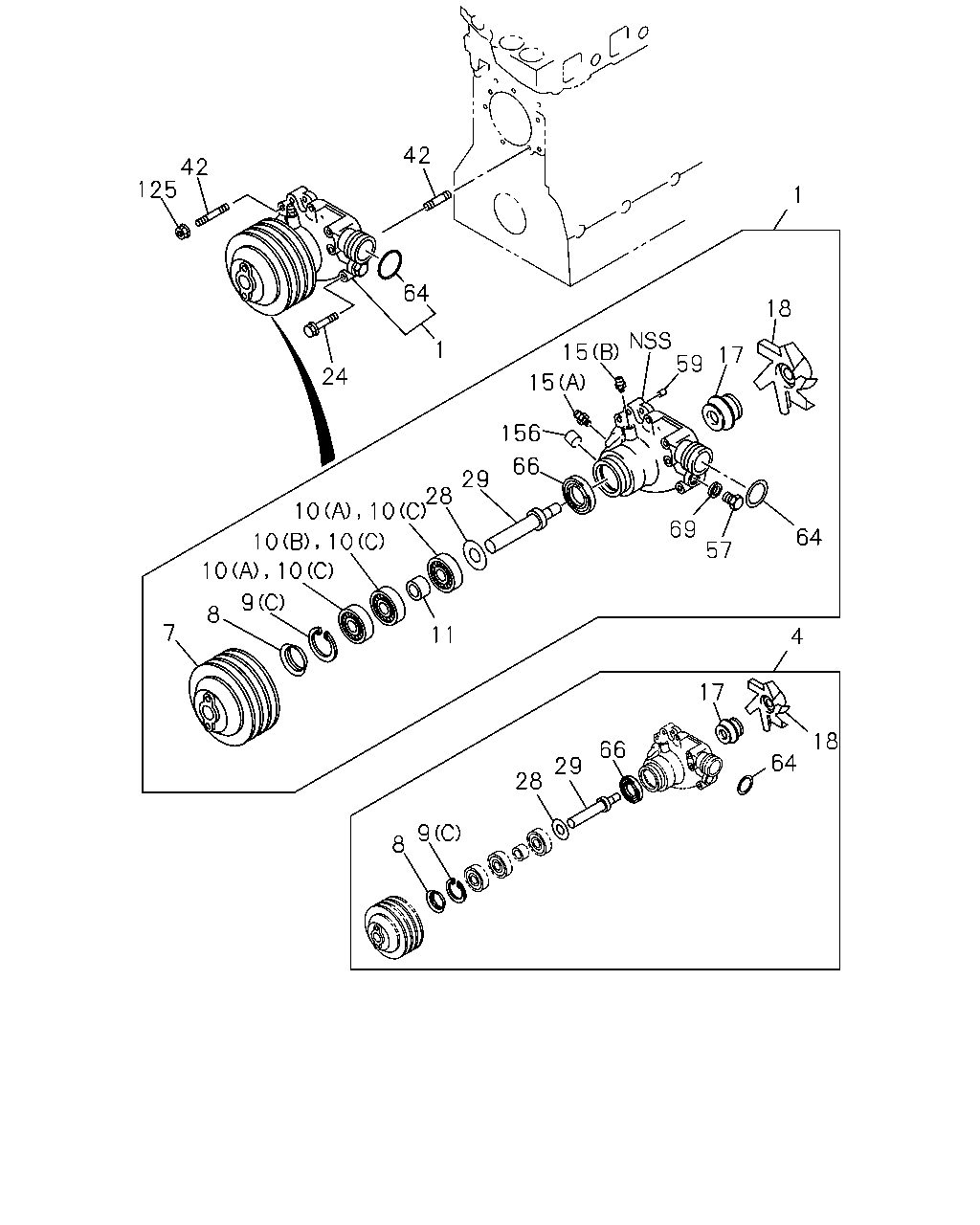

çizim 5005
42 42 125 1 64 18 59 1 15 17 24 15 156 66 29 28 10 10 69 64 10 10 57 10 10 9 8 7 11 4 17 18 66 64 29 28 9 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PUMP ASM; WATER,W/GASKET 8-94395-418-3 01 1 9505-9611 ●
1 PUMP ASM; WATER,W/GASKET 8-94391-062-5 01 1 9612-0301 ●
1 PUMP ASM; WATER,W/GASKET 8-97602-783-2 01 1 0302-1208 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-841-0 01 1 1209-1302 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-891-0 01 1 1303-1312 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-915-0 01 1 1401-1405 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-987-0 01 1 1406- ●
1 PUMP ASM; WATER,W/GASKET 8-94391-671-0 01 1 9703-9709 ●
1 PUMP ASM; WATER,W/GASKET 8-94391-671-5 01 1 9710-0301 ● ●
1 PUMP ASM; WATER,W/GASKET 8-97602-782-2 01 1 0302-1208 ● ●
1 PUMP ASM; WATER,W/GASKET 1-87310-843-0 01 1 1209-1302 ● ●
1 PUMP ASM; WATER,W/GASKET 1-87310-892-0 01 1 1303-1312 ● ●
1 PUMP ASM; WATER,W/GASKET 1-87310-917-0 01 1 1401-1405 ● ●
1 PUMP ASM; WATER,W/GASKET 1-87310-989-0 01 1 1406- ● ●
4 REPAIR KIT; WATER PUMP 1-87813-946-0 01 1 1303-1312 ●
4 REPAIR KIT; WATER PUMP 1-87810-277-3 01 1 9101-9106 ● ● ●
4 REPAIR KIT; WATER PUMP 1-87810-937-0 01 1 9107-9504 ● ● ●
4 REPAIR KIT; WATER PUMP 1-87811-005-0 01 1 9505-9511 ●
4 REPAIR KIT; WATER PUMP 1-87811-318-0 01 1 9512-9702 ●
4 REPAIR KIT; WATER PUMP 1-87811-318-0 01 1 9703-9709 ● ●
4 REPAIR KIT; WATER PUMP 1-87811-318-0 01 1 9710-9911 ● ● ●
4 REPAIR KIT; WATER PUMP
EMISSION PARTS<TCA> 		1-87811-318-0 01 1 9912-9912 ●
4 REPAIR KIT; WATER PUMP 1-87812-028-0 01 1 9912-9912 ● ●
4 REPAIR KIT; WATER PUMP
EURO2 SPECIFICATION<THN> 		1-87812-028-0 01 1 9912-9912 ●
4 REPAIR KIT; WATER PUMP 1-87812-028-1 01 1 0001-1208 ● ● ●
4 REPAIR KIT; WATER PUMP 1-87813-946-0 01 1 1209-1302 ● ● ●
4 REPAIR KIT; WATER PUMP 1-87814-039-0 01 1 1303-1312 ● ● ●
4 REPAIR KIT; WATER PUMP 1-87814-039-0 01 1 1401-1401 ●
4 REPAIR KIT; WATER PUMP 1-87814-171-0 01 1 1401-1405 ● ● ●
4 REPAIR KIT; WATER PUMP 1-87814-611-0 01 1 1406- ● ● ●
7 PULLEY; WATER PUMP
2-GROOVE 		5-13641-017-1 01 1 9101-9102 ● ● ●
7 PULLEY; WATER PUMP
2-GROOVE 		1-13641-165-0 01 1 9103-9504 ● ● ●
7 PULLEY; WATER PUMP
3-GROOVE 		8-94396-133-0 01 1 9505-9702 ●
7 PULLEY; WATER PUMP
3-GROOVE 		8-94396-133-0 01 1 9703-9709 ● ●
7 PULLEY; WATER PUMP
3-GROOVE 		8-94396-133-0 01 1 9710-1302 ● ● ●
7 PULLEY; WATER PUMP
3-GROOVE 		8-98235-214-0 01 1 1303- ● ● ●
8 THROWER; DUST,WATER PUMP 5-13639-001-0 01 1 9101-9504 ● ● ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 9505-9702 ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 9703-9709 ● ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 9710- ● ● ●
9 RING; SNAP,WATER PUMP
(B) OD=56.2 		9-09180-152-0 01 1 9101-9504 ● ● ●
9 RING; SNAP,WATER PUMP
(A) 		9-09952-143-0 01 1 9101-9504 ● ● ●
9 RING; SNAP,WATER PUMP
(C) ID=57.9 		9-09180-162-0 01 1 9505-9702 ●
9 RING; SNAP,WATER PUMP
(C) ID=57.9 		9-09180-162-0 01 1 9703-9709 ● ●
9 RING; SNAP,WATER PUMP
(C) ID=57.9 		9-09180-162-0 01 1 9710- ● ● ●
10 BEARING; WATER PUMP
(A) NTN 		5-09800-059-0 01 1 9101-9504 ● ● ●
10 BEARING; WATER PUMP
(B) NTN 		5-09800-060-0 01 1 9101-9504 ● ● ●
10 BEARING; WATER PUMP
(B) NSK 		9-00090-059-0 01 1 9101-9504 ● ● ●
10 BEARING; WATER PUMP
(A) NSK 		9-00090-113-0 01 1 9101-9504 ● ● ●
10 BEARING; WATER PUMP
(C) 		1-09800-011-0 03 1 9505-9611 ●
10 BEARING; WATER PUMP
(A) 		8-94391-298-0 02 1 9612-9702 ●
10 BEARING; WATER PUMP
(A) 		8-94391-298-0 02 1 9703-9709 ● ●
10 BEARING; WATER PUMP
(A) 		8-94391-298-0 02 1 9710- ● ● ●
10 BEARING; WATER PUMP
(B) 		8-94391-299-0 01 1 9612-9702 ●
10 BEARING; WATER PUMP
(B) 		8-94391-299-0 01 1 9703-9709 ● ●
10 BEARING; WATER PUMP
(B) 		8-94391-299-0 01 1 9710- ● ● ●
11 SPACER; BRG,WATER PUMP 5-13634-002-0 01 1 9101-9504 ● ● ●
11 SPACER; BRG,WATER PUMP 1-13634-025-0 01 1 9505-9611 ●
11 SPACER; BRG,WATER PUMP 1-13634-040-0 01 1 9612-9702 ●
11 SPACER; BRG,WATER PUMP 1-13634-040-0 01 1 9703-9709 ● ●
11 SPACER; BRG,WATER PUMP 1-13634-040-0 01 1 9710- ● ● ●
15 NIPPLE; GREASE,WATER PUMP
(C) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9101-9504 ● ● ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9505-9702 ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9703-9709 ● ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9710-0512 ● ● ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ● ● ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		1-09380-002-0 01 1 9505-9702 ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		1-09380-002-0 01 1 9703-9709 ● ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		1-09380-002-0 01 1 9710- ● ● ●
17 SEAL UNIT; WATER PUMP 5-13620-006-2 01 1 9101-9504 ● ● ●
17 SEAL UNIT; WATER PUMP 8-94395-036-0 01 1 9505-9702 ●
17 SEAL UNIT; WATER PUMP 8-94395-036-0 01 1 9703-9709 ● ●
17 SEAL UNIT; WATER PUMP 8-94395-036-0 01 1 9710-9912 ● ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0001-1208 ● ● ●
17 SEAL UNIT; WATER PUMP 8-98221-159-0 01 1 1209-1312 ● ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 1401-1405 ● ● ●
17 SEAL UNIT; WATER PUMP 8-98272-791-0 01 1 1406- ● ● ●
18 IMPELLER; WATER PUMP 9-13621-802-0 01 1 9101-9504 ● ● ●
18 IMPELLER; WATER PUMP 8-94397-375-0 01 1 9505-9702 ●
18 IMPELLER; WATER PUMP 8-94397-375-0 01 1 9703-9709 ● ●
18 IMPELLER; WATER PUMP 8-94397-375-0 01 1 9710- ● ● ●
24 BOLT; WATER PUMP
M10X35 W/LK WASHER 		0-50041-035-0 01 1 9101-9504 ● ● ●
24 BOLT; WATER PUMP
M10X50 W/LK WASHER 		0-50041-050-0 02 1 9101-9504 ● ● ●
24 BOLT; WATER PUMP
M10X75 W/LK WASHER 		5-09030-010-1 01 1 9101-9504 ● ● ●
24 BOLT; WATER PUMP
M8X58 FLANGE 		8-94130-055-1 03 1 9505-9702 ●
24 BOLT; WATER PUMP
M8X58 FLANGE 		8-94130-055-1 03 1 9703-9709 ● ●
24 BOLT; WATER PUMP
M8X58 FLANGE 		8-94130-055-1 03 1 9710- ● ● ●
24 BOLT; WATER PUMP
M8X79 FLANGE 		8-94311-617-1 01 1 9505-9611 ●
24 BOLT; WATER PUMP
M8X80 FLANGE 		0-28080-880-0 01 1 9612-9702 ●
24 BOLT; WATER PUMP
M8X80 FLANGE 		0-28080-880-0 01 1 9703-9709 ● ●
24 BOLT; WATER PUMP
M8X80 FLANGE 		0-28080-880-0 01 1 9710-9805 ● ● ●
24 BOLT; WATER PUMP
M10X85 FLANGE 		8-94397-359-1 01 1 9505-9510 ●
24 BOLT; WATER PUMP
M8X80 FLANGE 		0-28080-880-0 01 1 9806-0512 ● ● ●
24 BOLT; WATER PUMP
M8X80 FLANGE 		0-28050-880-0 01 1 0601- ● ● ●
24 BOLT; WATER PUMP
M10X85 FLANGE 		8-94397-359-1 01 1 9511-9702 ●
24 BOLT; WATER PUMP
M10X85 FLANGE 		8-94397-359-1 01 1 9703-9709 ● ●
24 BOLT; WATER PUMP
M10X85 FLANGE 		8-94397-359-1 01 1 9710- ● ● ●
28 WASHER; WATER PUMP 1-09503-070-0 01 1 9101-9504 ● ● ●
28 WASHER; WATER PUMP
ID=25.5 OD=50 		8-94397-097-0 01 1 9505-9702 ●
28 WASHER; WATER PUMP
ID=25.5 OD=50 		8-94397-097-0 01 1 9703-9709 ● ●
28 WASHER; WATER PUMP
ID=25.5 OD=50 		8-94397-097-0 01 1 9710- ● ● ●
29 SHAFT; WATER PUMP 5-13631-009-0 01 1 9101-9106 ● ● ●
29 SHAFT; WATER PUMP 1-13631-074-0 01 1 9107-9504 ● ● ●
29 SHAFT; WATER PUMP 8-94396-130-1 01 1 9505-9702 ●
29 SHAFT; WATER PUMP 8-94396-130-1 01 1 9703-9709 ● ●
29 SHAFT; WATER PUMP 8-94396-130-1 01 1 9710-1302 ● ● ●
29 SHAFT; WATER PUMP 8-98235-498-0 01 1 1303- ● ● ●
42 STUD; WATER PUMP
M8X30 L=46 		9-04010-830-0 01 1 9505-9702 ●
42 STUD; WATER PUMP
M8X30 L=46 		9-04010-830-0 01 1 9703-9709 ● ●
42 STUD; WATER PUMP
M8X30 L=46 		9-04010-830-0 01 1 9710-0604 ● ● ●
42 STUD; WATER PUMP
M8X30 L=46 		0-40110-830-0 01 1 0605- ● ● ●
57 PLUG; HTR,WATER PUMP
M20 		9-99202-320-0 01 1 9505-9511 ●
57 PLUG; HTR,WATER PUMP
M20 		9-99202-320-0 01 1 9601-9702 ●
57 PLUG; HTR,WATER PUMP
M20 		9-99202-320-0 01 1 9703-9709 ● ●
57 PLUG; HTR,WATER PUMP
M20 		9-99202-320-0 01 1 9710- ● ● ●
59 DOWEL; WATER PUMP 9-13119-022-0 02 1 9505-9611 ●
59 DOWEL; WATER PUMP
OD=12 L=9 		1-13119-003-0 02 1 9612-9702 ●
59 DOWEL; WATER PUMP
OD=12 L=9 		1-13119-003-0 02 1 9703-9709 ● ●
59 DOWEL; WATER PUMP
OD=12 L=9 		1-13119-003-0 02 1 9710- ● ● ●
64 GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7 		1-09623-383-0 01 1 9505-9702 ●
64 GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7 		1-09623-383-0 01 1 9703-9709 ● ●
64 GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7 		1-09623-383-0 01 1 9710- ● ● ●
66 SEAL; SECONDARY 5-09625-055-0 01 1 9101-9106 ● ● ●
66 SEAL; SECONDARY 1-09625-545-0 01 1 9107-9504 ● ● ●
66 SEAL; SECONDARY 1-09625-437-0 01 1 9505-9511 ●
69 GASKET; PLUG,HTR
ID=20.5 OD=28.0 		9-09571-420-0 01 1 9101-9504 ● ● ●
69 GASKET; PLUG,HTR
ID=20.5 OD=28.0 		9-09571-420-0 01 1 9505-9511 ●
69 GASKET; PLUG,HTR
ID=20.5 OD=28.0 		9-09571-420-0 01 1 9601-9702 ●
69 GASKET; PLUG,HTR
ID=20.5 OD=28.0 		9-09571-420-0 01 1 9703-9706 ● ●
69 GASKET; PLUG,HTR
ID=20.5 OD=28.0 		9-09571-420-0 01 1 9806- ● ● ●
69 GASKET; PLUG,HTR
ID=20.5 OD=28.0 		9-09571-420-0 01 1 9707-9709 ● ●
69 GASKET; PLUG,HTR
ID=20.5 OD=28.0 		9-09571-420-0 01 1 9710-9805 ● ● ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91150-108-0 04 1 9505-9702 ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91150-108-0 04 1 9703-9709 ● ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91150-108-0 04 1 9710-0602 ● ● ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ● ●
156 CUP; SEALING
OD=25 		1-09600-016-0 01 1 0004- ● ● ●

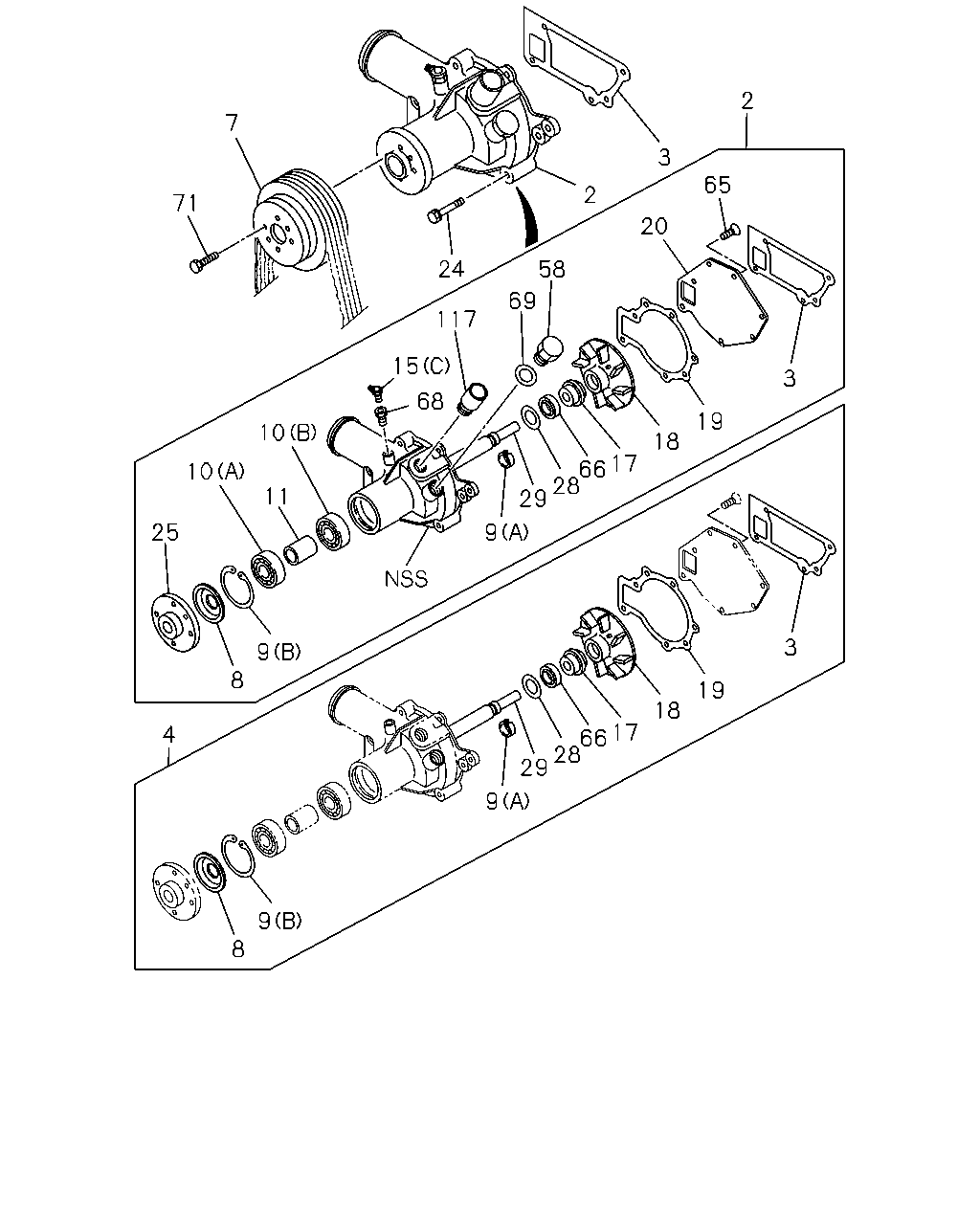

çizim 5451
2 7 3 65 2 71 20 24 58 69 117 15 3 68 19 10 18 17 66 28 29 10 11 25 9 3 9 8 19 18 17 66 28 29 4 9 9 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 PUMP ASM; WATER 1-13610-967-0 01 1 9107-9504 ● ● ●
3 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-13614-013-1 01 1 9101-9504 ● ● ●
4 REPAIR KIT; WATER PUMP 1-87813-946-0 01 1 1303-1312 ●
4 REPAIR KIT; WATER PUMP 1-87810-277-3 01 1 9101-9106 ● ● ●
4 REPAIR KIT; WATER PUMP 1-87810-937-0 01 1 9107-9504 ● ● ●
4 REPAIR KIT; WATER PUMP 1-87811-005-0 01 1 9505-9511 ●
4 REPAIR KIT; WATER PUMP 1-87811-318-0 01 1 9512-9702 ●
4 REPAIR KIT; WATER PUMP 1-87811-318-0 01 1 9703-9709 ● ●
4 REPAIR KIT; WATER PUMP 1-87811-318-0 01 1 9710-9911 ● ● ●
4 REPAIR KIT; WATER PUMP
EMISSION PARTS<TCA> 		1-87811-318-0 01 1 9912-9912 ●
4 REPAIR KIT; WATER PUMP 1-87812-028-0 01 1 9912-9912 ● ●
4 REPAIR KIT; WATER PUMP
EURO2 SPECIFICATION<THN> 		1-87812-028-0 01 1 9912-9912 ●
4 REPAIR KIT; WATER PUMP 1-87812-028-1 01 1 0001-1208 ● ● ●
4 REPAIR KIT; WATER PUMP 1-87813-946-0 01 1 1209-1302 ● ● ●
4 REPAIR KIT; WATER PUMP 1-87814-039-0 01 1 1303-1312 ● ● ●
4 REPAIR KIT; WATER PUMP 1-87814-039-0 01 1 1401-1401 ●
4 REPAIR KIT; WATER PUMP 1-87814-171-0 01 1 1401-1405 ● ● ●
4 REPAIR KIT; WATER PUMP 1-87814-611-0 01 1 1406- ● ● ●
7 PULLEY; WATER PUMP
2-GROOVE 		5-13641-017-1 01 1 9101-9102 ● ● ●
7 PULLEY; WATER PUMP
2-GROOVE 		1-13641-165-0 01 1 9103-9504 ● ● ●
7 PULLEY; WATER PUMP
3-GROOVE 		8-94396-133-0 01 1 9505-9702 ●
7 PULLEY; WATER PUMP
3-GROOVE 		8-94396-133-0 01 1 9703-9709 ● ●
7 PULLEY; WATER PUMP
3-GROOVE 		8-94396-133-0 01 1 9710-1302 ● ● ●
7 PULLEY; WATER PUMP
3-GROOVE 		8-98235-214-0 01 1 1303- ● ● ●
8 THROWER; DUST,WATER PUMP 5-13639-001-0 01 1 9101-9504 ● ● ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 9505-9702 ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 9703-9709 ● ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 9710- ● ● ●
9 RING; SNAP,WATER PUMP
(B) OD=56.2 		9-09180-152-0 01 1 9101-9504 ● ● ●
9 RING; SNAP,WATER PUMP
(A) 		9-09952-143-0 01 1 9101-9504 ● ● ●
9 RING; SNAP,WATER PUMP
(C) ID=57.9 		9-09180-162-0 01 1 9505-9702 ●
9 RING; SNAP,WATER PUMP
(C) ID=57.9 		9-09180-162-0 01 1 9703-9709 ● ●
9 RING; SNAP,WATER PUMP
(C) ID=57.9 		9-09180-162-0 01 1 9710- ● ● ●
10 BEARING; WATER PUMP
(A) NTN 		5-09800-059-0 01 1 9101-9504 ● ● ●
10 BEARING; WATER PUMP
(B) NTN 		5-09800-060-0 01 1 9101-9504 ● ● ●
10 BEARING; WATER PUMP
(B) NSK 		9-00090-059-0 01 1 9101-9504 ● ● ●
10 BEARING; WATER PUMP
(A) NSK 		9-00090-113-0 01 1 9101-9504 ● ● ●
10 BEARING; WATER PUMP
(C) 		1-09800-011-0 03 1 9505-9611 ●
10 BEARING; WATER PUMP
(A) 		8-94391-298-0 02 1 9612-9702 ●
10 BEARING; WATER PUMP
(A) 		8-94391-298-0 02 1 9703-9709 ● ●
10 BEARING; WATER PUMP
(A) 		8-94391-298-0 02 1 9710- ● ● ●
10 BEARING; WATER PUMP
(B) 		8-94391-299-0 01 1 9612-9702 ●
10 BEARING; WATER PUMP
(B) 		8-94391-299-0 01 1 9703-9709 ● ●
10 BEARING; WATER PUMP
(B) 		8-94391-299-0 01 1 9710- ● ● ●
11 SPACER; BRG,WATER PUMP 5-13634-002-0 01 1 9101-9504 ● ● ●
11 SPACER; BRG,WATER PUMP 1-13634-025-0 01 1 9505-9611 ●
11 SPACER; BRG,WATER PUMP 1-13634-040-0 01 1 9612-9702 ●
11 SPACER; BRG,WATER PUMP 1-13634-040-0 01 1 9703-9709 ● ●
11 SPACER; BRG,WATER PUMP 1-13634-040-0 01 1 9710- ● ● ●
15 NIPPLE; GREASE,WATER PUMP
(C) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9101-9504 ● ● ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9505-9702 ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9703-9709 ● ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9710-0512 ● ● ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ● ● ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		1-09380-002-0 01 1 9505-9702 ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		1-09380-002-0 01 1 9703-9709 ● ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		1-09380-002-0 01 1 9710- ● ● ●
17 SEAL UNIT; WATER PUMP 5-13620-006-2 01 1 9101-9504 ● ● ●
17 SEAL UNIT; WATER PUMP 8-94395-036-0 01 1 9505-9702 ●
17 SEAL UNIT; WATER PUMP 8-94395-036-0 01 1 9703-9709 ● ●
17 SEAL UNIT; WATER PUMP 8-94395-036-0 01 1 9710-9912 ● ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0001-1208 ● ● ●
17 SEAL UNIT; WATER PUMP 8-98221-159-0 01 1 1209-1312 ● ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 1401-1405 ● ● ●
17 SEAL UNIT; WATER PUMP 8-98272-791-0 01 1 1406- ● ● ●
18 IMPELLER; WATER PUMP 9-13621-802-0 01 1 9101-9504 ● ● ●
18 IMPELLER; WATER PUMP 8-94397-375-0 01 1 9505-9702 ●
18 IMPELLER; WATER PUMP 8-94397-375-0 01 1 9703-9709 ● ●
18 IMPELLER; WATER PUMP 8-94397-375-0 01 1 9710- ● ● ●
19 GASKET; COVER TO BODY 9-13613-613-0 01 1 9101-9504 ● ● ●
20 COVER; WATER PUMP 1-13612-023-0 01 1 9101-9504 ● ● ●
24 BOLT; WATER PUMP
M10X35 W/LK WASHER 		0-50041-035-0 01 1 9101-9504 ● ● ●
24 BOLT; WATER PUMP
M10X50 W/LK WASHER 		0-50041-050-0 02 1 9101-9504 ● ● ●
24 BOLT; WATER PUMP
M10X75 W/LK WASHER 		5-09030-010-1 01 1 9101-9504 ● ● ●
24 BOLT; WATER PUMP
M8X58 FLANGE 		8-94130-055-1 03 1 9505-9702 ●
24 BOLT; WATER PUMP
M8X58 FLANGE 		8-94130-055-1 03 1 9703-9709 ● ●
24 BOLT; WATER PUMP
M8X58 FLANGE 		8-94130-055-1 03 1 9710- ● ● ●
24 BOLT; WATER PUMP
M8X79 FLANGE 		8-94311-617-1 01 1 9505-9611 ●
24 BOLT; WATER PUMP
M8X80 FLANGE 		0-28080-880-0 01 1 9612-9702 ●
24 BOLT; WATER PUMP
M8X80 FLANGE 		0-28080-880-0 01 1 9703-9709 ● ●
24 BOLT; WATER PUMP
M8X80 FLANGE 		0-28080-880-0 01 1 9710-9805 ● ● ●
24 BOLT; WATER PUMP
M10X85 FLANGE 		8-94397-359-1 01 1 9505-9510 ●
24 BOLT; WATER PUMP
M8X80 FLANGE 		0-28080-880-0 01 1 9806-0512 ● ● ●
24 BOLT; WATER PUMP
M8X80 FLANGE 		0-28050-880-0 01 1 0601- ● ● ●
24 BOLT; WATER PUMP
M10X85 FLANGE 		8-94397-359-1 01 1 9511-9702 ●
24 BOLT; WATER PUMP
M10X85 FLANGE 		8-94397-359-1 01 1 9703-9709 ● ●
24 BOLT; WATER PUMP
M10X85 FLANGE 		8-94397-359-1 01 1 9710- ● ● ●
25 CENTER; WATER PUMP 1-13642-003-0 01 1 9101-9504 ● ● ●
28 WASHER; WATER PUMP 1-09503-070-0 01 1 9101-9504 ● ● ●
28 WASHER; WATER PUMP
ID=25.5 OD=50 		8-94397-097-0 01 1 9505-9702 ●
28 WASHER; WATER PUMP
ID=25.5 OD=50 		8-94397-097-0 01 1 9703-9709 ● ●
28 WASHER; WATER PUMP
ID=25.5 OD=50 		8-94397-097-0 01 1 9710- ● ● ●
29 SHAFT; WATER PUMP 5-13631-009-0 01 1 9101-9106 ● ● ●
29 SHAFT; WATER PUMP 1-13631-074-0 01 1 9107-9504 ● ● ●
29 SHAFT; WATER PUMP 8-94396-130-1 01 1 9505-9702 ●
29 SHAFT; WATER PUMP 8-94396-130-1 01 1 9703-9709 ● ●
29 SHAFT; WATER PUMP 8-94396-130-1 01 1 9710-1302 ● ● ●
29 SHAFT; WATER PUMP 8-98235-498-0 01 1 1303- ● ● ●
58 PLUG; HTR
M20 		9-99202-320-0 01 1 9101-9504 ● ● ●
65 SCREW; COVER,WATER PUMP
M8X20 CK-HEAD 		9-03090-820-0 03 1 9101-9504 ● ● ●
66 SEAL; SECONDARY 5-09625-055-0 01 1 9101-9106 ● ● ●
66 SEAL; SECONDARY 1-09625-545-0 01 1 9107-9504 ● ● ●
66 SEAL; SECONDARY 1-09625-437-0 01 1 9505-9511 ●
68 ADAPTER; GREASE NIPPLE 9-09702-026-0 01 1 9101-9504 ● ● ●
69 GASKET; PLUG,HTR
ID=20.5 OD=28.0 		9-09571-420-0 01 1 9101-9504 ● ● ●
69 GASKET; PLUG,HTR
ID=20.5 OD=28.0 		9-09571-420-0 01 1 9505-9511 ●
69 GASKET; PLUG,HTR
ID=20.5 OD=28.0 		9-09571-420-0 01 1 9601-9702 ●
69 GASKET; PLUG,HTR
ID=20.5 OD=28.0 		9-09571-420-0 01 1 9703-9706 ● ●
69 GASKET; PLUG,HTR
ID=20.5 OD=28.0 		9-09571-420-0 01 1 9806- ● ● ●
69 GASKET; PLUG,HTR
ID=20.5 OD=28.0 		9-09571-420-0 01 1 9707-9709 ● ●
69 GASKET; PLUG,HTR
ID=20.5 OD=28.0 		9-09571-420-0 01 1 9710-9805 ● ● ●
71 BOLT; PULLEY
M8X22 W/LK WASHER 		0-50040-822-0 04 1 9101-9504 ● ● ●
117 CONNECTOR; BYPASS 1-09660-119-2 01 1 9101-9504 ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
