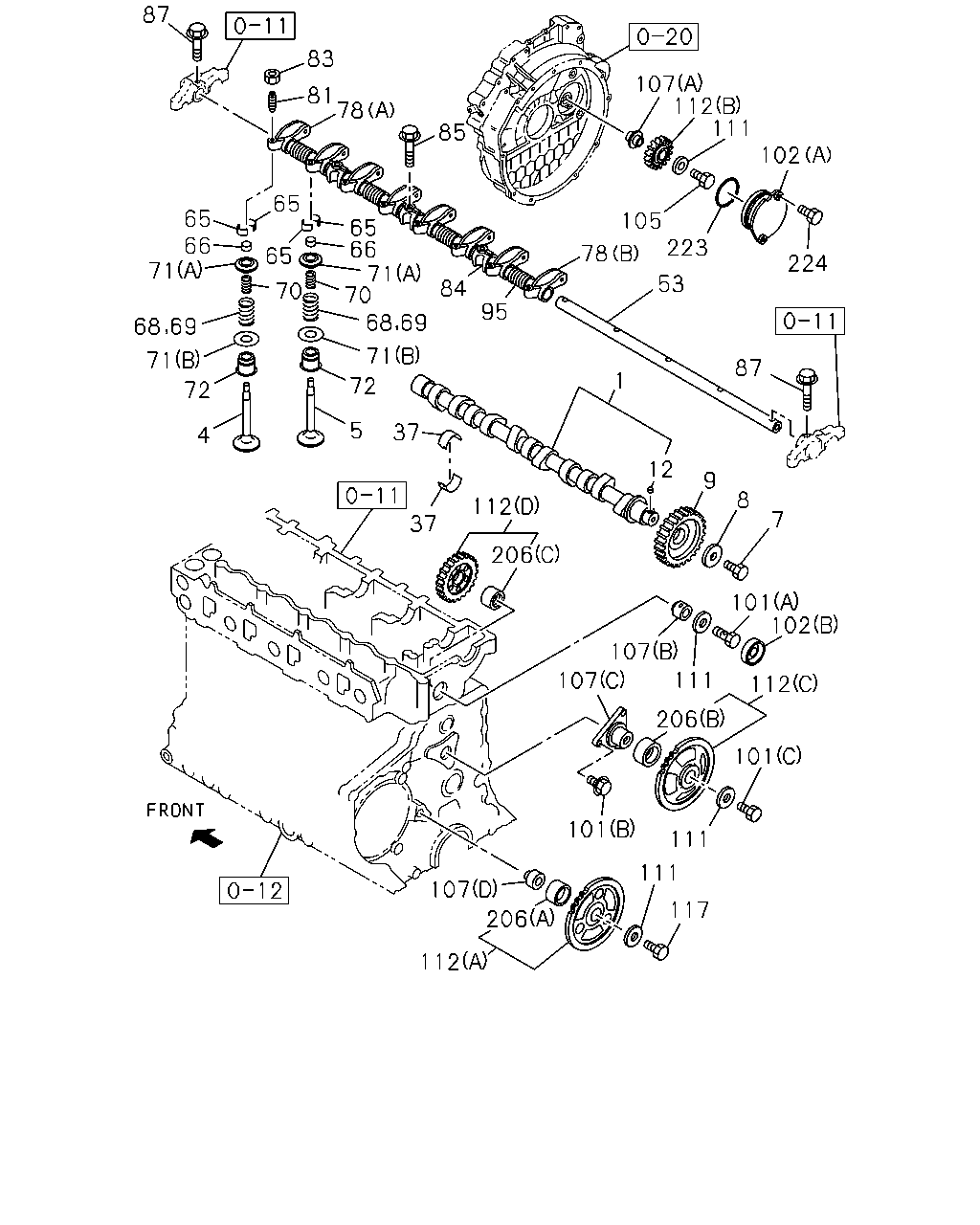

0-14 — CAMSHAFT AND VALVE (#43489) — 76 parça

87 85 83 107 112 111 81 78 102 65 65 66 105 223 65 66 71 70 78 65 70 224 71 53 84 95 69 71 71 87 1 72 72 5 37 4 12 9 8 112 7 37 206 101 102 107 107 111 112 206 101 101 111 111 107 117 206 112 68 69 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAMSHAFT	8-97077-829-0	01	1	0009-	●
1	CAMSHAFT	8-97077-830-0	01	1	0009-		●
4	VALVE; INL	8-97171-398-0	04	1	0009-	●
4	VALVE; INL	8-97033-864-2	04	1	0009-		●
5	VALVE; EXH	8-97171-399-0	04	1	0009-	●
5	VALVE; EXH	8-97219-509-2	04	1	0009-		●
7	BOLT; CM/SHF GEAR M14X40 THA	9-92061-440-0	01	1	0009-0204	●	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0205-	●	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0205-	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0009-	●	●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	0009-	●	●
12	KEY; CAM GEAR SET	8-94399-487-0	01	1	0009-	●	●
37	METAL; CM/SHF	8-97112-638-0	10	1	0009-0209	●	●
37	METAL; CM/SHF B=16	8-97356-939-0	10	1	0210-	●	●
37	METAL; CM/SHF B=16	8-97356-939-0	10	1	0210-	●	●
53	SHAFT; ROCKER ARM JBK	8-97074-617-1	01	1	0009-	●	●
53	SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	0009-	●	●
65	COLLAR; SPLIT	5-12565-006-0	16	1	0009-	●	●
66	CAP; VLV STEM END	8-97188-300-0	08	1	0009-0106	●	●
66	CAP; VLV STEM END	8-94396-015-2	08	1	0107-	●	●
66	CAP; VLV STEM END	8-94396-015-2	08	1	0107-	●	●
68	SPRING; VLV ID=28.5	8-97023-559-0	08	1	0009-	●
69	SPRING; VLV,OUTER EXHAUST MARK GREEN	8-97120-905-0	04	1	0009-		●
69	SPRING; VLV,OUTER INLET MARK PINK	8-97120-912-0	04	1	0009-		●
70	SPRING; VLV,INNER EXHAUST MARK GREEN	8-97120-899-0	04	1	0009-		●
70	SPRING; VLV,INNER INLET MARK PINK	8-97120-911-0	04	1	0009-		●
71	SEAT; SPR (A) OD=38	8-94385-029-2	08	1	0009-	●	●
71	SEAT; SPR (B) ID=14.3 OD=40	8-94399-526-1	08	1	0009-	●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	08	1	0009-	●	●
78	ARM; ROCKER (B) JBK	8-97014-258-2	04	1	0009-	●	●
78	ARM; ROCKER (A) JBK	8-97074-614-1	04	1	0009-	●	●
78	ARM; ROCKER (A) KEIHIN SEIMITSU	8-97174-562-0	04	1	0009-	●	●
78	ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	0009-	●	●
81	SCREW; ADJ,ROCKER ARM	8-94367-526-2	16	1	0009-	●	●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	16	1	0009-	●	●
84	BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	0009-	●	●
84	BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	0009-	●	●
85	BOLT; BRKT M10X62 FLANGE	8-94393-131-0	03	1	0009-	●	●
85	BOLT; BRKT M10X62 FLANGE	8-97174-650-0	03	1	0009-	●	●
87	BOLT; ROCKER SHAFT M8X35 FLANGE	0-28080-835-0	04	1	0009-	●	●
95	SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	0009-	●	●
95	SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	0009-	●	●
101	BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	0009-	●	●
101	BOLT; THRUST COLLAR (B) M8X14	8-97073-782-0	03	1	0009-0203	●	●
101	BOLT; THRUST COLLAR M8X16 FLANGE	0-28090-816-0	03	1	0204-	●	●
101	BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	0009-	●	●
101	BOLT; THRUST COLLAR M8X16 FLANGE	0-28090-816-0	03	1	0204-	●	●
102	COVER; IDLE GEAR (A)	8-94334-681-1	01	1	0009-	●	●
102	COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	0009-	●	●
105	BOLT; IDLE GEAR SHAFT POWER STEERING<N40> M14X60	9-91666-460-0	01	1	0009-	●
105	BOLT; IDLE GEAR SHAFT M14X60	9-91666-460-0	01	1	0009-		●
107	SHAFT; IDLE GEAR (D)	8-97104-380-0	01	1	0009-	●	●
107	SHAFT; IDLE GEAR (B)	8-97186-398-1	01	1	0009-	●	●
107	SHAFT; IDLE GEAR (C)	8-97189-244-0	01	1	0009-0203	●	●
107	SHAFT; IDLE GEAR	8-97350-021-0	01	1	0204-	●	●
107	SHAFT; IDLE GEAR POWER STEERING<N40> (A)	8-94334-682-0	01	1	0009-	●
107	SHAFT; IDLE GEAR (A)	8-94334-682-0	01	1	0009-		●
107	SHAFT; IDLE GEAR	8-97350-021-0	01	1	0204-	●	●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-1	03	1	0009-	●	●
111	COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-97209-728-1	01	1	0009-	●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-1	01	1	0009-		●
112	GEAR; IDLE (D) Z=41	8-97112-607-0	01	1	0009-	●	●
112	GEAR; IDLE (C) Z=61	8-97094-546-1	01	1	0009-	●
112	GEAR; IDLE (A) Z=72-30	8-97227-074-0	01	1	0009-	●
112	GEAR; IDLE POWER STEERING<N40> (B) Z=34	8-97120-005-0	01	1	0009-	●
112	GEAR; IDLE (B) Z=34	8-97120-005-0	01	1	0009-		●
112	GEAR; IDLE (C) Z=61	8-94393-439-3	01	1	0009-		●
112	GEAR; IDLE (A) Z=72-30	8-97223-189-0	01	1	0009-		●
117	BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	0009-	●	●
206	BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-006-0	01	1	0009-	●	●
206	BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-94369-340-0	01	1	0009-	●	●
206	BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97112-608-0	01	1	0009-	●	●
223	GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-247-0	01	1	0009-0211	●	●
223	GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	0212-	●	●
223	GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	0212-	●	●
224	BOLT; COVER M8X16 FLANGE	0-28080-816-0	02	1	0009-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
