1 |

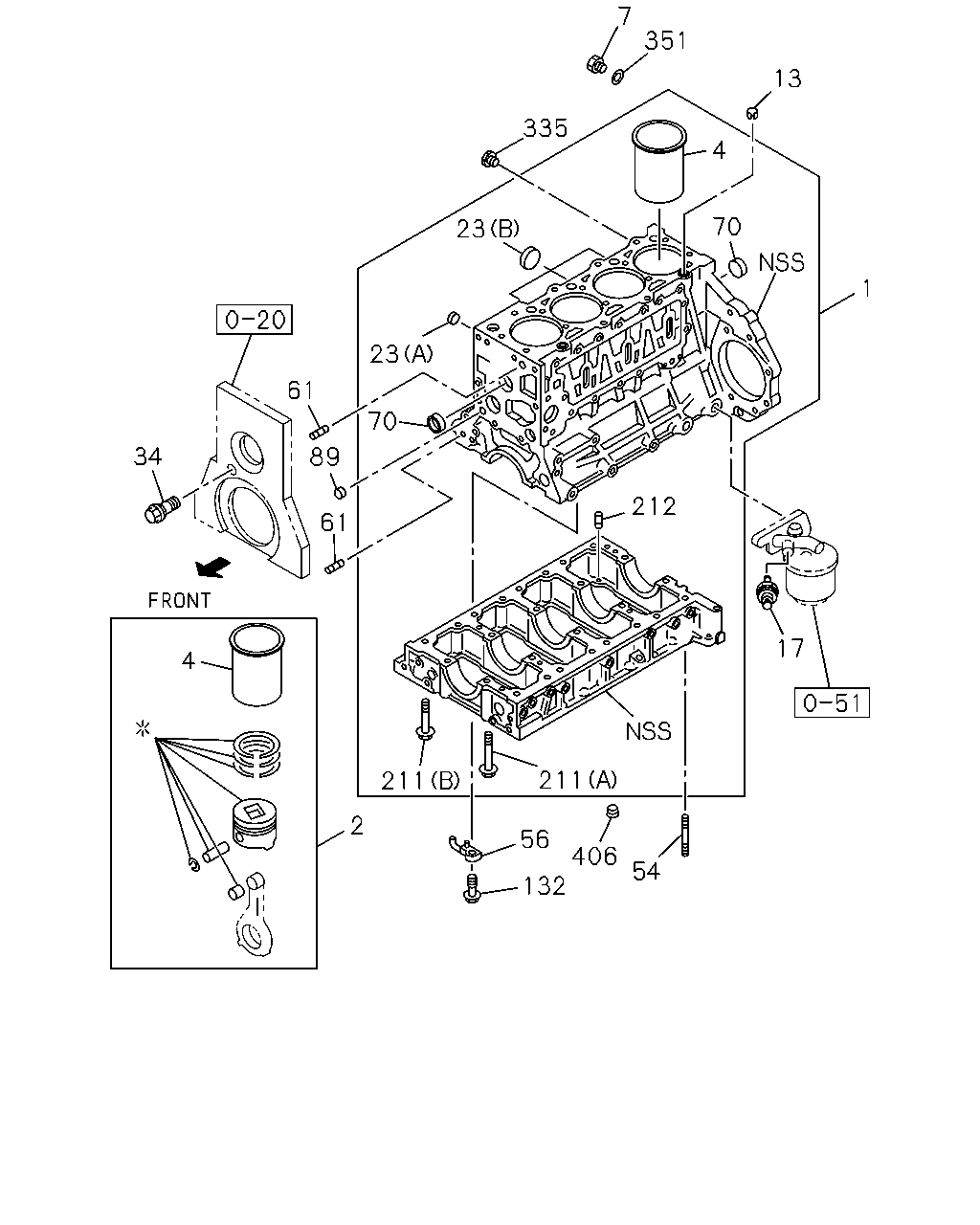

BLOCK ASM; CYL
|
8-97173-726-5 |
01 |
1 |
0009- |
● |
|
| |
1 |
BLOCK ASM; CYL
|
8-97148-885-1 |
01 |
1 |
0009- |
|
● |
| |
2 |
LINER SET; ENG CYL
GRADE=1X
|
5-87813-571-1 |
04 |
1 |
0009- |
● |
|
| |
2 |
LINER SET; ENG CYL
GRADE=3X
|
5-87813-572-1 |
04 |
1 |
0009- |
● |
|
| |
2 |
LINER SET; ENG CYL
GRADE=1X
|
5-87813-744-1 |
04 |
1 |
0009- |
|
● |
| |
2 |
LINER SET; ENG CYL
GRADE=3X
|
5-87813-745-1 |
04 |
1 |
0009- |
|
● |
| |
4 |
LINER; C/BL
ALSO INCLUDED IN LINER SET.
OD GRADE=1X,ID GRADE=NON
|
8-97176-729-0 |
04 |
1 |
0009-0204 |
● |
|
| |
4 |
LINER; C/BL
ALSO INCLUDED IN LINER SET.
OD GRADE=1X,ID GRADE=NON
|
8-97351-558-0 |
04 |
1 |
0205- |
● |
|
| |
4 |
LINER; C/BL
ALSO INCLUDED IN LINER SET.
OD GRADE=3X,ID GRADE=NON
|
8-97176-730-0 |
04 |
1 |
0009-0204 |
● |
|
| |
4 |
LINER; C/BL
ALSO INCLUDED IN LINER SET.
OD GRADE=3X,ID GRADE=NON
|
8-97351-559-0 |
04 |
1 |
0205- |
● |
|
| |
4 |
LINER; C/BL
ALSO INCLUDED IN LINER SET.
OD GRADE=1X,ID GRADE=AX
|
8-97176-723-0 |
04 |
1 |
0009- |
|
● |
| |
4 |
LINER; C/BL
ALSO INCLUDED IN LINER SET.
OD GRADE=1X,ID GRADE=CX
|
8-97176-724-0 |
04 |
1 |
0009- |
|
● |
| |
4 |
LINER; C/BL
ALSO INCLUDED IN LINER SET.
OD GRADE=3X,ID GRADE=AX
|
8-97176-725-0 |
04 |
1 |
0009- |
|
● |
| |
4 |
LINER; C/BL
ALSO INCLUDED IN LINER SET.
OD GRADE=3X,ID GRADE=CX
|
8-97176-726-0 |
04 |
1 |
0009- |
|
● |
| |
4 |
LINER; C/BL
ALSO INCLUDED IN LINER SET.
OD GRADE=1X,ID GRADE=NON
|
8-97351-558-0 |
04 |
1 |
0205- |
● |
|
| |
4 |
LINER; C/BL
ALSO INCLUDED IN LINER SET.
OD GRADE=3X,ID GRADE=NON
|
8-97351-559-0 |
04 |
1 |
0205- |
● |
|
| |
7 |
PLUG; WATER DRAIN
M10X7
|
9-09861-010-0 |
01 |
1 |
0009-0208 |
● |
● |
| |
7 |
PLUG; WATER DRAIN
M10X10
|
8-97352-537-0 |
01 |
1 |
0209- |
● |
● |
| |
7 |
PLUG; WATER DRAIN
M10X10
|
8-97352-537-0 |
01 |
1 |
0209- |
● |
● |
| |
13 |
DOWEL; C/BL TO HD
OD=18.15
|
8-94399-688-1 |
02 |
1 |
0009- |
● |
● |
| |
17 |
SWITCH; OIL PRESSURE
|
8-97176-230-0 |
01 |
1 |
0009- |
● |
● |
| |
23 |
CUP; SEALING,C/BL FRT & RR
(A)
OD=25
|
1-09600-016-0 |
01 |
1 |
0009- |
● |
● |
| |
23 |
CUP; SEALING,C/BL FRT & RR
(B)
OD=45
|
8-97036-550-1 |
03 |
1 |
0009- |
● |
● |
| |
34 |
VALVE; OIL RELIEF
|
8-94386-047-1 |
01 |
1 |
0009- |
● |
● |
| |
54 |
STUD; OIL PAN TO BLOCK
M8X20 L=38
|
8-97021-431-0 |
03 |
1 |
0009- |
|
● |
| |
56 |
JET; OIL,PISTON COOLING
|
8-97333-900-0 |
04 |
1 |
0305-0305 |
|
● |
| |
56 |
JET; OIL,PISTON COOLING
|
8-97333-900-0 |
04 |
1 |
0305-0305 |
|
● |
| |
56 |
JET; OIL,PISTON COOLING
|
8-97213-294-0 |
04 |
1 |
0009- |
● |
|
| |
56 |
JET; OIL,PISTON COOLING
|
8-94399-166-0 |
04 |
1 |
0009-0305 |
|
● |
| |
56 |
JET; OIL,PISTON COOLING
|
8-94399-166-0 |
08 |
1 |
0306- |
|
● |
| |
56 |
JET; OIL,PISTON COOLING
|
8-94399-166-0 |
08 |
1 |
0306- |
|
● |
| |
61 |
PIN; STRAIGHT
L=22
|
8-94483-674-0 |
04 |
1 |
0009- |
● |
● |
| |
70 |
CUP; SEALING,FRT & RR
OD=40
|
8-97096-824-0 |
04 |
1 |
0009- |
● |
● |
| |
70 |
CUP; SEALING,FRT & RR
OD=25
|
1-09600-016-0 |
01 |
1 |
0009- |
|
● |
| |
89 |
CUP; SEALING,OIL GALLERY
OD=20
|
9-11129-128-0 |
03 |
1 |
0009- |
● |
● |
| |
97 |
CUP; SEALING
OD=16
|
5-11129-006-0 |
01 |
1 |
0205- |
● |
|
| |
97 |
CUP; SEALING
OD=22
|
8-97209-609-0 |
03 |
1 |
0205- |
● |
|
| |
97 |
CUP; SEALING
OD=16
|
5-11129-006-0 |
01 |
1 |
0205- |
● |
|
| |
97 |
CUP; SEALING
OD=22
|
8-97209-609-0 |
03 |
1 |
0205- |
● |
|
| |
132 |
VALVE; CHECK,OIL
M10X18.5
|
1-13161-012-0 |
04 |
1 |
0009- |
● |
● |
| |
211 |
BOLT; CRANKCASE
(B)
M10X82
|
8-94399-553-2 |
17 |
1 |
0009- |
● |
● |
| |
211 |
BOLT; CRANKCASE
(A)
M14X115 W/FLANGE
|
8-97077-638-0 |
10 |
1 |
0009- |
● |
● |
| |
212 |
PIN; CRANKCASE
OD=10 L=20
|
8-97135-423-0 |
02 |
1 |
0009- |
● |
● |
| |
335 |
PLUG; C/BL,SIDE
M14X16.5
|
8-97018-606-0 |
01 |
1 |
0009- |
● |
|
| |
335 |
PLUG; C/BL,SIDE
M14X16.5
|
8-97018-606-0 |
02 |
1 |
0009- |
|
● |
| |
351 |
GASKET; COCK,WATER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=10.2 OD=15.2
THA
|
1-09630-083-0 |
01 |
1 |
0009- |
● |
● |
| |
406 |
PLUG; CRANK CASE
PT3/8
THA
|
5-09605-005-0 |
02 |
1 |
0009- |
● |
● |
