0-11 — CYLINDER HEAD (#43486) — 49 parça

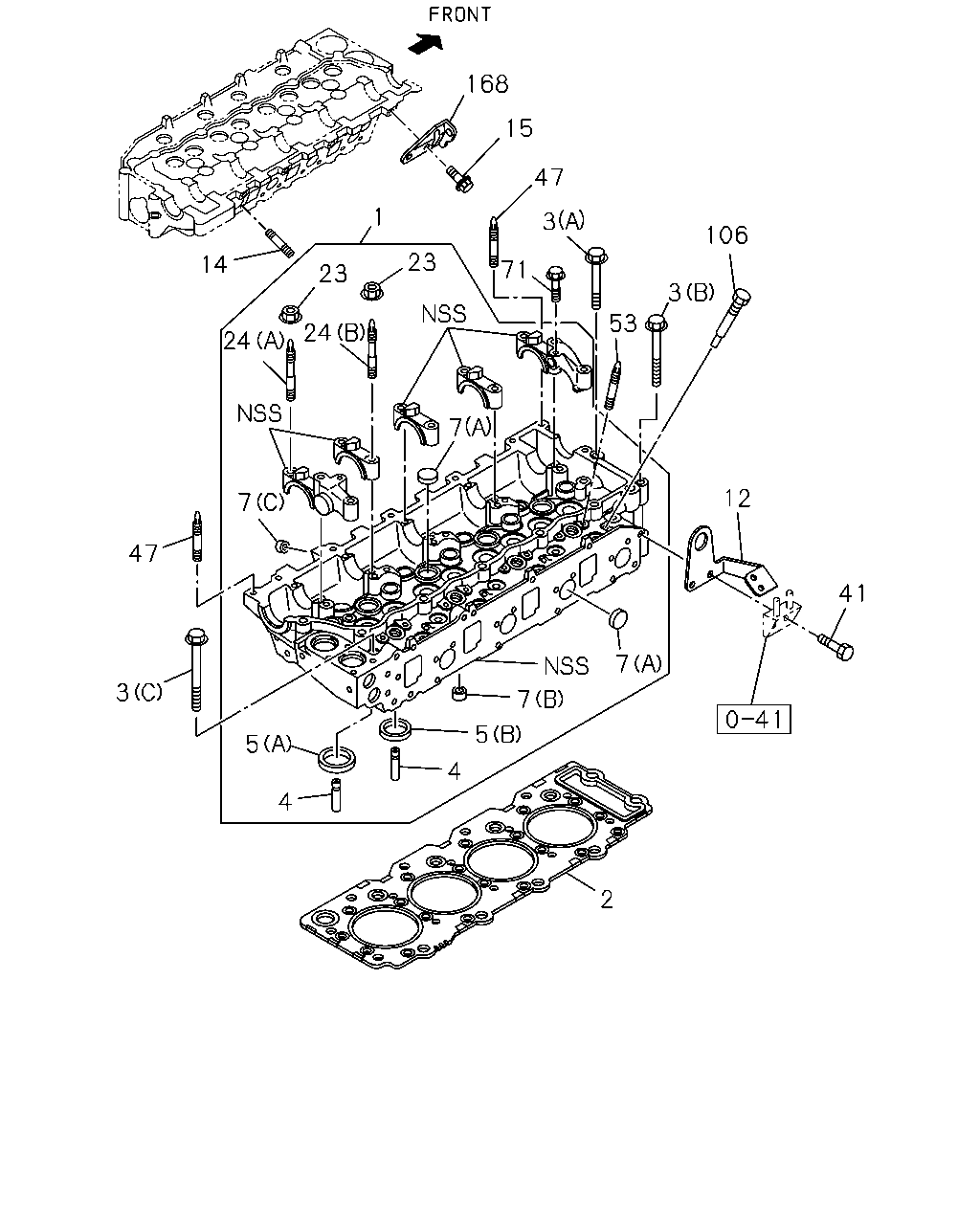

çizim 50008
168 15 47 1 3 106 23 14 71 23 3 24 53 24 7 12 7 47 41 7 3 7 5 5 4 4 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL 8-97207-133-1 01 1 0009-0212 ●
1 HEAD ASM; CYL 8-97358-368-0 01 1 0301- ●
1 HEAD ASM; CYL 8-97148-208-3 01 1 0009-0212 ●
1 HEAD ASM; CYL 8-97358-366-0 01 1 0301- ●
1 HEAD ASM; CYL 8-97358-368-0 01 1 0301- ●
1 HEAD ASM; CYL 8-97358-366-0 01 1 0301- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-97262-943-1 01 1 0009-0210 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-97349-489-0 01 1 0211- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-97262-944-1 01 1 0009-0210 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-97349-490-0 01 1 0211- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-97262-945-1 01 1 0009-0210 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-97349-491-0 01 1 0211- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-97349-489-0 01 1 0211- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-97349-490-0 01 1 0211- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-97349-491-0 01 1 0211- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 WO/NOTCH 		8-97138-066-1 01 1 0009-0207 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 WO/NOTCH 		8-97354-196-1 01 1 0208- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.75 1-NOTCH 		8-97138-067-1 01 1 0009-0207 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.75 1-NOTCH 		8-97354-197-1 01 1 0208- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.80 2-NOTCH 		8-97138-068-1 01 1 0009-0207 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.80 2-NOTCH 		8-97354-198-1 01 1 0208- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 WO/NOTCH 		8-97354-196-1 01 1 0208- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.75 1-NOTCH 		8-97354-197-1 01 1 0208- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.80 2-NOTCH 		8-97354-198-1 01 1 0208- ●
3 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 0009- ● ●
3 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 0009- ● ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 0009- ● ●
4 GUIDE; VLV 8-94396-598-0 08 1 0009- ● ●
5 SEAT; VLV INSERT
(B) EXHAUST OD=43 		8-94396-172-0 04 1 0009- ● ●
5 SEAT; VLV INSERT
(A) INLET OD=52 		8-94394-127-0 04 1 0009- ●
5 SEAT; VLV INSERT
(A) INLET OD=51 		8-97088-460-0 04 1 0009- ●
7 CUP; SEALING,CYL HEAD
(B) OD=25 		1-09600-016-0 02 1 0009- ● ●
7 CUP; SEALING,CYL HEAD
(C) OD=12 		8-97036-335-1 04 1 0009- ● ●
7 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 12 1 0009- ● ●
12 HANGER; ENG,RR 8-97210-326-0 01 1 0009- ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 0009- ● ●
15 BOLT; HANGER,FRT
M10X20 FLANGE 		0-28781-020-0 02 1 0009- ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 10 1 0009- ● ●
24 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 0009- ● ●
24 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 0009- ● ●
41 BOLT; ENG HANGER
M10X20 FLANGE 		0-28781-020-0 02 1 0009- ●
47 STUD; CYL HD
M8X30 L=41 		8-97016-313-0 03 1 0009- ●
47 STUD; CYL HD
M8X65 L=76 TORQUES 		8-97167-299-1 02 1 0009- ●
47 STUD; CYL HD
M8X30 L=41 		8-97016-313-0 02 1 0009- ●
53 STUD; INJ NOZZLE
M8X64 L=85 		8-97178-608-0 08 1 0009- ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 0009- ● ●
106 PLUG; GLOW PLUG HOLE 1-11119-018-0 04 1 0009- ● ●
168 HANGER; ENG,FRT 8-97200-618-1 01 1 0009- ●
168 HANGER; ENG,FRT 8-97127-373-0 01 1 0009- ●
