◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50819 - NPR/NQR(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#43484) — 39 parça

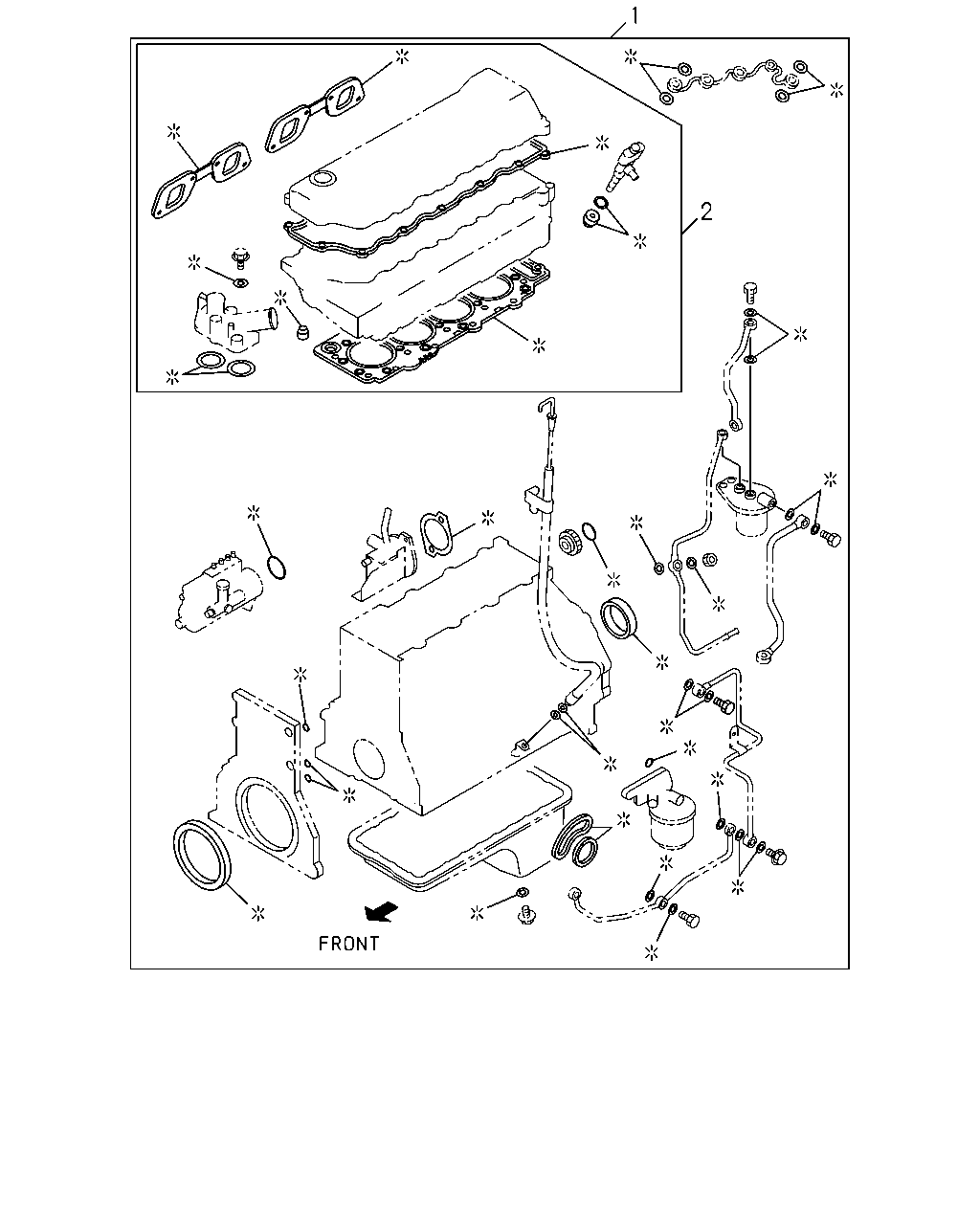

çizim 9413
1 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87813-954-1 01 1 0009-0012 ●
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-063-1 01 1 0101-0210 ●
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-350-1 01 1 0211- ●
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87813-955-1 01 1 0009-0012 ●
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-064-1 01 1 0101-0210 ●
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-351-1 01 1 0211- ●
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87813-956-1 01 1 0009-0012 ●
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-065-1 01 1 0101-0210 ●
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-352-1 01 1 0211- ●
1 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-350-1 01 1 0211- ●
1 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-351-1 01 1 0211- ●
1 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-352-1 01 1 0211- ●
1 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87813-400-6 01 1 0009-0207 ●
1 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87814-332-1 01 1 0208-0307 ●
1 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87814-433-0 01 1 0308- ●
1 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87813-401-6 01 1 0009-0207 ●
1 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87814-333-1 01 1 0208-0307 ●
1 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87814-434-0 01 1 0308- ●
1 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87813-402-6 01 1 0009-0207 ●
1 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87814-334-1 01 1 0208-0307 ●
1 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87814-435-0 01 1 0308- ●
1 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87814-332-1 01 1 0208-0307 ●
1 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87814-433-0 01 1 0308- ●
1 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87814-333-1 01 1 0208-0307 ●
1 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87814-434-0 01 1 0308- ●
1 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87814-334-1 01 1 0208-0307 ●
1 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87814-435-0 01 1 0308- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87813-963-2 01 1 0009- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87813-964-2 01 1 0009- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87813-965-2 01 1 0009- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.70 WO/NOTCH 		5-87813-406-4 01 1 0009-0207 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.70 WO/NOTCH 		5-87814-338-1 01 1 0208- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.75 1-NOTCH 		5-87813-407-4 01 1 0009-0207 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.75 1-NOTCH 		5-87814-339-1 01 1 0208- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.80 2-NOTCH 		5-87813-408-4 01 1 0009-0207 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.80 2-NOTCH 		5-87814-340-1 01 1 0208- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.70 WO/NOTCH 		5-87814-338-1 01 1 0208- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.75 1-NOTCH 		5-87814-339-1 01 1 0208- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.80 2-NOTCH 		5-87814-340-1 01 1 0208- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
