9-01 — TOOLS (#43482) — 90 parça
çizim 50093
285 280 284 281 317 281 281 317 317 284 284
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> 		8-97161-497-0 01 1 9812-9904 ● ● ● ● ● ●
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> 		8-97222-496-0 01 1 9905- ● ● ● ● ● ● ●
281 08.821 BRACKET; TOOL BOX
TOOL & STORAGE BOX<VK2> (A) 		8-97095-539-0 01 1 9904-9912 ●
281 08.821 BRACKET; TOOL BOX
TOOL & STORAGE BOX<VK2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97095-539-0 01 1 0001-0105 ●
281 08.821 BRACKET; TOOL BOX
4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> (A) 		8-97095-539-0 01 1 0106- ●
281 08.821 BRACKET; TOOL BOX
TOOL & STORAGE BOX<VK2> (C) 		8-97248-971-0 01 1 0106- ●
281 08.821 BRACKET; TOOL BOX
TOOL & STORAGE BOX<VK2> (B) 		8-97209-719-0 01 1 9904-0105 ●
281 08.821 BRACKET; TOOL BOX
TOOL & STORAGE BOX<VK2> (B) 		8-97209-719-0 01 1 0106- ●
281 08.821 BRACKET; TOOL BOX
4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> (B) 		8-97209-719-0 01 1 0106- ●
281 08.821 BRACKET; TOOL BOX
4 WHEEL ANTI LOCK BRAKE<JE5> TOOL & STORAGE BOX<VK2> (C) 		8-97248-971-0 01 1 0001-0105 ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 9812-9912 ● ● ● ● ● ●
284 08.821 BOLT; TOOL BOX
4 WHEEL ANTI LOCK BRAKE<JE5> TOOL & STORAGE BOX<VK2> 02.559 M8X25 FLANGE 		0-28680-825-0 03 1 0001-0105 ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 02.559 M8X25 FLANGE 		0-28680-825-0 03 1 0106- ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0001-0105 ● ● ● ● ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0001-0105 ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0106- ● ● ● ● ● ●
285 08.821 NUT; TOOL BOX
4JG2 ENG(RJC),4JB1 ENG(RLF),4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE 		0-91150-108-0 04 1 9812-0007 ●
285 08.821 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE 		0-91150-108-0 04 1 9812-0007 ● ● ● ● ●
285 08.821 NUT; TOOL BOX
4JG2 ENG(RJC),4JB1 ENG(RLF) TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE 		0-91150-108-0 04 1 0008-0105 ●
285 08.821 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 M8 FLANGE 		0-91150-108-0 04 1 0008-0105 ●
285 08.821 NUT; TOOL BOX
4JH1 ENG(RJX) TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE 		0-91150-108-0 03 1 0106- ●
285 08.821 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE 		0-91150-108-0 03 1 0106- ●
285 08.821 NUT; TOOL BOX
07.633 M8 FLANGE 		0-91150-108-0 03 1 0106- ●
285 08.821 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9904-9912 ●
285 08.821 NUT; TOOL BOX
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0001-0007 ●
285 08.821 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0001-0007 ●
285 08.821 NUT; TOOL BOX
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0008-0105 ●
285 08.821 NUT; TOOL BOX
EXC. TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ●
285 08.821 NUT; TOOL BOX
4 WHEEL ANTI LOCK BRAKE<JE5> TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE 		0-91150-108-0 03 1 0008-0105 ●
317 08.821 BOLT; BRKT TO FRAME
TOOL & STORAGE BOX<VK2> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 9904-9912 ●
317 08.821 BOLT; BRKT TO FRAME
TOOL & STORAGE BOX<VK2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0001-0105 ●
317 08.821 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> 02.183 M8X35 FLANGE 		0-28680-835-0 04 1 0106- ●
317 08.821 BOLT; BRKT TO FRAME
4 WHEEL ANTI LOCK BRAKE<JE5> TOOL & STORAGE BOX<VK2> 02.183 M8X35 FLANGE 		0-28680-835-0 04 1 0001-0007 ●
317 08.821 BOLT; BRKT TO FRAME
4 WHEEL ANTI LOCK BRAKE<JE5> TOOL & STORAGE BOX<VK2> 02.183 M8X35 FLANGE 		0-28680-835-0 03 1 0008-0105 ●
317 08.821 BOLT; BRKT TO FRAME
TOOL & STORAGE BOX<VK2> 02.183 M8X35 FLANGE 		0-28680-835-0 03 1 0106- ●

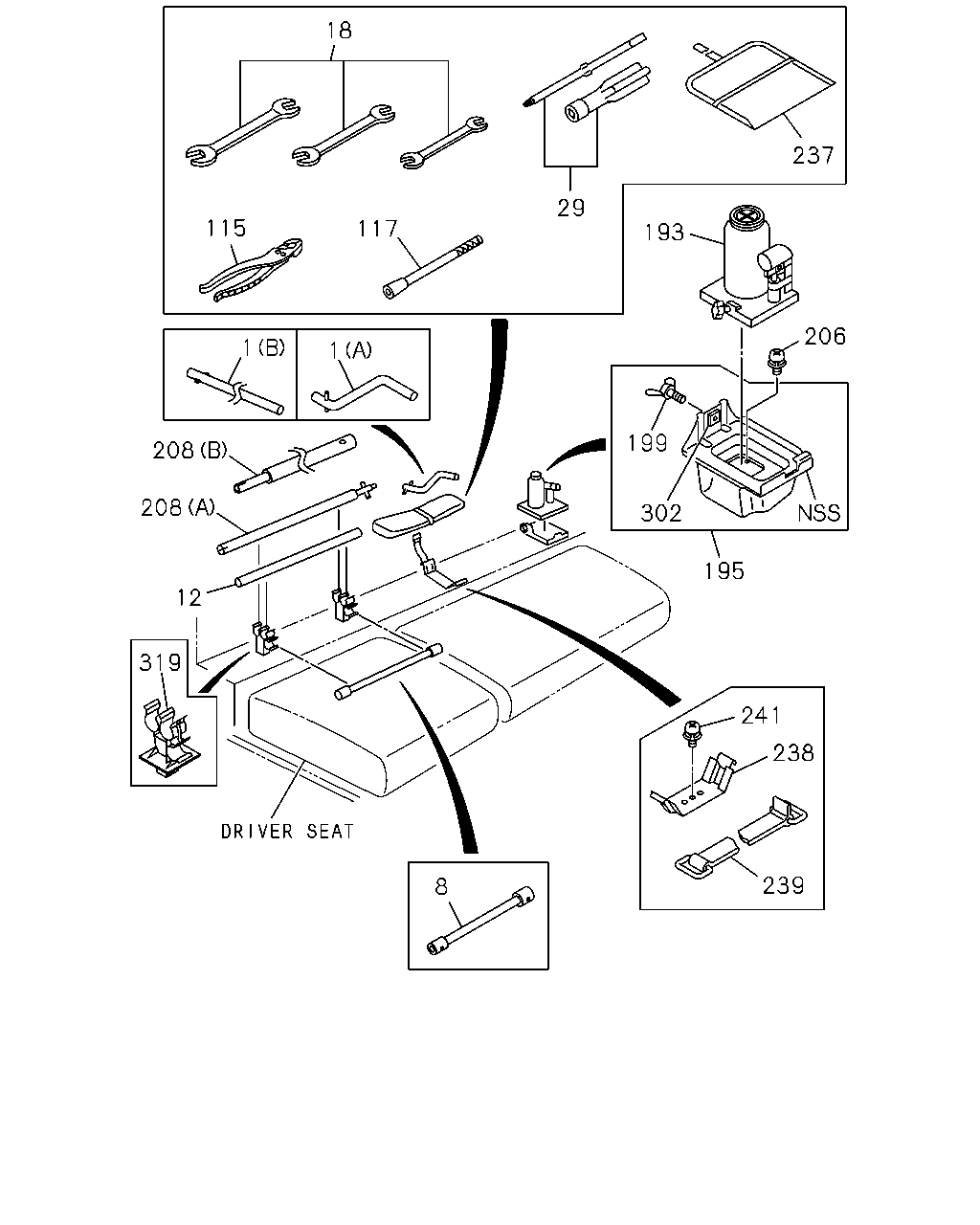

çizim 50754
18 237 29 115 117 193 206 1 1 199 208 208 302 195 12 319 241 238 239 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 07.629 HANDLE; SPARE TIRE CARRIER
FRAME STRAIGHT TYPE<7KJ> 08.821 (B) L=280 		1-85515-007-0 01 1 9812- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
08.821 (B) L=280 		1-85515-007-0 01 1 9812- ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
EXC. FRAME STRAIGHT TYPE<7KJ> 08.820 (A) 		9-85512-608-0 01 1 9812-9902 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
08.820 (A) 		9-85512-608-0 01 1 9812-9902 ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97218-985-0 01 1 9903- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
(A) 		8-97218-985-0 01 1 9903- ● ● ●
8 08.821 WRENCH; WHEEL
(BQU),(06H),(07H),(08H),(09H),(10H), (11H),(12H),(13H),(14H),(15H),(16H), (17H),(18H),(19H),(50C),(51C),(52C), (9HY),(94H),(95H),(96H),(97H),(98H), (99H) B=41X19 L=330 		8-94386-490-1 01 1 9812-9901 ●
8 08.821 WRENCH; WHEEL
(06H),(07H),(08H),(09H),(10H),(11H), (12H),(13H),(14H),(15H),(16H),(17H), (18H),(19H),(50C),(51C),(52C),(94H), (95H),(96H),(97H),(98H),(99H) B=41X19 L=330 		8-94386-490-1 01 1 9812-9901 ●
8 08.821 WRENCH; WHEEL
(BQU),(06H),(07H),(08H),(09H),(10H), (11H),(12H),(13H),(14H),(15H),(16H), (17H),(18H),(19H),(50C),(51C),(52C), (9HY),(94H),(95H),(96H),(97H),(98H), (99H) B=41X19 L=330 		8-94386-490-1 01 1 9902-9903 ● ● ●
8 08.821 WRENCH; WHEEL
(BQU),(06H),(07H),(08H),(09H),(10H), (11H),(12H),(13H),(14H),(15H),(16H), (17H),(18H),(19H),(50C),(51C),(52C), (9HY),(94H),(95H),(96H),(97H),(98H), (99H) B=41X19 L=330 		8-94386-490-1 01 1 9904-0105 ● ● ● ●
8 08.821 WRENCH; WHEEL
(BQU),(BQV),(9HY) B=41X19 L=330 		8-94386-490-1 01 1 0106- ●
8 08.821 WRENCH; WHEEL
(AUH),(AUJ),(AUS),(AVK),(AYS),(00C), (01C),(02C),(03C),(04C),(05C),(06C), (07C),(08C),(09C),(10C),(11C),(53C), (54C),(55C),(83V),(9BP),(9ZM),(9ZP), (9ZQ),(95V),(97V) B=41X21 L=440 		1-85113-015-1 01 1 9812-9901 ● ● ● ●
8 08.821 WRENCH; WHEEL
(AUH),(AUJ),(AUS),(AVK),(AYS),(00C), (01C),(02C),(03C),(04C),(05C),(06C), (07C),(08C),(09C),(10C),(11C),(53C), (54C),(55C),(83V),(9BP),(9ZM),(9ZP), (9ZQ),(95V),(97V) B=41X21 L=440 		1-85113-015-1 01 1 9902-9903 ● ● ● ● ●
8 08.821 WRENCH; WHEEL
(AUH),(AUJ),(AUS),(AVK),(AYS),(BRT), (00C),(01C),(02C),(03C),(04C),(05C), (06C),(07C),(08C),(09C),(10C),(11C), (53C),(54C),(55C),(83V),(9BP),(9ZM), (9ZP),(9ZQ),(95V),(97V) B=41X21 L=440 		1-85113-015-1 01 1 9904-0105 ● ● ● ● ● ●
8 08.821 WRENCH; WHEEL
(AUH),(AUJ),(AUS),(AVK),(AYS),(BRT), (BRU),(00C),(01C),(02C),(03C),(04C), (05C),(06C),(07C),(08C),(09C),(10C), (11C),(53C),(54C),(55C),(83V),(9BP), (9ZM),(9ZP),(9ZQ),(95V),(97V) B=41X21 L=440 		1-85113-015-1 01 1 0106-0206 ● ● ● ● ● ● ●
8 08.821 WRENCH; WHEEL
(AUH),(AUJ),(AUS),(AVK),(AYS),(BRT), (BRU),(CQB),(CQC),(00C),(01C),(02C), (03C),(04C),(05C),(06C),(07C),(08C), (09C),(10C),(11C),(53C),(54C),(55C), (83V),(9BP),(9ZM),(9ZP),(9ZQ),(95V), (97V) B=41X21 L=440 		1-85113-015-1 01 1 0207- ● ● ● ● ● ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
EXC. FRAME STRAIGHT TYPE<7KJ> OD=25 L=590 		8-94430-092-0 01 1 9812-0204 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
OD=25 L=590 		8-94430-092-0 01 1 9812-0204 ● ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
EXC. FRAME STRAIGHT TYPE<7KJ> OD=25 L=590 		8-97332-988-0 01 1 0205- ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
OD=25 L=590 		8-97332-988-0 01 1 0205- ● ● ●
18 08.821 WRENCH KIT 9-85161-902-0 01 1 9812- ● ● ● ● ● ● ●
29 08.821 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 9812- ● ● ● ● ● ● ●
115 08.821 PLIER 5-85171-002-0 01 1 9812- ● ● ● ● ● ● ●
117 08.821 WRENCH; VALVE CAP 9-85163-906-1 01 1 9812- ● ● ● ● ● ● ●
193 08.820 JACK ASM
(AUH),(AUJ),(AUS),(AVK),(AYS),(BQU), (06C),(06H),(07C),(07H),(08C),(08H), (09C),(10C),(11C),(50C),(51C),(53C), (54C),(9HY),(94H),(95H),(96H),(97H), (98H),(99H) 4TON 		8-97131-075-1 01 1 9812-9901 ● ● ● ●
193 08.820 JACK ASM
(AUH),(AUJ),(AUS),(AVK),(AYS),(BQU), (06C),(06H),(07C),(07H),(08C),(08H), (09C),(10C),(11C),(50C),(51C),(53C), (54C),(9HY),(94H),(95H),(96H),(97H), (98H),(99H) 4TON 		8-97131-075-1 01 1 9902-9903 ● ● ● ● ●
193 08.820 JACK ASM
(AUH),(AUJ),(AUS),(AVK),(AYS),(BQU), (BRT),(06C),(06H),(07C),(07H),(08C), (08H),(09C),(10C),(11C),(50C),(51C), (53C),(54C),(9HY),(94H),(95H),(96H), (97H),(98H),(99H) 4TON 		8-97131-075-2 01 1 9904-0105 ● ● ● ● ● ●
193 08.820 JACK ASM
(AUH),(AUJ),(AUS),(AVK),(AYS),(BQU), (BQV),(BRT),(BRU),(06C),(07C),(08C), (09C),(10C),(11C),(53C),(54C),(9HY) 4TON 		8-97131-075-2 01 1 0106-0206 ● ● ● ● ● ● ●
193 08.820 JACK ASM
(AUH),(AUJ),(AUS),(AVK),(AYS),(BQU), (BQV),(BRT),(BRU),(CQB),(CQC),(06C), (06H),(07C),(07H),(08C),(08H),(09C), (10C),(11C),(50C),(51C),(53C),(54C), (9HY),(94H),(95H),(96H),(97H),(98H), (99H) 4TON 		8-97131-075-2 01 1 0207- ● ● ● ● ● ● ●
193 08.820 JACK ASM
(00C),(01C),(02C),(03C),(04C),(05C), (09H),(10H),(11H),(12H),(13H),(14H), (15H),(16H),(17H),(18H),(19H),(52C), (55C),(83V),(9BP),(95V),(97V) 5TON 		8-97131-076-1 01 1 9812-9901 ● ● ● ●
193 08.820 JACK ASM
(9ZM),(9ZP),(9ZQ) EXC. FRAME STRAIGHT TYPE<7KJ> 5TON 		8-97131-076-1 01 1 9812-9901 ●
193 08.820 JACK ASM
(00C),(01C),(02C),(03C),(04C),(05C), (09H),(10H),(11H),(12H),(13H),(14H), (15H),(16H),(17H),(18H),(19H),(52C), (55C),(83V),(9BP),(95V),(97V) 5TON 		8-97131-076-1 01 1 9902-9903 ● ● ● ● ●
193 08.820 JACK ASM
(9ZM),(9ZP),(9ZQ) EXC. FRAME STRAIGHT TYPE<7KJ> 5TON 		8-97131-076-1 01 1 9902-9903 ●
193 08.820 JACK ASM
(00C),(01C),(02C),(03C),(04C),(05C), (09H),(10H),(11H),(12H),(13H),(14H), (15H),(16H),(17H),(18H),(19H),(52C), (55C),(83V),(9BP),(95V),(97V) 5TON 		8-97131-076-2 01 1 9904-0105 ● ● ● ● ● ●
193 08.820 JACK ASM
(9ZM),(9ZP),(9ZQ) EXC. FRAME STRAIGHT TYPE<7KJ> 5TON 		8-97131-076-2 01 1 9904-0105 ●
193 08.820 JACK ASM
(00C),(01C),(02C),(03C),(04C),(05C), (55C),(83V),(9BP),(95V),(97V) 5TON 		8-97131-076-2 01 1 0106- ●
193 08.820 JACK ASM
(9ZM),(9ZP),(9ZQ) EXC. FRAME STRAIGHT TYPE<7KJ> 5TON 		8-97131-076-2 01 1 0106- ●
193 08.820 JACK ASM
(9ZM),(9ZP),(9ZQ) FRAME STRAIGHT TYPE<7KJ> 5TON 		8-97131-077-2 01 1 9812-0105 ● ● ● ●
193 08.820 JACK ASM
(9ZM),(9ZP),(9ZQ) FRAME STRAIGHT TYPE<7KJ> 5TON 		8-97131-077-2 01 1 0106- ●
195 08.820 BRACKET; JACK 8-94262-068-2 01 1 9812- ● ● ● ● ● ● ●
199 08.820 BOLT; JACK
M8X50 WING 		8-94279-136-0 01 1 9812- ● ● ● ● ● ● ●
206 08.820 SCREW; OIL JACK BRKT
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 9812- ● ● ● ● ● ● ●
208 08.820 HANDLE; JACK
FRAME STRAIGHT TYPE<7KJ> (B) L=580 		1-85515-005-1 01 1 9812- ●
208 08.820 HANDLE; JACK
(B) L=580 		1-85515-005-1 01 1 9812- ● ● ●
208 08.820 HANDLE; JACK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		9-85512-607-0 01 1 9812-9909 ●
208 08.820 HANDLE; JACK
(A) 		9-85512-607-0 01 1 9812-9909 ● ●
208 08.820 HANDLE; JACK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=642 		8-97217-800-0 01 1 9910- ●
208 08.820 HANDLE; JACK
(A) L=642 		8-97217-800-0 01 1 9910- ● ● ●
237 08.821 BAG; TOOL 8-97130-903-0 01 1 9812- ● ● ● ● ● ● ●
238 08.820 SUPPORT; TOOL BAG 8-97866-879-0 01 1 9812-0101 ● ● ● ● ●
238 08.820 SUPPORT; TOOL BAG 8-97994-977-0 01 1 0102- ● ● ● ● ●
239 08.820 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 9812- ● ● ● ● ● ● ●
241 08.820 SCREW; TOOL BAG SUPPORT
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 9812- ● ● ● ● ●
302 08.820 NUT; JACK BRKT 8-94279-522-0 01 1 9812- ● ● ● ● ● ● ●
319 08.821 CLIP; TOOL BAR 8-97853-077-2 02 1 9812- ● ● ● ● ● ● ●
