◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50818 - NPR/NQR(EUROPE)-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-90 - RADIO AND TV ▶

8-90 — RADIO AND TV (#43481) — 112 parça

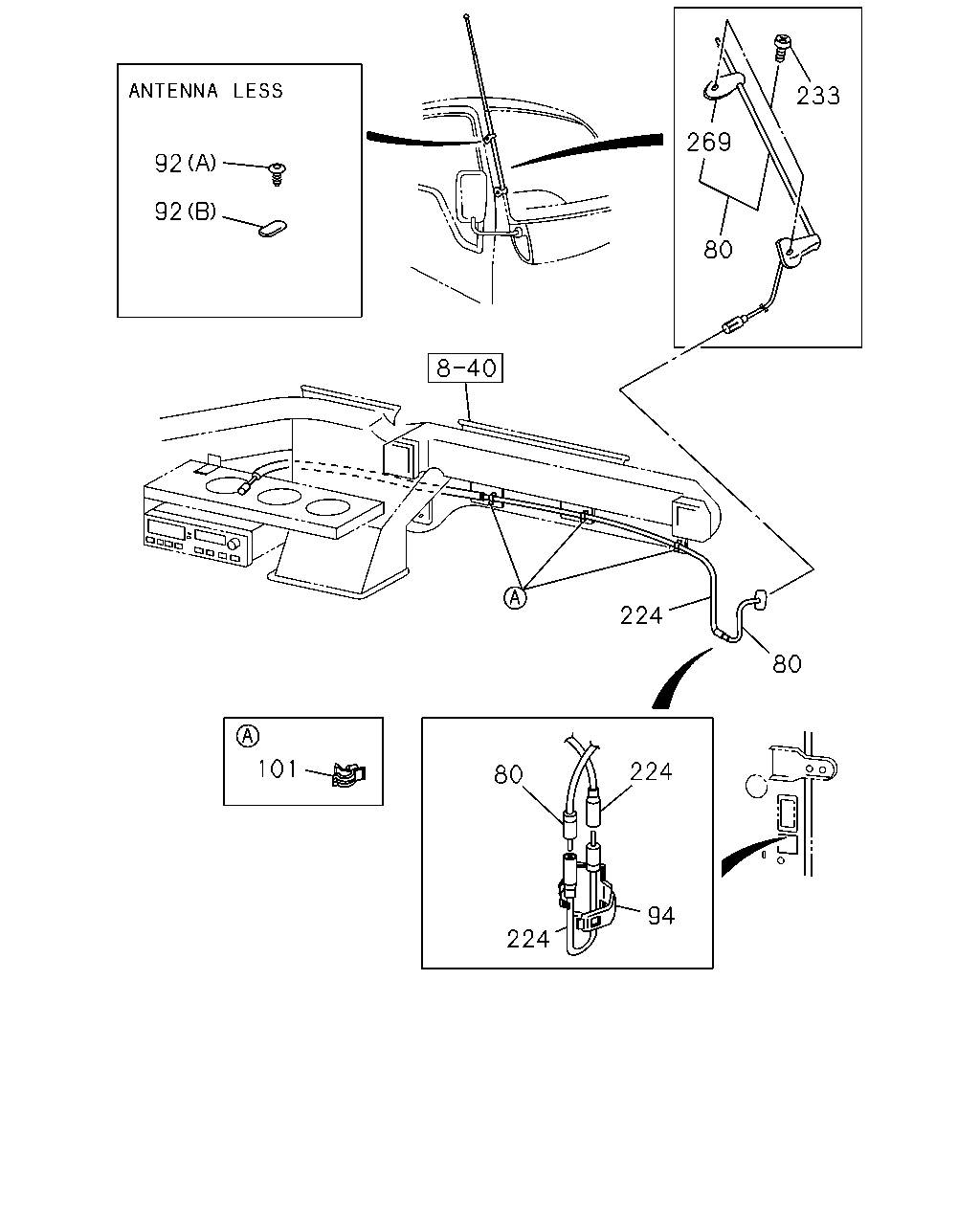

233 269 92 92 80 224 80 101 224 80 94 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
80	09.645 ANTENNA ANTENNA<U73>	8-97210-546-0	01	1	9812-9903	●	●	●	●	●	●
80	09.645 ANTENNA ANTENNA<U73> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU)	8-97210-546-0	01	1	9904-0105	●	●	●	●	●	●
80	09.645 ANTENNA	8-97210-546-0	01	1	0106-	●	●	●	●	●	●	●
80	09.645 ANTENNA ANTENNA<U73> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU)	8-97211-564-0	01	1	9904-0105	●	●	●	●	●	●
92	09.647 COVER; HOLE,ANTENNA EXC. ANTENNA<U73> 16.069 (A) OD=12 L=14.8	8-94279-921-0	01	1	9812-0105	●	●	●	●	●	●
92	09.647 COVER; HOLE,ANTENNA EXC. ANTENNA<U73> (B)	8-97088-275-2	01	1	9812-0105	●	●	●	●	●	●
94	09.656 CLIP; ANTENNA FEEDER ANTENNA<U73>	1-09987-155-0	01	1	9812-0105	●	●	●	●	●	●
94	09.656 CLIP; ANTENNA FEEDER	1-09987-155-1	01	1	0106-	●	●	●	●	●	●	●
101	09.649 CLIP; FEEDER TO BRKT ANTENNA<U73> 04.342 ID=7	5-09707-053-0	03	1	9812-0105	●	●	●	●	●	●
101	09.649 CLIP; FEEDER TO BRKT 04.342 ID=7	5-09707-053-0	03	1	0106-	●	●	●	●	●	●	●
224	09.647 CABLE; EXT,FEEDER ANTENNA<U73>	8-97118-847-0	01	1	9812-9812		●	●	●	●
224	09.647 CABLE; EXT,FEEDER ANTENNA<U73>	8-97213-766-0	01	1	9812-0105	●	●	●	●	●	●
224	09.647 CABLE; EXT,FEEDER	8-97213-766-0	01	1	0106-	●	●	●	●	●	●	●
233	09.647 SCREW ANTENNA<U73> M6X20	8-97120-686-0	01	1	9812-0105	●	●	●	●	●	●
233	09.647 SCREW M6X20	8-97120-686-0	01	1	0106-	●	●	●	●	●	●	●
233	09.647 SCREW ANTENNA<U73> M6X16	8-97123-696-0	01	1	9812-0105	●	●	●	●	●	●
233	09.647 SCREW M6X16	8-97123-696-0	01	1	0106-	●	●	●	●	●	●	●
269	09.647 SUPPORT KIT; ANTENNA ANTENNA<U73>	8-97108-183-0	01	1	9812-9903	●	●	●	●	●
269	09.647 SUPPORT KIT; ANTENNA ANTENNA<U73> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU)	8-97108-183-0	01	1	9904-0105	●	●	●	●	●	●
269	09.647 SUPPORT KIT; ANTENNA	8-97108-183-0	01	1	0106-	●	●	●	●	●	●	●
269	09.647 SUPPORT KIT; ANTENNA ANTENNA<U73> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU)	8-97219-079-0	01	1	9904-0105	●	●	●	●	●	●

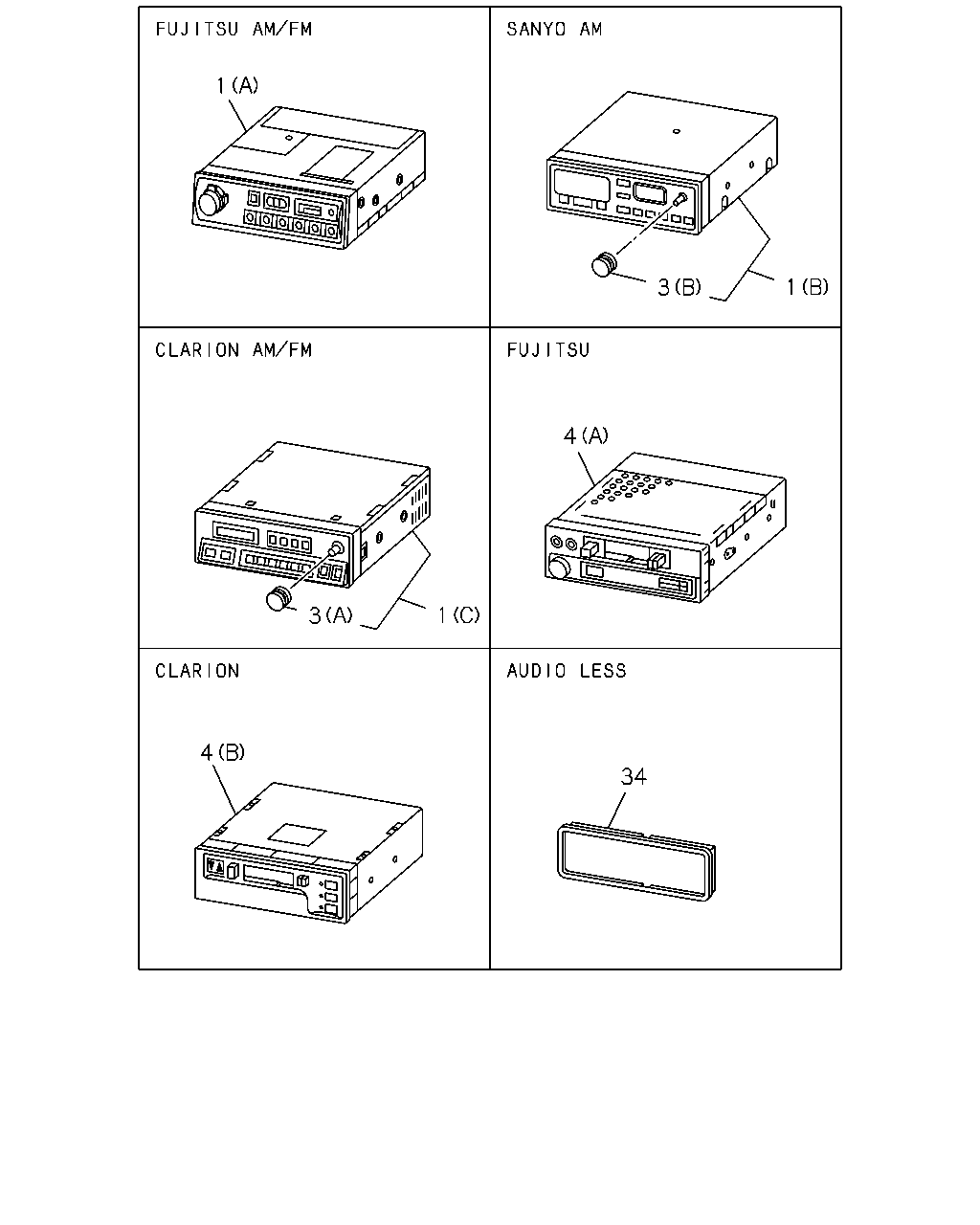

1 1 3 4 1 3 4 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> (B) SANYO AM	8-97088-264-0	01	1	9812-0004		●
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> (B) SANYO AM	8-97241-543-0	01	1	0005-0105		●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> (A) FUJITSU AM/FM	8-97088-266-0	01	1	9812-0105		●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND LATIN AMERICA<7DM> (C) CLARION AM/FM	8-97120-647-0	01	1	9812-0105	●	●	●	●	●	●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND ASIA<7DN> (C) CLARION AM/FM	8-97120-649-0	01	1	9812-9911	●	●	●	●	●	●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND ASIA<7DN> (C) CLARION AM/FM	8-97241-542-0	01	1	9912-0105	●	●	●	●	●	●
3	09.649 ATTACH KIT; AM/FM RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> (B) SANYO	8-97093-557-0	01	1	9812-0105		●
3	09.649 ATTACH KIT; AM/FM RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND LATIN AMERICA<7DM>,TUNER BAND ASIA<7DN> (A) CLARION	8-97093-559-0	01	1	9812-0105	●	●	●	●	●	●
4	09.650 CASSETTE DECK; AUDIO RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> (B) CLARION	8-97088-291-0	01	1	9812-0105	●	●	●	●	●	●
4	09.650 CASSETTE DECK; AUDIO RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. VOLTAGE 24V<7AE> (A) FUJITSU	8-97088-290-0	01	1	9812-0105		●
34	09.650 COVER; RADIO HOLE EXC. RADIO AM W/AMPLIFIER(RS2), RADIOAM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97856-203-3	01	1	9812-9901		●
34	09.650 COVER; RADIO HOLE EXC. RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97856-203-3	01	1	9812-9901			●	●	●
34	09.650 COVER; RADIO HOLE EXC. RADIO AM W/AMPLIFIER(RS2), RADIOAM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97856-203-3	01	1	9902-0105	●	●	●	●	●	●
34	09.650 COVER; RADIO HOLE	8-97856-203-3	01	1	0106-	●	●	●	●	●	●	●

222 116 222 171 222 5 117 48 221 221 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
5	09.647 HARNESS; EXT ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97131-327-0	02	1	9812-9901		●
5	09.647 HARNESS; EXT ANTENNA<U73>	8-97131-327-0	02	1	9812-9901			●	●	●
5	09.647 HARNESS; EXT ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97131-327-0	02	1	9902-9903	●	●	●	●	●
5	09.647 HARNESS; EXT ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97131-327-0	02	1	9904-0105	●	●	●	●	●	●
5	09.647 HARNESS; EXT	8-97131-327-0	02	1	0106-	●	●	●	●	●	●	●
48	09.650 SPEAKER; AUDIO ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2), VOLTAGE 24V<7AE>	8-97207-696-0	02	1	9812-9901		●
48	09.650 SPEAKER; AUDIO ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2), VOLTAGE 24V<7AE>	8-97223-099-0	02	1	9902-0105		●
48	09.650 SPEAKER; AUDIO EXC. VOLTAGE 24V<7AE>	8-97223-099-0	02	1	0106-0204		●
48	09.650 SPEAKER; AUDIO EXC. VOLTAGE 24V<7AE>	8-97317-000-0	02	1	0205-		●
48	09.650 SPEAKER; AUDIO ANTENNA<U73> VOLTAGE 24V<7AE> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97207-695-0	02	1	9812-9901		●
48	09.650 SPEAKER; AUDIO ANTENNA<U73>	8-97207-695-0	02	1	9812-9901			●	●	●
48	09.650 SPEAKER; AUDIO ANTENNA<U73> VOLTAGE 24V<7AE> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97207-695-0	02	1	9902-9902	●	●	●	●	●
48	09.650 SPEAKER; AUDIO ANTENNA<U73> VOLTAGE 24V<7AE> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97223-098-0	02	1	9903-0105	●	●	●	●	●	●
48	09.650 SPEAKER; AUDIO VOLTAGE 24V<7AE>	8-97223-098-0	02	1	0106-0204		●
48	09.650 SPEAKER; AUDIO	8-97223-098-0	02	1	0106-0204	●		●	●	●	●	●
48	09.650 SPEAKER; AUDIO VOLTAGE 24V<7AE>	8-97317-001-0	02	1	0205-		●
48	09.650 SPEAKER; AUDIO	8-97317-001-0	02	1	0205-	●		●	●	●	●	●
49	09.655 SCREW; SPEAKER ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 16.067 M5X14	8-94279-325-0	06	1	9812-9901		●
49	09.655 SCREW; SPEAKER ANTENNA<U73> 16.067 M5X14	8-94279-325-0	06	1	9812-9901			●	●	●
49	09.655 SCREW; SPEAKER ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 16.067 M5X14	8-94279-325-0	06	1	9902-0105	●	●	●	●	●	●
49	09.655 SCREW; SPEAKER 16.067 M5X14	8-94279-325-0	06	1	0106-	●	●	●	●	●	●	●
116	16.165 PANEL; SPEAKER,FRT DOOR ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97852-325-3	01	1	9812-9901		●
116	16.165 PANEL; SPEAKER,FRT DOOR ANTENNA<U73>	8-97852-325-3	01	1	9812-9901			●	●	●
116	16.165 PANEL; SPEAKER,FRT DOOR ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97852-325-3	01	1	9902-0105	●	●	●	●	●	●
116	16.165 PANEL; SPEAKER,FRT DOOR	8-97852-325-3	01	1	0106-	●	●	●	●	●	●	●
116	16.165 PANEL; SPEAKER,FRT DOOR ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97852-324-3	01	1	9812-9901		●
116	16.165 PANEL; SPEAKER,FRT DOOR ANTENNA<U73>	8-97852-324-3	01	1	9812-9901			●	●	●
116	16.165 PANEL; SPEAKER,FRT DOOR ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97852-324-3	01	1	9902-0105	●	●	●	●	●	●
116	16.165 PANEL; SPEAKER,FRT DOOR	8-97852-324-3	01	1	0106-	●	●	●	●	●	●	●
117	16.165 SCREW; SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 16.067 M5X14	8-94279-325-0	06	1	9812-9901		●
117	16.165 SCREW; SPEAKER PANEL ANTENNA<U73> 16.067 M5X14	8-94279-325-0	06	1	9812-9901			●	●	●
117	16.165 SCREW; SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 16.067 M5X14	8-94279-325-0	06	1	9902-0105	●	●	●	●	●	●
117	16.165 SCREW; SPEAKER PANEL 16.067 M5X14	8-94279-325-0	06	1	0106-	●	●	●	●	●	●	●
171	09.650 COVER; SPEAKER ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97852-331-4	02	1	9812-9901		●
171	09.650 COVER; SPEAKER ANTENNA<U73>	8-97852-331-4	02	1	9812-9901			●	●	●
171	09.650 COVER; SPEAKER ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97852-331-4	02	1	9902-0105	●	●	●	●	●	●
171	09.650 COVER; SPEAKER	8-97852-331-4	02	1	0106-	●	●	●	●	●	●	●
221	16.165 SEAL; SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) (A)	8-97852-327-4	02	1	9812-9901		●
221	16.165 SEAL; SPEAKER PANEL ANTENNA<U73> (A)	8-97852-327-4	02	1	9812-9901			●	●	●
221	16.165 SEAL; SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) (A)	8-97852-327-4	02	1	9902-0105	●	●	●	●	●	●
221	16.165 SEAL; SPEAKER PANEL (A)	8-97852-327-4	02	1	0106-	●	●	●	●	●	●	●
221	16.165 SEAL; SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) (B)	8-97852-601-1	02	1	9812-9901		●
221	16.165 SEAL; SPEAKER PANEL ANTENNA<U73> (B)	8-97852-601-1	02	1	9812-9901			●	●	●
221	16.165 SEAL; SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) (B)	8-97852-601-1	02	1	9902-0105	●	●	●	●	●	●
221	16.165 SEAL; SPEAKER PANEL (B)	8-97852-601-1	02	1	0106-	●	●	●	●	●	●	●
222	16.165 GROMMET; SCREW,SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 09.264 (A)	1-09987-144-0	02	1	9812-9901		●
222	16.165 GROMMET; SCREW,SPEAKER PANEL ANTENNA<U73> 09.264 (A)	1-09987-144-0	02	1	9812-9901			●	●	●
222	16.165 GROMMET; SCREW,SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 09.264 (A)	1-09987-144-0	02	1	9902-0105	●	●	●	●	●	●
222	16.165 GROMMET; SCREW,SPEAKER PANEL 09.264 (A)	1-09987-144-0	02	1	0106-	●	●	●	●	●	●	●
222	16.165 GROMMET; SCREW,SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 01.269 (B) D=8.6X7.7 L=7.5	8-94279-078-0	06	1	9812-9901		●
222	16.165 GROMMET; SCREW,SPEAKER PANEL ANTENNA<U73> 01.269 (B) D=8.6X7.7 L=7.5	8-94279-078-0	06	1	9812-9901			●	●	●
222	16.165 GROMMET; SCREW,SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 01.269 (B) D=8.6X7.7 L=7.5	8-94279-078-0	06	1	9902-0105	●	●	●	●	●	●
222	16.165 GROMMET; SCREW,SPEAKER PANEL 01.269 (B) D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0106-	●	●	●	●	●	●	●

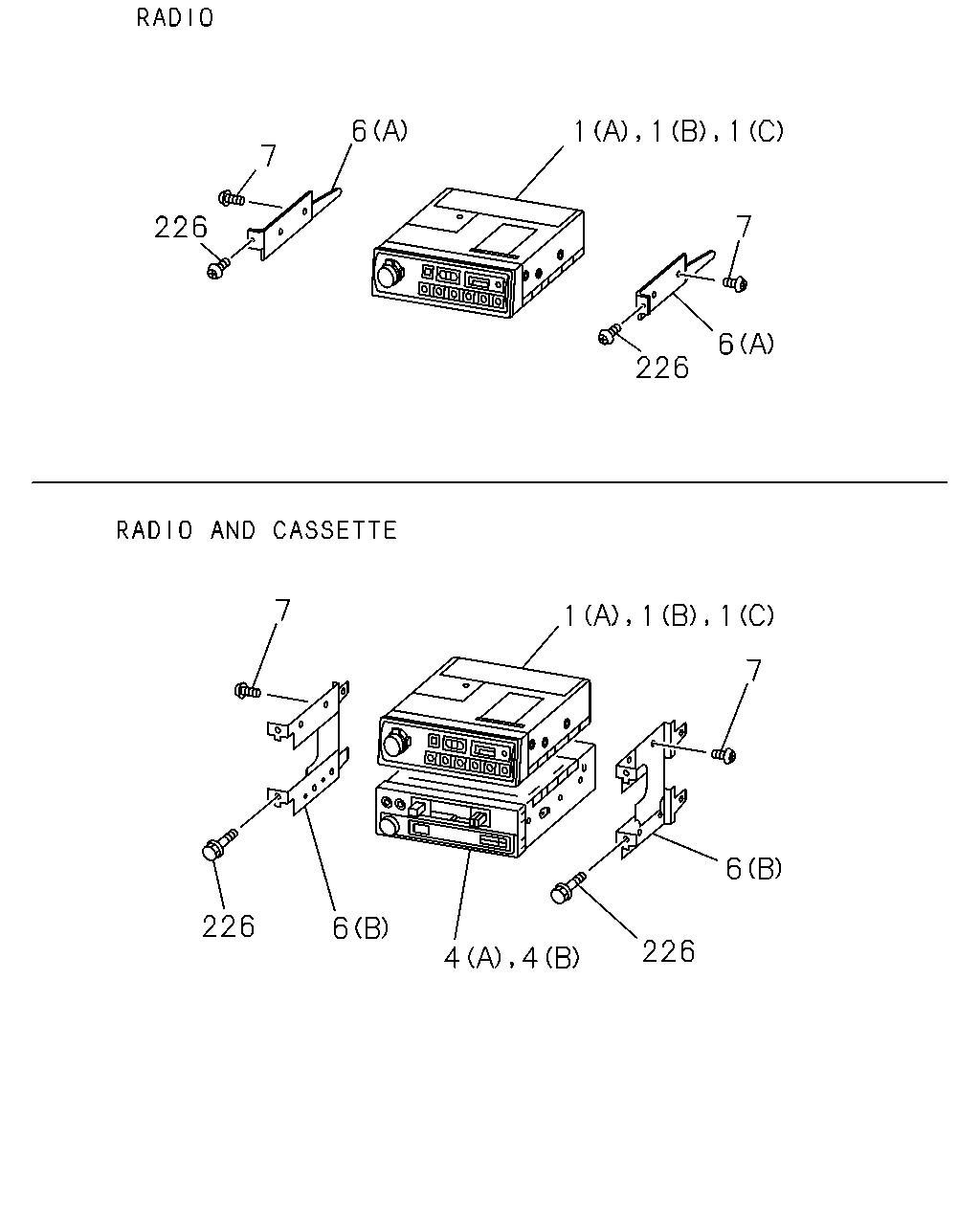

6 1 1 1 7 7 226 6 226 7 1 1 1 7 6 226 6 226 4 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> (B) SANYO AM	8-97088-264-0	01	1	9812-0004		●
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> (B) SANYO AM	8-97241-543-0	01	1	0005-0105		●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> (A) FUJITSU AM/FM	8-97088-266-0	01	1	9812-0105		●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND LATIN AMERICA<7DM> (C) CLARION AM/FM	8-97120-647-0	01	1	9812-0105	●	●	●	●	●	●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND ASIA<7DN> (C) CLARION AM/FM	8-97120-649-0	01	1	9812-9911	●	●	●	●	●	●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND ASIA<7DN> (C) CLARION AM/FM	8-97241-542-0	01	1	9912-0105	●	●	●	●	●	●
4	09.650 CASSETTE DECK; AUDIO RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> (B) CLARION	8-97088-291-0	01	1	9812-0105	●	●	●	●	●	●
4	09.650 CASSETTE DECK; AUDIO RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. VOLTAGE 24V<7AE> (A) FUJITSU	8-97088-290-0	01	1	9812-0105		●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ) (A)	8-97853-615-2	01	1	9812-9901		●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM/FM STEREO 2 SPEAKERS(6GZ) (A)	8-97853-615-2	01	1	9812-9901			●	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ) (A)	8-97853-615-2	01	1	9902-0105	●	●	●	●	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ) (A)	8-97853-614-2	01	1	9812-9901		●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM/FM STEREO 2 SPEAKERS(6GZ) (A)	8-97853-614-2	01	1	9812-9901			●	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ) (A)	8-97853-614-2	01	1	9902-0105	●	●	●	●	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B)	8-97859-104-1	01	1	9812-0105	●	●	●	●	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B)	8-97859-103-1	01	1	9812-0105	●	●	●	●	●	●
7	09.650 SCREW; RADIO RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ) 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	9812-9901		●
7	09.650 SCREW; RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ) 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	9812-9901			●	●	●
7	09.650 SCREW; RADIO RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ) 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	9902-0105	●	●	●	●	●	●
7	09.650 SCREW; RADIO RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	08	1	9812-0105	●	●	●	●	●	●
226	09.647 BOLT; BRKT RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ) 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	02	1	9812-9901		●
226	09.647 BOLT; BRKT RADIO AM/FM STEREO 2 SPEAKERS(6GZ) 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	02	1	9812-9901			●	●	●
226	09.647 BOLT; BRKT RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ) 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	02	1	9902-0105	●	●	●	●	●	●
226	09.647 BOLT; BRKT RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	9812-0105	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
