8-60 — HEATER UNIT; FRONT (#43477) — 119 parça

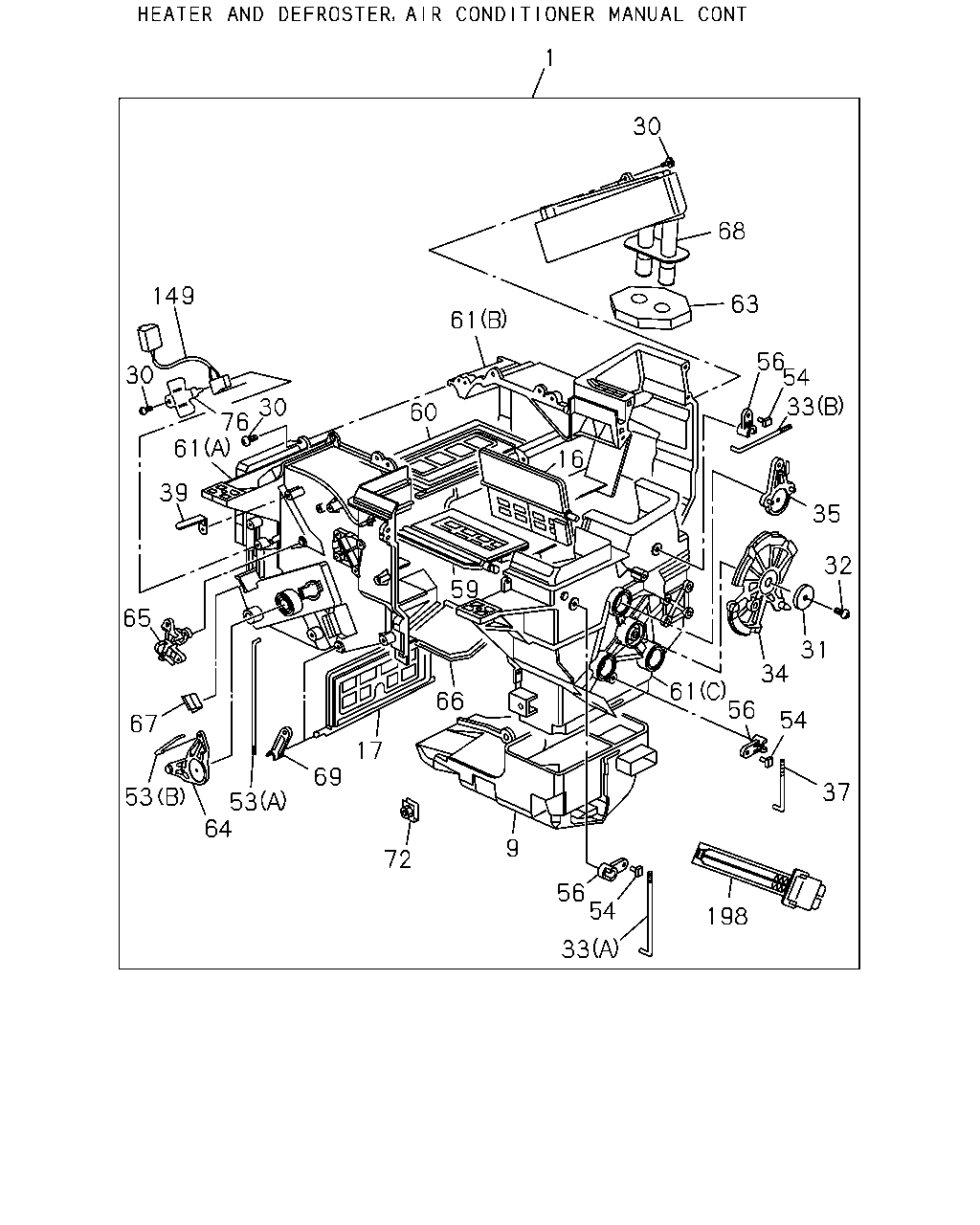

1 30 68 149 63 61 56 54 33 30 60 30 76 61 16 39 35 32 59 65 31 34 61 56 66 54 67 17 69 37 53 53 64 9 72 56 54 198 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX>	8-97174-731-4	01	1	9812-9902	●	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX>	8-97224-287-2	01	1	9903-0105	●	●	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX>	8-97224-287-2	01	1	0106-0207		●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97224-287-2	01	1	0106-0207	●		●	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX>	8-97224-287-2	01	1	0208-	●	●	●	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX>	8-97174-729-4	01	1	9812-9902	●	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX>	8-97224-286-2	01	1	9903-0105	●	●	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX>	8-97224-286-2	01	1	0106-0207		●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX>	8-97224-286-2	01	1	0208-	●	●	●	●	●	●	●
1	08.845 HEATER UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97166-608-3	01	1	9812-	●	●	●	●	●	●	●
9	08.854 DUCT; HTR UNIT	8-97087-555-0	01	1	9812-	●	●	●	●	●	●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR	8-97087-559-2	01	1	9812-	●	●	●	●	●	●	●
17	09.786 SHUTTER; HTR UNIT,CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97087-557-1	01	1	9812-	●	●	●	●	●	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 08.852 M4X16	8-94324-850-0	14	1	9812-0105	●	●	●	●	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 08.852 M4X16	8-94324-850-0	14	1	0106-0207		●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	14	1	0106-0207	●		●	●	●	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 08.852 M4X16	8-94324-850-0	14	1	0208-	●	●	●	●	●	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> 08.852 M4X16	8-94324-850-0	11	1	9812-0105	●	●	●	●	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> 08.852 M4X16	8-94324-850-0	11	1	0106-0207		●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> 08.852 M4X16	8-94324-850-0	11	1	0208-	●	●	●	●	●	●	●
30	08.845 SCREW; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	10	1	9812-	●	●	●	●	●	●	●
31	08.852 WASHER; HTR UNIT	8-94129-950-0	01	1	9812-	●	●	●	●	●	●	●
32	08.852 SCREW; HTR UNIT 10.240 M5X20	9-09829-324-1	01	1	9812-	●	●	●	●	●	●	●
33	09.786 ROD; SHUTTER LEVER (A)	8-97087-568-1	01	1	9812-	●	●	●	●	●	●	●
33	09.786 ROD; SHUTTER LEVER (B)	8-97087-569-1	01	1	9812-	●	●	●	●	●	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT	8-97166-657-0	01	1	9812-	●	●	●	●	●	●	●
35	08.852 LEVER; SHUTTER,HTR UNIT	8-97087-565-0	03	1	9812-	●	●	●	●	●	●	●
37	08.852 ROD; LEVER	8-97087-570-1	01	1	9812-	●	●	●	●	●	●	●
39	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 08.857	8-97096-145-0	03	1	9812-0105	●	●	●	●	●	●
39	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 08.857	8-97096-145-0	03	1	0106-0207		●
39	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.857	8-97096-145-0	03	1	0106-0207	●		●	●	●	●	●
39	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 08.857	8-97096-145-0	03	1	0208-	●	●	●	●	●	●	●
53	08.866 ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97087-566-0	01	1	9812-	●	●	●	●	●	●	●
53	08.866 ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97087-567-1	01	1	9812-	●	●	●	●	●	●	●
54	08.854 CLIP; SHUTTER LEVER	1-83574-136-0	03	1	9812-	●	●	●	●	●	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT	8-97096-142-0	03	1	9812-	●	●	●	●	●	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE	8-97087-558-2	01	1	9812-	●	●	●	●	●	●	●
60	08.854 DOOR; MIX,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97087-556-1	01	1	9812-	●	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT (B)	8-97087-552-0	01	1	9812-	●	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT (C)	8-97087-553-0	01	1	9812-	●	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> (A)	8-97087-580-3	01	1	9812-0105	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> (A)	8-97087-580-3	01	1	0106-0207		●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97087-580-3	01	1	0106-0207	●		●	●	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> (A)	8-97087-580-3	01	1	0208-	●	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> (A)	8-97087-551-3	01	1	9812-0105	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> (A)	8-97087-551-3	01	1	0106-0207		●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> (A)	8-97087-551-3	01	1	0208-	●	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97115-147-3	01	1	9812-	●	●	●	●	●	●	●
63	08.856 LINING; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97131-580-0	01	1	9812-	●	●	●	●	●	●	●
64	09.786 LEVER; MIX,DOOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97087-562-1	01	1	9812-	●	●	●	●	●	●	●
65	09.786 LEVER; MIX,DOOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97087-564-1	01	1	9812-	●	●	●	●	●	●	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR	8-97087-560-2	01	1	9812-	●	●	●	●	●	●	●
67	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787	8-94337-654-0	02	1	9812-	●	●	●	●	●	●	●
67	08.854 CLIP; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787	8-94337-654-0	01	1	9812-	●	●	●	●	●	●	●
68	08.854 CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97174-734-0	01	1	9812-9902	●	●	●	●	●
68	08.854 CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97224-293-0	01	1	9903-9910	●	●	●	●	●	●
68	08.854 CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97240-940-0	01	1	9911-0001	●	●	●	●	●	●
68	08.854 CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97251-290-0	01	1	0002-	●	●	●	●	●	●	●
69	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97087-563-1	01	1	9812-	●	●	●	●	●	●	●
72	08.845 NUT; CASE,HTR UNIT	8-97085-613-0	02	1	9812-	●	●	●	●	●	●	●
76	08.854 BRACKET; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX>	8-97045-869-0	01	1	9812-0105	●	●	●	●	●	●
76	08.854 BRACKET; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX>	8-97045-869-0	01	1	0106-0207		●
76	08.854 BRACKET; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97045-869-0	01	1	0106-0207	●		●	●	●	●	●
76	08.854 BRACKET; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX>	8-97045-869-0	01	1	0208-	●	●	●	●	●	●	●
149	08.852 SWITCH ASM; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX>	8-97087-582-0	01	1	9812-0105	●	●	●	●	●	●
149	08.852 SWITCH ASM; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX>	8-97087-582-0	01	1	0106-0207		●
149	08.852 SWITCH ASM; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97087-582-0	01	1	0106-0207	●		●	●	●	●	●
149	08.852 SWITCH ASM; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX>	8-97087-582-0	01	1	0208-	●	●	●	●	●	●	●
198	08.845 HEATER; ELEC HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX>	8-97087-581-0	01	1	9812-0105	●	●	●	●	●	●
198	08.845 HEATER; ELEC HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX>	8-97087-581-0	01	1	0106-0207		●
198	08.845 HEATER; ELEC HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97087-581-0	01	1	0106-0207	●		●	●	●	●	●
198	08.845 HEATER; ELEC HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX>	8-97087-581-0	01	1	0208-	●	●	●	●	●	●	●

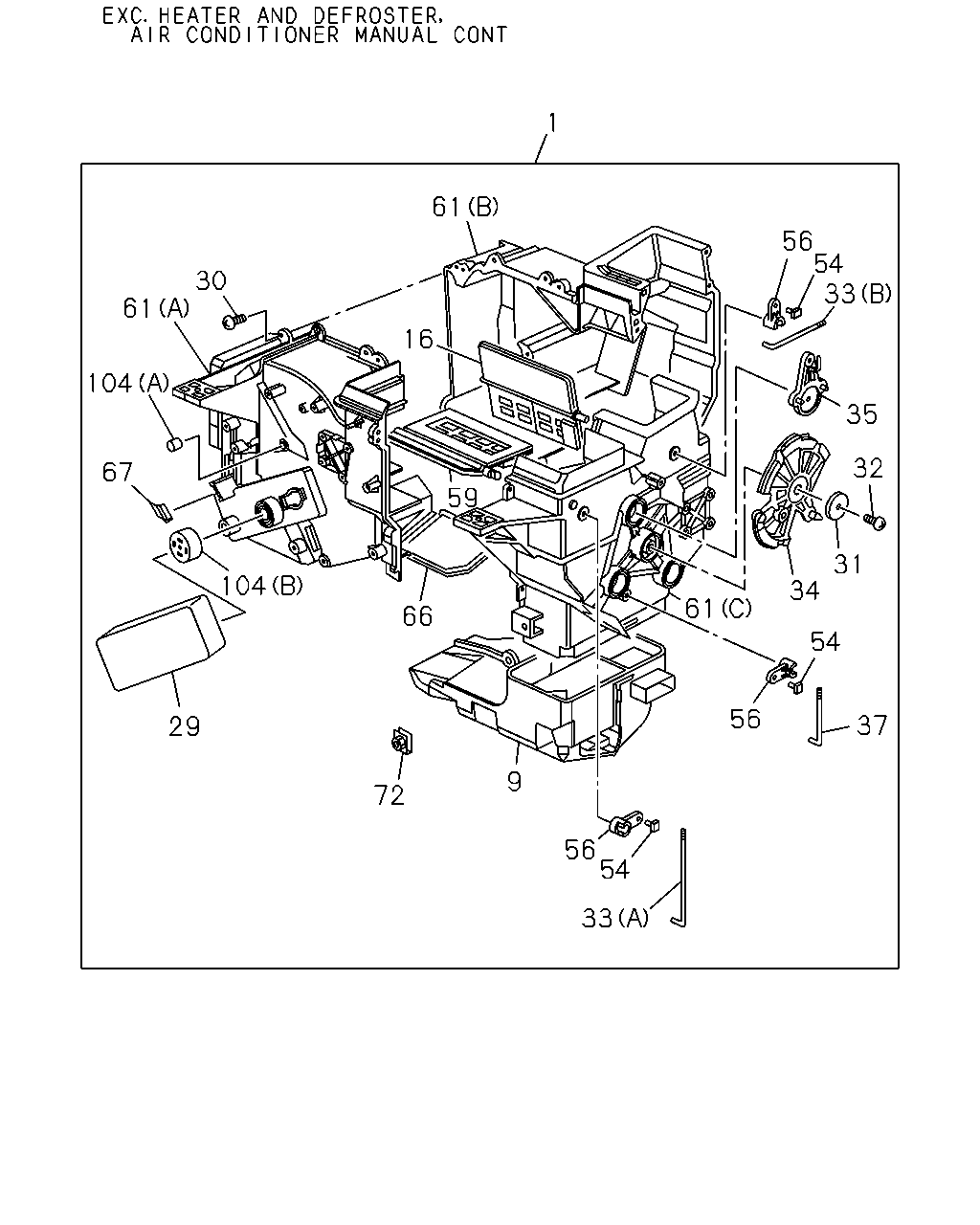

61 56 54 33 30 61 16 104 35 32 67 59 31 104 34 61 66 54 56 37 29 9 72 56 54 33 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX>	8-97174-731-4	01	1	9812-9902	●	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX>	8-97224-287-2	01	1	9903-0105	●	●	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX>	8-97224-287-2	01	1	0106-0207		●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97224-287-2	01	1	0106-0207	●		●	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX>	8-97224-287-2	01	1	0208-	●	●	●	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX>	8-97174-729-4	01	1	9812-9902	●	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX>	8-97224-286-2	01	1	9903-0105	●	●	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX>	8-97224-286-2	01	1	0106-0207		●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX>	8-97224-286-2	01	1	0208-	●	●	●	●	●	●	●
1	08.845 HEATER UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97166-608-3	01	1	9812-	●	●	●	●	●	●	●
9	08.854 DUCT; HTR UNIT	8-97087-555-0	01	1	9812-	●	●	●	●	●	●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR	8-97087-559-2	01	1	9812-	●	●	●	●	●	●	●
29	08.857 COVER; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97102-661-0	01	1	9812-	●	●	●	●	●	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 08.852 M4X16	8-94324-850-0	14	1	9812-0105	●	●	●	●	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 08.852 M4X16	8-94324-850-0	14	1	0106-0207		●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	14	1	0106-0207	●		●	●	●	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 08.852 M4X16	8-94324-850-0	14	1	0208-	●	●	●	●	●	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> 08.852 M4X16	8-94324-850-0	11	1	9812-0105	●	●	●	●	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> 08.852 M4X16	8-94324-850-0	11	1	0106-0207		●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> 08.852 M4X16	8-94324-850-0	11	1	0208-	●	●	●	●	●	●	●
30	08.845 SCREW; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	10	1	9812-	●	●	●	●	●	●	●
31	08.852 WASHER; HTR UNIT	8-94129-950-0	01	1	9812-	●	●	●	●	●	●	●
32	08.852 SCREW; HTR UNIT 10.240 M5X20	9-09829-324-1	01	1	9812-	●	●	●	●	●	●	●
33	09.786 ROD; SHUTTER LEVER (A)	8-97087-568-1	01	1	9812-	●	●	●	●	●	●	●
33	09.786 ROD; SHUTTER LEVER (B)	8-97087-569-1	01	1	9812-	●	●	●	●	●	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT	8-97166-657-0	01	1	9812-	●	●	●	●	●	●	●
35	08.852 LEVER; SHUTTER,HTR UNIT	8-97087-565-0	03	1	9812-	●	●	●	●	●	●	●
37	08.852 ROD; LEVER	8-97087-570-1	01	1	9812-	●	●	●	●	●	●	●
54	08.854 CLIP; SHUTTER LEVER	1-83574-136-0	03	1	9812-	●	●	●	●	●	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT	8-97096-142-0	03	1	9812-	●	●	●	●	●	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE	8-97087-558-2	01	1	9812-	●	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT (B)	8-97087-552-0	01	1	9812-	●	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT (C)	8-97087-553-0	01	1	9812-	●	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> (A)	8-97087-580-3	01	1	9812-0105	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> (A)	8-97087-580-3	01	1	0106-0207		●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97087-580-3	01	1	0106-0207	●		●	●	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> (A)	8-97087-580-3	01	1	0208-	●	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> (A)	8-97087-551-3	01	1	9812-0105	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> (A)	8-97087-551-3	01	1	0106-0207		●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> (A)	8-97087-551-3	01	1	0208-	●	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97115-147-3	01	1	9812-	●	●	●	●	●	●	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR	8-97087-560-2	01	1	9812-	●	●	●	●	●	●	●
67	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787	8-94337-654-0	02	1	9812-	●	●	●	●	●	●	●
67	08.854 CLIP; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787	8-94337-654-0	01	1	9812-	●	●	●	●	●	●	●
72	08.845 NUT; CASE,HTR UNIT	8-97085-613-0	02	1	9812-	●	●	●	●	●	●	●
104	08.854 CAP; CASE,HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.845 (A)	8-94328-657-0	04	1	9812-	●	●	●	●	●	●	●
104	08.854 CAP; CASE,HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-94387-703-0	01	1	9812-	●	●	●	●	●	●	●
