Sayfa 8-45 - Isuzu EPC

8-45 — HEATER PIPING (#43475) — 146 parça

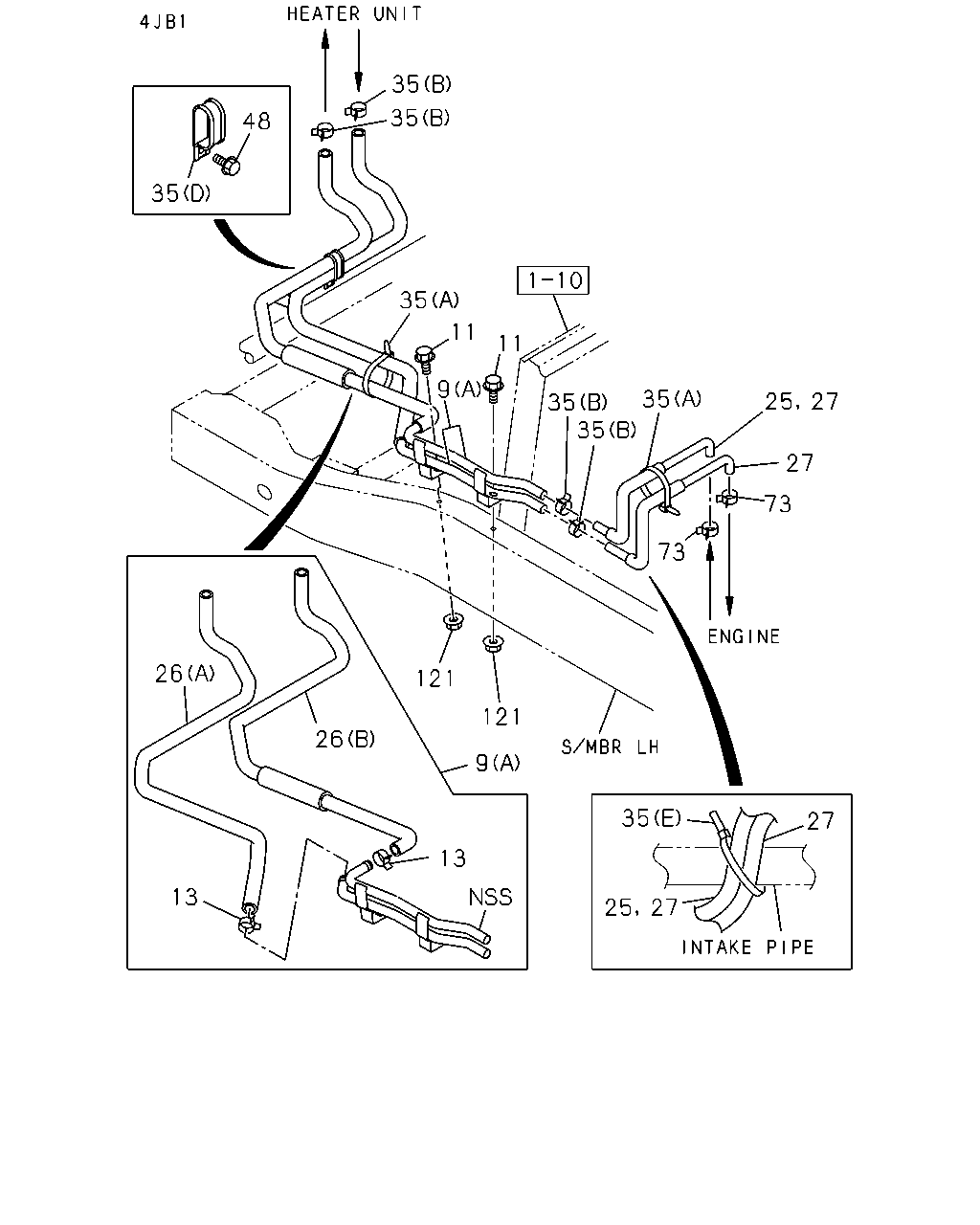

35 35 48 35 35 11 11 9 35 25 27 35 35 27 73 73 26 121 121 26 9 35 27 13 13 25 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
9	08.846 PIPE; HTR 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (A)	8-97205-280-1	01	1	9906-0105	●
9	08.846 PIPE; HTR 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (A)	8-97205-280-1	01	1	0106-	●
9	08.846 PIPE; HTR 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) (B)	8-97301-466-0	01	1	0106-	●
11	08.845 BOLT; HTR PIPE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9906-0105	●
11	08.845 BOLT; HTR PIPE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0106-	●
13	08.846 CLIP; HTR HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> ID=22	8-94382-401-0	02	1	9906-0105	●
13	08.846 CLIP; HTR HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> ID=22	8-94382-401-0	02	1	0106-	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) TURBOCHARGER(K51) POWER STEERING<N40> CHARGE AIR COOLER<6PL>	8-97204-606-1	01	1	9906-0105	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JG2 ENG(RJC)	8-97129-231-0	01	1	9812-0105	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97129-209-1	01	1	9812-0105	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97259-400-0	01	1	0106-0106	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97321-708-0	01	1	0107-	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL>	8-97149-152-4	01	1	9812-0105	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL>	8-97149-152-4	01	1	0106-	●	●	●	●	●	●	●
26	08.846 HOSE; HTR 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (A)	8-97239-078-0	01	1	9906-0105	●
26	08.846 HOSE; HTR 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (A)	8-97239-078-0	01	1	0106-	●
26	08.846 HOSE; HTR 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (B)	8-97239-079-0	01	1	9906-0105	●
26	08.846 HOSE; HTR 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (B)	8-97239-079-0	01	1	0106-	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER(K51) POWER STEERING<N40> CHARGE AIR COOLER<6PL>	8-97205-283-0	02	1	9906-0105	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) TURBOCHARGER(K51) POWER STEERING<N40> CHARGE AIR COOLER<6PL>	8-97204-607-1	01	1	9906-0105	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC)	8-97129-238-0	01	1	9812-0105	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97129-208-1	01	1	9812-0105	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97259-401-0	01	1	0106-	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL>	8-97149-153-2	01	1	9812-	●	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (E) L=350	8-94152-256-1	01	1	9906-0105	●
35	08.852 CLIP; WATER HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 03.483 (F) L=450	1-09707-142-1	01	1	0106-	●
35	08.852 CLIP; WATER HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	02	1	9812-0105	●
35	08.852 CLIP; WATER HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	01	1	0106-	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	9812-0105	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	0106-	●			●	●		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	0106-		●	●			●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18	9-83651-948-1	01	1	9812-	●	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 08.846 (D) B=18	9-83651-948-1	01	1	9812-	●	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	04	1	9812-0105	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 08.846 (B) ID=22	8-94382-401-0	04	1	9812-0105	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	04	1	0106-	●	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JG2 ENG(RJC),4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.846 (C)	5-83574-006-0	01	1	9812-9901	●		●	●	●
35	08.852 CLIP; WATER HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.846 (C)	5-83574-006-0	01	1	9902-0105	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C)	5-83574-006-0	01	1	9902-0105	●
35	08.852 CLIP; WATER HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (G)	8-97191-097-0	01	1	0106-	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9812-0105	●
48	09.262 BOLT; CLIP FIX 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0106-	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9812-9903	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9812-9903	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9904-0105	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9904-0105	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0106-	●	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0106-	●
48	09.262 BOLT; CLIP FIX 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 02.500 M6X10 FLANGE	0-28080-610-0	01	1	9812-	●	●	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC) ID=22	8-94382-401-0	02	1	9812-9905	●
73	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) POWER STEERING<N40> EURO2 SPECIFICATION<7AF> ID=22	8-94382-401-0	02	1	9906-0105	●
73	08.846 CLIP; HTR HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER(K51) POWER STEERING<N40> CHARGE AIR COOLER<6PL> ID=22	8-94382-401-0	02	1	9906-0105	●
73	08.846 CLIP; HTR HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 01.166 ID=25	9-09915-642-2	02	1	0106-	●
121	08.845 NUT; PIPE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 01.540 M8 FLANGE	0-91150-208-0	02	1	9906-0105	●
121	08.845 NUT; PIPE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 01.540 M8 FLANGE	0-91150-208-0	02	1	0106-	●

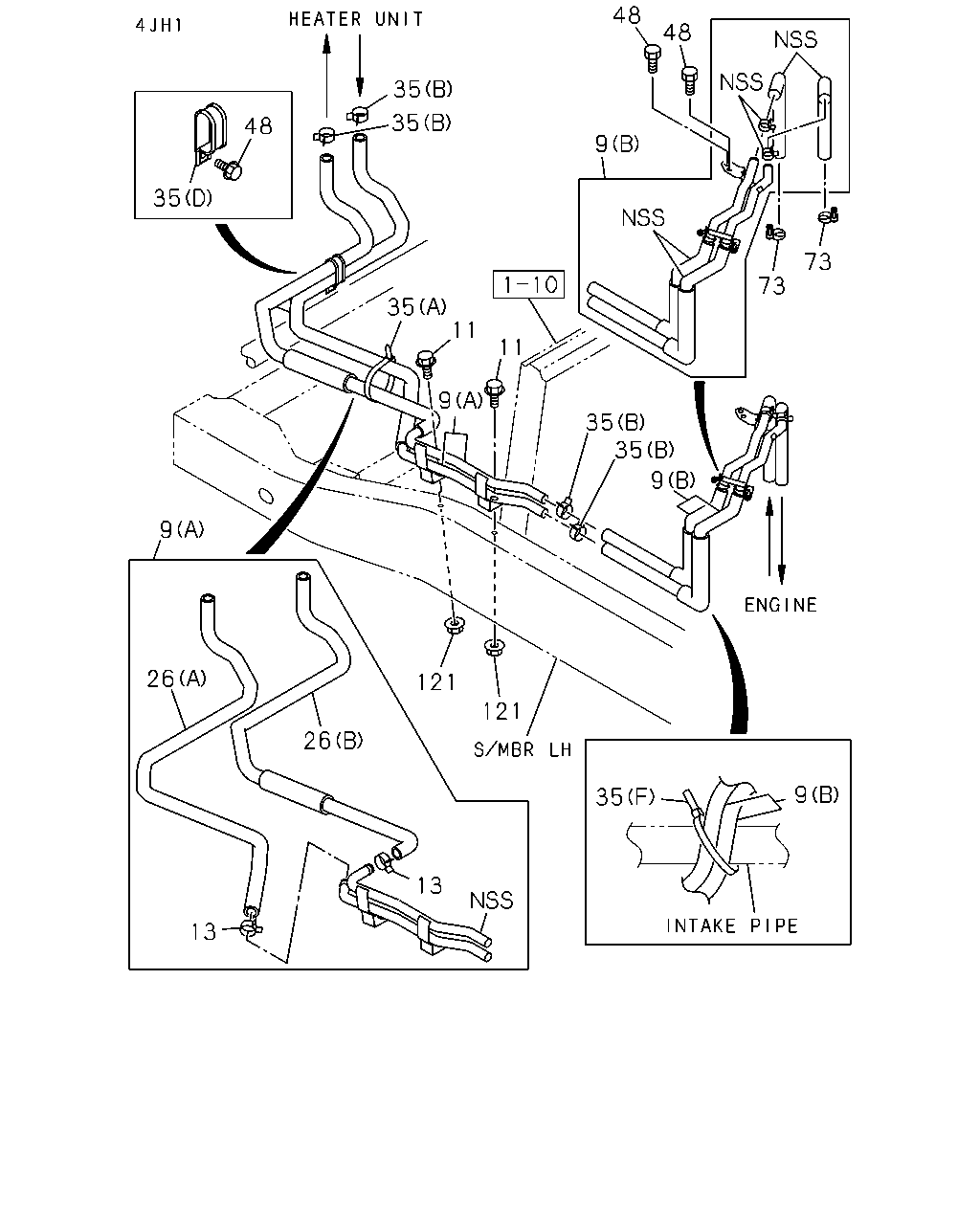

48 48 35 35 48 9 35 73 73 35 11 11 9 35 35 9 9 26 121 121 26 9 35 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
9	08.846 PIPE; HTR 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (A)	8-97205-280-1	01	1	9906-0105	●
9	08.846 PIPE; HTR 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (A)	8-97205-280-1	01	1	0106-	●
9	08.846 PIPE; HTR 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) (B)	8-97301-466-0	01	1	0106-	●
11	08.845 BOLT; HTR PIPE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9906-0105	●
11	08.845 BOLT; HTR PIPE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0106-	●
13	08.846 CLIP; HTR HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> ID=22	8-94382-401-0	02	1	9906-0105	●
13	08.846 CLIP; HTR HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> ID=22	8-94382-401-0	02	1	0106-	●
26	08.846 HOSE; HTR 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (A)	8-97239-078-0	01	1	9906-0105	●
26	08.846 HOSE; HTR 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (A)	8-97239-078-0	01	1	0106-	●
26	08.846 HOSE; HTR 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (B)	8-97239-079-0	01	1	9906-0105	●
26	08.846 HOSE; HTR 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (B)	8-97239-079-0	01	1	0106-	●
35	08.852 CLIP; WATER HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (E) L=350	8-94152-256-1	01	1	9906-0105	●
35	08.852 CLIP; WATER HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 03.483 (F) L=450	1-09707-142-1	01	1	0106-	●
35	08.852 CLIP; WATER HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	02	1	9812-0105	●
35	08.852 CLIP; WATER HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	01	1	0106-	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	9812-0105	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	0106-	●			●	●		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	0106-		●	●			●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18	9-83651-948-1	01	1	9812-	●	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 08.846 (D) B=18	9-83651-948-1	01	1	9812-	●	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	04	1	9812-0105	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 08.846 (B) ID=22	8-94382-401-0	04	1	9812-0105	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	04	1	0106-	●	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JG2 ENG(RJC),4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.846 (C)	5-83574-006-0	01	1	9812-9901	●		●	●	●
35	08.852 CLIP; WATER HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.846 (C)	5-83574-006-0	01	1	9902-0105	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C)	5-83574-006-0	01	1	9902-0105	●
35	08.852 CLIP; WATER HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (G)	8-97191-097-0	01	1	0106-	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9812-0105	●
48	09.262 BOLT; CLIP FIX 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0106-	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9812-9903	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9812-9903	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9904-0105	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9904-0105	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0106-	●	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0106-	●
48	09.262 BOLT; CLIP FIX 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 02.500 M6X10 FLANGE	0-28080-610-0	01	1	9812-	●	●	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC) ID=22	8-94382-401-0	02	1	9812-9905	●
73	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) POWER STEERING<N40> EURO2 SPECIFICATION<7AF> ID=22	8-94382-401-0	02	1	9906-0105	●
73	08.846 CLIP; HTR HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER(K51) POWER STEERING<N40> CHARGE AIR COOLER<6PL> ID=22	8-94382-401-0	02	1	9906-0105	●
73	08.846 CLIP; HTR HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 01.166 ID=25	9-09915-642-2	02	1	0106-	●
121	08.845 NUT; PIPE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 01.540 M8 FLANGE	0-91150-208-0	02	1	9906-0105	●
121	08.845 NUT; PIPE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 01.540 M8 FLANGE	0-91150-208-0	02	1	0106-	●

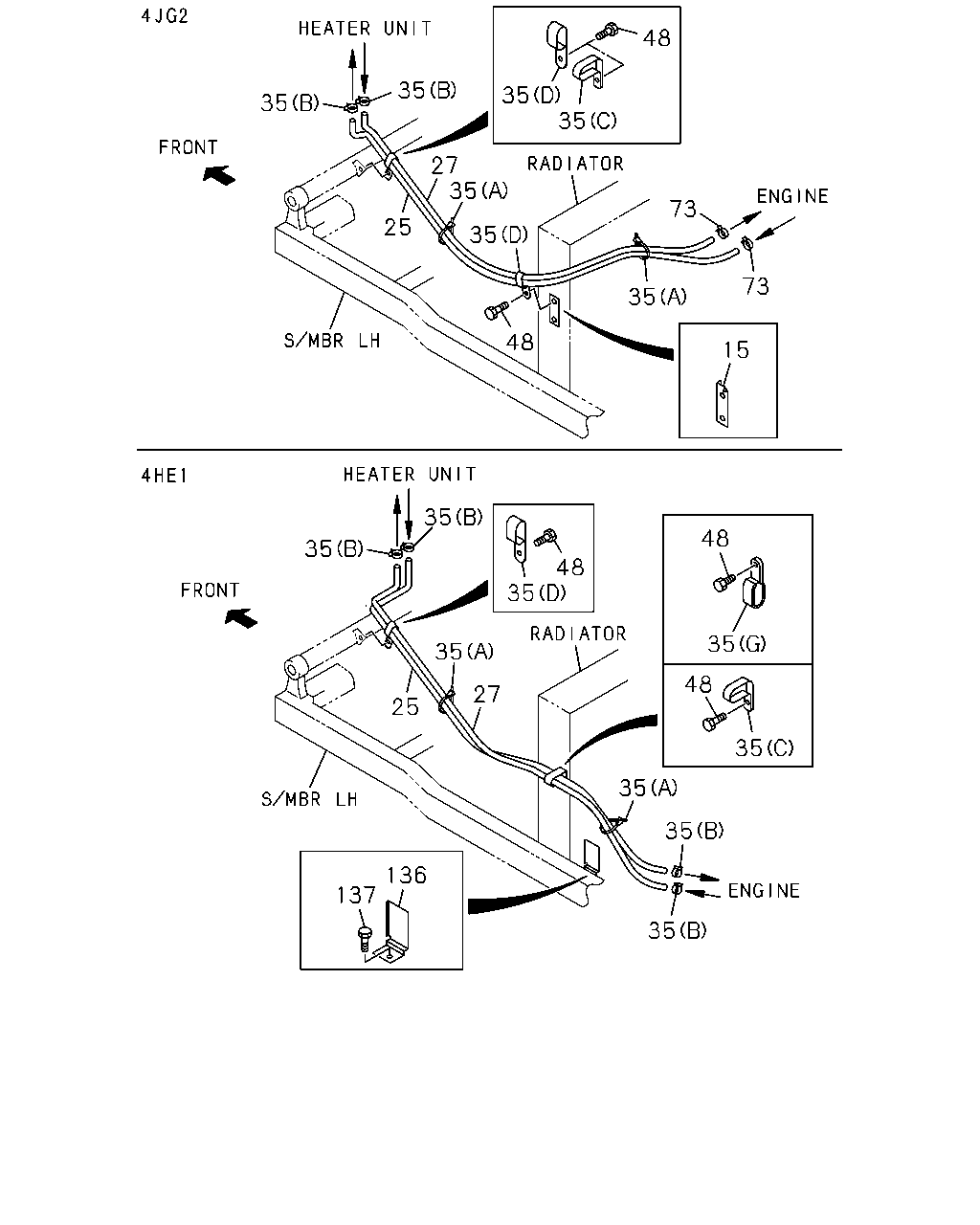

48 35 35 35 35 27 35 73 25 35 73 35 48 15 35 48 35 48 35 35 35 48 27 25 35 35 35 136 137 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
15	08.846 BRACKET; WATER HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97108-713-0	01	1	9812-0105	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) TURBOCHARGER(K51) POWER STEERING<N40> CHARGE AIR COOLER<6PL>	8-97204-606-1	01	1	9906-0105	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JG2 ENG(RJC)	8-97129-231-0	01	1	9812-0105	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97129-209-1	01	1	9812-0105	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97259-400-0	01	1	0106-0106	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97321-708-0	01	1	0107-	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL>	8-97149-152-4	01	1	9812-0105	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL>	8-97149-152-4	01	1	0106-	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER(K51) POWER STEERING<N40> CHARGE AIR COOLER<6PL>	8-97205-283-0	02	1	9906-0105	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) TURBOCHARGER(K51) POWER STEERING<N40> CHARGE AIR COOLER<6PL>	8-97204-607-1	01	1	9906-0105	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC)	8-97129-238-0	01	1	9812-0105	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97129-208-1	01	1	9812-0105	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97259-401-0	01	1	0106-	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL>	8-97149-153-2	01	1	9812-	●	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (E) L=350	8-94152-256-1	01	1	9906-0105	●
35	08.852 CLIP; WATER HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 03.483 (F) L=450	1-09707-142-1	01	1	0106-	●
35	08.852 CLIP; WATER HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	02	1	9812-0105	●
35	08.852 CLIP; WATER HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	01	1	0106-	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	9812-0105	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	0106-	●			●	●		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	0106-		●	●			●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18	9-83651-948-1	01	1	9812-	●	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 08.846 (D) B=18	9-83651-948-1	01	1	9812-	●	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	04	1	9812-0105	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 08.846 (B) ID=22	8-94382-401-0	04	1	9812-0105	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	04	1	0106-	●	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JG2 ENG(RJC),4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.846 (C)	5-83574-006-0	01	1	9812-9901	●		●	●	●
35	08.852 CLIP; WATER HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.846 (C)	5-83574-006-0	01	1	9902-0105	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C)	5-83574-006-0	01	1	9902-0105	●
35	08.852 CLIP; WATER HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (G)	8-97191-097-0	01	1	0106-	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9812-0105	●
48	09.262 BOLT; CLIP FIX 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0106-	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9812-9903	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9812-9903	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9904-0105	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9904-0105	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0106-	●	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0106-	●
48	09.262 BOLT; CLIP FIX 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 02.500 M6X10 FLANGE	0-28080-610-0	01	1	9812-	●	●	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC) ID=22	8-94382-401-0	02	1	9812-9905	●
73	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) POWER STEERING<N40> EURO2 SPECIFICATION<7AF> ID=22	8-94382-401-0	02	1	9906-0105	●
73	08.846 CLIP; HTR HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER(K51) POWER STEERING<N40> CHARGE AIR COOLER<6PL> ID=22	8-94382-401-0	02	1	9906-0105	●
73	08.846 CLIP; HTR HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 01.166 ID=25	9-09915-642-2	02	1	0106-	●
136	08.846 GUIDE; WATER HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL>	8-97183-818-2	01	1	9812-	●	●	●	●	●	●	●
137	08.846 BOLT; GUIDE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9812-	●	●	●	●	●	●	●

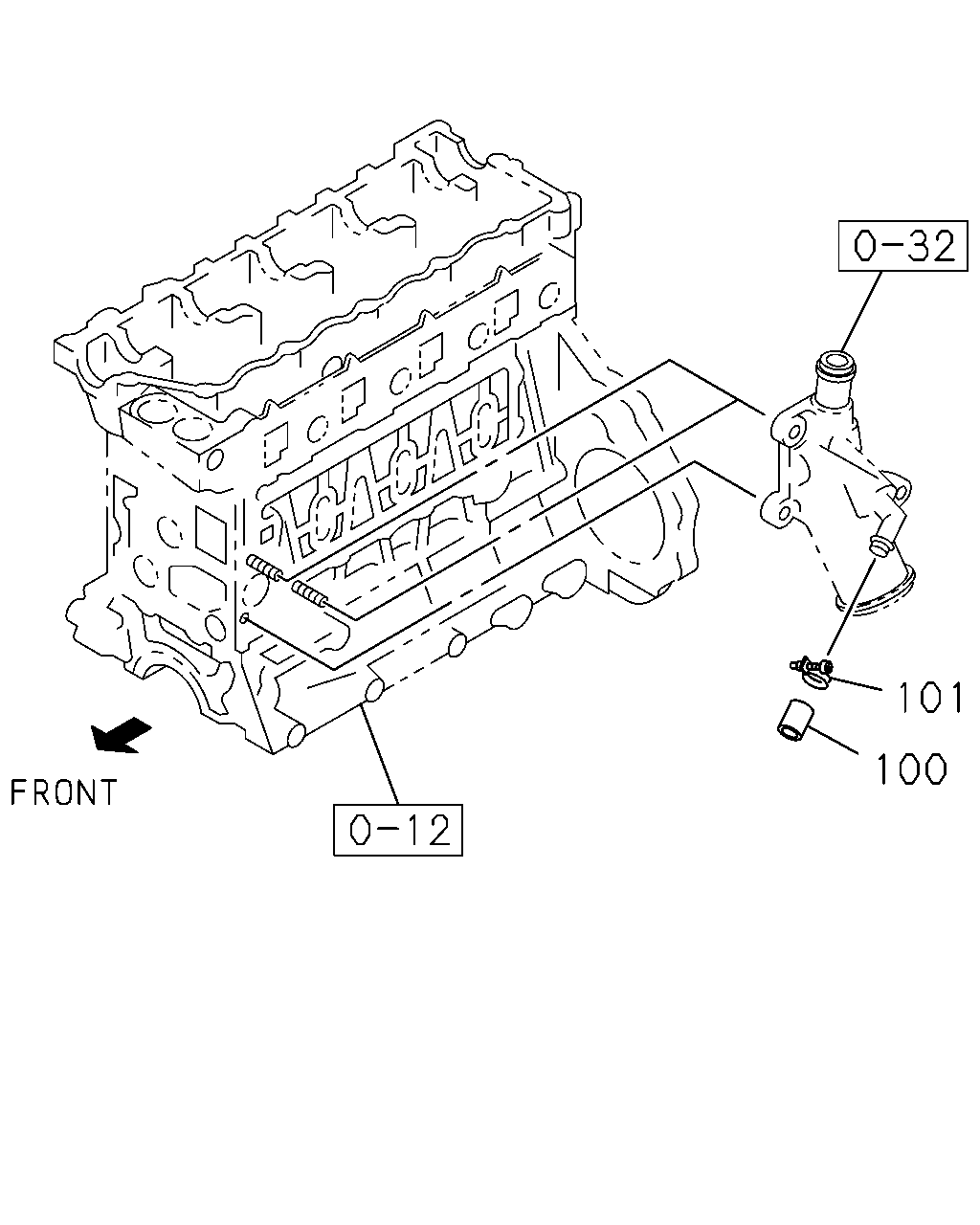

101 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C	D	E
100	08.846 CAP; RUBBER,WATER PIPE 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. HEATER & DEFROSTER(C41), VOLTAGE24V<7AE>,EURO2 SPECIFICATION<7AF>,E NGINE POWER N-SPEC(7QV),NOISE PACK FOR REGULATION VAR.2<7TF> 01.166	8-94107-793-0	01	1	0004-0008	●
100	08.846 CAP; RUBBER,WATER PIPE 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> EXC. HEATER & DEFROSTER(C41),EURO2 SPECIFICATION<7AF>,ENGINE POWER N-SPE C(7QV),NOISE PACK FOR REGULATION VAR.2<7TF> 01.166	8-94107-793-0	01	1	0012-0105	●	●	●	●
101	08.846 CLIP; CAP,WATER PIPE 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. HEATER & DEFROSTER(C41), VOLTAGE24V<7AE>,EURO2 SPECIFICATION<7AF>,E NGINE POWER N-SPEC(7QV),NOISE PACK FOR REGULATION VAR.2<7TF> 01.166 ID=25	8-94233-115-0	01	1	0004-0008	●
101	08.846 CLIP; CAP,WATER PIPE 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> EXC. HEATER & DEFROSTER(C41),EURO2 SPECIFICATION<7AF>,ENGINE POWER N-SPE C(7QV),NOISE PACK FOR REGULATION VAR.2<7TF> 01.166 ID=25	8-94233-115-0	01	1	0012-0105	●	●	●	●
