◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50818 - NPR/NQR(EUROPE)-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#43472) — 51 parça
çizim 46921
646
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
646 02.510 CONTROL UNIT; ENG
4JH1 ENG(RJX) 		8-97260-385-4 01 1 0106- ●

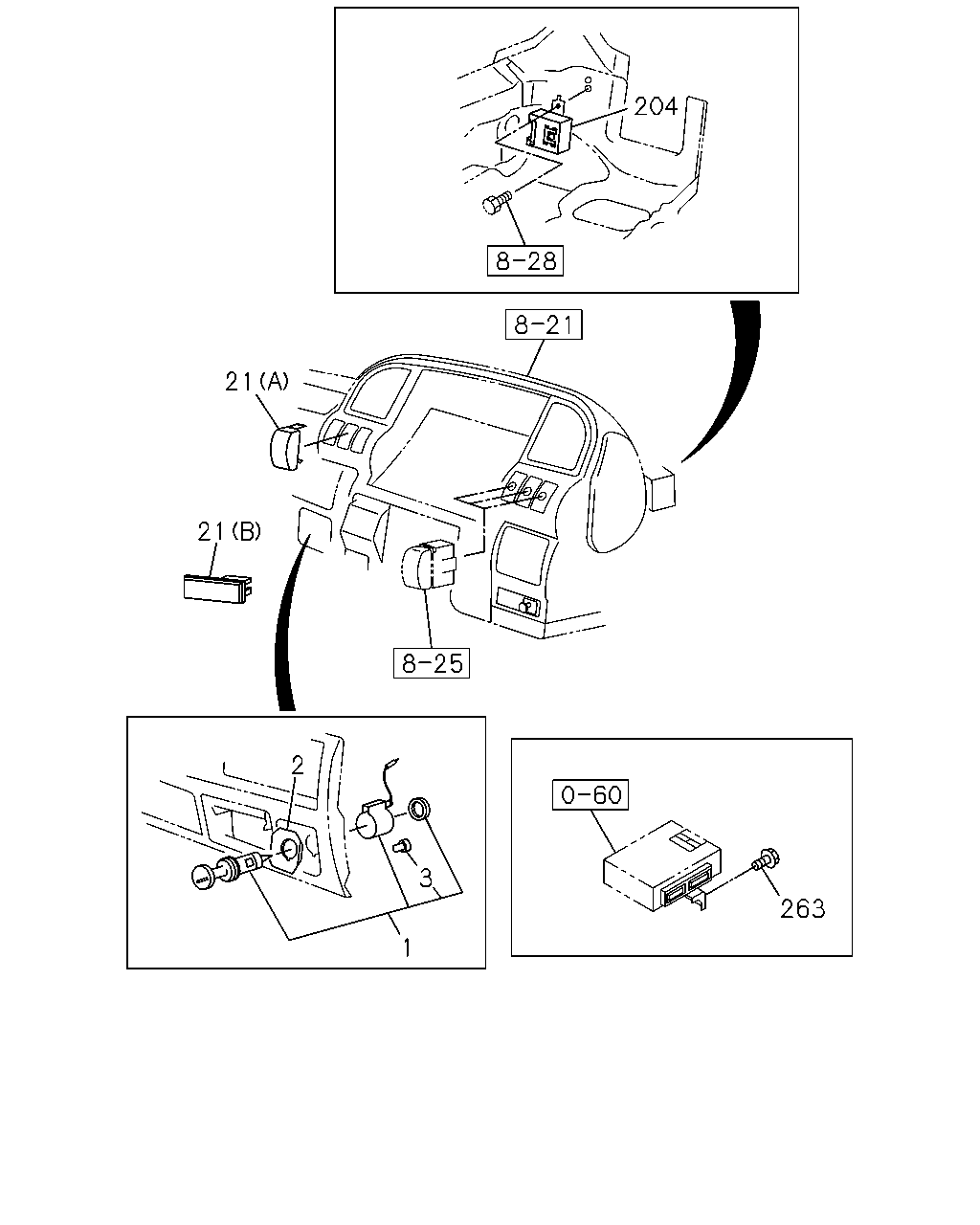

çizim 48704
204 21 21 2 3 263 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 09.709 LIGHTER; CIGAR
VOLTAGE 24V<7AE> 		8-97064-970-1 01 1 9812-0108 ●
1 09.709 LIGHTER; CIGAR 8-97064-970-1 01 1 9812-0108 ● ● ● ● ● ●
1 09.709 LIGHTER; CIGAR
VOLTAGE 24V<7AE> 		8-97320-325-0 01 1 0109- ●
1 09.709 LIGHTER; CIGAR 8-97320-325-0 01 1 0109- ● ● ● ● ● ●
1 09.709 LIGHTER; CIGAR
EXC. VOLTAGE 24V<7AE> 		8-97073-936-1 01 1 9812-0108 ●
1 09.709 LIGHTER; CIGAR
EXC. VOLTAGE 24V<7AE> 		8-97320-322-0 01 1 0109- ●
2 09.709 BEZEL; CIGAR LIGHTER 8-97853-159-1 01 1 9812- ● ● ● ● ● ● ●
3 08.991 BULB; CIGAR LIGHTER
VOLTAGE 24V<7AE> 28V 1.8W 		8-97173-159-0 01 1 9812- ●
3 08.991 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 9812- ● ● ● ● ● ●
3 08.991 BULB; CIGAR LIGHTER
EXC. VOLTAGE 24V<7AE> 14V 1.4W 		8-97173-160-0 01 1 9812- ●
21 09.744 COVER; HOLE
FLOOR REMOTE SHIFT<M11> (A) 		8-97136-694-0 01 1 9812-9905 ● ● ● ● ● ●
21 09.744 COVER; HOLE
4HE1 ENG(RLY) EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) (A) 		8-97136-694-0 01 1 9812-9905 ● ● ● ● ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 9812-9905 ● ● ● ● ● ●
21 09.744 COVER; HOLE
4JG2 ENG(RJC) (A) 		8-97136-694-0 01 1 9812-9905 ●
21 09.744 COVER; HOLE
FLOOR REMOTE SHIFT<M11> (A) 		8-97136-694-0 01 1 9906-0105 ● ● ● ● ● ●
21 09.744 COVER; HOLE
4JB1 ENG(RLF),4HE1 ENG(RLY) EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) (A) 		8-97136-694-0 01 1 9906-0105 ● ● ● ● ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 9906-0105 ● ● ● ● ● ●
21 09.744 COVER; HOLE
4JG2 ENG(RJC) (A) 		8-97136-694-0 01 1 9906-0105 ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 0106-0207 ● ● ● ● ● ● ●
21 09.744 COVER; HOLE
FLOOR REMOTE SHIFT<M11> (A) 		8-97136-694-0 01 1 0106-0207 ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 0106-0207 ● ● ● ● ● ●
21 09.744 COVER; HOLE
FLOOR REMOTE SHIFT<M11> (A) 		8-97136-694-0 01 1 0208- ● ● ● ● ● ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 0208- ● ● ● ● ● ● ●
21 09.744 COVER; HOLE
FLOOR REMOTE SHIFT<M11> ADJUST HEADLAMP<6RC> EXC. PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 9812-0105 ● ● ● ● ● ●
21 09.744 COVER; HOLE
FLOOR REMOTE SHIFT<M11> ADJUST HEADLAMP<6RC> EXC. PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 0106-0207 ●
21 09.744 COVER; HOLE
ADJUST HEADLAMP<6RC> EXC. FLOOR REMOTE SHIFT<M11> 02.485 (B) 		8-94310-890-0 01 1 0106-0207 ●
21 09.744 COVER; HOLE
ADJUST HEADLAMP<6RC> EXC. PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 0106-0207 ● ● ● ● ● ●
21 09.744 COVER; HOLE
FLOOR REMOTE SHIFT<M11> ADJUST HEADLAMP<6RC> EXC. PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 0208- ● ● ● ● ● ● ●
21 09.744 COVER; HOLE
ADJUST HEADLAMP<6RC> EXC. FLOOR REMOTE SHIFT<M11> 02.485 (B) 		8-94310-890-0 01 1 0208- ● ● ● ● ● ● ●
204 02.195 BUZZER; KEY REMIND
4HE1 ENG(RLY) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) FLOOR REMOTE SHIFT<M11> 09.765 		8-97036-649-0 01 1 9812-0105 ● ● ● ● ● ●
204 02.195 BUZZER; KEY REMIND
09.765 		8-97036-649-0 01 1 0106- ● ● ● ● ● ● ●
263 04.115 BOLT; CONT UNIT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 9812-0105 ● ● ● ● ● ●
263 04.115 BOLT; CONT UNIT
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0106-0109 ●
263 04.115 BOLT; CONT UNIT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0110- ●
263 04.115 BOLT; CONT UNIT
04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0110- ● ● ●
263 04.115 BOLT; CONT UNIT
4HE1 ENG(RLY) 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0110- ● ● ●

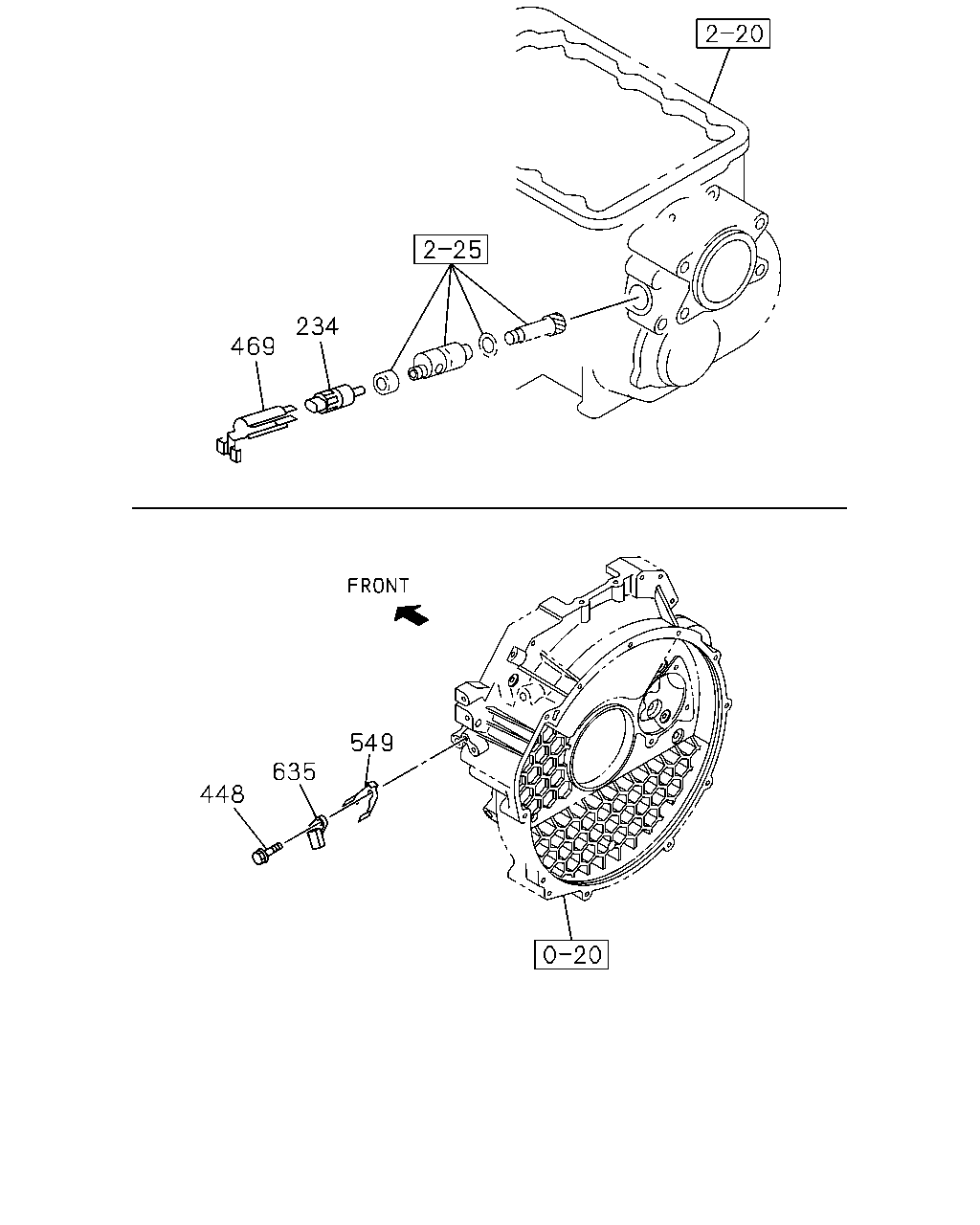

çizim 50860
234 469 549 635 448
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
234 03.682 SENSOR; VEHICLE SPD
4 PULSE PPS RESIN BLACK 		8-97129-704-0 01 1 9812-0006 ● ● ● ● ● ● ●
234 03.682 SENSOR; VEHICLE SPD
4 PULSE ALUMINUM 		8-97256-525-0 01 1 0007- ● ● ● ● ● ● ●
448 02.500 BOLT; SENSOR
4HE1 ENG(RLY) 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 9812- ● ● ● ● ● ● ●
469 03.682 PROTECTOR; SPEED SENSOR
FLOOR REMOTE SHIFT<M11> 		8-97168-308-0 01 1 9812-0105 ● ● ● ● ● ●
469 03.682 PROTECTOR; SPEED SENSOR
FLOOR REMOTE SHIFT<M11> 		8-97168-308-0 01 1 0106-0112 ●
469 03.682 PROTECTOR; SPEED SENSOR 8-97168-308-0 01 1 0106-0112 ● ● ● ● ● ●
469 03.682 PROTECTOR; SPEED SENSOR
M/T MXA5R(RMT),M/T MBP6R(RNW) 		8-97168-308-0 01 1 0201-0207 ●
469 03.682 PROTECTOR; SPEED SENSOR 8-97168-308-0 01 1 0201-0207 ● ● ● ● ● ●
469 03.682 PROTECTOR; SPEED SENSOR
M/T MXA5R(RMT),M/T MBP6R(RNW) 		8-97168-308-0 01 1 0208- ●
469 03.682 PROTECTOR; SPEED SENSOR
M/T MBP6R(RNW) 		8-97168-308-0 01 1 0208- ● ● ● ● ● ●
549 02.510 SHEET
4HE1 ENG(RLY) 09.743 		8-97161-633-2 01 1 9812- ● ● ● ● ● ● ●
635 09.750 SENSOR; TACHOMETER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> YAZAKI 		8-97214-325-0 01 1 9812- ● ● ● ● ● ● ●
635 09.750 SENSOR; TACHOMETER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> KANSEI 		8-97163-104-0 01 1 9812-0105 ● ● ● ● ●
635 09.750 SENSOR; TACHOMETER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> KANSEI 		8-97163-104-0 01 1 0106- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
