◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50818 - NPR/NQR(EUROPE)-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#43471) — 176 parça

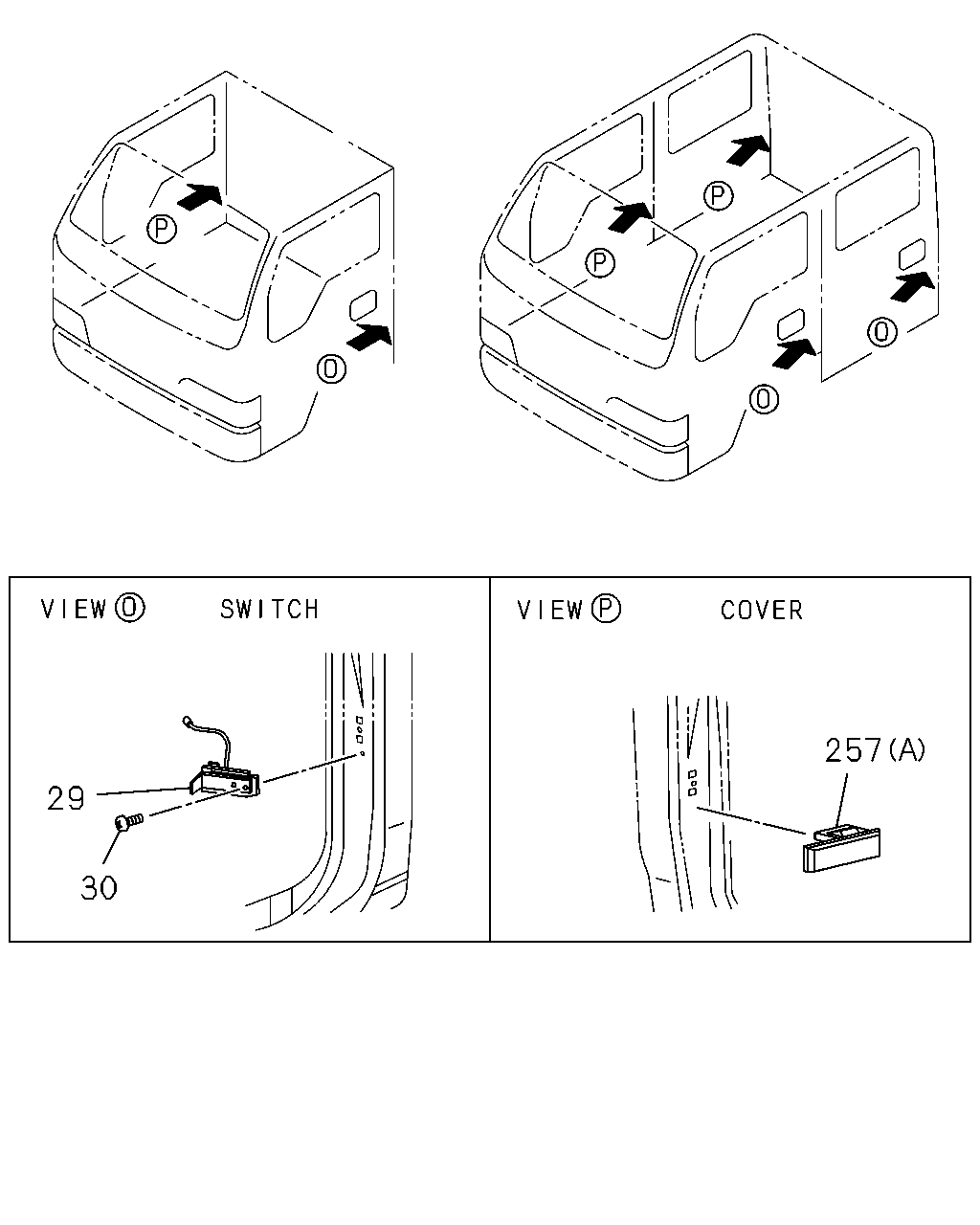

çizim 11146
257 29 30
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
29 16.263 SWITCH; DOOR 8-97855-032-3 01 1 9812- ● ● ● ● ●
29 16.263 SWITCH; DOOR 8-97855-032-3 02 1 9904- ● ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 01 1 9812- ● ● ● ● ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 02 1 9904- ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 9812- ● ● ● ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) EXC. ADJUST HEADLAMP<6RC> 02.485 (B) 		8-94310-890-0 01 1 9812- ● ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (C) 		8-97136-694-0 01 1 9812- ● ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 02 1 9904- ● ●
çizim 48278
85 531 311 550 12 191
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-1 01 1 9812- ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9812-0104 ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9812-0104 ● ● ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> 02.510 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0105- ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 02.510 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0105- ● ● ● ● ● ●
85 02.485 RELAY; HEADLAMP
VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9812-0104 ●
85 02.485 RELAY; HEADLAMP
02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9812-0104 ● ● ● ● ●
85 02.485 RELAY; HEADLAMP
VOLTAGE 24V<7AE> 02.510 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0105- ●
85 02.485 RELAY; HEADLAMP
02.510 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0105- ● ● ● ● ● ●
85 02.485 RELAY; HEADLAMP
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9812- ●
191 02.510 RELAY; EXH BRK CUT
VOLTAGE 24V<7AE> 24V 12.5A JIDECO 		8-97062-815-1 01 1 9812-0004 ●
191 02.510 RELAY; EXH BRK CUT
24V 12.5A JIDECO 		8-97062-815-1 01 1 9812-0004 ● ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> 24V 12.5A JIDECO 		8-97062-815-1 01 1 0005-0104 ● ● ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
VOLTAGE 24V<7AE> 24V 12.5A JIDECO 		8-97062-815-1 01 1 0005-0104 ● ● ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0105-0105 ● ● ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
VOLTAGE 24V<7AE> 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0105-0105 ● ● ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0106- ● ● ● ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
4HE1 ENG(RLY) VOLTAGE 24V<7AE> 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0106- ● ● ● ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9812-0004 ●
191 02.510 RELAY; EXH BRK CUT
4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> 08.852 12V 20A 		8-97060-926-1 01 1 0005-0105 ●
191 02.510 RELAY; EXH BRK CUT
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0005-0105 ●
191 02.510 RELAY; EXH BRK CUT
4HE1 ENG(RLY) EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0106- ●
311 02.596 RELAY; CORNERING LAMP
EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9812-0105 ●
311 02.596 RELAY; CORNERING LAMP
VOLTAGE 24V<7AE> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9812-0104 ● ● ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
VOLTAGE 24V<7AE> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) 02.510 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0105-0105 ● ● ● ● ● ●
531 02.515 RELAY; ECU
4JH1 ENG(RJX) 08.852 12V 20A 		8-97060-926-1 01 1 0106- ●
550 02.510 RELAY; ABS
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> 24V 12.5A JIDECO 		8-97062-815-1 01 1 0005-0104 ●
550 02.510 RELAY; ABS
4 WHEEL ANTI LOCK BRAKE<JE5> 24V 12.5A JIDECO 		8-97062-815-1 01 1 0005-0104 ● ● ● ● ●
550 02.510 RELAY; ABS
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0105-0105 ●
550 02.510 RELAY; ABS
4 WHEEL ANTI LOCK BRAKE<JE5> 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0105-0105 ● ● ● ● ●
550 02.510 RELAY; ABS
4 WHEEL ANTI LOCK BRAKE<JE5> VOLTAGE 24V<7AE> 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0106- ●
550 02.510 RELAY; ABS
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0106- ● ● ● ● ● ●
550 02.510 RELAY; ABS
4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> 08.852 12V 20A 		8-97060-926-1 01 1 0005-0105 ●
550 02.510 RELAY; ABS
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0106- ●

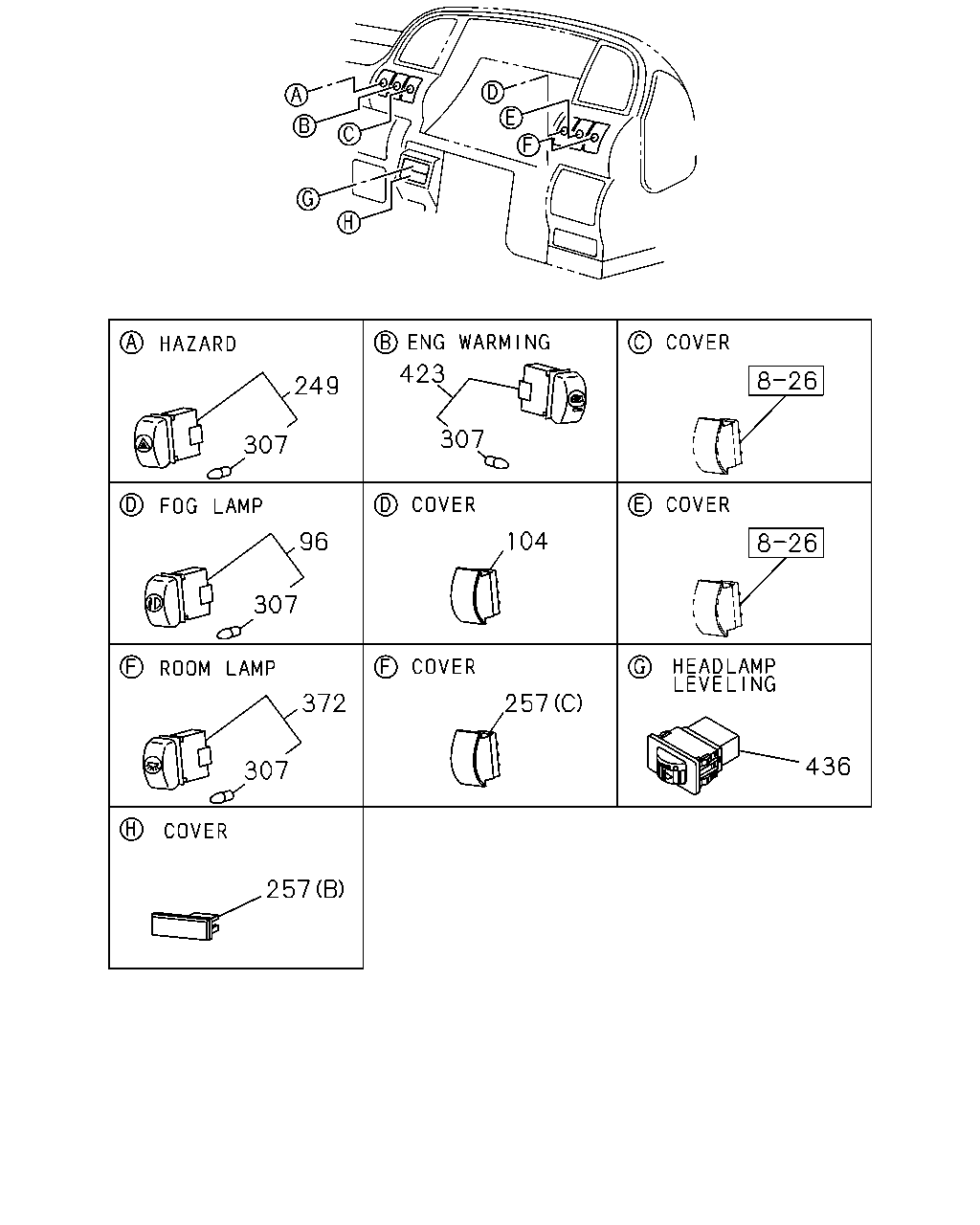

çizim 48312
423 249 307 307 104 96 307 372 257 436 307 257
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. VOLTAGE 24V<7AE> 		8-97206-020-1 01 1 9812-0105 ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97206-020-1 01 1 0106- ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) VOLTAGE 24V<7AE> 		8-97206-021-1 01 1 9812-0105 ● ● ● ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97206-021-1 01 1 0106- ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97206-021-1 01 1 0106- ● ● ● ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),VOLTAGE 24V<7AE> 		8-97140-964-0 01 1 9812-0105 ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) 		8-97170-441-0 01 1 9812-0105 ● ● ● ● ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 09.744 		8-97136-694-0 01 1 9812- ● ● ● ● ● ● ●
249 02.485 SWITCH; HAZARD
VOLTAGE 24V<7AE> 		8-97202-475-0 01 1 9812- ●
249 02.485 SWITCH; HAZARD 8-97202-475-0 01 1 9812- ● ● ● ● ● ●
249 02.485 SWITCH; HAZARD
EXC. VOLTAGE 24V<7AE> 		8-97202-476-0 01 1 9812- ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 9812- ● ● ● ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) EXC. ADJUST HEADLAMP<6RC> 02.485 (B) 		8-94310-890-0 01 1 9812- ● ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (C) 		8-97136-694-0 01 1 9812- ● ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 02 1 9904- ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 02 1 9812-0105 ●
307 08.991 BULB ASM; SW
EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 02 1 9812-0105 ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 02 1 0106- ●
307 08.991 BULB ASM; SW
EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 02 1 0106- ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 01 1 9812-9905 ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 01 1 9812-9905 ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 01 1 9906-0105 ●
307 08.991 BULB ASM; SW
4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 14V 60MA 		8-97116-329-0 01 1 9906-0105 ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 01 1 9906-0105 ●
307 08.991 BULB ASM; SW
4JH1 ENG(RJX) 14V 60MA 		8-97116-329-0 01 1 0106- ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 01 1 0106- ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> VOLTAGE 24V<7AE> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) 28V 40MA 		8-97116-331-0 01 1 9812-0105 ● ● ● ● ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> ROOM LAMP SWITCH<7KL> 28V 40MA 		8-97116-331-0 01 1 9812-0105 ● ● ● ● ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> ROOM LAMP SWITCH<7KL> 28V 40MA 		8-97116-331-0 01 1 0106- ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> 28V 40MA 		8-97116-331-0 01 1 0106- ● ● ● ● ● ●
307 08.991 BULB ASM; SW
4HE1 ENG(RLY) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 28V 40MA 		8-97116-331-0 02 1 9812-0105 ● ● ● ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) VOLTAGE 24V<7AE> 28V 40MA 		8-97116-331-0 02 1 9812-0105 ● ● ● ● ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> 28V 40MA 		8-97116-331-0 02 1 9812-0105 ● ● ● ● ● ●
307 08.991 BULB ASM; SW
4HE1 ENG(RLY) 28V 40MA 		8-97116-331-0 02 1 0106- ● ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> VOLTAGE 24V<7AE> 28V 40MA 		8-97116-331-0 02 1 0106- ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> 28V 40MA 		8-97116-331-0 02 1 0106- ●
307 08.991 BULB ASM; SW
28V 40MA 		8-97116-331-0 02 1 0106- ● ● ● ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> 28V 40MA 		8-97116-331-0 02 1 0106- ● ● ● ● ● ●
307 08.991 BULB ASM; SW
28V 40MA 		8-97116-331-0 02 1 0106- ● ● ●
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> EXC. VOLTAGE 24V<7AE> 		8-97136-692-0 01 1 9812- ●
372 08.852 SWITCH; ROOM LAMP
VOLTAGE 24V<7AE> ROOM LAMP SWITCH<7KL> 		8-97136-693-0 01 1 9812- ●
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> 		8-97136-693-0 01 1 9812- ● ● ● ● ● ●
423 03.883 SWITCH; ENG WARMING
4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97140-965-0 01 1 9906-0105 ●
423 03.883 SWITCH; ENG WARMING
4JH1 ENG(RJX) 		8-97140-965-0 01 1 0106- ●
423 03.883 SWITCH; ENG WARMING
4HE1 ENG(RLY) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97136-814-0 01 1 9812-0105 ● ● ● ● ● ●
423 03.883 SWITCH; ENG WARMING
4HE1 ENG(RLY) 		8-97136-814-0 01 1 0106- ● ● ● ●
423 03.883 SWITCH; ENG WARMING 8-97136-814-0 01 1 0106- ● ● ●
436 02.485 SWITCH; HEADLAMP LEVELING
ADJUST HEADLAMP<6RC> 		8-97105-971-0 01 1 9812-0105 ● ● ● ● ● ●
436 02.485 SWITCH; HEADLAMP LEVELING
ADJUST HEADLAMP<6RC> 		8-97260-401-1 01 1 0106- ● ● ● ● ● ● ●

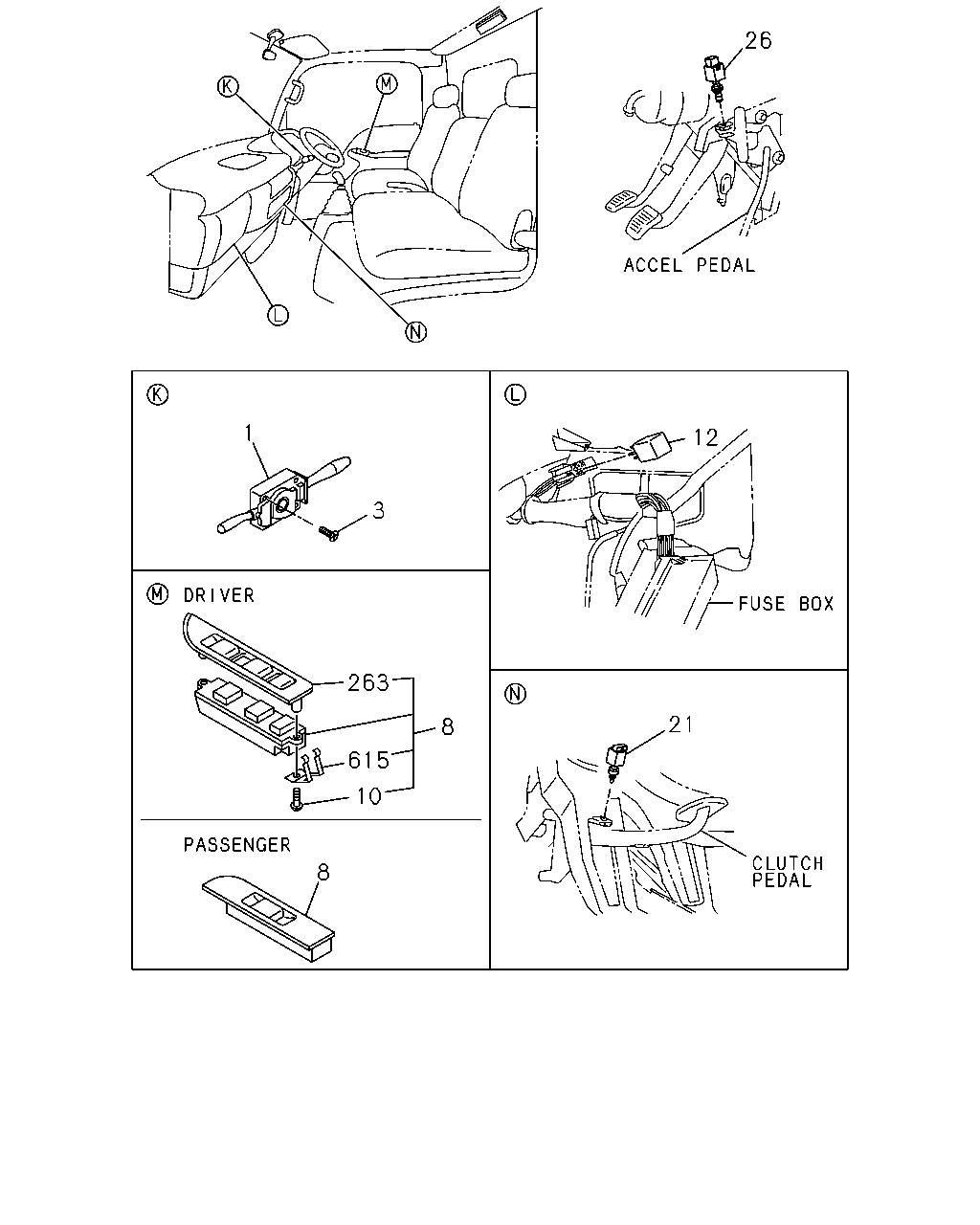

çizim 48313
26 1 12 3 263 21 8 615 10 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> RR FOG LAMP<T79> 		8-97202-862-0 01 1 9812-0101 ● ● ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> RR FOG LAMP<T79> 		8-97287-900-0 01 1 0102-0105 ● ● ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> 		8-97287-900-2 01 1 0106-0301 ● ● ● ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> 		8-97364-080-0 01 1 0302- ● ● ● ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. RR FOG LAMP<T79> 		8-97170-393-0 01 1 9812-0101 ● ● ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. RR FOG LAMP<T79> 		8-97287-892-0 01 1 0102-0105 ● ● ● ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-97071-217-1 01 1 9812-0101 ● ● ● ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-97287-886-0 01 1 0102-0105 ● ● ● ● ● ●
1 02.895 SWITCH; COMB
RR FOG LAMP<T79> EXC. INTERMITTENT WIPER<C13> 		8-97202-858-0 01 1 9812-0101 ● ● ● ● ● ●
1 02.895 SWITCH; COMB
RR FOG LAMP<T79> EXC. INTERMITTENT WIPER<C13> 		8-97287-898-0 01 1 0102-0105 ● ● ● ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		8-97287-898-2 01 1 0106- ● ● ● ● ● ● ●
3 02.897 SCREW; COMB SW
M5X20 W/LK WASHER 		9-03910-520-0 04 1 9812- ● ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> DRIVER SIDE 		8-97166-342-0 01 1 9812-9812 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97166-342-0 01 1 9812-9812 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> DRIVER SIDE 		8-97214-599-0 01 1 9812-9905 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97214-599-0 01 1 9812-9905 ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> DRIVER SIDE 		8-97222-592-0 01 1 9906-0004 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97222-592-0 01 1 9906-0004 ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> DRIVER SIDE 		8-97249-350-0 01 1 0005-0106 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97249-350-0 01 1 0005-0106 ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> DRIVER SIDE 		8-97315-176-0 01 1 0107- ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97315-176-0 01 1 0107- ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> DRIVER SIDE 		8-97166-343-0 01 1 9812-9812 ●
8 16.263 SWITCH; POWER WINDOW
4HE1 ENG(RLY) EXC. POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97214-600-0 01 1 9812-9905 ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
4HE1 ENG(RLY) EXC. POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97222-593-0 01 1 9906-0004 ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
4HE1 ENG(RLY) EXC. POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97249-351-0 01 1 0005-0106 ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
4HE1 ENG(RLY) EXC. POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97315-177-0 01 1 0107-0301 ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
4HE1 ENG(RLY) EXC. POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97364-112-0 01 1 0302- ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97205-726-0 01 1 9812-9901 ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 		8-97214-398-0 01 1 9902- ● ● ● ● ● ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-239-0 02 1 9812- ● ● ● ● ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-1 01 1 9812- ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9812-0104 ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9812-0104 ● ● ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> 02.510 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0105- ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 02.510 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0105- ● ● ● ● ● ●
21 02.575 SWITCH; CLU
4JH1 ENG(RJX) 		8-97260-603-0 01 1 0106- ●
21 02.575 SWITCH; CLU
FLOOR REMOTE SHIFT<M11> 04.054 		8-94331-723-1 01 1 9812-0105 ● ● ● ● ● ●
21 02.575 SWITCH; CLU
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 04.054 		8-94331-723-1 01 1 0106-0212 ● ● ● ● ● ● ●
21 02.575 SWITCH; CLU
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 		8-97358-248-0 01 1 0301- ● ● ● ● ● ● ●
26 03.636 SWITCH; ACCEL
04.054 		8-94368-343-0 01 1 9812-0105 ● ● ● ● ● ●
26 03.636 SWITCH; ACCEL
4HE1 ENG(RLY) 04.054 		8-94368-343-0 01 1 0106-0212 ● ● ● ●
26 03.636 SWITCH; ACCEL
04.054 		8-94368-343-0 01 1 0106-0212 ● ● ●
26 03.636 SWITCH; ACCEL
4HE1 ENG(RLY) 		8-97358-315-0 01 1 0301- ● ● ● ●
26 03.636 SWITCH; ACCEL 8-97358-315-0 01 1 0301- ● ● ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> 		8-97219-234-0 01 1 9812- ● ● ● ● ● ● ●
615 16.263 SPRING; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-238-0 01 1 9812- ● ● ● ● ● ● ●

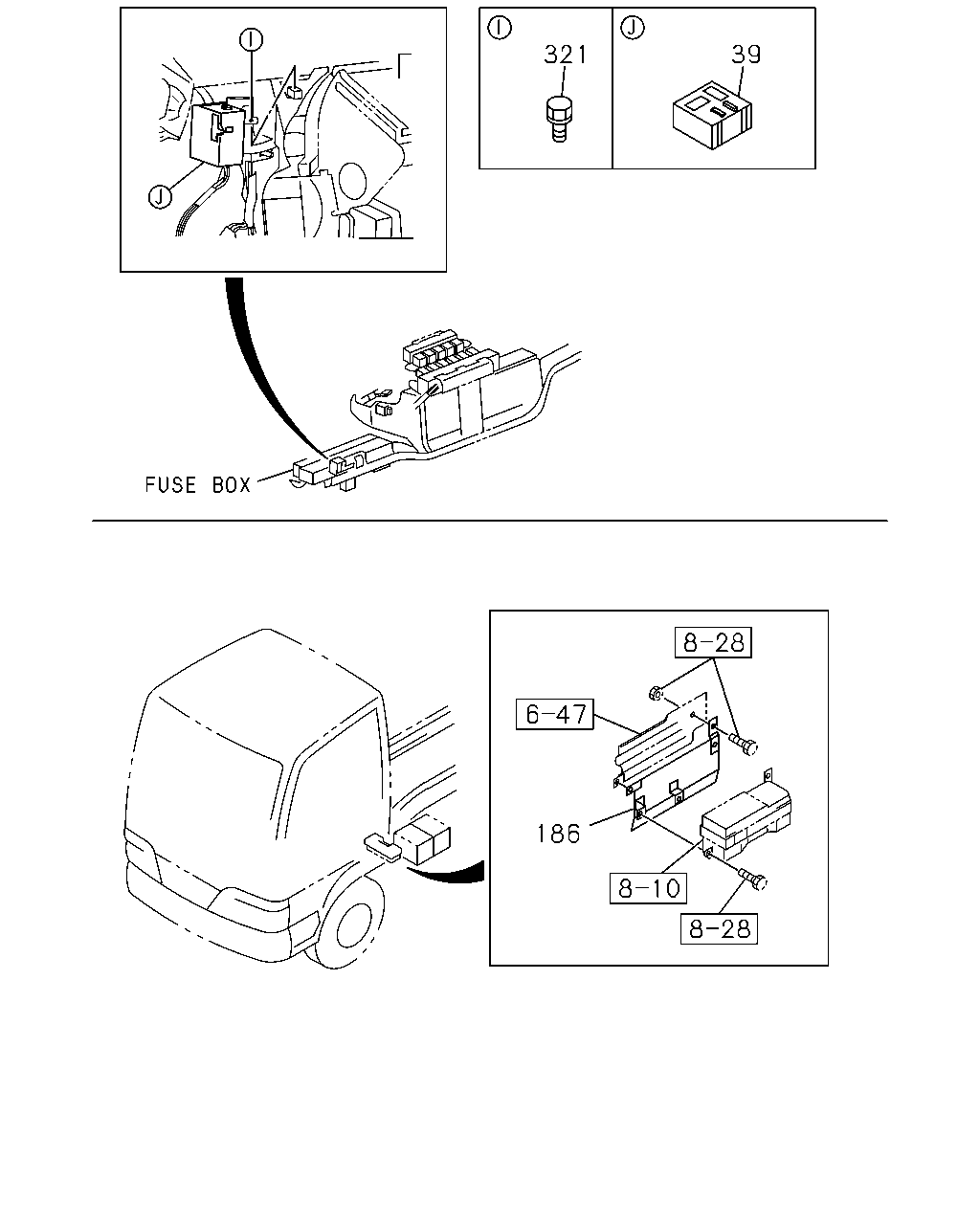

çizim 48781
321 39 186
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> VOLTAGE 24V<7AE> 		8-97177-214-0 01 1 9812- ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-97177-214-0 01 1 9812- ● ● ● ● ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. VOLTAGE 24V<7AE> 		8-97177-215-0 01 1 9812-0212 ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. VOLTAGE 24V<7AE> 		8-97359-591-0 01 1 0301- ●
186 09.277 BRACKET; RELAY BOX
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE 8.25-16<7QP> 		8-97088-652-1 01 1 9812-0105 ● ● ● ● ● ●
186 09.277 BRACKET; RELAY BOX
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE 8.25-16<7QP> 		8-97088-652-1 01 1 0106- ●
321 16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 01.269 M5X20 		8-94436-927-0 01 1 9812- ● ● ● ● ● ● ●

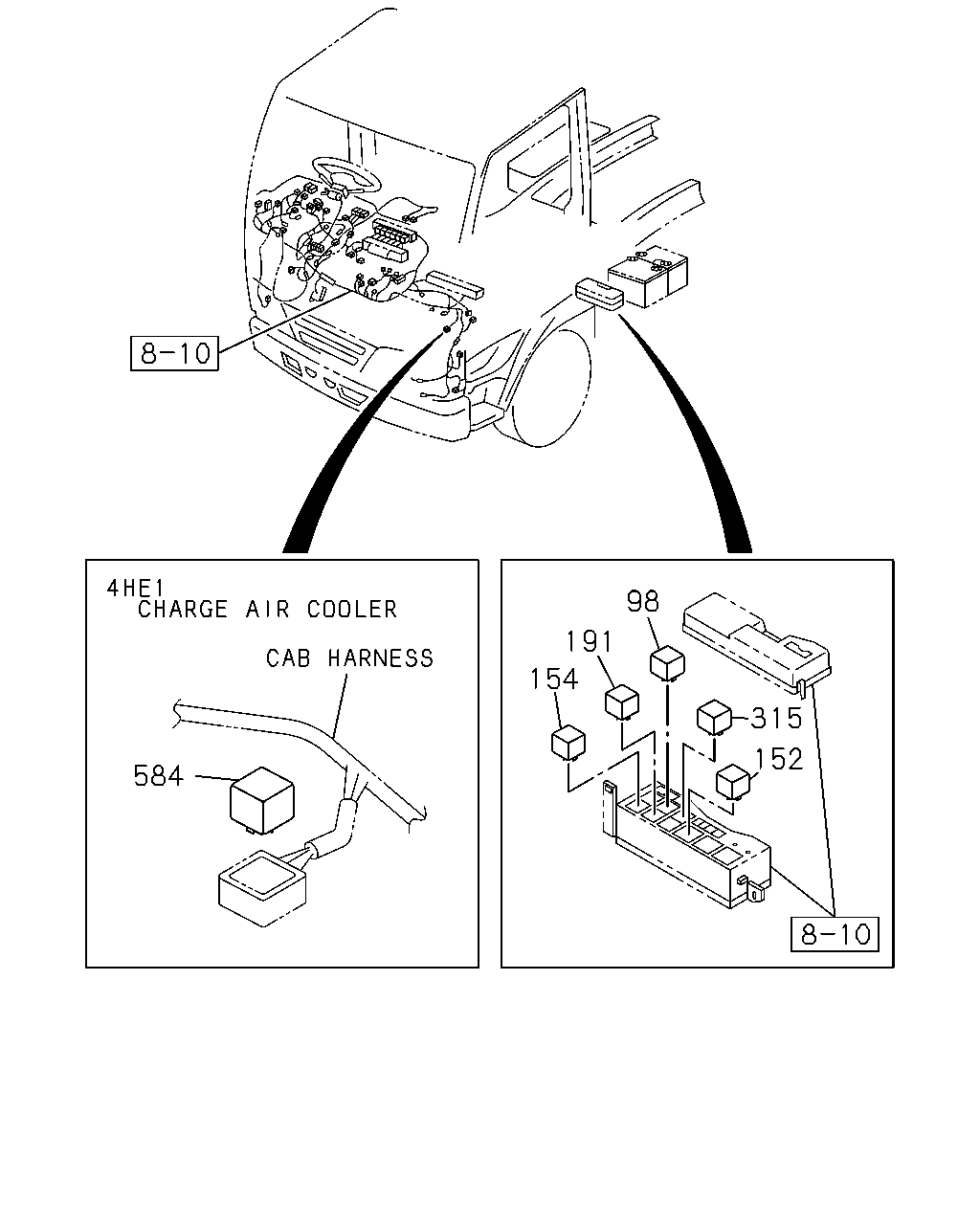

çizim 51475
98 191 154 315 152 584
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
98 02.485 RELAY; RR FOG LAMP
RR FOG LAMP<T79> VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9812-0104 ● ● ● ● ● ●
98 02.485 RELAY; RR FOG LAMP
RR FOG LAMP<T79> VOLTAGE 24V<7AE> 02.510 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0105-0105 ● ● ● ● ● ●
98 02.485 RELAY; RR FOG LAMP
VOLTAGE 24V<7AE> 02.510 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0106- ●
98 02.485 RELAY; RR FOG LAMP
02.510 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0106- ● ● ● ● ● ●
98 02.485 RELAY; RR FOG LAMP
RR FOG LAMP<T79> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9812-0105 ●
98 02.485 RELAY; RR FOG LAMP
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0106- ●
152 02.510 RELAY; CERAMIC HTR
CERAMIC HEATER<6YX> 24V 50A 		8-97173-947-0 01 1 9812- ● ● ● ● ● ● ●
154 09.277 RELAY; CONDENSER FAN
4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) 08.852 12V 20A 		8-97060-926-1 01 1 0106- ●
191 02.510 RELAY; EXH BRK CUT
VOLTAGE 24V<7AE> 24V 12.5A JIDECO 		8-97062-815-1 01 1 9812-0004 ●
191 02.510 RELAY; EXH BRK CUT
24V 12.5A JIDECO 		8-97062-815-1 01 1 9812-0004 ● ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> 24V 12.5A JIDECO 		8-97062-815-1 01 1 0005-0104 ● ● ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
VOLTAGE 24V<7AE> 24V 12.5A JIDECO 		8-97062-815-1 01 1 0005-0104 ● ● ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0105-0105 ● ● ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
VOLTAGE 24V<7AE> 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0105-0105 ● ● ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0106- ● ● ● ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
4HE1 ENG(RLY) VOLTAGE 24V<7AE> 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0106- ● ● ● ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9812-0004 ●
191 02.510 RELAY; EXH BRK CUT
4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> 08.852 12V 20A 		8-97060-926-1 01 1 0005-0105 ●
191 02.510 RELAY; EXH BRK CUT
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0005-0105 ●
191 02.510 RELAY; EXH BRK CUT
4HE1 ENG(RLY) EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0106- ●
315 09.277 RELAY; EXH BRAKE CONT
VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9812-0104 ●
315 09.277 RELAY; EXH BRAKE CONT
02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9812-0104 ● ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
VOLTAGE 24V<7AE> 02.510 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0105-0105 ●
315 09.277 RELAY; EXH BRAKE CONT
02.510 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0105-0105 ● ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4HE1 ENG(RLY) VOLTAGE 24V<7AE> 02.510 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0106- ●
315 09.277 RELAY; EXH BRAKE CONT
02.510 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0106- ● ● ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9812-0105 ●
315 09.277 RELAY; EXH BRAKE CONT
4HE1 ENG(RLY) EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0106- ●
584 02.510 RELAY; TIMING
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0106- ●
584 02.510 RELAY; TIMING
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> 24V 12.5A JIDECO 		8-97062-815-1 01 1 9812-0104 ● ● ● ● ● ●
584 02.510 RELAY; TIMING
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0105- ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
