Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#43469) — 553 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
53	02.483 BRACKET; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97040-410-2	01	1	0001-0203	●
53	02.483 BRACKET; HARNESS 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97062-178-3	01	1	9812-0105	●
53	02.483 BRACKET; HARNESS 4JH1 ENG(RJX),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97062-178-3	01	1	0106-	●
53	02.483 BRACKET; HARNESS 4JH1 ENG(RJX) (C)	8-97313-793-0	01	1	0106-0209	●
53	02.483 BRACKET; HARNESS 4JH1 ENG(RJX) (E)	8-97359-614-0	01	1	0210-	●
53	02.483 BRACKET; HARNESS 4HE1 ENG(RLY) M/T MZZ6F(RSR) (D)	8-97352-527-0	01	1	0208-	●	●	●	●	●	●	●

16 48 208 464 48 16 48 16 48 48 483 48 48 48 208 48 48 16 48 16 48 551 48 220 16 16 49 16 48 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
16	02.559 CLIP; HARNESS (A) ID=15-32	8-97174-404-0	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 16.065 (B) 1 SET=5 PIECE	1-09987-214-0	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 03.162 (C) L=140	5-09707-031-1	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (E) L=100	8-94327-067-1	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.343 (F) ID=16	8-94413-325-0	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 01.166 (G) ID=22 & 22	8-94464-837-0	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.694 (H) ID=6 & 10-13	8-97069-515-0	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (I) L=155	8-97173-307-0	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 04.930 (J) ID=10 & 16.5	8-94360-745-0	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (K) L=175	8-97110-167-0	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (L) L=135	1-09987-143-1	AR	1	9904-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (M) L=250	5-09707-030-1	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 04.342 (N) ID=14-12	8-94379-592-0	AR	1	9904-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (O) L=100	8-94442-388-0	AR	1	9904-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (P) L=60	8-94457-053-0	AR	1	9904-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (Q) ID=15-40	8-97223-033-0	AR	1	9904-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (R) L=36.5	8-97019-892-0	AR	1	9904-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (S) ID=25 L=55	9-09917-573-0	AR	1	0001-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.525 (T) T=4.5 & 9	5-09709-023-0	AR	1	0001-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (U) T=6.0	5-09709-024-0	AR	1	0001-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.589 (V) ID=27	5-09700-323-0	AR	1	0005-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (W) ID=12	5-09700-331-0	AR	1	0106-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (A) ID=33 L=63	1-09700-807-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (B) ID=14 L=47	5-09700-319-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (C) ID=30 W/STUD	8-97078-642-2	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.785 (D) ID=9.6	8-94147-870-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.785 (E) ID=11 L=28	9-09525-055-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (F) T=4.5 & 9	5-09709-023-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (G) ID=31 L=30	1-09700-969-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.197 (H) ID=32 L=75	1-09700-702-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (I) ID=9	8-97063-874-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (J) L=110	8-94149-419-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.162 (K) L=140	5-09707-031-1	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 00.446 (L) ID=12 B=14 ID=8.5	5-09700-350-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (M) ID=19 L=60	9-09525-893-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (N) ID=20	8-94169-650-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.589 (O) ID=27	5-09700-323-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (P) T=8.7	5-09709-048-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.115 (Q) T=9 & 10.5	8-97041-091-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (R) L=170.3	1-09987-182-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (S) ID=25 L=55	9-09917-573-0	AR	1	0001-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (T) T=6.0	5-09709-012-0	AR	1	0001-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (U) T=6.0	5-09709-024-0	AR	1	0001-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.008 (V) L=330	5-09709-118-0	AR	1	0106-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (W) T=9.2 & 9	5-09709-025-0	AR	1	0208-	●	●	●	●	●	●	●
49	02.559 CLIP; GEN HARNESS 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0106-	●
208	02.559 CLIP; HARNESS,MAG VLV 4JG2 ENG(RJC),4JB1 ENG(RLF) 01.240 (A) ID=14 L=47	5-09700-319-0	02	1	9812-0105	●
208	02.559 CLIP; HARNESS,MAG VLV 4JH1 ENG(RJX) 01.240 (A) ID=14 L=47	5-09700-319-0	02	1	0106-	●
208	02.559 CLIP; HARNESS,MAG VLV 4JG2 ENG(RJC),4JB1 ENG(RLF) 01.240 (B) T=5.5	5-09709-047-0	01	1	9812-0105	●
208	02.559 CLIP; HARNESS,MAG VLV 4JH1 ENG(RJX) 01.240 (B) T=5.5	5-09709-047-0	01	1	0106-	●
220	02.559 CLIP; HARNESS TO CABLE VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.680 (A) ID=25.5 & 8.0	8-94363-538-0	01	1	9901-0105	●
220	02.559 CLIP; HARNESS TO CABLE EXC. CHARGE AIR COOLER<6PL> 03.680 (A) ID=25.5 & 8.0	8-94363-538-0	01	1	9901-0105		●	●	●	●	●
220	02.559 CLIP; HARNESS TO CABLE VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.680 (A) ID=25.5 & 8.0	8-94363-538-0	01	1	0106-	●
220	02.559 CLIP; HARNESS TO CABLE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 03.680 (A) ID=25.5 & 8.0	8-94363-538-0	01	1	9812-9812	●
220	02.559 CLIP; HARNESS TO CABLE 03.680 (A) ID=25.5 & 8.0	8-94363-538-0	01	1	9812-9812			●	●	●
220	02.559 CLIP; HARNESS TO CABLE VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 03.162 (B) L=140	5-09707-031-0	01	1	9812-9812	●
220	02.559 CLIP; HARNESS TO CABLE 03.162 (B) L=140	5-09707-031-0	01	1	9812-9812			●	●	●
220	02.559 CLIP; HARNESS TO CABLE CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 03.162 (B) L=140	5-09707-031-1	01	1	9901-0105	●
220	02.559 CLIP; HARNESS TO CABLE CHARGE AIR COOLER<6PL> 03.162 (B) L=140	5-09707-031-1	01	1	9901-0105		●	●	●	●	●
220	02.559 CLIP; HARNESS TO CABLE CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 03.162 (B) L=140	5-09707-031-1	01	1	0106-0112	●
220	02.559 CLIP; HARNESS TO CABLE 03.162 (B) L=140	5-09707-031-1	01	1	0106-0112		●	●	●	●	●	●
220	02.559 CLIP; HARNESS TO CABLE 4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> 03.162 (B) L=140	5-09707-031-1	01	1	0201-0207	●
220	02.559 CLIP; HARNESS TO CABLE 03.162 (B) L=140	5-09707-031-1	01	1	0201-0207		●	●			●
220	02.559 CLIP; HARNESS TO CABLE 4HE1 ENG(RLY) 03.162 (B) L=140	5-09707-031-1	01	1	0201-0207				●	●		●
220	02.559 CLIP; HARNESS TO CABLE 4HE1 ENG(RLY) M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> 03.162 (B) L=140	5-09707-031-1	01	1	0208-	●
220	02.559 CLIP; HARNESS TO CABLE 03.162 (B) L=140	5-09707-031-1	01	1	0208-		●	●	●	●	●	●
220	02.559 CLIP; HARNESS TO CABLE 4JH1 ENG(RJX) 03.162 (B) L=140	5-09707-031-1	02	1	0106-	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=14 L=47	5-09700-319-0	01	1	9812-0105	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=14 L=47	5-09700-319-0	01	1	0106-	●
464	02.525 CLIP; SEDIMENTER HARNESS 4JH1 ENG(RJX) 01.240 (C) ID=14 L=47	5-09700-319-0	01	1	0106-	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 02.587 (A) L=112	8-94232-618-0	01	1	9812-	●
464	02.525 CLIP; SEDIMENTER HARNESS 4JG2 ENG(RJC) 02.559 (B) ID=6.5	8-94257-639-0	01	1	9812-9901	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FUEL SEDIMENTER WITH HEATER<6HU> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9812-9901	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9812-9901	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9812-9901	●
464	02.525 CLIP; SEDIMENTER HARNESS 02.559 (B) ID=6.5	8-94257-639-0	01	1	9812-9901			●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 02.559 (B) ID=6.5	8-94257-639-0	01	1	9902-9903	●	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 02.559 (B) ID=6.5	8-94257-639-0	01	1	9904-9907	●	●	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR C OOLER<6PL> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9908-0105	●	●	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9908-0105	●	●	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9908-0105	●	●	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 (B) ID=6.5	8-94257-639-0	01	1	9908-0105	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR C OOLER<6PL> 02.559 (B) ID=6.5	8-94257-639-0	01	1	0106-	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL> 02.559 (B) ID=6.5	8-94257-639-0	01	1	0106-	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 02.559 (B) ID=6.5	8-94257-639-0	01	1	0106-	●
464	02.525 CLIP; SEDIMENTER HARNESS 4JH1 ENG(RJX) 02.559 (B) ID=6.5	8-94257-639-0	01	1	0106-	●
483	02.559 CLIP; ENG HARNESS 4JG2 ENG(RJC) 04.342 (B) L=197	1-83574-032-0	01	1	9812-9905	●
483	02.559 CLIP; ENG HARNESS 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) POWER STEERING<N40> EURO2 SPECIFICATION<7AF> 04.342 (B) L=197	1-83574-032-0	01	1	9906-0105	●
483	02.559 CLIP; ENG HARNESS 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER(K51) POWER STEERING<N40> CHARGE AIR COOLER<6PL> 04.342 (B) L=197	1-83574-032-0	01	1	9906-0105	●
483	02.559 CLIP; ENG HARNESS 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 04.342 (B) L=197	1-83574-032-0	01	1	0106-	●
483	02.559 CLIP; ENG HARNESS 4JG2 ENG(RJC) (C) ID=11 L=20	9-09525-035-0	01	1	9812-9905	●
483	02.559 CLIP; ENG HARNESS 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) POWER STEERING<N40> EURO2 SPECIFICATION<7AF> (C) ID=11 L=20	9-09525-035-0	01	1	9906-0105	●
483	02.559 CLIP; ENG HARNESS 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER(K51) POWER STEERING<N40> CHARGE AIR COOLER<6PL> (C) ID=11 L=20	9-09525-035-0	01	1	9906-0105	●
483	02.559 CLIP; ENG HARNESS 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 02.343 (C) ID=16 L=20	9-09525-535-0	01	1	0106-	●
483	02.559 CLIP; ENG HARNESS 4HE1 ENG(RLY) 03.162 (A) L=140	5-09707-031-1	02	1	9812-0004	●	●	●	●	●	●
483	02.559 CLIP; ENG HARNESS 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.162 (A) L=140	5-09707-031-1	01	1	0005-0105	●	●	●	●	●	●
483	02.559 CLIP; ENG HARNESS 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.162 (A) L=140	5-09707-031-1	01	1	0106-	●
483	02.559 CLIP; ENG HARNESS 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.162 (A) L=140	5-09707-031-1	02	1	0005-	●	●	●	●	●	●	●
551	02.559 CLIP; HARNESS,SIDE TURN UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (A) T=6.0	5-09709-024-0	02	1	0001-0105	●
551	02.559 CLIP; HARNESS,SIDE TURN UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) (A) T=6.0	5-09709-024-0	04	1	9901-9904	●	●	●	●	●	●
551	02.559 CLIP; HARNESS,SIDE TURN UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) (A) T=6.0	5-09709-024-0	04	1	9905-9912	●	●	●	●	●
551	02.559 CLIP; HARNESS,SIDE TURN UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) T=6.0	5-09709-024-0	04	1	0001-0105	●	●	●	●	●
551	02.559 CLIP; HARNESS,SIDE TURN EXC. FRAME STRAIGHT TYPE<7KJ> (A) T=6.0	5-09709-024-0	02	1	0106-	●
551	02.559 CLIP; HARNESS,SIDE TURN UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 03.162 (B) L=140	5-09707-031-1	01	1	0001-0011	●	●	●	●	●
551	02.559 CLIP; HARNESS,SIDE TURN UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) L=250	5-09707-030-1	01	1	0012-0105	●	●	●	●	●
551	02.559 CLIP; HARNESS,SIDE TURN FRAME STRAIGHT TYPE<7KJ> (C) L=250	5-09707-030-1	01	1	0106-	●
551	02.559 CLIP; HARNESS,SIDE TURN (C) L=250	5-09707-030-1	01	1	0106-		●	●	●	●

16 16 16 48 48 464 16 142 397 16 16 16 16 264

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
16	02.559 CLIP; HARNESS (A) ID=15-32	8-97174-404-0	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 16.065 (B) 1 SET=5 PIECE	1-09987-214-0	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 03.162 (C) L=140	5-09707-031-1	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (E) L=100	8-94327-067-1	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.343 (F) ID=16	8-94413-325-0	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 01.166 (G) ID=22 & 22	8-94464-837-0	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.694 (H) ID=6 & 10-13	8-97069-515-0	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (I) L=155	8-97173-307-0	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 04.930 (J) ID=10 & 16.5	8-94360-745-0	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (K) L=175	8-97110-167-0	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (L) L=135	1-09987-143-1	AR	1	9904-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (M) L=250	5-09707-030-1	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 04.342 (N) ID=14-12	8-94379-592-0	AR	1	9904-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (O) L=100	8-94442-388-0	AR	1	9904-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (P) L=60	8-94457-053-0	AR	1	9904-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (Q) ID=15-40	8-97223-033-0	AR	1	9904-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (R) L=36.5	8-97019-892-0	AR	1	9904-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (S) ID=25 L=55	9-09917-573-0	AR	1	0001-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.525 (T) T=4.5 & 9	5-09709-023-0	AR	1	0001-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (U) T=6.0	5-09709-024-0	AR	1	0001-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.589 (V) ID=27	5-09700-323-0	AR	1	0005-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (W) ID=12	5-09700-331-0	AR	1	0106-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (A) ID=33 L=63	1-09700-807-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (B) ID=14 L=47	5-09700-319-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (C) ID=30 W/STUD	8-97078-642-2	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.785 (D) ID=9.6	8-94147-870-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.785 (E) ID=11 L=28	9-09525-055-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (F) T=4.5 & 9	5-09709-023-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (G) ID=31 L=30	1-09700-969-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.197 (H) ID=32 L=75	1-09700-702-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (I) ID=9	8-97063-874-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (J) L=110	8-94149-419-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.162 (K) L=140	5-09707-031-1	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 00.446 (L) ID=12 B=14 ID=8.5	5-09700-350-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (M) ID=19 L=60	9-09525-893-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (N) ID=20	8-94169-650-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.589 (O) ID=27	5-09700-323-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (P) T=8.7	5-09709-048-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.115 (Q) T=9 & 10.5	8-97041-091-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (R) L=170.3	1-09987-182-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (S) ID=25 L=55	9-09917-573-0	AR	1	0001-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (T) T=6.0	5-09709-012-0	AR	1	0001-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (U) T=6.0	5-09709-024-0	AR	1	0001-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.008 (V) L=330	5-09709-118-0	AR	1	0106-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (W) T=9.2 & 9	5-09709-025-0	AR	1	0208-	●	●	●	●	●	●	●
142	02.559 CLIP; HARNESS,ENG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.483 (B)	8-97101-436-0	01	1	9812-	●	●	●	●	●	●	●
142	02.559 CLIP; HARNESS,ENG 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 03.162 (A) L=140	5-09707-031-1	01	1	9812-9903	●	●	●	●	●
142	02.559 CLIP; HARNESS,ENG 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 03.162 (A) L=140	5-09707-031-1	01	1	9904-0105	●
142	02.559 CLIP; HARNESS,ENG FLOOR REMOTE SHIFT<M11> 03.162 (A) L=140	5-09707-031-1	01	1	9904-0105		●	●	●	●	●
142	02.559 CLIP; HARNESS,ENG 4JH1 ENG(RJX),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 03.162 (A) L=140	5-09707-031-1	01	1	0106-0112	●
142	02.559 CLIP; HARNESS,ENG 03.162 (A) L=140	5-09707-031-1	01	1	0106-0112		●	●			●
142	02.559 CLIP; HARNESS,ENG 4HE1 ENG(RLY) 03.162 (A) L=140	5-09707-031-1	01	1	0106-0112				●	●		●
142	02.559 CLIP; HARNESS,ENG 03.162 (A) L=140	5-09707-031-1	01	1	0201-0207	●	●	●	●	●	●	●
142	02.559 CLIP; HARNESS,ENG M/T MXA5R(RMT),M/T MBP6R(RNW) 03.162 (A) L=140	5-09707-031-1	01	1	0208-	●	●	●	●	●	●	●
264	02.559 CLIP; HARNESS,HEADLAMP 02.343 ID=16	8-94413-325-0	03	1	9812-	●	●	●	●	●	●	●
397	02.559 CLIP; RR DOOR HARNESS AUTO DOOR LOCK<AU4> 10.154 ID=7	8-97014-713-0	02	1	9904-0105						●
397	02.559 CLIP; RR DOOR HARNESS AUTO DOOR LOCK<AU4> 10.154 ID=7	8-97014-713-0	02	1	0106-						●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=14 L=47	5-09700-319-0	01	1	9812-0105	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=14 L=47	5-09700-319-0	01	1	0106-	●
464	02.525 CLIP; SEDIMENTER HARNESS 4JH1 ENG(RJX) 01.240 (C) ID=14 L=47	5-09700-319-0	01	1	0106-	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 02.587 (A) L=112	8-94232-618-0	01	1	9812-	●
464	02.525 CLIP; SEDIMENTER HARNESS 4JG2 ENG(RJC) 02.559 (B) ID=6.5	8-94257-639-0	01	1	9812-9901	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FUEL SEDIMENTER WITH HEATER<6HU> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9812-9901	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9812-9901	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9812-9901	●
464	02.525 CLIP; SEDIMENTER HARNESS 02.559 (B) ID=6.5	8-94257-639-0	01	1	9812-9901			●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 02.559 (B) ID=6.5	8-94257-639-0	01	1	9902-9903	●	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 02.559 (B) ID=6.5	8-94257-639-0	01	1	9904-9907	●	●	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR C OOLER<6PL> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9908-0105	●	●	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9908-0105	●	●	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9908-0105	●	●	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 (B) ID=6.5	8-94257-639-0	01	1	9908-0105	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR C OOLER<6PL> 02.559 (B) ID=6.5	8-94257-639-0	01	1	0106-	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL> 02.559 (B) ID=6.5	8-94257-639-0	01	1	0106-	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 02.559 (B) ID=6.5	8-94257-639-0	01	1	0106-	●
464	02.525 CLIP; SEDIMENTER HARNESS 4JH1 ENG(RJX) 02.559 (B) ID=6.5	8-94257-639-0	01	1	0106-	●

48 48 48 48 53 53 53 317 317 183 412 504 514

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
48	02.559 CLIP; FRAME HARNESS (A) ID=33 L=63	1-09700-807-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (B) ID=14 L=47	5-09700-319-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (C) ID=30 W/STUD	8-97078-642-2	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.785 (D) ID=9.6	8-94147-870-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.785 (E) ID=11 L=28	9-09525-055-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (F) T=4.5 & 9	5-09709-023-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (G) ID=31 L=30	1-09700-969-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.197 (H) ID=32 L=75	1-09700-702-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (I) ID=9	8-97063-874-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (J) L=110	8-94149-419-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.162 (K) L=140	5-09707-031-1	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 00.446 (L) ID=12 B=14 ID=8.5	5-09700-350-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (M) ID=19 L=60	9-09525-893-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (N) ID=20	8-94169-650-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.589 (O) ID=27	5-09700-323-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (P) T=8.7	5-09709-048-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.115 (Q) T=9 & 10.5	8-97041-091-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (R) L=170.3	1-09987-182-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (S) ID=25 L=55	9-09917-573-0	AR	1	0001-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (T) T=6.0	5-09709-012-0	AR	1	0001-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (U) T=6.0	5-09709-024-0	AR	1	0001-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.008 (V) L=330	5-09709-118-0	AR	1	0106-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (W) T=9.2 & 9	5-09709-025-0	AR	1	0208-	●	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97040-410-2	01	1	0001-0203	●
53	02.483 BRACKET; HARNESS 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97062-178-3	01	1	9812-0105	●
53	02.483 BRACKET; HARNESS 4JH1 ENG(RJX),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97062-178-3	01	1	0106-	●
53	02.483 BRACKET; HARNESS 4JH1 ENG(RJX) (C)	8-97313-793-0	01	1	0106-0209	●
53	02.483 BRACKET; HARNESS 4JH1 ENG(RJX) (E)	8-97359-614-0	01	1	0210-	●
53	02.483 BRACKET; HARNESS 4HE1 ENG(RLY) M/T MZZ6F(RSR) (D)	8-97352-527-0	01	1	0208-	●	●	●	●	●	●	●
183	02.559 CLIP; CONNECTOR L=15	8-94315-436-1	02	1	9904-						●	●
317	02.559 CLAMP; CONNECTOR 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B)	8-94366-903-0	01	1	9812-	●
317	02.559 CLAMP; CONNECTOR 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> (A)	8-94466-377-0	01	1	9812-9901	●		●	●	●
317	02.559 CLAMP; CONNECTOR 4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-94466-377-0	01	1	9812-9901	●
317	02.559 CLAMP; CONNECTOR 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94466-377-0	01	1	9812-9901	●
317	02.559 CLAMP; CONNECTOR 4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-94466-377-0	01	1	9902-9903	●
317	02.559 CLAMP; CONNECTOR 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94466-377-0	01	1	9902-9903	●
317	02.559 CLAMP; CONNECTOR 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> (A)	8-94466-377-0	01	1	9902-9903	●
317	02.559 CLAMP; CONNECTOR FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-94466-377-0	01	1	9902-9903		●	●	●	●
317	02.559 CLAMP; CONNECTOR 4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-94466-377-0	01	1	9904-9905	●
317	02.559 CLAMP; CONNECTOR 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94466-377-0	01	1	9904-9905	●
317	02.559 CLAMP; CONNECTOR 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> (A)	8-94466-377-0	01	1	9904-9905	●
317	02.559 CLAMP; CONNECTOR FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-94466-377-0	01	1	9904-9905		●	●	●	●	●
317	02.559 CLAMP; CONNECTOR 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-94466-377-0	01	1	9906-0105	●
317	02.559 CLAMP; CONNECTOR 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94466-377-0	01	1	9906-0105	●
317	02.559 CLAMP; CONNECTOR 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> (A)	8-94466-377-0	01	1	9906-0105	●
317	02.559 CLAMP; CONNECTOR FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-94466-377-0	01	1	9906-0105		●	●	●	●	●
317	02.559 CLAMP; CONNECTOR 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94466-377-0	01	1	0106-	●
317	02.559 CLAMP; CONNECTOR 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> (A)	8-94466-377-0	01	1	0106-	●
317	02.559 CLAMP; CONNECTOR 4JH1 ENG(RJX) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-94466-377-0	01	1	0106-	●
412	02.559 BRACKET; HARNESS,TRANS 4HE1 ENG(RLY) M/T MZZ6F(RSR)	8-97324-451-1	01	1	0208-	●	●	●	●	●	●	●
504	02.559 PROTECTOR; HARNESS FRAME STRAIGHT TYPE<7KJ> 16.225 L=200 SERVICED BY L=3060	9-65731-223-1	01	1	9812-0105	●
504	02.559 PROTECTOR; HARNESS 16.225 L=200 SERVICED BY L=3060	9-65731-223-1	01	1	9812-0105		●	●	●	●	●
504	02.559 PROTECTOR; HARNESS FRAME STRAIGHT TYPE<7KJ> 04.785 L=200	8-97096-423-0	01	1	0106-	●
504	02.559 PROTECTOR; HARNESS 04.785 L=200	8-97096-423-0	01	1	0106-		●	●	●	●	●	●
514	02.559 FINISHER; HARNESS 16.550 L=120 SERVICED BY L=2040	1-71997-513-1	03	1	9812-	●	●	●	●	●	●	●
514	02.559 FINISHER; HARNESS 16.550 L=175 SERVICED BY L=2040	1-71997-513-1	01	1	9812-	●	●	●	●	●	●	●
514	02.559 FINISHER; HARNESS 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 16.550 L=250 SERVICED BY L=2040	1-71997-513-1	01	1	9812-0003	●	●	●	●	●	●
514	02.559 FINISHER; HARNESS 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=290 SERVICED BY L=500	1-79937-746-0	01	1	0004-0105	●	●	●	●	●	●
514	02.559 FINISHER; HARNESS 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=290 SERVICED BY L=500	1-79937-746-0	01	1	0106-	●
514	02.559 FINISHER; HARNESS L=290 SERVICED BY L=500	1-79937-746-0	01	1	0106-		●	●			●
514	02.559 FINISHER; HARNESS 4HE1 ENG(RLY) L=290 SERVICED BY L=500	1-79937-746-0	01	1	0106-				●	●		●

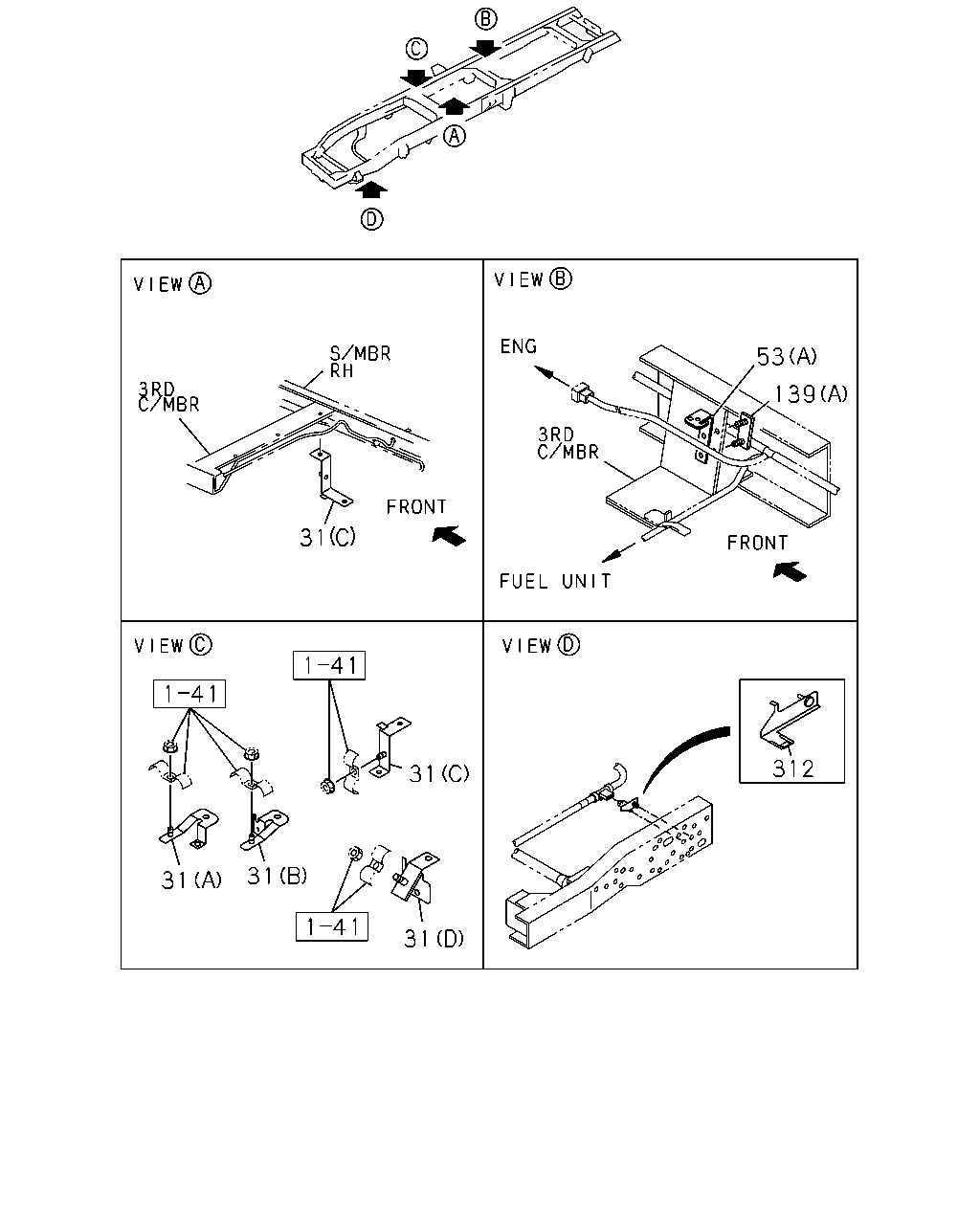

53 139 31 312 31 31 31 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) L=73	8-97077-845-0	02	1	9812-0105	●
31	02.559 BRACKET; HARNESS CLIP,PIPE (B) L=73	8-97077-845-0	02	1	9812-0105		●	●	●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) L=73	8-97077-845-0	02	1	0106-	●
31	02.559 BRACKET; HARNESS CLIP,PIPE (B) L=73	8-97077-845-0	02	1	0106-		●	●			●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HE1 ENG(RLY) (B) L=73	8-97077-845-0	02	1	0106-				●	●		●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HE1 ENG(RLY) (B) L=47	8-97042-635-0	01	1	9812-0105	●
31	02.559 BRACKET; HARNESS CLIP,PIPE (B) L=47	8-97042-635-0	01	1	9812-0105		●	●	●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HE1 ENG(RLY) (B) L=47	8-97042-635-0	01	1	0106-	●	●	●	●	●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97017-071-2	01	1	9812-0105	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97017-071-2	01	1	0106-	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=20	8-94165-263-1	01	1	9812-0105	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=20	8-94165-263-1	01	1	0106-	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JH1 ENG(RJX) (D)	8-97312-260-0	03	1	0106-	●
53	02.483 BRACKET; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97040-410-2	01	1	0001-0203	●
53	02.483 BRACKET; HARNESS 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97062-178-3	01	1	9812-0105	●
53	02.483 BRACKET; HARNESS 4JH1 ENG(RJX),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97062-178-3	01	1	0106-	●
53	02.483 BRACKET; HARNESS 4JH1 ENG(RJX) (C)	8-97313-793-0	01	1	0106-0209	●
53	02.483 BRACKET; HARNESS 4JH1 ENG(RJX) (E)	8-97359-614-0	01	1	0210-	●
53	02.483 BRACKET; HARNESS 4HE1 ENG(RLY) M/T MZZ6F(RSR) (D)	8-97352-527-0	01	1	0208-	●	●	●	●	●	●	●
139	02.559 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (B) M8X16 FLANGE	0-28080-816-0	02	1	0001-0203	●
139	02.559 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 04.665 (C) M8X10 W/LK WASHER	8-97025-916-0	02	1	0204-	●
139	02.559 BOLT; BRKT 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97028-451-3	01	1	9812-0105	●
139	02.559 BOLT; BRKT 4JH1 ENG(RJX),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97028-451-3	01	1	0106-	●
139	02.559 BOLT; BRKT 01.062 (B) M8X16 FLANGE	0-28080-816-0	03	1	9812-	●	●	●	●	●	●	●
312	02.559 BRACKET; CLIP HARNESS 4HE1 ENG(RLY)	8-97017-072-2	01	1	9812-0105	●
312	02.559 BRACKET; CLIP HARNESS	8-97017-072-2	01	1	9812-0105		●	●	●	●	●
312	02.559 BRACKET; CLIP HARNESS 4HE1 ENG(RLY)	8-97017-072-2	01	1	0106-	●			●	●		●
312	02.559 BRACKET; CLIP HARNESS	8-97017-072-2	01	1	0106-		●	●			●

16 48 142 220 483 551 593 16 488 551 48 483 16 205 48 488 14 16 16 464 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
14	02.559 CLIP; BAND,HARNESS 03.430 L=200	8-94464-835-0	01	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (A) ID=15-32	8-97174-404-0	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 16.065 (B) 1 SET=5 PIECE	1-09987-214-0	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 03.162 (C) L=140	5-09707-031-1	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (E) L=100	8-94327-067-1	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.343 (F) ID=16	8-94413-325-0	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 01.166 (G) ID=22 & 22	8-94464-837-0	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.694 (H) ID=6 & 10-13	8-97069-515-0	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (I) L=155	8-97173-307-0	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 04.930 (J) ID=10 & 16.5	8-94360-745-0	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (K) L=175	8-97110-167-0	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (L) L=135	1-09987-143-1	AR	1	9904-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (M) L=250	5-09707-030-1	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 04.342 (N) ID=14-12	8-94379-592-0	AR	1	9904-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (O) L=100	8-94442-388-0	AR	1	9904-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (P) L=60	8-94457-053-0	AR	1	9904-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (Q) ID=15-40	8-97223-033-0	AR	1	9904-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (R) L=36.5	8-97019-892-0	AR	1	9904-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (S) ID=25 L=55	9-09917-573-0	AR	1	0001-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.525 (T) T=4.5 & 9	5-09709-023-0	AR	1	0001-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (U) T=6.0	5-09709-024-0	AR	1	0001-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.589 (V) ID=27	5-09700-323-0	AR	1	0005-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (W) ID=12	5-09700-331-0	AR	1	0106-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (A) ID=33 L=63	1-09700-807-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (B) ID=14 L=47	5-09700-319-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (C) ID=30 W/STUD	8-97078-642-2	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.785 (D) ID=9.6	8-94147-870-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.785 (E) ID=11 L=28	9-09525-055-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (F) T=4.5 & 9	5-09709-023-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (G) ID=31 L=30	1-09700-969-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.197 (H) ID=32 L=75	1-09700-702-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (I) ID=9	8-97063-874-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (J) L=110	8-94149-419-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.162 (K) L=140	5-09707-031-1	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 00.446 (L) ID=12 B=14 ID=8.5	5-09700-350-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (M) ID=19 L=60	9-09525-893-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (N) ID=20	8-94169-650-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.589 (O) ID=27	5-09700-323-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (P) T=8.7	5-09709-048-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.115 (Q) T=9 & 10.5	8-97041-091-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (R) L=170.3	1-09987-182-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (S) ID=25 L=55	9-09917-573-0	AR	1	0001-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (T) T=6.0	5-09709-012-0	AR	1	0001-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (U) T=6.0	5-09709-024-0	AR	1	0001-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.008 (V) L=330	5-09709-118-0	AR	1	0106-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (W) T=9.2 & 9	5-09709-025-0	AR	1	0208-	●	●	●	●	●	●	●
142	02.559 CLIP; HARNESS,ENG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.483 (B)	8-97101-436-0	01	1	9812-	●	●	●	●	●	●	●
142	02.559 CLIP; HARNESS,ENG 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 03.162 (A) L=140	5-09707-031-1	01	1	9812-9903	●	●	●	●	●
142	02.559 CLIP; HARNESS,ENG 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 03.162 (A) L=140	5-09707-031-1	01	1	9904-0105	●
142	02.559 CLIP; HARNESS,ENG FLOOR REMOTE SHIFT<M11> 03.162 (A) L=140	5-09707-031-1	01	1	9904-0105		●	●	●	●	●
142	02.559 CLIP; HARNESS,ENG 4JH1 ENG(RJX),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 03.162 (A) L=140	5-09707-031-1	01	1	0106-0112	●
142	02.559 CLIP; HARNESS,ENG 03.162 (A) L=140	5-09707-031-1	01	1	0106-0112		●	●			●
142	02.559 CLIP; HARNESS,ENG 4HE1 ENG(RLY) 03.162 (A) L=140	5-09707-031-1	01	1	0106-0112				●	●		●
142	02.559 CLIP; HARNESS,ENG 03.162 (A) L=140	5-09707-031-1	01	1	0201-0207	●	●	●	●	●	●	●
142	02.559 CLIP; HARNESS,ENG M/T MXA5R(RMT),M/T MBP6R(RNW) 03.162 (A) L=140	5-09707-031-1	01	1	0208-	●	●	●	●	●	●	●
205	02.559 CLIP; BACK LAMP HARNESS 4HE1 ENG(RLY) M/T MZZ6F(RSR) L=135	1-09987-143-1	01	1	0208-	●	●	●	●	●	●	●
220	02.559 CLIP; HARNESS TO CABLE VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.680 (A) ID=25.5 & 8.0	8-94363-538-0	01	1	9901-0105	●
220	02.559 CLIP; HARNESS TO CABLE EXC. CHARGE AIR COOLER<6PL> 03.680 (A) ID=25.5 & 8.0	8-94363-538-0	01	1	9901-0105		●	●	●	●	●
220	02.559 CLIP; HARNESS TO CABLE VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.680 (A) ID=25.5 & 8.0	8-94363-538-0	01	1	0106-	●
220	02.559 CLIP; HARNESS TO CABLE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 03.680 (A) ID=25.5 & 8.0	8-94363-538-0	01	1	9812-9812	●
220	02.559 CLIP; HARNESS TO CABLE 03.680 (A) ID=25.5 & 8.0	8-94363-538-0	01	1	9812-9812			●	●	●
220	02.559 CLIP; HARNESS TO CABLE VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 03.162 (B) L=140	5-09707-031-0	01	1	9812-9812	●
220	02.559 CLIP; HARNESS TO CABLE 03.162 (B) L=140	5-09707-031-0	01	1	9812-9812			●	●	●
220	02.559 CLIP; HARNESS TO CABLE CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 03.162 (B) L=140	5-09707-031-1	01	1	9901-0105	●
220	02.559 CLIP; HARNESS TO CABLE CHARGE AIR COOLER<6PL> 03.162 (B) L=140	5-09707-031-1	01	1	9901-0105		●	●	●	●	●
220	02.559 CLIP; HARNESS TO CABLE CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 03.162 (B) L=140	5-09707-031-1	01	1	0106-0112	●
220	02.559 CLIP; HARNESS TO CABLE 03.162 (B) L=140	5-09707-031-1	01	1	0106-0112		●	●	●	●	●	●
220	02.559 CLIP; HARNESS TO CABLE 4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> 03.162 (B) L=140	5-09707-031-1	01	1	0201-0207	●
220	02.559 CLIP; HARNESS TO CABLE 03.162 (B) L=140	5-09707-031-1	01	1	0201-0207		●	●			●
220	02.559 CLIP; HARNESS TO CABLE 4HE1 ENG(RLY) 03.162 (B) L=140	5-09707-031-1	01	1	0201-0207				●	●		●
220	02.559 CLIP; HARNESS TO CABLE 4HE1 ENG(RLY) M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> 03.162 (B) L=140	5-09707-031-1	01	1	0208-	●
220	02.559 CLIP; HARNESS TO CABLE 03.162 (B) L=140	5-09707-031-1	01	1	0208-		●	●	●	●	●	●
220	02.559 CLIP; HARNESS TO CABLE 4JH1 ENG(RJX) 03.162 (B) L=140	5-09707-031-1	02	1	0106-	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=14 L=47	5-09700-319-0	01	1	9812-0105	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=14 L=47	5-09700-319-0	01	1	0106-	●
464	02.525 CLIP; SEDIMENTER HARNESS 4JH1 ENG(RJX) 01.240 (C) ID=14 L=47	5-09700-319-0	01	1	0106-	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 02.587 (A) L=112	8-94232-618-0	01	1	9812-	●
464	02.525 CLIP; SEDIMENTER HARNESS 4JG2 ENG(RJC) 02.559 (B) ID=6.5	8-94257-639-0	01	1	9812-9901	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FUEL SEDIMENTER WITH HEATER<6HU> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9812-9901	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9812-9901	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9812-9901	●
464	02.525 CLIP; SEDIMENTER HARNESS 02.559 (B) ID=6.5	8-94257-639-0	01	1	9812-9901			●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 02.559 (B) ID=6.5	8-94257-639-0	01	1	9902-9903	●	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 02.559 (B) ID=6.5	8-94257-639-0	01	1	9904-9907	●	●	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR C OOLER<6PL> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9908-0105	●	●	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9908-0105	●	●	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9908-0105	●	●	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 (B) ID=6.5	8-94257-639-0	01	1	9908-0105	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR C OOLER<6PL> 02.559 (B) ID=6.5	8-94257-639-0	01	1	0106-	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL> 02.559 (B) ID=6.5	8-94257-639-0	01	1	0106-	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 02.559 (B) ID=6.5	8-94257-639-0	01	1	0106-	●
464	02.525 CLIP; SEDIMENTER HARNESS 4JH1 ENG(RJX) 02.559 (B) ID=6.5	8-94257-639-0	01	1	0106-	●
483	02.559 CLIP; ENG HARNESS 4JG2 ENG(RJC) 04.342 (B) L=197	1-83574-032-0	01	1	9812-9905	●
483	02.559 CLIP; ENG HARNESS 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) POWER STEERING<N40> EURO2 SPECIFICATION<7AF> 04.342 (B) L=197	1-83574-032-0	01	1	9906-0105	●
483	02.559 CLIP; ENG HARNESS 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER(K51) POWER STEERING<N40> CHARGE AIR COOLER<6PL> 04.342 (B) L=197	1-83574-032-0	01	1	9906-0105	●
483	02.559 CLIP; ENG HARNESS 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 04.342 (B) L=197	1-83574-032-0	01	1	0106-	●
483	02.559 CLIP; ENG HARNESS 4JG2 ENG(RJC) (C) ID=11 L=20	9-09525-035-0	01	1	9812-9905	●
483	02.559 CLIP; ENG HARNESS 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) POWER STEERING<N40> EURO2 SPECIFICATION<7AF> (C) ID=11 L=20	9-09525-035-0	01	1	9906-0105	●
483	02.559 CLIP; ENG HARNESS 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER(K51) POWER STEERING<N40> CHARGE AIR COOLER<6PL> (C) ID=11 L=20	9-09525-035-0	01	1	9906-0105	●
483	02.559 CLIP; ENG HARNESS 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 02.343 (C) ID=16 L=20	9-09525-535-0	01	1	0106-	●
483	02.559 CLIP; ENG HARNESS 4HE1 ENG(RLY) 03.162 (A) L=140	5-09707-031-1	02	1	9812-0004	●	●	●	●	●	●
483	02.559 CLIP; ENG HARNESS 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.162 (A) L=140	5-09707-031-1	01	1	0005-0105	●	●	●	●	●	●
483	02.559 CLIP; ENG HARNESS 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.162 (A) L=140	5-09707-031-1	01	1	0106-	●
483	02.559 CLIP; ENG HARNESS 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.162 (A) L=140	5-09707-031-1	02	1	0005-	●	●	●	●	●	●	●
488	02.559 CLIP; CABLE,TRAILER (A) L=250	5-09707-030-1	01	1	9812-0105	●	●	●	●	●	●
488	02.559 CLIP; CABLE,TRAILER UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) (A) L=250	5-09707-030-1	01	1	9812-0105	●	●	●	●	●	●
488	02.559 CLIP; CABLE,TRAILER (A) L=250	5-09707-030-1	01	1	0106-	●	●	●	●	●	●	●
488	02.559 CLIP; CABLE,TRAILER (A) L=250	5-09707-030-1	01	1	0106-	●	●	●	●	●	●	●
488	02.559 CLIP; CABLE,TRAILER UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) (B) L=170.3	1-09987-182-0	02	1	9812-0105	●	●	●	●	●	●
488	02.559 CLIP; CABLE,TRAILER (B) L=170.3	1-09987-182-0	02	1	0106-	●	●	●	●	●	●	●
551	02.559 CLIP; HARNESS,SIDE TURN UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (A) T=6.0	5-09709-024-0	02	1	0001-0105	●
551	02.559 CLIP; HARNESS,SIDE TURN UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) (A) T=6.0	5-09709-024-0	04	1	9901-9904	●	●	●	●	●	●
551	02.559 CLIP; HARNESS,SIDE TURN UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) (A) T=6.0	5-09709-024-0	04	1	9905-9912	●	●	●	●	●
551	02.559 CLIP; HARNESS,SIDE TURN UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) T=6.0	5-09709-024-0	04	1	0001-0105	●	●	●	●	●
551	02.559 CLIP; HARNESS,SIDE TURN EXC. FRAME STRAIGHT TYPE<7KJ> (A) T=6.0	5-09709-024-0	02	1	0106-	●
551	02.559 CLIP; HARNESS,SIDE TURN UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 03.162 (B) L=140	5-09707-031-1	01	1	0001-0011	●	●	●	●	●
551	02.559 CLIP; HARNESS,SIDE TURN UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) L=250	5-09707-030-1	01	1	0012-0105	●	●	●	●	●
551	02.559 CLIP; HARNESS,SIDE TURN FRAME STRAIGHT TYPE<7KJ> (C) L=250	5-09707-030-1	01	1	0106-	●
551	02.559 CLIP; HARNESS,SIDE TURN (C) L=250	5-09707-030-1	01	1	0106-		●	●	●	●
593	02.559 CLIP 4HE1 ENG(RLY) M/T MZZ6F(RSR) 03.162 L=140	5-09707-031-1	01	1	0208-	●	●	●	●	●	●	●

139 239 386 150 38 150 139 377 481 516 38 239 516 19 38 38 219 294 515 219 294 524 219 294 469 519 525 519 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
19	02.559 BOLT; PROTECTOR 4JG2 ENG(RJC) 03.162 M10X35 FLANGE	0-28681-035-0	01	1	9812-9903	●
19	02.559 BOLT; PROTECTOR 4HE1 ENG(RLY) M/T MXA5R(RMT) 03.162 M10X35 FLANGE	0-28681-035-0	01	1	9812-9903	●
19	02.559 BOLT; PROTECTOR M/T MXA5R(RMT) 03.162 M10X35 FLANGE	0-28681-035-0	01	1	9812-9903			●
19	02.559 BOLT; PROTECTOR 03.162 M10X35 FLANGE	0-28681-035-0	01	1	9812-9903		●				●
19	02.559 BOLT; PROTECTOR 03.162 M10X35 FLANGE	0-28681-035-0	01	1	9904-	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 04.686 (D) M8X30 FLANGE	0-28680-830-0	01	1	9901-0105	●
38	02.559 BOLT; CLIP,HARNESS 04.686 (D) M8X30 FLANGE	0-28680-830-0	01	1	9901-0105		●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 04.686 (D) M8X30 FLANGE	0-28680-830-0	01	1	0106-	●
38	02.559 BOLT; CLIP,HARNESS 04.686 (D) M8X30 FLANGE	0-28680-830-0	01	1	0106-		●	●			●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) 04.686 (D) M8X30 FLANGE	0-28680-830-0	01	1	0106-				●	●		●
38	02.559 BOLT; CLIP,HARNESS 4JG2 ENG(RJC),4JB1 ENG(RLF) 02.334 (C) M6X25 FLANGE	0-28680-625-0	01	1	9812-0105	●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) M/T MXA5R(RMT) EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE	0-28680-625-0	01	1	9812-0105	●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE	0-28680-625-0	01	1	9812-0105	●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE	0-28680-625-0	01	1	9812-0105	●
38	02.559 BOLT; CLIP,HARNESS 4JH1 ENG(RJX),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE	0-28680-625-0	01	1	0106-	●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE	0-28680-625-0	01	1	0106-	●
38	02.559 BOLT; CLIP,HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE	0-28680-625-0	01	1	0106-	●
38	02.559 BOLT; CLIP,HARNESS 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.162 (B) M10X35 FLANGE	0-28681-035-0	01	1	9812-0105	●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) M/T MXA5R(RMT) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10X35 FLANGE	0-28681-035-0	01	1	9812-0105	●
38	02.559 BOLT; CLIP,HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10X35 FLANGE	0-28681-035-0	01	1	0106-	●
38	02.559 BOLT; CLIP,HARNESS (A) M8X25 FLANGE	0-28680-825-0	01	1	9812-9812	●		●	●	●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) (A) M8X25 FLANGE	0-28680-825-0	01	1	9812-9812	●		●	●	●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE	0-28680-825-0	01	1	9812-9812	●		●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> (A) M8X25 FLANGE	0-28680-825-0	01	1	9812-9812	●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE	0-28680-825-0	01	1	9812-9812	●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE	0-28680-825-0	01	1	9812-9812	●
38	02.559 BOLT; CLIP,HARNESS (A) M8X25 FLANGE	0-28680-825-0	01	1	9812-9812			●	●	●
38	02.559 BOLT; CLIP,HARNESS (A) M8X25 FLANGE	0-28680-825-0	01	1	9812-9812			●	●	●
38	02.559 BOLT; CLIP,HARNESS (A) M8X25 FLANGE	0-28680-825-0	01	1	9901-9901	●		●	●	●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) (A) M8X25 FLANGE	0-28680-825-0	01	1	9901-9901	●
38	02.559 BOLT; CLIP,HARNESS 4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> (A) M8X25 FLANGE	0-28680-825-0	01	1	9901-9901	●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE	0-28680-825-0	01	1	9901-9901	●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE	0-28680-825-0	01	1	9901-9901	●
38	02.559 BOLT; CLIP,HARNESS CHARGE AIR COOLER<6PL> EXC. UNITED KINGDOM EQUIPMENT(6AA) (A) M8X25 FLANGE	0-28680-825-0	01	1	9901-9901			●	●	●
38	02.559 BOLT; CLIP,HARNESS FUEL SEDIMENTER WITH HEATER<6HU> (A) M8X25 FLANGE	0-28680-825-0	01	1	9901-9901			●	●	●
38	02.559 BOLT; CLIP,HARNESS (A) M8X25 FLANGE	0-28680-825-0	01	1	9901-9901			●	●	●
38	02.559 BOLT; CLIP,HARNESS (A) M8X25 FLANGE	0-28680-825-0	01	1	9902-9903	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) (A) M8X25 FLANGE	0-28680-825-0	01	1	9902-9903	●
38	02.559 BOLT; CLIP,HARNESS 4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> (A) M8X25 FLANGE	0-28680-825-0	01	1	9902-9903	●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE	0-28680-825-0	01	1	9902-9903	●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE	0-28680-825-0	01	1	9902-9903	●
38	02.559 BOLT; CLIP,HARNESS CHARGE AIR COOLER<6PL> EXC. UNITED KINGDOM EQUIPMENT(6AA) (A) M8X25 FLANGE	0-28680-825-0	01	1	9902-9903		●	●	●	●
38	02.559 BOLT; CLIP,HARNESS FUEL SEDIMENTER WITH HEATER<6HU> (A) M8X25 FLANGE	0-28680-825-0	01	1	9902-9903		●	●	●	●
38	02.559 BOLT; CLIP,HARNESS (A) M8X25 FLANGE	0-28680-825-0	01	1	9902-9903		●	●	●	●
38	02.559 BOLT; CLIP,HARNESS (A) M8X25 FLANGE	0-28680-825-0	01	1	9904-9904	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) (A) M8X25 FLANGE	0-28680-825-0	01	1	9904-9904	●
38	02.559 BOLT; CLIP,HARNESS 4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> (A) M8X25 FLANGE	0-28680-825-0	01	1	9904-9904	●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE	0-28680-825-0	01	1	9904-9904	●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE	0-28680-825-0	01	1	9904-9904	●
38	02.559 BOLT; CLIP,HARNESS FUEL SEDIMENTER WITH HEATER<6HU> (A) M8X25 FLANGE	0-28680-825-0	01	1	9904-9904		●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS (A) M8X25 FLANGE	0-28680-825-0	01	1	9904-9904		●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS CHARGE AIR COOLER<6PL> EXC. UNITED KINGDOM EQUIPMENT(6AA) (A) M8X25 FLANGE	0-28680-825-0	01	1	9904-9904		●	●	●	●
38	02.559 BOLT; CLIP,HARNESS CHARGE AIR COOLER<6PL> EXC. IRISH EQUIPMENT(6CU) (A) M8X25 FLANGE	0-28680-825-0	01	1	9904-9904						●
38	02.559 BOLT; CLIP,HARNESS (A) M8X25 FLANGE	0-28680-825-0	01	1	9904-9905	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) (A) M8X25 FLANGE	0-28680-825-0	01	1	9904-9905	●
38	02.559 BOLT; CLIP,HARNESS 4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> (A) M8X25 FLANGE	0-28680-825-0	01	1	9904-9905	●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE	0-28680-825-0	01	1	9904-9905	●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE	0-28680-825-0	01	1	9904-9905	●
38	02.559 BOLT; CLIP,HARNESS FUEL SEDIMENTER WITH HEATER<6HU> (A) M8X25 FLANGE	0-28680-825-0	01	1	9904-9905		●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS (A) M8X25 FLANGE	0-28680-825-0	01	1	9904-9905		●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS CHARGE AIR COOLER<6PL> EXC. UNITED KINGDOM EQUIPMENT(6AA) (A) M8X25 FLANGE	0-28680-825-0	01	1	9904-9905		●	●	●	●
38	02.559 BOLT; CLIP,HARNESS CHARGE AIR COOLER<6PL> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) (A) M8X25 FLANGE	0-28680-825-0	01	1	9904-9905						●
38	02.559 BOLT; CLIP,HARNESS (A) M8X25 FLANGE	0-28680-825-0	01	1	9906-0105	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) (A) M8X25 FLANGE	0-28680-825-0	01	1	9906-0105	●
38	02.559 BOLT; CLIP,HARNESS 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A) M8X25 FLANGE	0-28680-825-0	01	1	9906-0105	●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE	0-28680-825-0	01	1	9906-0105	●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE	0-28680-825-0	01	1	9906-0105	●
38	02.559 BOLT; CLIP,HARNESS FUEL SEDIMENTER WITH HEATER<6HU> (A) M8X25 FLANGE	0-28680-825-0	01	1	9906-0105		●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS (A) M8X25 FLANGE	0-28680-825-0	01	1	9906-0105		●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS CHARGE AIR COOLER<6PL> EXC. UNITED KINGDOM EQUIPMENT(6AA) (A) M8X25 FLANGE	0-28680-825-0	01	1	9906-0105		●	●	●	●
38	02.559 BOLT; CLIP,HARNESS CHARGE AIR COOLER<6PL> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) (A) M8X25 FLANGE	0-28680-825-0	01	1	9906-0105						●
38	02.559 BOLT; CLIP,HARNESS (A) M8X25 FLANGE	0-28680-825-0	01	1	0106-	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE	0-28680-825-0	01	1	0106-	●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE	0-28680-825-0	01	1	0106-	●
38	02.559 BOLT; CLIP,HARNESS 4JH1 ENG(RJX) FUEL SEDIMENTER WITH HEATER<6HU> (A) M8X25 FLANGE	0-28680-825-0	01	1	0106-	●
38	02.559 BOLT; CLIP,HARNESS (A) M8X25 FLANGE	0-28680-825-0	01	1	0106-		●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS (A) M8X25 FLANGE	0-28680-825-0	01	1	0106-							●
64	02.559 SCREW; CLIP 16.742 M4X16 TAPPING	1-09981-477-0	01	1	9904-0105						●
64	02.559 SCREW; CLIP 16.742 M4X16 TAPPING	1-09981-477-0	01	1	0106-						●	●
139	02.559 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (B) M8X16 FLANGE	0-28080-816-0	02	1	0001-0203	●
139	02.559 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 04.665 (C) M8X10 W/LK WASHER	8-97025-916-0	02	1	0204-	●
139	02.559 BOLT; BRKT 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97028-451-3	01	1	9812-0105	●
139	02.559 BOLT; BRKT 4JH1 ENG(RJX),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97028-451-3	01	1	0106-	●
139	02.559 BOLT; BRKT 01.062 (B) M8X16 FLANGE	0-28080-816-0	03	1	9812-	●	●	●	●	●	●	●
150	02.343 BOLT; CLIP 4JG2 ENG(RJC) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	9812-9905	●
150	02.343 BOLT; CLIP 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) POWER STEERING<N40> EURO2 SPECIFICATION<7AF> 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	9906-0105	●
150	02.343 BOLT; CLIP 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER(K51) POWER STEERING<N40> CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	9906-0105	●
150	02.343 BOLT; CLIP 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0106-	●
150	02.343 BOLT; CLIP 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 02.500 (B) M6X10 FLANGE	0-28080-610-0	01	1	0106-	●
219	02.559 NUT 04.594 (B) M6 FLANGE	0-91150-106-0	AR	1	9812-	●	●	●	●	●	●	●
219	02.559 NUT 07.633 (C) M8 FLANGE	0-91150-108-0	AR	1	9812-	●	●	●	●	●	●	●
219	02.559 NUT 04.785 (A) M10 FLANGE	0-91150-110-0	AR	1	9812-	●	●	●	●	●	●	●
219	02.559 NUT 07.829 (B) M6 FLANGE	5-09440-004-0	AR	1	9812-	●	●	●	●	●	●	●
239	02.559 BOLT; GRAND 02.343 (A) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	9812-	●	●	●	●	●	●	●
239	02.559 BOLT; GRAND UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> 02.343 (B) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	9812-9812	●		●	●	●
239	02.559 BOLT; GRAND CERAMIC HEATER<6YX> 02.343 (B) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	9901-	●	●	●	●	●	●	●
294	02.559 NUT 4HE1 ENG(RLY) 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	9812-0105	●
294	02.559 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	9812-0105		●	●	●	●	●
294	02.559 NUT 4HE1 ENG(RLY) 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0106-	●			●	●		●
294	02.559 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0106-		●	●			●
294	02.559 NUT 4HE1 ENG(RLY) M/T MBP6P(RNC),M/T MBP6Q(RNM) 04.785 (B) M10 FLANGE	0-91150-110-0	01	1	9812-0105	●		●	●	●
294	02.559 NUT 4HE1 ENG(RLY) M/T MBP6R(RNW) 04.785 (B) M10 FLANGE	0-91150-110-0	01	1	0106-0207	●	●	●	●	●	●	●
294	02.559 NUT 4HE1 ENG(RLY) M/T MBP6R(RNW),M/T MZZ6F(RSR) 04.785 (B) M10 FLANGE	0-91150-110-0	01	1	0208-	●	●	●	●	●	●	●
294	02.559 NUT 4HE1 ENG(RLY) M/T MZZ6F(RSR) 07.633 (C) M8 FLANGE	0-91150-108-0	02	1	0208-	●	●	●	●	●	●	●
377	02.559 BOLT; CAB EARTH M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9812-	●	●	●	●	●	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	9812-	●	●	●	●	●	●	●
469	02.559 NUT; PROTECTOR 4JG2 ENG(RJC) 04.785 M10 FLANGE	0-91150-110-0	01	1	9812-9903	●
469	02.559 NUT; PROTECTOR 4HE1 ENG(RLY) M/T MXA5R(RMT) 04.785 M10 FLANGE	0-91150-110-0	01	1	9812-9903	●
469	02.559 NUT; PROTECTOR M/T MXA5R(RMT) 04.785 M10 FLANGE	0-91150-110-0	01	1	9812-9903			●
469	02.559 NUT; PROTECTOR 04.785 M10 FLANGE	0-91150-110-0	01	1	9812-9903		●				●
469	02.559 NUT; PROTECTOR 4JG2 ENG(RJC),4JB1 ENG(RLF),4HE1 ENG(RLY) 04.785 M10 FLANGE	0-91150-110-0	01	1	9904-0105	●
469	02.559 NUT; PROTECTOR 04.785 M10 FLANGE	0-91150-110-0	01	1	9904-0105		●	●	●	●	●
469	02.559 NUT; PROTECTOR 04.785 M10 FLANGE	0-91150-110-0	01	1	0106-	●	●	●	●	●	●
481	13.090 BOLT; CABLE HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0101-0203	●
515	02.559 NUT; BRKT 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE	0-91150-106-0	02	1	9812-0105	●
515	02.559 NUT; BRKT 4JH1 ENG(RJX),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE	0-91150-106-0	02	1	0106-	●
515	02.559 NUT; BRKT 4HE1 ENG(RLY) M/T MZZ6F(RSR) 07.633 M8 FLANGE	0-91150-108-0	01	1	0208-	●	●	●	●	●	●	●
516	02.559 BOLT; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0001-0203	●
516	02.559 BOLT; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) M8X25 FLANGE	0-28680-825-0	01	1	0204-	●
519	02.559 NUT; EARTH CABLE 4HE1 ENG(RLY) VOLTAGE 24V<7AE> 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	9812-9905	●
519	02.559 NUT; EARTH CABLE 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	9812-9905		●	●	●	●	●
519	02.559 NUT; EARTH CABLE 4HE1 ENG(RLY) 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	9906-0105	●
519	02.559 NUT; EARTH CABLE 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	9906-0105		●	●	●	●	●
519	02.559 NUT; EARTH CABLE 4HE1 ENG(RLY) 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	0106-	●			●	●		●
519	02.559 NUT; EARTH CABLE 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	0106-		●	●			●
519	02.559 NUT; EARTH CABLE 4JG2 ENG(RJC) 05.586 (B) M12 FLANGE	0-91150-112-0	01	1	9812-9905	●
519	02.559 NUT; EARTH CABLE 4HE1 ENG(RLY) EXC. VOLTAGE 24V<7AE> 05.586 (B) M12 FLANGE	0-91150-112-0	01	1	9812-9905	●
519	02.559 NUT; EARTH CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) 05.586 (B) M12 FLANGE	0-91150-112-0	01	1	9906-0105	●
519	02.559 NUT; EARTH CABLE 4JH1 ENG(RJX) 05.586 (B) M12 FLANGE	0-91150-112-0	01	1	0106-	●
524	02.559 NUT; HARNESS 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 01.540 M8 FLANGE	0-91150-208-0	01	1	0106-	●
525	02.559 NUT; CLIP 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	01	1	9812-	●	●	●	●	●	●	●

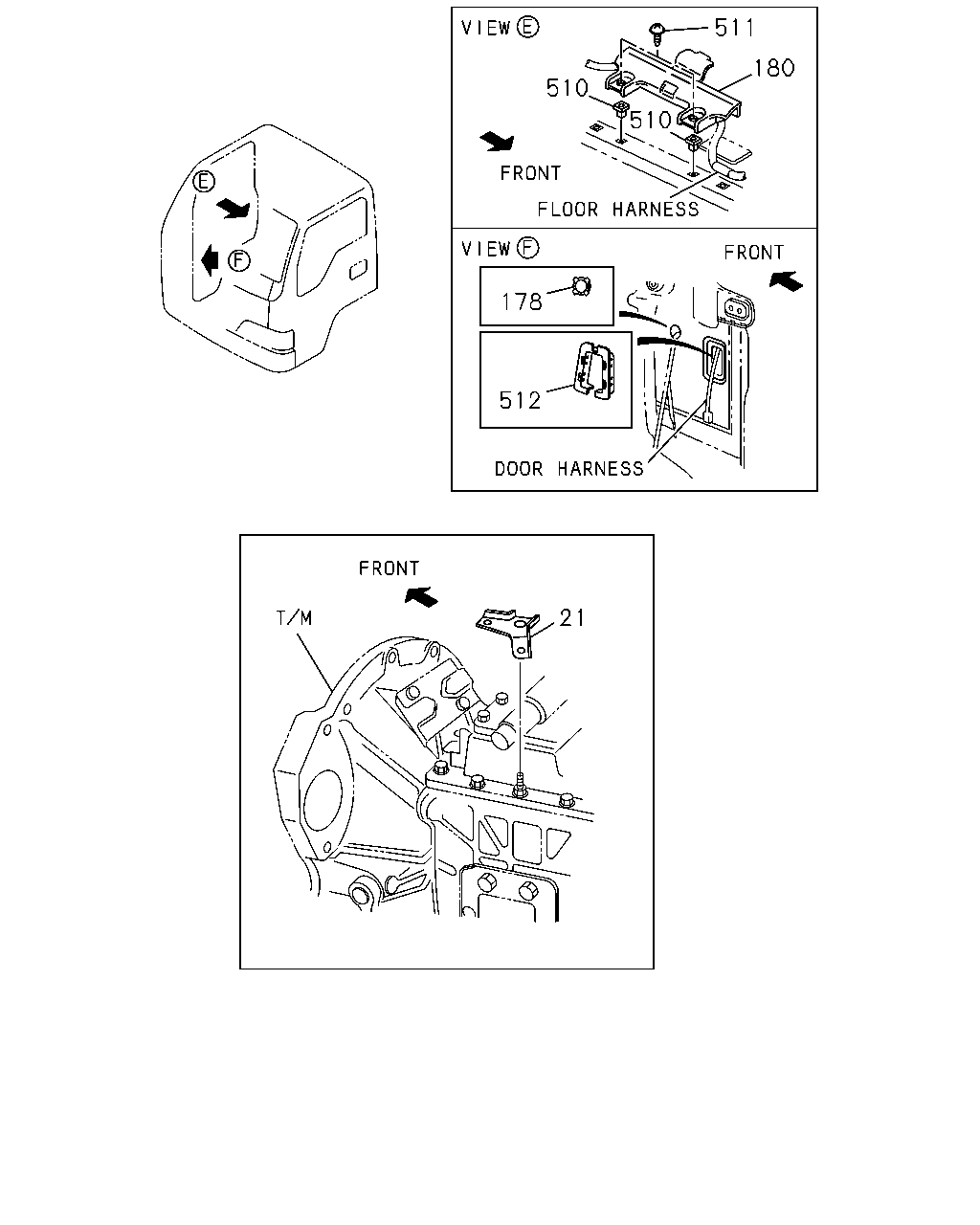

511 180 510 510 178 512 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
21	02.483 BRACKET; ENG HARNESS 4HE1 ENG(RLY) M/T MBP6P(RNC),M/T MBP6Q(RNM)	8-97061-052-1	01	1	9812-0105	●		●	●	●
21	02.483 BRACKET; ENG HARNESS 4HE1 ENG(RLY) M/T MBP6R(RNW)	8-97061-052-1	01	1	0106-	●	●	●	●	●	●	●
178	02.559 GROMMET; HARNESS ID=47	8-94279-735-0	01	1	9812-	●	●	●	●	●	●	●
180	02.559 COVER; HARNESS	8-97856-130-4	02	1	9812-	●	●	●	●	●	●	●
510	02.559 GROMMET; SCREW 04.931 H=15	8-94463-268-1	04	1	9812-	●	●	●	●	●	●	●
511	02.559 SCREW; HARNESS COVER 08.845 M5X14 TAPPING W/PL WASHER	0-74110-514-0	04	1	9812-	●	●	●	●	●	●	●
512	02.559 PROTECTOR; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>	8-97072-950-0	02	1	9812-9901	●		●	●	●
512	02.559 PROTECTOR; HARNESS POWER WINDOW FRT DOOR<A32>	8-97072-950-0	02	1	9812-9901	●		●	●	●
512	02.559 PROTECTOR; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-97072-950-0	02	1	9812-9901	●		●	●	●
512	02.559 PROTECTOR; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER (RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97072-950-0	02	1	9812-9901	●		●	●	●
512	02.559 PROTECTOR; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>	8-97072-950-0	02	1	9902-9903	●	●	●	●	●
512	02.559 PROTECTOR; HARNESS POWER WINDOW FRT DOOR<A32>	8-97072-950-0	02	1	9902-9903	●	●	●	●	●
512	02.559 PROTECTOR; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-97072-950-0	02	1	9902-9903	●	●	●	●	●
512	02.559 PROTECTOR; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER (RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97072-950-0	02	1	9902-9903	●
512	02.559 PROTECTOR; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETT E 2 SPEAKERS(6VL)	8-97072-950-0	02	1	9902-9903		●	●	●	●
512	02.559 PROTECTOR; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>	8-97072-950-0	02	1	9904-0105	●	●	●	●	●	●
512	02.559 PROTECTOR; HARNESS POWER WINDOW FRT DOOR<A32>	8-97072-950-0	02	1	9904-0105	●	●	●	●	●	●
512	02.559 PROTECTOR; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-97072-950-0	02	1	9904-0105	●	●	●	●	●	●
512	02.559 PROTECTOR; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER (RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97072-950-0	02	1	9904-0105	●
512	02.559 PROTECTOR; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETT E 2 SPEAKERS(6VL)	8-97072-950-0	02	1	9904-0105		●	●	●	●	●
512	02.559 PROTECTOR; HARNESS	8-97072-950-0	02	1	0106-	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
