◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50818 - NPR/NQR(EUROPE)-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#43468) — 587 parça

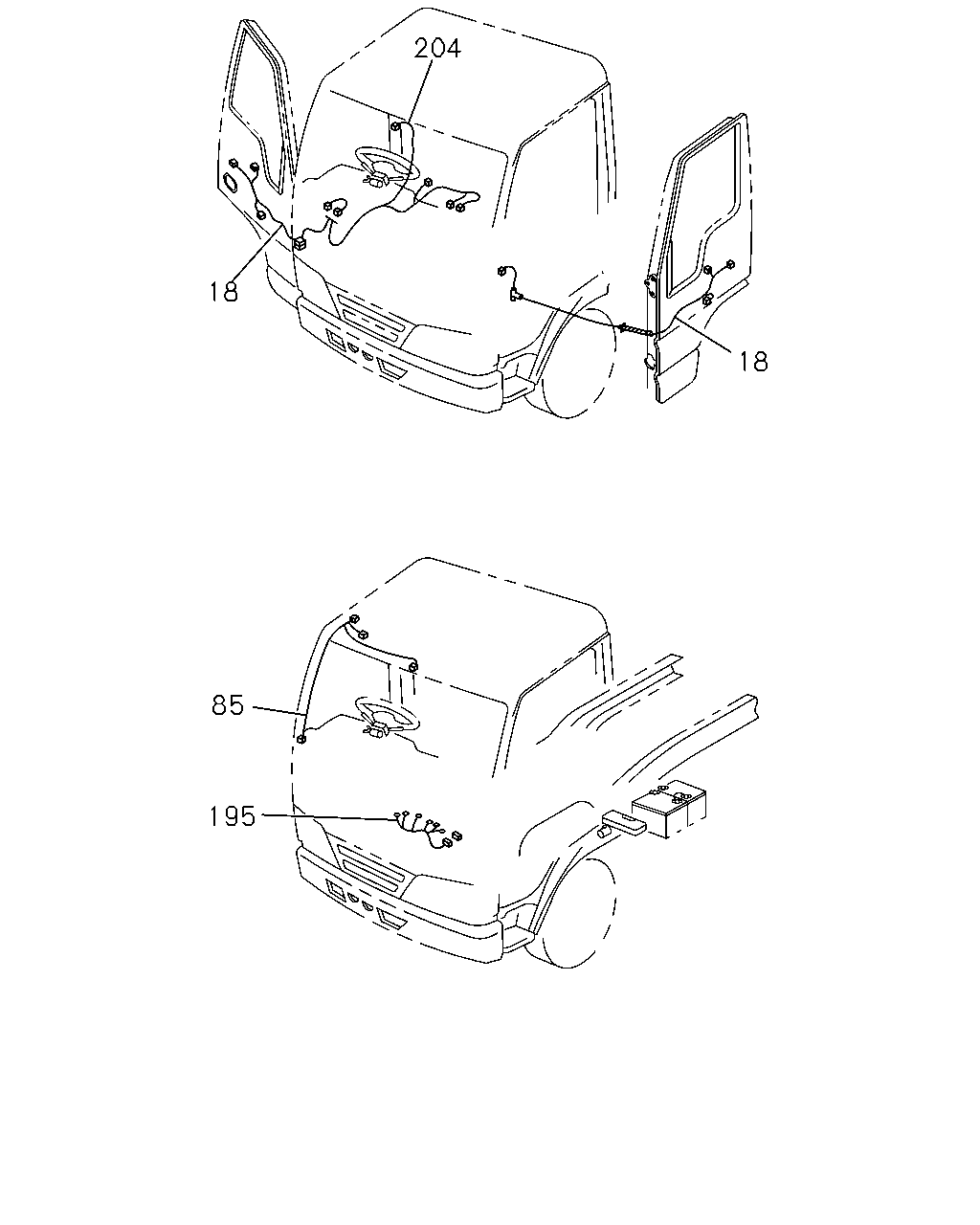

çizim 11144
204 18 8 85 195
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97220-407-1 01 1 9812-9912 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97220-407-1 01 1 0001-0105 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97312-708-0 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) CHARGE AIR COOLER<6PL> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97352-456-0 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> 		8-97352-466-0 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) 		8-97248-472-0 01 1 0001-0004 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) 		8-97257-164-0 01 1 0005-0007 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) 		8-97288-369-0 01 1 0008-0105 ●
8 02.480 HARNESS; FRAME,FRT
EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97311-325-1 01 1 0106-0207 ●
8 02.480 HARNESS; FRAME,FRT
M/T MBP6R(RNW) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97311-325-1 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) 		8-97225-917-0 01 1 9906-9912 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97225-917-0 01 1 0001-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97311-324-0 01 1 0106-0201 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97311-324-1 01 1 0202- ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97248-464-0 01 1 0001-0004 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97257-156-0 01 1 0005-0007 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97288-361-0 01 1 0008-0105 ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97312-710-0 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) 		8-97220-757-0 01 1 9812-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> 		8-97311-334-1 01 1 0106-0112 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> 		8-97311-334-1 01 1 0201- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) 		8-97217-571-0 01 1 9812-9912 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ENGINE POWER N-SPEC(7QV) 		8-97217-571-0 01 1 0001-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) 		8-97311-336-1 01 1 0106-0207 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MBP6R(RNW) 		8-97311-336-1 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97217-580-0 01 1 9812-9812 ● ●
8 02.480 HARNESS; FRAME,FRT
FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97217-580-1 01 1 9812-9912 ●
8 02.480 HARNESS; FRAME,FRT
FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97217-580-1 01 1 0001-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97248-467-0 01 1 0001-0004 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97257-159-0 01 1 0005-0007 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97288-364-0 01 1 0008-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
VEHICLE CATEGORY NQR<7NQ> 		8-97311-335-1 01 1 0106-0207 ●
8 02.480 HARNESS; FRAME,FRT
M/T MBP6R(RNW) VEHICLE CATEGORY NQR<7NQ> 		8-97311-335-1 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
M/T MZZ6F(RSR) VEHICLE CATEGORY NQR<7NQ> 		8-97352-467-0 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
M/T MZZ6F(RSR) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97352-457-0 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97248-468-0 01 1 0001-0004 ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97257-160-0 01 1 0005-0007 ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97288-365-0 01 1 0008-0105 ●
8 02.480 HARNESS; FRAME,FRT 8-97311-327-2 01 1 0106-0207 ●
8 02.480 HARNESS; FRAME,FRT
M/T MBP6R(RNW) 		8-97311-327-2 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) 		8-97248-473-0 01 1 0001-0004 ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) 		8-97257-165-0 01 1 0005-0007 ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) 		8-97288-370-0 01 1 0008-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) 		8-97311-338-2 01 1 0106-0207 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MBP6R(RNW) 		8-97311-338-2 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
EXC. CHARGE AIR COOLER<6PL> 		8-97217-597-1 01 1 9812-9903 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97217-597-1 01 1 9904-0105 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) 		8-97311-337-1 01 1 0106-0207 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MBP6R(RNW) 		8-97311-337-1 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> 		8-97248-474-0 01 1 0001-0004 ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> 		8-97257-166-0 01 1 0005-0007 ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> 		8-97288-371-0 01 1 0008-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) 		8-97352-468-0 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> 		8-97217-572-0 01 1 9812-9912 ● ●
8 02.480 HARNESS; FRAME,FRT
FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97217-572-0 01 1 0001-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> 		8-97248-475-0 01 1 0001-0004 ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> 		8-97257-167-0 01 1 0005-0007 ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> 		8-97288-372-0 01 1 0008-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) 		8-97352-469-0 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
M/T MZZ6F(RSR) 		8-97352-455-0 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> 		8-97248-466-0 01 1 0001-0004 ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> 		8-97257-158-0 01 1 0005-0007 ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> 		8-97288-363-0 01 1 0008-0105 ●
8 02.480 HARNESS; FRAME,FRT 8-97311-323-1 01 1 0106-0207 ●
8 02.480 HARNESS; FRAME,FRT
M/T MBP6R(RNW) 		8-97311-323-1 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
M/T MZZ6F(RSR) 		8-97352-459-0 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) 		8-97352-470-0 01 1 0208- ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-572-1 01 1 9812-9904 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER (RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-572-1 01 1 9812-9904 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-572-1 01 1 9812-9904 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-572-1 01 1 9904-9904 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-572-1 01 1 9904-9904 ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER (RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-572-1 01 1 9904-9904 ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>, UNITED KINGDOM EQUIPMENT(6AA) FRONT DOOR 		8-97105-572-1 01 1 9904-9904 ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER (RS2),UNITED KINGDOM EQUIPMENT(6AA), RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-572-1 01 1 9904-9904 ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-0 01 1 9905-0105 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-0 01 1 9905-0105 ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER (RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-0 01 1 9905-0105 ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>, UNITED KINGDOM EQUIPMENT(6AA) FRONT DOOR 		8-97226-671-0 01 1 9905-0105 ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER (RS2),UNITED KINGDOM EQUIPMENT(6AA), RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-0 01 1 9905-0105 ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-0 01 1 0106- ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-0 01 1 9812-9904 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER (RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-571-0 01 1 9812-9904 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-0 01 1 9812-9904 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-0 01 1 9904-0105 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-0 01 1 9904-0105 ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER (RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-571-0 01 1 9904-0105 ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>, UNITED KINGDOM EQUIPMENT(6AA) FRONT DOOR 		8-97105-571-0 01 1 9904-0105 ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER (RS2),UNITED KINGDOM EQUIPMENT(6AA), RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-571-0 01 1 9904-0105 ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-0 01 1 0106- ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-144-1 01 1 9812-9904 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-144-1 01 1 9904-9904 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. UNITED KINGDOM EQUIPMENT(6AA) FRONT DOOR 		8-97185-144-1 01 1 9904-9904 ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-669-0 01 1 9905-0105 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. UNITED KINGDOM EQUIPMENT(6AA) FRONT DOOR 		8-97226-669-0 01 1 9905-0105 ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-669-0 01 1 0106- ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-142-0 01 1 9812-9904 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-142-0 01 1 9904-0105 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. UNITED KINGDOM EQUIPMENT(6AA) FRONT DOOR 		8-97185-142-0 01 1 9904-0105 ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-142-1 01 1 0106- ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> REAR DOOR 		8-97075-738-2 02 1 9904-0105 ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> REAR DOOR 		8-97075-738-2 02 1 0106- ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> UNITED KINGDOM EQUIPMENT(6AA) EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97227-759-2 01 1 9904-0105 ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> UNITED KINGDOM EQUIPMENT(6AA) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97227-759-2 01 1 9904-0105 ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97227-759-2 01 1 0106- ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> UNITED KINGDOM EQUIPMENT(6AA) EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97227-758-2 01 1 9904-0105 ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> UNITED KINGDOM EQUIPMENT(6AA) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97227-758-2 01 1 9904-0105 ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97227-758-2 01 1 0106- ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> UNITED KINGDOM EQUIPMENT(6AA) FRONT DOOR 		8-97227-761-2 01 1 9904-0105 ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97227-761-2 01 1 0106- ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> UNITED KINGDOM EQUIPMENT(6AA) FRONT DOOR 		8-97227-760-2 01 1 9904-0105 ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97227-760-3 01 1 0106- ● ●
85 06.495 HARNESS; ROOM LAMP 8-97164-611-1 01 1 9812-0105 ● ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97307-518-0 01 1 0106- ● ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97162-627-2 01 1 9904-0105 ● ●
85 06.495 HARNESS; ROOM LAMP 8-97309-727-0 01 1 0106- ● ●
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 		8-97172-039-3 01 1 9812-0105 ● ● ● ● ● ●
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97171-205-3 01 1 9812-0104 ● ● ● ● ● ●
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97306-681-0 01 1 0105-0105 ● ● ● ● ● ●
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97306-681-0 01 1 0106- ●
195 01.150 HARNESS; EXT 8-97306-681-0 01 1 0106- ● ● ●
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) 		8-97306-681-0 01 1 0106- ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97162-629-2 01 1 9812- ● ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-632-2 01 1 9904- ● ●
204 02.559 HARNESS; CABLE,FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97162-626-3 01 1 9904-0105 ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-626-4 01 1 0106-0207 ● ●
204 02.559 HARNESS; CABLE,FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97162-626-4 01 1 0208- ● ●
çizim 11281
416 208 8 626
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97220-407-1 01 1 9812-9912 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97220-407-1 01 1 0001-0105 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97312-708-0 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) CHARGE AIR COOLER<6PL> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97352-456-0 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> 		8-97352-466-0 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) 		8-97248-472-0 01 1 0001-0004 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) 		8-97257-164-0 01 1 0005-0007 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) 		8-97288-369-0 01 1 0008-0105 ●
8 02.480 HARNESS; FRAME,FRT
EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97311-325-1 01 1 0106-0207 ●
8 02.480 HARNESS; FRAME,FRT
M/T MBP6R(RNW) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97311-325-1 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) 		8-97225-917-0 01 1 9906-9912 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97225-917-0 01 1 0001-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97311-324-0 01 1 0106-0201 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97311-324-1 01 1 0202- ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97248-464-0 01 1 0001-0004 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97257-156-0 01 1 0005-0007 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97288-361-0 01 1 0008-0105 ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97312-710-0 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) 		8-97220-757-0 01 1 9812-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> 		8-97311-334-1 01 1 0106-0112 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> 		8-97311-334-1 01 1 0201- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) 		8-97217-571-0 01 1 9812-9912 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ENGINE POWER N-SPEC(7QV) 		8-97217-571-0 01 1 0001-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) 		8-97311-336-1 01 1 0106-0207 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MBP6R(RNW) 		8-97311-336-1 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97217-580-0 01 1 9812-9812 ● ●
8 02.480 HARNESS; FRAME,FRT
FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97217-580-1 01 1 9812-9912 ●
8 02.480 HARNESS; FRAME,FRT
FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97217-580-1 01 1 0001-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97248-467-0 01 1 0001-0004 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97257-159-0 01 1 0005-0007 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97288-364-0 01 1 0008-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
VEHICLE CATEGORY NQR<7NQ> 		8-97311-335-1 01 1 0106-0207 ●
8 02.480 HARNESS; FRAME,FRT
M/T MBP6R(RNW) VEHICLE CATEGORY NQR<7NQ> 		8-97311-335-1 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
M/T MZZ6F(RSR) VEHICLE CATEGORY NQR<7NQ> 		8-97352-467-0 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
M/T MZZ6F(RSR) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97352-457-0 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97248-468-0 01 1 0001-0004 ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97257-160-0 01 1 0005-0007 ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97288-365-0 01 1 0008-0105 ●
8 02.480 HARNESS; FRAME,FRT 8-97311-327-2 01 1 0106-0207 ●
8 02.480 HARNESS; FRAME,FRT
M/T MBP6R(RNW) 		8-97311-327-2 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) 		8-97248-473-0 01 1 0001-0004 ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) 		8-97257-165-0 01 1 0005-0007 ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) 		8-97288-370-0 01 1 0008-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) 		8-97311-338-2 01 1 0106-0207 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MBP6R(RNW) 		8-97311-338-2 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
EXC. CHARGE AIR COOLER<6PL> 		8-97217-597-1 01 1 9812-9903 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97217-597-1 01 1 9904-0105 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) 		8-97311-337-1 01 1 0106-0207 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MBP6R(RNW) 		8-97311-337-1 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> 		8-97248-474-0 01 1 0001-0004 ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> 		8-97257-166-0 01 1 0005-0007 ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> 		8-97288-371-0 01 1 0008-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) 		8-97352-468-0 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> 		8-97217-572-0 01 1 9812-9912 ● ●
8 02.480 HARNESS; FRAME,FRT
FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97217-572-0 01 1 0001-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> 		8-97248-475-0 01 1 0001-0004 ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> 		8-97257-167-0 01 1 0005-0007 ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> 		8-97288-372-0 01 1 0008-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) 		8-97352-469-0 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
M/T MZZ6F(RSR) 		8-97352-455-0 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> 		8-97248-466-0 01 1 0001-0004 ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> 		8-97257-158-0 01 1 0005-0007 ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> 		8-97288-363-0 01 1 0008-0105 ●
8 02.480 HARNESS; FRAME,FRT 8-97311-323-1 01 1 0106-0207 ●
8 02.480 HARNESS; FRAME,FRT
M/T MBP6R(RNW) 		8-97311-323-1 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
M/T MZZ6F(RSR) 		8-97352-459-0 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) 		8-97352-470-0 01 1 0208- ●
208 02.483 HOLDER; CONNECTOR
4HE1 ENG(RLY) 		8-94459-973-1 01 1 9812- ● ● ● ● ● ● ●
416 02.559 NUT; TERMINAL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 9812- ●
626 02.480 HARNESS; FLEX HOSE
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97253-968-0 01 1 0002-0105 ●
626 02.480 HARNESS; FLEX HOSE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97253-968-0 01 1 0002-0105 ● ● ● ● ●
626 02.480 HARNESS; FLEX HOSE
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97253-968-1 01 1 0106- ●
626 02.480 HARNESS; FLEX HOSE 8-97253-968-1 01 1 0106- ● ● ● ● ● ●
626 02.480 HARNESS; FLEX HOSE
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97253-969-0 01 1 0002-0105 ●
626 02.480 HARNESS; FLEX HOSE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97253-969-0 01 1 0002-0105 ● ● ● ● ●
626 02.480 HARNESS; FLEX HOSE
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97253-969-1 01 1 0106- ●
626 02.480 HARNESS; FLEX HOSE 8-97253-969-1 01 1 0106- ● ● ● ● ● ●

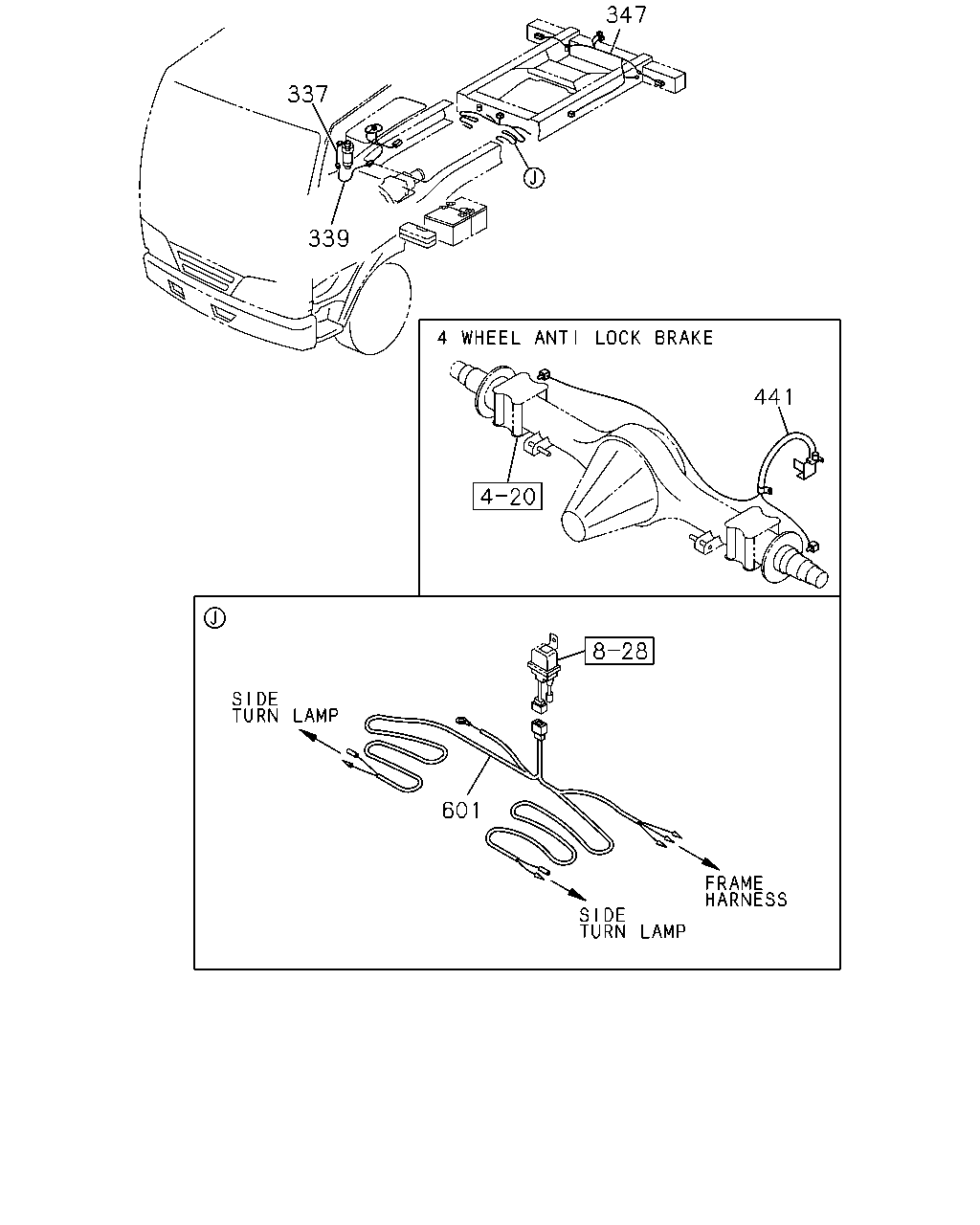

çizim 12381
347 337 339 441 601
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94470-821-0 01 1 9812-0105 ● ● ● ● ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97261-149-0 01 1 0106- ●
339 02.530 HARNESS; EXT,FUEL
02.480 		8-94318-759-0 01 1 9904-0105 ● ●
347 02.480 HARNESS; CABLE,RR BODY
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) DOOR MIRROR WIDE ANGLE<7QF> 		8-97213-658-0 01 1 9812-0105 ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
DOOR MIRROR WIDE ANGLE<7QF> 		8-97213-658-0 01 1 0106- ● ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. DOOR MIRROR WIDE ANGLE<7QF> 		8-97213-657-0 01 1 9812-9903 ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. DOOR MIRROR WIDE ANGLE<7QF> 		8-97213-657-0 01 1 9904-9904 ●
347 02.480 HARNESS; CABLE,RR BODY
UNITED KINGDOM EQUIPMENT(6AA) EXC. DOOR MIRROR WIDE ANGLE<7QF> 		8-97213-657-0 01 1 9904-9904 ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
IRISH EQUIPMENT(6CU) EXC. DOOR MIRROR WIDE ANGLE<7QF> 		8-97213-657-0 01 1 9904-9904 ●
347 02.480 HARNESS; CABLE,RR BODY
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. DOOR MIRROR WIDE ANGLE<7QF> 		8-97213-657-0 01 1 9904-0105 ● ●
347 02.480 HARNESS; CABLE,RR BODY
UNITED KINGDOM EQUIPMENT(6AA) EXC. DOOR MIRROR WIDE ANGLE<7QF> 		8-97213-657-0 01 1 9904-0105 ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. DOOR MIRROR WIDE ANGLE<7QF> 		8-97213-657-0 01 1 0106- ● ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) 		8-97213-568-0 01 1 9812-0105 ● ● ● ● ● ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97213-056-2 01 1 0001-0203 ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97308-225-4 01 1 0204- ●
601 02.892 HARNESS; LAMP,SIDE TURN SIGNAL
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97223-051-0 01 1 9901-9912 ● ● ● ● ●
601 02.892 HARNESS; LAMP,SIDE TURN SIGNAL
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97223-051-0 01 1 0001-0105 ● ● ● ● ●

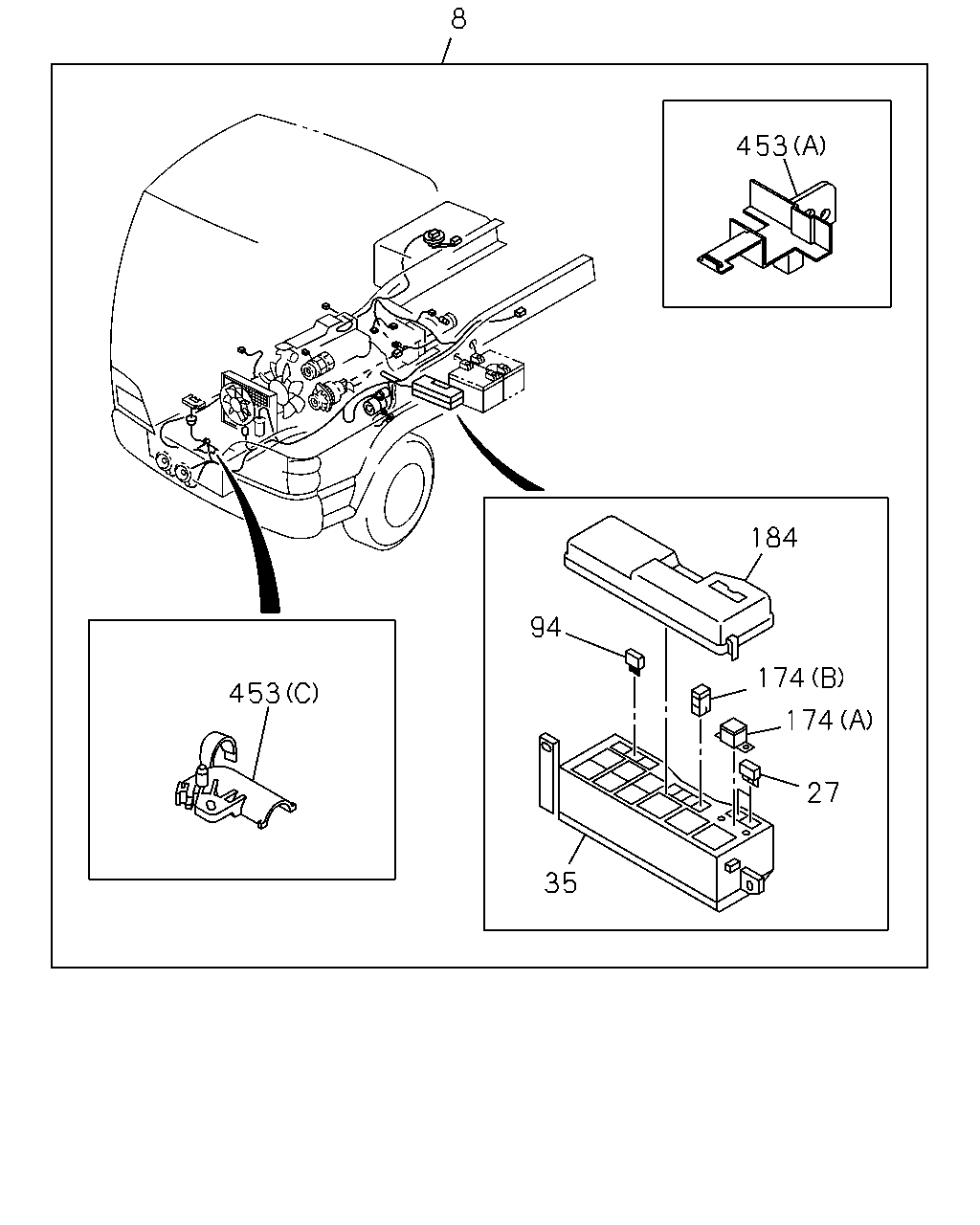

çizim 12382
8 453 184 94 174 453 174 27 35
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97220-407-1 01 1 9812-9912 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97220-407-1 01 1 0001-0105 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97312-708-0 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) CHARGE AIR COOLER<6PL> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97352-456-0 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> 		8-97352-466-0 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) 		8-97248-472-0 01 1 0001-0004 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) 		8-97257-164-0 01 1 0005-0007 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) 		8-97288-369-0 01 1 0008-0105 ●
8 02.480 HARNESS; FRAME,FRT
EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97311-325-1 01 1 0106-0207 ●
8 02.480 HARNESS; FRAME,FRT
M/T MBP6R(RNW) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97311-325-1 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) 		8-97225-917-0 01 1 9906-9912 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97225-917-0 01 1 0001-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97311-324-0 01 1 0106-0201 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97311-324-1 01 1 0202- ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97248-464-0 01 1 0001-0004 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97257-156-0 01 1 0005-0007 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97288-361-0 01 1 0008-0105 ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97312-710-0 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) 		8-97220-757-0 01 1 9812-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> 		8-97311-334-1 01 1 0106-0112 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> 		8-97311-334-1 01 1 0201- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) 		8-97217-571-0 01 1 9812-9912 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ENGINE POWER N-SPEC(7QV) 		8-97217-571-0 01 1 0001-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) 		8-97311-336-1 01 1 0106-0207 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MBP6R(RNW) 		8-97311-336-1 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97217-580-0 01 1 9812-9812 ● ●
8 02.480 HARNESS; FRAME,FRT
FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97217-580-1 01 1 9812-9912 ●
8 02.480 HARNESS; FRAME,FRT
FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97217-580-1 01 1 0001-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97248-467-0 01 1 0001-0004 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97257-159-0 01 1 0005-0007 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97288-364-0 01 1 0008-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
VEHICLE CATEGORY NQR<7NQ> 		8-97311-335-1 01 1 0106-0207 ●
8 02.480 HARNESS; FRAME,FRT
M/T MBP6R(RNW) VEHICLE CATEGORY NQR<7NQ> 		8-97311-335-1 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
M/T MZZ6F(RSR) VEHICLE CATEGORY NQR<7NQ> 		8-97352-467-0 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
M/T MZZ6F(RSR) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97352-457-0 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97248-468-0 01 1 0001-0004 ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97257-160-0 01 1 0005-0007 ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97288-365-0 01 1 0008-0105 ●
8 02.480 HARNESS; FRAME,FRT 8-97311-327-2 01 1 0106-0207 ●
8 02.480 HARNESS; FRAME,FRT
M/T MBP6R(RNW) 		8-97311-327-2 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) 		8-97248-473-0 01 1 0001-0004 ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) 		8-97257-165-0 01 1 0005-0007 ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) 		8-97288-370-0 01 1 0008-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) 		8-97311-338-2 01 1 0106-0207 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MBP6R(RNW) 		8-97311-338-2 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
EXC. CHARGE AIR COOLER<6PL> 		8-97217-597-1 01 1 9812-9903 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97217-597-1 01 1 9904-0105 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) 		8-97311-337-1 01 1 0106-0207 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MBP6R(RNW) 		8-97311-337-1 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> 		8-97248-474-0 01 1 0001-0004 ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> 		8-97257-166-0 01 1 0005-0007 ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> 		8-97288-371-0 01 1 0008-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) 		8-97352-468-0 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> 		8-97217-572-0 01 1 9812-9912 ● ●
8 02.480 HARNESS; FRAME,FRT
FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97217-572-0 01 1 0001-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> 		8-97248-475-0 01 1 0001-0004 ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> 		8-97257-167-0 01 1 0005-0007 ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> 		8-97288-372-0 01 1 0008-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) 		8-97352-469-0 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
M/T MZZ6F(RSR) 		8-97352-455-0 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> 		8-97248-466-0 01 1 0001-0004 ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> 		8-97257-158-0 01 1 0005-0007 ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> 		8-97288-363-0 01 1 0008-0105 ●
8 02.480 HARNESS; FRAME,FRT 8-97311-323-1 01 1 0106-0207 ●
8 02.480 HARNESS; FRAME,FRT
M/T MBP6R(RNW) 		8-97311-323-1 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
M/T MZZ6F(RSR) 		8-97352-459-0 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6F(RSR) 		8-97352-470-0 01 1 0208- ●
27 08.965 FUSE UNIT
15A BLUE 		5-82516-003-0 AR 1 9812- ● ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE 8-97063-150-1 01 1 9812- ● ● ● ● ● ● ●
94 02.483 DIODE; FRAME HARNESS
BLACK 4P-1.5A 		8-94381-730-0 AR 1 9812- ● ● ● ● ● ● ●
94 02.483 DIODE; FRAME HARNESS
BLACK 3P-1.5A 		8-94422-640-1 AR 1 9906- ● ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(A) 60A YELLOW 		8-94388-303-0 AR 1 9812- ● ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(A) 80A BLACK 		8-94388-305-0 AR 1 9812- ● ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 40A GREEN 		8-94468-662-0 AR 1 9812- ● ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
02.483 (B) 50A RED 		8-94468-663-0 AR 1 9812- ● ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
02.483 (B) 60A YELLOW 		8-94468-664-0 AR 1 9812- ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX 8-97063-152-1 01 1 9812- ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) (C) 		8-97093-668-1 01 1 9812-0105 ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> (B) 		8-97074-957-0 01 1 9812-0105 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97074-957-0 01 1 9812-0105 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) 		8-97074-957-0 01 1 9812-0105 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-97259-730-2 01 1 0106- ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-97120-591-1 01 1 9812- ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-97261-653-2 01 1 0106- ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) (C) 		8-97093-668-1 01 1 0106- ● ● ● ● ● ● ●

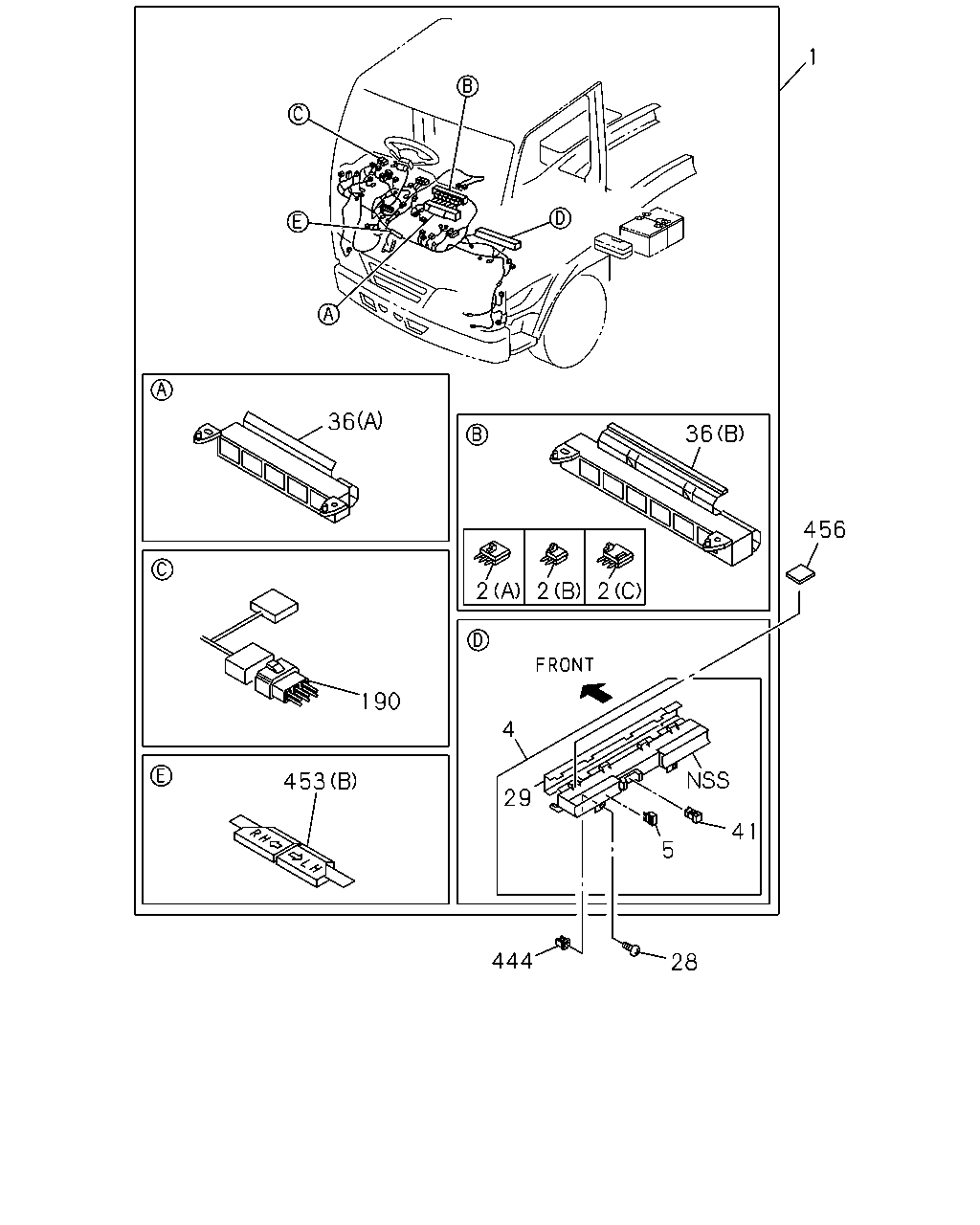

çizim 46922
1 36 36 456 2 2 2 190 4 453 29 41 5 444 28
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) 		8-97230-669-0 01 1 9906-9912 ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97230-669-1 01 1 0001-0105 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) 		8-97310-074-2 01 1 0106- ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97248-455-0 01 1 0001-0004 ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97257-173-0 01 1 0005-0105 ●
1 02.480 HARNESS; CAB 8-97310-071-2 01 1 0106- ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) 		8-97217-191-1 01 1 9812-0105 ●
1 02.480 HARNESS; CAB
4JH1 ENG(RJX) 		8-97312-694-0 01 1 0106-0112 ●
1 02.480 HARNESS; CAB
4JH1 ENG(RJX) 		8-97331-678-0 01 1 0201- ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97217-173-0 01 1 9812-9912 ● ● ●
1 02.480 HARNESS; CAB
FLOOR REMOTE SHIFT<M11> IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> 		8-97217-173-0 01 1 9812-9912 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> 		8-97217-173-1 01 1 0001-0105 ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97217-173-1 01 1 0001-0105 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) VEHICLE CATEGORY NQR<7NQ> 		8-97310-073-2 01 1 0106- ●
1 02.480 HARNESS; CAB
VEHICLE CATEGORY NQR<7NQ> 		8-97310-073-2 01 1 0106- ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) 		8-97310-073-2 01 1 0106- ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97185-303-1 01 1 9904-0105 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97309-112-1 01 1 0106- ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97217-175-1 01 1 9812-9912 ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97217-175-2 01 1 0001-0105 ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97248-461-0 01 1 0001-0004 ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97257-177-0 01 1 0005-0105 ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97248-457-0 01 1 0001-0004 ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> 		8-97248-457-0 01 1 0001-0004 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97257-175-0 01 1 0005-0105 ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> 		8-97257-175-0 01 1 0005-0105 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97310-070-2 01 1 0106- ●
1 02.480 HARNESS; CAB
EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97310-070-2 01 1 0106- ●
1 02.480 HARNESS; CAB 8-97310-070-2 01 1 0106- ●
1 02.480 HARNESS; CAB
FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> 		8-97227-756-0 01 1 9904-9912 ●
1 02.480 HARNESS; CAB
FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97227-756-1 01 1 0001-0105 ●
1 02.480 HARNESS; CAB
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> 		8-97248-458-0 01 1 0001-0004 ●
1 02.480 HARNESS; CAB
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> 		8-97257-176-0 01 1 0005-0105 ●
2 02.483 DIODE; CABLE HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 AR 1 9812- ● ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 9812- ● ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 9812- ● ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97077-664-0 01 1 9812-0105 ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> 		8-97214-415-0 01 1 9812-9905 ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4JG2 ENG(RJC) 		8-97214-415-0 01 1 9812-9905 ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> 		8-97214-415-0 01 1 9906-0105 ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97214-415-0 01 1 9906-0105 ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97214-415-0 01 1 0106- ● ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A RED 		5-82516-002-0 AR 1 9812- ● ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A BLUE 		5-82516-003-0 AR 1 9812- ● ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 25A CLEAR 		5-82516-005-0 AR 1 9812- ● ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9812- ● ● ● ● ● ● ●
29 02.483 COVER; FUSE BOX
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97074-955-0 01 1 0008-0105 ● ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> (A) 		8-97184-367-0 01 1 9812-0004 ● ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97184-367-0 01 1 0005-0007 ● ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97184-367-0 01 1 0008-0105 ● ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97184-367-0 01 1 0008-0105 ● ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97184-367-0 01 1 0106-0108 ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97087-638-1 01 1 9812-0004 ● ● ● ● ● ●
36 02.530 BOX; RELAY
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97087-638-1 01 1 9812-0004 ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97087-638-1 01 1 0005-0007 ● ● ● ● ● ●
36 02.530 BOX; RELAY
4JG2 ENG(RJC) (A) 		8-97087-638-1 01 1 0005-0007 ●
36 02.530 BOX; RELAY
4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97087-638-1 01 1 0005-0007 ●
36 02.530 BOX; RELAY
4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97087-638-1 01 1 0008-0105 ●
36 02.530 BOX; RELAY
4JG2 ENG(RJC) (A) 		8-97087-638-1 01 1 0008-0105 ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> (B) 		8-97087-639-1 01 1 9812-0105 ● ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97087-639-1 01 1 9812-0105 ● ● ● ● ● ●
36 02.530 BOX; RELAY
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) 		8-97087-639-1 01 1 9812-0105 ●
36 02.530 BOX; RELAY
(B) 		8-97087-639-1 01 1 0106- ● ● ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> (A) 		8-97087-640-1 01 1 0005-0105 ● ● ● ● ● ●
36 02.530 BOX; RELAY
4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97087-640-1 01 1 0005-0105 ●
36 02.530 BOX; RELAY
(A) 		8-97087-640-1 01 1 0106- ● ● ● ● ● ● ●
41 08.821 PULLER; FUSE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 9812-0105 ● ● ● ● ● ●
41 08.821 PULLER; FUSE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 9812-0105 ● ● ● ● ● ●
41 08.821 PULLER; FUSE
4JG2 ENG(RJC),4JB1 ENG(RLF) 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 9812-0105 ●
41 08.821 PULLER; FUSE
02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 0106- ● ● ● ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> 		8-94363-367-0 01 1 9812-9908 ● ● ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> 		8-94363-367-0 01 1 9909-9910 ● ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
FLOOR REMOTE SHIFT<M11> IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> 		8-94363-367-0 01 1 9909-9910 ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-94363-367-0 01 1 9911-9912 ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
FLOOR REMOTE SHIFT<M11> IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> 		8-94363-367-0 01 1 9911-9912 ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> 		8-94363-367-0 01 1 0001-0007 ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-94363-367-0 01 1 0001-0007 ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> 		5-82690-411-0 01 1 9812-9910 ● ● ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		5-82690-411-0 01 1 9812-9910 ● ● ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4JG2 ENG(RJC) 		5-82690-411-0 01 1 9812-9910 ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		5-82690-411-0 01 1 9911-9912 ● ● ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> 		5-82690-411-0 01 1 9911-9912 ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4JG2 ENG(RJC) 		5-82690-411-0 01 1 9911-9912 ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> 		5-82690-411-0 01 1 9911-9912 ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		5-82690-411-0 01 1 0001-0007 ● ● ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> 		5-82690-411-0 01 1 0001-0007 ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4JG2 ENG(RJC) 		5-82690-411-0 01 1 0001-0007 ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		5-82690-411-0 01 1 0001-0007 ●
444 02.483 GROMMET; SCREW,FUSE BOX
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9812- ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) (C) 		8-97093-668-1 01 1 9812-0105 ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> (B) 		8-97074-957-0 01 1 9812-0105 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97074-957-0 01 1 9812-0105 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) 		8-97074-957-0 01 1 9812-0105 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-97259-730-2 01 1 0106- ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-97120-591-1 01 1 9812- ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-97261-653-2 01 1 0106- ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) (C) 		8-97093-668-1 01 1 0106- ● ● ● ● ● ● ●
456 02.483 CUSHION; FUSE BOX
16.085 15X30 T=5 		8-94270-366-2 01 1 9812- ● ● ● ● ● ● ●

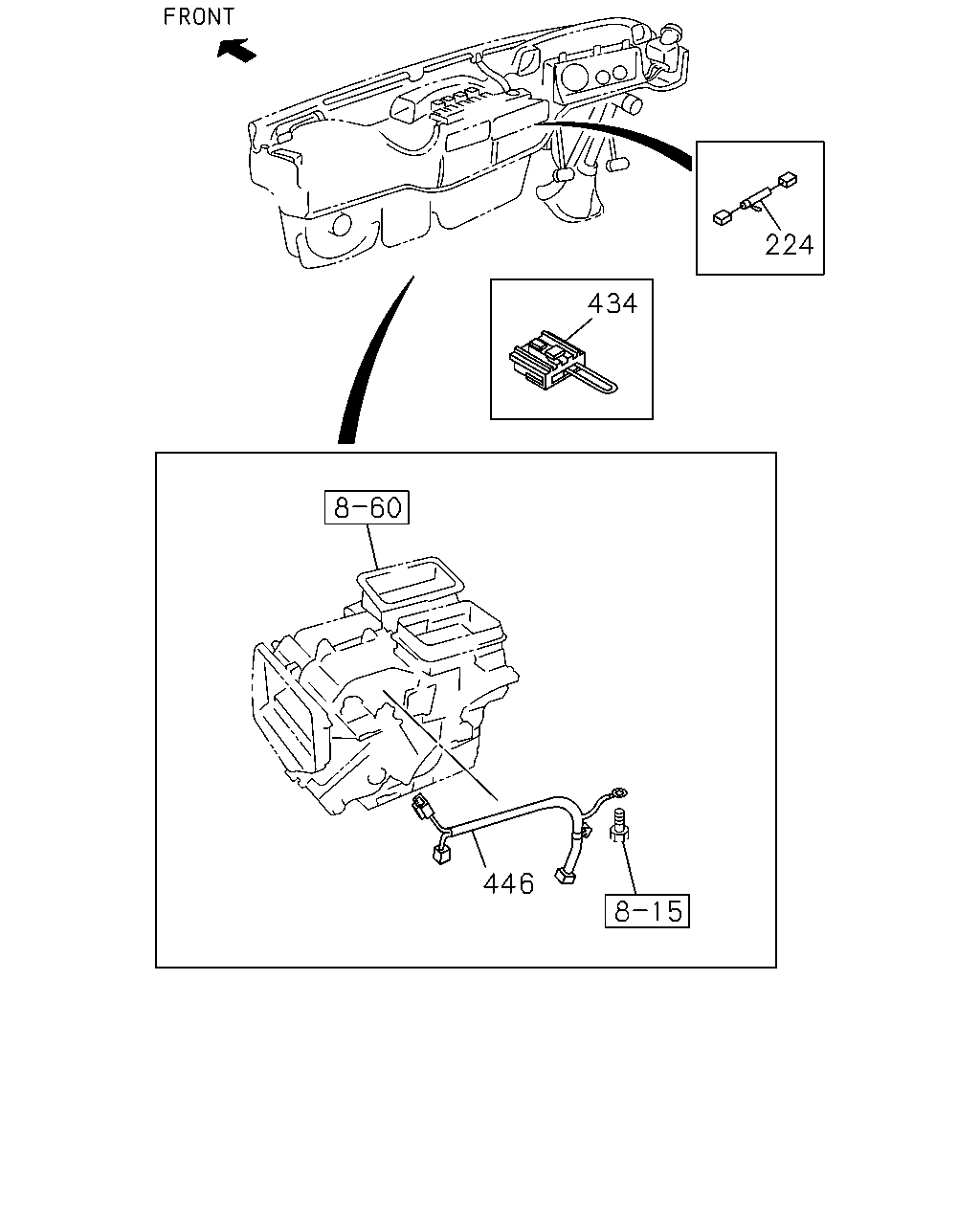

çizim 46984
224 434 446
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
224 02.480 HARNESS; EXT,HEADLAMP
ADJUST HEADLAMP<6RC> 		8-97113-544-0 01 1 9812-0105 ● ● ● ● ● ●
224 02.480 HARNESS; EXT,HEADLAMP
ADJUST HEADLAMP<6RC> 		8-97302-392-0 01 1 0106- ● ● ● ● ● ● ●
434 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97140-182-0 01 1 9812-9903 ●
434 02.559 CONNECTOR; SHORT CIRCUIT
FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97140-182-0 01 1 9812-9903 ●
434 02.559 CONNECTOR; SHORT CIRCUIT
FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-97140-182-0 01 1 9812-9903 ●
434 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97140-182-0 01 1 9904-0105 ● ● ● ●
446 02.480 HARNESS; EXT,CERAMIC HEATER
CERAMIC HEATER<6YX> 		8-97080-280-2 01 1 9812-0101 ● ● ● ● ● ●
446 02.480 HARNESS; EXT,CERAMIC HEATER
CERAMIC HEATER<6YX> 		8-97255-951-0 01 1 0102-0105 ● ● ● ● ● ●
446 02.480 HARNESS; EXT,CERAMIC HEATER
CERAMIC HEATER<6YX> 		8-97255-951-0 01 1 0106-0207 ●
446 02.480 HARNESS; EXT,CERAMIC HEATER 8-97255-951-0 01 1 0106-0207 ● ● ● ● ● ●
446 02.480 HARNESS; EXT,CERAMIC HEATER
CERAMIC HEATER<6YX> 		8-97255-951-0 01 1 0208- ● ● ● ● ● ● ●

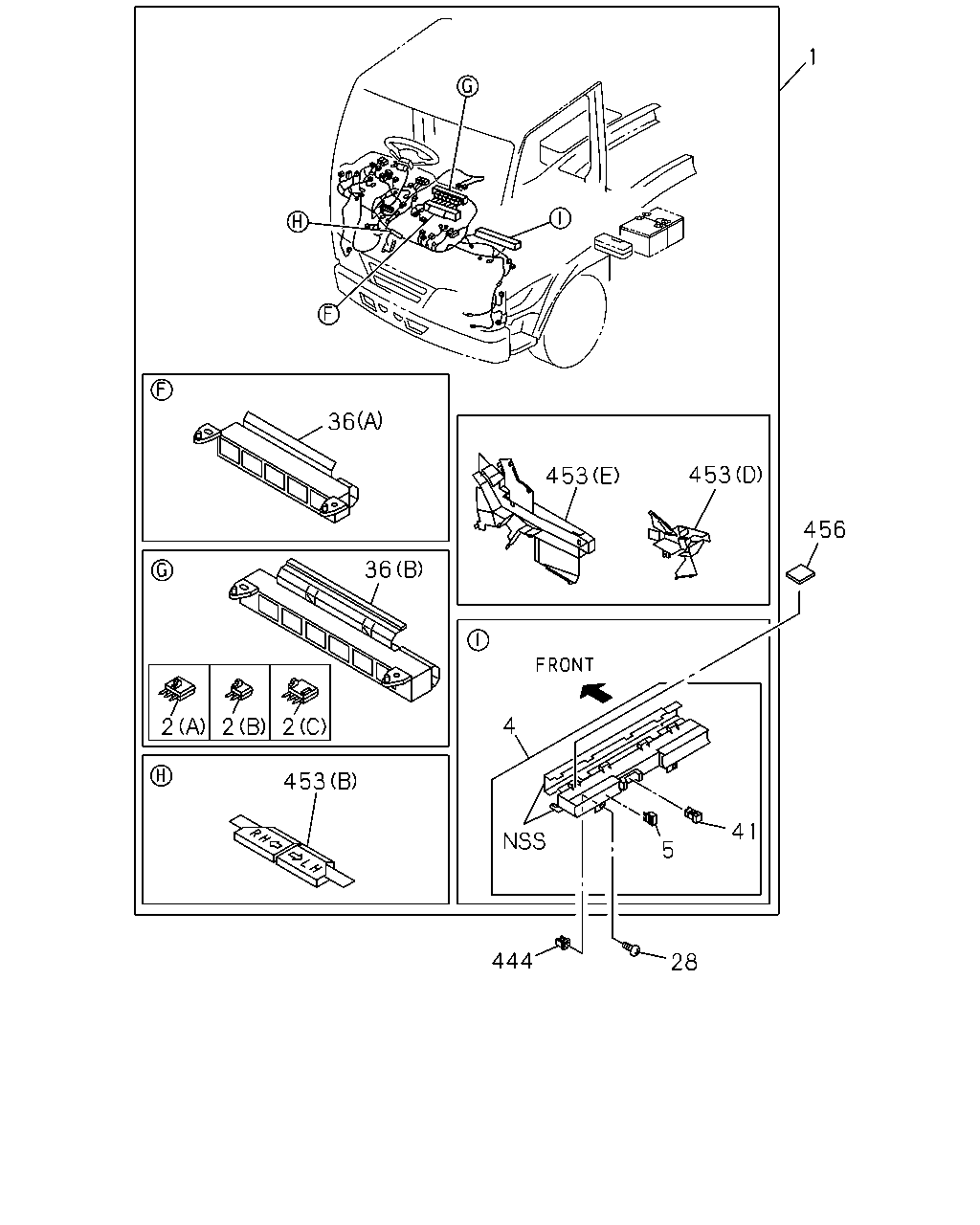

çizim 49796
1 36 453 453 456 36 4 2 2 2 453 41 5 444 28
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) 		8-97230-669-0 01 1 9906-9912 ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97230-669-1 01 1 0001-0105 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) 		8-97310-074-2 01 1 0106- ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97248-455-0 01 1 0001-0004 ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97257-173-0 01 1 0005-0105 ●
1 02.480 HARNESS; CAB 8-97310-071-2 01 1 0106- ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) 		8-97217-191-1 01 1 9812-0105 ●
1 02.480 HARNESS; CAB
4JH1 ENG(RJX) 		8-97312-694-0 01 1 0106-0112 ●
1 02.480 HARNESS; CAB
4JH1 ENG(RJX) 		8-97331-678-0 01 1 0201- ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97217-173-0 01 1 9812-9912 ● ● ●
1 02.480 HARNESS; CAB
FLOOR REMOTE SHIFT<M11> IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> 		8-97217-173-0 01 1 9812-9912 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> 		8-97217-173-1 01 1 0001-0105 ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97217-173-1 01 1 0001-0105 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) VEHICLE CATEGORY NQR<7NQ> 		8-97310-073-2 01 1 0106- ●
1 02.480 HARNESS; CAB
VEHICLE CATEGORY NQR<7NQ> 		8-97310-073-2 01 1 0106- ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) 		8-97310-073-2 01 1 0106- ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97185-303-1 01 1 9904-0105 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97309-112-1 01 1 0106- ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97217-175-1 01 1 9812-9912 ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97217-175-2 01 1 0001-0105 ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97248-461-0 01 1 0001-0004 ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97257-177-0 01 1 0005-0105 ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97248-457-0 01 1 0001-0004 ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> 		8-97248-457-0 01 1 0001-0004 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97257-175-0 01 1 0005-0105 ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> 		8-97257-175-0 01 1 0005-0105 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97310-070-2 01 1 0106- ●
1 02.480 HARNESS; CAB
EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97310-070-2 01 1 0106- ●
1 02.480 HARNESS; CAB 8-97310-070-2 01 1 0106- ●
1 02.480 HARNESS; CAB
FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> 		8-97227-756-0 01 1 9904-9912 ●
1 02.480 HARNESS; CAB
FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97227-756-1 01 1 0001-0105 ●
1 02.480 HARNESS; CAB
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> 		8-97248-458-0 01 1 0001-0004 ●
1 02.480 HARNESS; CAB
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA) CHARGE AIR COOLER<6PL> 		8-97257-176-0 01 1 0005-0105 ●
2 02.483 DIODE; CABLE HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 AR 1 9812- ● ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 9812- ● ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 9812- ● ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97077-664-0 01 1 9812-0105 ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> 		8-97214-415-0 01 1 9812-9905 ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4JG2 ENG(RJC) 		8-97214-415-0 01 1 9812-9905 ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> 		8-97214-415-0 01 1 9906-0105 ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97214-415-0 01 1 9906-0105 ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97214-415-0 01 1 0106- ● ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A RED 		5-82516-002-0 AR 1 9812- ● ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A BLUE 		5-82516-003-0 AR 1 9812- ● ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 25A CLEAR 		5-82516-005-0 AR 1 9812- ● ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9812- ● ● ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> (A) 		8-97184-367-0 01 1 9812-0004 ● ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97184-367-0 01 1 0005-0007 ● ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97184-367-0 01 1 0008-0105 ● ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97184-367-0 01 1 0008-0105 ● ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97184-367-0 01 1 0106-0108 ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97087-638-1 01 1 9812-0004 ● ● ● ● ● ●
36 02.530 BOX; RELAY
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97087-638-1 01 1 9812-0004 ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97087-638-1 01 1 0005-0007 ● ● ● ● ● ●
36 02.530 BOX; RELAY
4JG2 ENG(RJC) (A) 		8-97087-638-1 01 1 0005-0007 ●
36 02.530 BOX; RELAY
4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97087-638-1 01 1 0005-0007 ●
36 02.530 BOX; RELAY
4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97087-638-1 01 1 0008-0105 ●
36 02.530 BOX; RELAY
4JG2 ENG(RJC) (A) 		8-97087-638-1 01 1 0008-0105 ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> (B) 		8-97087-639-1 01 1 9812-0105 ● ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97087-639-1 01 1 9812-0105 ● ● ● ● ● ●
36 02.530 BOX; RELAY
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) 		8-97087-639-1 01 1 9812-0105 ●
36 02.530 BOX; RELAY
(B) 		8-97087-639-1 01 1 0106- ● ● ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> (A) 		8-97087-640-1 01 1 0005-0105 ● ● ● ● ● ●
36 02.530 BOX; RELAY
4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97087-640-1 01 1 0005-0105 ●
36 02.530 BOX; RELAY
(A) 		8-97087-640-1 01 1 0106- ● ● ● ● ● ● ●
41 08.821 PULLER; FUSE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 9812-0105 ● ● ● ● ● ●
41 08.821 PULLER; FUSE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 9812-0105 ● ● ● ● ● ●
41 08.821 PULLER; FUSE
4JG2 ENG(RJC),4JB1 ENG(RLF) 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 9812-0105 ●
41 08.821 PULLER; FUSE
02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 0106- ● ● ● ● ● ● ●
444 02.483 GROMMET; SCREW,FUSE BOX
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9812- ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) (C) 		8-97093-668-1 01 1 9812-0105 ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> (B) 		8-97074-957-0 01 1 9812-0105 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97074-957-0 01 1 9812-0105 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) 		8-97074-957-0 01 1 9812-0105 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-97259-730-2 01 1 0106- ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-97120-591-1 01 1 9812- ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-97261-653-2 01 1 0106- ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) (C) 		8-97093-668-1 01 1 0106- ● ● ● ● ● ● ●
456 02.483 CUSHION; FUSE BOX
16.085 15X30 T=5 		8-94270-366-2 01 1 9812- ● ● ● ● ● ● ●
çizim 50273
204 18 18 18 204 85 87 62 85 195
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-572-1 01 1 9812-9904 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER (RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-572-1 01 1 9812-9904 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-572-1 01 1 9812-9904 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-572-1 01 1 9904-9904 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-572-1 01 1 9904-9904 ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER (RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-572-1 01 1 9904-9904 ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>, UNITED KINGDOM EQUIPMENT(6AA) FRONT DOOR 		8-97105-572-1 01 1 9904-9904 ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER (RS2),UNITED KINGDOM EQUIPMENT(6AA), RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-572-1 01 1 9904-9904 ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-0 01 1 9905-0105 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-0 01 1 9905-0105 ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER (RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-0 01 1 9905-0105 ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>, UNITED KINGDOM EQUIPMENT(6AA) FRONT DOOR 		8-97226-671-0 01 1 9905-0105 ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER (RS2),UNITED KINGDOM EQUIPMENT(6AA), RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-0 01 1 9905-0105 ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-0 01 1 0106- ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-0 01 1 9812-9904 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER (RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-571-0 01 1 9812-9904 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-0 01 1 9812-9904 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-0 01 1 9904-0105 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-0 01 1 9904-0105 ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER (RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-571-0 01 1 9904-0105 ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>, UNITED KINGDOM EQUIPMENT(6AA) FRONT DOOR 		8-97105-571-0 01 1 9904-0105 ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER (RS2),UNITED KINGDOM EQUIPMENT(6AA), RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-571-0 01 1 9904-0105 ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-0 01 1 0106- ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-144-1 01 1 9812-9904 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-144-1 01 1 9904-9904 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. UNITED KINGDOM EQUIPMENT(6AA) FRONT DOOR 		8-97185-144-1 01 1 9904-9904 ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-669-0 01 1 9905-0105 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. UNITED KINGDOM EQUIPMENT(6AA) FRONT DOOR 		8-97226-669-0 01 1 9905-0105 ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-669-0 01 1 0106- ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-142-0 01 1 9812-9904 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-142-0 01 1 9904-0105 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. UNITED KINGDOM EQUIPMENT(6AA) FRONT DOOR 		8-97185-142-0 01 1 9904-0105 ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-142-1 01 1 0106- ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> REAR DOOR 		8-97075-738-2 02 1 9904-0105 ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> REAR DOOR 		8-97075-738-2 02 1 0106- ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> UNITED KINGDOM EQUIPMENT(6AA) EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97227-759-2 01 1 9904-0105 ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> UNITED KINGDOM EQUIPMENT(6AA) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97227-759-2 01 1 9904-0105 ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97227-759-2 01 1 0106- ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> UNITED KINGDOM EQUIPMENT(6AA) EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97227-758-2 01 1 9904-0105 ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> UNITED KINGDOM EQUIPMENT(6AA) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97227-758-2 01 1 9904-0105 ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97227-758-2 01 1 0106- ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> UNITED KINGDOM EQUIPMENT(6AA) FRONT DOOR 		8-97227-761-2 01 1 9904-0105 ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97227-761-2 01 1 0106- ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> UNITED KINGDOM EQUIPMENT(6AA) FRONT DOOR 		8-97227-760-2 01 1 9904-0105 ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97227-760-3 01 1 0106- ● ●
62 02.530 DIODE; HARNESS
02.483 BLACK 2P-1.5A 		8-94422-639-1 01 1 9904- ● ●
85 06.495 HARNESS; ROOM LAMP 8-97164-611-1 01 1 9812-0105 ● ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97307-518-0 01 1 0106- ● ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97162-627-2 01 1 9904-0105 ● ●
85 06.495 HARNESS; ROOM LAMP 8-97309-727-0 01 1 0106- ● ●
87 02.480 HARNESS; EXT,ROOM LAMP 8-97075-747-0 01 1 9904- ● ●
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 		8-97172-039-3 01 1 9812-0105 ● ● ● ● ● ●
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97171-205-3 01 1 9812-0104 ● ● ● ● ● ●
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97306-681-0 01 1 0105-0105 ● ● ● ● ● ●
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97306-681-0 01 1 0106- ●
195 01.150 HARNESS; EXT 8-97306-681-0 01 1 0106- ● ● ●
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) 		8-97306-681-0 01 1 0106- ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97162-629-2 01 1 9812- ● ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-632-2 01 1 9904- ● ●
204 02.559 HARNESS; CABLE,FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97162-626-3 01 1 9904-0105 ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-626-4 01 1 0106-0207 ● ●
204 02.559 HARNESS; CABLE,FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97162-626-4 01 1 0208- ● ●
çizim 51406
13 575 329 329
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
13 02.525 HARNESS; ENG
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER(K51) POWER STEERING<N40> CHARGE AIR COOLER<6PL> 		8-97218-750-0 01 1 9906-0105 ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) 		8-97173-696-1 01 1 9812-0105 ●
13 02.525 HARNESS; ENG
4JH1 ENG(RJX) HEATER & DEFROSTER(C41) EXC. GENERATOR 12V80A(K97) 		8-97240-032-5 01 1 0106- ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97166-704-2 01 1 9812-9901 ● ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97166-704-2 01 1 9902-0105 ● ● ● ●
13 02.525 HARNESS; ENG
4JH1 ENG(RJX) HEATER & DEFROSTER(C41) GENERATOR 12V80A(K97) 		8-97261-132-4 01 1 0106- ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) 		8-97172-971-2 01 1 9812-0105 ● ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97172-971-2 01 1 0106-0207 ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> 		8-97172-971-2 01 1 0208- ● ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97170-519-1 01 1 9812-0105 ● ● ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97170-519-1 01 1 0106- ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) M/T MZZ6F(RSR) CHARGE AIR COOLER<6PL> 		8-97328-756-0 01 1 0208-0208 ● ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) M/T MZZ6F(RSR) CHARGE AIR COOLER<6PL> 		8-97356-989-0 01 1 0209- ● ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. CHARGE AIR COOLER<6PL> 		8-97328-755-0 01 1 0208-0208 ● ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. CHARGE AIR COOLER<6PL> 		8-97356-988-0 01 1 0209- ● ● ● ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 		8-97182-112-0 01 1 9812-0105 ●
329 02.480 CABLE; ENG TO FRAME
CHARGE AIR COOLER<6PL> 		8-97182-112-0 01 1 9812-0105 ● ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 		8-97182-112-0 01 1 0106- ●
329 02.480 CABLE; ENG TO FRAME 8-97182-112-0 01 1 0106- ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HE1 ENG(RLY) 		8-97182-112-0 01 1 0106- ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HE1 ENG(RLY) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97113-787-0 01 1 9812-0105 ●
329 02.480 CABLE; ENG TO FRAME
EXC. CHARGE AIR COOLER<6PL> 		8-97113-787-0 01 1 9812-0105 ● ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HE1 ENG(RLY) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97113-787-0 01 1 0106- ●
329 02.480 CABLE; ENG TO FRAME
4HE1 ENG(RLY) VOLTAGE 24V<7AE> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97065-249-1 01 1 9812- ●
329 02.480 CABLE; ENG TO FRAME
4JG2 ENG(RJC) 		8-97209-383-0 01 1 9812-9905 ●
329 02.480 CABLE; ENG TO FRAME
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97209-383-0 01 1 9906-0105 ●
329 02.480 CABLE; ENG TO FRAME
4JH1 ENG(RJX) 		8-97261-191-0 01 1 0106- ●
575 02.525 HARNESS; GLOW PLUG
4JG2 ENG(RJC) 		8-97212-328-0 01 1 9901-9905 ●
575 02.525 HARNESS; GLOW PLUG
4JG2 ENG(RJC) HEATER & DEFROSTER(C41) POWER STEERING<N40> EURO2 SPECIFICATION<7AF> 		8-97212-328-0 01 1 9906-0105 ●
575 02.525 HARNESS; GLOW PLUG
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER(K51) POWER STEERING<N40> CHARGE AIR COOLER<6PL> 		8-97212-328-0 01 1 9906-0105 ●
575 02.525 HARNESS; GLOW PLUG
4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 		8-97212-328-0 01 1 0106- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
