◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50818 - NPR/NQR(EUROPE)-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#43464) — 85 parça
çizim 46846
37 160 18 35 19 160 20 20 19 21 15 18 12 21 35 12 15 17 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 16.584 M6X13 		5-09981-074-0 04 1 9904-0105 ●
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
16.584 M6X13 		5-09981-074-0 04 1 0106- ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-94351-619-3 02 1 9904-0105 ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
DARK GRAY 		8-94351-619-3 02 1 0106- ● ●
16 16.714 COVER; HOLE,SEAT BELT
EXC. SEAT BELT FRT 3 POINT W/RETRACT OR<A49> 		8-97854-868-1 02 1 9904-0105 ●
17 16.714 SCREW; HOLE COVER,SEAT BELT
EXC. SEAT BELT FRT 3 POINT W/RETRACT OR<A49> 16.584 M6X13 		5-09981-074-0 08 1 9904-0105 ●
18 16.714 BELT; SEAT,RR
UNITED KINGDOM EQUIPMENT(6AA) DARK GRAY 		8-97868-451-0 02 1 9904-0105 ●
18 16.714 BELT; SEAT,RR
DARK GRAY 		8-97297-895-0 02 1 0106- ●
18 16.714 BELT; SEAT,RR
G.V.W. 7.5-8.0TON(RPY) DARK GRAY 		8-97297-895-0 02 1 0106- ●
19 16.714 BELT; RR SEAT,BUCKLE SIDE
UNITED KINGDOM EQUIPMENT(6AA) DARK GRAY 		8-97292-506-0 02 1 9904-0105 ●
19 16.714 BELT; RR SEAT,BUCKLE SIDE
DARK GRAY 		8-97292-506-0 02 1 0106- ●
19 16.714 BELT; RR SEAT,BUCKLE SIDE
G.V.W. 7.5-8.0TON(RPY) DARK GRAY 		8-97292-506-0 02 1 0106- ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> UNITED KINGDOM EQUIPMENT(6AA) DARK GRAY 		8-97292-508-0 01 1 9904-0105 ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
DARK GRAY 		8-97292-508-0 01 1 0106- ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
G.V.W. 7.5-8.0TON(RPY) DARK GRAY 		8-97292-508-0 01 1 0106- ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> UNITED KINGDOM EQUIPMENT(6AA) DARK GRAY 		8-97292-507-0 01 1 9904-0105 ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
DARK GRAY 		8-97292-507-0 01 1 0106- ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
G.V.W. 7.5-8.0TON(RPY) DARK GRAY 		8-97292-507-0 01 1 0106- ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> UNITED KINGDOM EQUIPMENT(6AA) DARK GRAY 		8-97199-107-0 01 1 9904-0105 ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
DARK GRAY 		8-97199-107-0 01 1 0106- ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
G.V.W. 7.5-8.0TON(RPY) DARK GRAY 		8-97199-107-0 01 1 0106- ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> UNITED KINGDOM EQUIPMENT(6AA) DARK GRAY 		8-97199-108-0 01 1 9904-0105 ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
DARK GRAY 		8-97199-108-0 01 1 0106- ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
G.V.W. 7.5-8.0TON(RPY) DARK GRAY 		8-97199-108-0 01 1 0106- ●
35 16.714 GROMMET; SEAT BELT ANCHOR
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> OD=22 		9-61168-535-0 01 1 9812-0105 ● ● ● ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & ASSIST 2 POI NT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> OD=22 		9-61168-535-0 04 1 9812-0105 ● ● ● ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
OD=22 		9-61168-535-0 06 1 9904-0003 ●
35 16.714 GROMMET; SEAT BELT ANCHOR
EXC. UNITED KINGDOM EQUIPMENT(6AA) OD=22 		9-61168-535-0 06 1 0004-0105 ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & ASSIST 2 POI NT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> L=18.5 		8-94279-726-0 02 1 9812-0003 ● ● ● ● ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
L=18.5 		8-94279-726-0 02 1 9812-0003 ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & ASSIST 2 POI NT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> L=18.5 		8-94279-726-0 02 1 0004-0105 ● ● ● ● ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. UNITED KINGDOM EQUIPMENT(6AA) L=18.5 		8-94279-726-0 02 1 0004-0105 ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. UNITED KINGDOM EQUIPMENT(6AA) L=18.5 		8-94279-726-0 02 1 0106- ● ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97854-897-0 01 1 9812-0003 ● ● ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97854-897-0 02 1 0004-0105 ● ● ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97854-897-0 02 1 0004-0105 ●
160 16.714 COVER; THROUGH ANCHOR
DARK GRAY 		8-97854-897-0 02 1 0106- ● ● ● ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
DARK GRAY 		8-97854-897-0 02 1 0106- ● ●

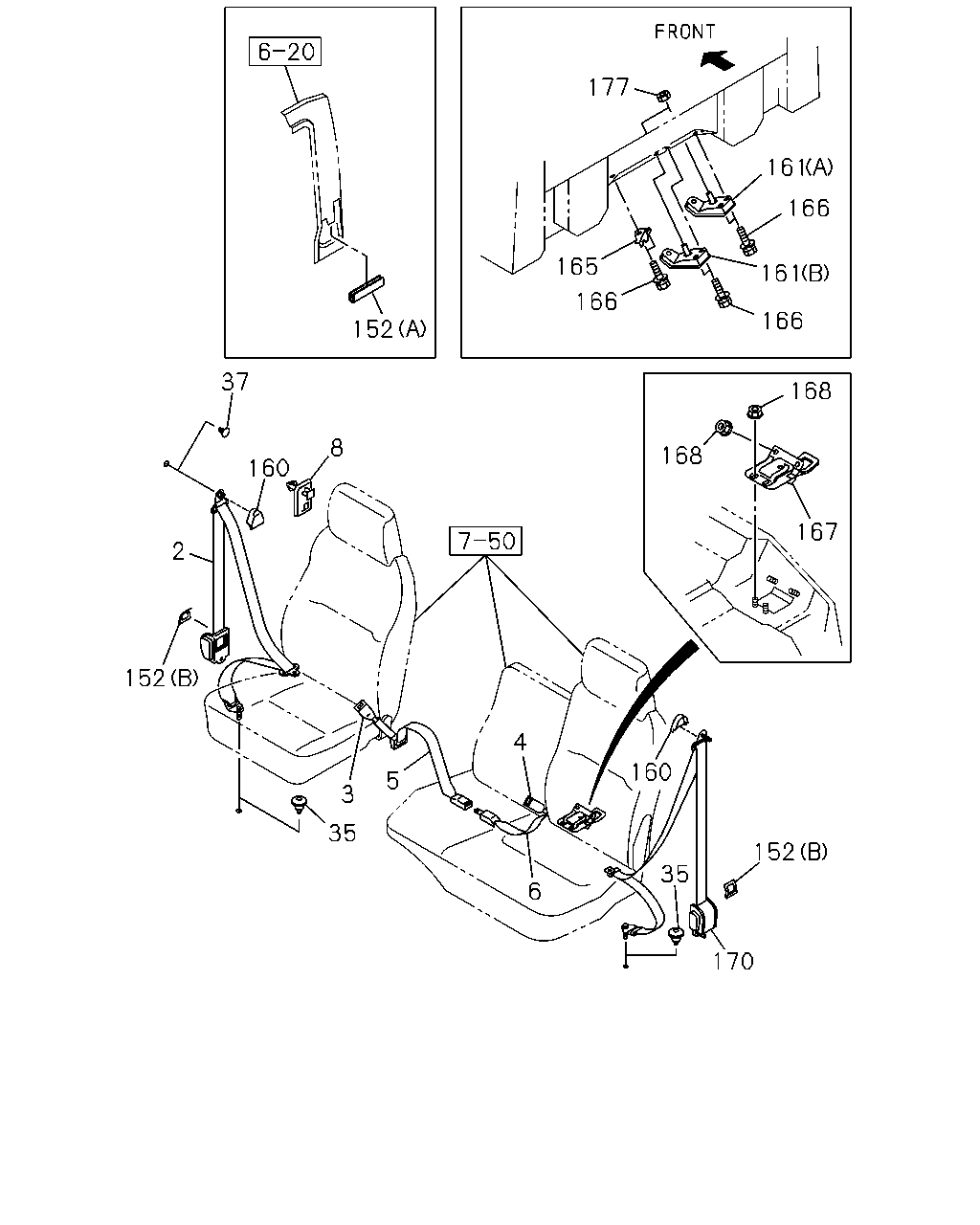

çizim 51691
177 161 166 165 161 166 166 152 37 168 8 168 160 167 2 152 4 160 5 3 35 152 35 6 170
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6> DARK GRAY 		8-97868-467-1 01 1 9812-0105 ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
DARK GRAY 		8-97296-747-0 01 1 0106- ● ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) DARK GRAY 		8-97868-459-0 01 1 9812-0105 ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) DARK GRAY 		8-97199-101-0 01 1 9812-0105 ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) DARK GRAY 		8-97868-362-0 01 1 9812-0105 ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) DARK GRAY 		8-97868-363-0 01 1 9812-0105 ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
DARK GRAY 		8-97868-363-0 01 1 0106- ● ● ● ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRT SEAT CTR 2 POINT<A38> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) DARK GRAY 		8-97199-045-0 01 1 9812-0105 ● ● ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
DARK GRAY 		8-97297-894-0 01 1 0106- ● ● ● ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97868-479-0 01 1 9812-0105 ● ● ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) DARK GRAY 		8-97868-525-0 01 1 9812-0105 ● ● ● ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) DARK GRAY 		8-97890-431-1 01 1 9812-0105 ● ● ● ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) DARK GRAY 		8-97198-782-0 01 1 9812-0105 ● ● ● ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
DARK GRAY 		8-97198-782-0 01 1 0106- ● ● ● ● ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) DARK GRAY 		8-97868-488-0 01 1 9812-0105 ● ● ● ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
DARK GRAY 		8-97296-650-0 01 1 0106- ● ● ● ● ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) DARK GRAY 		8-97198-783-0 01 1 9812-0105 ● ● ● ● ● ●
8 16.714 HOOK; SEAT BELT
SEAT BELT DRIVER & ASSIST 2 POINT<AS6> 		8-94276-268-1 02 1 9812-0105 ● ● ● ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> OD=22 		9-61168-535-0 01 1 9812-0105 ● ● ● ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & ASSIST 2 POI NT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> OD=22 		9-61168-535-0 04 1 9812-0105 ● ● ● ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
OD=22 		9-61168-535-0 06 1 9904-0003 ●
35 16.714 GROMMET; SEAT BELT ANCHOR
EXC. UNITED KINGDOM EQUIPMENT(6AA) OD=22 		9-61168-535-0 06 1 0004-0105 ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & ASSIST 2 POI NT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> L=18.5 		8-94279-726-0 02 1 9812-0003 ● ● ● ● ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
L=18.5 		8-94279-726-0 02 1 9812-0003 ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & ASSIST 2 POI NT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> L=18.5 		8-94279-726-0 02 1 0004-0105 ● ● ● ● ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. UNITED KINGDOM EQUIPMENT(6AA) L=18.5 		8-94279-726-0 02 1 0004-0105 ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. UNITED KINGDOM EQUIPMENT(6AA) L=18.5 		8-94279-726-0 02 1 0106- ● ●
152 16.714 PROTECTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 16.570 (A) L=30 SERVICED BY L=190 		1-71998-300-0 02 1 9812-0011 ● ● ● ● ● ●
152 16.714 PROTECTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> (B) 		8-97287-563-0 02 1 0012-0105 ● ● ● ● ● ●
152 16.714 PROTECTOR
(B) 		8-97287-563-0 02 1 0106- ● ● ● ● ● ● ●
152 16.714 PROTECTOR
(B) 		8-97287-563-0 02 1 0106- ● ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97854-897-0 01 1 9812-0003 ● ● ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97854-897-0 02 1 0004-0105 ● ● ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97854-897-0 02 1 0004-0105 ●
160 16.714 COVER; THROUGH ANCHOR
DARK GRAY 		8-97854-897-0 02 1 0106- ● ● ● ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
DARK GRAY 		8-97854-897-0 02 1 0106- ● ●
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR
(B) CENTER 		8-97850-329-4 01 1 9812- ● ● ● ● ● ● ●
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR
(A) 		8-97850-286-5 01 1 9812- ● ● ● ● ● ● ●
165 16.714 HOOK; SEAT BELT ANCHOR 8-97869-415-0 01 1 9812- ● ● ● ● ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
02.559 M8X25 FLANGE 		0-28680-825-0 06 1 9812- ● ● ● ● ● ● ●
167 16.714 PLATE; ANCHOR 8-97869-412-1 01 1 9812- ● ● ● ● ● ● ●
168 16.714 NUT; ANCHOR PLATE
00.854 M8 FLANGE 		5-09440-005-0 04 1 9812- ● ● ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6> DARK GRAY 		8-97868-467-1 01 1 9812-0105 ● ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
DARK GRAY 		8-97296-648-0 01 1 0106- ● ● ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) DARK GRAY 		8-97868-451-0 01 1 9812-0105 ● ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) DARK GRAY 		8-97198-780-1 01 1 9812-0105 ● ● ● ● ● ●
177 16.714 NUT
07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 9812- ● ● ● ● ● ● ●
