7-50 — FRONT SEAT (#43462) — 148 parça

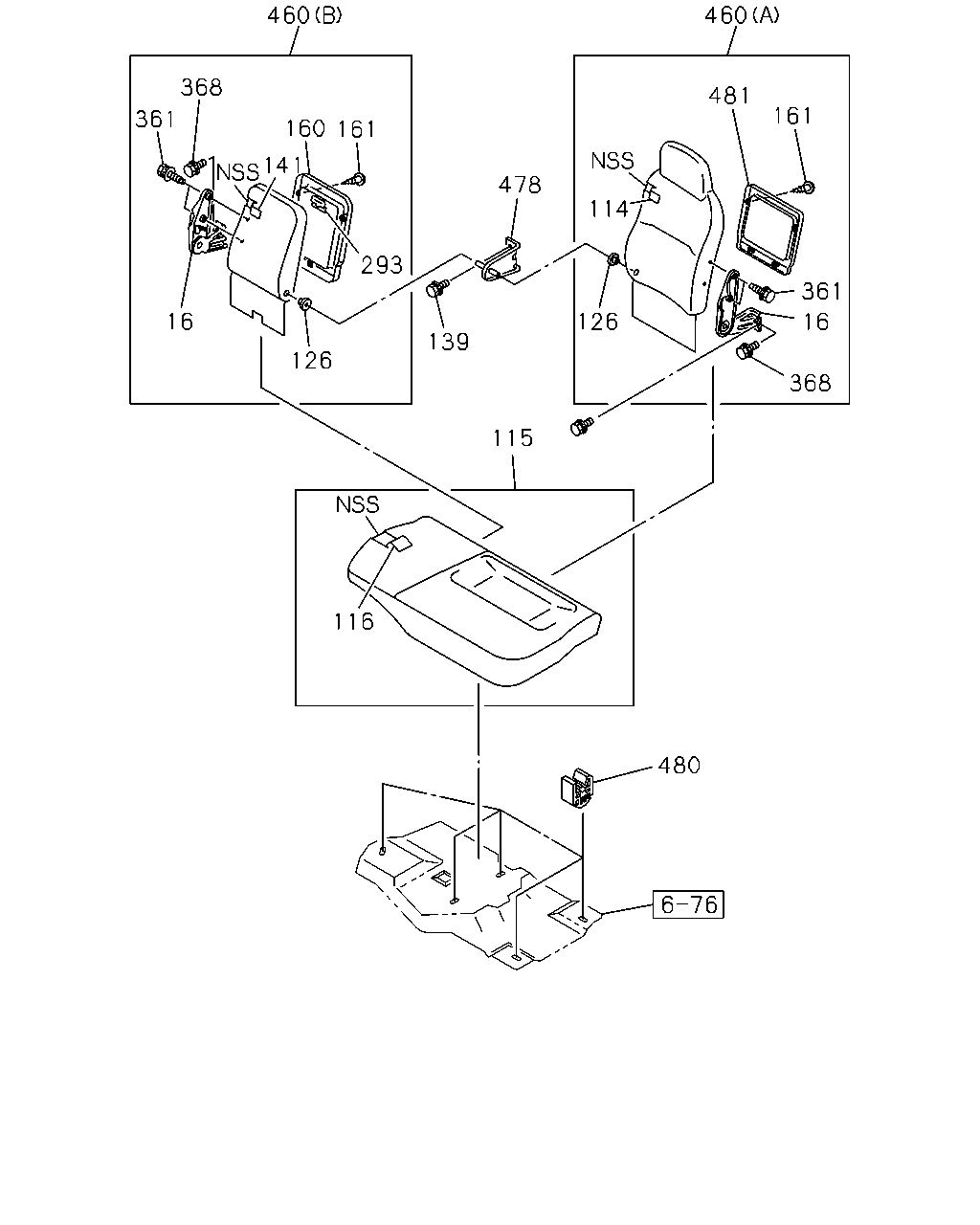

çizim 48959
460 460 368 481 161 361 160 161 141 478 114 293 361 16 126 16 139 126 368 115 116 480
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-2 01 1 9812- ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-273-3 01 1 9812- ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER CENTER BLACK 		8-97859-274-3 01 1 9812- ● ● ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) DARK GRAY 		8-97869-380-1 01 1 9812-9902 ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) DARK GRAY 		8-97867-096-3 01 1 9903-0105 ● ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) SEAT CLOTH<7FL> DARK GRAY 		8-97869-358-1 01 1 9812-9909 ● ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) SEAT CLOTH<7FL> DARK GRAY 		8-97293-672-0 01 1 9910-9910 ● ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) SEAT CLOTH<7FL> DARK GRAY 		8-97293-672-2 01 1 9911-0105 ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97293-672-4 01 1 0106- ● ● ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-357-2 01 1 9812-9909 ● ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97293-667-0 01 1 9910-9910 ● ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97293-667-2 01 1 9911-0105 ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),SEAT CLOTH<7FL> DARK GRAY 		8-97867-093-4 01 1 9812-0105 ● ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) SEAT CLOTH<7FL> DARK GRAY 		8-97869-358-2 01 1 9911-0105 ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-357-4 01 1 9911-0105 ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97868-477-3 01 1 9812-0105 ● ● ● ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97868-477-5 01 1 0106- ● ● ● ● ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97868-480-4 01 1 9812-0105 ● ● ● ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> DARK GRAY 		8-97869-363-0 01 1 9812-9902 ● ● ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> DARK GRAY 		8-97867-472-1 01 1 9903-0105 ● ● ● ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
DARK GRAY 		8-97867-472-3 01 1 0106- ● ● ● ● ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97867-467-2 01 1 9812-0105 ● ● ● ● ● ●
126 16.686 BUSHING; HINGE,RECLINING 8-97854-900-0 01 1 9812-0105 ● ● ● ● ● ●
126 16.686 BUSHING; HINGE,RECLINING 8-97854-900-0 01 1 9812-0105 ● ●
126 16.686 BUSHING; HINGE,RECLINING 8-97854-900-0 01 1 0106- ● ● ● ● ● ● ●
126 16.686 BUSHING; HINGE,RECLINING 8-97854-900-0 01 1 0106- ● ● ● ● ● ● ●
139 16.679 BOLT; PASSENGER SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 9812- ● ● ● ● ● ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97869-359-1 01 1 9812-9902 ● ● ● ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97867-466-3 01 1 9903-0105 ● ● ● ● ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
DARK GRAY 		8-97867-466-5 01 1 0106- ● ● ● ● ● ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97867-464-3 01 1 9812-0105 ● ● ● ● ● ●
160 16.650 CONSOLE; UPR,BACK CENTER
DARK GRAY 		8-97859-028-1 01 1 9812-0202 ● ● ● ● ● ● ●
160 16.650 CONSOLE; UPR,BACK CENTER
DARK GRAY 		8-97393-932-0 01 1 0203- ● ● ● ● ● ● ●
161 16.650 SCREW; CONSOLE
M4X12 		8-94279-351-0 04 1 9812-0105 ● ● ● ● ● ●
161 16.650 SCREW; CONSOLE
M4X12 		8-94279-351-0 04 1 9812-0105 ● ●
161 16.650 SCREW; CONSOLE
M4X12 		8-94279-351-0 04 1 0106- ● ● ● ● ● ● ●
161 16.650 SCREW; CONSOLE
M4X12 		8-94279-351-0 04 1 0106- ● ● ● ● ● ● ●
293 16.650 BINDER; CENTER CONSOLE 8-97854-344-1 01 1 9812-0202 ● ● ● ● ● ● ●
361 16.682 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 02 1 9812-0006 ● ● ● ● ● ●
361 16.682 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 02 1 9812-0006 ● ●
361 16.682 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 02 1 0007-0105 ● ● ● ● ● ●
361 16.682 BOLT; ADJ,RECLINING
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. SEAT CLOTH<7FL> M8X18 		8-94279-109-1 02 1 0007-0105 ●
361 16.682 BOLT; ADJ,RECLINING
EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) M8X18 		8-94279-109-1 02 1 0007-0105 ●
361 16.682 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 02 1 0106- ● ● ● ● ● ● ●
361 16.682 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 02 1 0106- ● ● ● ● ● ● ●
361 16.682 BOLT; ADJ,RECLINING
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) SEAT CLOTH<7FL> M8X20 		8-97255-906-0 02 1 0007-0105 ●
368 16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9812-0105 ● ● ● ● ● ●
368 16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9812-0105 ● ●
368 16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 0106- ● ● ● ● ● ● ●
368 16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 0106- ● ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (B) DARK GRAY 		8-97868-472-3 01 1 9812-0105 ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
(B) DARK GRAY 		8-97868-472-6 01 1 0106- ● ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) (A) DARK GRAY 		8-97868-512-3 01 1 9812-0105 ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> (B) DARK GRAY 		8-97868-474-3 01 1 9812-0105 ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) SEAT CLOTH<7FL> (A) DARK GRAY 		8-97868-471-1 01 1 9812-9909 ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) SEAT CLOTH<7FL> (A) DARK GRAY 		8-97293-648-0 01 1 9910-9910 ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) SEAT CLOTH<7FL> (A) DARK GRAY 		8-97293-648-2 01 1 9911-0105 ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
(A) DARK GRAY 		8-97293-648-4 01 1 0106- ● ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. SEAT CLOTH<7FL> (A) DARK GRAY 		8-97868-470-2 01 1 9812-9909 ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. SEAT CLOTH<7FL> (A) DARK GRAY 		8-97293-642-0 01 1 9910-9910 ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. SEAT CLOTH<7FL> (A) DARK GRAY 		8-97293-642-2 01 1 9911-0105 ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),SEAT CLOTH<7FL> (A) DARK GRAY 		8-97868-514-4 01 1 9812-0105 ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) SEAT CLOTH<7FL> (A) DARK GRAY 		8-97868-471-2 01 1 9911-0105 ●
460 16.670 BACK ASM; PASSENGER SEAT
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. SEAT CLOTH<7FL> (A) DARK GRAY 		8-97868-470-4 01 1 9911-0105 ●
478 16.716 BRACKET ASM; HINGE,PASSENGER SEA 8-97868-184-0 01 1 9812- ● ● ● ● ● ● ●
480 16.716 CLIP; CUSHION 8-94279-977-0 05 1 9812- ● ● ● ● ● ● ●
481 16.120 TRAY; SEAT BACK
DARK GRAY 		8-97859-024-0 01 1 9812- ● ● ● ● ● ● ●
çizim 50958
1 18 228 24 2 16 99 17 19 12 13 15 69 382 67 71 63
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.720 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),SEAT FRT,LONG SI ZE<7UG> DARK GRAY 		8-97866-983-3 01 1 9812-0105 ● ● ● ● ●
1 16.720 BACK ASM; SEAT
DARK GRAY 		8-97299-282-3 01 1 0106- ● ●
1 16.720 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),SEAT CLOTH<7FL> DARK GRAY 		8-97866-980-4 01 1 9812-0105 ● ● ● ● ●
1 16.720 BACK ASM; SEAT
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-229-0 01 1 9812-9901 ● ● ● ●
1 16.720 BACK ASM; SEAT
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-229-0 01 1 9902-9909 ● ● ● ● ●
1 16.720 BACK ASM; SEAT
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97293-659-1 01 1 9910-0105 ● ● ● ● ●
1 16.720 BACK ASM; SEAT
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) SEAT CLOTH<7FL> DARK GRAY 		8-97196-307-0 01 1 9812-9909 ● ● ● ● ●
1 16.720 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97196-307-0 01 1 9812-9909 ● ● ● ● ●
1 16.720 BACK ASM; SEAT
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) SEAT CLOTH<7FL> DARK GRAY 		8-97293-661-1 01 1 9910-0105 ● ● ● ● ●
1 16.720 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97293-661-1 01 1 9910-0105 ● ● ● ● ●
1 16.720 BACK ASM; SEAT
DARK GRAY 		8-97293-661-4 01 1 0106- ● ● ● ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. UNITED KINGDOM EQUIPMENT(6AA) DARK GRAY 		8-97869-321-3 01 1 9904-0105 ●
1 16.720 BACK ASM; SEAT
UNITED KINGDOM EQUIPMENT(6AA) SEAT CLOTH<7FL> DARK GRAY 		8-97196-221-1 01 1 9908-0105 ●
1 16.720 BACK ASM; SEAT
EXC. UNITED KINGDOM EQUIPMENT(6AA), SEAT CLOTH<7FL> DARK GRAY 		8-97869-338-3 01 1 9904-0105 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),SEAT FRT,LONG SI ZE<7UG> DARK GRAY 		8-97867-066-2 01 1 9812-0105 ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
DARK GRAY 		8-97299-283-2 01 1 0106- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),SEAT CLOTH<7FL> DARK GRAY 		8-97867-065-3 01 1 9812-0105 ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-300-0 01 1 9812-9909 ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97293-660-1 01 1 9910-0105 ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) SEAT CLOTH<7FL> DARK GRAY 		8-97196-214-0 01 1 9812-9909 ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97196-214-0 01 1 9812-9909 ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) SEAT CLOTH<7FL> DARK GRAY 		8-97293-662-1 01 1 9910-0105 ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97293-662-1 01 1 9910-0105 ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. UNITED KINGDOM EQUIPMENT(6AA) DARK GRAY 		8-97869-322-3 01 1 9904-0105 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
UNITED KINGDOM EQUIPMENT(6AA) SEAT CLOTH<7FL> DARK GRAY 		8-97196-222-1 01 1 9908-0105 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
DARK GRAY 		8-97293-662-3 01 1 0106- ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. UNITED KINGDOM EQUIPMENT(6AA), SEAT CLOTH<7FL> DARK GRAY 		8-97869-339-3 01 1 9904-0105 ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),SEAT FRT,LONG SI ZE<7UG> DARK GRAY 		8-97867-002-3 01 1 9812-0105 ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),SEAT CLOTH<7FL> DARK GRAY 		8-97866-998-4 01 1 9812-0105 ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-301-2 01 1 9812-0105 ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) SEAT CLOTH<7FL> DARK GRAY 		8-97196-215-2 01 1 9812-0105 ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97196-215-2 01 1 9812-0105 ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
DARK GRAY 		8-97196-215-4 01 1 0106- ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. UNITED KINGDOM EQUIPMENT(6AA) DARK GRAY 		8-97867-014-2 01 1 9904-0105 ●
12 16.670 CUSHION; SEAT,FRT
DARK GRAY 		8-97293-586-3 01 1 9908- ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. UNITED KINGDOM EQUIPMENT(6AA), SEAT CLOTH<7FL> DARK GRAY 		8-97867-011-2 01 1 9904-0105 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),SEAT FRT,LONG SI ZE<7UG> DARK GRAY 		8-97867-080-3 01 1 9812-0105 ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),SEAT CLOTH<7FL> DARK GRAY 		8-97867-078-4 01 1 9812-0105 ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-302-2 01 1 9812-0105 ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) SEAT CLOTH<7FL> DARK GRAY 		8-97196-216-2 01 1 9812-0105 ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97196-216-2 01 1 9812-0105 ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. UNITED KINGDOM EQUIPMENT(6AA) DARK GRAY 		8-97867-088-2 01 1 9904-0105 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
UNITED KINGDOM EQUIPMENT(6AA) SEAT CLOTH<7FL> DARK GRAY 		8-97196-224-1 01 1 9908-0105 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY 		8-97196-216-4 01 1 0106- ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY 		8-97196-224-3 01 1 0106- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. UNITED KINGDOM EQUIPMENT(6AA), SEAT CLOTH<7FL> DARK GRAY 		8-97867-086-2 01 1 9904-0105 ●
15 16.716 FRAME; CUSHION,FRT SEAT
UNITED KINGDOM EQUIPMENT(6AA) SEAT CLOTH<7FL> 		8-97854-986-1 01 1 9908-0105 ●
15 16.716 FRAME; CUSHION,FRT SEAT 8-97854-986-1 01 1 0106- ● ●
15 16.716 FRAME; CUSHION,FRT SEAT
EXC. UNITED KINGDOM EQUIPMENT(6AA) 		8-97854-055-1 01 1 9904-0105 ●
16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-2 01 1 9812- ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-273-3 01 1 9812- ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER CENTER BLACK 		8-97859-274-3 01 1 9812- ● ● ● ● ● ● ●
17 16.682 BOLT; RECLINING
M8X18 		8-94279-109-1 02 1 9812-0006 ● ● ● ● ● ●
17 16.682 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0007- ● ● ● ● ● ●
18 16.682 COVER; RECLINING
DARK GRAY 		8-97867-020-0 01 1 9812- ● ● ● ● ● ●
19 16.686 SCREW; COVER
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9812- ● ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
DARK GRAY 		8-97867-021-0 01 1 9812- ● ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> 		8-97869-043-0 01 1 9812-0105 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> 		8-97869-043-0 01 1 9812-0105 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) SEAT CLOTH<7FL> 		8-97869-043-0 01 1 9812-0105 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE 8-97869-043-0 01 1 0106- ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),SEAT FRT,LONG SI ZE<7UG> 		8-97854-059-3 01 1 9812-9907 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),SEAT CLOTH<7FL> 		8-97854-059-3 01 1 9812-9907 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. UNITED KINGDOM EQUIPMENT(6AA) 		8-97854-059-3 01 1 9812-9907 ●
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),SEAT CLOTH<7FL> 		8-97854-059-3 01 1 9908-0104 ● ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),SEAT FRT,LONG SI ZE<7UG> 		8-97854-059-3 01 1 9908-0104 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
UNITED KINGDOM EQUIPMENT(6AA) SEAT CLOTH<7FL> 		8-97854-059-3 01 1 9908-0104 ●
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),SEAT FRT,LONG SI ZE<7UG> 		8-97854-059-3 01 1 0105-0105 ●
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),SEAT CLOTH<7FL> 		8-97854-059-3 01 1 0105-0105 ●
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. UNITED KINGDOM EQUIPMENT(6AA), SEAT FRT,LONG SIZE<7UG> 		8-97854-059-3 01 1 0105-0105 ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> EXC. UNITED KINGDOM EQUIPMENT(6AA), SEAT CLOTH<7FL> 		8-97854-059-3 01 1 0105-0105 ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. UNITED KINGDOM EQUIPMENT(6AA), SEAT CLOTH<7FL> 		8-97854-059-3 01 1 0105-0105 ●
63 16.682 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL> 		8-97854-059-3 01 1 0105-0105 ●
63 16.682 ADJUSTER; SEAT SLIDE 8-97854-059-3 01 1 0106- ● ●
67 16.682 BOLT; FRT SEAT TO BODY
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9812- ● ● ● ● ● ● ●
69 16.682 NUT; FRT SEAT
M8 		1-09984-109-0 01 1 9812- ● ● ● ● ● ● ●
71 16.682 BOLT; ADJ TO SEAT
M8X18 		8-94279-109-1 02 1 9812-0006 ● ● ● ● ● ●
71 16.682 BOLT; ADJ TO SEAT
M8X20 		8-97255-906-0 02 1 0007- ● ● ● ● ● ●
99 16.716 BUSHING; SEAT BACK 8-97854-087-0 01 1 9812- ● ● ● ● ● ●
228 16.714 SCREW; KNOB
11.377 M4X6 		8-97042-273-0 01 1 9812- ● ● ● ● ● ●
382 16.682 WASHER; PL,DRIVER SEAT
06.514 ID=8.4 OD=22 		8-94127-883-1 01 1 9812- ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
