◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10720 - CXZ RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-53C - TRANSMISSION OIL COOLER SYSTEM ▶
2-53C — TRANSMISSION OIL COOLER SYSTEM (#4346) — 104 parça

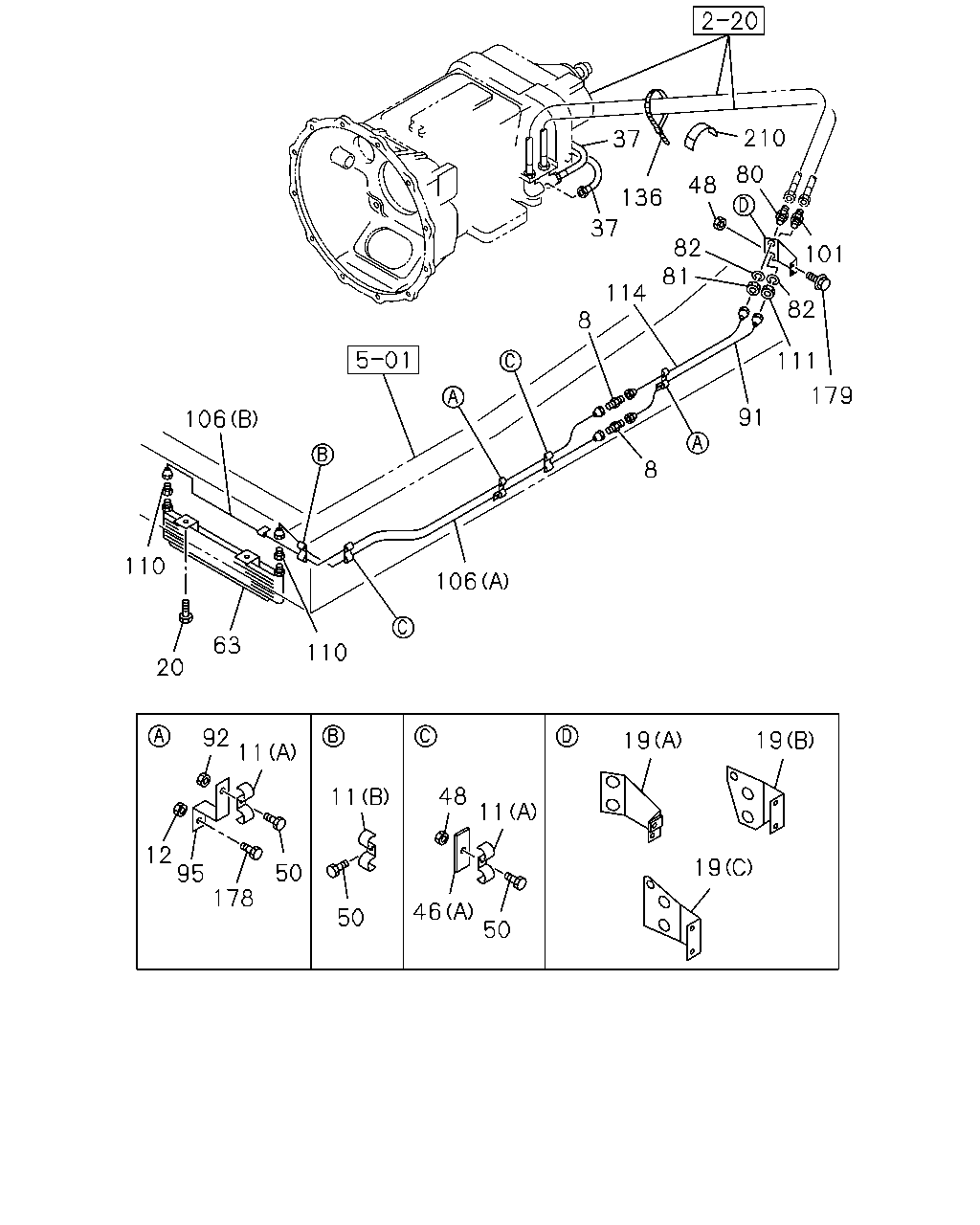

çizim 5113
210 37 80 48 136 37 82 81 101 114 82 8 111 179 91 106 8 110 106 63 110 20 92 19 19 11 48 11 11 12 95 19 50 178 46 50 50
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
8 UNION
TRANSMISSION OIL COOLER<C2C> M22 		9-09233-015-1 02 1 9603-9904 ● ●
8 UNION
TRANSMISSION OIL COOLER<C2C> M22 		9-09233-015-1 01 1 9905- ● ● ● ●
8 UNION
TRANSMISSION OIL COOLER<C2C> M22 		9-09233-015-1 01 1 9905- ● ● ● ●
11 CLIP; PIPE
TRANSMISSION OIL COOLER<C2C> (B) ID=16 & 9 L=21 & 18 		1-09700-676-0 01 1 9603-9904 ● ●
11 CLIP; PIPE
TRANSMISSION OIL COOLER<C2C> (B) ID=16 & 9 L=21 & 18 		1-09700-676-0 01 1 9905-0002 ● ● ● ●
11 CLIP; PIPE
L TYPE ENG<90L> TRANSMISSION OIL COOLER<C2C> (B) ID=16 & 9 L=21 & 18 		1-09700-676-0 01 1 0003- ● ● ● ●
11 CLIP; PIPE
TRANSMISSION OIL COOLER<C2C> (A) ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 03 1 9603-9904 ● ●
11 CLIP; PIPE
TRANSMISSION OIL COOLER<C2C> (A) ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 03 1 9905- ● ● ● ●
12 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> M8 		9-09110-508-0 01 1 9603-9606 ● ●
12 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 01 1 9607-9904 ● ●
12 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 01 1 9905- ● ● ● ●
19 BRACKET; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> (A) 		1-47477-355-0 01 1 9603-9701 ● ●
19 BRACKET; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> (A) 		1-47477-355-0 01 1 9702-9904 ● ●
19 BRACKET; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> (B) 		1-47478-235-0 01 1 9905-9905 ● ● ● ●
19 BRACKET; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> (C) 		1-47478-566-0 01 1 9906- ● ● ● ●
20 BOLT; COOLER TO BRKT
TRANSMISSION OIL COOLER<C2C> M10X20 FLANGE 		0-28081-020-0 02 1 9603-9606 ● ●
20 BOLT; COOLER TO BRKT
TRANSMISSION OIL COOLER<C2C> M10X25 FLANGE 		0-28681-025-0 02 1 9607-9904 ● ●
20 BOLT; COOLER TO BRKT
TRANSMISSION OIL COOLER<C2C> M10X25 FLANGE 		0-28681-025-0 02 1 9905-0006 ● ● ● ●
20 BOLT; COOLER TO BRKT
TRANSMISSION OIL COOLER<C2C> M10X20 FLANGE 		0-28081-020-0 02 1 0007- ● ● ● ●
37 HOSE; FLEX,OIL COOLER PIPE TO A/T
TRANSMISSION OIL COOLER<C2C> L=1120 		1-09365-010-0 02 1 9603-9904 ● ●
37 HOSE; FLEX,OIL COOLER PIPE TO A/T
TRANSMISSION OIL COOLER<C2C> L=1120 		1-09365-010-0 02 1 9905-9907 ● ● ●
37 HOSE; FLEX,OIL COOLER PIPE TO A/T
TRANSMISSION OIL COOLER<C2C> L=1120 		1-09365-010-0 02 1 9908- ● ● ● ●
46 BRACKET; OIL PIPE
TRANSMISSION OIL COOLER<C2C> (A) L=50 		1-47475-299-2 02 1 9603-9904 ● ●
46 BRACKET; OIL PIPE
TRANSMISSION OIL COOLER<C2C> (A) L=50 		1-47475-299-2 02 1 9905-0002 ● ● ●
46 BRACKET; OIL PIPE
TRANSMISSION OIL COOLER<C2C> (A) L=50 		1-47475-299-2 02 1 0003- ● ● ● ●
48 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> M8 		9-09110-508-0 02 1 9603-9606 ● ●
48 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> M8 		9-09110-508-0 02 1 9603-9606 ● ●
48 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 02 1 9607-9904 ● ●
48 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 02 1 9607-9904 ● ●
48 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 02 1 9905-0002 ● ● ●
48 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 02 1 9905-0002 ● ● ●
48 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 02 1 0003- ● ● ● ●
48 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 02 1 0003- ● ● ●
50 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> M8X16 FLANGE 		0-28080-816-0 03 1 9603-9606 ● ●
50 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE 		0-28680-820-0 03 1 9607-9904 ● ●
50 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE 		0-28680-820-0 02 1 9905- ● ● ● ●
50 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE 		0-28080-825-0 01 1 9603-9606 ● ●
50 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE 		0-28680-830-0 01 1 9607-9904 ● ●
50 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> M8X16 FLANGE 		0-28080-816-0 01 1 9603-9606 ● ●
50 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE 		0-28680-820-0 01 1 9607-9904 ● ●
50 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE 		0-28680-820-0 01 1 9905-0002 ● ● ●
50 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE 		0-28680-820-0 01 1 9905-0002 ● ● ●
50 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE 		0-28680-820-0 01 1 0003- ● ● ● ●
50 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE 		0-28680-820-0 01 1 0003- ● ● ● ●
50 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE 		0-28680-830-0 01 1 0003- ● ● ● ●
63 COOLER; OIL
TRANSMISSION OIL COOLER<C2C> 		1-21700-290-0 01 1 9603-9904 ● ●
63 COOLER; OIL
TRANSMISSION OIL COOLER<C2C> 		1-21700-290-0 01 1 9905- ● ● ● ●
80 UNION; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> M22 & M30 STRAIGHT 		1-09664-237-0 01 1 9603-9708 ● ●
80 UNION; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> M22 & M22 STRAIGHT 		1-09654-204-1 01 1 9709-9904 ● ●
80 UNION; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> M22 & M22 STRAIGHT 		1-09654-204-1 01 1 9905- ● ● ● ●
81 NUT; UNION
TRANSMISSION OIL COOLER<C2C> M22 		9-09111-422-0 01 1 9603-9904 ● ●
81 NUT; UNION
TRANSMISSION OIL COOLER<C2C> M22 		9-09111-422-0 01 1 9905- ● ● ● ●
82 WASHER; LK,UNION
TRANSMISSION OIL COOLER<C2C> ID=22.5 		9-09150-522-0 02 1 9603-9904 ● ●
82 WASHER; LK,UNION
TRANSMISSION OIL COOLER<C2C> ID=22.5 		9-09150-522-0 02 1 9905- ● ● ● ●
91 PIPE; OIL,FLEX HOSE TO UNION
TRANSMISSION OIL COOLER<C2C> 		1-47429-062-0 01 1 9603-9603 ● ●
91 PIPE; OIL,FLEX HOSE TO UNION
TRANSMISSION OIL COOLER<C2C> 		1-47429-789-0 01 1 9603-9904 ● ●
91 PIPE; OIL,FLEX HOSE TO UNION
TRANSMISSION OIL COOLER<C2C> L=911 		1-49163-072-0 01 1 9905-9905 ● ● ● ●
91 PIPE; OIL,FLEX HOSE TO UNION
L TYPE ENG<90L> TRANSMISSION OIL COOLER<C2C> L=837 		1-49163-182-0 01 1 9905- ● ● ● ●
92 NUT; CLIP
TRANSMISSION OIL COOLER<C2C> M8 		9-09110-508-0 01 1 9603-9606 ● ●
92 NUT; CLIP
TRANSMISSION OIL COOLER<C2C> M8 		9-09110-508-0 01 1 9603-9606 ● ●
92 NUT; CLIP
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 01 1 9607-9904 ● ●
92 NUT; CLIP
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 01 1 9607-9904 ● ●
92 NUT; CLIP
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 01 1 9905-9910 ● ● ●
92 NUT; CLIP
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 01 1 9905-9910 ● ● ●
92 NUT; CLIP
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 01 1 9911-0002 ● ● ● ●
92 NUT; CLIP
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 01 1 9911-0002 ● ● ● ●
92 NUT; CLIP
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 01 1 0003- ● ● ● ●
92 NUT; CLIP
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 01 1 0003- ● ● ● ●
95 BRACKET; CLIP
TRANSMISSION OIL COOLER<C2C> 		1-47475-881-0 01 1 9603-9904 ● ●
95 BRACKET; CLIP
TRANSMISSION OIL COOLER<C2C> 		1-47475-881-0 01 1 9905-9908 ● ● ●
95 BRACKET; CLIP
TRANSMISSION OIL COOLER<C2C> 		1-47475-881-0 02 1 9603-9904 ● ●
95 BRACKET; CLIP
TRANSMISSION OIL COOLER<C2C> 		1-47475-881-0 02 1 9905-9908 ● ● ●
95 BRACKET; CLIP
TRANSMISSION OIL COOLER<C2C> 		1-47475-881-0 01 1 9909-0002 ● ● ● ●
95 BRACKET; CLIP
TRANSMISSION OIL COOLER<C2C> 		1-47475-881-0 01 1 9909-0002 ● ● ● ●
95 BRACKET; CLIP
TRANSMISSION OIL COOLER<C2C> 		1-47475-881-0 01 1 0003- ● ● ● ●
95 BRACKET; CLIP
TRANSMISSION OIL COOLER<C2C> 		1-47475-881-0 01 1 0003- ● ● ● ●
101 UNION; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> M22 & M30 STRAIGHT 		1-09664-237-0 01 1 9603-9708 ● ●
101 UNION; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> M22 & M22 STRAIGHT 		1-09654-204-1 01 1 9709-9904 ● ●
101 UNION; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> M22 & M22 STRAIGHT 		1-09654-204-1 01 1 9905- ● ● ● ●
106 PIPE ASM; OIL,COOLER TO UNION
TRANSMISSION OIL COOLER<C2C> (A) 		1-47429-501-0 01 1 9603-9711 ● ●
106 PIPE ASM; OIL,COOLER TO UNION
TRANSMISSION OIL COOLER<C2C> (A) 		1-49162-309-0 01 1 9712-9904 ● ●
106 PIPE ASM; OIL,COOLER TO UNION
TRANSMISSION OIL COOLER<C2C> (B) L=1703 		1-49164-312-0 01 1 9905- ● ● ● ●
106 PIPE ASM; OIL,COOLER TO UNION
TRANSMISSION OIL COOLER<C2C> (B) 		1-47429-502-0 01 1 9603-9904 ● ●
106 PIPE ASM; OIL,COOLER TO UNION
TRANSMISSION OIL COOLER<C2C> (A) L=2317 		1-49164-311-0 01 1 9905- ● ● ● ●
110 UNION; OIL PIPE
TRANSMISSION OIL COOLER<C2C> 		1-09654-365-0 02 1 9603-9805 ● ●
110 UNION; OIL PIPE
TRANSMISSION OIL COOLER<C2C> 		1-09654-398-0 02 1 9806-9904 ● ●
110 UNION; OIL PIPE
TRANSMISSION OIL COOLER<C2C> 		1-09654-398-0 02 1 9905- ● ● ● ●
111 NUT; UNION
TRANSMISSION OIL COOLER<C2C> M22 		9-09111-422-0 01 1 9603-9904 ● ●
111 NUT; UNION
TRANSMISSION OIL COOLER<C2C> M22 		9-09111-422-0 01 1 9905- ● ● ● ●
114 PIPE; OIL,UNION TO FLEX HOSE
TRANSMISSION OIL COOLER<C2C> L=1013 		1-47429-790-0 01 1 9603-9904 ● ●
114 PIPE; OIL,UNION TO FLEX HOSE
TRANSMISSION OIL COOLER<C2C> L=1071 		1-49163-073-0 01 1 9905-9905 ● ● ● ●
114 PIPE; OIL,UNION TO FLEX HOSE
L TYPE ENG<90L> TRANSMISSION OIL COOLER<C2C> L=998 		1-49163-183-0 01 1 9905- ● ● ● ●
136 CLIP; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> L=250 		1-09707-126-0 01 1 9706-9904 ● ●
136 CLIP; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> L=250 		1-09707-126-0 01 1 9905-9907 ● ● ● ●
136 CLIP; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> L=250 		1-09707-126-0 01 1 9908- ● ● ● ●
178 BOLT; BRKT,CLIP
TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE 		0-28080-820-0 01 1 9603-9606 ● ●
178 BOLT; BRKT,CLIP
TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE 		0-28680-825-0 01 1 9607-9904 ● ●
178 BOLT; BRKT,CLIP
TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE 		0-28680-825-0 01 1 9905- ● ● ● ●
179 BOLT; BRKT
TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE 		0-28080-825-0 02 1 9603-9606 ● ●
179 BOLT; BRKT
TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE 		0-28680-830-0 02 1 9607-9904 ● ●
179 BOLT; BRKT
TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE 		0-28680-830-0 02 1 9905- ● ● ● ●
210 BAND; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> L=175 		1-09707-178-0 01 1 9706-9904 ● ●
210 BAND; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> L=175 		1-09707-178-0 01 1 9905-9907 ● ● ● ●
210 BAND; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> L=175 		1-09707-178-0 01 1 9908- ● ● ● ●
