Sayfa 6-90 - Isuzu EPC

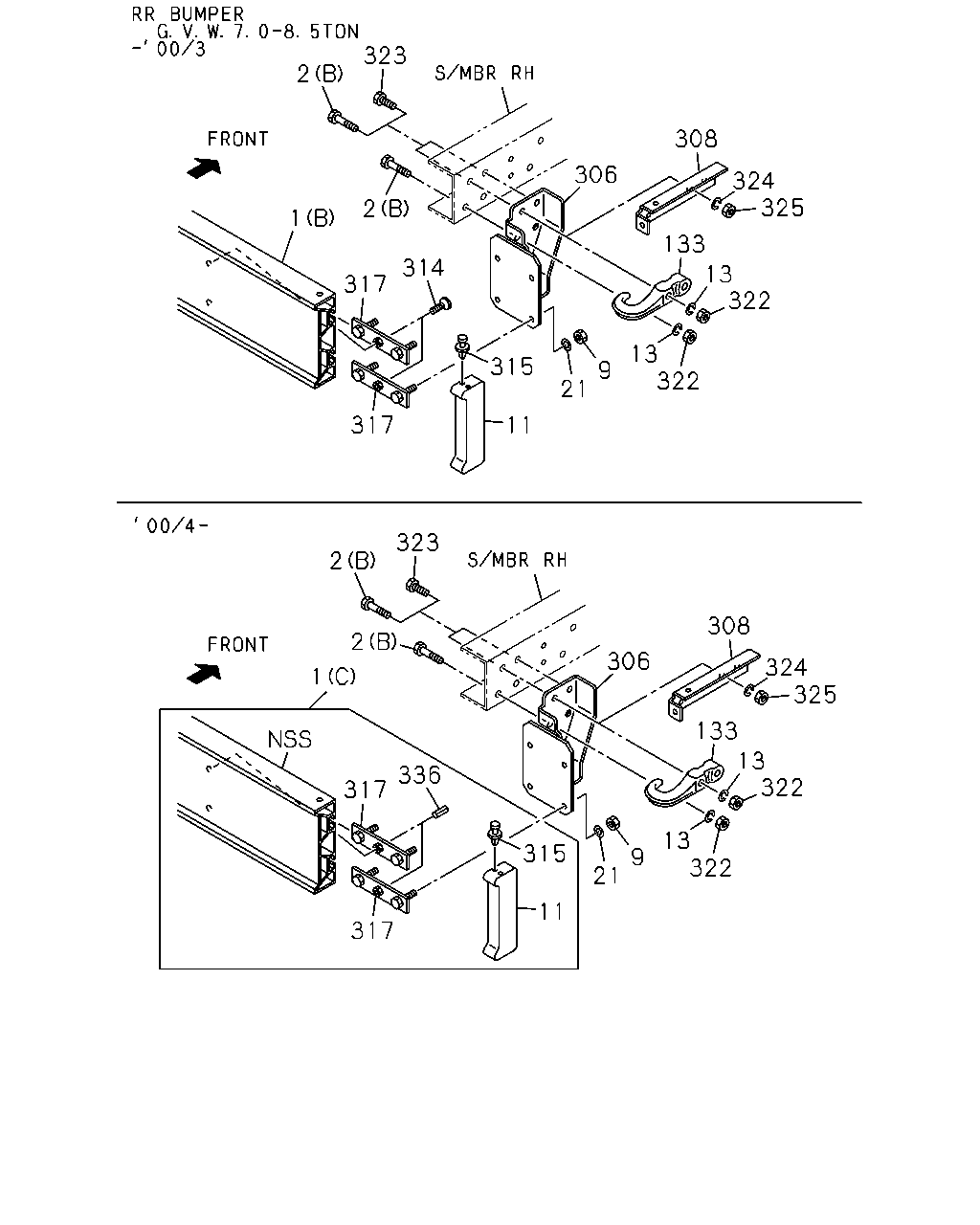

6-90 — REAR BUMPER (#43452) — 152 parça

323 2 308 306 324 325 2 1 133 314 13 322 317 13 322 315 9 21 317 11 323 2 308 2 306 324 325 1 133 13 322 336 317 13 322 315 9 21 11 317

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	07.070 BUMPER; RR G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) BUMPER REAR<7HZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97174-006-1	01	1	9812-0105	●
1	07.070 BUMPER; RR G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97174-006-1	01	1	0106-	●
1	07.070 BUMPER; RR G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> (A)	8-97205-670-0	01	1	9812-9901	●
1	07.070 BUMPER; RR G.V.W. 6.0-6.5TON(RPV) BUMPER REAR<7HZ> (A)	8-97205-670-0	01	1	9812-9901		●
1	07.070 BUMPER; RR G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> (A)	8-97205-670-0	01	1	9902-9903	●
1	07.070 BUMPER; RR G.V.W. 6.0-6.5TON(RPV) BUMPER REAR<7HZ> (A)	8-97205-670-0	01	1	9902-9903		●	●
1	07.070 BUMPER; RR G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> (A)	8-97205-670-0	01	1	9904-0105	●
1	07.070 BUMPER; RR G.V.W. 6.0-6.5TON(RPV) BUMPER REAR<7HZ> (A)	8-97205-670-0	01	1	9904-0105		●	●	●
1	07.070 BUMPER; RR G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> (A)	8-97205-670-0	01	1	0106-	●
1	07.070 BUMPER; RR G.V.W. 6.0-6.5TON(RPV) (A)	8-97205-670-0	01	1	0106-		●
1	07.070 BUMPER; RR (A)	8-97205-670-0	01	1	0106-			●	●
1	07.070 BUMPER; RR G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> (B)	8-97170-777-0	01	1	9812-9901	●	●			●	●
1	07.070 BUMPER; RR G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> (B)	8-97170-777-0	01	1	9902-0003	●	●	●		●	●
1	07.070 BUMPER; RR G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> (C)	8-97247-191-0	01	1	0004-0105	●	●	●		●	●
1	07.070 BUMPER; RR G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> (C)	8-97247-191-0	01	1	0106-	●
1	07.070 BUMPER; RR G.V.W. 7.5-8.0TON(RPY) (C)	8-97247-191-0	01	1	0106-		●			●	●	●
2	07.874 BOLT; BACK BAR G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 01.271 (A) M10X30	8-94324-205-0	04	1	9812-	●	●	●	●
2	07.874 BOLT; BACK BAR BUMPER REAR<7HZ> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) 07.347 (B) M14X30	0-20801-430-0	06	1	9812-9901	●	●			●	●
2	07.874 BOLT; BACK BAR BUMPER REAR<7HZ> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) 07.347 (B) M14X30	0-20801-430-0	06	1	9902-9903	●	●	●		●	●
2	07.874 BOLT; BACK BAR BUMPER REAR<7HZ> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) 07.347 (B) M14X30	0-20801-430-0	06	1	9904-0009	●	●	●	●	●	●
2	07.874 BOLT; BACK BAR BUMPER REAR<7HZ> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),FRAME STRAIGHT T YPE<7KJ> 07.347 (B) M14X30	0-20801-430-0	06	1	0010-0105	●				●	●
2	07.874 BOLT; BACK BAR UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) BUMPER REAR<7HZ> 07.347 (B) M14X30	0-20801-430-0	08	1	9812-9901	●	●			●	●
2	07.874 BOLT; BACK BAR UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) BUMPER REAR<7HZ> 07.347 (B) M14X30	0-20801-430-0	08	1	9902-9903	●	●	●		●	●
2	07.874 BOLT; BACK BAR UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) BUMPER REAR<7HZ> 07.347 (B) M14X30	0-20801-430-0	08	1	9904-0105	●	●	●	●	●	●
2	07.874 BOLT; BACK BAR 07.347 (B) M14X30	0-20801-430-0	08	1	0106-	●	●	●	●	●	●	●
9	07.070 NUT; BUMPER G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) BUMPER REAR<7HZ> 08.917 M10 FLANGE	0-91150-210-0	02	1	9812-0105	●	●	●	●
9	07.070 NUT; BUMPER G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 08.917 M10 FLANGE	0-91150-210-0	02	1	0106-	●	●	●	●
9	07.070 NUT; BUMPER G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> 04.634 M12	9-99110-512-0	08	1	9812-9901	●	●			●	●
9	07.070 NUT; BUMPER G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> 04.634 M12	9-99110-512-0	08	1	9902-0105	●	●	●		●	●
9	07.070 NUT; BUMPER G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> 04.634 M12	9-99110-512-0	08	1	0106-	●	●			●	●	●
11	07.829 CAP; RR BUMPER G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ>	1-71290-049-0	02	1	9812-9901	●	●			●	●
11	07.829 CAP; RR BUMPER G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ>	1-71290-049-0	02	1	9902-0003	●	●	●		●	●
11	07.829 CAP; RR BUMPER G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ>	1-71290-055-0	02	1	0004-	●	●			●	●	●
13	07.833 WASHER; LK,BACK BAR TO FRAME BUMPER REAR<7HZ> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) 05.422 ID=14.2	9-09150-814-0	06	1	9812-9901	●	●			●	●
13	07.833 WASHER; LK,BACK BAR TO FRAME BUMPER REAR<7HZ> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) 05.422 ID=14.2	9-09150-814-0	06	1	9902-9903	●	●	●		●	●
13	07.833 WASHER; LK,BACK BAR TO FRAME BUMPER REAR<7HZ> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) 05.422 ID=14.2	9-09150-814-0	06	1	9904-0009	●	●	●	●	●	●
13	07.833 WASHER; LK,BACK BAR TO FRAME BUMPER REAR<7HZ> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),FRAME STRAIGHT T YPE<7KJ> 05.422 ID=14.2	9-09150-814-0	06	1	0010-0105	●				●	●
13	07.833 WASHER; LK,BACK BAR TO FRAME UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) BUMPER REAR<7HZ> 05.422 ID=14.2	9-09150-814-0	08	1	9812-0105	●	●	●	●	●	●
13	07.833 WASHER; LK,BACK BAR TO FRAME 05.422 ID=14.2	9-09150-814-0	08	1	0106-	●	●	●	●	●	●	●
21	07.070 WASHER; LK,BUMPER G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> 04.634 ID=12.2	9-09150-512-0	08	1	9812-9901	●	●			●	●
21	07.070 WASHER; LK,BUMPER G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> 04.634 ID=12.2	9-09150-512-0	08	1	9902-0105	●	●	●		●	●
21	07.070 WASHER; LK,BUMPER G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> 04.634 ID=12.2	9-09150-512-0	08	1	0106-	●	●			●	●	●
133	07.112 HOOK EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),FRAME STRAIGHT TYPE<7KJ> 07.068	8-94249-270-2	01	1	9812-0105	●
133	07.112 HOOK FRAME STRAIGHT TYPE<7KJ> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU)	8-97122-535-0	01	1	9812-0105	●	●	●	●	●	●
306	07.836 BAR; BACK,RR G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) BUMPER REAR<7HZ> STAMP BL	8-97128-333-0	01	1	9812-0105	●	●	●	●
306	07.836 BAR; BACK,RR G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) BUMPER REAR<7HZ> STAMP BR	8-97128-334-0	01	1	9812-0105	●	●	●	●
306	07.836 BAR; BACK,RR G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> STAMP IA	8-97138-361-1	01	1	9812-9901	●	●			●	●
306	07.836 BAR; BACK,RR G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> STAMP IA	8-97138-361-1	01	1	9902-0105	●	●	●		●	●
306	07.836 BAR; BACK,RR G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> STAMP IA	8-97138-361-1	01	1	0106-	●	●			●	●	●
306	07.836 BAR; BACK,RR G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> STAMP IA	8-97138-362-1	01	1	9812-9901	●	●			●	●
306	07.836 BAR; BACK,RR G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> STAMP IA	8-97138-362-1	01	1	9902-0105	●	●	●		●	●
306	07.836 BAR; BACK,RR G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> STAMP IA	8-97138-362-1	01	1	0106-	●	●			●	●	●
306	07.836 BAR; BACK,RR G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) STAMP BL	8-97128-333-0	01	1	0106-	●	●	●	●
306	07.836 BAR; BACK,RR G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) STAMP BR	8-97128-334-0	01	1	0106-	●	●	●	●
308	07.068 BRACKET; RAIL UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU)	8-97094-278-1	01	1	9812-0105	●	●	●	●	●	●
308	07.068 BRACKET; RAIL	8-97094-278-1	01	1	0106-	●	●	●	●	●	●	●
308	07.068 BRACKET; RAIL UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU)	8-97094-277-1	01	1	9812-0105	●	●	●	●	●	●
308	07.068 BRACKET; RAIL	8-97094-277-1	01	1	0106-	●	●	●	●	●	●	●
314	07.831 SCREW; PLATE G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> 07.832	9-03090-620-0	04	1	9812-0003	●	●	●		●	●
315	07.829 RIVET; CAP G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> PUSH RIVET BLACK	1-71290-041-0	04	1	9812-9901	●	●			●	●
315	07.829 RIVET; CAP G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> PUSH RIVET BLACK	1-71290-041-0	04	1	9902-0003	●	●	●		●	●
315	07.829 RIVET; CAP G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> PUSH RIVET BLACK	1-71290-041-0	04	1	0004-	●	●			●	●	●
317	07.800 PLATE; BUMPER SIDE G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ>	1-71290-043-1	04	1	9812-9901	●	●			●	●
317	07.800 PLATE; BUMPER SIDE G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ>	1-71290-043-1	04	1	9902-0003	●	●	●		●	●
317	07.800 PLATE; BUMPER SIDE G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ>	1-71290-053-0	04	1	0004-	●	●			●	●	●
322	07.833 NUT; BACK BAR TO FRAME BUMPER REAR<7HZ> EXC. UNITED KINGDOM EQUIPMENT(6AA) 07.529 M14	9-99110-514-0	06	1	9812-0105					●	●
322	07.833 NUT; BACK BAR TO FRAME UNITED KINGDOM EQUIPMENT(6AA) BUMPER REAR<7HZ> 07.529 M14	9-99110-514-0	08	1	9812-0105					●	●
322	07.833 NUT; BACK BAR TO FRAME 07.529 M14	9-99110-514-0	08	1	0106-					●	●	●
323	07.833 BOLT; RAIL TO FRAME UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> 07.347 M14X30	0-20801-430-0	04	1	9812-0105	●	●	●	●	●	●
323	07.833 BOLT; RAIL TO FRAME FRAME STRAIGHT TYPE<7KJ> 07.347 M14X30	0-20801-430-0	04	1	0106-	●
323	07.833 BOLT; RAIL TO FRAME 07.347 M14X30	0-20801-430-0	04	1	0106-		●	●	●	●	●	●
324	07.833 WASHER; LK,RAIL TO FRAME UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> 05.422 ID=14.2	9-09150-814-0	04	1	9812-0105	●	●	●	●	●	●
324	07.833 WASHER; LK,RAIL TO FRAME FRAME STRAIGHT TYPE<7KJ> 05.422 ID=14.2	9-09150-814-0	04	1	0106-	●
324	07.833 WASHER; LK,RAIL TO FRAME 05.422 ID=14.2	9-09150-814-0	04	1	0106-		●	●	●	●	●	●
325	07.833 NUT; RAIL TO FRAME UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> 07.529 M14	9-99110-514-0	04	1	9812-0105	●	●	●	●	●	●
325	07.833 NUT; RAIL TO FRAME FRAME STRAIGHT TYPE<7KJ> 07.529 M14	9-99110-514-0	04	1	0106-	●
325	07.833 NUT; RAIL TO FRAME 07.529 M14	9-99110-514-0	04	1	0106-		●	●	●	●	●	●
336	07.070 PIN; SPRING G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ>	1-71290-054-0	04	1	0004-	●	●			●	●	●

113 127 127 129 129 134 135 133 136 128 128 2 133 13 12 2 308 306 13 12 9 12 13 2 1 2

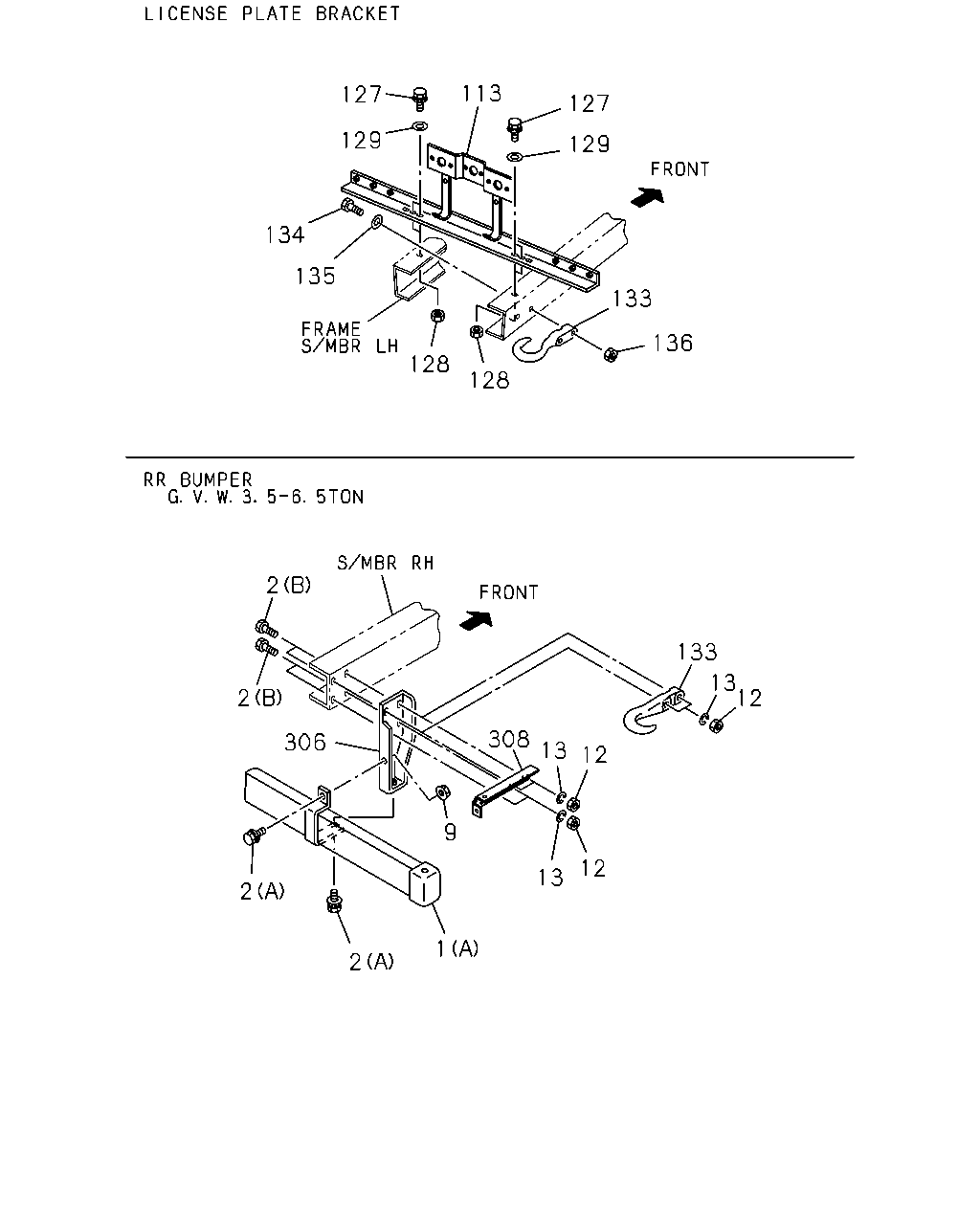

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	07.070 BUMPER; RR G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) BUMPER REAR<7HZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97174-006-1	01	1	9812-0105	●
1	07.070 BUMPER; RR G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97174-006-1	01	1	0106-	●
1	07.070 BUMPER; RR G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> (A)	8-97205-670-0	01	1	9812-9901	●
1	07.070 BUMPER; RR G.V.W. 6.0-6.5TON(RPV) BUMPER REAR<7HZ> (A)	8-97205-670-0	01	1	9812-9901		●
1	07.070 BUMPER; RR G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> (A)	8-97205-670-0	01	1	9902-9903	●
1	07.070 BUMPER; RR G.V.W. 6.0-6.5TON(RPV) BUMPER REAR<7HZ> (A)	8-97205-670-0	01	1	9902-9903		●	●
1	07.070 BUMPER; RR G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> (A)	8-97205-670-0	01	1	9904-0105	●
1	07.070 BUMPER; RR G.V.W. 6.0-6.5TON(RPV) BUMPER REAR<7HZ> (A)	8-97205-670-0	01	1	9904-0105		●	●	●
1	07.070 BUMPER; RR G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> (A)	8-97205-670-0	01	1	0106-	●
1	07.070 BUMPER; RR G.V.W. 6.0-6.5TON(RPV) (A)	8-97205-670-0	01	1	0106-		●
1	07.070 BUMPER; RR (A)	8-97205-670-0	01	1	0106-			●	●
1	07.070 BUMPER; RR G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> (B)	8-97170-777-0	01	1	9812-9901	●	●			●	●
1	07.070 BUMPER; RR G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> (B)	8-97170-777-0	01	1	9902-0003	●	●	●		●	●
1	07.070 BUMPER; RR G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> (C)	8-97247-191-0	01	1	0004-0105	●	●	●		●	●
1	07.070 BUMPER; RR G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> (C)	8-97247-191-0	01	1	0106-	●
1	07.070 BUMPER; RR G.V.W. 7.5-8.0TON(RPY) (C)	8-97247-191-0	01	1	0106-		●			●	●	●
2	07.874 BOLT; BACK BAR G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 01.271 (A) M10X30	8-94324-205-0	04	1	9812-	●	●	●	●
2	07.874 BOLT; BACK BAR BUMPER REAR<7HZ> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) 07.347 (B) M14X30	0-20801-430-0	06	1	9812-9901	●	●			●	●
2	07.874 BOLT; BACK BAR BUMPER REAR<7HZ> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) 07.347 (B) M14X30	0-20801-430-0	06	1	9902-9903	●	●	●		●	●
2	07.874 BOLT; BACK BAR BUMPER REAR<7HZ> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) 07.347 (B) M14X30	0-20801-430-0	06	1	9904-0009	●	●	●	●	●	●
2	07.874 BOLT; BACK BAR BUMPER REAR<7HZ> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),FRAME STRAIGHT T YPE<7KJ> 07.347 (B) M14X30	0-20801-430-0	06	1	0010-0105	●				●	●
2	07.874 BOLT; BACK BAR UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) BUMPER REAR<7HZ> 07.347 (B) M14X30	0-20801-430-0	08	1	9812-9901	●	●			●	●
2	07.874 BOLT; BACK BAR UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) BUMPER REAR<7HZ> 07.347 (B) M14X30	0-20801-430-0	08	1	9902-9903	●	●	●		●	●
2	07.874 BOLT; BACK BAR UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) BUMPER REAR<7HZ> 07.347 (B) M14X30	0-20801-430-0	08	1	9904-0105	●	●	●	●	●	●
2	07.874 BOLT; BACK BAR 07.347 (B) M14X30	0-20801-430-0	08	1	0106-	●	●	●	●	●	●	●
9	07.070 NUT; BUMPER G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) BUMPER REAR<7HZ> 08.917 M10 FLANGE	0-91150-210-0	02	1	9812-0105	●	●	●	●
9	07.070 NUT; BUMPER G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 08.917 M10 FLANGE	0-91150-210-0	02	1	0106-	●	●	●	●
9	07.070 NUT; BUMPER G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> 04.634 M12	9-99110-512-0	08	1	9812-9901	●	●			●	●
9	07.070 NUT; BUMPER G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> 04.634 M12	9-99110-512-0	08	1	9902-0105	●	●	●		●	●
9	07.070 NUT; BUMPER G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> 04.634 M12	9-99110-512-0	08	1	0106-	●	●			●	●	●
12	07.833 NUT; BRKT BUMPER REAR<7HZ> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) 07.529 M14	9-99110-514-0	06	1	9812-9901	●	●
12	07.833 NUT; BRKT BUMPER REAR<7HZ> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) 07.529 M14	9-99110-514-0	06	1	9902-9903	●	●	●
12	07.833 NUT; BRKT BUMPER REAR<7HZ> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) 07.529 M14	9-99110-514-0	06	1	9904-0009	●	●	●	●
12	07.833 NUT; BRKT BUMPER REAR<7HZ> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),FRAME STRAIGHT T YPE<7KJ> 07.529 M14	9-99110-514-0	06	1	0010-0105	●
12	07.833 NUT; BRKT UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) BUMPER REAR<7HZ> 07.529 M14	9-99110-514-0	08	1	9812-9901	●	●
12	07.833 NUT; BRKT UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) BUMPER REAR<7HZ> 07.529 M14	9-99110-514-0	08	1	9902-9903	●	●	●
12	07.833 NUT; BRKT UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) BUMPER REAR<7HZ> 07.529 M14	9-99110-514-0	08	1	9904-0105	●	●	●	●
12	07.833 NUT; BRKT 07.529 M14	9-99110-514-0	08	1	0106-	●	●	●	●
13	07.833 WASHER; LK,BACK BAR TO FRAME BUMPER REAR<7HZ> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) 05.422 ID=14.2	9-09150-814-0	06	1	9812-9901	●	●			●	●
13	07.833 WASHER; LK,BACK BAR TO FRAME BUMPER REAR<7HZ> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) 05.422 ID=14.2	9-09150-814-0	06	1	9902-9903	●	●	●		●	●
13	07.833 WASHER; LK,BACK BAR TO FRAME BUMPER REAR<7HZ> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) 05.422 ID=14.2	9-09150-814-0	06	1	9904-0009	●	●	●	●	●	●
13	07.833 WASHER; LK,BACK BAR TO FRAME BUMPER REAR<7HZ> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),FRAME STRAIGHT T YPE<7KJ> 05.422 ID=14.2	9-09150-814-0	06	1	0010-0105	●				●	●
13	07.833 WASHER; LK,BACK BAR TO FRAME UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) BUMPER REAR<7HZ> 05.422 ID=14.2	9-09150-814-0	08	1	9812-0105	●	●	●	●	●	●
13	07.833 WASHER; LK,BACK BAR TO FRAME 05.422 ID=14.2	9-09150-814-0	08	1	0106-	●	●	●	●	●	●	●
113	07.800 BRACKET; LICENSE PLATE EXC. UNITED KINGDOM EQUIPMENT(6AA), FRAME STRAIGHT TYPE<7KJ> 02.662	8-97096-644-0	01	1	9812-0105	●
113	07.800 BRACKET; LICENSE PLATE IRISH EQUIPMENT(6CU) EXC. FRAME STRAIGHT TYPE<7KJ> 02.662	8-97096-644-1	01	1	0106-	●
113	07.800 BRACKET; LICENSE PLATE FRAME STRAIGHT TYPE<7KJ> EXC. UNITED KINGDOM EQUIPMENT(6AA) 02.662	8-97122-800-0	01	1	9812-0105	●	●	●	●	●	●
113	07.800 BRACKET; LICENSE PLATE IRISH EQUIPMENT(6CU) FRAME STRAIGHT TYPE<7KJ> 02.662	8-97122-800-0	01	1	0106-	●
113	07.800 BRACKET; LICENSE PLATE IRISH EQUIPMENT(6CU) 02.662	8-97122-800-0	01	1	0106-		●	●	●	●	●	●
127	02.662 BOLT; CROSS PLATE EXC. UNITED KINGDOM EQUIPMENT(6AA) 03.483 M8X40 W/LK&PL WASHER	0-50140-840-0	02	1	9812-0105	●	●	●	●	●	●
127	02.662 BOLT; CROSS PLATE IRISH EQUIPMENT(6CU) 03.483 M8X40 W/LK&PL WASHER	0-50140-840-0	02	1	0106-	●	●	●	●	●	●	●
128	02.662 NUT; CROSS PLATE EXC. UNITED KINGDOM EQUIPMENT(6AA) 02.559 M8	9-09110-408-0	02	1	9812-0105	●	●	●	●	●	●
128	02.662 NUT; CROSS PLATE IRISH EQUIPMENT(6CU) 02.559 M8	9-09110-408-0	02	1	0106-	●	●	●	●	●	●	●
129	03.162 WASHER; PL,CROSS PLATE EXC. UNITED KINGDOM EQUIPMENT(6AA) 02.334 ID=8.4 OD=26	9-09164-808-0	02	1	9812-0105		●			●	●
129	03.162 WASHER; PL,CROSS PLATE IRISH EQUIPMENT(6CU) 02.334 ID=8.4 OD=26	9-09164-808-0	02	1	0106-		●			●	●	●
133	07.112 HOOK EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),FRAME STRAIGHT TYPE<7KJ> 07.068	8-94249-270-2	01	1	9812-0105	●
133	07.112 HOOK FRAME STRAIGHT TYPE<7KJ> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU)	8-97122-535-0	01	1	9812-0105	●	●	●	●	●	●
134	07.068 BOLT; HOOK EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) 07.039 M14X50	0-10806-450-0	02	1	9812-0105	●	●	●	●	●	●
135	07.068 WASHER; LK,HOOK EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) 05.422 ID=14.2	9-09150-814-0	02	1	9812-0105	●	●	●	●	●	●
136	07.068 NUT; HOOK EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) 07.529 M14	9-99110-514-0	02	1	9812-0105	●	●	●	●	●	●
306	07.836 BAR; BACK,RR G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) BUMPER REAR<7HZ> STAMP BL	8-97128-333-0	01	1	9812-0105	●	●	●	●
306	07.836 BAR; BACK,RR G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) BUMPER REAR<7HZ> STAMP BR	8-97128-334-0	01	1	9812-0105	●	●	●	●
306	07.836 BAR; BACK,RR G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> STAMP IA	8-97138-361-1	01	1	9812-9901	●	●			●	●
306	07.836 BAR; BACK,RR G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> STAMP IA	8-97138-361-1	01	1	9902-0105	●	●	●		●	●
306	07.836 BAR; BACK,RR G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> STAMP IA	8-97138-361-1	01	1	0106-	●	●			●	●	●
306	07.836 BAR; BACK,RR G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> STAMP IA	8-97138-362-1	01	1	9812-9901	●	●			●	●
306	07.836 BAR; BACK,RR G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> STAMP IA	8-97138-362-1	01	1	9902-0105	●	●	●		●	●
306	07.836 BAR; BACK,RR G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> STAMP IA	8-97138-362-1	01	1	0106-	●	●			●	●	●
306	07.836 BAR; BACK,RR G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) STAMP BL	8-97128-333-0	01	1	0106-	●	●	●	●
306	07.836 BAR; BACK,RR G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) STAMP BR	8-97128-334-0	01	1	0106-	●	●	●	●
308	07.068 BRACKET; RAIL UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU)	8-97094-278-1	01	1	9812-0105	●	●	●	●	●	●
308	07.068 BRACKET; RAIL	8-97094-278-1	01	1	0106-	●	●	●	●	●	●	●
308	07.068 BRACKET; RAIL UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU)	8-97094-277-1	01	1	9812-0105	●	●	●	●	●	●
308	07.068 BRACKET; RAIL	8-97094-277-1	01	1	0106-	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
