8 |
UNION
TRANSMISSION OIL COOLER<C2C>
M22
|
9-09233-015-1 |
02 |
1 |
9603-9904 |
● |
|
| |
8 |
UNION
TRANSMISSION OIL COOLER<C2C>
M22
|
9-09233-015-1 |
01 |
1 |
9905- |
● |
● |
| |
8 |
UNION
TRANSMISSION OIL COOLER<C2C>
M22
|
9-09233-015-1 |
01 |
1 |
9905- |
● |
● |
| |
11 |
CLIP; PIPE
L TYPE ENG<90L>
TRANSMISSION OIL COOLER<C2C>
(B)
ID=16 & 9 L=21 & 18
|
1-09700-676-0 |
01 |
1 |
9603-9904 |
● |
|
| |
11 |
CLIP; PIPE
L TYPE ENG<90L>
TRANSMISSION OIL COOLER<C2C>
(B)
ID=16 & 9 L=21 & 18
|
1-09700-676-0 |
01 |
1 |
9905-0002 |
● |
● |
| |
11 |
CLIP; PIPE
TRANSMISSION OIL COOLER<C2C>
(A)
ID=16 & 16 L=21.5 & 21.5
|
1-09700-674-0 |
03 |
1 |
9603-9904 |
● |
|
| |
11 |
CLIP; PIPE
TRANSMISSION OIL COOLER<C2C>
(A)
ID=16 & 16 L=21.5 & 21.5
|
1-09700-674-0 |
03 |
1 |
9905- |
● |
● |
| |
12 |
NUT; BRKT
TRANSMISSION OIL COOLER<C2C>
M8
|
9-09110-508-0 |
01 |
1 |
9603-9606 |
● |
|
| |
12 |
NUT; BRKT
TRANSMISSION OIL COOLER<C2C>
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9607-9904 |
● |
|
| |
12 |
NUT; BRKT
TRANSMISSION OIL COOLER<C2C>
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9905- |
● |
● |
| |
12 |
NUT; BRKT
V TYPE ENG<91L>
TRANSMISSION OIL COOLER<C2C>
M8
|
9-09110-508-0 |
02 |
1 |
9603-9606 |
● |
|
| |
12 |
NUT; BRKT
V TYPE ENG<91L>
TRANSMISSION OIL COOLER<C2C>
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9607-9904 |
● |
|
| |
12 |
NUT; BRKT
V TYPE ENG<91L>
TRANSMISSION OIL COOLER<C2C>
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9905- |
● |
● |
| |
13 |
BOLT; BRKT
V TYPE ENG<91L>
TRANSMISSION OIL COOLER<C2C>
M8X25 FLANGE
|
0-28080-825-0 |
02 |
1 |
9603-9606 |
● |
|
| |
13 |
BOLT; BRKT
V TYPE ENG<91L>
TRANSMISSION OIL COOLER<C2C>
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
9607-9904 |
● |
|
| |
13 |
BOLT; BRKT
V TYPE ENG<91L>
TRANSMISSION OIL COOLER<C2C>
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
9905- |
● |
● |
| |
19 |
BRACKET; FLEX HOSE
TRANSMISSION OIL COOLER<C2C>
(A)
|
1-47477-355-0 |
01 |
1 |
9603-9701 |
● |
|
| |
19 |
BRACKET; FLEX HOSE
L TYPE ENG<90L>
TRANSMISSION OIL COOLER<C2C>
(A)
|
1-47477-355-0 |
01 |
1 |
9702-9904 |
● |
|
| |
19 |
BRACKET; FLEX HOSE
L TYPE ENG<90L>
TRANSMISSION OIL COOLER<C2C>
(B)
|
1-47478-235-0 |
01 |
1 |
9905-9905 |
● |
● |
| |
19 |
BRACKET; FLEX HOSE
L TYPE ENG<90L>
TRANSMISSION OIL COOLER<C2C>
(C)
|
1-47478-566-0 |
01 |
1 |
9906- |
● |
● |
| |
19 |
BRACKET; FLEX HOSE
V TYPE ENG<91L>
TRANSMISSION OIL COOLER<C2C>
(D)
|
1-47477-886-1 |
01 |
1 |
9702-9904 |
● |
|
| |
19 |
BRACKET; FLEX HOSE
V TYPE ENG<91L>
TRANSMISSION OIL COOLER<C2C>
(D)
|
1-47477-886-1 |
01 |
1 |
9905-9905 |
● |
● |
| |
19 |
BRACKET; FLEX HOSE
V TYPE ENG<91L>
TRANSMISSION OIL COOLER<C2C>
(E)
|
1-47478-604-0 |
01 |
1 |
9905-9907 |
● |
|
| |
19 |
BRACKET; FLEX HOSE
V TYPE ENG<91L>
TRANSMISSION OIL COOLER<C2C>
(E)
|
1-47478-648-0 |
01 |
1 |
9908- |
● |
|
| |
20 |
BOLT; COOLER TO BRKT
TRANSMISSION OIL COOLER<C2C>
M10X20 FLANGE
|
0-28081-020-0 |
02 |
1 |
9603-9606 |
● |
|
| |
20 |
BOLT; COOLER TO BRKT
TRANSMISSION OIL COOLER<C2C>
M10X25 FLANGE
|
0-28681-025-0 |
02 |
1 |
9607-9904 |
● |
|
| |
20 |
BOLT; COOLER TO BRKT
TRANSMISSION OIL COOLER<C2C>
M10X25 FLANGE
|
0-28681-025-0 |
02 |
1 |
9905-0006 |
● |
● |
| |
20 |
BOLT; COOLER TO BRKT
TRANSMISSION OIL COOLER<C2C>
M10X20 FLANGE
|
0-28081-020-0 |
02 |
1 |
0007- |
● |
● |
| |
46 |
BRACKET; OIL PIPE
L TYPE ENG<90L>
TRANSMISSION OIL COOLER<C2C>
(A)
L=50
|
1-47475-299-2 |
02 |
1 |
9603-9904 |
● |
|
| |
46 |
BRACKET; OIL PIPE
L TYPE ENG<90L>
TRANSMISSION OIL COOLER<C2C>
(A)
L=50
|
1-47475-299-2 |
02 |
1 |
9905-0002 |
● |
● |
| |
46 |
BRACKET; OIL PIPE
V TYPE ENG<91L>
TRANSMISSION OIL COOLER<C2C>
(B)
|
1-47475-881-0 |
01 |
1 |
9603-9904 |
● |
|
| |
46 |
BRACKET; OIL PIPE
V TYPE ENG<91L>
TRANSMISSION OIL COOLER<C2C>
(B)
|
1-47475-881-0 |
01 |
1 |
9905- |
● |
● |
| |
46 |
BRACKET; OIL PIPE
V TYPE ENG<91L>
TRANSMISSION OIL COOLER<C2C>
(C)
|
1-47477-235-0 |
01 |
1 |
9603-9904 |
● |
|
| |
46 |
BRACKET; OIL PIPE
V TYPE ENG<91L>
TRANSMISSION OIL COOLER<C2C>
(C)
|
1-47477-235-0 |
01 |
1 |
9905- |
● |
● |
| |
46 |
BRACKET; OIL PIPE
L TYPE ENG<90L>
TRANSMISSION OIL COOLER<C2C>
(A)
L=50
|
1-47475-299-2 |
02 |
1 |
0003- |
● |
● |
| |
48 |
NUT; BRKT
V TYPE ENG<91L>
TRANSMISSION OIL COOLER<C2C>
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0003- |
● |
● |
| |
48 |
NUT; BRKT
TRANSMISSION OIL COOLER<C2C>
M8
|
9-09110-508-0 |
02 |
1 |
9603-9606 |
● |
|
| |
48 |
NUT; BRKT
L TYPE ENG<90L>
TRANSMISSION OIL COOLER<C2C>
M8
|
9-09110-508-0 |
02 |
1 |
9603-9606 |
● |
|
| |
48 |
NUT; BRKT
TRANSMISSION OIL COOLER<C2C>
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9607-9904 |
● |
|
| |
48 |
NUT; BRKT
L TYPE ENG<90L>
TRANSMISSION OIL COOLER<C2C>
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9607-9904 |
● |
|
| |
48 |
NUT; BRKT
TRANSMISSION OIL COOLER<C2C>
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9905-0002 |
● |
● |
| |
48 |
NUT; BRKT
L TYPE ENG<90L>
TRANSMISSION OIL COOLER<C2C>
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9905-0002 |
● |
● |
| |
48 |
NUT; BRKT
TRANSMISSION OIL COOLER<C2C>
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0003- |
● |
● |
| |
48 |
NUT; BRKT
L TYPE ENG<90L>
TRANSMISSION OIL COOLER<C2C>
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0003- |
● |
● |
| |
48 |
NUT; BRKT
V TYPE ENG<91L>
TRANSMISSION OIL COOLER<C2C>
M8
|
9-09110-508-0 |
01 |
1 |
9603-9606 |
● |
|
| |
48 |
NUT; BRKT
V TYPE ENG<91L>
TRANSMISSION OIL COOLER<C2C>
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9607-9904 |
● |
|
| |
50 |
BOLT; CLIP
L TYPE ENG<90L>
TRANSMISSION OIL COOLER<C2C>
M8X16 FLANGE
|
0-28080-816-0 |
03 |
1 |
9603-9606 |
● |
|
| |
50 |
BOLT; CLIP
L TYPE ENG<90L>
TRANSMISSION OIL COOLER<C2C>
M8X20 FLANGE
|
0-28680-820-0 |
03 |
1 |
9607-9904 |
● |
|
| |
50 |
BOLT; CLIP
L TYPE ENG<90L>
TRANSMISSION OIL COOLER<C2C>
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
9905- |
● |
● |
| |
50 |
BOLT; CLIP
L TYPE ENG<90L>
TRANSMISSION OIL COOLER<C2C>
M8X25 FLANGE
|
0-28080-825-0 |
01 |
1 |
9603-9606 |
● |
|
| |
50 |
BOLT; CLIP
L TYPE ENG<90L>
TRANSMISSION OIL COOLER<C2C>
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
9607-9904 |
● |
|
| |
50 |
BOLT; CLIP
TRANSMISSION OIL COOLER<C2C>
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
9603-9606 |
● |
|
| |
50 |
BOLT; CLIP
V TYPE ENG<91L>
TRANSMISSION OIL COOLER<C2C>
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
9603-9606 |
● |
|
| |
50 |
BOLT; CLIP
TRANSMISSION OIL COOLER<C2C>
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
9607-9904 |
● |
|
| |
50 |
BOLT; CLIP
V TYPE ENG<91L>
TRANSMISSION OIL COOLER<C2C>
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
9607-9904 |
● |
|
| |
50 |
BOLT; CLIP
TRANSMISSION OIL COOLER<C2C>
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
9905-0002 |
● |
● |
| |
50 |
BOLT; CLIP
TRANSMISSION OIL COOLER<C2C>
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
9905-0002 |
● |
● |
| |
63 |
COOLER; OIL
TRANSMISSION OIL COOLER<C2C>
|
1-21700-290-0 |
01 |
1 |
9603-9904 |
● |
|
| |
63 |
COOLER; OIL
TRANSMISSION OIL COOLER<C2C>
|
1-21700-290-0 |
01 |
1 |
9905- |
● |
● |
| |
80 |
UNION; FLEX HOSE
TRANSMISSION OIL COOLER<C2C>
M22 & M30 STRAIGHT
|
1-09664-237-0 |
01 |
1 |
9603-9708 |
● |
|
| |
80 |
UNION; FLEX HOSE
TRANSMISSION OIL COOLER<C2C>
M22 & M30 STRAIGHT
|
1-09664-237-0 |
01 |
1 |
9709-9904 |
● |
|
| |
80 |
UNION; FLEX HOSE
TRANSMISSION OIL COOLER<C2C>
M22 & M30 STRAIGHT
|
1-09664-237-0 |
01 |
1 |
9905- |
● |
● |
| |
81 |
NUT; UNION
TRANSMISSION OIL COOLER<C2C>
M22
|
9-09111-422-0 |
01 |
1 |
9603-9904 |
● |
|
| |
81 |
NUT; UNION
TRANSMISSION OIL COOLER<C2C>
M22
|
9-09111-422-0 |
01 |
1 |
9905- |
● |
● |
| |
82 |
WASHER; LK,UNION
TRANSMISSION OIL COOLER<C2C>
ID=22.5
|
9-09150-522-0 |
02 |
1 |
9603-9904 |
● |
|
| |
82 |
WASHER; LK,UNION
TRANSMISSION OIL COOLER<C2C>
ID=22.5
|
9-09150-522-0 |
02 |
1 |
9905- |
● |
● |
| |
91 |
PIPE; OIL,FLEX HOSE TO UNION
L TYPE ENG<90L>
TRANSMISSION OIL COOLER<C2C>
|
1-47429-062-0 |
01 |
1 |
9603-9603 |
● |
|
| |
91 |
PIPE; OIL,FLEX HOSE TO UNION
L TYPE ENG<90L>
TRANSMISSION OIL COOLER<C2C>
|
1-47429-789-0 |
01 |
1 |
9603-9904 |
● |
|
| |
91 |
PIPE; OIL,FLEX HOSE TO UNION
L TYPE ENG<90L>
TRANSMISSION OIL COOLER<C2C>
L=911
|
1-49163-072-0 |
01 |
1 |
9905-9905 |
● |
● |
| |
91 |
PIPE; OIL,FLEX HOSE TO UNION
L TYPE ENG<90L>
TRANSMISSION OIL COOLER<C2C>
L=911
|
1-49163-072-0 |
01 |
1 |
9905- |
● |
● |
| |
91 |
PIPE; OIL,FLEX HOSE TO UNION
V TYPE ENG<91L>
TRANSMISSION OIL COOLER<C2C>
|
1-47429-068-0 |
01 |
1 |
9603-9603 |
● |
|
| |
91 |
PIPE; OIL,FLEX HOSE TO UNION
V TYPE ENG<91L>
TRANSMISSION OIL COOLER<C2C>
|
1-47429-808-0 |
01 |
1 |
9604-9609 |
● |
|
| |
91 |
PIPE; OIL,FLEX HOSE TO UNION
V TYPE ENG<91L>
TRANSMISSION OIL COOLER<C2C>
|
1-49161-157-0 |
01 |
1 |
9610-9611 |
● |
|
| |
91 |
PIPE; OIL,FLEX HOSE TO UNION
V TYPE ENG<91L>
TRANSMISSION OIL COOLER<C2C>
|
1-49161-330-0 |
01 |
1 |
9612-9904 |
● |
|
| |
91 |
PIPE; OIL,FLEX HOSE TO UNION
V TYPE ENG<91L>
TRANSMISSION OIL COOLER<C2C>
|
1-49161-330-0 |
01 |
1 |
9905-9905 |
● |
● |
| |
91 |
PIPE; OIL,FLEX HOSE TO UNION
V TYPE ENG<91L>
TRANSMISSION OIL COOLER<C2C>
|
1-49164-395-0 |
01 |
1 |
9905-9907 |
● |
|
| |
91 |
PIPE; OIL,FLEX HOSE TO UNION
V TYPE ENG<91L>
TRANSMISSION OIL COOLER<C2C>
|
1-49164-672-0 |
01 |
1 |
9908- |
● |
|
| |
92 |
NUT; CLIP
TRANSMISSION OIL COOLER<C2C>
M8
|
9-09110-508-0 |
01 |
1 |
9603-9606 |
● |
|
| |
92 |
NUT; CLIP
L TYPE ENG<90L>
TRANSMISSION OIL COOLER<C2C>
M8
|
9-09110-508-0 |
01 |
1 |
9603-9606 |
● |
|
| |
92 |
NUT; CLIP
TRANSMISSION OIL COOLER<C2C>
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9607-9904 |
● |
|
| |
92 |
NUT; CLIP
L TYPE ENG<90L>
TRANSMISSION OIL COOLER<C2C>
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9607-9904 |
● |
|
| |
92 |
NUT; CLIP
TRANSMISSION OIL COOLER<C2C>
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9905-9910 |
● |
● |
| |
92 |
NUT; CLIP
L TYPE ENG<90L>
TRANSMISSION OIL COOLER<C2C>
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9905-9910 |
● |
● |
| |
92 |
NUT; CLIP
TRANSMISSION OIL COOLER<C2C>
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9911-0002 |
● |
● |
| |
92 |
NUT; CLIP
L TYPE ENG<90L>
TRANSMISSION OIL COOLER<C2C>
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9911-0002 |
● |
● |
| |
92 |
NUT; CLIP
TRANSMISSION OIL COOLER<C2C>
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0003- |
● |
● |
| |
95 |
BRACKET; CLIP
L TYPE ENG<90L>
TRANSMISSION OIL COOLER<C2C>
|
1-47475-881-0 |
01 |
1 |
9603-9904 |
● |
|
| |
95 |
BRACKET; CLIP
L TYPE ENG<90L>
TRANSMISSION OIL COOLER<C2C>
|
1-47475-881-0 |
01 |
1 |
9905-9908 |
● |
● |
| |
95 |
BRACKET; CLIP
TRANSMISSION OIL COOLER<C2C>
|
1-47475-881-0 |
02 |
1 |
9603-9904 |
● |
|
| |
95 |
BRACKET; CLIP

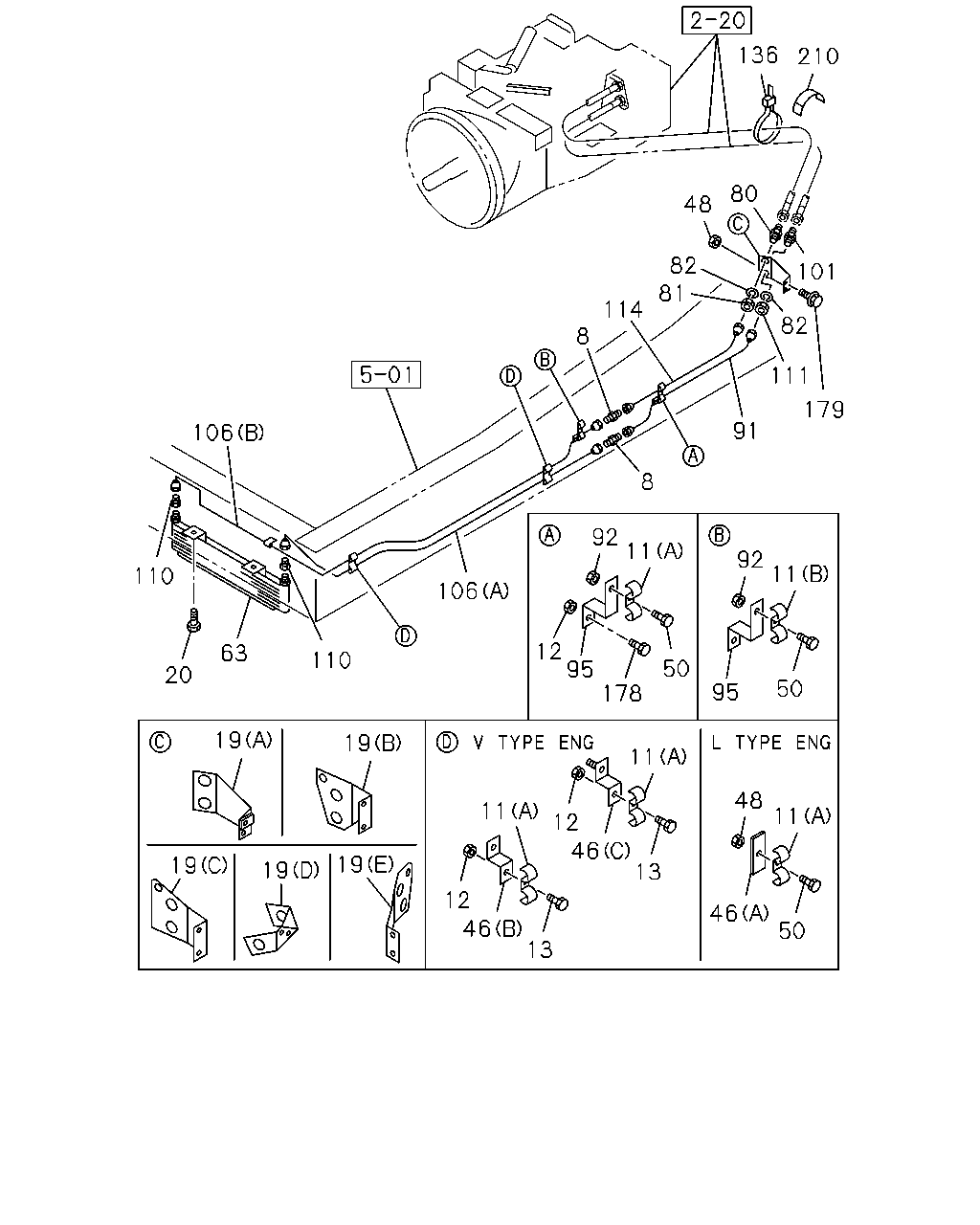

TRANSMISSION OIL COOLER<C2C>
|
1-47475-881-0 |
02 |
1 |
9905-9908 |
● |
● |
| |
95 |
BRACKET; CLIP
TRANSMISSION OIL COOLER<C2C>
|
1-47475-881-0 |
01 |
1 |
9909-0002 |
● |
● |
| |
95 |
BRACKET; CLIP
L TYPE ENG<90L>
TRANSMISSION OIL COOLER<C2C>
|
1-47475-881-0 |
01 |
1 |
9909-0002 |
● |
● |
| |
95 |
BRACKET; CLIP
TRANSMISSION OIL COOLER<C2C>
|
1-47475-881-0 |
01 |
1 |
0003- |
● |
● |
| |
101 |
UNION; FLEX HOSE
TRANSMISSION OIL COOLER<C2C>
M22 & M30 STRAIGHT
|
1-09664-237-0 |
01 |
1 |
9603-9708 |
● |
|
| |
101 |
UNION; FLEX HOSE
TRANSMISSION OIL COOLER<C2C>
M22 & M30 STRAIGHT
|
1-09664-237-0 |
01 |
1 |
9709-9904 |
● |
|
| |
101 |
UNION; FLEX HOSE
TRANSMISSION OIL COOLER<C2C>
M22 & M30 STRAIGHT
|
1-09664-237-0 |
01 |
1 |
9905- |
● |
● |
| |
106 |
PIPE ASM; OIL,COOLER TO UNION
L TYPE ENG<90L>
TRANSMISSION OIL COOLER<C2C>
(A)
|
1-47429-501-0 |
01 |
1 |
9603-9711 |
● |
|
| |
106 |
PIPE ASM; OIL,COOLER TO UNION
L TYPE ENG<90L>
TRANSMISSION OIL COOLER<C2C>
(A)
|
1-49162-309-0 |
01 |
1 |
9712-9904 |
● |
|
| |
106 |
PIPE ASM; OIL,COOLER TO UNION
L TYPE ENG<90L>
TRANSMISSION OIL COOLER<C2C>
(B)
L=1703
|
1-49164-312-0 |
01 |
1 |
9905- |
● |
● |
| |
106 |
PIPE ASM; OIL,COOLER TO UNION
L TYPE ENG<90L>
TRANSMISSION OIL COOLER<C2C>
(B)
|
1-47429-502-0 |
01 |
1 |
9603-9904 |
● |
|
| |
106 |
PIPE ASM; OIL,COOLER TO UNION
L TYPE ENG<90L>
TRANSMISSION OIL COOLER<C2C>
(A)
L=2317
|
1-49164-311-0 |
01 |
1 |
9905- |
● |
● |
| |
106 |
PIPE ASM; OIL,COOLER TO UNION
V TYPE ENG<91L>
TRANSMISSION OIL COOLER<C2C>
(A)
|
1-47429-503-0 |
01 |
1 |
9603-9904 |
● |
|
| |
106 |
PIPE ASM; OIL,COOLER TO UNION
V TYPE ENG<91L>
TRANSMISSION OIL COOLER<C2C>
(A)
|
1-47429-503-0 |
01 |
1 |
9905-9905 |
● |
● |
| |
106 |
PIPE ASM; OIL,COOLER TO UNION
V TYPE ENG<91L>
TRANSMISSION OIL COOLER<C2C>
(A)
|
1-49164-613-0 |
01 |
1 |
9906- |
● |
|
| |
106 |
PIPE ASM; OIL,COOLER TO UNION
V TYPE ENG<91L>
TRANSMISSION OIL COOLER<C2C>
(B)
|
1-47429-504-0 |
01 |
1 |
9603-9904 |
● |
|
| |
106 |
PIPE ASM; OIL,COOLER TO UNION
V TYPE ENG<91L>
TRANSMISSION OIL COOLER<C2C>
(B)
|
1-47429-504-0 |
01 |
1 |
9905- |
● |
● |
| |
110 |
UNION; OIL PIPE
TRANSMISSION OIL COOLER<C2C>
|
1-09654-365-0 |
02 |
1 |
9603-9805 |
● |
|
| |
110 |
UNION; OIL PIPE
TRANSMISSION OIL COOLER<C2C>
|
1-09654-398-0 |
02 |
1 |
9806-9904 |
● |
|
| |
110 |
UNION; OIL PIPE
TRANSMISSION OIL COOLER<C2C>
|
1-09654-398-0 |
02 |
1 |
9905- |
● |
● |
| |
111 |
NUT; UNION
TRANSMISSION OIL COOLER<C2C>
M22
|
9-09111-422-0 |
01 |
1 |
9603-9904 |
● |
|
| |
111 |
NUT; UNION
TRANSMISSION OIL COOLER<C2C>
M22
|
9-09111-422-0 |
01 |
1 |
9905- |
● |
● |
| |
114 |
PIPE; OIL,UNION TO FLEX HOSE
L TYPE ENG<90L>
TRANSMISSION OIL COOLER<C2C>
L=1013
|
1-47429-790-0 |
01 |
1 |
9603-9904 |
● |
|
| |
114 |
PIPE; OIL,UNION TO FLEX HOSE
L TYPE ENG<90L>
TRANSMISSION OIL COOLER<C2C>
L=1071
|
1-49163-073-0 |
01 |
1 |
9905-9905 |
● |
● |
| |
114 |
PIPE; OIL,UNION TO FLEX HOSE
L TYPE ENG<90L>
TRANSMISSION OIL COOLER<C2C>
L=1071
|
1-49163-073-0 |
01 |
1 |
9905- |
● |
● |
| |
114 |
PIPE; OIL,UNION TO FLEX HOSE
V TYPE ENG<91L>
TRANSMISSION OIL COOLER<C2C>
L=1142
|
1-47429-071-0 |
01 |
1 |
9603-9603 |
● |
|
| |
114 |
PIPE; OIL,UNION TO FLEX HOSE
V TYPE ENG<91L>
TRANSMISSION OIL COOLER<C2C>
L=1140
|
1-47429-809-0 |
01 |
1 |
9604-9609 |
● |
|
| |
114 |
PIPE; OIL,UNION TO FLEX HOSE
V TYPE ENG<91L>
TRANSMISSION OIL COOLER<C2C>
L=1089
|
1-49161-158-0 |
01 |
1 |
9610-9904 |
● |
|
| |
114 |
PIPE; OIL,UNION TO FLEX HOSE
V TYPE ENG<91L>
TRANSMISSION OIL COOLER<C2C>
L=1089
|
1-49161-158-0 |
01 |
1 |
9905-9905 |
● |
● |
| |
114 |
PIPE; OIL,UNION TO FLEX HOSE
V TYPE ENG<91L>
TRANSMISSION OIL COOLER<C2C>
L=1332
|
1-49164-396-0 |
01 |
1 |
9905-9907 |
● |
|
| |
114 |
PIPE; OIL,UNION TO FLEX HOSE
V TYPE ENG<91L>
TRANSMISSION OIL COOLER<C2C>
L=1324
|
1-49164-673-0 |
01 |
1 |
9908- |
● |
|
| |
136 |
CLIP; FLEX HOSE
V TYPE ENG<91L>
TRANSMISSION OIL COOLER<C2C>
L=250
|
1-09707-126-0 |
01 |
1 |
9702-9705 |
● |
|
| |
136 |
CLIP; FLEX HOSE
TRANSMISSION OIL COOLER<C2C>
L=250
|
1-09707-126-0 |
01 |
1 |
9706-9904 |
● |
|
| |
136 |
CLIP; FLEX HOSE
TRANSMISSION OIL COOLER<C2C>
L=250
|
1-09707-126-0 |
01 |
1 |
9905-9907 |
● |
● |
| |
136 |
CLIP; FLEX HOSE
L TYPE ENG<90L>
TRANSMISSION OIL COOLER<C2C>
L=250
|
1-09707-126-0 |
01 |
1 |
9908- |
● |
● |
| |
178 |
BOLT; BRKT,CLIP
TRANSMISSION OIL COOLER<C2C>
M8X20 FLANGE
|
0-28080-820-0 |
01 |
1 |
9603-9606 |
● |
|
| |
178 |
BOLT; BRKT,CLIP
TRANSMISSION OIL COOLER<C2C>
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
9607-9904 |
● |
|
| |
178 |
BOLT; BRKT,CLIP
TRANSMISSION OIL COOLER<C2C>
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
9905- |
● |
● |
| |
179 |
BOLT; BRKT
TRANSMISSION OIL COOLER<C2C>
M8X25 FLANGE
|
0-28080-825-0 |
02 |
1 |
9603-9606 |
● |
|
| |
179 |
BOLT; BRKT
TRANSMISSION OIL COOLER<C2C>
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
9607-9904 |
● |
|
| |
179 |
BOLT; BRKT
TRANSMISSION OIL COOLER<C2C>
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
9905- |
● |
● |
| |
210 |
BAND; FLEX HOSE
V TYPE ENG<91L>
TRANSMISSION OIL COOLER<C2C>
L=175
|
1-09707-178-0 |
01 |
1 |
9702-9705 |
● |
|
| |
210 |
BAND; FLEX HOSE
TRANSMISSION OIL COOLER<C2C>
L=175
|
1-09707-178-0 |
01 |
1 |
9706-9904 |
● |
|
| |
210 |
BAND; FLEX HOSE
TRANSMISSION OIL COOLER<C2C>
L=175
|
1-09707-178-0 |
01 |
1 |
9905-9907 |
● |
● |
| |
210 |
BAND; FLEX HOSE
L TYPE ENG<90L>
TRANSMISSION OIL COOLER<C2C>
L=175
|
1-09707-178-0 |
01 |
1 |
9908- |
● |
● |
