◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50818 - NPR/NQR(EUROPE)-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-78 - FLOOR HOLE PLUG ▶
6-78 — FLOOR HOLE PLUG (#43448) — 16 parça

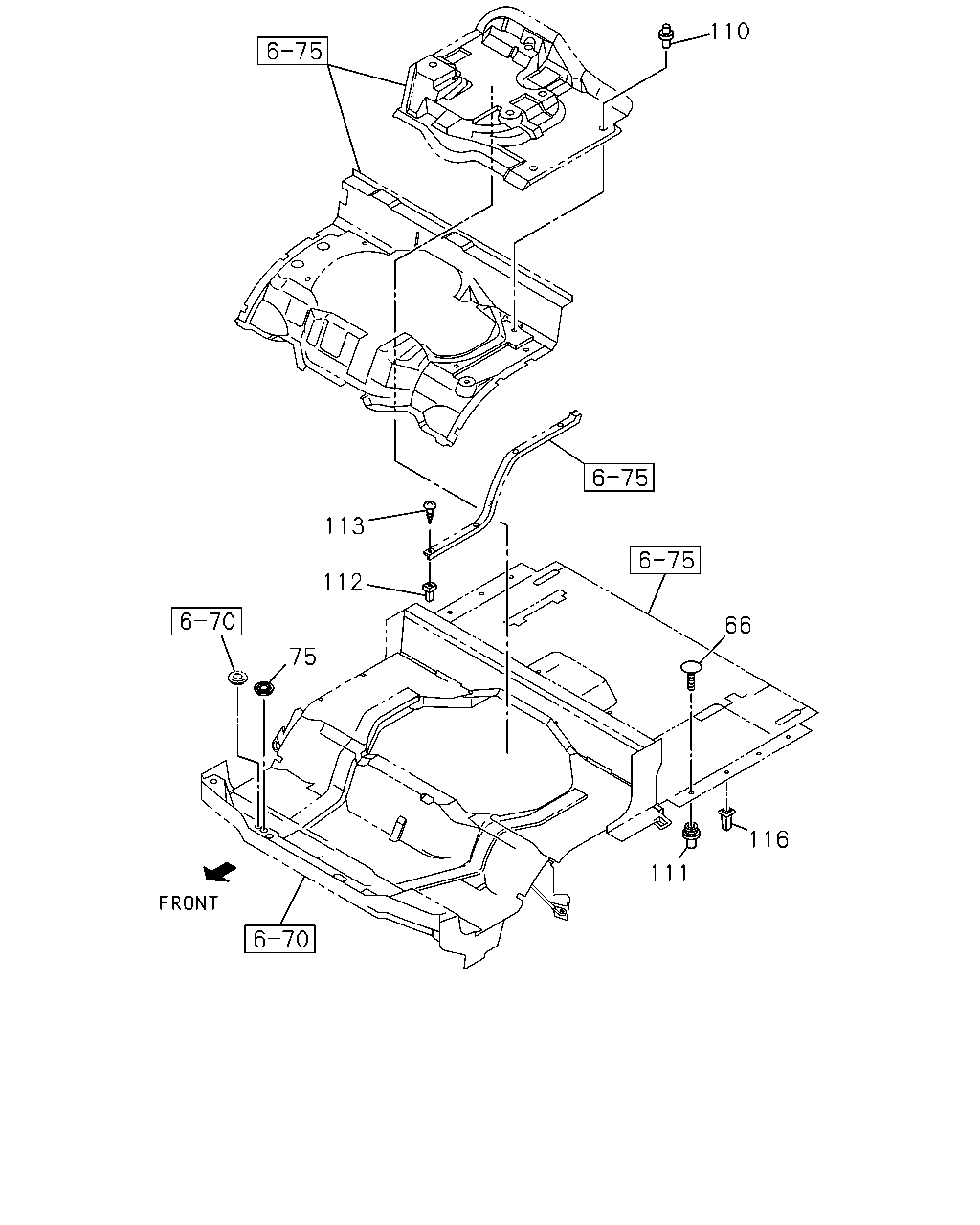

çizim 10430
110 113 112 66 75 116 111
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
66 16.800 PLUG; FLOOR MAT,CAB RR FLOOR
DARK GRAY 		8-97867-158-0 04 1 9904- ● ●
75 09.775 PLUG; RUBBER,FLOOR
EXC. HYDRO BRAKE BOOSTER<7QQ> 16.549 OD=38 		8-94159-507-0 01 1 9812- ● ●
75 09.775 PLUG; RUBBER,FLOOR
16.549 OD=38 		8-94159-507-0 01 1 9812- ● ●
110 16.802 FASTENER; FLOOR MAT
BLACK 		8-94279-089-0 13 1 9812-0211 ● ● ● ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
BLACK 		8-94279-089-0 12 1 0212- ● ● ● ● ● ● ●
111 16.800 FASTENER; FLOOR MAT,CAB RR MTG
16.802 BLACK 		8-94279-089-0 15 1 9904- ●
111 16.800 FASTENER; FLOOR MAT,CAB RR MTG
4HE1 ENG(RLY) 16.802 BLACK 		8-94279-089-0 15 1 9904- ●
112 16.800 GROMMET; SCREW,TRIM COVER
04.931 H=15 		8-94463-268-1 10 1 9812- ● ● ● ● ● ● ●
113 16.800 SCREW; TRIM COVER
08.845 M5X14 TAPPING W/PL WASHER 		0-74110-514-0 10 1 9812- ● ● ● ● ● ● ●
116 16.547 GROMMET; SCREW,FLOOR MAT
16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 08 1 9904- ● ●

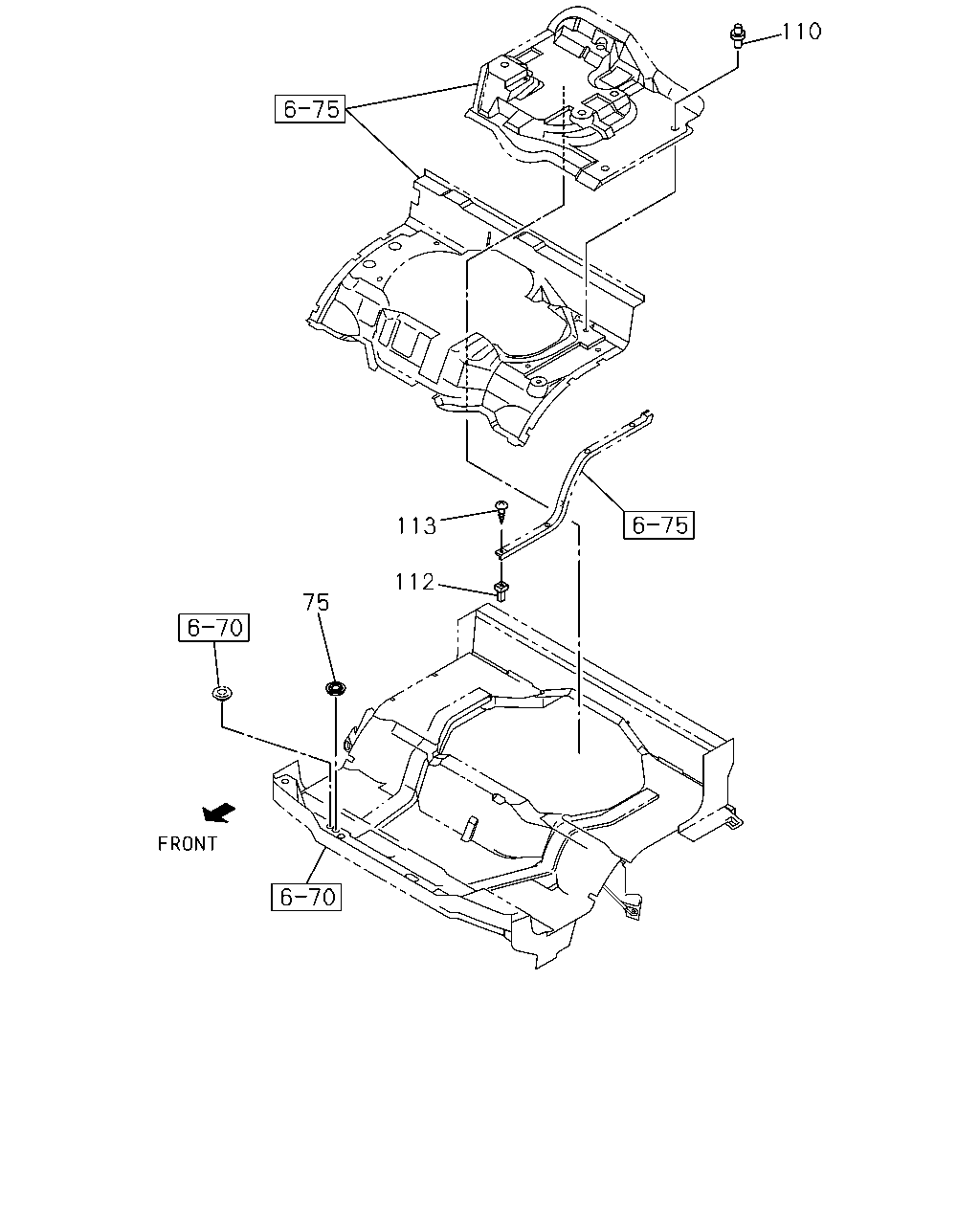

çizim 51373
110 113 112 75
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
75 09.775 PLUG; RUBBER,FLOOR
EXC. HYDRO BRAKE BOOSTER<7QQ> 16.549 OD=38 		8-94159-507-0 01 1 9812- ● ●
75 09.775 PLUG; RUBBER,FLOOR
16.549 OD=38 		8-94159-507-0 01 1 9812- ● ●
110 16.802 FASTENER; FLOOR MAT
BLACK 		8-94279-089-0 13 1 9812-0211 ● ● ● ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
BLACK 		8-94279-089-0 12 1 0212- ● ● ● ● ● ● ●
112 16.800 GROMMET; SCREW,TRIM COVER
04.931 H=15 		8-94463-268-1 10 1 9812- ● ● ● ● ● ● ●
113 16.800 SCREW; TRIM COVER
08.845 M5X14 TAPPING W/PL WASHER 		0-74110-514-0 10 1 9812- ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
