◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50818 - NPR/NQR(EUROPE)-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#43446) — 47 parça

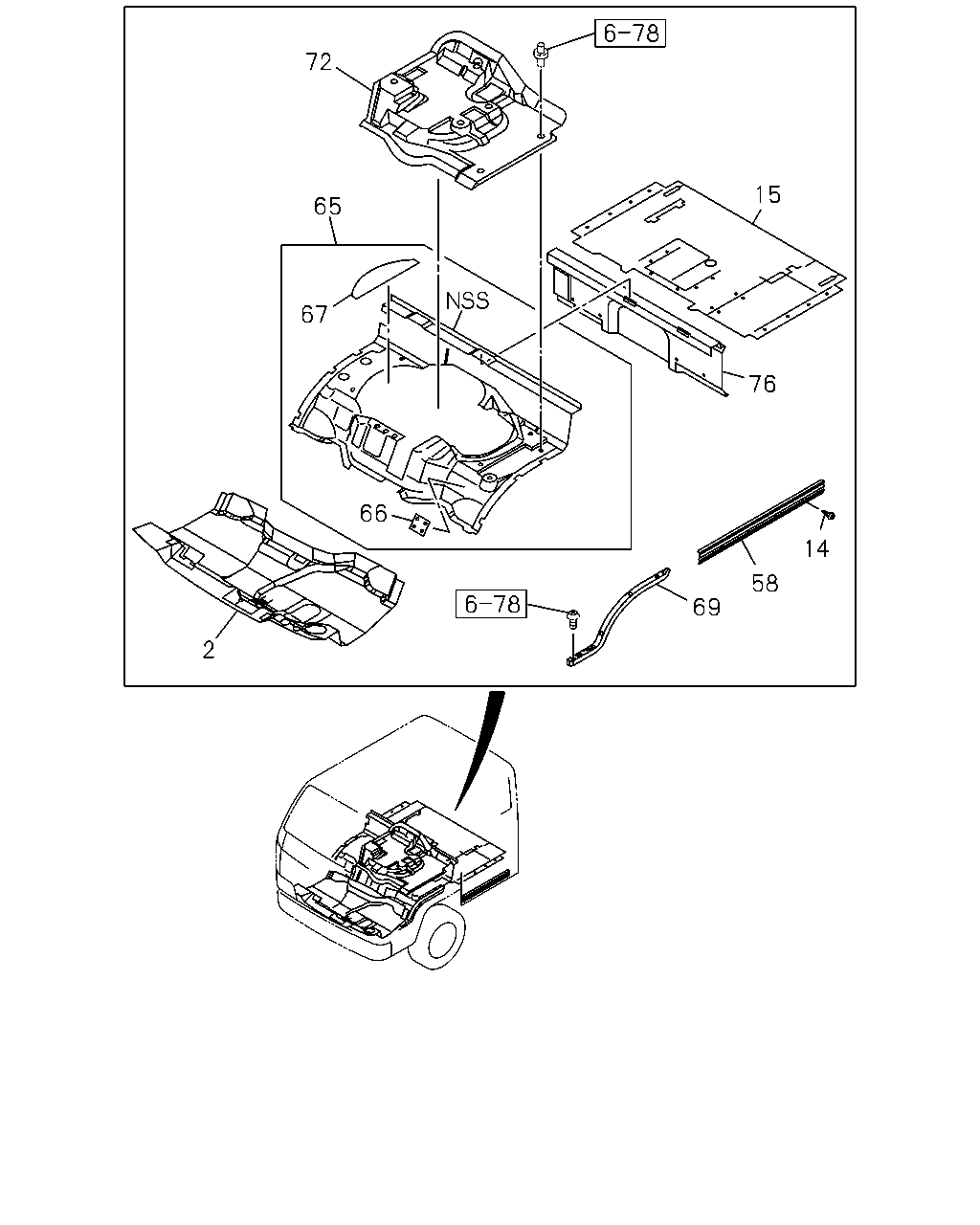

çizim 51770
72 15 65 67 76 66 14 58 69 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) DARK GRAY 		8-97867-568-5 01 1 9812-0203 ● ● ● ● ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) DARK GRAY 		8-97996-660-1 01 1 0204- ● ● ● ● ● ● ●
2 16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY 		8-97867-567-5 01 1 9812-0203 ● ● ● ● ● ● ●
2 16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY 		8-97996-658-1 01 1 0204- ● ● ● ● ● ● ●
14 16.870 SCREW; PLATE
16.345 M5X16 W/PL WASHER TAPPING 		8-94279-123-0 08 1 9904- ● ●
15 16.800 MAT; FLOOR REAR
DARK GRAY 		8-97892-678-1 01 1 9904-0203 ●
15 16.800 MAT; FLOOR REAR
4HE1 ENG(RLY) DARK GRAY 		8-97892-678-1 01 1 9904-0203 ●
15 16.800 MAT; FLOOR REAR
DARK GRAY 		8-97996-770-0 01 1 0204- ●
15 16.800 MAT; FLOOR REAR
4HE1 ENG(RLY) DARK GRAY 		8-97996-770-0 01 1 0204- ●
58 08.153 PLATE; GUARD,RR FLOOR MAT 8-97081-344-3 02 1 9904- ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
MANUAL TILT CAB<RWZ> DARK GRAY 		8-97867-589-7 01 1 9812-0203 ● ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
MANUAL TILT CAB<RWZ> DARK GRAY 		8-97996-687-0 01 1 0204- ● ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
DARK GRAY 		8-97867-590-6 01 1 9904-0203 ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
DARK GRAY 		8-97996-691-0 01 1 0204- ● ●
66 16.549 HOOK; COVER
MANUAL TILT CAB<RWZ> DARK GRAY 		8-97859-705-0 02 1 9812-0203 ● ● ● ● ●
66 16.549 HOOK; COVER
DARK GRAY 		8-97859-705-0 02 1 9812-0203 ● ●
66 16.549 HOOK; COVER
MANUAL TILT CAB<RWZ> DARK GRAY 		8-97997-582-0 02 1 0204- ● ● ● ● ●
66 16.549 HOOK; COVER
DARK GRAY 		8-97997-582-0 02 1 0204- ● ●
67 16.549 LID; COVER
DARK GRAY 		8-97868-006-0 01 1 9904-0203 ● ●
67 16.549 LID; COVER
DARK GRAY 		8-97997-584-0 01 1 0204- ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK GRAY 		8-97857-552-0 01 1 9812- ● ● ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK GRAY 		8-97857-551-0 01 1 9812- ● ● ● ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
DARK GRAY 		8-97867-596-0 01 1 9812-0203 ● ● ● ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
DARK GRAY 		8-97996-731-0 01 1 0204- ● ● ● ● ● ● ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
DARK GRAY 		8-97892-677-0 01 1 9904-0105 ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
DARK GRAY 		8-97892-677-0 01 1 0106-0203 ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
4HE1 ENG(RLY) DARK GRAY 		8-97892-677-0 01 1 0106-0203 ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
DARK GRAY 		8-97996-771-0 01 1 0204-0211 ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
4HE1 ENG(RLY) DARK GRAY 		8-97996-771-0 01 1 0204-0211 ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
DARK GRAY 		8-97985-069-0 01 1 0212- ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
4HE1 ENG(RLY) DARK GRAY 		8-97985-069-0 01 1 0212- ●

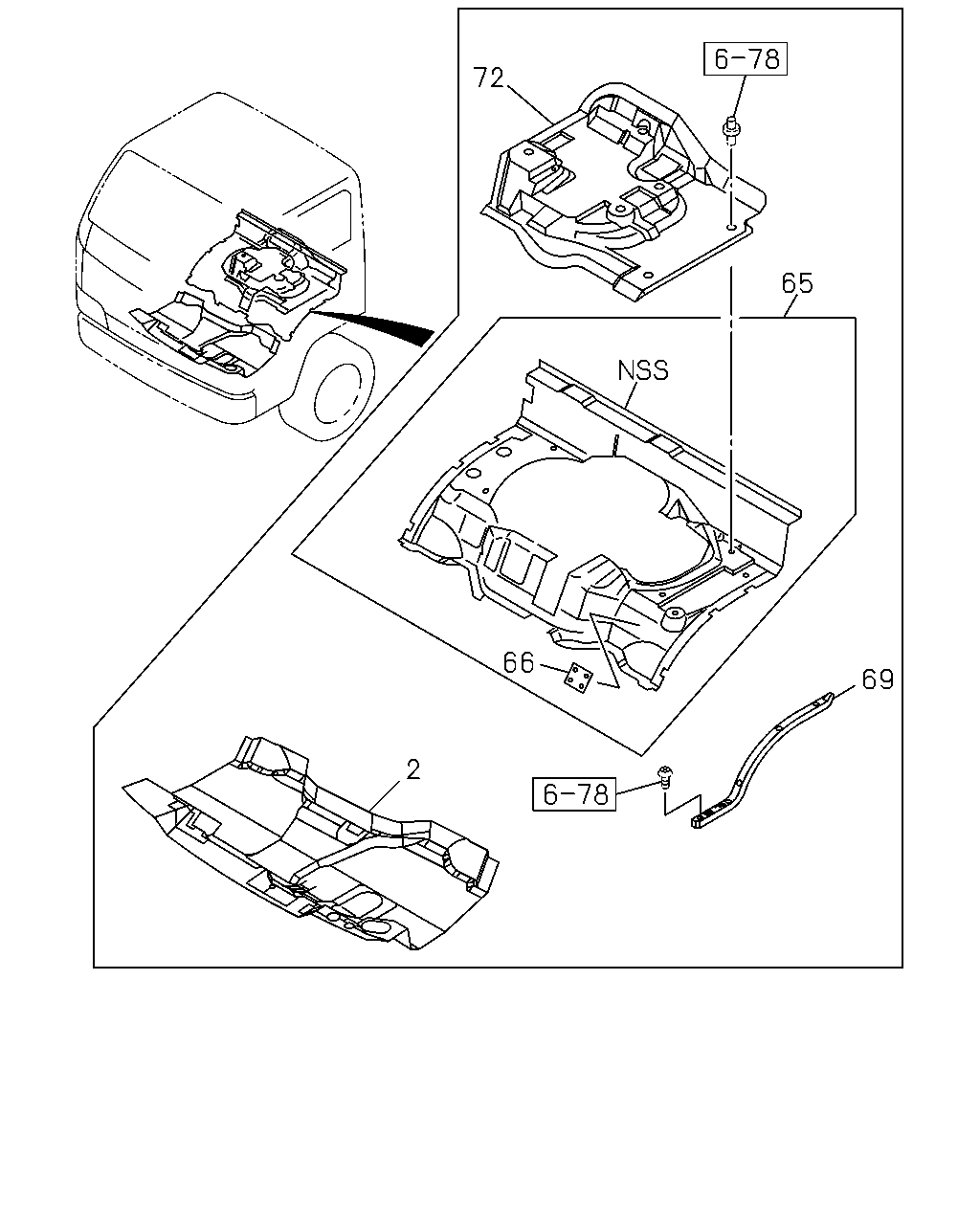

çizim 51875
72 65 66 69 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) DARK GRAY 		8-97867-568-5 01 1 9812-0203 ● ● ● ● ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) DARK GRAY 		8-97996-660-1 01 1 0204- ● ● ● ● ● ● ●
2 16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY 		8-97867-567-5 01 1 9812-0203 ● ● ● ● ● ● ●
2 16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY 		8-97996-658-1 01 1 0204- ● ● ● ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
MANUAL TILT CAB<RWZ> DARK GRAY 		8-97867-589-7 01 1 9812-0203 ● ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
MANUAL TILT CAB<RWZ> DARK GRAY 		8-97996-687-0 01 1 0204- ● ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
DARK GRAY 		8-97867-590-6 01 1 9904-0203 ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
DARK GRAY 		8-97996-691-0 01 1 0204- ● ●
66 16.549 HOOK; COVER
MANUAL TILT CAB<RWZ> DARK GRAY 		8-97859-705-0 02 1 9812-0203 ● ● ● ● ●
66 16.549 HOOK; COVER
DARK GRAY 		8-97859-705-0 02 1 9812-0203 ● ●
66 16.549 HOOK; COVER
MANUAL TILT CAB<RWZ> DARK GRAY 		8-97997-582-0 02 1 0204- ● ● ● ● ●
66 16.549 HOOK; COVER
DARK GRAY 		8-97997-582-0 02 1 0204- ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK GRAY 		8-97857-552-0 01 1 9812- ● ● ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK GRAY 		8-97857-551-0 01 1 9812- ● ● ● ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
DARK GRAY 		8-97867-596-0 01 1 9812-0203 ● ● ● ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
DARK GRAY 		8-97996-731-0 01 1 0204- ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
