6-70 — FLOOR PANEL (#43445) — 183 parça
çizim 11602
377 378 380 398 381 380 378
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> EXC. FLOOR REMOTE SHIFT<M11> 		8-97850-807-2 01 1 0106-0207 ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> EXC. FLOOR REMOTE SHIFT<M11> 		8-97850-807-2 01 1 0208- ● ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-807-2 01 1 9812- ● ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-807-2 01 1 9812- ● ●
378 16.545 GASSET; LWR
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-672-1 01 1 9812-0105 ● ● ● ● ●
378 16.545 GASSET; LWR 8-97850-672-1 01 1 9812-0105 ●
378 16.545 GASSET; LWR
MANUAL TILT CAB<RWZ> 		8-97850-672-1 01 1 0106- ● ● ● ● ●
378 16.545 GASSET; LWR 8-97850-672-1 01 1 0106- ● ●
378 16.545 GASSET; LWR
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-671-0 01 1 9812-0105 ● ● ● ● ●
378 16.545 GASSET; LWR 8-97850-671-0 01 1 9812-0105 ●
378 16.545 GASSET; LWR
MANUAL TILT CAB<RWZ> 		8-97850-671-0 01 1 0106- ● ● ● ● ●
378 16.545 GASSET; LWR 8-97850-671-0 01 1 0106- ● ●
380 16.545 BRACKET; HEAD LAMP
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-705-0 01 1 9812-0105 ● ● ● ● ●
380 16.545 BRACKET; HEAD LAMP 8-97850-705-0 01 1 9812-0105 ●
380 16.545 BRACKET; HEAD LAMP
MANUAL TILT CAB<RWZ> 		8-97850-705-0 01 1 0106- ● ● ● ● ●
380 16.545 BRACKET; HEAD LAMP 8-97850-705-0 01 1 0106- ● ●
380 16.545 BRACKET; HEAD LAMP
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-090-2 01 1 9812-0105 ● ● ● ● ●
380 16.545 BRACKET; HEAD LAMP 8-97850-090-2 01 1 9812-0105 ●
380 16.545 BRACKET; HEAD LAMP
MANUAL TILT CAB<RWZ> 		8-97850-090-2 01 1 0106- ● ● ● ● ●
380 16.545 BRACKET; HEAD LAMP 8-97850-090-2 01 1 0106- ● ●
381 16.545 BRACKET; AIR INTAKE DUCT,FRT
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-221-5 01 1 9812-0105 ● ● ● ● ●
381 16.545 BRACKET; AIR INTAKE DUCT,FRT 8-97850-221-5 01 1 9812-0105 ●
381 16.545 BRACKET; AIR INTAKE DUCT,FRT
MANUAL TILT CAB<RWZ> 		8-97850-221-5 01 1 0106- ● ● ● ● ●
381 16.545 BRACKET; AIR INTAKE DUCT,FRT 8-97850-221-5 01 1 0106- ● ●
398 16.545 BRACKET; PIPE SUPPORT
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-318-1 01 1 9812-0105 ● ● ● ● ●
398 16.545 BRACKET; PIPE SUPPORT 8-97850-318-1 01 1 9812-0105 ●
398 16.545 BRACKET; PIPE SUPPORT
MANUAL TILT CAB<RWZ> 		8-97850-318-1 01 1 0106- ● ● ● ● ●
398 16.545 BRACKET; PIPE SUPPORT 8-97850-318-1 01 1 0106- ● ●

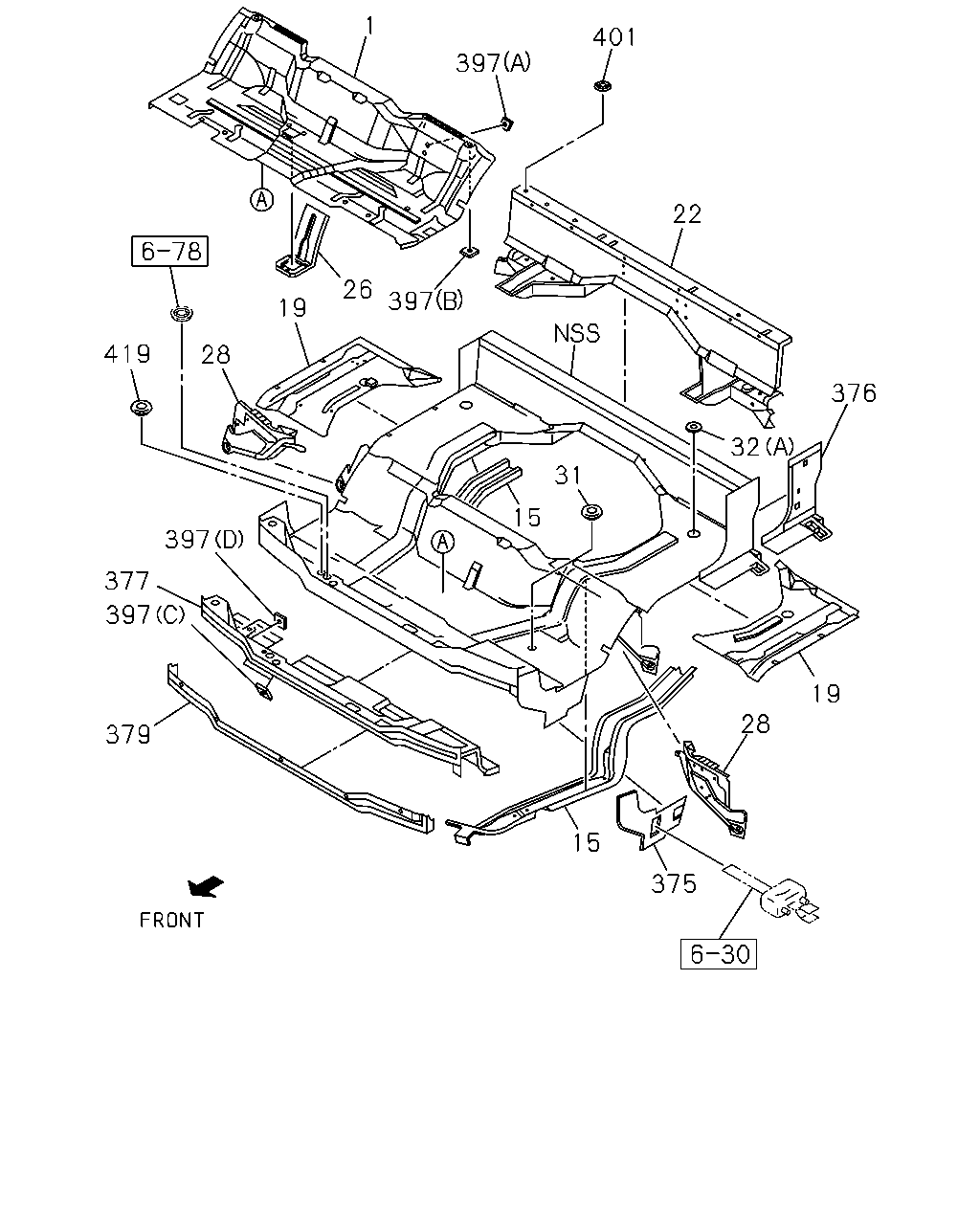

çizim 50800
1 401 397 22 26 397 19 419 28 376 32 31 15 397 377 397 19 28 379 15 375
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> EXC. FLOOR REMOTE SHIFT<M11> 		8-97850-117-8 01 1 0106-0207 ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> EXC. FLOOR REMOTE SHIFT<M11> 		8-97850-117-8 01 1 0208- ● ● ● ● ●
1 16.545 PANEL; FLOOR
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-117-8 01 1 9812- ● ● ● ● ●
1 16.545 PANEL; FLOOR 8-97850-117-8 01 1 9812- ● ●
15 16.545 FRAME; UNDER
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-060-9 01 1 9812-0105 ● ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-060-9 01 1 9812-0105 ●
15 16.545 FRAME; UNDER
MANUAL TILT CAB<RWZ> 		8-97850-060-9 01 1 0106- ● ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-060-9 01 1 0106- ● ●
15 16.545 FRAME; UNDER
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-059-9 01 1 9812-0105 ● ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-059-9 01 1 9812-0105 ●
15 16.545 FRAME; UNDER
MANUAL TILT CAB<RWZ> 		8-97850-059-9 01 1 0106- ● ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-059-9 01 1 0106- ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-008-4 01 1 9812-0105 ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-008-4 01 1 9812-0105 ●
19 16.545 PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ> 		8-97850-008-4 01 1 0106- ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-008-4 01 1 0106- ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-118-6 01 1 9812-0105 ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-118-6 01 1 9812-0105 ●
19 16.545 PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ> 		8-97850-118-6 01 1 0106- ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-118-6 01 1 0106- ● ●
22 16.545 FRAME; FLOOR REAR
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-657-2 01 1 9812-0105 ● ● ● ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97850-657-2 01 1 0106- ● ● ● ● ●
22 16.545 FRAME; FLOOR REAR 8-97850-764-0 01 1 9904- ● ●
26 16.545 PANEL; GEAR CONT REINF
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-140-3 01 1 9812-0105 ● ● ● ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97850-140-3 01 1 9812-0105 ●
26 16.545 PANEL; GEAR CONT REINF
MANUAL TILT CAB<RWZ> 		8-97850-140-3 01 1 0106- ● ● ● ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97850-140-3 01 1 0106- ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-017-7 01 1 9812-0105 ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-017-7 01 1 9812-0105 ●
28 16.545 GUSSET; FLOOR PANEL SIDE
MANUAL TILT CAB<RWZ> 		8-97850-017-7 01 1 0106- ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-017-7 01 1 0106- ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-338-5 01 1 9812-0105 ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-338-5 01 1 9812-0105 ●
28 16.545 GUSSET; FLOOR PANEL SIDE
MANUAL TILT CAB<RWZ> 		8-97850-338-5 01 1 0106- ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-338-5 01 1 0106- ● ●
31 16.547 GROMMET; LOCATION HOLE,CAB FLOOR
08.155 OD=28.5 		8-94279-711-0 02 1 9812- ● ● ● ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
08.131 (A) OD=53.5 		8-94356-253-0 02 1 9812- ● ● ● ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
15.222 (B) OD=35 		8-94122-971-0 04 1 9904- ● ●
375 16.545 CLOSING; PILLAR
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-087-3 01 1 9812-0105 ● ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-087-3 01 1 9812-0105 ●
375 16.545 CLOSING; PILLAR
MANUAL TILT CAB<RWZ> 		8-97850-087-3 01 1 0106- ● ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-087-3 01 1 0106- ● ●
375 16.545 CLOSING; PILLAR
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-086-4 01 1 9812-0105 ● ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-086-4 01 1 9812-0105 ●
375 16.545 CLOSING; PILLAR
MANUAL TILT CAB<RWZ> 		8-97850-086-4 01 1 0106- ● ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-086-4 01 1 0106- ● ●
376 16.545 CLOSING; PILLAR,LWR
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-923-1 01 1 9812-0105 ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> 		8-97850-923-1 01 1 0106- ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-320-6 01 1 9812-0105 ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> 		8-97850-320-6 01 1 0106- ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-187-3 01 1 9904- ●
376 16.545 CLOSING; PILLAR,LWR
4HE1 ENG(RLY) 		8-97850-187-3 01 1 9904- ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-186-3 01 1 9904- ●
376 16.545 CLOSING; PILLAR,LWR
4HE1 ENG(RLY) 		8-97850-186-3 01 1 9904- ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> EXC. FLOOR REMOTE SHIFT<M11> 		8-97850-807-2 01 1 0106-0207 ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> EXC. FLOOR REMOTE SHIFT<M11> 		8-97850-807-2 01 1 0208- ● ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-807-2 01 1 9812- ● ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-807-2 01 1 9812- ● ●
379 16.545 PANEL
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-129-2 01 1 9812-0105 ● ● ● ● ●
379 16.545 PANEL 8-97850-129-2 01 1 9812-0105 ●
379 16.545 PANEL
MANUAL TILT CAB<RWZ> 		8-97850-129-2 01 1 0106- ● ● ● ● ●
379 16.545 PANEL 8-97850-129-2 01 1 0106- ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> (D) M10 		9-09114-030-0 03 1 9812- ● ● ● ● ●
397 16.545 NUT; PIERCE
(D) M10 		9-09114-030-0 03 1 9812- ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> (A) M6 		9-09114-046-0 04 1 9812- ● ● ● ● ●
397 16.545 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 9812- ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 06 1 9812- ● ● ● ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 06 1 9812- ● ●
397 16.545 NUT; PIERCE
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 16.588 (C) M8 		9-09114-048-0 04 1 9812-0105 ● ● ● ● ●
397 16.545 NUT; PIERCE
16.588 (C) M8 		9-09114-048-0 04 1 9812-0105 ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> 16.588 (C) M8 		9-09114-048-0 04 1 0106- ● ● ● ● ●
397 16.545 NUT; PIERCE
16.588 (C) M8 		9-09114-048-0 04 1 0106- ● ●
401 16.545 GROMMET; HOLE
OD=26.1 T=7.8 		8-94279-963-0 01 1 9812-9902 ● ● ● ● ●
401 16.545 GROMMET; HOLE
OD=24.5 T=7.5 		8-97224-683-0 01 1 9903- ● ● ● ● ●
419 04.012 GROMMET; CONT SHAFT,FLOOR PANEL
EXC. PTO TRANSMISSION SIDE(V66) 16.802 OD=36 		1-09983-092-0 01 1 9812- ● ● ● ● ● ● ●

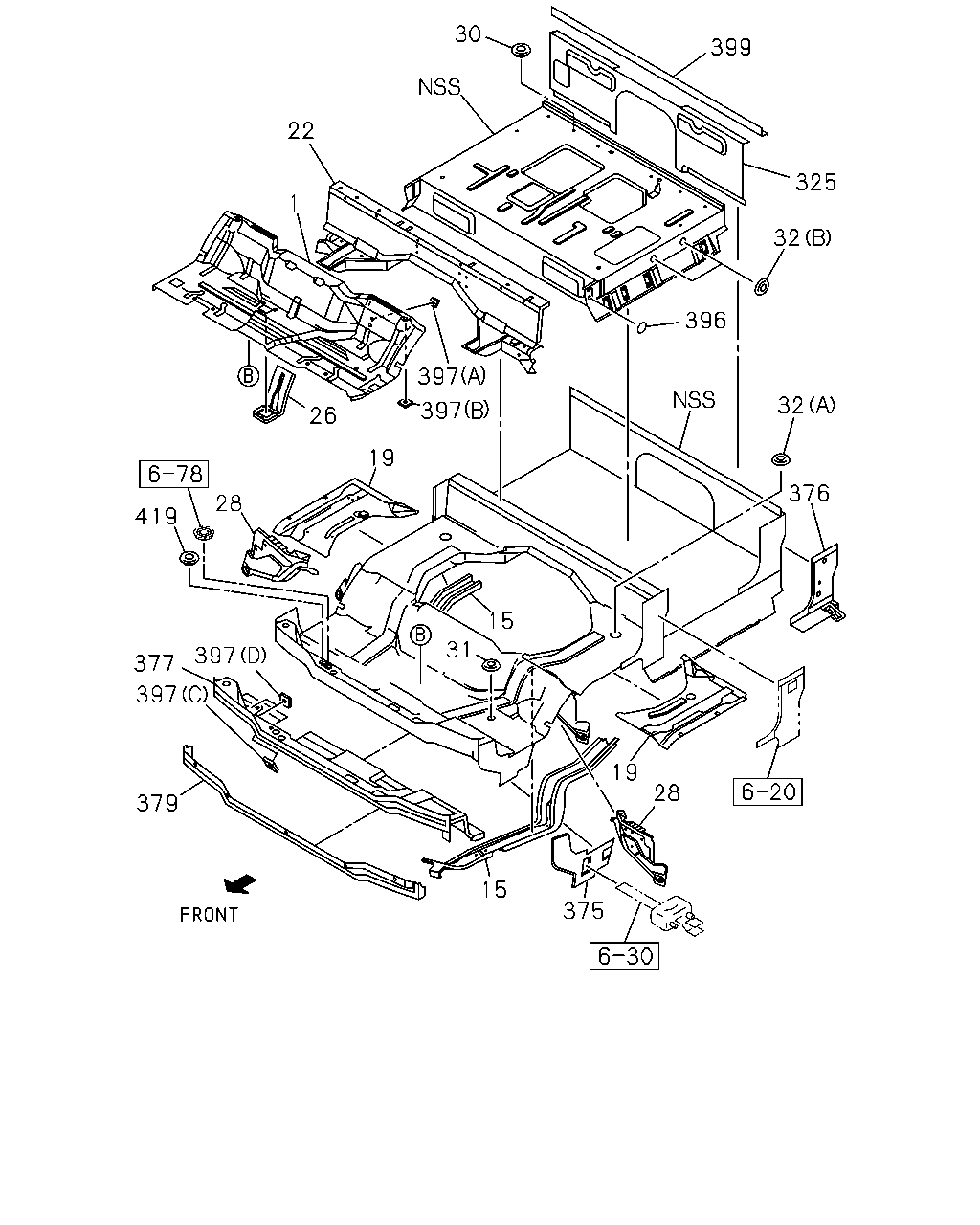

çizim 51989
30 399 22 325 1 32 396 397 32 397 26 19 376 28 419 15 31 397 377 397 19 28 379 15 375
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> EXC. FLOOR REMOTE SHIFT<M11> 		8-97850-117-8 01 1 0106-0207 ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> EXC. FLOOR REMOTE SHIFT<M11> 		8-97850-117-8 01 1 0208- ● ● ● ● ●
1 16.545 PANEL; FLOOR
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-117-8 01 1 9812- ● ● ● ● ●
1 16.545 PANEL; FLOOR 8-97850-117-8 01 1 9812- ● ●
15 16.545 FRAME; UNDER
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-060-9 01 1 9812-0105 ● ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-060-9 01 1 9812-0105 ●
15 16.545 FRAME; UNDER
MANUAL TILT CAB<RWZ> 		8-97850-060-9 01 1 0106- ● ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-060-9 01 1 0106- ● ●
15 16.545 FRAME; UNDER
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-059-9 01 1 9812-0105 ● ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-059-9 01 1 9812-0105 ●
15 16.545 FRAME; UNDER
MANUAL TILT CAB<RWZ> 		8-97850-059-9 01 1 0106- ● ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-059-9 01 1 0106- ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-008-4 01 1 9812-0105 ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-008-4 01 1 9812-0105 ●
19 16.545 PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ> 		8-97850-008-4 01 1 0106- ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-008-4 01 1 0106- ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-118-6 01 1 9812-0105 ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-118-6 01 1 9812-0105 ●
19 16.545 PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ> 		8-97850-118-6 01 1 0106- ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-118-6 01 1 0106- ● ●
22 16.545 FRAME; FLOOR REAR
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-657-2 01 1 9812-0105 ● ● ● ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97850-657-2 01 1 0106- ● ● ● ● ●
22 16.545 FRAME; FLOOR REAR 8-97850-764-0 01 1 9904- ● ●
26 16.545 PANEL; GEAR CONT REINF
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-140-3 01 1 9812-0105 ● ● ● ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97850-140-3 01 1 9812-0105 ●
26 16.545 PANEL; GEAR CONT REINF
MANUAL TILT CAB<RWZ> 		8-97850-140-3 01 1 0106- ● ● ● ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97850-140-3 01 1 0106- ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-017-7 01 1 9812-0105 ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-017-7 01 1 9812-0105 ●
28 16.545 GUSSET; FLOOR PANEL SIDE
MANUAL TILT CAB<RWZ> 		8-97850-017-7 01 1 0106- ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-017-7 01 1 0106- ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-338-5 01 1 9812-0105 ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-338-5 01 1 9812-0105 ●
28 16.545 GUSSET; FLOOR PANEL SIDE
MANUAL TILT CAB<RWZ> 		8-97850-338-5 01 1 0106- ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-338-5 01 1 0106- ● ●
30 16.547 GROMMET; CAB MTG RAIL
OD=74 		8-94279-731-0 02 1 9904- ● ●
31 16.547 GROMMET; LOCATION HOLE,CAB FLOOR
08.155 OD=28.5 		8-94279-711-0 02 1 9812- ● ● ● ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
08.131 (A) OD=53.5 		8-94356-253-0 02 1 9812- ● ● ● ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
15.222 (B) OD=35 		8-94122-971-0 04 1 9904- ● ●
325 16.545 REINFORCEMENT ASM; RR MTG 8-97890-252-4 01 1 9904-0203 ●
325 16.545 REINFORCEMENT ASM; RR MTG
4HE1 ENG(RLY) 		8-97890-252-4 01 1 9904-0203 ●
325 16.545 REINFORCEMENT ASM; RR MTG 8-97997-518-0 01 1 0204- ●
325 16.545 REINFORCEMENT ASM; RR MTG
4HE1 ENG(RLY) 		8-97997-518-0 01 1 0204- ●
375 16.545 CLOSING; PILLAR
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-087-3 01 1 9812-0105 ● ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-087-3 01 1 9812-0105 ●
375 16.545 CLOSING; PILLAR
MANUAL TILT CAB<RWZ> 		8-97850-087-3 01 1 0106- ● ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-087-3 01 1 0106- ● ●
375 16.545 CLOSING; PILLAR
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-086-4 01 1 9812-0105 ● ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-086-4 01 1 9812-0105 ●
375 16.545 CLOSING; PILLAR
MANUAL TILT CAB<RWZ> 		8-97850-086-4 01 1 0106- ● ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-086-4 01 1 0106- ● ●
376 16.545 CLOSING; PILLAR,LWR
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-923-1 01 1 9812-0105 ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> 		8-97850-923-1 01 1 0106- ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-320-6 01 1 9812-0105 ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> 		8-97850-320-6 01 1 0106- ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-187-3 01 1 9904- ●
376 16.545 CLOSING; PILLAR,LWR
4HE1 ENG(RLY) 		8-97850-187-3 01 1 9904- ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-186-3 01 1 9904- ●
376 16.545 CLOSING; PILLAR,LWR
4HE1 ENG(RLY) 		8-97850-186-3 01 1 9904- ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> EXC. FLOOR REMOTE SHIFT<M11> 		8-97850-807-2 01 1 0106-0207 ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> EXC. FLOOR REMOTE SHIFT<M11> 		8-97850-807-2 01 1 0208- ● ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-807-2 01 1 9812- ● ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-807-2 01 1 9812- ● ●
379 16.545 PANEL
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-129-2 01 1 9812-0105 ● ● ● ● ●
379 16.545 PANEL 8-97850-129-2 01 1 9812-0105 ●
379 16.545 PANEL
MANUAL TILT CAB<RWZ> 		8-97850-129-2 01 1 0106- ● ● ● ● ●
379 16.545 PANEL 8-97850-129-2 01 1 0106- ● ●
396 16.547 GROMMET; LOCATION HOLE 1-09983-049-0 02 1 9904- ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> (D) M10 		9-09114-030-0 03 1 9812- ● ● ● ● ●
397 16.545 NUT; PIERCE
(D) M10 		9-09114-030-0 03 1 9812- ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> (A) M6 		9-09114-046-0 04 1 9812- ● ● ● ● ●
397 16.545 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 9812- ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 06 1 9812- ● ● ● ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 06 1 9812- ● ●
397 16.545 NUT; PIERCE
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 16.588 (C) M8 		9-09114-048-0 04 1 9812-0105 ● ● ● ● ●
397 16.545 NUT; PIERCE
16.588 (C) M8 		9-09114-048-0 04 1 9812-0105 ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> 16.588 (C) M8 		9-09114-048-0 04 1 0106- ● ● ● ● ●
397 16.545 NUT; PIERCE
16.588 (C) M8 		9-09114-048-0 04 1 0106- ● ●
399 16.545 PANEL; EXTENSION,RR MTG RAIL 8-97850-224-1 01 1 9904- ● ●
419 04.012 GROMMET; CONT SHAFT,FLOOR PANEL
EXC. PTO TRANSMISSION SIDE(V66) 16.802 OD=36 		1-09983-092-0 01 1 9812- ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
