◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50818 - NPR/NQR(EUROPE)-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#43442) — 82 parça

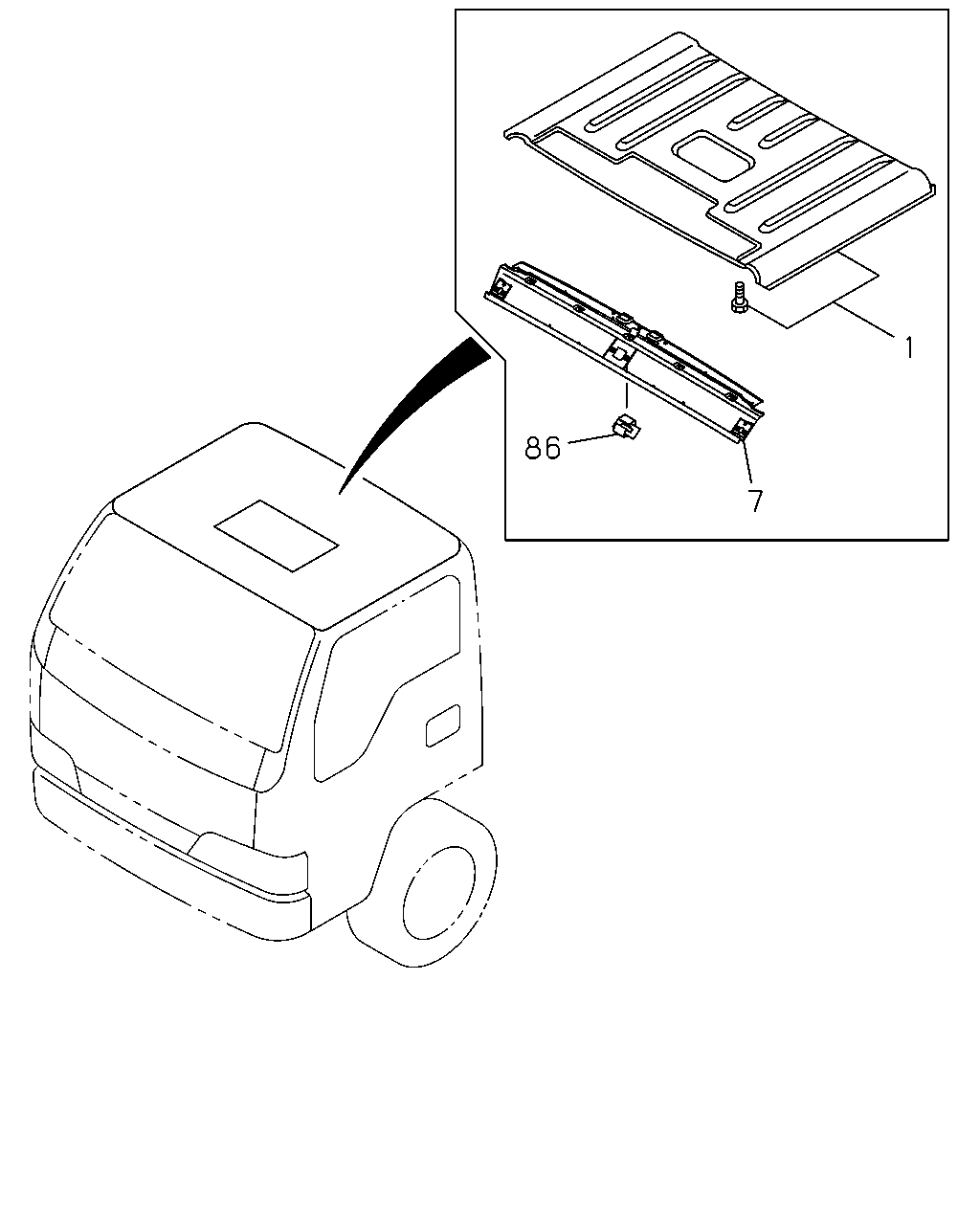

çizim 12862
1 86 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> 		8-97851-098-0 01 1 9812-9901 ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> 		8-97851-098-0 01 1 9902-9902 ● ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97851-098-0 01 1 9903-0105 ● ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> IDENTIFICATION LABEL FOR KD<6UT> 		8-97851-098-0 01 1 9903-0105 ● ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> 		8-97898-995-1 01 1 0106- ● ● ● ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-402-0 01 1 9812-9901 ● ● ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-402-0 01 1 9902-9902 ● ● ● ● ●
1 16.585 PANEL; ROOF
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-402-0 01 1 9903-0105 ● ● ● ● ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-402-0 01 1 9903-0105 ● ● ● ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-488-0 01 1 9812-9901 ● ● ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-488-0 01 1 9902-9902 ● ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> 		8-97898-998-1 01 1 0106- ● ●
1 16.585 PANEL; ROOF
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-488-0 01 1 9903-0105 ● ● ● ● ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-488-0 01 1 9903-0105 ● ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),IDENTIFICATION L ABEL FOR KD<6UT> 		8-97892-869-0 01 1 9903-0105 ● ● ● ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97898-996-1 01 1 0106- ● ● ● ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU),IDENTIFICATION LABEL FOR KD<6UT>,TRAY ROOF HEAD<7EJ> 		8-97892-872-0 01 1 9903-0105 ● ● ● ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU),IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-870-0 01 1 9903-0105 ● ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> 		8-97851-258-7 01 1 9904-9908 ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97898-997-1 01 1 0106- ● ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> 		8-97851-258-7 01 1 9909-0011 ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97851-258-7 01 1 0012-0105 ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> IDENTIFICATION LABEL FOR KD<6UT> 		8-97851-258-7 01 1 0012-0105 ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),IDENTIFICATION L ABEL FOR KD<6UT> 		8-97892-931-0 01 1 0012-0105 ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-403-5 01 1 9904-0011 ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97899-001-1 01 1 0106- ● ●
1 16.585 PANEL; ROOF
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-403-5 01 1 0012-0105 ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-403-5 01 1 0012-0105 ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU),IDENTIFICATION LABEL FOR KD<6UT>,TRAY ROOF HEAD<7EJ> 		8-97892-935-0 01 1 0012-0105 ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-489-5 01 1 9904-0011 ●
1 16.585 PANEL; ROOF
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-489-5 01 1 0012-0105 ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-489-5 01 1 0012-0105 ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU),IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-933-0 01 1 0012-0105 ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97898-999-1 01 1 0106- ● ●
7 16.585 PANEL; FRT WINDSHIELD UPR 8-97892-143-1 01 1 9812- ● ● ● ● ● ● ●
86 16.585 NUT; ROOF
16.069 M5 		8-94279-075-1 01 1 9812- ● ● ● ● ● ● ●

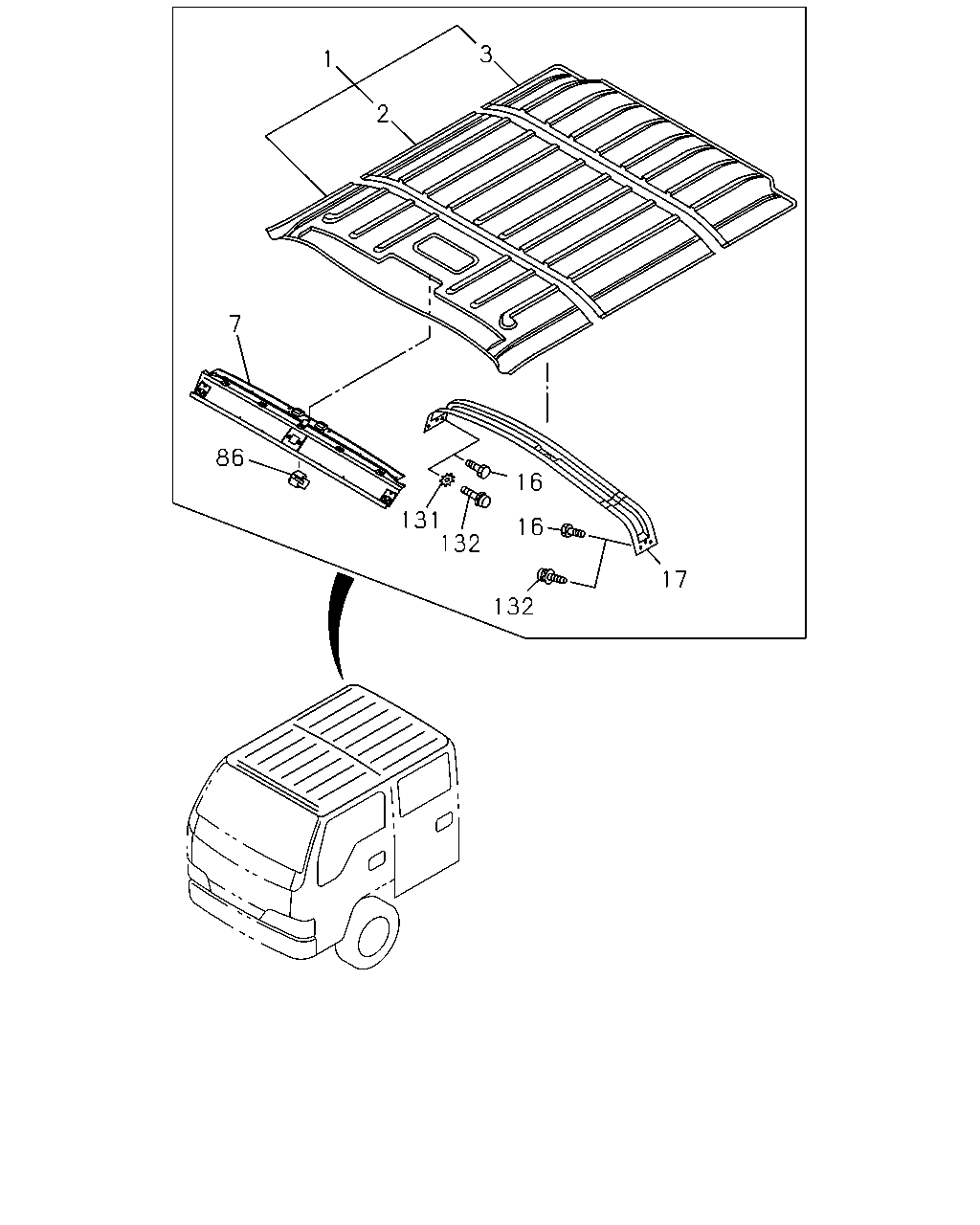

çizim 49660
3 1 2 7 86 16 131 132 16 17 132
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> 		8-97851-098-0 01 1 9812-9901 ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> 		8-97851-098-0 01 1 9902-9902 ● ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97851-098-0 01 1 9903-0105 ● ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> IDENTIFICATION LABEL FOR KD<6UT> 		8-97851-098-0 01 1 9903-0105 ● ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> 		8-97898-995-1 01 1 0106- ● ● ● ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-402-0 01 1 9812-9901 ● ● ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-402-0 01 1 9902-9902 ● ● ● ● ●
1 16.585 PANEL; ROOF
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-402-0 01 1 9903-0105 ● ● ● ● ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-402-0 01 1 9903-0105 ● ● ● ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-488-0 01 1 9812-9901 ● ● ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-488-0 01 1 9902-9902 ● ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> 		8-97898-998-1 01 1 0106- ● ●
1 16.585 PANEL; ROOF
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-488-0 01 1 9903-0105 ● ● ● ● ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-488-0 01 1 9903-0105 ● ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),IDENTIFICATION L ABEL FOR KD<6UT> 		8-97892-869-0 01 1 9903-0105 ● ● ● ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97898-996-1 01 1 0106- ● ● ● ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU),IDENTIFICATION LABEL FOR KD<6UT>,TRAY ROOF HEAD<7EJ> 		8-97892-872-0 01 1 9903-0105 ● ● ● ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU),IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-870-0 01 1 9903-0105 ● ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> 		8-97851-258-7 01 1 9904-9908 ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97898-997-1 01 1 0106- ● ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> 		8-97851-258-7 01 1 9909-0011 ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97851-258-7 01 1 0012-0105 ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> IDENTIFICATION LABEL FOR KD<6UT> 		8-97851-258-7 01 1 0012-0105 ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),IDENTIFICATION L ABEL FOR KD<6UT> 		8-97892-931-0 01 1 0012-0105 ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-403-5 01 1 9904-0011 ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97899-001-1 01 1 0106- ● ●
1 16.585 PANEL; ROOF
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-403-5 01 1 0012-0105 ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-403-5 01 1 0012-0105 ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU),IDENTIFICATION LABEL FOR KD<6UT>,TRAY ROOF HEAD<7EJ> 		8-97892-935-0 01 1 0012-0105 ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-489-5 01 1 9904-0011 ●
1 16.585 PANEL; ROOF
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-489-5 01 1 0012-0105 ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-489-5 01 1 0012-0105 ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU),IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-933-0 01 1 0012-0105 ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97898-999-1 01 1 0106- ● ●
2 16.585 PANEL; ROOF,CENTER 8-97851-256-2 01 1 9904- ● ●
3 16.585 PANEL; ROOF,RR 8-97851-257-4 01 1 9904-0011 ●
3 16.585 PANEL; ROOF,RR
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97851-257-4 01 1 0012-0105 ●
3 16.585 PANEL; ROOF,RR
IDENTIFICATION LABEL FOR KD<6UT> 		8-97851-257-4 01 1 0012-0105 ●
3 16.585 PANEL; ROOF,RR 8-97851-257-4 01 1 0106- ● ●
3 16.585 PANEL; ROOF,RR
EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-943-0 01 1 0012-0105 ●
7 16.585 PANEL; FRT WINDSHIELD UPR 8-97892-143-1 01 1 9812- ● ● ● ● ● ● ●
16 16.585 SCREW; ROOF SUPPORT
16.085 M6X16 W/LK&PL WASHER 		1-09981-141-0 04 1 9904-0107 ● ●
17 16.570 REINFORCEMENT; ROOF PNL CENTER 8-97853-626-3 01 1 9904- ● ●
86 16.585 NUT; ROOF
16.069 M5 		8-94279-075-1 01 1 9812- ● ● ● ● ● ● ●
131 16.585 WASHER; LOCK,ROOF REINF
00.002 ID=6.4 TOOTH LK INT-EXT 		9-09152-206-0 01 1 0108- ● ●
132 16.585 FASTENER; HEADER SHELF
16.742 		8-97892-737-0 04 1 0108- ● ●
