Isuzu WW
▶
TRUCKS
▶
NPR
▶
50818 - NPR/NQR(EUROPE)-RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

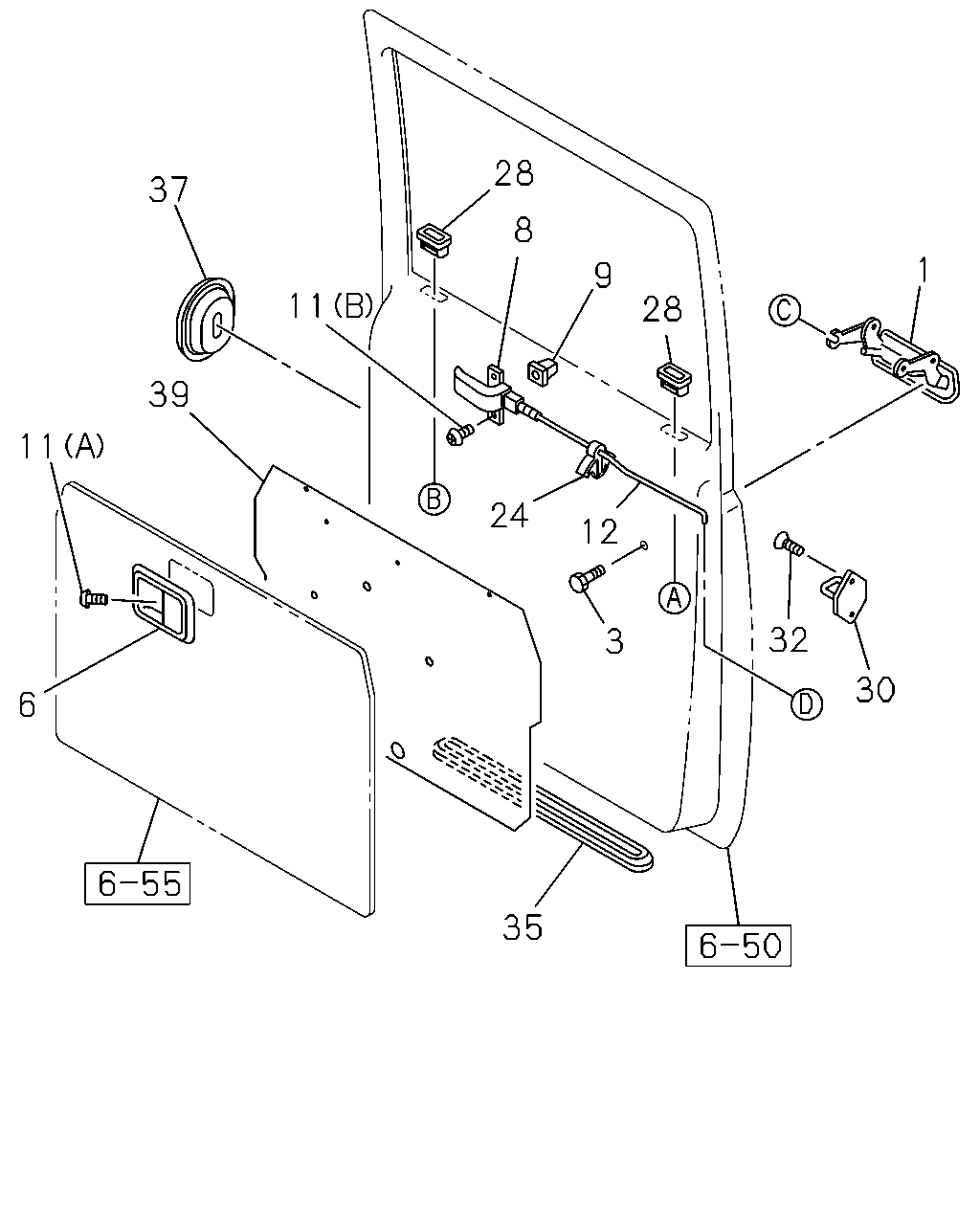

6-52 - REAR DOOR LOCK AND HANDLE
▶
6-52 — REAR DOOR LOCK AND HANDLE
(#43440) — 35 parça
Tümü
A - NPC5WF
B - NPC5WS
◀
[652A] (NO.1) (22 parça)
[652A] (NO.2) (13 parça)
▶
28
37
8
1
9
11
28
39
11
24
12
32
3
30
6
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
16.360 HANDLE; OUTSIDE,RR DOOR
16.350
8-97867-722-1
01
1
9904-
●
●
1
16.360 HANDLE; OUTSIDE,RR DOOR
16.350
8-97867-721-1
01
1
9904-
●
●
3
16.350 BOLT; DOOR OUTSIDE HANDLE
M6X12 W/LK&PL WASHER
8-94279-200-0
04
1
9904-
●
●
6
16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
DARK GRAY
8-97867-236-2
01
1
9904-
●
●
6
16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
DARK GRAY
8-97867-235-2
01
1
9904-
●
●
8
16.345 HANDLE; INSIDE,RR DOOR
DARK GRAY
8-97867-234-3
01
1
9904-
●
●
8
16.345 HANDLE; INSIDE,RR DOOR
DARK GRAY
8-97867-233-3
01
1
9904-
●
●
9
16.345 GROMMET; SCREW,INSIDE HANDLE
01.269 D=8.6X7.7 L=7.5
8-94279-078-0
04
1
9904-
●
●
11
16.345 SCREW; INSIDE HANDLE
(A) M4X10 TAPPING OVAL-HEAD
0-70680-410-0
02
1
9904-
●
●
11
16.345 SCREW; INSIDE HANDLE
16.802 (B) M5X16 TAPPING W/PL WASHER
0-74310-516-0
04
1
9904-
●
●
12
16.350 ROD; DOOR LK RR
8-97852-226-1
01
1
9904-
●
●
12
16.350 ROD; DOOR LK RR
8-97852-225-1
01
1
9904-
●
●
24
16.345 ANTIRATTLER; DOOR INSIDE HANDLE
AUTO DOOR LOCK<AU4> 16.341 ID=3.8 WHITE
8-94217-699-0
02
1
9904-
●
●
24
16.345 ANTIRATTLER; DOOR INSIDE HANDLE
EXC. AUTO DOOR LOCK<AU4> 16.341 ID=3.8 WHITE
8-94217-699-0
06
1
9904-
●
●
28
16.157 ESCUTCHEON; LK BUTTON,RR DOOR
DARK GRAY
8-97867-208-1
02
1
9904-
●
●
30
16.335 STRIKER; RR DOOR
8-97852-106-1
02
1
9904-9904
●
30
16.335 STRIKER; RR DOOR
8-97221-702-0
02
1
9904-
●
●
32
16.335 SCREW; DOOR STRIKER
M8X20
1-09981-450-3
04
1
9904-9904
●
●
32
16.335 SCREW; DOOR STRIKER
M8X23 W/LK WASHER
8-97221-701-0
04
1
9904-
●
●
35
16.155 PLUG; RR DOOR LWR HOLE
8-97852-222-1
02
1
9904-
●
●
37
16.157 GROMMET; RR DOOR
EXC. AUTO DOOR LOCK<AU4> 16.570
8-94279-724-0
02
1
9904-
●
●
39
16.350 SEAL; INSIDE HANDLE,RR DOOR
16.345
8-94271-609-0
02
1
9904-
●
●
52
15
17
27
16
20
29
16
17
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
15
16.341 LINK; RR DOOR LK
EXC. AUTO DOOR LOCK<AU4> DARK GRAY
8-97868-444-0
01
1
9904-
●
●
15
16.341 LINK; RR DOOR LK
EXC. AUTO DOOR LOCK<AU4> DARK GRAY
8-97868-443-0
01
1
9904-
●
●
16
16.345 CLIP; DOOR LK LINK
16.335
8-97859-069-0
01
1
9904-
●
●
16
16.345 CLIP; DOOR LK LINK
8-97852-643-0
01
1
9904-
●
●
17
16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> DARK GRAY
8-97867-205-5
01
1
9904-
●
●
17
16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> DARK GRAY
8-97867-204-5
01
1
9904-
●
●
17
16.330 LOCK; DOOR,RR DOOR
EXC. AUTO DOOR LOCK<AU4>
8-97852-474-2
01
1
9904-
●
●
17
16.330 LOCK; DOOR,RR DOOR
EXC. AUTO DOOR LOCK<AU4>
8-97852-473-2
01
1
9904-
●
●
20
16.330 SCREW; DOOR LK
M6X16
1-09981-447-1
06
1
9904-
●
●
27
16.330 SCREW; RR DOOR LOCK
EXC. AUTO DOOR LOCK<AU4> 16.183 M6X16 W/LK&PL WASHER
8-94279-402-0
04
1
9904-
●
●
29
16.345 KNOB; LK LINK,RR DOOR
AUTO DOOR LOCK<AU4> 16.157 DARK GRAY
8-97098-574-0
02
1
9904-
●
●
52
16.341 BELL CRANK ASM; RR DOOR
EXC. AUTO DOOR LOCK<AU4>
8-97857-874-1
01
1
9904-
●
●
52
16.341 BELL CRANK ASM; RR DOOR
EXC. AUTO DOOR LOCK<AU4>
8-97857-873-1
01
1
9904-
●
●
