6-47 — MUD GUARD AND INSULATOR (#43437) — 700 parça

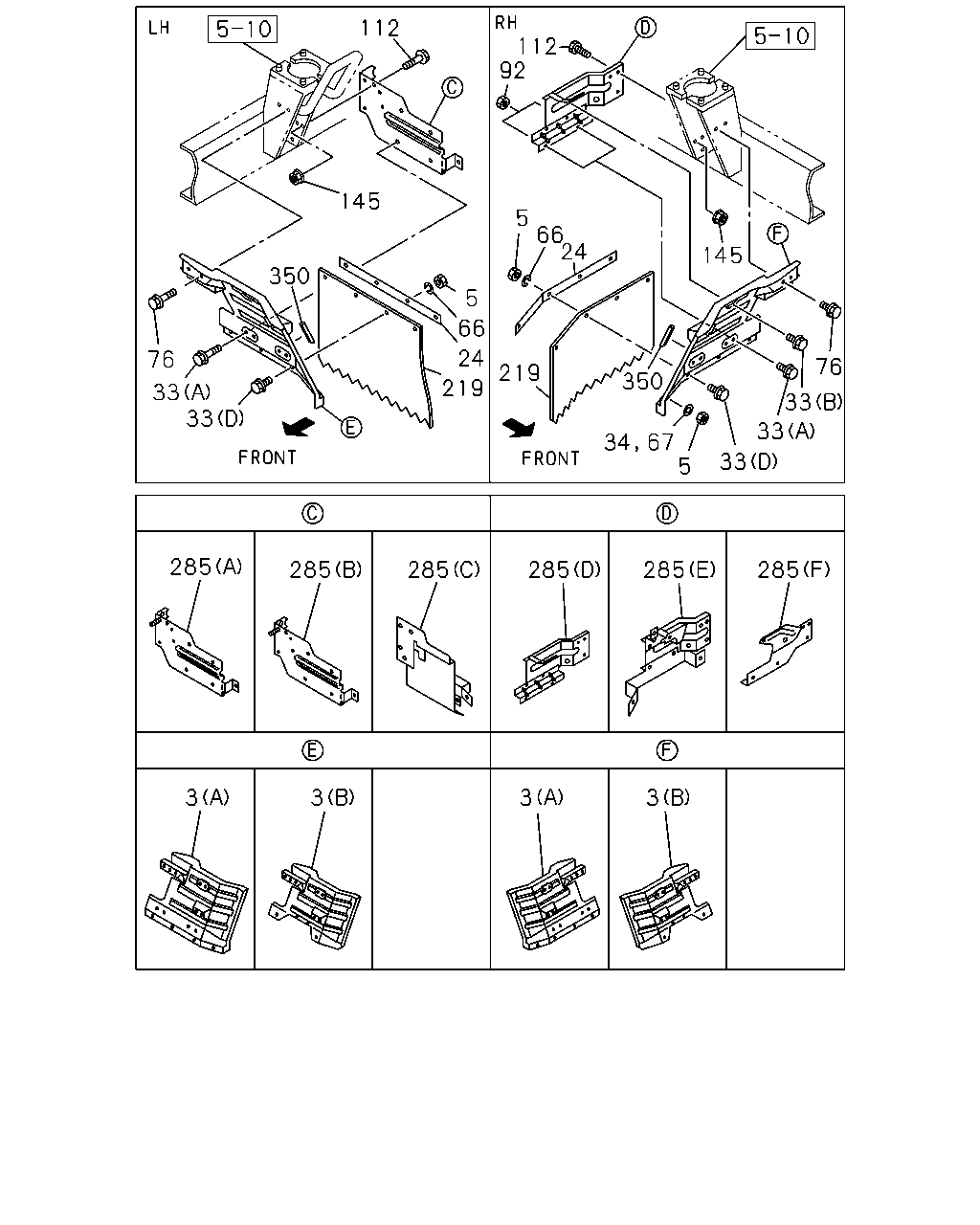

çizim 11282
112 92 112 145 5 66 24 145 350 5 66 24 76 76 219 350 219 33 33 33 33 5 33 285 285 285 285 285 285 3 3 3 3 34 67
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
3 08.153 GUARD; MUD,RR
FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (B) 		8-97147-222-1 01 1 9812-0105 ● ● ● ●
3 08.153 GUARD; MUD,RR
FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (B) 		8-97147-222-1 01 1 0106- ●
3 08.153 GUARD; MUD,RR
FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (B) 		8-97147-221-1 01 1 9812-0105 ● ● ● ●
3 08.153 GUARD; MUD,RR
FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (B) 		8-97147-221-1 01 1 0106- ●
3 08.153 GUARD; MUD,RR
EXC. TIRE SIZE 8.25-16<7QP> (A) 		8-97048-729-1 01 1 9812-9901 ● ● ● ●
3 08.153 GUARD; MUD,RR
EXC. TIRE SIZE 8.25-16<7QP> (A) 		8-97048-729-1 01 1 9902-0105 ● ● ● ●
3 08.153 GUARD; MUD,RR
(A) 		8-97048-729-1 01 1 9902-0105 ●
3 08.153 GUARD; MUD,RR
EXC. TIRE SIZE 8.25-16<7QP> (A) 		8-97048-729-1 01 1 0106- ●
3 08.153 GUARD; MUD,RR
(A) 		8-97048-729-1 01 1 0106- ● ● ● ●
3 08.153 GUARD; MUD,RR
EXC. TIRE SIZE 8.25-16<7QP> (A) 		8-97048-728-3 01 1 9812-9901 ● ● ● ●
3 08.153 GUARD; MUD,RR
EXC. TIRE SIZE 8.25-16<7QP> (A) 		8-97048-728-3 01 1 9902-0105 ● ● ● ●
3 08.153 GUARD; MUD,RR
(A) 		8-97048-728-3 01 1 9902-0105 ●
3 08.153 GUARD; MUD,RR
EXC. TIRE SIZE 8.25-16<7QP> (A) 		8-97048-728-3 01 1 0106- ●
3 08.153 GUARD; MUD,RR
(A) 		8-97048-728-3 01 1 0106- ● ● ● ●
3 08.153 GUARD; MUD,RR
(A) 		8-97081-735-3 01 1 9904-0105 ●
3 08.153 GUARD; MUD,RR
(A) 		8-97081-735-3 01 1 0106- ● ●
3 08.153 GUARD; MUD,RR
(A) 		8-97081-734-5 01 1 9904-0105 ●
3 08.153 GUARD; MUD,RR
(A) 		8-97081-734-5 01 1 0106- ● ●
5 08.155 NUT; FLAP RUBBER
FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 08.915 M6 		9-09111-406-0 06 1 9812-0105 ● ● ● ●
5 08.155 NUT; FLAP RUBBER
FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 08.915 M6 		9-09111-406-0 06 1 0106- ●
5 08.155 NUT; FLAP RUBBER
EXC. TIRE SIZE 8.25-16<7QP> 08.915 M6 		9-09111-406-0 08 1 9812-9901 ● ● ● ●
5 08.155 NUT; FLAP RUBBER
EXC. TIRE SIZE 8.25-16<7QP> 08.915 M6 		9-09111-406-0 08 1 9902-9903 ● ● ● ●
5 08.155 NUT; FLAP RUBBER
08.915 M6 		9-09111-406-0 08 1 9902-9903 ●
5 08.155 NUT; FLAP RUBBER
EXC. TIRE SIZE 8.25-16<7QP> 08.915 M6 		9-09111-406-0 08 1 9904-0105 ● ● ● ●
5 08.155 NUT; FLAP RUBBER
08.915 M6 		9-09111-406-0 08 1 9904-0105 ● ●
5 08.155 NUT; FLAP RUBBER
EXC. TIRE SIZE 8.25-16<7QP> 08.915 M6 		9-09111-406-0 08 1 0106- ●
5 08.155 NUT; FLAP RUBBER
08.915 M6 		9-09111-406-0 08 1 0106- ● ● ● ● ● ●
24 08.155 PLATE; MUD COVER
FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 		8-97147-225-0 02 1 9812-0105 ● ● ● ●
24 08.155 PLATE; MUD COVER
FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 		8-97147-225-0 02 1 0106- ●
24 08.155 PLATE; MUD COVER
EXC. TIRE SIZE 8.25-16<7QP> 		8-97095-186-0 02 1 9812-9901 ● ● ● ●
24 08.155 PLATE; MUD COVER
EXC. TIRE SIZE 8.25-16<7QP> 		8-97095-186-0 02 1 9902-9903 ● ● ● ●
24 08.155 PLATE; MUD COVER 8-97095-186-0 02 1 9902-9903 ●
24 08.155 PLATE; MUD COVER
EXC. TIRE SIZE 8.25-16<7QP> 		8-97095-186-0 02 1 9904-0105 ● ● ● ●
24 08.155 PLATE; MUD COVER 8-97095-186-0 02 1 9904-0105 ● ●
24 08.155 PLATE; MUD COVER
EXC. TIRE SIZE 8.25-16<7QP> 		8-97095-186-0 02 1 0106- ●
24 08.155 PLATE; MUD COVER 8-97095-186-0 02 1 0106- ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
07.010 (A) M8X20 FLANGE 		0-28080-820-0 05 1 9812- ● ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
02.334 (C) M6X25 FLANGE 		0-28680-625-0 04 1 9812- ● ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
16.320 (B) M8X20 W/LK&PL WASHER 		8-94279-104-0 01 1 9812- ● ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. TIRE SIZE 8.25-16<7QP> 04.785 (D) M6X16 		0-20800-616-0 02 1 9812-0105 ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
EXC. TIRE SIZE 8.25-16<7QP> 04.785 (D) M6X16 		0-20800-616-0 02 1 0106- ●
33 08.155 BOLT; MUD COVER
04.785 (D) M6X16 		0-20800-616-0 02 1 0106- ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE 		0-28080-616-0 06 1 9812-9901 ● ● ● ●
33 08.155 BOLT; MUD COVER
FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE 		0-28080-616-0 06 1 9812-9901 ● ● ● ●
33 08.155 BOLT; MUD COVER
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE 		0-28080-616-0 06 1 9902-9903 ● ● ● ● ●
33 08.155 BOLT; MUD COVER
FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE 		0-28080-616-0 06 1 9902-9903 ● ● ● ●
33 08.155 BOLT; MUD COVER
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE 		0-28080-616-0 06 1 9904-0105 ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE 		0-28080-616-0 06 1 9904-0105 ● ● ● ●
33 08.155 BOLT; MUD COVER
EXC. TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE 		0-28080-616-0 06 1 0106- ●
33 08.155 BOLT; MUD COVER
FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE 		0-28080-616-0 06 1 0106- ●
33 08.155 BOLT; MUD COVER
00.738 (D) M6X16 FLANGE 		0-28080-616-0 06 1 0106- ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE 		0-28080-616-0 08 1 9812-0105 ● ● ● ● ● ●
34 08.155 WASHER; PL,MUD COVER
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 00.206 ID=6.4 		9-09160-506-0 04 1 9904-0105 ●
34 08.155 WASHER; PL,MUD COVER
00.206 ID=6.4 		9-09160-506-0 04 1 0106- ● ●
66 08.155 WASHER; LK
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. TIRE SIZE 8.25-16<7QP> 00.206 ID=6.1 		9-09150-506-0 06 1 9812-0105 ● ● ● ● ● ●
66 08.155 WASHER; LK
FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 00.206 ID=6.1 		9-09150-506-0 06 1 9812-0105 ● ● ● ●
66 08.155 WASHER; LK
EXC. TIRE SIZE 8.25-16<7QP> 00.206 ID=6.1 		9-09150-506-0 06 1 0106- ●
66 08.155 WASHER; LK
FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 00.206 ID=6.1 		9-09150-506-0 06 1 0106- ●
66 08.155 WASHER; LK
00.206 ID=6.1 		9-09150-506-0 06 1 0106- ● ● ● ● ● ●
66 08.155 WASHER; LK
EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),TIRE SIZE 8.25-16<7QP> 00.206 ID=6.1 		9-09150-506-0 08 1 9812-0105 ● ● ● ● ● ●
67 08.155 WASHER; PL
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. TIRE SIZE 8.25-16<7QP> 00.206 ID=6.4 		9-09160-506-0 04 1 9812-0105 ● ● ● ● ●
67 08.155 WASHER; PL
EXC. TIRE SIZE 8.25-16<7QP> 00.206 ID=6.4 		9-09160-506-0 04 1 0106- ●
67 08.155 WASHER; PL
00.206 ID=6.4 		9-09160-506-0 04 1 0106- ● ● ● ●
76 08.155 BOLT; MUD GUARD
07.010 M8X20 FLANGE 		0-28080-820-0 04 1 9812- ● ● ● ● ● ● ●
92 08.155 NUT; MUD COVER
FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 07.633 M8 FLANGE 		0-91150-108-0 05 1 9812-0105 ● ● ● ●
92 08.155 NUT; MUD COVER
FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 07.633 M8 FLANGE 		0-91150-108-0 05 1 0106- ●
92 08.155 NUT; MUD COVER
EXC. TIRE SIZE 8.25-16<7QP> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9812-9901 ● ● ● ●
92 08.155 NUT; MUD COVER
EXC. TIRE SIZE 8.25-16<7QP> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9902-9903 ● ● ● ●
92 08.155 NUT; MUD COVER
07.633 M8 FLANGE 		0-91150-108-0 02 1 9902-9903 ●
92 08.155 NUT; MUD COVER
EXC. TIRE SIZE 8.25-16<7QP> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9904-0105 ● ● ● ●
92 08.155 NUT; MUD COVER
07.633 M8 FLANGE 		0-91150-108-0 02 1 9904-0105 ● ●
92 08.155 NUT; MUD COVER
EXC. TIRE SIZE 8.25-16<7QP> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0106- ●
92 08.155 NUT; MUD COVER
07.633 M8 FLANGE 		0-91150-108-0 02 1 0106- ● ● ● ● ● ●
112 08.155 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 02.559 M8X25 FLANGE 		0-28680-825-0 06 1 9812-0105 ● ● ● ●
112 08.155 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 02.559 M8X25 FLANGE 		0-28680-825-0 06 1 0106- ●
112 08.155 BOLT; BRKT
EXC. TIRE SIZE 8.25-16<7QP> 02.559 M8X25 FLANGE 		0-28680-825-0 05 1 9812- ●
112 08.155 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 05 1 9812- ● ● ● ● ● ●
145 08.155 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 06 1 9812- ● ● ● ● ● ● ●
219 08.155 FLAP; MUD GUARD
FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 		8-97147-223-0 02 1 9812-9903 ● ● ● ●
219 08.155 FLAP; MUD GUARD
FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 		8-97218-084-0 02 1 9904-0105 ● ● ● ●
219 08.155 FLAP; MUD GUARD
FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 		8-97218-084-0 02 1 0106-0109 ●
219 08.155 FLAP; MUD GUARD
FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 		8-97325-116-0 02 1 0110- ●
219 08.155 FLAP; MUD GUARD
EXC. TIRE SIZE 8.25-16<7QP> 		8-97040-218-1 02 1 9812-9901 ● ● ● ●
219 08.155 FLAP; MUD GUARD
EXC. TIRE SIZE 8.25-16<7QP> 		8-97040-218-1 02 1 9902-9903 ● ● ● ●
219 08.155 FLAP; MUD GUARD 8-97040-218-1 02 1 9902-9903 ●
219 08.155 FLAP; MUD GUARD
EXC. TIRE SIZE 8.25-16<7QP> 		8-97218-080-0 02 1 9904-0105 ● ● ● ●
219 08.155 FLAP; MUD GUARD 8-97218-080-0 02 1 9904-0105 ●
219 08.155 FLAP; MUD GUARD
EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) 		8-97218-080-0 02 1 9904-0105 ●
219 08.155 FLAP; MUD GUARD
EXC. TIRE SIZE 8.25-16<7QP> 		8-97218-080-0 02 1 0106- ●
219 08.155 FLAP; MUD GUARD 8-97218-080-0 02 1 0106- ● ● ● ●
219 08.155 FLAP; MUD GUARD
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97222-869-0 02 1 9904-0105 ●
219 08.155 FLAP; MUD GUARD 8-97222-869-0 02 1 0106- ● ●
285 08.155 BRACKET; MUD COVER
4JB1 ENG(RLF) (A) 		8-97225-272-0 01 1 9906-0105 ●
285 08.155 BRACKET; MUD COVER
4JH1 ENG(RJX) (A) 		8-97225-272-1 01 1 0106- ●
285 08.155 BRACKET; MUD COVER
4JB1 ENG(RLF) (F) 		8-97089-653-2 01 1 9906-0105 ●
285 08.155 BRACKET; MUD COVER
4JH1 ENG(RJX) (F) 		8-97089-653-2 01 1 0106- ●
285 08.155 BRACKET; MUD COVER
FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (C) 		8-97180-529-0 01 1 9812-0105 ● ● ● ●
285 08.155 BRACKET; MUD COVER
FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (C) 		8-97180-529-0 01 1 0106- ●
285 08.155 BRACKET; MUD COVER
FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (E) 		8-97147-235-0 01 1 9812-0105 ● ● ● ●
285 08.155 BRACKET; MUD COVER
FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (E) 		8-97147-235-0 01 1 0106- ●
285 08.155 BRACKET; MUD COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. TIRE SIZE 8.25-16<7QP> (A) 		8-97035-780-3 01 1 9812-9901 ● ● ● ●
285 08.155 BRACKET; MUD COVER
4JG2 ENG(RJC) (A) 		8-97035-780-3 01 1 9812-9901 ●
285 08.155 BRACKET; MUD COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. TIRE SIZE 8.25-16<7QP> (A) 		8-97035-780-3 01 1 9902-9903 ● ● ● ● ●
285 08.155 BRACKET; MUD COVER
4JG2 ENG(RJC) (A) 		8-97035-780-3 01 1 9902-9903 ●
285 08.155 BRACKET; MUD COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. TIRE SIZE 8.25-16<7QP> (A) 		8-97035-780-3 01 1 9904-0105 ● ● ● ● ● ●
285 08.155 BRACKET; MUD COVER
4JG2 ENG(RJC) (A) 		8-97035-780-3 01 1 9904-0105 ●
285 08.155 BRACKET; MUD COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. TIRE SIZE 8.25-16<7QP> (A) 		8-97035-780-4 01 1 0106- ●
285 08.155 BRACKET; MUD COVER
(A) 		8-97035-780-4 01 1 0106- ● ● ●
285 08.155 BRACKET; MUD COVER
4HE1 ENG(RLY) (A) 		8-97035-780-4 01 1 0106- ● ● ●
285 08.155 BRACKET; MUD COVER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE 8.25-16<7QP> (B) 		8-97092-037-1 01 1 9812-9901 ● ● ● ●
285 08.155 BRACKET; MUD COVER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE 8.25-16<7QP> (B) 		8-97092-037-1 01 1 9902-9903 ● ● ● ● ●
285 08.155 BRACKET; MUD COVER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE 8.25-16<7QP> (B) 		8-97092-037-1 01 1 9904-0105 ● ● ● ● ● ●
285 08.155 BRACKET; MUD COVER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE 8.25-16<7QP> (B) 		8-97092-037-2 01 1 0106- ●
285 08.155 BRACKET; MUD COVER
4JG2 ENG(RJC),4HE1 ENG(RLY) EXC. TIRE SIZE 8.25-16<7QP> (D) 		8-97035-778-4 01 1 9812-9901 ● ● ● ●
285 08.155 BRACKET; MUD COVER
4JG2 ENG(RJC),4HE1 ENG(RLY) EXC. TIRE SIZE 8.25-16<7QP> (D) 		8-97035-778-4 01 1 9902-9903 ● ● ● ● ●
285 08.155 BRACKET; MUD COVER
4JG2 ENG(RJC),4HE1 ENG(RLY) EXC. TIRE SIZE 8.25-16<7QP> (D) 		8-97035-778-4 01 1 9904-0105 ● ● ● ● ● ●
285 08.155 BRACKET; MUD COVER
4HE1 ENG(RLY) EXC. TIRE SIZE 8.25-16<7QP> (D) 		8-97035-778-4 01 1 0106- ●
285 08.155 BRACKET; MUD COVER
(D) 		8-97035-778-4 01 1 0106- ● ● ●
285 08.155 BRACKET; MUD COVER
4HE1 ENG(RLY) (D) 		8-97035-778-4 01 1 0106- ● ● ●
350 08.155 PROTECTOR; EDGE,MUD COVER
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97227-208-0 02 1 9904-0105 ●
350 08.155 PROTECTOR; EDGE,MUD COVER 8-97227-208-0 02 1 0106- ● ●

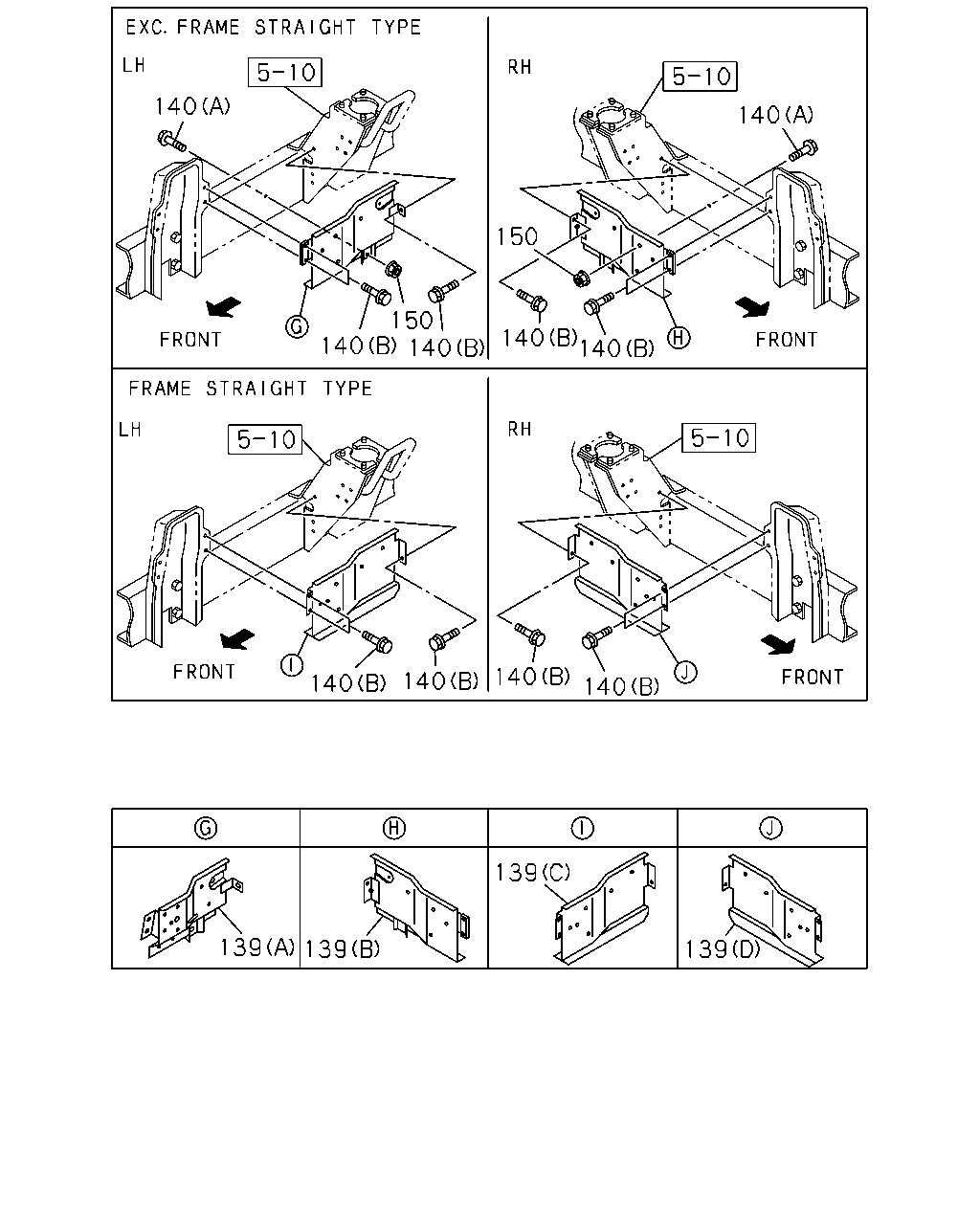

çizim 47798
140 140 150 150 140 140 140 140 140 140 140 140 139 139 139 139
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
139 08.153 PANEL; SIDE
FRAME STRAIGHT TYPE<7KJ> (C) 		8-97171-996-0 01 1 9812- ●
139 08.153 PANEL; SIDE
(C) 		8-97171-996-0 01 1 9812- ● ● ● ● ● ●
139 08.153 PANEL; SIDE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-97188-736-0 01 1 9812- ●
139 08.153 PANEL; SIDE
(D) 		8-97188-736-0 01 1 9812- ● ● ● ● ● ●
139 08.153 PANEL; SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97092-020-1 01 1 9812-0105 ●
139 08.153 PANEL; SIDE
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97040-138-3 01 1 0106- ●
139 08.153 PANEL; SIDE
4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-94101-539-2 01 1 9812-9905 ●
139 08.153 PANEL; SIDE
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-94101-539-2 01 1 9906-0105 ●
139 08.153 PANEL; SIDE
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-94101-539-2 01 1 0106- ●
140 08.155 BOLT; SIDE PANEL
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 9812- ●
140 08.155 BOLT; SIDE PANEL
04.595 (B) M8X20 FLANGE 		0-28480-820-0 06 1 9812- ● ● ● ● ● ● ●
150 08.155 NUT; SIDE PANEL
EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9812- ●

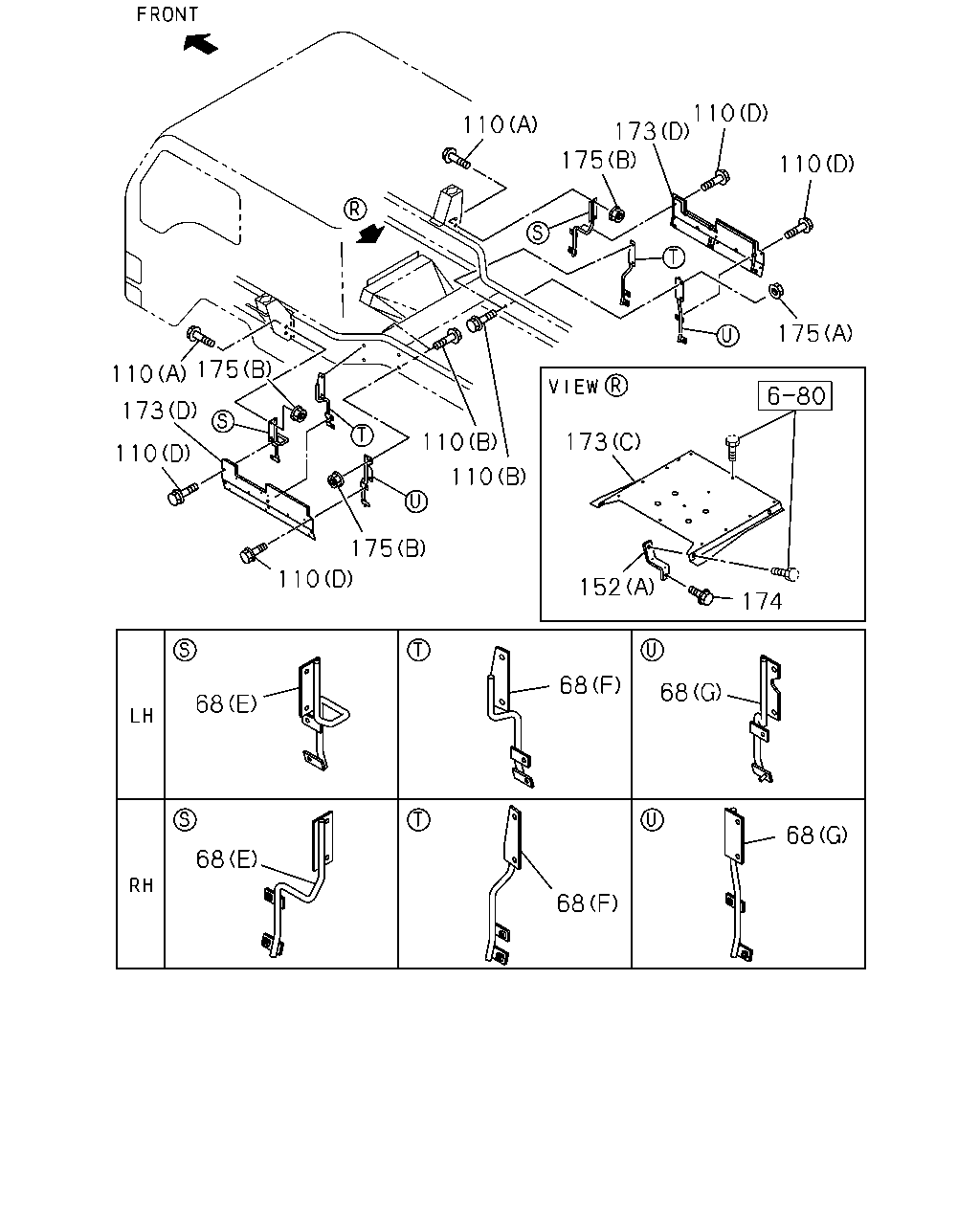

çizim 49617
110 173 175 110 110 175 175 110 173 173 110 110 110 175 110 152 174 68 68 68 68 68 68
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
68 08.155 STAY; COVER
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97205-599-2 01 1 9906-0105 ●
68 08.155 STAY; COVER
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-97205-601-2 01 1 9906-0105 ●
68 08.155 STAY; COVER
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-97205-603-4 01 1 9906-0105 ●
68 08.155 STAY; COVER
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97205-598-2 01 1 9906-0105 ●
68 08.155 STAY; COVER
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97300-157-1 01 1 0106- ●
68 08.155 STAY; COVER
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-97205-600-4 01 1 9906-0105 ●
68 08.155 STAY; COVER
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-97205-602-4 01 1 9906-0105 ●
68 08.155 STAY; COVER
4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 16.545 (F) REAR 		8-97108-071-2 01 1 9812-0105 ●
68 08.155 STAY; COVER
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97260-027-1 01 1 0106- ●
68 08.155 STAY; COVER
4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 16.545 (E) FRONT 		8-97147-718-0 01 1 9812-0105 ●
68 08.155 STAY; COVER
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-97260-031-1 01 1 0106- ●
68 08.155 STAY; COVER
4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 16.545 (F) REAR 		8-97108-072-1 01 1 9812-0105 ●
68 08.155 STAY; COVER
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-97260-029-1 01 1 0106- ●
68 08.155 STAY; COVER
4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 16.545 (E) FRONT 		8-97147-717-0 01 1 9812-0105 ●
68 08.155 STAY; COVER
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-97260-030-1 01 1 0106- ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (A) 		8-97213-266-0 01 1 9812-9901 ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (A) 		8-97213-266-0 01 1 9902-9903 ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (A) 		8-97213-266-0 01 1 9904-0105 ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97213-266-0 01 1 0106- ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (A) 		8-97213-267-0 01 1 9812-9901 ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (A) 		8-97213-267-0 01 1 9902-9903 ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (A) 		8-97213-267-0 01 1 9904-0105 ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97213-267-0 01 1 0106- ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.549 (D) 		8-97180-983-1 01 1 9812-9901 ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.549 (D) 		8-97180-983-1 01 1 9902-9903 ● ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.549 (D) 		8-97180-983-1 01 1 9904-0105 ● ● ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 16.549 (D) 		8-97180-983-1 01 1 0106- ● ● ● ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (C) 		8-97216-695-2 01 1 9812-9901 ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (C) 		8-97216-695-2 01 1 9902-9903 ● ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (C) 		8-97216-695-2 01 1 9904-0105 ● ● ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97216-695-2 01 1 0106- ● ● ● ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.549 (B) 		8-97180-880-0 01 1 9812-9901 ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.549 (B) 		8-97180-880-0 01 1 9902-9903 ● ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.549 (B) 		8-97180-880-0 01 1 9904-0105 ● ● ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 16.549 (B) 		8-97180-880-0 01 1 0106- ● ● ● ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.549 (D) 		8-97180-984-1 01 1 9812-9901 ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.549 (D) 		8-97180-984-1 01 1 9902-9903 ● ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.549 (D) 		8-97180-984-1 01 1 9904-0105 ● ● ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 16.549 (D) 		8-97180-984-1 01 1 0106- ● ● ● ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MBP6P(RNC),M/T MBP6Q(RNM) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.549 (A) 		8-97180-878-0 01 1 9812-0105 ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 16.549 (A) 		8-97180-878-0 01 1 0106-0207 ● ● ● ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MBP6R(RNW),M/T MZZ6F(RSR) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 16.549 (A) 		8-97180-878-0 01 1 0208- ● ● ● ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MBP6P(RNC),M/T MBP6Q(RNM) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.549 (A) 		8-97180-879-0 01 1 9812-0105 ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 16.549 (A) 		8-97180-879-0 01 1 0106-0207 ● ● ● ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MBP6R(RNW),M/T MZZ6F(RSR) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 16.549 (A) 		8-97180-879-0 01 1 0208- ● ● ● ● ● ● ●
110 08.155 BOLT; BRKT
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 (D) M10X30 FLANGE 		0-28681-030-0 08 1 9906-0105 ●
110 08.155 BOLT; BRKT
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 (D) M10X30 FLANGE 		0-28681-030-0 08 1 0106- ●
110 08.155 BOLT; BRKT
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 06 1 9906-9908 ●
110 08.155 BOLT; BRKT
4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 04 1 9812-9905 ●
110 08.155 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 04 1 9906-0011 ●
110 08.155 BOLT; BRKT
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 05 1 0012-0105 ● ● ● ●
110 08.155 BOLT; BRKT
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 15 1 0106- ●
110 08.155 BOLT; BRKT
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 11 1 9909-0105 ●
110 08.155 BOLT; BRKT
4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 (B) M10X25 FLANGE 		0-28681-025-0 04 1 9812-0105 ●
110 08.155 BOLT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (C) M8X20 FLANGE 		0-28680-820-0 02 1 9812-9901 ● ● ● ●
110 08.155 BOLT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (C) M8X20 FLANGE 		0-28680-820-0 02 1 9902-9903 ● ● ● ● ●
110 08.155 BOLT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (C) M8X20 FLANGE 		0-28680-820-0 02 1 9904-0105 ● ● ● ● ●
110 08.155 BOLT; BRKT
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. IRISH EQUIPMENT(6CU) 02.664 (C) M8X20 FLANGE 		0-28680-820-0 02 1 9904-0105 ●
110 08.155 BOLT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.664 (C) M8X20 FLANGE 		0-28680-820-0 02 1 0106- ● ● ● ● ●
110 08.155 BOLT; BRKT
CHARGE AIR COOLER<6PL> EXC. IRISH EQUIPMENT(6CU) 02.664 (C) M8X20 FLANGE 		0-28680-820-0 02 1 0106- ● ●
110 08.155 BOLT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 03.405 (D) M10X30 FLANGE 		0-28681-030-0 12 1 9812-9901 ● ● ● ●
110 08.155 BOLT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 03.405 (D) M10X30 FLANGE 		0-28681-030-0 12 1 9902-9903 ● ● ● ● ●
110 08.155 BOLT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 03.405 (D) M10X30 FLANGE 		0-28681-030-0 10 1 9904-0105 ● ● ● ● ● ●
110 08.155 BOLT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.405 (D) M10X30 FLANGE 		0-28681-030-0 10 1 0106- ● ● ● ● ● ● ●
110 08.155 BOLT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 05 1 9812-9901 ● ● ● ●
110 08.155 BOLT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 05 1 9902-9903 ● ● ● ● ●
110 08.155 BOLT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 05 1 9904-9908 ● ● ● ● ● ●
110 08.155 BOLT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 09 1 9909-0011 ● ● ● ● ● ●
110 08.155 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 04 1 0012-0105 ●
110 08.155 BOLT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 04 1 0012-0105 ●
110 08.155 BOLT; BRKT
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 04 1 0012-0105 ● ● ● ● ●
110 08.155 BOLT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 09 1 0106- ● ● ● ● ● ● ●
152 04.275 BRACKET; PANEL,TRANS
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> (A) REAR 		8-97207-758-1 02 1 9906-0104 ●
152 04.275 BRACKET; PANEL,TRANS
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> (A) REAR 		8-97312-925-0 02 1 0105-0105 ●
152 04.275 BRACKET; PANEL,TRANS
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (A) REAR 		8-97312-925-0 02 1 0106- ●
152 04.275 BRACKET; PANEL,TRANS
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> (A) FRONT 		8-97225-329-0 01 1 9906-0105 ●
152 04.275 BRACKET; PANEL,TRANS
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (A) FR0NT 		8-97225-329-0 01 1 0106-0109 ●
152 04.275 BRACKET; PANEL,TRANS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) FR0NT 		8-97225-329-0 01 1 0110-0111 ● ● ● ● ●
152 04.275 BRACKET; PANEL,TRANS
CHARGE AIR COOLER<6PL> EXC. IRISH EQUIPMENT(6CU) (A) FR0NT 		8-97225-329-0 01 1 0110-0111 ● ●
152 04.275 BRACKET; PANEL,TRANS
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (A) FR0NT 		8-97225-329-0 01 1 0112- ●
152 04.275 BRACKET; PANEL,TRANS
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> (A) FRONT 		8-97207-757-0 01 1 9906-0105 ●
152 04.275 BRACKET; PANEL,TRANS
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (A) FRONT 		8-97207-757-0 01 1 0106-0109 ●
152 04.275 BRACKET; PANEL,TRANS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) FR0NT 		8-97207-757-0 01 1 0110-0111 ● ● ● ● ●
152 04.275 BRACKET; PANEL,TRANS
CHARGE AIR COOLER<6PL> EXC. IRISH EQUIPMENT(6CU) (A) FR0NT 		8-97207-757-0 01 1 0110-0111 ● ●
152 04.275 BRACKET; PANEL,TRANS
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (A) FR0NT 		8-97207-757-0 01 1 0112- ●
152 04.275 BRACKET; PANEL,TRANS
4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 16.545 (A) 		8-97075-447-2 02 1 9812-0105 ●
152 04.275 BRACKET; PANEL,TRANS
EXC. IRISH EQUIPMENT(6CU) (B) 		8-97304-652-0 01 1 0106- ●
152 04.275 BRACKET; PANEL,TRANS
4HE1 ENG(RLY) EXC. IRISH EQUIPMENT(6CU) (B) 		8-97304-652-0 01 1 0106- ●
152 04.275 BRACKET; PANEL,TRANS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.545 (A) 		8-97180-799-0 01 1 9812-9901 ● ● ● ●
152 04.275 BRACKET; PANEL,TRANS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.545 (A) 		8-97180-799-0 01 1 9902-9903 ● ● ● ● ●
152 04.275 BRACKET; PANEL,TRANS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.545 (A) 		8-97180-799-0 01 1 9904-0105 ● ● ● ● ●
152 04.275 BRACKET; PANEL,TRANS
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. IRISH EQUIPMENT(6CU) 16.545 (A) 		8-97180-799-0 01 1 9904-0105 ●
152 04.275 BRACKET; PANEL,TRANS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 16.545 (A) 		8-97180-799-0 01 1 0106- ● ● ● ● ●
152 04.275 BRACKET; PANEL,TRANS
CHARGE AIR COOLER<6PL> EXC. IRISH EQUIPMENT(6CU) 16.545 (A) 		8-97180-799-0 01 1 0106- ● ●
152 04.275 BRACKET; PANEL,TRANS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.545 (A) 		8-97180-800-0 01 1 9812-9901 ● ● ● ●
152 04.275 BRACKET; PANEL,TRANS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.545 (A) 		8-97180-800-0 01 1 9902-9903 ● ● ● ● ●
152 04.275 BRACKET; PANEL,TRANS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.545 (A) 		8-97180-800-0 01 1 9904-0105 ● ● ● ● ●
152 04.275 BRACKET; PANEL,TRANS
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. IRISH EQUIPMENT(6CU) 16.545 (A) 		8-97180-800-0 01 1 9904-0105 ●
152 04.275 BRACKET; PANEL,TRANS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 16.545 (A) 		8-97180-800-0 01 1 0106- ● ● ● ● ●
152 04.275 BRACKET; PANEL,TRANS
CHARGE AIR COOLER<6PL> EXC. IRISH EQUIPMENT(6CU) 16.545 (A) 		8-97180-800-0 01 1 0106- ● ●
173 08.155 COVER; TRANS SIDE
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-592-2 01 1 9906-0105 ●
173 08.155 COVER; TRANS SIDE
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-97205-596-3 01 1 9906-0105 ●
173 08.155 COVER; TRANS SIDE
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-97205-595-3 01 1 9906-0105 ●
173 08.155 COVER; TRANS SIDE
4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 16.545 (C) 		8-97143-433-2 01 1 9812-0105 ●
173 08.155 COVER; TRANS SIDE
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97260-024-1 01 1 0106- ●
173 08.155 COVER; TRANS SIDE
4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 16.549 (D) 		8-97143-434-1 01 1 9812-0105 ●
173 08.155 COVER; TRANS SIDE
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-97300-155-0 01 1 0106- ●
173 08.155 COVER; TRANS SIDE
4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 16.549 (D) 		8-97143-435-1 01 1 9812-0105 ●
173 08.155 COVER; TRANS SIDE
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-97300-297-0 01 1 0106- ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) M/T MBP6P(RNC),M/T MBP6Q(RNM) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ENGINE POWER N-SPEC(7QV) NOISE PACK FOR REGULATION VAR.2<7TF> (A) 		8-97207-122-1 01 1 9812-0105 ● ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (A) 		8-97205-591-1 01 1 9812-9901 ● ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (A) 		8-97205-591-1 01 1 9902-0105 ● ● ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-591-1 01 1 0106- ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (B) 		8-97205-593-0 01 1 9812-9901 ● ● ● ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (B) 		8-97205-593-0 01 1 9902-9903 ● ● ● ● ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (B) 		8-97205-593-0 01 1 9904-0105 ● ● ● ● ● ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97205-593-0 01 1 0106- ● ● ● ● ● ● ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (B) 		8-97205-594-0 01 1 9812-9901 ● ● ● ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (B) 		8-97205-594-0 01 1 9902-9903 ● ● ● ● ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (B) 		8-97205-594-0 01 1 9904-0105 ● ● ● ● ● ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97205-594-0 01 1 0106- ● ● ● ● ● ● ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) M/T MBP6P(RNC),M/T MBP6Q(RNM) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. ENGINE POWER N-SPEC(7QV) (A) 		8-97180-795-2 01 1 9812-0105 ● ● ● ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97180-795-2 01 1 0106-0207 ● ● ● ● ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) M/T MBP6R(RNW),M/T MZZ6F(RSR) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97180-795-2 01 1 0208- ● ● ● ● ●
173 08.155 COVER; TRANS SIDE
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. IRISH EQUIPMENT(6CU) (A) 		8-97227-209-1 01 1 9904-0105 ●
173 08.155 COVER; TRANS SIDE
EXC. IRISH EQUIPMENT(6CU) (A) 		8-97305-494-1 01 1 0106- ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) EXC. IRISH EQUIPMENT(6CU) (A) 		8-97305-494-1 01 1 0106- ●
174 08.155 BOLT; STAY FIX
4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-9905 ●
174 08.155 BOLT; STAY FIX
4JG2 ENG(RJC),4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9906-0105 ●
174 08.155 BOLT; STAY FIX
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ●
174 08.155 BOLT; STAY FIX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 9812-9901 ● ● ● ●
174 08.155 BOLT; STAY FIX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 9902-9903 ● ● ● ● ●
174 08.155 BOLT; STAY FIX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 9904-9905 ● ● ● ● ●
174 08.155 BOLT; STAY FIX
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. IRISH EQUIPMENT(6CU) 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 9904-9905 ●
174 08.155 BOLT; STAY FIX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 9906-0105 ● ● ● ● ●
174 08.155 BOLT; STAY FIX
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 9906-0105 ●
174 08.155 BOLT; STAY FIX
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. IRISH EQUIPMENT(6CU) 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 9906-0105 ●
174 08.155 BOLT; STAY FIX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 0106- ● ● ● ● ●
174 08.155 BOLT; STAY FIX
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 0106- ●
174 08.155 BOLT; STAY FIX
EXC. IRISH EQUIPMENT(6CU) 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 0106- ● ●
174 08.155 BOLT; STAY FIX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9904-0105 ● ● ● ● ● ●
174 08.155 BOLT; STAY FIX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0106- ● ● ● ● ● ● ●
175 08.155 NUT; STAY FIX
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 9906-9908 ●
175 08.155 NUT; STAY FIX
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 9909-0105 ●
175 08.155 NUT; STAY FIX
4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 9812-9905 ●
175 08.155 NUT; STAY FIX
4JG2 ENG(RJC),4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 9906-0105 ●
175 08.155 NUT; STAY FIX
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 05 1 0106- ●
175 08.155 NUT; STAY FIX
4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (B) M10 FLANGE 		0-91150-110-0 04 1 9812-0105 ●
175 08.155 NUT; STAY FIX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 04.785 (B) M10 FLANGE 		0-91150-110-0 08 1 9812-9901 ● ● ● ●
175 08.155 NUT; STAY FIX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 04.785 (B) M10 FLANGE 		0-91150-110-0 08 1 9902-9903 ● ● ● ● ●
175 08.155 NUT; STAY FIX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 04.785 (B) M10 FLANGE 		0-91150-110-0 06 1 9904-9905 ● ● ● ● ● ●
175 08.155 NUT; STAY FIX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 04.785 (B) M10 FLANGE 		0-91150-110-0 06 1 9906-0105 ● ● ● ● ● ●
175 08.155 NUT; STAY FIX
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (B) M10 FLANGE 		0-91150-110-0 06 1 9906-0105 ●
175 08.155 NUT; STAY FIX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.785 (B) M10 FLANGE 		0-91150-110-0 06 1 0106- ● ● ● ● ● ● ●
175 08.155 NUT; STAY FIX
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (B) M10 FLANGE 		0-91150-110-0 06 1 0106- ●
175 08.155 NUT; STAY FIX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 9812-9901 ● ● ● ●
175 08.155 NUT; STAY FIX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 9902-9903 ● ● ● ● ●
175 08.155 NUT; STAY FIX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 (A) M8 FLANGE 		0-91150-108-0 03 1 9904-0105 ● ● ● ● ● ●
175 08.155 NUT; STAY FIX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 03 1 0106- ● ● ● ● ● ● ●

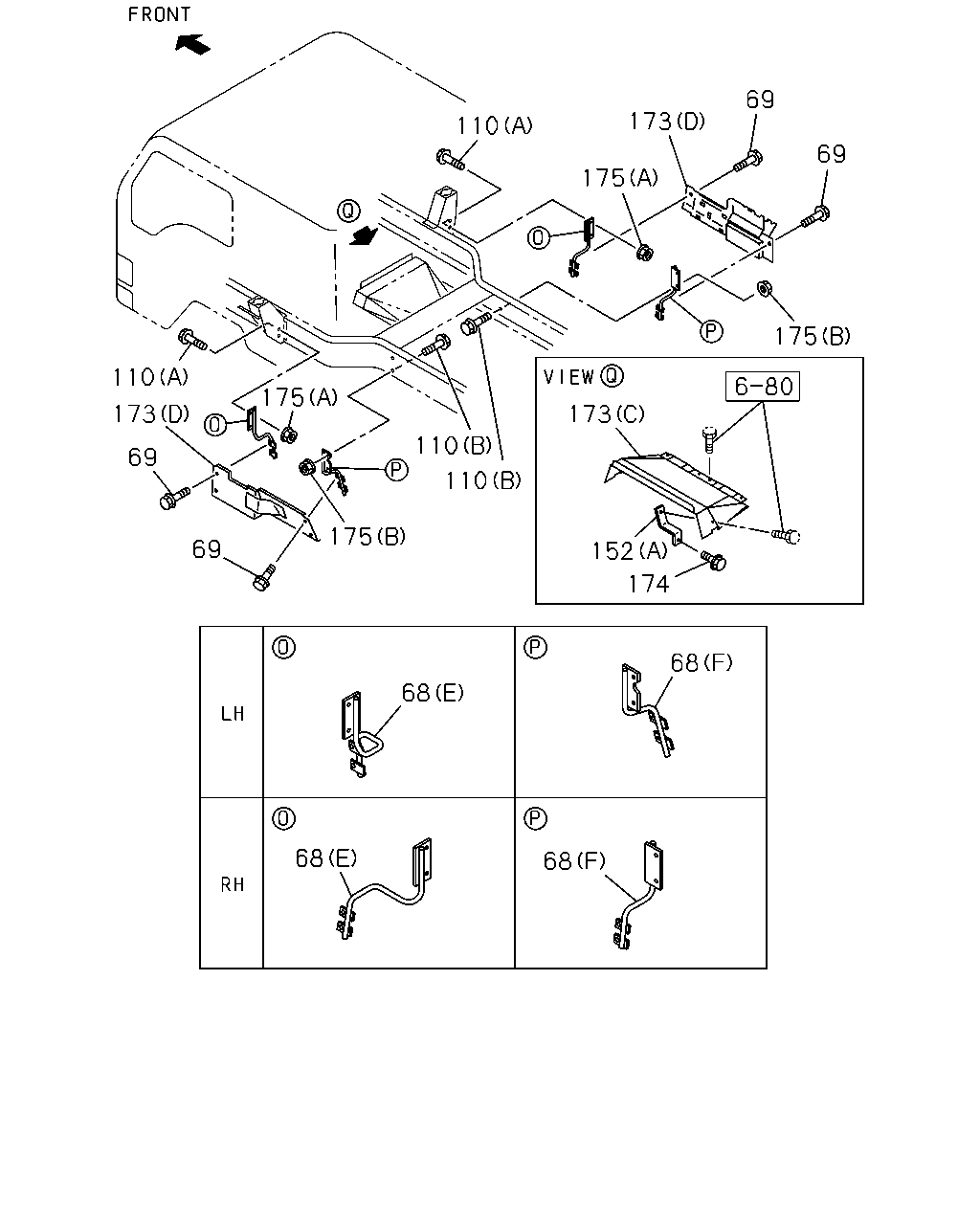

çizim 50883
69 173 110 69 175 175 110 175 173 173 110 69 110 175 69 152 174 68 68 68 68
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
68 08.155 STAY; COVER
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97205-599-2 01 1 9906-0105 ●
68 08.155 STAY; COVER
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-97205-601-2 01 1 9906-0105 ●
68 08.155 STAY; COVER
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-97205-603-4 01 1 9906-0105 ●
68 08.155 STAY; COVER
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97205-598-2 01 1 9906-0105 ●
68 08.155 STAY; COVER
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97300-157-1 01 1 0106- ●
68 08.155 STAY; COVER
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-97205-600-4 01 1 9906-0105 ●
68 08.155 STAY; COVER
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-97205-602-4 01 1 9906-0105 ●
68 08.155 STAY; COVER
4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 16.545 (F) REAR 		8-97108-071-2 01 1 9812-0105 ●
68 08.155 STAY; COVER
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97260-027-1 01 1 0106- ●
68 08.155 STAY; COVER
4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 16.545 (E) FRONT 		8-97147-718-0 01 1 9812-0105 ●
68 08.155 STAY; COVER
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-97260-031-1 01 1 0106- ●
68 08.155 STAY; COVER
4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 16.545 (F) REAR 		8-97108-072-1 01 1 9812-0105 ●
68 08.155 STAY; COVER
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-97260-029-1 01 1 0106- ●
68 08.155 STAY; COVER
4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 16.545 (E) FRONT 		8-97147-717-0 01 1 9812-0105 ●
68 08.155 STAY; COVER
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-97260-030-1 01 1 0106- ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (A) 		8-97213-266-0 01 1 9812-9901 ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (A) 		8-97213-266-0 01 1 9902-9903 ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (A) 		8-97213-266-0 01 1 9904-0105 ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97213-266-0 01 1 0106- ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (A) 		8-97213-267-0 01 1 9812-9901 ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (A) 		8-97213-267-0 01 1 9902-9903 ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (A) 		8-97213-267-0 01 1 9904-0105 ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97213-267-0 01 1 0106- ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.549 (D) 		8-97180-983-1 01 1 9812-9901 ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.549 (D) 		8-97180-983-1 01 1 9902-9903 ● ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.549 (D) 		8-97180-983-1 01 1 9904-0105 ● ● ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 16.549 (D) 		8-97180-983-1 01 1 0106- ● ● ● ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (C) 		8-97216-695-2 01 1 9812-9901 ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (C) 		8-97216-695-2 01 1 9902-9903 ● ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (C) 		8-97216-695-2 01 1 9904-0105 ● ● ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97216-695-2 01 1 0106- ● ● ● ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.549 (B) 		8-97180-880-0 01 1 9812-9901 ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.549 (B) 		8-97180-880-0 01 1 9902-9903 ● ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.549 (B) 		8-97180-880-0 01 1 9904-0105 ● ● ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 16.549 (B) 		8-97180-880-0 01 1 0106- ● ● ● ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.549 (D) 		8-97180-984-1 01 1 9812-9901 ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.549 (D) 		8-97180-984-1 01 1 9902-9903 ● ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.549 (D) 		8-97180-984-1 01 1 9904-0105 ● ● ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 16.549 (D) 		8-97180-984-1 01 1 0106- ● ● ● ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MBP6P(RNC),M/T MBP6Q(RNM) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.549 (A) 		8-97180-878-0 01 1 9812-0105 ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 16.549 (A) 		8-97180-878-0 01 1 0106-0207 ● ● ● ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MBP6R(RNW),M/T MZZ6F(RSR) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 16.549 (A) 		8-97180-878-0 01 1 0208- ● ● ● ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MBP6P(RNC),M/T MBP6Q(RNM) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.549 (A) 		8-97180-879-0 01 1 9812-0105 ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 16.549 (A) 		8-97180-879-0 01 1 0106-0207 ● ● ● ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MBP6R(RNW),M/T MZZ6F(RSR) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 16.549 (A) 		8-97180-879-0 01 1 0208- ● ● ● ● ● ● ●
69 08.155 BOLT; COVER TO STAY
4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 08 1 9812-0105 ●
110 08.155 BOLT; BRKT
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 (D) M10X30 FLANGE 		0-28681-030-0 08 1 9906-0105 ●
110 08.155 BOLT; BRKT
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 (D) M10X30 FLANGE 		0-28681-030-0 08 1 0106- ●
110 08.155 BOLT; BRKT
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 06 1 9906-9908 ●
110 08.155 BOLT; BRKT
4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 04 1 9812-9905 ●
110 08.155 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 04 1 9906-0011 ●
110 08.155 BOLT; BRKT
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 05 1 0012-0105 ● ● ● ●
110 08.155 BOLT; BRKT
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 15 1 0106- ●
110 08.155 BOLT; BRKT
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 11 1 9909-0105 ●
110 08.155 BOLT; BRKT
4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 (B) M10X25 FLANGE 		0-28681-025-0 04 1 9812-0105 ●
110 08.155 BOLT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (C) M8X20 FLANGE 		0-28680-820-0 02 1 9812-9901 ● ● ● ●
110 08.155 BOLT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (C) M8X20 FLANGE 		0-28680-820-0 02 1 9902-9903 ● ● ● ● ●
110 08.155 BOLT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (C) M8X20 FLANGE 		0-28680-820-0 02 1 9904-0105 ● ● ● ● ●
110 08.155 BOLT; BRKT
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. IRISH EQUIPMENT(6CU) 02.664 (C) M8X20 FLANGE 		0-28680-820-0 02 1 9904-0105 ●
110 08.155 BOLT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.664 (C) M8X20 FLANGE 		0-28680-820-0 02 1 0106- ● ● ● ● ●
110 08.155 BOLT; BRKT
CHARGE AIR COOLER<6PL> EXC. IRISH EQUIPMENT(6CU) 02.664 (C) M8X20 FLANGE 		0-28680-820-0 02 1 0106- ● ●
110 08.155 BOLT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 03.405 (D) M10X30 FLANGE 		0-28681-030-0 12 1 9812-9901 ● ● ● ●
110 08.155 BOLT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 03.405 (D) M10X30 FLANGE 		0-28681-030-0 12 1 9902-9903 ● ● ● ● ●
110 08.155 BOLT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 03.405 (D) M10X30 FLANGE 		0-28681-030-0 10 1 9904-0105 ● ● ● ● ● ●
110 08.155 BOLT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.405 (D) M10X30 FLANGE 		0-28681-030-0 10 1 0106- ● ● ● ● ● ● ●
110 08.155 BOLT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 05 1 9812-9901 ● ● ● ●
110 08.155 BOLT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 05 1 9902-9903 ● ● ● ● ●
110 08.155 BOLT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 05 1 9904-9908 ● ● ● ● ● ●
110 08.155 BOLT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 09 1 9909-0011 ● ● ● ● ● ●
110 08.155 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 04 1 0012-0105 ●
110 08.155 BOLT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 04 1 0012-0105 ●
110 08.155 BOLT; BRKT
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 04 1 0012-0105 ● ● ● ● ●
110 08.155 BOLT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 09 1 0106- ● ● ● ● ● ● ●
152 04.275 BRACKET; PANEL,TRANS
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> (A) REAR 		8-97207-758-1 02 1 9906-0104 ●
152 04.275 BRACKET; PANEL,TRANS
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> (A) REAR 		8-97312-925-0 02 1 0105-0105 ●
152 04.275 BRACKET; PANEL,TRANS
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (A) REAR 		8-97312-925-0 02 1 0106- ●
152 04.275 BRACKET; PANEL,TRANS
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> (A) FRONT 		8-97225-329-0 01 1 9906-0105 ●
152 04.275 BRACKET; PANEL,TRANS
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (A) FR0NT 		8-97225-329-0 01 1 0106-0109 ●
152 04.275 BRACKET; PANEL,TRANS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) FR0NT 		8-97225-329-0 01 1 0110-0111 ● ● ● ● ●
152 04.275 BRACKET; PANEL,TRANS
CHARGE AIR COOLER<6PL> EXC. IRISH EQUIPMENT(6CU) (A) FR0NT 		8-97225-329-0 01 1 0110-0111 ● ●
152 04.275 BRACKET; PANEL,TRANS
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (A) FR0NT 		8-97225-329-0 01 1 0112- ●
152 04.275 BRACKET; PANEL,TRANS
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> (A) FRONT 		8-97207-757-0 01 1 9906-0105 ●
152 04.275 BRACKET; PANEL,TRANS
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (A) FRONT 		8-97207-757-0 01 1 0106-0109 ●
152 04.275 BRACKET; PANEL,TRANS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) FR0NT 		8-97207-757-0 01 1 0110-0111 ● ● ● ● ●
152 04.275 BRACKET; PANEL,TRANS
CHARGE AIR COOLER<6PL> EXC. IRISH EQUIPMENT(6CU) (A) FR0NT 		8-97207-757-0 01 1 0110-0111 ● ●
152 04.275 BRACKET; PANEL,TRANS
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (A) FR0NT 		8-97207-757-0 01 1 0112- ●
152 04.275 BRACKET; PANEL,TRANS
4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 16.545 (A) 		8-97075-447-2 02 1 9812-0105 ●
152 04.275 BRACKET; PANEL,TRANS
EXC. IRISH EQUIPMENT(6CU) (B) 		8-97304-652-0 01 1 0106- ●
152 04.275 BRACKET; PANEL,TRANS
4HE1 ENG(RLY) EXC. IRISH EQUIPMENT(6CU) (B) 		8-97304-652-0 01 1 0106- ●
152 04.275 BRACKET; PANEL,TRANS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.545 (A) 		8-97180-799-0 01 1 9812-9901 ● ● ● ●
152 04.275 BRACKET; PANEL,TRANS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.545 (A) 		8-97180-799-0 01 1 9902-9903 ● ● ● ● ●
152 04.275 BRACKET; PANEL,TRANS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.545 (A) 		8-97180-799-0 01 1 9904-0105 ● ● ● ● ●
152 04.275 BRACKET; PANEL,TRANS
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. IRISH EQUIPMENT(6CU) 16.545 (A) 		8-97180-799-0 01 1 9904-0105 ●
152 04.275 BRACKET; PANEL,TRANS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 16.545 (A) 		8-97180-799-0 01 1 0106- ● ● ● ● ●
152 04.275 BRACKET; PANEL,TRANS
CHARGE AIR COOLER<6PL> EXC. IRISH EQUIPMENT(6CU) 16.545 (A) 		8-97180-799-0 01 1 0106- ● ●
152 04.275 BRACKET; PANEL,TRANS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.545 (A) 		8-97180-800-0 01 1 9812-9901 ● ● ● ●
152 04.275 BRACKET; PANEL,TRANS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.545 (A) 		8-97180-800-0 01 1 9902-9903 ● ● ● ● ●
152 04.275 BRACKET; PANEL,TRANS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.545 (A) 		8-97180-800-0 01 1 9904-0105 ● ● ● ● ●
152 04.275 BRACKET; PANEL,TRANS
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. IRISH EQUIPMENT(6CU) 16.545 (A) 		8-97180-800-0 01 1 9904-0105 ●
152 04.275 BRACKET; PANEL,TRANS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 16.545 (A) 		8-97180-800-0 01 1 0106- ● ● ● ● ●
152 04.275 BRACKET; PANEL,TRANS
CHARGE AIR COOLER<6PL> EXC. IRISH EQUIPMENT(6CU) 16.545 (A) 		8-97180-800-0 01 1 0106- ● ●
173 08.155 COVER; TRANS SIDE
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-592-2 01 1 9906-0105 ●
173 08.155 COVER; TRANS SIDE
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-97205-596-3 01 1 9906-0105 ●
173 08.155 COVER; TRANS SIDE
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-97205-595-3 01 1 9906-0105 ●
173 08.155 COVER; TRANS SIDE
4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 16.545 (C) 		8-97143-433-2 01 1 9812-0105 ●
173 08.155 COVER; TRANS SIDE
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97260-024-1 01 1 0106- ●
173 08.155 COVER; TRANS SIDE
4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 16.549 (D) 		8-97143-434-1 01 1 9812-0105 ●
173 08.155 COVER; TRANS SIDE
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-97300-155-0 01 1 0106- ●
173 08.155 COVER; TRANS SIDE
4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 16.549 (D) 		8-97143-435-1 01 1 9812-0105 ●
173 08.155 COVER; TRANS SIDE
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-97300-297-0 01 1 0106- ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) M/T MBP6P(RNC),M/T MBP6Q(RNM) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ENGINE POWER N-SPEC(7QV) NOISE PACK FOR REGULATION VAR.2<7TF> (A) 		8-97207-122-1 01 1 9812-0105 ● ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (A) 		8-97205-591-1 01 1 9812-9901 ● ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (A) 		8-97205-591-1 01 1 9902-0105 ● ● ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-591-1 01 1 0106- ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (B) 		8-97205-593-0 01 1 9812-9901 ● ● ● ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (B) 		8-97205-593-0 01 1 9902-9903 ● ● ● ● ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (B) 		8-97205-593-0 01 1 9904-0105 ● ● ● ● ● ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97205-593-0 01 1 0106- ● ● ● ● ● ● ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (B) 		8-97205-594-0 01 1 9812-9901 ● ● ● ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (B) 		8-97205-594-0 01 1 9902-9903 ● ● ● ● ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (B) 		8-97205-594-0 01 1 9904-0105 ● ● ● ● ● ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97205-594-0 01 1 0106- ● ● ● ● ● ● ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) M/T MBP6P(RNC),M/T MBP6Q(RNM) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. ENGINE POWER N-SPEC(7QV) (A) 		8-97180-795-2 01 1 9812-0105 ● ● ● ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97180-795-2 01 1 0106-0207 ● ● ● ● ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) M/T MBP6R(RNW),M/T MZZ6F(RSR) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97180-795-2 01 1 0208- ● ● ● ● ●
173 08.155 COVER; TRANS SIDE
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. IRISH EQUIPMENT(6CU) (A) 		8-97227-209-1 01 1 9904-0105 ●
173 08.155 COVER; TRANS SIDE
EXC. IRISH EQUIPMENT(6CU) (A) 		8-97305-494-1 01 1 0106- ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) EXC. IRISH EQUIPMENT(6CU) (A) 		8-97305-494-1 01 1 0106- ●
174 08.155 BOLT; STAY FIX
4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-9905 ●
174 08.155 BOLT; STAY FIX
4JG2 ENG(RJC),4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9906-0105 ●
174 08.155 BOLT; STAY FIX
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ●
174 08.155 BOLT; STAY FIX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 9812-9901 ● ● ● ●
174 08.155 BOLT; STAY FIX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 9902-9903 ● ● ● ● ●
174 08.155 BOLT; STAY FIX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 9904-9905 ● ● ● ● ●
174 08.155 BOLT; STAY FIX
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. IRISH EQUIPMENT(6CU) 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 9904-9905 ●
174 08.155 BOLT; STAY FIX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 9906-0105 ● ● ● ● ●
174 08.155 BOLT; STAY FIX
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 9906-0105 ●
174 08.155 BOLT; STAY FIX
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. IRISH EQUIPMENT(6CU) 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 9906-0105 ●
174 08.155 BOLT; STAY FIX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 0106- ● ● ● ● ●
174 08.155 BOLT; STAY FIX
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 0106- ●
174 08.155 BOLT; STAY FIX
EXC. IRISH EQUIPMENT(6CU) 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 0106- ● ●
174 08.155 BOLT; STAY FIX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9904-0105 ● ● ● ● ● ●
174 08.155 BOLT; STAY FIX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0106- ● ● ● ● ● ● ●
175 08.155 NUT; STAY FIX
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 9906-9908 ●
175 08.155 NUT; STAY FIX
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 9909-0105 ●
175 08.155 NUT; STAY FIX
4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 9812-9905 ●
175 08.155 NUT; STAY FIX
4JG2 ENG(RJC),4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 9906-0105 ●
175 08.155 NUT; STAY FIX
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 05 1 0106- ●
175 08.155 NUT; STAY FIX
4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (B) M10 FLANGE 		0-91150-110-0 04 1 9812-0105 ●
175 08.155 NUT; STAY FIX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 04.785 (B) M10 FLANGE 		0-91150-110-0 08 1 9812-9901 ● ● ● ●
175 08.155 NUT; STAY FIX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 04.785 (B) M10 FLANGE 		0-91150-110-0 08 1 9902-9903 ● ● ● ● ●
175 08.155 NUT; STAY FIX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 04.785 (B) M10 FLANGE 		0-91150-110-0 06 1 9904-9905 ● ● ● ● ● ●
175 08.155 NUT; STAY FIX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 04.785 (B) M10 FLANGE 		0-91150-110-0 06 1 9906-0105 ● ● ● ● ● ●
175 08.155 NUT; STAY FIX
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (B) M10 FLANGE 		0-91150-110-0 06 1 9906-0105 ●
175 08.155 NUT; STAY FIX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.785 (B) M10 FLANGE 		0-91150-110-0 06 1 0106- ● ● ● ● ● ● ●
175 08.155 NUT; STAY FIX
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (B) M10 FLANGE 		0-91150-110-0 06 1 0106- ●
175 08.155 NUT; STAY FIX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 9812-9901 ● ● ● ●
175 08.155 NUT; STAY FIX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 9902-9903 ● ● ● ● ●
175 08.155 NUT; STAY FIX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 (A) M8 FLANGE 		0-91150-108-0 03 1 9904-0105 ● ● ● ● ● ●
175 08.155 NUT; STAY FIX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 03 1 0106- ● ● ● ● ● ● ●

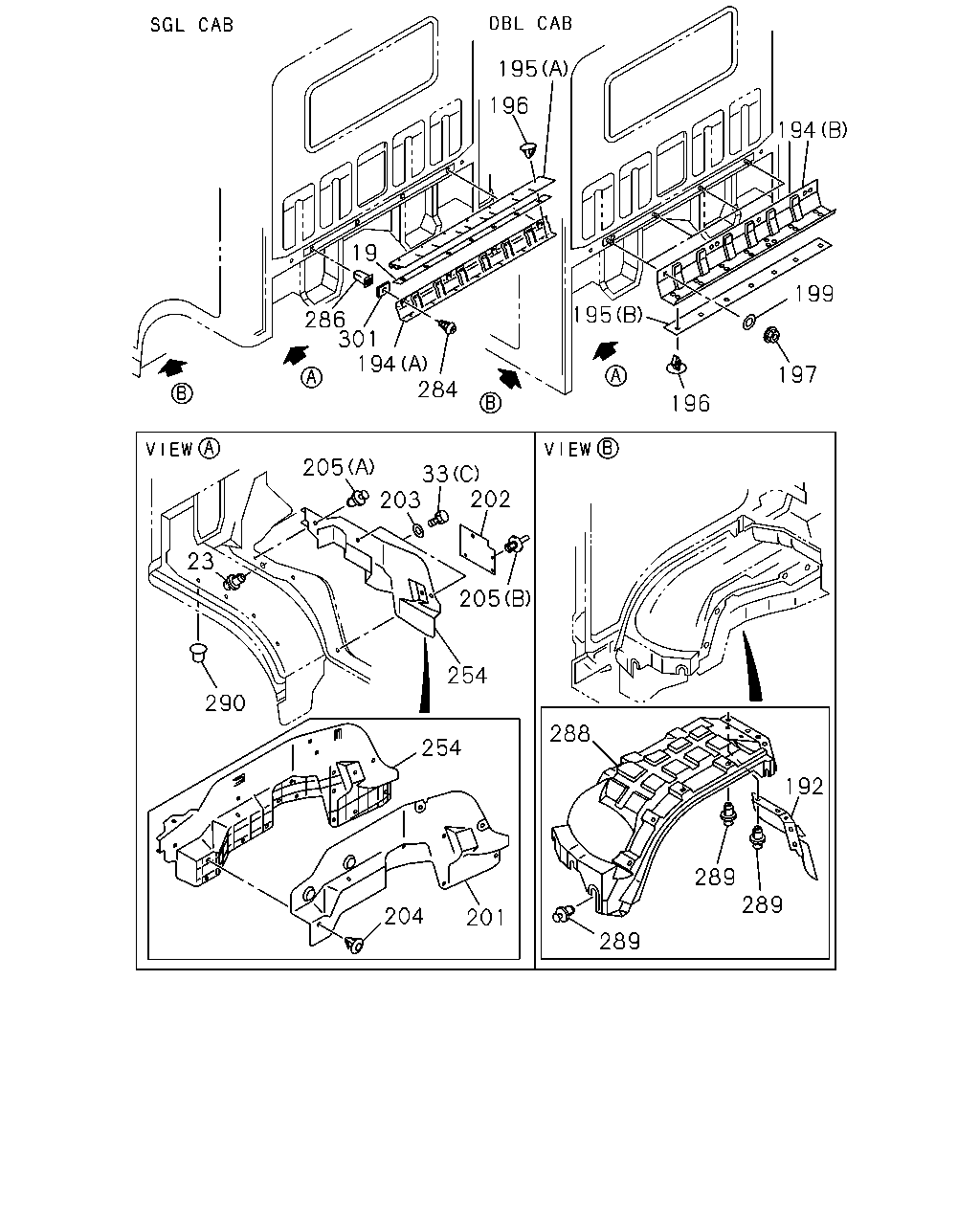

çizim 51180
195 196 194 19 199 195 286 301 194 284 197 196 205 33 203 202 23 205 254 290 288 254 192 289 289 204 201 289
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
19 03.602 SHEET; HEAT PROTECTOR,CAB BACK
EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> 		8-97856-016-0 01 1 9812-9901 ● ● ● ●
19 03.602 SHEET; HEAT PROTECTOR,CAB BACK
EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> 		8-97856-016-0 01 1 9902-0105 ● ● ● ● ●
23 08.154 FASTENER; MUD COVER
16.320 OD=8.3 		8-94279-989-0 10 1 9812-9907 ● ● ● ● ● ●
23 08.154 FASTENER; MUD COVER
16.320 OD=8.3 		8-94279-989-0 06 1 9908-0207 ● ● ● ● ● ● ●
23 08.154 FASTENER; MUD COVER
16.320 OD=8.3 		8-97997-832-0 06 1 0208- ● ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
07.010 (A) M8X20 FLANGE 		0-28080-820-0 05 1 9812- ● ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
02.334 (C) M6X25 FLANGE 		0-28680-625-0 04 1 9812- ● ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
16.320 (B) M8X20 W/LK&PL WASHER 		8-94279-104-0 01 1 9812- ● ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. TIRE SIZE 8.25-16<7QP> 04.785 (D) M6X16 		0-20800-616-0 02 1 9812-0105 ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
EXC. TIRE SIZE 8.25-16<7QP> 04.785 (D) M6X16 		0-20800-616-0 02 1 0106- ●
33 08.155 BOLT; MUD COVER
04.785 (D) M6X16 		0-20800-616-0 02 1 0106- ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE 		0-28080-616-0 06 1 9812-9901 ● ● ● ●
33 08.155 BOLT; MUD COVER
FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE 		0-28080-616-0 06 1 9812-9901 ● ● ● ●
33 08.155 BOLT; MUD COVER
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE 		0-28080-616-0 06 1 9902-9903 ● ● ● ● ●
33 08.155 BOLT; MUD COVER
FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE 		0-28080-616-0 06 1 9902-9903 ● ● ● ●
33 08.155 BOLT; MUD COVER
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE 		0-28080-616-0 06 1 9904-0105 ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE 		0-28080-616-0 06 1 9904-0105 ● ● ● ●
33 08.155 BOLT; MUD COVER
EXC. TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE 		0-28080-616-0 06 1 0106- ●
33 08.155 BOLT; MUD COVER
FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE 		0-28080-616-0 06 1 0106- ●
33 08.155 BOLT; MUD COVER
00.738 (D) M6X16 FLANGE 		0-28080-616-0 06 1 0106- ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE 		0-28080-616-0 08 1 9812-0105 ● ● ● ● ● ●
192 08.153 SEAL; MUD COVER 8-97857-297-3 02 1 9812- ● ● ● ● ● ● ●
194 03.602 BRACKET; HEAT PROTECTOR
EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> (A) 		8-97853-797-1 01 1 9812-9901 ● ● ● ●
194 03.602 BRACKET; HEAT PROTECTOR
EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> (A) 		8-97853-797-1 01 1 9902-0105 ● ● ● ● ●
194 03.602 BRACKET; HEAT PROTECTOR
(B) 		8-94272-529-3 01 1 9904- ● ●
195 03.602 PROTECTOR; HEAT
EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> (A) 		8-97856-386-1 01 1 9812-9901 ● ● ● ●
195 03.602 PROTECTOR; HEAT
EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> (A) 		8-97856-386-1 01 1 9902-0105 ● ● ● ● ●
195 03.602 PROTECTOR; HEAT
(B) 		8-94272-528-0 01 1 9904- ● ●
196 03.602 CLIP; HEAT PROTECTOR
EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> 		8-94244-922-0 07 1 9812-0105 ● ● ● ● ●
196 03.602 CLIP; HEAT PROTECTOR 8-94244-922-0 07 1 9812-0105 ●
196 03.602 CLIP; HEAT PROTECTOR 8-94244-922-0 07 1 0106- ● ●
197 03.602 NUT; HEAT PROTECTOR,CAB BACK
03.417 M6 FLANGE 		8-94279-514-0 04 1 9904- ● ●
199 03.602 WASHER; PL,HEAT PROTECTOR 8-94292-135-0 04 1 9904- ● ●
201 08.155 INSULATOR; VALANCE
4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97892-213-1 01 1 9906-0105 ●
201 08.155 INSULATOR; VALANCE
4JH1 ENG(RJX) 		8-97892-213-1 01 1 0106- ●
201 08.155 INSULATOR; VALANCE
4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 		8-97892-212-1 01 1 9906-0105 ●
201 08.155 INSULATOR; VALANCE
4JH1 ENG(RJX) 		8-97892-212-1 01 1 0106- ●
201 08.155 INSULATOR; VALANCE 8-97853-631-2 01 1 9812-9812 ● ● ● ●
201 08.155 INSULATOR; VALANCE
4JG2 ENG(RJC),4HE1 ENG(RLY) 		8-97853-631-2 01 1 9812-9905 ●
201 08.155 INSULATOR; VALANCE 8-97853-631-2 01 1 9812-9905 ● ● ● ● ●
201 08.155 INSULATOR; VALANCE
4JG2 ENG(RJC),4HE1 ENG(RLY) 		8-97853-631-2 01 1 9906-0105 ●
201 08.155 INSULATOR; VALANCE
4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) 		8-97853-631-2 01 1 9906-0105 ●
201 08.155 INSULATOR; VALANCE 8-97853-631-2 01 1 9906-0105 ● ● ● ● ●
201 08.155 INSULATOR; VALANCE
4HE1 ENG(RLY) 		8-97853-631-2 01 1 0106- ● ● ● ●
201 08.155 INSULATOR; VALANCE 8-97853-631-2 01 1 0106- ● ● ●
201 08.155 INSULATOR; VALANCE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97892-184-0 01 1 9812- ● ● ● ● ● ● ●
201 08.155 INSULATOR; VALANCE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97853-630-2 01 1 9812-9901 ● ● ● ●
201 08.155 INSULATOR; VALANCE
4JG2 ENG(RJC) 		8-97853-630-2 01 1 9812-9901 ●
201 08.155 INSULATOR; VALANCE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97853-630-2 01 1 9902-9903 ● ● ● ● ●
201 08.155 INSULATOR; VALANCE
4JG2 ENG(RJC) 		8-97853-630-2 01 1 9902-9903 ●
201 08.155 INSULATOR; VALANCE
4JG2 ENG(RJC) 		8-97853-630-2 01 1 9904-9905 ●
201 08.155 INSULATOR; VALANCE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97853-630-2 01 1 9904-9905 ●
201 08.155 INSULATOR; VALANCE
EXC. CHARGE AIR COOLER<6PL> 		8-97853-630-2 01 1 9904-9905 ● ● ● ● ●
201 08.155 INSULATOR; VALANCE
4JG2 ENG(RJC) 		8-97853-630-2 01 1 9906-0105 ●
201 08.155 INSULATOR; VALANCE
4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) 		8-97853-630-2 01 1 9906-0105 ●
201 08.155 INSULATOR; VALANCE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97853-630-2 01 1 9906-0105 ●
201 08.155 INSULATOR; VALANCE
EXC. CHARGE AIR COOLER<6PL> 		8-97853-630-2 01 1 9906-0105 ● ● ● ● ●
201 08.155 INSULATOR; VALANCE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97853-630-2 01 1 0106- ●
202 08.155 RUBBER; MUD,VALANCE PANEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97892-185-0 01 1 9812- ● ● ● ● ● ● ●
203 08.155 WASHER; PL,VALANCE
ID=6.4 OD=22 		8-94279-631-0 04 1 9812- ● ● ● ● ● ● ●
204 08.155 CLIP; VALANCE,INSULATOR
OD=18 L=17 		8-94279-702-0 14 1 9812- ● ● ● ● ● ● ●
205 08.155 FASTENER; MUD COVER
12.934 (A) D=5.8 SCREW & GROMMET NYLON 		8-94242-150-0 02 1 9812- ● ● ● ● ● ● ●
205 08.155 FASTENER; MUD COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) 		5-09989-002-0 04 1 9812- ● ● ● ● ● ● ●
254 08.153 COVER; MUD,VALANCE 8-97853-359-3 01 1 9812- ● ● ● ● ● ● ●
254 08.153 COVER; MUD,VALANCE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97892-183-0 01 1 9812- ● ● ● ● ● ● ●
254 08.153 COVER; MUD,VALANCE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97853-358-3 01 1 9812-9901 ● ● ● ●
254 08.153 COVER; MUD,VALANCE
4JG2 ENG(RJC) 		8-97853-358-3 01 1 9812-9901 ●
254 08.153 COVER; MUD,VALANCE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97853-358-3 01 1 9902-9903 ● ● ● ● ●
254 08.153 COVER; MUD,VALANCE
4JG2 ENG(RJC) 		8-97853-358-3 01 1 9902-9903 ●
254 08.153 COVER; MUD,VALANCE
4JG2 ENG(RJC) 		8-97853-358-3 01 1 9904-9905 ●
254 08.153 COVER; MUD,VALANCE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97853-358-3 01 1 9904-9905 ●
254 08.153 COVER; MUD,VALANCE
EXC. CHARGE AIR COOLER<6PL> 		8-97853-358-3 01 1 9904-9905 ● ● ● ● ●
254 08.153 COVER; MUD,VALANCE
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97853-358-3 01 1 9906-0105 ●
254 08.153 COVER; MUD,VALANCE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97853-358-3 01 1 9906-0105 ●
254 08.153 COVER; MUD,VALANCE
EXC. CHARGE AIR COOLER<6PL> 		8-97853-358-3 01 1 9906-0105 ● ● ● ● ●
254 08.153 COVER; MUD,VALANCE
4JH1 ENG(RJX) 		8-97853-358-3 01 1 0106- ●
254 08.153 COVER; MUD,VALANCE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97853-358-3 01 1 0106- ●
284 08.155 SCREW; HEAT PROTECTOR
EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> 16.345 M5X16 W/PL WASHER TAPPING 		8-94279-123-0 04 1 9812-0105 ● ● ● ● ●
286 08.155 GROMMET; SCREW,HEAT PROTECTOR
16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 04 1 9812-0101 ● ● ● ● ●
286 08.155 GROMMET; SCREW,HEAT PROTECTOR 8-97994-312-0 04 1 0102- ● ● ● ● ●
288 08.155 LINER; TIRE HOUSE 8-97890-579-1 01 1 9812-0212 ● ● ● ● ● ● ●
288 08.155 LINER; TIRE HOUSE 8-97581-241-0 01 1 0301- ● ● ● ● ● ● ●
288 08.155 LINER; TIRE HOUSE 8-97890-578-1 01 1 9812-0212 ● ● ● ● ● ● ●
288 08.155 LINER; TIRE HOUSE 8-97581-240-0 01 1 0301- ● ● ● ● ● ● ●
289 08.155 FASTENER; LINER
16.320 OD=8.3 		8-94279-989-0 20 1 9812-0212 ● ● ● ● ● ● ●
289 08.155 FASTENER; LINER
16.320 OD=8.3 		8-94279-989-0 18 1 0301- ● ● ● ● ● ● ●
290 08.155 NUT; LINER
CAP NUT BLACK 		8-94279-526-0 08 1 9812- ● ● ● ● ● ● ●
301 08.155 HOLDER; HEAT PROTECTOR 8-97857-153-0 04 1 9812-0101 ● ● ● ● ●
301 08.155 HOLDER; HEAT PROTECTOR 8-97994-313-0 04 1 0102- ● ● ● ● ●
çizim 51202
152 110 173 174 152 175 110 175 110 175 173 175 110 110 110 110 68 68 68 68
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
68 08.155 STAY; COVER
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97205-599-2 01 1 9906-0105 ●
68 08.155 STAY; COVER
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-97205-601-2 01 1 9906-0105 ●
68 08.155 STAY; COVER
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-97205-603-4 01 1 9906-0105 ●
68 08.155 STAY; COVER
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97205-598-2 01 1 9906-0105 ●
68 08.155 STAY; COVER
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97300-157-1 01 1 0106- ●
68 08.155 STAY; COVER
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-97205-600-4 01 1 9906-0105 ●
68 08.155 STAY; COVER
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-97205-602-4 01 1 9906-0105 ●
68 08.155 STAY; COVER
4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 16.545 (F) REAR 		8-97108-071-2 01 1 9812-0105 ●
68 08.155 STAY; COVER
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97260-027-1 01 1 0106- ●
68 08.155 STAY; COVER
4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 16.545 (E) FRONT 		8-97147-718-0 01 1 9812-0105 ●
68 08.155 STAY; COVER
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-97260-031-1 01 1 0106- ●
68 08.155 STAY; COVER
4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 16.545 (F) REAR 		8-97108-072-1 01 1 9812-0105 ●
68 08.155 STAY; COVER
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-97260-029-1 01 1 0106- ●
68 08.155 STAY; COVER
4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 16.545 (E) FRONT 		8-97147-717-0 01 1 9812-0105 ●
68 08.155 STAY; COVER
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-97260-030-1 01 1 0106- ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (A) 		8-97213-266-0 01 1 9812-9901 ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (A) 		8-97213-266-0 01 1 9902-9903 ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (A) 		8-97213-266-0 01 1 9904-0105 ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97213-266-0 01 1 0106- ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (A) 		8-97213-267-0 01 1 9812-9901 ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (A) 		8-97213-267-0 01 1 9902-9903 ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (A) 		8-97213-267-0 01 1 9904-0105 ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97213-267-0 01 1 0106- ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.549 (D) 		8-97180-983-1 01 1 9812-9901 ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.549 (D) 		8-97180-983-1 01 1 9902-9903 ● ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.549 (D) 		8-97180-983-1 01 1 9904-0105 ● ● ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 16.549 (D) 		8-97180-983-1 01 1 0106- ● ● ● ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (C) 		8-97216-695-2 01 1 9812-9901 ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (C) 		8-97216-695-2 01 1 9902-9903 ● ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (C) 		8-97216-695-2 01 1 9904-0105 ● ● ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97216-695-2 01 1 0106- ● ● ● ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.549 (B) 		8-97180-880-0 01 1 9812-9901 ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.549 (B) 		8-97180-880-0 01 1 9902-9903 ● ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.549 (B) 		8-97180-880-0 01 1 9904-0105 ● ● ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 16.549 (B) 		8-97180-880-0 01 1 0106- ● ● ● ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.549 (D) 		8-97180-984-1 01 1 9812-9901 ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.549 (D) 		8-97180-984-1 01 1 9902-9903 ● ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.549 (D) 		8-97180-984-1 01 1 9904-0105 ● ● ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 16.549 (D) 		8-97180-984-1 01 1 0106- ● ● ● ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MBP6P(RNC),M/T MBP6Q(RNM) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.549 (A) 		8-97180-878-0 01 1 9812-0105 ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 16.549 (A) 		8-97180-878-0 01 1 0106-0207 ● ● ● ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MBP6R(RNW),M/T MZZ6F(RSR) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 16.549 (A) 		8-97180-878-0 01 1 0208- ● ● ● ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MBP6P(RNC),M/T MBP6Q(RNM) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.549 (A) 		8-97180-879-0 01 1 9812-0105 ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 16.549 (A) 		8-97180-879-0 01 1 0106-0207 ● ● ● ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MBP6R(RNW),M/T MZZ6F(RSR) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 16.549 (A) 		8-97180-879-0 01 1 0208- ● ● ● ● ● ● ●
110 08.155 BOLT; BRKT
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 (D) M10X30 FLANGE 		0-28681-030-0 08 1 9906-0105 ●
110 08.155 BOLT; BRKT
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 (D) M10X30 FLANGE 		0-28681-030-0 08 1 0106- ●
110 08.155 BOLT; BRKT
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 06 1 9906-9908 ●
110 08.155 BOLT; BRKT
4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 04 1 9812-9905 ●
110 08.155 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 04 1 9906-0011 ●
110 08.155 BOLT; BRKT
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 05 1 0012-0105 ● ● ● ●
110 08.155 BOLT; BRKT
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 15 1 0106- ●
110 08.155 BOLT; BRKT
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 11 1 9909-0105 ●
110 08.155 BOLT; BRKT
4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 (B) M10X25 FLANGE 		0-28681-025-0 04 1 9812-0105 ●
110 08.155 BOLT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (C) M8X20 FLANGE 		0-28680-820-0 02 1 9812-9901 ● ● ● ●
110 08.155 BOLT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (C) M8X20 FLANGE 		0-28680-820-0 02 1 9902-9903 ● ● ● ● ●
110 08.155 BOLT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (C) M8X20 FLANGE 		0-28680-820-0 02 1 9904-0105 ● ● ● ● ●
110 08.155 BOLT; BRKT
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. IRISH EQUIPMENT(6CU) 02.664 (C) M8X20 FLANGE 		0-28680-820-0 02 1 9904-0105 ●
110 08.155 BOLT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.664 (C) M8X20 FLANGE 		0-28680-820-0 02 1 0106- ● ● ● ● ●
110 08.155 BOLT; BRKT
CHARGE AIR COOLER<6PL> EXC. IRISH EQUIPMENT(6CU) 02.664 (C) M8X20 FLANGE 		0-28680-820-0 02 1 0106- ● ●
110 08.155 BOLT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 03.405 (D) M10X30 FLANGE 		0-28681-030-0 12 1 9812-9901 ● ● ● ●
110 08.155 BOLT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 03.405 (D) M10X30 FLANGE 		0-28681-030-0 12 1 9902-9903 ● ● ● ● ●
110 08.155 BOLT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 03.405 (D) M10X30 FLANGE 		0-28681-030-0 10 1 9904-0105 ● ● ● ● ● ●
110 08.155 BOLT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.405 (D) M10X30 FLANGE 		0-28681-030-0 10 1 0106- ● ● ● ● ● ● ●
110 08.155 BOLT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 05 1 9812-9901 ● ● ● ●
110 08.155 BOLT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 05 1 9902-9903 ● ● ● ● ●
110 08.155 BOLT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 05 1 9904-9908 ● ● ● ● ● ●
110 08.155 BOLT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 09 1 9909-0011 ● ● ● ● ● ●
110 08.155 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 04 1 0012-0105 ●
110 08.155 BOLT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 04 1 0012-0105 ●
110 08.155 BOLT; BRKT
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 04 1 0012-0105 ● ● ● ● ●
110 08.155 BOLT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 09 1 0106- ● ● ● ● ● ● ●
152 04.275 BRACKET; PANEL,TRANS
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> (A) REAR 		8-97207-758-1 02 1 9906-0104 ●
152 04.275 BRACKET; PANEL,TRANS
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> (A) REAR 		8-97312-925-0 02 1 0105-0105 ●
152 04.275 BRACKET; PANEL,TRANS
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (A) REAR 		8-97312-925-0 02 1 0106- ●
152 04.275 BRACKET; PANEL,TRANS
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> (A) FRONT 		8-97225-329-0 01 1 9906-0105 ●
152 04.275 BRACKET; PANEL,TRANS
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (A) FR0NT 		8-97225-329-0 01 1 0106-0109 ●
152 04.275 BRACKET; PANEL,TRANS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) FR0NT 		8-97225-329-0 01 1 0110-0111 ● ● ● ● ●
152 04.275 BRACKET; PANEL,TRANS
CHARGE AIR COOLER<6PL> EXC. IRISH EQUIPMENT(6CU) (A) FR0NT 		8-97225-329-0 01 1 0110-0111 ● ●
152 04.275 BRACKET; PANEL,TRANS
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (A) FR0NT 		8-97225-329-0 01 1 0112- ●
152 04.275 BRACKET; PANEL,TRANS
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> (A) FRONT 		8-97207-757-0 01 1 9906-0105 ●
152 04.275 BRACKET; PANEL,TRANS
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (A) FRONT 		8-97207-757-0 01 1 0106-0109 ●
152 04.275 BRACKET; PANEL,TRANS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) FR0NT 		8-97207-757-0 01 1 0110-0111 ● ● ● ● ●
152 04.275 BRACKET; PANEL,TRANS
CHARGE AIR COOLER<6PL> EXC. IRISH EQUIPMENT(6CU) (A) FR0NT 		8-97207-757-0 01 1 0110-0111 ● ●
152 04.275 BRACKET; PANEL,TRANS
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (A) FR0NT 		8-97207-757-0 01 1 0112- ●
152 04.275 BRACKET; PANEL,TRANS
4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 16.545 (A) 		8-97075-447-2 02 1 9812-0105 ●
152 04.275 BRACKET; PANEL,TRANS
EXC. IRISH EQUIPMENT(6CU) (B) 		8-97304-652-0 01 1 0106- ●
152 04.275 BRACKET; PANEL,TRANS
4HE1 ENG(RLY) EXC. IRISH EQUIPMENT(6CU) (B) 		8-97304-652-0 01 1 0106- ●
152 04.275 BRACKET; PANEL,TRANS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.545 (A) 		8-97180-799-0 01 1 9812-9901 ● ● ● ●
152 04.275 BRACKET; PANEL,TRANS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.545 (A) 		8-97180-799-0 01 1 9902-9903 ● ● ● ● ●
152 04.275 BRACKET; PANEL,TRANS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.545 (A) 		8-97180-799-0 01 1 9904-0105 ● ● ● ● ●
152 04.275 BRACKET; PANEL,TRANS
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. IRISH EQUIPMENT(6CU) 16.545 (A) 		8-97180-799-0 01 1 9904-0105 ●
152 04.275 BRACKET; PANEL,TRANS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 16.545 (A) 		8-97180-799-0 01 1 0106- ● ● ● ● ●
152 04.275 BRACKET; PANEL,TRANS
CHARGE AIR COOLER<6PL> EXC. IRISH EQUIPMENT(6CU) 16.545 (A) 		8-97180-799-0 01 1 0106- ● ●
152 04.275 BRACKET; PANEL,TRANS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.545 (A) 		8-97180-800-0 01 1 9812-9901 ● ● ● ●
152 04.275 BRACKET; PANEL,TRANS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.545 (A) 		8-97180-800-0 01 1 9902-9903 ● ● ● ● ●
152 04.275 BRACKET; PANEL,TRANS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.545 (A) 		8-97180-800-0 01 1 9904-0105 ● ● ● ● ●
152 04.275 BRACKET; PANEL,TRANS
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. IRISH EQUIPMENT(6CU) 16.545 (A) 		8-97180-800-0 01 1 9904-0105 ●
152 04.275 BRACKET; PANEL,TRANS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 16.545 (A) 		8-97180-800-0 01 1 0106- ● ● ● ● ●
152 04.275 BRACKET; PANEL,TRANS
CHARGE AIR COOLER<6PL> EXC. IRISH EQUIPMENT(6CU) 16.545 (A) 		8-97180-800-0 01 1 0106- ● ●
173 08.155 COVER; TRANS SIDE
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-592-2 01 1 9906-0105 ●
173 08.155 COVER; TRANS SIDE
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-97205-596-3 01 1 9906-0105 ●
173 08.155 COVER; TRANS SIDE
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-97205-595-3 01 1 9906-0105 ●
173 08.155 COVER; TRANS SIDE
4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 16.545 (C) 		8-97143-433-2 01 1 9812-0105 ●
173 08.155 COVER; TRANS SIDE
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97260-024-1 01 1 0106- ●
173 08.155 COVER; TRANS SIDE
4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 16.549 (D) 		8-97143-434-1 01 1 9812-0105 ●
173 08.155 COVER; TRANS SIDE
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-97300-155-0 01 1 0106- ●
173 08.155 COVER; TRANS SIDE
4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 16.549 (D) 		8-97143-435-1 01 1 9812-0105 ●
173 08.155 COVER; TRANS SIDE
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-97300-297-0 01 1 0106- ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) M/T MBP6P(RNC),M/T MBP6Q(RNM) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ENGINE POWER N-SPEC(7QV) NOISE PACK FOR REGULATION VAR.2<7TF> (A) 		8-97207-122-1 01 1 9812-0105 ● ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (A) 		8-97205-591-1 01 1 9812-9901 ● ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (A) 		8-97205-591-1 01 1 9902-0105 ● ● ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-591-1 01 1 0106- ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (B) 		8-97205-593-0 01 1 9812-9901 ● ● ● ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (B) 		8-97205-593-0 01 1 9902-9903 ● ● ● ● ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (B) 		8-97205-593-0 01 1 9904-0105 ● ● ● ● ● ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97205-593-0 01 1 0106- ● ● ● ● ● ● ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (B) 		8-97205-594-0 01 1 9812-9901 ● ● ● ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (B) 		8-97205-594-0 01 1 9902-9903 ● ● ● ● ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (B) 		8-97205-594-0 01 1 9904-0105 ● ● ● ● ● ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97205-594-0 01 1 0106- ● ● ● ● ● ● ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) M/T MBP6P(RNC),M/T MBP6Q(RNM) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. ENGINE POWER N-SPEC(7QV) (A) 		8-97180-795-2 01 1 9812-0105 ● ● ● ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97180-795-2 01 1 0106-0207 ● ● ● ● ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) M/T MBP6R(RNW),M/T MZZ6F(RSR) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97180-795-2 01 1 0208- ● ● ● ● ●
173 08.155 COVER; TRANS SIDE
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. IRISH EQUIPMENT(6CU) (A) 		8-97227-209-1 01 1 9904-0105 ●
173 08.155 COVER; TRANS SIDE
EXC. IRISH EQUIPMENT(6CU) (A) 		8-97305-494-1 01 1 0106- ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) EXC. IRISH EQUIPMENT(6CU) (A) 		8-97305-494-1 01 1 0106- ●
174 08.155 BOLT; STAY FIX
4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-9905 ●
174 08.155 BOLT; STAY FIX
4JG2 ENG(RJC),4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9906-0105 ●
174 08.155 BOLT; STAY FIX
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ●
174 08.155 BOLT; STAY FIX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 9812-9901 ● ● ● ●
174 08.155 BOLT; STAY FIX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 9902-9903 ● ● ● ● ●
174 08.155 BOLT; STAY FIX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 9904-9905 ● ● ● ● ●
174 08.155 BOLT; STAY FIX
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. IRISH EQUIPMENT(6CU) 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 9904-9905 ●
174 08.155 BOLT; STAY FIX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 9906-0105 ● ● ● ● ●
174 08.155 BOLT; STAY FIX
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 9906-0105 ●
174 08.155 BOLT; STAY FIX
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. IRISH EQUIPMENT(6CU) 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 9906-0105 ●
174 08.155 BOLT; STAY FIX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 0106- ● ● ● ● ●
174 08.155 BOLT; STAY FIX
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 0106- ●
174 08.155 BOLT; STAY FIX
EXC. IRISH EQUIPMENT(6CU) 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 0106- ● ●
174 08.155 BOLT; STAY FIX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9904-0105 ● ● ● ● ● ●
174 08.155 BOLT; STAY FIX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0106- ● ● ● ● ● ● ●
175 08.155 NUT; STAY FIX
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 9906-9908 ●
175 08.155 NUT; STAY FIX
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 9909-0105 ●
175 08.155 NUT; STAY FIX
4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 9812-9905 ●
175 08.155 NUT; STAY FIX
4JG2 ENG(RJC),4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 9906-0105 ●
175 08.155 NUT; STAY FIX
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 05 1 0106- ●
175 08.155 NUT; STAY FIX
4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (B) M10 FLANGE 		0-91150-110-0 04 1 9812-0105 ●
175 08.155 NUT; STAY FIX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 04.785 (B) M10 FLANGE 		0-91150-110-0 08 1 9812-9901 ● ● ● ●
175 08.155 NUT; STAY FIX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 04.785 (B) M10 FLANGE 		0-91150-110-0 08 1 9902-9903 ● ● ● ● ●
175 08.155 NUT; STAY FIX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 04.785 (B) M10 FLANGE 		0-91150-110-0 06 1 9904-9905 ● ● ● ● ● ●
175 08.155 NUT; STAY FIX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 04.785 (B) M10 FLANGE 		0-91150-110-0 06 1 9906-0105 ● ● ● ● ● ●
175 08.155 NUT; STAY FIX
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (B) M10 FLANGE 		0-91150-110-0 06 1 9906-0105 ●
175 08.155 NUT; STAY FIX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.785 (B) M10 FLANGE 		0-91150-110-0 06 1 0106- ● ● ● ● ● ● ●
175 08.155 NUT; STAY FIX
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (B) M10 FLANGE 		0-91150-110-0 06 1 0106- ●
175 08.155 NUT; STAY FIX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 9812-9901 ● ● ● ●
175 08.155 NUT; STAY FIX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 9902-9903 ● ● ● ● ●
175 08.155 NUT; STAY FIX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 (A) M8 FLANGE 		0-91150-108-0 03 1 9904-0105 ● ● ● ● ● ●
175 08.155 NUT; STAY FIX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 03 1 0106- ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
