Sayfa 6-20 - Isuzu EPC

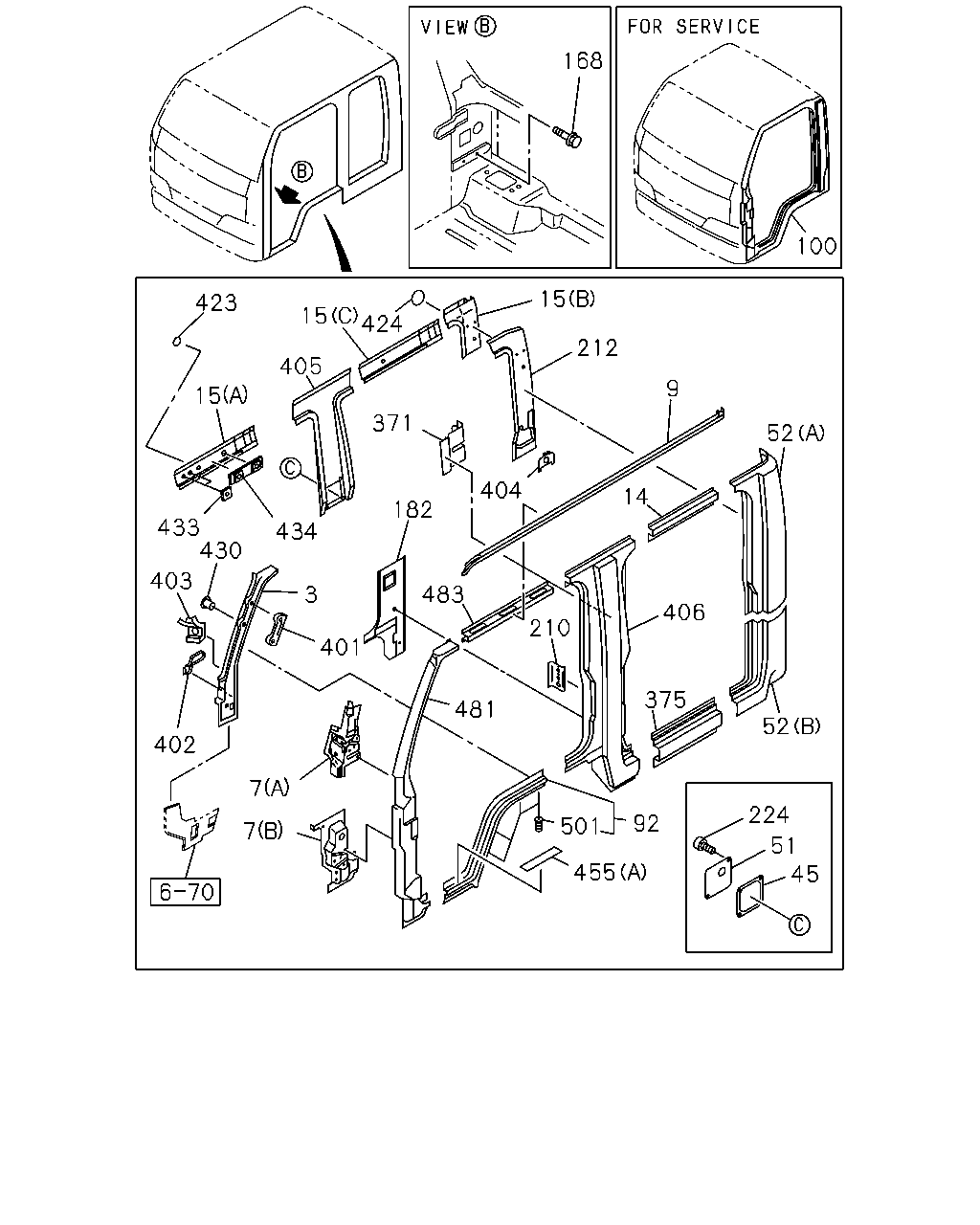

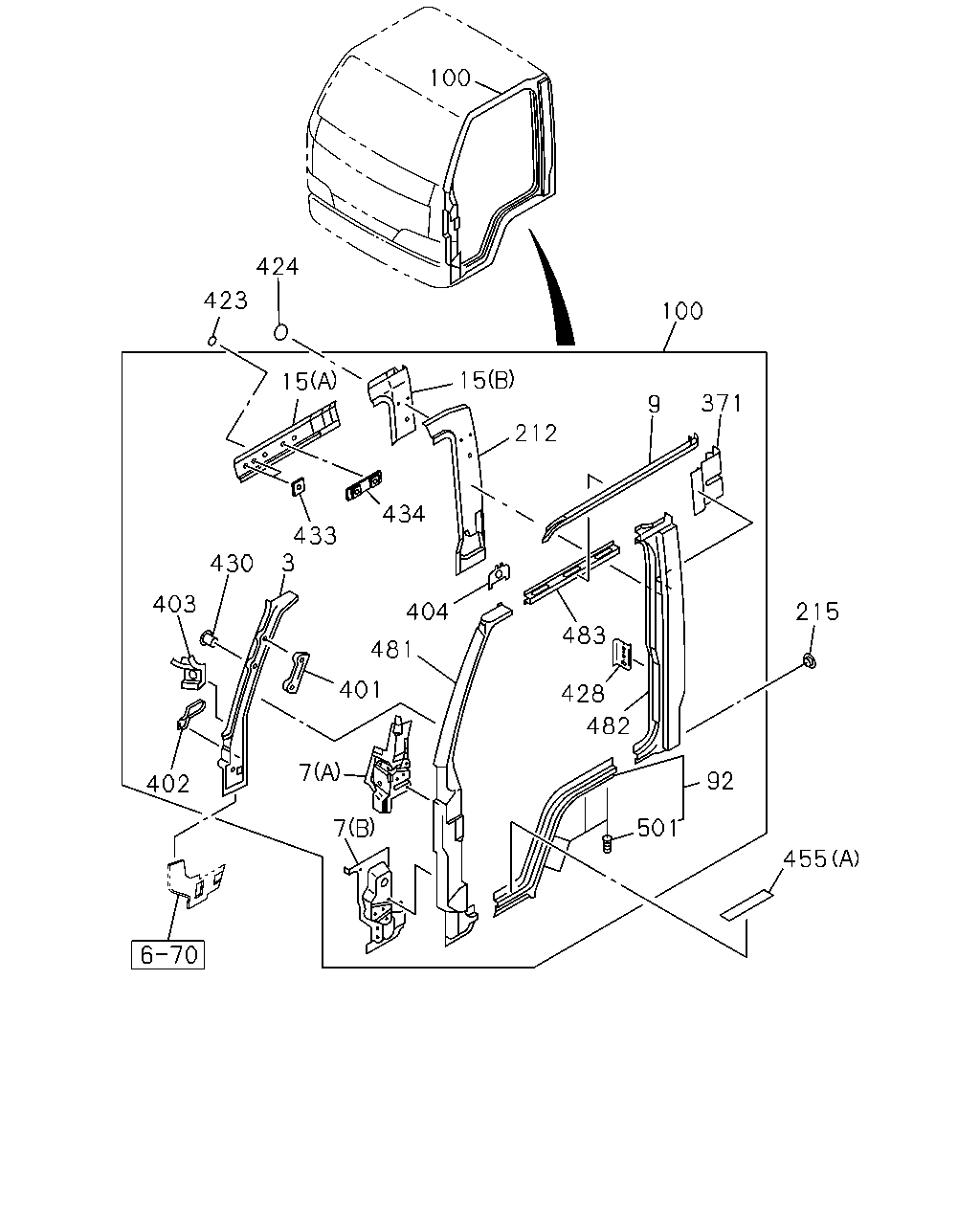

6-20 — SIDE PANEL AND STEP (#43431) — 408 parça

168 100 15 423 15 424 212 405 9 15 371 52 404 14 182 433 430 434 403 483 3 406 210 401 375 481 52 402 7 224 92 501 7 51 455 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
3	16.592 PANEL; CLOSING,FRT PILLAR	8-97851-023-8	01	1	9812-	●	●	●	●	●	●	●
3	16.592 PANEL; CLOSING,FRT PILLAR	8-97851-024-8	01	1	9812-	●	●	●	●	●	●	●
7	16.570 REINFORCEMENT; HINGE (A) UPPER	8-97851-071-3	01	1	9812-	●	●	●	●	●	●	●
7	16.570 REINFORCEMENT; HINGE (B) LOWER	8-97851-073-5	01	1	9812-	●	●	●	●	●	●	●
7	16.570 REINFORCEMENT; HINGE (A) UPPER	8-97851-072-3	01	1	9812-	●	●	●	●	●	●	●
7	16.570 REINFORCEMENT; HINGE (B) LOWER	8-97851-074-5	01	1	9812-	●	●	●	●	●	●	●
9	16.592 MOLDING; DRIP,CAB SIDE	8-97851-019-9	01	1	9812-	●	●	●	●	●
9	16.592 MOLDING; DRIP,CAB SIDE	8-97851-020-9	01	1	9812-	●	●	●	●	●
9	16.592 MOLDING; DRIP,CAB SIDE	8-97851-208-9	01	1	9904-						●	●
9	16.592 MOLDING; DRIP,CAB SIDE	8-97851-207-9	01	1	9904-						●	●
14	16.592 PANEL; REINF,SIDE DRIP	8-97851-223-1	01	1	9904-						●	●
14	16.592 PANEL; REINF,SIDE DRIP	8-97851-222-1	01	1	9904-0105						●
14	16.592 PANEL; REINF,SIDE DRIP	8-97851-222-1	01	1	0106-						●	●
15	16.592 PANEL; CANT RAIL SIDE (A)	8-97851-334-4	01	1	9812-	●	●	●	●	●
15	16.592 PANEL; CANT RAIL SIDE (B)	8-97851-336-5	01	1	9812-	●	●	●	●	●	●	●
15	16.592 PANEL; CANT RAIL SIDE (A)	8-97851-335-4	01	1	9812-	●	●	●	●	●
15	16.592 PANEL; CANT RAIL SIDE (B)	8-97851-337-5	01	1	9812-	●	●	●	●	●	●	●
15	16.592 PANEL; CANT RAIL SIDE (C)	8-97851-504-0	01	1	9904-						●	●
15	16.592 PANEL; CANT RAIL SIDE (C)	8-97851-504-0	01	1	9904-						●	●
15	16.592 PANEL; CANT RAIL SIDE (A)	8-97851-229-4	01	1	9904-						●	●
15	16.592 PANEL; CANT RAIL SIDE (A)	8-97851-228-4	01	1	9904-						●	●
45	16.570 SEAL; B-C POST	8-97853-731-1	02	1	9904-						●	●
51	16.570 COVER; HOLE,B-C POST	8-94262-078-0	02	1	9904-						●	●
52	16.588 PANEL; D-POST UPR (B) LOWER	8-97851-174-7	01	1	9904-						●	●
52	16.588 PANEL; D-POST UPR (A) UPPER	8-97851-227-6	01	1	9904-						●	●
52	16.588 PANEL; D-POST UPR IRISH EQUIPMENT(6CU) (A) UPPER	8-97892-721-0	01	1	9904-9904						●
52	16.588 PANEL; D-POST UPR UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) (A) UPPER	8-97892-721-1	01	1	9904-0105						●
52	16.588 PANEL; D-POST UPR (A) UPPER	8-97892-721-1	01	1	0106-						●	●
52	16.588 PANEL; D-POST UPR IRISH EQUIPMENT(6CU) (B) LOWER	8-97892-722-1	01	1	9904-9904						●
52	16.588 PANEL; D-POST UPR UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) (B) LOWER	8-97892-722-1	01	1	9904-0105						●
52	16.588 PANEL; D-POST UPR (B) LOWER	8-97892-722-1	01	1	0106-						●	●
52	16.588 PANEL; D-POST UPR EXC. IRISH EQUIPMENT(6CU) (B) LOWER	8-97851-173-7	01	1	9904-9904						●
52	16.588 PANEL; D-POST UPR EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) (B) LOWER	8-97851-173-7	01	1	9905-0105						●
52	16.588 PANEL; D-POST UPR EXC. IRISH EQUIPMENT(6CU) (A) UPPER	8-97851-226-6	01	1	9904-9904						●
52	16.588 PANEL; D-POST UPR EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) (A) UPPER	8-97851-226-6	01	1	9905-0105						●
92	16.570 PANEL; SIDE SILL,CAB	8-97851-531-0	01	1	9812-	●	●	●	●	●	●	●
92	16.570 PANEL; SIDE SILL,CAB	8-97851-530-0	01	1	9812-	●	●	●	●	●	●	●
100	16.570 PANEL ASM; BODY SIDE 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU)	8-97890-415-0	01	1	9906-0105		●
100	16.570 PANEL ASM; BODY SIDE 4JH1 ENG(RJX)	8-97890-415-1	01	1	0106-		●
100	16.570 PANEL ASM; BODY SIDE 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL>	8-97890-284-0	01	1	9812-9901		●	●	●	●
100	16.570 PANEL ASM; BODY SIDE 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC>	8-97890-284-0	01	1	9812-9901		●
100	16.570 PANEL ASM; BODY SIDE 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL>	8-97890-284-0	01	1	9902-9905	●	●	●	●	●
100	16.570 PANEL ASM; BODY SIDE 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC>	8-97890-284-0	01	1	9902-9905		●
100	16.570 PANEL ASM; BODY SIDE 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC>	8-97890-284-0	01	1	9906-0105		●
100	16.570 PANEL ASM; BODY SIDE 4JB1 ENG(RLF),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL>	8-97890-284-0	01	1	9906-0105		●
100	16.570 PANEL ASM; BODY SIDE CHARGE AIR COOLER<6PL>	8-97890-284-0	01	1	9906-0105	●		●	●	●
100	16.570 PANEL ASM; BODY SIDE CHARGE AIR COOLER<6PL>	8-97890-284-1	01	1	0106-		●
100	16.570 PANEL ASM; BODY SIDE	8-97890-284-1	01	1	0106-	●		●	●	●
100	16.570 PANEL ASM; BODY SIDE 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-97890-288-0	01	1	9812-9901		●	●	●	●
100	16.570 PANEL ASM; BODY SIDE 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-97890-288-0	01	1	9902-0105	●	●	●	●	●
100	16.570 PANEL ASM; BODY SIDE 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97890-288-1	01	1	0106-		●
100	16.570 PANEL ASM; BODY SIDE 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU)	8-97890-411-0	01	1	9812-9901		●	●	●	●
100	16.570 PANEL ASM; BODY SIDE 4JG2 ENG(RJC) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) AIR INTAKE SYSTEM FRONT<6PC>	8-97890-411-0	01	1	9812-9901		●
100	16.570 PANEL ASM; BODY SIDE 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU)	8-97890-411-0	01	1	9902-0105	●	●	●	●	●
100	16.570 PANEL ASM; BODY SIDE 4JG2 ENG(RJC) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) AIR INTAKE SYSTEM FRONT<6PC>	8-97890-411-0	01	1	9902-0105		●
100	16.570 PANEL ASM; BODY SIDE 4HE1 ENG(RLY)	8-97890-411-1	01	1	0106-		●		●	●
100	16.570 PANEL ASM; BODY SIDE	8-97890-411-1	01	1	0106-	●		●
100	16.570 PANEL ASM; BODY SIDE 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU)	8-97890-393-0	01	1	9812-9901		●	●	●	●
100	16.570 PANEL ASM; BODY SIDE 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU)	8-97890-393-0	01	1	9812-9901		●
100	16.570 PANEL ASM; BODY SIDE 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU)	8-97890-393-0	01	1	9902-0105	●	●	●	●	●
100	16.570 PANEL ASM; BODY SIDE 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU)	8-97890-393-0	01	1	9902-0105		●
100	16.570 PANEL ASM; BODY SIDE	8-97890-284-1	01	1	9904-						●	●
100	16.570 PANEL ASM; BODY SIDE IRISH EQUIPMENT(6CU)	8-97890-411-0	01	1	9904-9904						●
100	16.570 PANEL ASM; BODY SIDE UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU)	8-97890-411-0	01	1	9904-0105						●
100	16.570 PANEL ASM; BODY SIDE	8-97890-411-1	01	1	0106-						●	●
100	16.570 PANEL ASM; BODY SIDE EXC. IRISH EQUIPMENT(6CU)	8-97890-393-0	01	1	9904-9904						●
100	16.570 PANEL ASM; BODY SIDE EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU)	8-97890-393-0	01	1	9905-0105						●
168	16.570 BOLT; BODY SIDE PANEL 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	9812-	●	●	●	●	●	●	●
182	16.570 PANEL; CLOSING,CTR PILLAR LWR	8-97850-177-5	01	1	9904-						●	●
182	16.570 PANEL; CLOSING,CTR PILLAR LWR	8-97850-176-5	01	1	9904-						●	●
210	16.588 PANEL; DOOR STRIKER REINF	8-97851-446-1	02	1	9904-						●	●
210	16.588 PANEL; DOOR STRIKER REINF	8-97851-445-1	02	1	9904-						●	●
212	16.588 CLOSING; PILLAR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU)	8-97890-458-2	01	1	9812-9901		●	●	●	●
212	16.588 CLOSING; PILLAR 4JG2 ENG(RJC) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) AIR INTAKE SYSTEM FRONT<6PC>	8-97890-458-2	01	1	9812-9901		●
212	16.588 CLOSING; PILLAR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU)	8-97890-458-2	01	1	9902-9903	●	●	●	●	●
212	16.588 CLOSING; PILLAR 4JG2 ENG(RJC) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) AIR INTAKE SYSTEM FRONT<6PC>	8-97890-458-2	01	1	9902-9903		●
212	16.588 CLOSING; PILLAR 4JG2 ENG(RJC) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) AIR INTAKE SYSTEM FRONT<6PC>	8-97890-458-2	01	1	9904-9905		●
212	16.588 CLOSING; PILLAR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU)	8-97890-458-2	01	1	9904-9905		●
212	16.588 CLOSING; PILLAR UNITED KINGDOM EQUIPMENT(6AA)	8-97890-458-2	01	1	9904-9905	●		●	●	●
212	16.588 CLOSING; PILLAR UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU)	8-97890-458-2	01	1	9904-9905						●
212	16.588 CLOSING; PILLAR 4JG2 ENG(RJC) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) AIR INTAKE SYSTEM FRONT<6PC>	8-97890-458-2	01	1	9906-0105		●
212	16.588 CLOSING; PILLAR 4JB1 ENG(RLF),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU)	8-97890-458-2	01	1	9906-0105		●
212	16.588 CLOSING; PILLAR UNITED KINGDOM EQUIPMENT(6AA)	8-97890-458-2	01	1	9906-0105	●		●	●	●
212	16.588 CLOSING; PILLAR UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU)	8-97890-458-2	01	1	9906-0105						●
212	16.588 CLOSING; PILLAR	8-97890-458-2	01	1	0106-	●	●	●	●	●	●	●
212	16.588 CLOSING; PILLAR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU)	8-97890-452-2	01	1	9812-9901		●	●	●	●
212	16.588 CLOSING; PILLAR 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU)	8-97890-452-2	01	1	9812-9901		●
212	16.588 CLOSING; PILLAR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU)	8-97890-452-2	01	1	9902-9903	●	●	●	●	●
212	16.588 CLOSING; PILLAR 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU)	8-97890-452-2	01	1	9902-9903		●
212	16.588 CLOSING; PILLAR 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU)	8-97890-452-2	01	1	9904-9904		●
212	16.588 CLOSING; PILLAR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU)	8-97890-452-2	01	1	9904-9904		●
212	16.588 CLOSING; PILLAR EXC. UNITED KINGDOM EQUIPMENT(6AA)	8-97890-452-2	01	1	9904-9904	●		●	●	●
212	16.588 CLOSING; PILLAR EXC. IRISH EQUIPMENT(6CU)	8-97890-452-2	01	1	9904-9904						●
212	16.588 CLOSING; PILLAR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU)	8-97890-452-2	01	1	9905-0105	●	●	●	●	●
212	16.588 CLOSING; PILLAR 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU)	8-97890-452-2	01	1	9905-0105		●
212	16.588 CLOSING; PILLAR EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU)	8-97890-452-2	01	1	9905-0105						●
212	16.588 CLOSING; PILLAR	8-97890-453-2	01	1	9812-	●	●	●	●	●	●	●
224	16.570 SCREW; COVER 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	9904-						●	●
371	16.570 PATCH; SEAT BELT	8-97851-048-1	01	1	9812-	●	●	●	●	●	●	●
371	16.570 PATCH; SEAT BELT	8-97851-049-1	01	1	9812-	●	●	●	●	●	●	●
375	16.507 PANEL; SIDE SILL RR,CAB	8-97851-159-6	01	1	9904-						●	●
375	16.507 PANEL; SIDE SILL RR,CAB	8-97851-159-6	01	1	9904-						●	●
401	16.592 PATCH; CLOSING,FRT PILLAR	8-97851-301-1	01	1	9812-	●	●	●	●	●	●	●
401	16.592 PATCH; CLOSING,FRT PILLAR	8-97851-301-1	01	1	9812-	●	●	●	●	●	●	●
402	16.085 BRACKET; SUPPORT	8-97851-085-1	01	1	9812-	●	●	●	●	●	●	●
402	16.085 BRACKET; SUPPORT	8-97851-086-1	01	1	9812-	●	●	●	●	●	●	●
403	16.570 BRACKET; REINFORCEMENT,FRT PANEL	8-97851-069-0	01	1	9812-	●	●	●	●	●	●	●
403	16.570 BRACKET; REINFORCEMENT,FRT PANEL	8-97851-070-0	01	1	9812-	●	●	●	●	●	●	●
404	16.570 BRACKET	8-97890-317-1	01	1	9812-	●	●	●	●	●	●	●
404	16.570 BRACKET	8-97890-317-1	01	1	9812-	●	●	●	●	●	●	●
405	16.570 PANEL; CLOSING,CTR PILLAR	8-97890-314-3	01	1	9904-						●	●
405	16.570 PANEL; CLOSING,CTR PILLAR	8-97890-420-3	01	1	9904-						●	●
406	16.570 PILLAR; CENTER	8-97851-240-7	01	1	9904-						●	●
406	16.570 PILLAR; CENTER	8-97851-239-7	01	1	9904-						●	●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) EXC. INTERIOR DELUXE<RBB> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	06	1	9812-9901		●	●	●	●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) EXC. INTERIOR DELUXE<RBB> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	06	1	9902-9903	●	●	●	●	●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) EXC. INTERIOR DELUXE<RBB> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	06	1	9904-0008	●	●	●	●	●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	06	1	9904-0008						●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARIN E BLUE(890) EXC. INTERIOR DELUXE<RBB> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	06	1	0009-0105	●	●	●	●	●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARIN E BLUE(890) 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	06	1	0009-0105						●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARIN E BLUE(890) EXC. INTERIOR DELUXE<RBB> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	06	1	0106-0112	●	●	●	●	●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARIN E BLUE(890) 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	06	1	0106-0112						●	●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARIN E BLUE(890) EXC. INTERIOR DELUXE<RBB> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	06	1	0201-	●	●	●	●	●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	06	1	0201-						●	●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB> OD=20 T=0.05 WHITE	8-97856-832-1	06	1	9812-9901		●	●	●	●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB> OD=20 T=0.05 WHITE	8-97856-832-1	06	1	9902-9903	●	●	●	●	●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB> OD=20 T=0.05 WHITE	8-97856-832-1	06	1	9904-0105	●	●	●	●	●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE	8-97856-832-1	06	1	9904-0105						●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB> OD=20 T=0.05 WHITE	8-97856-832-1	06	1	0106-	●	●	●	●	●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE	8-97856-832-1	06	1	0106-						●	●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) EXC. ASSIST GRIP PASSENGER<EG5> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	02	1	9909-0008	●	●	●	●	●	●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARIN E BLUE(890) EXC. ASSIST GRIP PASSENGER<EG5> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	02	1	0009-0105	●	●	●	●	●	●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARIN E BLUE(890) EXC. ASSIST GRIP PASSENGER<EG5> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	02	1	0106-0112	●	●	●	●	●	●	●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARIN E BLUE(890) EXC. ASSIST GRIP PASSENGER<EG5> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	02	1	0201-	●	●	●	●	●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) EXC. ASSIST GRIP PASSENGER<EG5> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	02	1	0201-						●	●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 WHITE	8-97856-832-1	02	1	9909-0105	●	●	●	●	●	●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 WHITE	8-97856-832-1	02	1	0106-	●	●	●	●	●	●	●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	9904-0008						●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARIN E BLUE(890) 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	0009-0105						●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARIN E BLUE(890) 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	0106-0112						●	●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	0201-						●	●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE	8-97856-832-1	04	1	9904-0105						●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE	8-97856-832-1	04	1	0106-						●	●
424	16.570 SEAL; CLOSING BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) EXC. INTERIOR DELUXE<RBB> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	9812-9901		●	●	●	●
424	16.570 SEAL; CLOSING BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) EXC. INTERIOR DELUXE<RBB> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	9902-9903	●	●	●	●	●
424	16.570 SEAL; CLOSING BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) EXC. INTERIOR DELUXE<RBB> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	9904-0008	●	●	●	●	●
424	16.570 SEAL; CLOSING BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	9904-0008						●
424	16.570 SEAL; CLOSING BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARIN E BLUE(890) EXC. INTERIOR DELUXE<RBB> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	0009-0105	●	●	●	●	●
424	16.570 SEAL; CLOSING BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARIN E BLUE(890) 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	0009-0105						●
424	16.570 SEAL; CLOSING BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARIN E BLUE(890) EXC. INTERIOR DELUXE<RBB> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	0106-0112	●	●	●	●	●
424	16.570 SEAL; CLOSING BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARIN E BLUE(890) 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	0106-0112						●	●
424	16.570 SEAL; CLOSING BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARIN E BLUE(890) EXC. INTERIOR DELUXE<RBB> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	0201-	●	●	●	●	●
424	16.570 SEAL; CLOSING BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	0201-						●	●
424	16.570 SEAL; CLOSING BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB> OD=20 T=0.05 WHITE	8-97856-832-1	04	1	9812-9901		●	●	●	●
424	16.570 SEAL; CLOSING BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB> OD=20 T=0.05 WHITE	8-97856-832-1	04	1	9902-9903	●	●	●	●	●
424	16.570 SEAL; CLOSING BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB> OD=20 T=0.05 WHITE	8-97856-832-1	04	1	9904-0105	●	●	●	●	●
424	16.570 SEAL; CLOSING BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE	8-97856-832-1	04	1	9904-0105						●
424	16.570 SEAL; CLOSING BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB> OD=20 T=0.05 WHITE	8-97856-832-1	04	1	0106-	●	●	●	●	●
424	16.570 SEAL; CLOSING BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE	8-97856-832-1	04	1	0106-						●	●
430	16.570 NUT; PANEL M6 POP NUT	8-94279-537-0	01	1	9812-	●	●	●	●	●	●	●
430	16.570 NUT; PANEL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> M8 POP NUT	8-94279-538-0	02	1	9812-9901		●	●	●	●
430	16.570 NUT; PANEL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> M8 POP NUT	8-94279-538-0	02	1	9902-9905	●	●	●	●	●
430	16.570 NUT; PANEL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> M8 POP NUT	8-94279-538-0	02	1	9906-0105		●
430	16.570 NUT; PANEL 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) M8 POP NUT	8-94279-538-0	02	1	9906-0105		●
430	16.570 NUT; PANEL EXC. CHARGE AIR COOLER<6PL> M8 POP NUT	8-94279-538-0	02	1	9906-0105	●		●	●	●
430	16.570 NUT; PANEL 4JH1 ENG(RJX) M8 POP NUT	8-94279-538-0	02	1	0106-		●
430	16.570 NUT; PANEL 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> M8 POP NUT	8-94279-538-0	02	1	0106-		●
433	16.585 NUT; HEADER SHELF 16.545 M6	9-09114-086-0	02	1	9812-	●	●	●	●	●	●	●
433	16.585 NUT; HEADER SHELF 16.545 M6	9-09114-086-0	02	1	9812-	●	●	●	●	●	●	●
434	16.592 PATCH; ASSIST GRIP	8-94267-191-1	01	1	9812-	●	●	●	●	●
434	16.592 PATCH; ASSIST GRIP	8-97851-502-0	01	1	9904-						●	●
455	08.228 PROTECTOR; STEP (A)	8-97852-863-0	02	1	9812-9903	●	●	●	●	●	●	●
455	08.228 PROTECTOR; STEP (A)	8-97852-863-0	02	1	9904-	●	●	●	●	●	●	●
455	08.228 PROTECTOR; STEP (A)	8-97852-863-0	02	1	9904-						●	●
455	08.228 PROTECTOR; STEP (B)	8-97892-736-4	01	1	9904-						●	●
481	16.570 PANEL; SIDE FRT PILLAR	8-97851-520-5	01	1	9812-	●	●	●	●	●	●	●
481	16.570 PANEL; SIDE FRT PILLAR	8-97859-060-2	01	1	9812-	●	●	●	●	●	●	●
483	16.570 PANEL; SIDE CANTRAIL	8-97851-525-2	01	1	9812-	●	●	●	●	●	●	●
483	16.570 PANEL; SIDE CANTRAIL	8-97851-524-2	01	1	9812-	●	●	●	●	●	●	●
501	16.570 PIN; STUD M8X15 SPECIAL STUD	8-94279-167-0	04	1	9812-	●	●	●	●	●	●	●
501	16.570 PIN; STUD M8X15 SPECIAL STUD	8-94279-167-0	04	1	9812-	●	●	●	●	●	●	●

435 280 323 223 479 110 431 291 561 455 358 358 280 103 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
103	08.228 PLATE; STEP UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU)	8-97892-072-0	01	1	9812-9901		●	●	●	●
103	08.228 PLATE; STEP UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU)	8-97892-072-0	01	1	9902-9903	●	●	●	●	●
103	08.228 PLATE; STEP UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU)	8-97892-072-0	01	1	9904-0105		●				●
103	08.228 PLATE; STEP UNITED KINGDOM EQUIPMENT(6AA)	8-97892-072-0	01	1	9904-0105	●		●	●	●
103	08.228 PLATE; STEP	8-97892-072-0	01	1	0106-	●	●	●	●	●	●	●
103	08.228 PLATE; STEP UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU)	8-97892-071-0	01	1	9812-9901		●	●	●	●
103	08.228 PLATE; STEP UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU)	8-97892-071-0	01	1	9902-9903	●	●	●	●	●
103	08.228 PLATE; STEP UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU)	8-97892-071-0	01	1	9904-0105		●				●
103	08.228 PLATE; STEP UNITED KINGDOM EQUIPMENT(6AA)	8-97892-071-0	01	1	9904-0105	●		●	●	●
103	08.228 PLATE; STEP	8-97892-071-0	01	1	0106-	●	●	●	●	●	●	●
103	08.228 PLATE; STEP EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU)	8-97867-969-0	01	1	9812-9901		●	●	●	●
103	08.228 PLATE; STEP EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU)	8-97867-969-0	01	1	9902-9903	●	●	●	●	●
103	08.228 PLATE; STEP EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU)	8-97867-969-0	01	1	9904-0105		●				●
103	08.228 PLATE; STEP EXC. UNITED KINGDOM EQUIPMENT(6AA)	8-97867-969-0	01	1	9904-0105	●		●	●	●
103	08.228 PLATE; STEP EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU)	8-97867-968-0	01	1	9812-9901		●	●	●	●
103	08.228 PLATE; STEP EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU)	8-97867-968-0	01	1	9902-9903	●	●	●	●	●
103	08.228 PLATE; STEP EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU)	8-97867-968-0	01	1	9904-0105		●				●
103	08.228 PLATE; STEP EXC. UNITED KINGDOM EQUIPMENT(6AA)	8-97867-968-0	01	1	9904-0105	●		●	●	●
110	08.309 BOLT; 1ST STEP PLATE 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	06	1	9812-	●	●	●	●	●	●	●
161	08.225 BOLT; FIX M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	9904-9904						●
223	16.570 GROMMET; LOCATION HOLE EXC. AUTO DOOR LOCK<AU4>	8-94279-724-0	02	1	9904-						●	●
280	08.225 STEP ASM; RR	8-97892-735-2	01	1	9904-						●	●
280	08.225 STEP ASM; RR IRISH EQUIPMENT(6CU)	8-97894-146-0	01	1	9904-9904						●
280	08.225 STEP ASM; RR UNITED KINGDOM EQUIPMENT(6AA)	8-97894-146-1	01	1	9904-0105						●
280	08.225 STEP ASM; RR	8-97894-146-1	01	1	0106-						●	●
280	08.225 STEP ASM; RR EXC. IRISH EQUIPMENT(6CU)	8-97853-659-3	01	1	9904-9904						●
280	08.225 STEP ASM; RR EXC. UNITED KINGDOM EQUIPMENT(6AA)	8-97853-659-4	01	1	9904-0105						●
291	08.225 BOLT; STEP PLATE 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	10	1	9812-	●	●	●	●	●	●	●
323	08.155 SCREW; SET M8X14	8-94279-386-1	04	1	9812-	●	●	●	●	●	●	●
358	08.228 SCREW; PROTECTOR 01.269 M8X16.5	1-09104-027-1	04	1	9904-						●	●
431	08.228 SUPPORT ASM; STEP	8-97853-584-7	01	1	9812-9910	●	●	●	●	●	●
431	08.228 SUPPORT ASM; STEP	8-97892-966-0	01	1	9911-	●	●	●	●	●	●	●
431	08.228 SUPPORT ASM; STEP	8-97853-583-7	01	1	9812-9910	●	●	●	●	●	●
431	08.228 SUPPORT ASM; STEP	8-97892-965-0	01	1	9911-	●	●	●	●	●	●	●
435	08.225 BOLT; RR STEP 06.500 M6X25	8-94279-204-0	10	1	9904-0011						●
435	08.225 BOLT; RR STEP 02.762 M6X20 W/LK&PL WASHER	8-94279-203-0	10	1	0012-						●	●
455	08.228 PROTECTOR; STEP (A)	8-97852-863-0	02	1	9812-9903	●	●	●	●	●	●	●
455	08.228 PROTECTOR; STEP (A)	8-97852-863-0	02	1	9904-	●	●	●	●	●	●	●
455	08.228 PROTECTOR; STEP (A)	8-97852-863-0	02	1	9904-						●	●
455	08.228 PROTECTOR; STEP (B)	8-97892-736-4	01	1	9904-						●	●
479	08.131 RIVET; STEP PLATE 08.155 OD=8	1-09983-125-0	02	1	9812-	●	●	●	●	●	●	●
561	08.154 SEAL; HOLE,STEP 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	02	1	9904-						●	●

100 424 423 100 15 15 371 9 212 434 433 3 430 403 404 215 483 481 401 428 482 7 92 402 501 7 455

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
3	16.592 PANEL; CLOSING,FRT PILLAR	8-97851-023-8	01	1	9812-	●	●	●	●	●	●	●
3	16.592 PANEL; CLOSING,FRT PILLAR	8-97851-024-8	01	1	9812-	●	●	●	●	●	●	●
7	16.570 REINFORCEMENT; HINGE (A) UPPER	8-97851-071-3	01	1	9812-	●	●	●	●	●	●	●
7	16.570 REINFORCEMENT; HINGE (B) LOWER	8-97851-073-5	01	1	9812-	●	●	●	●	●	●	●
7	16.570 REINFORCEMENT; HINGE (A) UPPER	8-97851-072-3	01	1	9812-	●	●	●	●	●	●	●
7	16.570 REINFORCEMENT; HINGE (B) LOWER	8-97851-074-5	01	1	9812-	●	●	●	●	●	●	●
9	16.592 MOLDING; DRIP,CAB SIDE	8-97851-019-9	01	1	9812-	●	●	●	●	●
9	16.592 MOLDING; DRIP,CAB SIDE	8-97851-020-9	01	1	9812-	●	●	●	●	●
9	16.592 MOLDING; DRIP,CAB SIDE	8-97851-208-9	01	1	9904-						●	●
9	16.592 MOLDING; DRIP,CAB SIDE	8-97851-207-9	01	1	9904-						●	●
15	16.592 PANEL; CANT RAIL SIDE (A)	8-97851-334-4	01	1	9812-	●	●	●	●	●
15	16.592 PANEL; CANT RAIL SIDE (B)	8-97851-336-5	01	1	9812-	●	●	●	●	●	●	●
15	16.592 PANEL; CANT RAIL SIDE (A)	8-97851-335-4	01	1	9812-	●	●	●	●	●
15	16.592 PANEL; CANT RAIL SIDE (B)	8-97851-337-5	01	1	9812-	●	●	●	●	●	●	●
15	16.592 PANEL; CANT RAIL SIDE (C)	8-97851-504-0	01	1	9904-						●	●
15	16.592 PANEL; CANT RAIL SIDE (C)	8-97851-504-0	01	1	9904-						●	●
15	16.592 PANEL; CANT RAIL SIDE (A)	8-97851-229-4	01	1	9904-						●	●
15	16.592 PANEL; CANT RAIL SIDE (A)	8-97851-228-4	01	1	9904-						●	●
92	16.570 PANEL; SIDE SILL,CAB	8-97851-531-0	01	1	9812-	●	●	●	●	●	●	●
92	16.570 PANEL; SIDE SILL,CAB	8-97851-530-0	01	1	9812-	●	●	●	●	●	●	●
100	16.570 PANEL ASM; BODY SIDE 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU)	8-97890-415-0	01	1	9906-0105		●
100	16.570 PANEL ASM; BODY SIDE 4JH1 ENG(RJX)	8-97890-415-1	01	1	0106-		●
100	16.570 PANEL ASM; BODY SIDE 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL>	8-97890-284-0	01	1	9812-9901		●	●	●	●
100	16.570 PANEL ASM; BODY SIDE 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC>	8-97890-284-0	01	1	9812-9901		●
100	16.570 PANEL ASM; BODY SIDE 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL>	8-97890-284-0	01	1	9902-9905	●	●	●	●	●
100	16.570 PANEL ASM; BODY SIDE 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC>	8-97890-284-0	01	1	9902-9905		●
100	16.570 PANEL ASM; BODY SIDE 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC>	8-97890-284-0	01	1	9906-0105		●
100	16.570 PANEL ASM; BODY SIDE 4JB1 ENG(RLF),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL>	8-97890-284-0	01	1	9906-0105		●
100	16.570 PANEL ASM; BODY SIDE CHARGE AIR COOLER<6PL>	8-97890-284-0	01	1	9906-0105	●		●	●	●
100	16.570 PANEL ASM; BODY SIDE CHARGE AIR COOLER<6PL>	8-97890-284-1	01	1	0106-		●
100	16.570 PANEL ASM; BODY SIDE	8-97890-284-1	01	1	0106-	●		●	●	●
100	16.570 PANEL ASM; BODY SIDE 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-97890-288-0	01	1	9812-9901		●	●	●	●
100	16.570 PANEL ASM; BODY SIDE 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-97890-288-0	01	1	9902-0105	●	●	●	●	●
100	16.570 PANEL ASM; BODY SIDE 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97890-288-1	01	1	0106-		●
100	16.570 PANEL ASM; BODY SIDE 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU)	8-97890-411-0	01	1	9812-9901		●	●	●	●
100	16.570 PANEL ASM; BODY SIDE 4JG2 ENG(RJC) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) AIR INTAKE SYSTEM FRONT<6PC>	8-97890-411-0	01	1	9812-9901		●
100	16.570 PANEL ASM; BODY SIDE 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU)	8-97890-411-0	01	1	9902-0105	●	●	●	●	●
100	16.570 PANEL ASM; BODY SIDE 4JG2 ENG(RJC) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) AIR INTAKE SYSTEM FRONT<6PC>	8-97890-411-0	01	1	9902-0105		●
100	16.570 PANEL ASM; BODY SIDE 4HE1 ENG(RLY)	8-97890-411-1	01	1	0106-		●		●	●
100	16.570 PANEL ASM; BODY SIDE	8-97890-411-1	01	1	0106-	●		●
100	16.570 PANEL ASM; BODY SIDE 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU)	8-97890-393-0	01	1	9812-9901		●	●	●	●
100	16.570 PANEL ASM; BODY SIDE 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU)	8-97890-393-0	01	1	9812-9901		●
100	16.570 PANEL ASM; BODY SIDE 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU)	8-97890-393-0	01	1	9902-0105	●	●	●	●	●
100	16.570 PANEL ASM; BODY SIDE 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU)	8-97890-393-0	01	1	9902-0105		●
100	16.570 PANEL ASM; BODY SIDE	8-97890-284-1	01	1	9904-						●	●
100	16.570 PANEL ASM; BODY SIDE IRISH EQUIPMENT(6CU)	8-97890-411-0	01	1	9904-9904						●
100	16.570 PANEL ASM; BODY SIDE UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU)	8-97890-411-0	01	1	9904-0105						●
100	16.570 PANEL ASM; BODY SIDE	8-97890-411-1	01	1	0106-						●	●
100	16.570 PANEL ASM; BODY SIDE EXC. IRISH EQUIPMENT(6CU)	8-97890-393-0	01	1	9904-9904						●
100	16.570 PANEL ASM; BODY SIDE EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU)	8-97890-393-0	01	1	9905-0105						●
212	16.588 CLOSING; PILLAR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU)	8-97890-458-2	01	1	9812-9901		●	●	●	●
212	16.588 CLOSING; PILLAR 4JG2 ENG(RJC) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) AIR INTAKE SYSTEM FRONT<6PC>	8-97890-458-2	01	1	9812-9901		●
212	16.588 CLOSING; PILLAR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU)	8-97890-458-2	01	1	9902-9903	●	●	●	●	●
212	16.588 CLOSING; PILLAR 4JG2 ENG(RJC) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) AIR INTAKE SYSTEM FRONT<6PC>	8-97890-458-2	01	1	9902-9903		●
212	16.588 CLOSING; PILLAR 4JG2 ENG(RJC) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) AIR INTAKE SYSTEM FRONT<6PC>	8-97890-458-2	01	1	9904-9905		●
212	16.588 CLOSING; PILLAR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU)	8-97890-458-2	01	1	9904-9905		●
212	16.588 CLOSING; PILLAR UNITED KINGDOM EQUIPMENT(6AA)	8-97890-458-2	01	1	9904-9905	●		●	●	●
212	16.588 CLOSING; PILLAR UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU)	8-97890-458-2	01	1	9904-9905						●
212	16.588 CLOSING; PILLAR 4JG2 ENG(RJC) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) AIR INTAKE SYSTEM FRONT<6PC>	8-97890-458-2	01	1	9906-0105		●
212	16.588 CLOSING; PILLAR 4JB1 ENG(RLF),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU)	8-97890-458-2	01	1	9906-0105		●
212	16.588 CLOSING; PILLAR UNITED KINGDOM EQUIPMENT(6AA)	8-97890-458-2	01	1	9906-0105	●		●	●	●
212	16.588 CLOSING; PILLAR UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU)	8-97890-458-2	01	1	9906-0105						●
212	16.588 CLOSING; PILLAR	8-97890-458-2	01	1	0106-	●	●	●	●	●	●	●
212	16.588 CLOSING; PILLAR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU)	8-97890-452-2	01	1	9812-9901		●	●	●	●
212	16.588 CLOSING; PILLAR 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU)	8-97890-452-2	01	1	9812-9901		●
212	16.588 CLOSING; PILLAR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU)	8-97890-452-2	01	1	9902-9903	●	●	●	●	●
212	16.588 CLOSING; PILLAR 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU)	8-97890-452-2	01	1	9902-9903		●
212	16.588 CLOSING; PILLAR 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU)	8-97890-452-2	01	1	9904-9904		●
212	16.588 CLOSING; PILLAR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU)	8-97890-452-2	01	1	9904-9904		●
212	16.588 CLOSING; PILLAR EXC. UNITED KINGDOM EQUIPMENT(6AA)	8-97890-452-2	01	1	9904-9904	●		●	●	●
212	16.588 CLOSING; PILLAR EXC. IRISH EQUIPMENT(6CU)	8-97890-452-2	01	1	9904-9904						●
212	16.588 CLOSING; PILLAR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU)	8-97890-452-2	01	1	9905-0105	●	●	●	●	●
212	16.588 CLOSING; PILLAR 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU)	8-97890-452-2	01	1	9905-0105		●
212	16.588 CLOSING; PILLAR EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU)	8-97890-452-2	01	1	9905-0105						●
212	16.588 CLOSING; PILLAR	8-97890-453-2	01	1	9812-	●	●	●	●	●	●	●
215	16.674 GROMMET; RR PILLAR 15.222 OD=35	8-94122-971-0	01	1	9902-	●	●	●	●	●
371	16.570 PATCH; SEAT BELT	8-97851-048-1	01	1	9812-	●	●	●	●	●	●	●
371	16.570 PATCH; SEAT BELT	8-97851-049-1	01	1	9812-	●	●	●	●	●	●	●
401	16.592 PATCH; CLOSING,FRT PILLAR	8-97851-301-1	01	1	9812-	●	●	●	●	●	●	●
401	16.592 PATCH; CLOSING,FRT PILLAR	8-97851-301-1	01	1	9812-	●	●	●	●	●	●	●
402	16.085 BRACKET; SUPPORT	8-97851-085-1	01	1	9812-	●	●	●	●	●	●	●
402	16.085 BRACKET; SUPPORT	8-97851-086-1	01	1	9812-	●	●	●	●	●	●	●
403	16.570 BRACKET; REINFORCEMENT,FRT PANEL	8-97851-069-0	01	1	9812-	●	●	●	●	●	●	●
403	16.570 BRACKET; REINFORCEMENT,FRT PANEL	8-97851-070-0	01	1	9812-	●	●	●	●	●	●	●
404	16.570 BRACKET	8-97890-317-1	01	1	9812-	●	●	●	●	●	●	●
404	16.570 BRACKET	8-97890-317-1	01	1	9812-	●	●	●	●	●	●	●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) EXC. INTERIOR DELUXE<RBB> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	06	1	9812-9901		●	●	●	●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) EXC. INTERIOR DELUXE<RBB> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	06	1	9902-9903	●	●	●	●	●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) EXC. INTERIOR DELUXE<RBB> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	06	1	9904-0008	●	●	●	●	●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	06	1	9904-0008						●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARIN E BLUE(890) EXC. INTERIOR DELUXE<RBB> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	06	1	0009-0105	●	●	●	●	●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARIN E BLUE(890) 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	06	1	0009-0105						●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARIN E BLUE(890) EXC. INTERIOR DELUXE<RBB> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	06	1	0106-0112	●	●	●	●	●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARIN E BLUE(890) 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	06	1	0106-0112						●	●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARIN E BLUE(890) EXC. INTERIOR DELUXE<RBB> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	06	1	0201-	●	●	●	●	●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	06	1	0201-						●	●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB> OD=20 T=0.05 WHITE	8-97856-832-1	06	1	9812-9901		●	●	●	●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB> OD=20 T=0.05 WHITE	8-97856-832-1	06	1	9902-9903	●	●	●	●	●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB> OD=20 T=0.05 WHITE	8-97856-832-1	06	1	9904-0105	●	●	●	●	●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE	8-97856-832-1	06	1	9904-0105						●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB> OD=20 T=0.05 WHITE	8-97856-832-1	06	1	0106-	●	●	●	●	●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE	8-97856-832-1	06	1	0106-						●	●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) EXC. ASSIST GRIP PASSENGER<EG5> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	02	1	9909-0008	●	●	●	●	●	●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARIN E BLUE(890) EXC. ASSIST GRIP PASSENGER<EG5> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	02	1	0009-0105	●	●	●	●	●	●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARIN E BLUE(890) EXC. ASSIST GRIP PASSENGER<EG5> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	02	1	0106-0112	●	●	●	●	●	●	●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARIN E BLUE(890) EXC. ASSIST GRIP PASSENGER<EG5> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	02	1	0201-	●	●	●	●	●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) EXC. ASSIST GRIP PASSENGER<EG5> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	02	1	0201-						●	●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 WHITE	8-97856-832-1	02	1	9909-0105	●	●	●	●	●	●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 WHITE	8-97856-832-1	02	1	0106-	●	●	●	●	●	●	●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	9904-0008						●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARIN E BLUE(890) 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	0009-0105						●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARIN E BLUE(890) 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	0106-0112						●	●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	0201-						●	●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE	8-97856-832-1	04	1	9904-0105						●
423	16.570 SEAL; CANTRAIL SIDE BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE	8-97856-832-1	04	1	0106-						●	●
424	16.570 SEAL; CLOSING BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) EXC. INTERIOR DELUXE<RBB> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	9812-9901		●	●	●	●
424	16.570 SEAL; CLOSING BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) EXC. INTERIOR DELUXE<RBB> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	9902-9903	●	●	●	●	●
424	16.570 SEAL; CLOSING BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) EXC. INTERIOR DELUXE<RBB> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	9904-0008	●	●	●	●	●
424	16.570 SEAL; CLOSING BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	9904-0008						●
424	16.570 SEAL; CLOSING BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARIN E BLUE(890) EXC. INTERIOR DELUXE<RBB> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	0009-0105	●	●	●	●	●
424	16.570 SEAL; CLOSING BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARIN E BLUE(890) 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	0009-0105						●
424	16.570 SEAL; CLOSING BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARIN E BLUE(890) EXC. INTERIOR DELUXE<RBB> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	0106-0112	●	●	●	●	●
424	16.570 SEAL; CLOSING BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARIN E BLUE(890) 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	0106-0112						●	●
424	16.570 SEAL; CLOSING BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARIN E BLUE(890) EXC. INTERIOR DELUXE<RBB> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	0201-	●	●	●	●	●
424	16.570 SEAL; CLOSING BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	0201-						●	●
424	16.570 SEAL; CLOSING BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB> OD=20 T=0.05 WHITE	8-97856-832-1	04	1	9812-9901		●	●	●	●
424	16.570 SEAL; CLOSING BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB> OD=20 T=0.05 WHITE	8-97856-832-1	04	1	9902-9903	●	●	●	●	●
424	16.570 SEAL; CLOSING BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB> OD=20 T=0.05 WHITE	8-97856-832-1	04	1	9904-0105	●	●	●	●	●
424	16.570 SEAL; CLOSING BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE	8-97856-832-1	04	1	9904-0105						●
424	16.570 SEAL; CLOSING BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB> OD=20 T=0.05 WHITE	8-97856-832-1	04	1	0106-	●	●	●	●	●
424	16.570 SEAL; CLOSING BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE	8-97856-832-1	04	1	0106-						●	●
428	06.642 REINFORCEMENT; DOOR STRIKER 16.588	8-97851-445-1	01	1	9812-	●	●	●	●	●
428	06.642 REINFORCEMENT; DOOR STRIKER 16.588	8-97851-446-1	01	1	9812-	●	●	●	●	●
430	16.570 NUT; PANEL M6 POP NUT	8-94279-537-0	01	1	9812-	●	●	●	●	●	●	●
430	16.570 NUT; PANEL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> M8 POP NUT	8-94279-538-0	02	1	9812-9901		●	●	●	●
430	16.570 NUT; PANEL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> M8 POP NUT	8-94279-538-0	02	1	9902-9905	●	●	●	●	●
430	16.570 NUT; PANEL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> M8 POP NUT	8-94279-538-0	02	1	9906-0105		●
430	16.570 NUT; PANEL 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) M8 POP NUT	8-94279-538-0	02	1	9906-0105		●
430	16.570 NUT; PANEL EXC. CHARGE AIR COOLER<6PL> M8 POP NUT	8-94279-538-0	02	1	9906-0105	●		●	●	●
430	16.570 NUT; PANEL 4JH1 ENG(RJX) M8 POP NUT	8-94279-538-0	02	1	0106-		●
430	16.570 NUT; PANEL 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> M8 POP NUT	8-94279-538-0	02	1	0106-		●
433	16.585 NUT; HEADER SHELF 16.545 M6	9-09114-086-0	02	1	9812-	●	●	●	●	●	●	●
433	16.585 NUT; HEADER SHELF 16.545 M6	9-09114-086-0	02	1	9812-	●	●	●	●	●	●	●
434	16.592 PATCH; ASSIST GRIP	8-94267-191-1	01	1	9812-	●	●	●	●	●
434	16.592 PATCH; ASSIST GRIP	8-97851-502-0	01	1	9904-						●	●
455	08.228 PROTECTOR; STEP (A)	8-97852-863-0	02	1	9812-9903	●	●	●	●	●	●	●
455	08.228 PROTECTOR; STEP (A)	8-97852-863-0	02	1	9904-	●	●	●	●	●	●	●
455	08.228 PROTECTOR; STEP (A)	8-97852-863-0	02	1	9904-						●	●
455	08.228 PROTECTOR; STEP (B)	8-97892-736-4	01	1	9904-						●	●
481	16.570 PANEL; SIDE FRT PILLAR	8-97851-520-5	01	1	9812-	●	●	●	●	●	●	●
481	16.570 PANEL; SIDE FRT PILLAR	8-97859-060-2	01	1	9812-	●	●	●	●	●	●	●
482	16.570 PANEL; SIDE RR PILLAR	8-97851-521-4	01	1	9812-	●	●	●	●	●
482	16.570 PANEL; SIDE RR PILLAR AIR INTAKE REAR VERTICAL<KJ3>	8-97859-052-2	01	1	9812-	●	●	●	●	●
482	16.570 PANEL; SIDE RR PILLAR EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97851-522-4	01	1	9812-	●	●	●	●	●
483	16.570 PANEL; SIDE CANTRAIL	8-97851-525-2	01	1	9812-	●	●	●	●	●	●	●
483	16.570 PANEL; SIDE CANTRAIL	8-97851-524-2	01	1	9812-	●	●	●	●	●	●	●
501	16.570 PIN; STUD M8X15 SPECIAL STUD	8-94279-167-0	04	1	9812-	●	●	●	●	●	●	●
501	16.570 PIN; STUD M8X15 SPECIAL STUD	8-94279-167-0	04	1	9812-	●	●	●	●	●	●	●

168 110 431 291 323 479 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
103	08.228 PLATE; STEP UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU)	8-97892-072-0	01	1	9812-9901		●	●	●	●
103	08.228 PLATE; STEP UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU)	8-97892-072-0	01	1	9902-9903	●	●	●	●	●
103	08.228 PLATE; STEP UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU)	8-97892-072-0	01	1	9904-0105		●				●
103	08.228 PLATE; STEP UNITED KINGDOM EQUIPMENT(6AA)	8-97892-072-0	01	1	9904-0105	●		●	●	●
103	08.228 PLATE; STEP	8-97892-072-0	01	1	0106-	●	●	●	●	●	●	●
103	08.228 PLATE; STEP UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU)	8-97892-071-0	01	1	9812-9901		●	●	●	●
103	08.228 PLATE; STEP UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU)	8-97892-071-0	01	1	9902-9903	●	●	●	●	●
103	08.228 PLATE; STEP UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU)	8-97892-071-0	01	1	9904-0105		●				●
103	08.228 PLATE; STEP UNITED KINGDOM EQUIPMENT(6AA)	8-97892-071-0	01	1	9904-0105	●		●	●	●
103	08.228 PLATE; STEP	8-97892-071-0	01	1	0106-	●	●	●	●	●	●	●
103	08.228 PLATE; STEP EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU)	8-97867-969-0	01	1	9812-9901		●	●	●	●
103	08.228 PLATE; STEP EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU)	8-97867-969-0	01	1	9902-9903	●	●	●	●	●
103	08.228 PLATE; STEP EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU)	8-97867-969-0	01	1	9904-0105		●				●
103	08.228 PLATE; STEP EXC. UNITED KINGDOM EQUIPMENT(6AA)	8-97867-969-0	01	1	9904-0105	●		●	●	●
103	08.228 PLATE; STEP EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU)	8-97867-968-0	01	1	9812-9901		●	●	●	●
103	08.228 PLATE; STEP EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU)	8-97867-968-0	01	1	9902-9903	●	●	●	●	●
103	08.228 PLATE; STEP EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU)	8-97867-968-0	01	1	9904-0105		●				●
103	08.228 PLATE; STEP EXC. UNITED KINGDOM EQUIPMENT(6AA)	8-97867-968-0	01	1	9904-0105	●		●	●	●
110	08.309 BOLT; 1ST STEP PLATE 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	06	1	9812-	●	●	●	●	●	●	●
168	16.570 BOLT; BODY SIDE PANEL 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	9812-	●	●	●	●	●	●	●
291	08.225 BOLT; STEP PLATE 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	10	1	9812-	●	●	●	●	●	●	●
323	08.155 SCREW; SET M8X14	8-94279-386-1	04	1	9812-	●	●	●	●	●	●	●
431	08.228 SUPPORT ASM; STEP	8-97853-584-7	01	1	9812-9910	●	●	●	●	●	●
431	08.228 SUPPORT ASM; STEP	8-97892-966-0	01	1	9911-	●	●	●	●	●	●	●
431	08.228 SUPPORT ASM; STEP	8-97853-583-7	01	1	9812-9910	●	●	●	●	●	●
431	08.228 SUPPORT ASM; STEP	8-97892-965-0	01	1	9911-	●	●	●	●	●	●	●
479	08.131 RIVET; STEP PLATE 08.155 OD=8	1-09983-125-0	02	1	9812-	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
