◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50818 - NPR/NQR(EUROPE)-RHD ▶ 5 - Frame, Cab Mounting ▶ 5-30 - SPARE TIRE CARRIER AND COVER ▶
5-30 — SPARE TIRE CARRIER AND COVER (#43425) — 84 parça

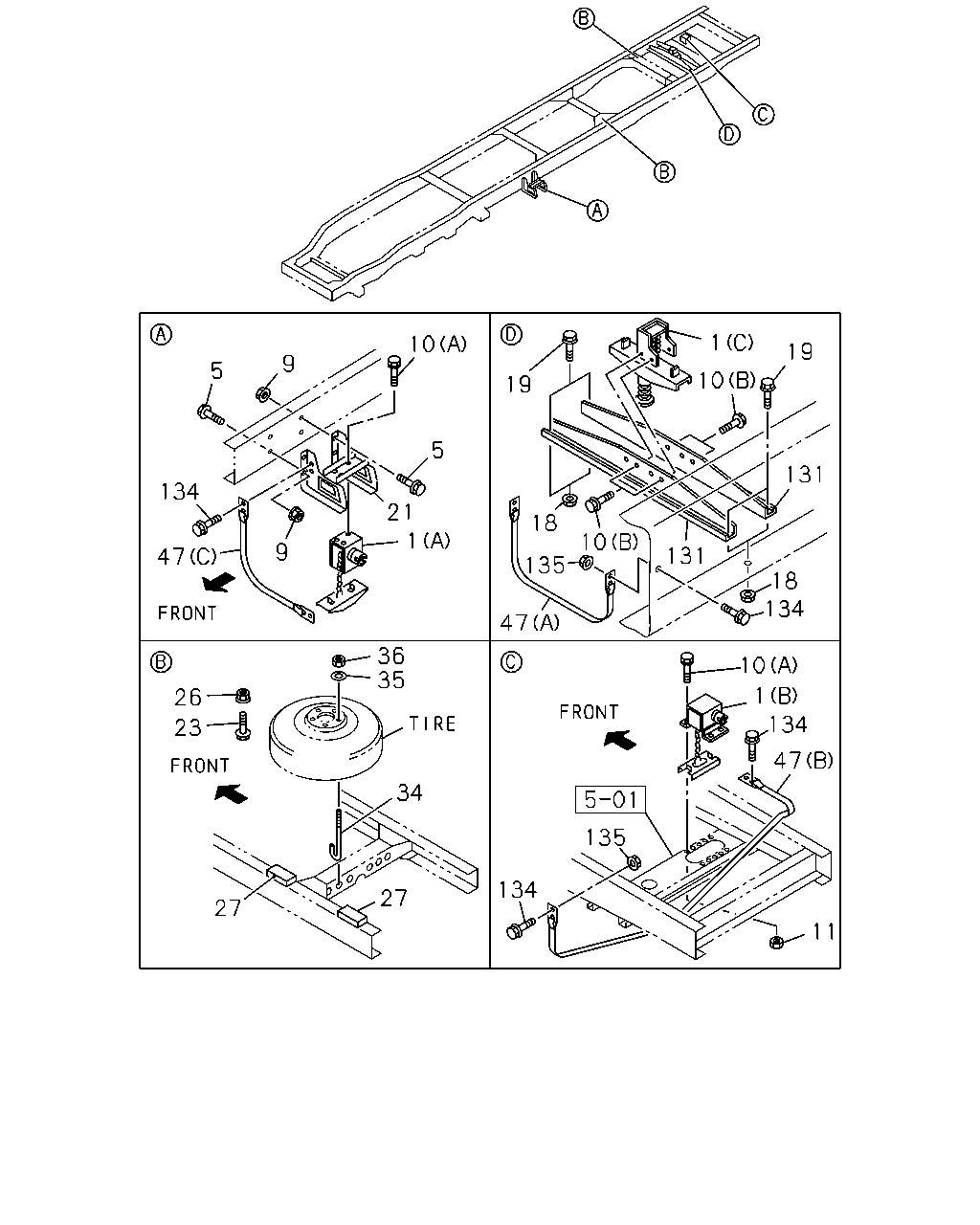

çizim 12565
1 10 19 9 5 10 19 5 131 134 21 18 1 10 9 131 47 18 134 135 47 36 35 10 1 134 26 23 47 34 135 134 27 27 11
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 07.629 HANGER ASM; TIRE FT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97182-113-0 01 1 9812- ●
1 07.629 HANGER ASM; TIRE FT
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97182-115-0 01 1 9812- ●
1 07.629 HANGER ASM; TIRE FT
(AUH),(AUJ),(AUS),(AVK),(AYS),(00C), (01C),(02C),(03C),(04C),(05C),(06C), (07C),(08C),(09C),(10C),(11C),(53C), (54C),(55C),(83V),(9BP),(9ZM),(9ZP), (9ZQ),(95V),(97V) FRAME STRAIGHT TYPE<7KJ> (C) 		1-53630-188-3 01 1 9812-9901 ● ●
1 07.629 HANGER ASM; TIRE FT
(AUH),(AUJ),(AUS),(AVK),(AYS),(00C), (01C),(02C),(03C),(04C),(05C),(06C), (07C),(08C),(09C),(10C),(11C),(53C), (54C),(55C),(83V),(9BP),(9ZM),(9ZP), (9ZQ),(95V),(97V) FRAME STRAIGHT TYPE<7KJ> (C) 		1-53630-188-3 01 1 9902-9903 ● ●
1 07.629 HANGER ASM; TIRE FT
(AYS),(00C),(01C),(02C),(03C),(04C), (05C),(06C),(07C),(08C),(09C),(10C), (11C),(53C),(54C),(55C),(83V),(9BP), (95V),(97V) UNITED KINGDOM EQUIPMENT(6AA) (C) 		1-53630-188-3 01 1 9902-9903 ●
1 07.629 HANGER ASM; TIRE FT
(AUH),(AUJ),(AUS),(AVK),(AYS),(BRT), (00C),(01C),(02C),(03C),(04C),(05C), (06C),(07C),(08C),(09C),(10C),(11C), (53C),(54C),(55C),(83V),(9BP),(9ZM), (9ZP),(9ZQ),(95V),(97V) FRAME STRAIGHT TYPE<7KJ> (C) 		1-53630-188-3 01 1 9904-0105 ● ● ●
1 07.629 HANGER ASM; TIRE FT
(AUH),(AUJ),(AUS),(AVK),(AYS),(BRT), (00C),(01C),(02C),(03C),(04C),(05C), (06C),(07C),(08C),(09C),(10C),(11C), (53C),(54C),(55C),(83V),(9BP),(9ZM), (9ZP),(9ZQ),(95V),(97V) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) FRAME STRAIGHT TYPE<7KJ> (C) 		1-53630-188-3 01 1 9904-0105 ●
1 07.629 HANGER ASM; TIRE FT
(AUH),(AUJ),(AUS),(AVK),(AYS),(BRT), (BRU),(00C),(01C),(02C),(02C),(03C), (03C),(04C),(04C),(05C),(06C),(07C), (08C),(09C),(10C),(11C),(53C),(54C), (55C),(83V),(9BP),(9ZM),(9ZP),(9ZQ), (95V),(97V) FRAME STRAIGHT TYPE<7KJ> (C) 		1-53630-188-3 01 1 0106-0206 ● ● ● ●
1 07.629 HANGER ASM; TIRE FT
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> (C) 		1-53630-188-3 01 1 0207- ●
1 07.629 HANGER ASM; TIRE FT
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) (C) 		1-53630-188-3 01 1 0207- ●
1 07.629 HANGER ASM; TIRE FT
(C) 		1-53630-188-3 01 1 0207- ● ●
1 07.629 HANGER ASM; TIRE FT
(06H),(07H),(08H),(09H),(10H),(11H), (12H),(13H),(14H),(15H),(16H),(17H), (18H),(19H),(50C),(51C),(52C),(9HY), (94H),(95H),(96H),(97H),(98H),(99H) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97174-769-0 01 1 9812-9812 ● ●
1 07.629 HANGER ASM; TIRE FT
(BQU),(06H),(07H),(08H),(09H),(10H), (11H),(12H),(13H),(14H),(15H),(16H), (17H),(18H),(19H),(50C),(51C),(52C), (9HY),(94H),(95H),(96H),(97H),(98H), (99H) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97174-769-0 01 1 9812-9901 ● ●
1 07.629 HANGER ASM; TIRE FT
(BQU),(06H),(07H),(08H),(09H),(10H), (11H),(12H),(13H),(14H),(15H),(16H), (17H),(18H),(19H),(50C),(51C),(52C), (9HY),(94H),(95H),(96H),(97H),(98H), (99H) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97174-769-0 01 1 9902-9903 ● ●
1 07.629 HANGER ASM; TIRE FT
(06H),(07H),(08H),(09H),(10H),(11H), (12H),(13H),(14H),(15H),(16H),(17H), (18H),(19H),(50C),(51C),(52C),(94H), (95H),(96H),(97H),(98H),(99H) UNITED KINGDOM EQUIPMENT(6AA) (B) 		8-97174-769-0 01 1 9902-9903 ●
1 07.629 HANGER ASM; TIRE FT
(BQU),(06H),(07H),(08H),(09H),(10H), (11H),(12H),(13H),(14H),(15H),(16H), (17H),(18H),(19H),(50C),(51C),(52C), (9HY),(94H),(95H),(96H),(97H),(98H), (99H) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97174-769-0 01 1 9904-0105 ● ● ●
1 07.629 HANGER ASM; TIRE FT
(BQU),(06H),(07H),(08H),(09H),(10H), (11H),(12H),(13H),(14H),(15H),(16H), (17H),(18H),(19H),(50C),(51C),(52C), (9HY),(94H),(95H),(96H),(97H),(98H), (99H) UNITED KINGDOM EQUIPMENT(6AA) (B) 		8-97174-769-0 01 1 9904-0105 ●
1 07.629 HANGER ASM; TIRE FT
(BQU),(BQV),(9HY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97174-769-0 01 1 0106-0206 ●
1 07.629 HANGER ASM; TIRE FT
(A) 		8-97010-955-0 01 1 9812- ● ● ●
5 07.632 BOLT; BRKT TO FRAME
03.405 M10X30 FLANGE 		0-28681-030-0 04 1 9812- ● ● ●
9 07.633 NUT; BRKT TO FRAME
04.785 M10 FLANGE 		0-91150-110-0 04 1 9812- ● ● ●
10 07.632 BOLT; TIRE HANGER
FRAME STRAIGHT TYPE<7KJ> 03.405 (B) M10X25 FLANGE 		0-28681-025-0 04 1 9812-0105 ●
10 07.632 BOLT; TIRE HANGER
03.405 (B) M10X25 FLANGE 		0-28681-025-0 04 1 9812-0105 ● ●
10 07.632 BOLT; TIRE HANGER
UNITED KINGDOM EQUIPMENT(6AA) 03.405 (B) M10X25 FLANGE 		0-28681-025-0 04 1 9812-0105 ●
10 07.632 BOLT; TIRE HANGER
FRAME STRAIGHT TYPE<7KJ> 03.405 (B) M10X25 FLANGE 		0-28681-025-0 04 1 0106- ●
10 07.632 BOLT; TIRE HANGER
03.405 (B) M10X25 FLANGE 		0-28681-025-0 04 1 0106- ● ● ●
10 07.632 BOLT; TIRE HANGER
EXC. FRAME STRAIGHT TYPE<7KJ> 02.664 (A) M8X20 FLANGE 		0-28680-820-0 04 1 9812- ●
10 07.632 BOLT; TIRE HANGER
02.664 (A) M8X20 FLANGE 		0-28680-820-0 03 1 9812- ● ● ●
11 07.629 NUT; TIRE HANGER
EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 04 1 9812- ●
18 07.633 NUT; MEMBER
FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 04 1 9812-0105 ●
18 07.633 NUT; MEMBER
04.785 M10 FLANGE 		0-91150-110-0 04 1 9812-0105 ● ●
18 07.633 NUT; MEMBER
UNITED KINGDOM EQUIPMENT(6AA) 04.785 M10 FLANGE 		0-91150-110-0 04 1 9812-0105 ●
18 07.633 NUT; MEMBER
FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 04 1 0106- ●
18 07.633 NUT; MEMBER
04.785 M10 FLANGE 		0-91150-110-0 04 1 0106- ● ● ●
19 07.632 BOLT; C/MBR
FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 9812-0105 ●
19 07.632 BOLT; C/MBR
03.405 M10X30 FLANGE 		0-28681-030-0 04 1 9812-0105 ● ●
19 07.632 BOLT; C/MBR
UNITED KINGDOM EQUIPMENT(6AA) 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 9812-0105 ●
19 07.632 BOLT; C/MBR
FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0106- ●
19 07.632 BOLT; C/MBR
03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0106- ● ● ●
21 07.629 BRACKET; SPARE TIRE HANGER 8-97188-263-1 01 1 9812- ● ● ●
23 07.632 BOLT; BRKT,SPARE TIRE
UNITED KINGDOM EQUIPMENT(6AA) 03.162 M10X35 FLANGE 		0-28681-035-0 02 1 9902-0105 ●
23 07.632 BOLT; BRKT,SPARE TIRE
03.162 M10X35 FLANGE 		0-28681-035-0 02 1 0106- ●
26 07.629 NUT; BRKT FIX
UNITED KINGDOM EQUIPMENT(6AA) 04.785 M10 FLANGE 		0-91150-110-0 02 1 9902-0105 ●
26 07.629 NUT; BRKT FIX
04.785 M10 FLANGE 		0-91150-110-0 02 1 0106- ●
27 07.629 CUSHION; FRAME TO SPARE TIRE
UNITED KINGDOM EQUIPMENT(6AA) 125X50X10 		8-94341-284-0 01 1 9902-0105 ●
27 07.629 CUSHION; FRAME TO SPARE TIRE
125X50X10 		8-94341-284-0 01 1 0106- ●
34 07.629 BOLT; SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> M12X305 		8-94441-189-0 01 1 9902-0105 ●
34 07.629 BOLT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> M12X305 		8-94441-189-0 02 1 0106- ●
34 07.629 BOLT; SPARE TIRE
M12X305 		8-94441-189-0 02 1 0106- ● ● ● ● ● ●
34 07.629 BOLT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> M12X305 		8-94441-189-0 02 1 9812-0105 ●
34 07.629 BOLT; SPARE TIRE
M12X305 		8-94441-189-0 02 1 9812-0105 ● ● ● ●
34 07.629 BOLT; SPARE TIRE
UNITED KINGDOM EQUIPMENT(6AA) M12X305 		8-94441-189-0 02 1 9812-0105 ●
35 07.629 WASHER; PL,SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> 07.243 ID=12.5 OD=54 		8-94466-483-0 02 1 9812-9901 ●
35 07.629 WASHER; PL,SPARE TIRE
07.243 ID=12.5 OD=54 		8-94466-483-0 02 1 9812-9901 ● ● ●
35 07.629 WASHER; PL,SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> 07.243 ID=12.5 OD=54 		8-94466-483-0 01 1 9902-0105 ●
35 07.629 WASHER; PL,SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> 07.243 ID=12.5 OD=54 		8-94466-483-0 02 1 0106- ●
35 07.629 WASHER; PL,SPARE TIRE
07.243 ID=12.5 OD=54 		8-94466-483-0 02 1 0106- ● ● ● ● ● ●
35 07.629 WASHER; PL,SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> 07.243 ID=12.5 OD=54 		8-94466-483-0 02 1 9902-9903 ●
35 07.629 WASHER; PL,SPARE TIRE
07.243 ID=12.5 OD=54 		8-94466-483-0 02 1 9902-9903 ● ● ●
35 07.629 WASHER; PL,SPARE TIRE
UNITED KINGDOM EQUIPMENT(6AA) 07.243 ID=12.5 OD=54 		8-94466-483-0 02 1 9902-9903 ●
35 07.629 WASHER; PL,SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> 07.243 ID=12.5 OD=54 		8-94466-483-0 02 1 9904-0105 ●
35 07.629 WASHER; PL,SPARE TIRE
07.243 ID=12.5 OD=54 		8-94466-483-0 02 1 9904-0105 ● ● ● ●
35 07.629 WASHER; PL,SPARE TIRE
UNITED KINGDOM EQUIPMENT(6AA) 07.243 ID=12.5 OD=54 		8-94466-483-0 02 1 9904-0105 ●
36 07.629 NUT; SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> 05.816 M12 		9-99110-412-0 01 1 9902-0105 ●
36 07.629 NUT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> 05.816 M12 		9-99110-412-0 02 1 0106- ●
36 07.629 NUT; SPARE TIRE
05.816 M12 		9-99110-412-0 02 1 0106- ● ● ● ● ● ●
36 07.629 NUT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> 05.816 M12 		9-99110-412-0 02 1 9902-0105 ●
36 07.629 NUT; SPARE TIRE
05.816 M12 		9-99110-412-0 02 1 9902-0105 ● ● ● ●
36 07.629 NUT; SPARE TIRE
UNITED KINGDOM EQUIPMENT(6AA) 05.816 M12 		9-99110-412-0 02 1 9902-0105 ●
47 07.629 BELT; SPARE TIRE
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97188-741-0 01 1 9812-9903 ●
47 07.629 BELT; SPARE TIRE
UNITED KINGDOM EQUIPMENT(6AA) (A) 		8-97188-741-0 01 1 9812-9903 ● ●
47 07.629 BELT; SPARE TIRE
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97188-741-0 01 1 9904-0011 ● ● ● ●
47 07.629 BELT; SPARE TIRE
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97167-881-0 01 1 9812-0011 ●
47 07.629 BELT; SPARE TIRE
UNITED KINGDOM EQUIPMENT(6AA) (C) 		8-97189-553-0 01 1 9812-0011 ● ●
131 07.629 CROSSMEMBER; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> 		8-97167-802-0 02 1 9812-0105 ●
131 07.629 CROSSMEMBER; SPARE TIRE 8-97167-802-0 02 1 9812-0105 ● ●
131 07.629 CROSSMEMBER; SPARE TIRE
UNITED KINGDOM EQUIPMENT(6AA) 		8-97167-802-0 02 1 9812-0105 ●
131 07.629 CROSSMEMBER; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> 		8-97167-802-0 02 1 0106- ●
131 07.629 CROSSMEMBER; SPARE TIRE 8-97167-802-0 02 1 0106- ● ● ●
134 07.632 BOLT; BELT
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9812-0011 ● ● ● ●
134 07.632 BOLT; BELT
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 9812-0011 ● ● ● ●
134 07.632 BOLT; BELT
UNITED KINGDOM EQUIPMENT(6AA) 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 9812-0011 ● ●
135 07.629 NUT; BELT
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9812-0011 ● ● ● ●
135 07.629 NUT; BELT
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 02 1 9812-0011 ●
