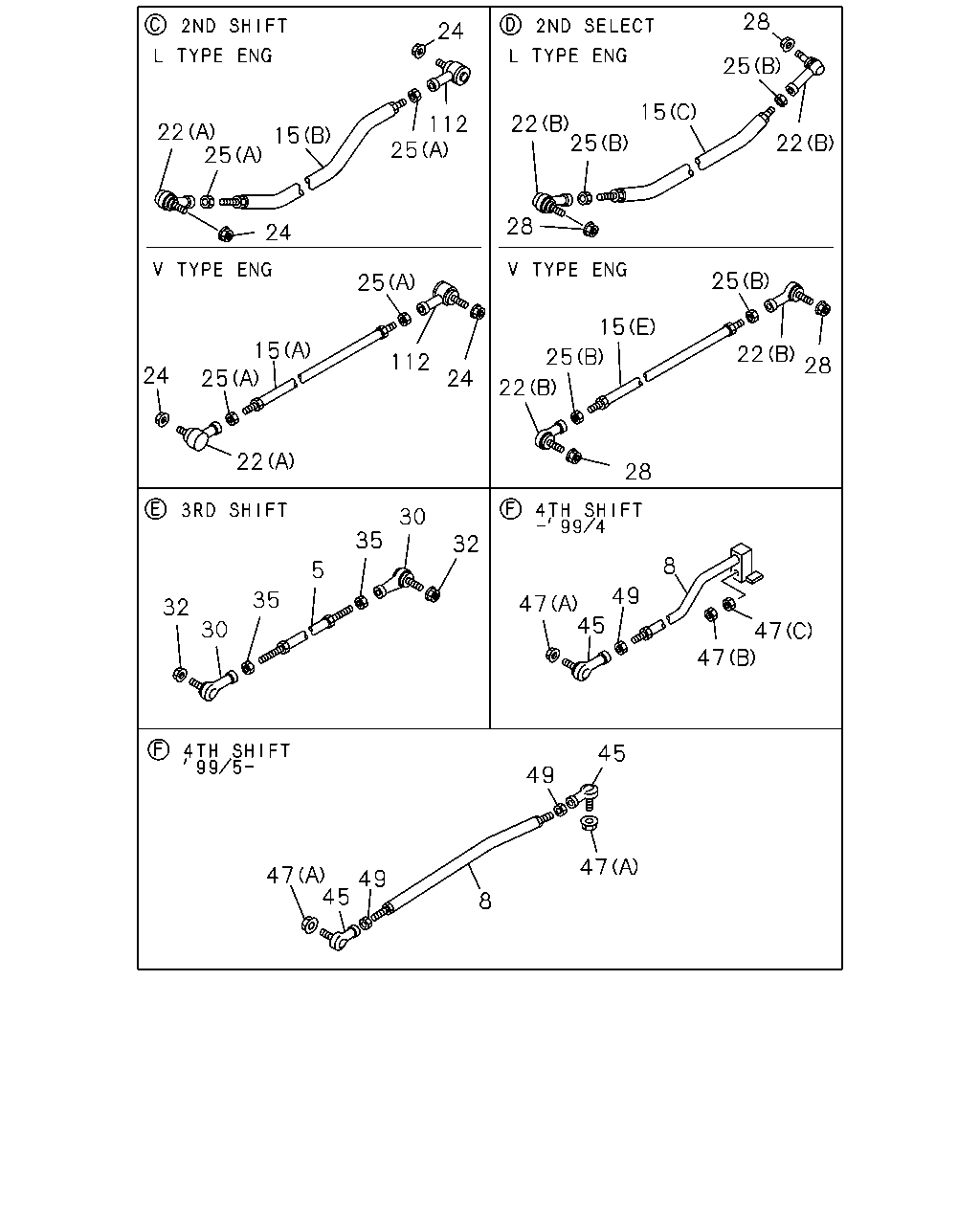

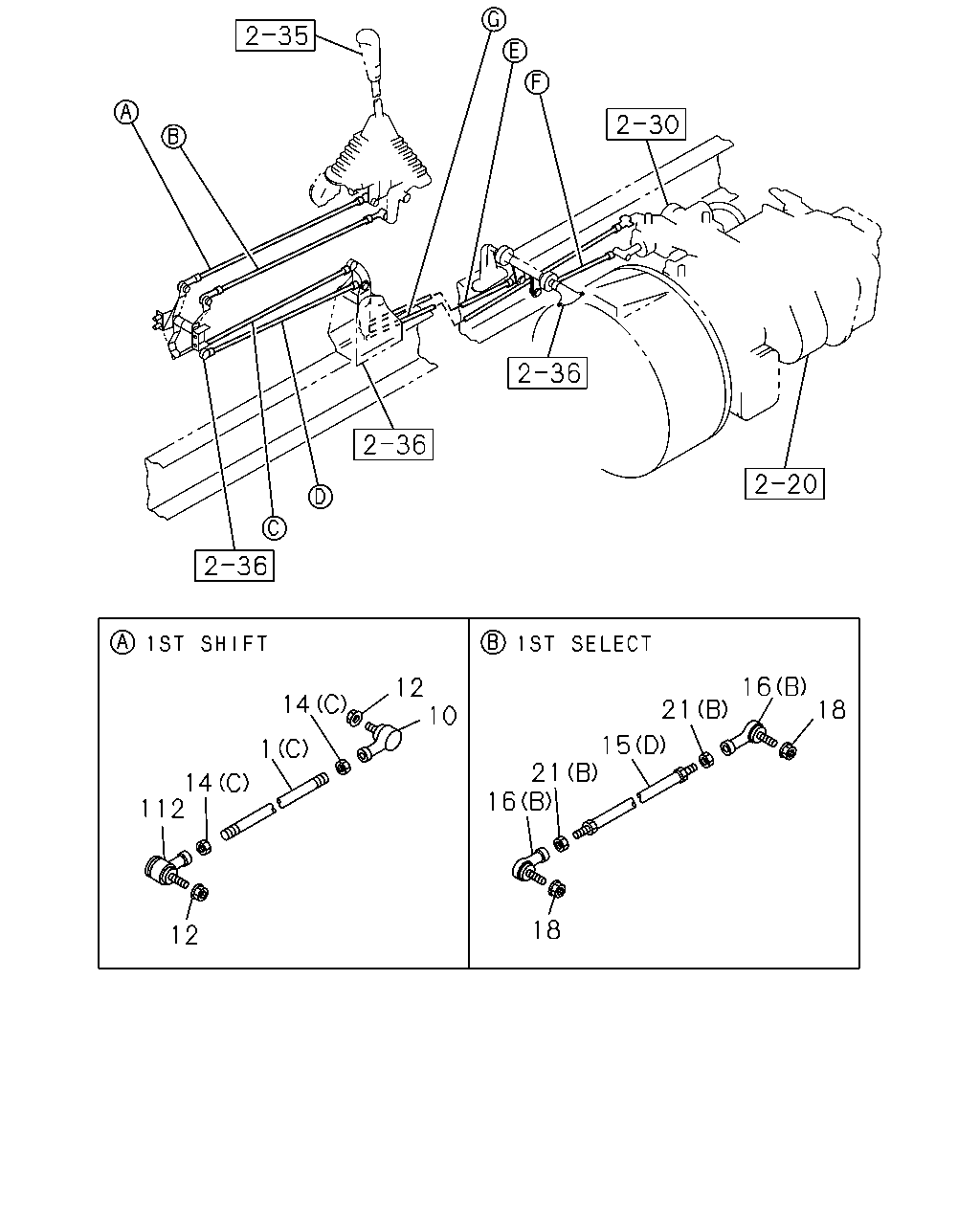

2-37B — MANUAL TRANSMISSION CONT; MISSION SIDE (#4341) — 165 parça

44 36 6 36 38 38 44 38 38 36 6 44 44 36 121 6 38 36 44 32 44 36 6 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	ROD; LINK,3RD SELECT 10PE1S(60L) (A) L=1266	1-33652-741-0	01	1	9603-9807	●
6	ROD; LINK,3RD SELECT 10PE1S(60L) (A) L=1189	1-33652-861-0	01	1	9808-9904	●
6	ROD; LINK,3RD SELECT V TYPE ENG<91L> (A) L=1189	1-33652-861-0	01	1	9905-	●	●
6	ROD; LINK,3RD SELECT 6WA1 TC-S(56L) (A) L=1454	1-33652-745-0	01	1	9603-9807	●
6	ROD; LINK,3RD SELECT 6WA1 TC-S(56L) (A) L=1412	1-33652-860-0	01	1	9808-9904	●
6	ROD; LINK,3RD SELECT L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (A) L=1412	1-33652-860-0	01	1	9905-	●	●
6	ROD; LINK,3RD SELECT CAB UP +110MM<TGG> (A) L=1423	1-33652-827-0	01	1	9905-	●	●
6	ROD; LINK,3RD SELECT V TYPE ENG<91L> (B) L=125	1-33671-454-0	01	1	0001-	●	●
7	ROD ASM; CONT,SELECT L=125	1-33671-333-0	01	1	9808-9904	●
7	ROD ASM; CONT,SELECT 6WA1 TC-N(54L),6WA1 TC-C(55L) L=125	1-33671-333-0	01	1	9905-9912	●	●
7	ROD ASM; CONT,SELECT 10PE1S(60L),10PE1N(61L),10PE1H(68L) L=125	1-33671-454-0	01	1	9905-9912	●	●
32	NUT; 3RD LINK ROD M10 FLANGE	1-09440-050-0	02	1	9603-9710	●	●
32	NUT; 3RD LINK ROD M10 FLANGE	1-09440-056-0	02	1	9711-9802	●	●
32	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	9803-	●	●
32	NUT; 3RD LINK ROD M8 FLANGE	1-09440-062-1	01	1	9808-9904	●
32	NUT; 3RD LINK ROD M8 FLANGE	1-09440-062-1	01	1	9905-9912	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD 6WA1 TC-S(56L)	1-09760-109-0	02	1	9603-9706	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD 6WA1 TC-S(56L)	1-09760-109-0	02	1	9707-9904	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-109-0	01	1	9905-	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD L TYPE ENG<90L>	1-09760-109-0	01	1	9905-	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD 8PE1S(59L),10PE1S(60L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM>	1-09760-108-0	02	1	9603-9807	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD 10PE1S(60L)	1-09760-108-0	01	1	9808-9904	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD V TYPE ENG<91L>	1-09760-108-0	01	1	9905-	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD 6WA1 TC-S(56L)	1-09760-109-0	01	1	9808-9904	●
38	NUT; 3RD LINK ROD M8 FLANGE	1-09440-049-0	02	1	9603-9804	●
38	NUT; 3RD LINK ROD M8 FLANGE	1-09440-062-0	02	1	9805-9807	●
38	NUT; 3RD LINK ROD M8 FLANGE	1-09440-062-1	01	1	9808-9904	●
38	NUT; 3RD LINK ROD M8 FLANGE	1-09440-062-1	02	1	9905-9906	●	●
38	NUT; 3RD LINK ROD M8 FLANGE	1-09440-062-1	01	1	9907-9912	●
38	NUT; 3RD LINK ROD M8 FLANGE	1-09440-062-1	02	1	0001-	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD 6WA1 TC-S(56L) M10	9-09111-410-0	02	1	9603-9706	●
44	NUT; LK,RIGHT SCREW,LINK ROD 6WA1 TC-S(56L) M10	9-09111-410-0	02	1	9707-9904	●
44	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	01	1	9905-	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD L TYPE ENG<90L> M10	9-09111-410-0	01	1	9905-	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD 8PE1S(59L),10PE1S(60L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M8	9-09111-408-0	02	1	9603-9807	●
44	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L) M8	9-09111-408-0	01	1	9808-9904	●
44	NUT; LK,RIGHT SCREW,LINK ROD V TYPE ENG<91L> M8	9-09111-408-0	01	1	9905-	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD 6WA1 TC-S(56L) M10	9-09111-410-0	01	1	9808-9904	●
121	BOLT; LINK ROD	1-09044-103-0	02	1	9808-	●

28 24 25 15 22 5 112 25 22 25 15 22 28 24 25 25 15 15 22 28 25 112 24 25 24 22 22 28 30 35 32 8 5 49 35 47 45 32 30 47 47 45 49 47 47 49 45 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	ROD; LINK,3RD SHIFT L TYPE ENG<90L> CAB UP +110MM<TGG> L=1120	1-33652-603-0	01	1	9905-9909	●	●
5	ROD; LINK,3RD SHIFT L TYPE ENG<90L> CAB UP +110MM<TGG> EXC. MIXER TRUCK<RA2> L=1120	1-33652-603-0	01	1	9910-	●	●
5	ROD; LINK,3RD SHIFT 6WA1 TC-S(56L) L=1110	1-33652-623-0	01	1	9603-9702	●
5	ROD; LINK,3RD SHIFT 6WA1 TC-S(56L) EXC. MIXER TRUCK<RA2> L=1110	1-33652-623-0	01	1	9703-9706	●
5	ROD; LINK,3RD SHIFT 6WA1 TC-S(56L) L=1110	1-33652-623-0	01	1	9707-9904	●
5	ROD; LINK,3RD SHIFT L TYPE ENG<90L> EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> L=1110	1-33652-623-0	01	1	9905-	●	●
5	ROD; LINK,3RD SHIFT 8PE1S(59L),10PE1S(60L) L=855	1-33652-321-0	01	1	9603-9904	●
5	ROD; LINK,3RD SHIFT V TYPE ENG<91L> L=855	1-33652-321-0	01	1	9905-	●	●
8	ROD; LINK,4TH SHIFT 6WA1 TC-S(56L) L=477	1-33652-718-0	01	1	9603-9904	●
8	ROD; LINK,4TH SHIFT L TYPE ENG<90L> L=485	1-33652-859-0	01	1	9905-	●	●
8	ROD; LINK,4TH SHIFT 8PE1S(59L),10PE1S(60L) L=492	1-33652-702-1	01	1	9603-9904	●
8	ROD; LINK,4TH SHIFT 8PE1S(59L),10PE1S(60L) L=523	1-33652-858-0	01	1	9905-	●
15	ROD; LINK 1ST SHIFT (D) L=435	1-33652-696-0	01	1	9603-9904	●
15	ROD; LINK 1ST SHIFT (D) L=435	1-33652-696-0	01	1	9905-	●	●
15	ROD; LINK 1ST SHIFT 6WA1 TC-S(56L) (C) L=438	1-33652-682-0	01	1	9603-9711	●
15	ROD; LINK 1ST SHIFT 6WA1 TC-S(56L) (C) L=428	1-33652-781-0	01	1	9712-9904	●
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (C) L=428	1-33652-781-1	01	1	9905-	●	●
15	ROD; LINK 1ST SHIFT 6WA1 TC-S(56L) (B) L=497	1-33652-716-0	01	1	9603-9711	●
15	ROD; LINK 1ST SHIFT 6WA1 TC-S(56L) (B) L=490	1-33652-780-0	01	1	9712-9904	●
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (B) L=490	1-33652-780-0	01	1	9905-	●	●
15	ROD; LINK 1ST SHIFT 8PE1S(59L),10PE1S(60L) (E) L=440	1-33652-672-0	01	1	9603-9904	●
15	ROD; LINK 1ST SHIFT V TYPE ENG<91L> (E) L=440	1-33652-672-0	01	1	9905-	●	●
15	ROD; LINK 1ST SHIFT 8PE1S(59L),10PE1S(60L) (A) L=490	1-33652-700-0	01	1	9603-9904	●
15	ROD; LINK 1ST SHIFT V TYPE ENG<91L> (A) L=490	1-33652-700-0	01	1	9905-	●	●
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> CAB UP +110MM<TGG> (C) L=423	1-33652-804-1	01	1	9905-	●	●
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> CAB UP +110MM<TGG> (B) L=474	1-33652-803-0	01	1	9905-	●	●
22	JOINT; BALL,SCREW,LINK ROD 6WA1 TC-S(56L) (B) SELECT	1-09760-109-0	02	1	9603-9706	●
22	JOINT; BALL,SCREW,LINK ROD 6WA1 TC-S(56L) (B) SELECT	1-09760-109-0	02	1	9707-9904	●
22	JOINT; BALL,SCREW,LINK ROD L TYPE ENG<90L> (B) SELECT	1-09760-109-0	02	1	9905-	●	●
22	JOINT; BALL,SCREW,LINK ROD (A) SHIFT L=64.5	1-09760-111-0	01	1	9603-9706	●
22	JOINT; BALL,SCREW,LINK ROD (A) SHIFT L=64.5	1-09760-111-0	01	1	9707-9710	●
22	JOINT; BALL,SCREW,LINK ROD 8PE1S(59L),10PE1S(60L) (B) SELECT	1-09760-108-0	02	1	9603-9904	●
22	JOINT; BALL,SCREW,LINK ROD V TYPE ENG<91L> (B) SELECT	1-09760-108-0	02	1	9905-	●	●
22	JOINT; BALL,SCREW,LINK ROD (A) SHIFT	1-09760-125-0	01	1	9711-9904	●
22	JOINT; BALL,SCREW,LINK ROD (A) SHIFT	1-09760-125-0	01	1	9905-	●	●
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-050-0	02	1	9603-9708	●	●
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-050-0	01	1	9709-9710	●	●
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-056-0	01	1	9709-9710	●	●
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-056-0	02	1	9711-9802	●	●
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	9803-	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD 6WA1 TC-S(56L) (B) M10	9-09111-410-0	02	1	9603-9904	●
25	NUT; LK,RIGHT SCREW,LINK ROD L TYPE ENG<90L> (B) M10	9-09111-410-0	02	1	9905-	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD (A) M12	9-99111-412-0	02	1	9603-9706	●
25	NUT; LK,RIGHT SCREW,LINK ROD (A) M12	9-99111-412-0	02	1	9707-9904	●
25	NUT; LK,RIGHT SCREW,LINK ROD (A) M12	9-99111-412-0	02	1	9905-	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD 8PE1S(59L),10PE1S(60L) (B) M8	9-09111-408-0	02	1	9603-9904	●
25	NUT; LK,RIGHT SCREW,LINK ROD V TYPE ENG<91L> (B) M8	9-09111-408-0	02	1	9905-	●	●
28	NUT; 2ND LINK ROD M8 FLANGE	1-09440-049-0	02	1	9603-9804	●	●
28	NUT; 2ND LINK ROD M8 FLANGE	1-09440-062-1	02	1	9805-	●	●
30	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-110-0	02	1	9603-9706	●
30	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-110-0	02	1	9707-9710	●
30	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-124-0	02	1	9711-9904	●
30	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-124-0	02	1	9905-9909	●	●
30	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-124-0	02	1	9910-	●	●
32	NUT; 3RD LINK ROD M10 FLANGE	1-09440-050-0	02	1	9603-9710	●	●
32	NUT; 3RD LINK ROD M10 FLANGE	1-09440-056-0	02	1	9711-9802	●	●
32	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	9803-	●	●
32	NUT; 3RD LINK ROD M8 FLANGE	1-09440-062-1	01	1	9808-9904	●
32	NUT; 3RD LINK ROD M8 FLANGE	1-09440-062-1	01	1	9905-9912	●	●
35	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	9603-9706	●
35	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	9707-9904	●
35	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	9905-9909	●	●
35	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	9910-	●	●
45	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-117-0	02	1	9603-9706	●
45	JOINT; BALL,RIGHT SCREW,LINK ROD 8PE1S(59L),10PE1S(60L)	1-09760-117-0	02	1	9603-9706	●
45	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-125-0	02	1	9905-9910	●	●
45	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-125-0	02	1	9911-	●	●
45	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-117-0	01	1	9603-9710	●
45	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-125-0	01	1	9711-9904	●
47	NUT; 4TH LINK ROD (A) M10 FLANGE	1-09440-061-0	02	1	9905-	●	●
47	NUT; 4TH LINK ROD (A) M10 FLANGE	1-09440-050-0	01	1	9603-9710	●
47	NUT; 4TH LINK ROD (A) M10 FLANGE	1-09440-056-0	01	1	9711-9802	●
47	NUT; 4TH LINK ROD (A) M10 FLANGE	1-09440-061-0	01	1	9803-9904	●
47	NUT; 4TH LINK ROD (B) M14	9-99110-414-0	01	1	9603-9904	●
47	NUT; 4TH LINK ROD (C) M14	9-99111-414-0	01	1	9603-9904	●
49	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	9603-9706	●
49	NUT; LK,RIGHT SCREW,LINK ROD 8PE1S(59L),10PE1S(60L) M12	9-99111-412-0	02	1	9603-9706	●
49	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	9905-9910	●	●
49	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	9911-	●	●
49	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	01	1	9603-9904	●
112	JOINT; RUBBER	1-33670-413-1	01	1	9603-9706	●
112	JOINT; RUBBER 8PE1S(59L),10PE1S(60L)	1-33670-413-1	01	1	9603-9706	●
112	JOINT; RUBBER	1-33670-413-1	01	1	9707-9708	●
112	JOINT; RUBBER	1-33670-413-1	01	1	9707-9708	●
112	JOINT; RUBBER	1-33670-413-1	01	1	9709-9904	●
112	JOINT; RUBBER	1-33670-413-1	01	1	9709-9904	●
112	JOINT; RUBBER	1-33670-413-1	01	1	9905-	●	●
112	JOINT; RUBBER	1-33670-413-1	01	1	9905-	●	●

16 12 10 14 21 18 15 21 16 1 14 112 18 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ROD; LINK,1ST SHIFT (C) L=480	9-08401-248-0	01	1	9603-9904	●
1	ROD; LINK,1ST SHIFT (C) L=480	9-08401-248-0	01	1	9905-	●	●
10	JOINT ASM; BALL,SELECT ROD	1-09760-117-0	01	1	9603-9710	●
10	JOINT ASM; BALL,SELECT ROD	1-09760-125-0	01	1	9711-9904	●
10	JOINT ASM; BALL,SELECT ROD	1-09760-125-0	01	1	9905-	●	●
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-050-0	02	1	9603-9708	●	●
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-056-0	02	1	9709-9802	●	●
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	9803-	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD (C) M12	9-99111-412-0	02	1	9603-9904	●
14	NUT; LK,RIGHT SCREW,LINK ROD (C) M12	9-99111-412-0	02	1	9905-	●	●
15	ROD; LINK 1ST SHIFT (D) L=435	1-33652-696-0	01	1	9603-9904	●
15	ROD; LINK 1ST SHIFT (D) L=435	1-33652-696-0	01	1	9905-	●	●
15	ROD; LINK 1ST SHIFT 6WA1 TC-S(56L) (C) L=438	1-33652-682-0	01	1	9603-9711	●
15	ROD; LINK 1ST SHIFT 6WA1 TC-S(56L) (C) L=428	1-33652-781-0	01	1	9712-9904	●
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (C) L=428	1-33652-781-1	01	1	9905-	●	●
15	ROD; LINK 1ST SHIFT 6WA1 TC-S(56L) (B) L=497	1-33652-716-0	01	1	9603-9711	●
15	ROD; LINK 1ST SHIFT 6WA1 TC-S(56L) (B) L=490	1-33652-780-0	01	1	9712-9904	●
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (B) L=490	1-33652-780-0	01	1	9905-	●	●
15	ROD; LINK 1ST SHIFT 8PE1S(59L),10PE1S(60L) (E) L=440	1-33652-672-0	01	1	9603-9904	●
15	ROD; LINK 1ST SHIFT V TYPE ENG<91L> (E) L=440	1-33652-672-0	01	1	9905-	●	●
15	ROD; LINK 1ST SHIFT 8PE1S(59L),10PE1S(60L) (A) L=490	1-33652-700-0	01	1	9603-9904	●
15	ROD; LINK 1ST SHIFT V TYPE ENG<91L> (A) L=490	1-33652-700-0	01	1	9905-	●	●
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> CAB UP +110MM<TGG> (C) L=423	1-33652-804-1	01	1	9905-	●	●
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> CAB UP +110MM<TGG> (B) L=474	1-33652-803-0	01	1	9905-	●	●
16	JOINT ASM; BALL,CONT ROD (B)	1-09760-108-0	02	1	9603-9904	●
16	JOINT ASM; BALL,CONT ROD (B)	1-09760-108-0	02	1	9905-	●	●
18	NUT; 1ST LINK ROD M8 FLANGE	1-09440-049-0	02	1	9603-9804	●	●
18	NUT; 1ST LINK ROD M8 FLANGE	1-09440-062-1	02	1	9805-	●	●
21	NUT; LK,RIGHT SCREW,LINK ROD (B) M8	9-09111-408-0	02	1	9603-9904	●
21	NUT; LK,RIGHT SCREW,LINK ROD (B) M8	9-09111-408-0	02	1	9905-	●	●
112	JOINT; RUBBER	1-33670-413-1	01	1	9603-9706	●
112	JOINT; RUBBER 8PE1S(59L),10PE1S(60L)	1-33670-413-1	01	1	9603-9706	●
112	JOINT; RUBBER	1-33670-413-1	01	1	9707-9708	●
112	JOINT; RUBBER	1-33670-413-1	01	1	9707-9708	●
112	JOINT; RUBBER	1-33670-413-1	01	1	9709-9904	●
112	JOINT; RUBBER	1-33670-413-1	01	1	9709-9904	●
112	JOINT; RUBBER	1-33670-413-1	01	1	9905-	●	●
112	JOINT; RUBBER	1-33670-413-1	01	1	9905-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
