Sayfa 4-36 - Isuzu EPC

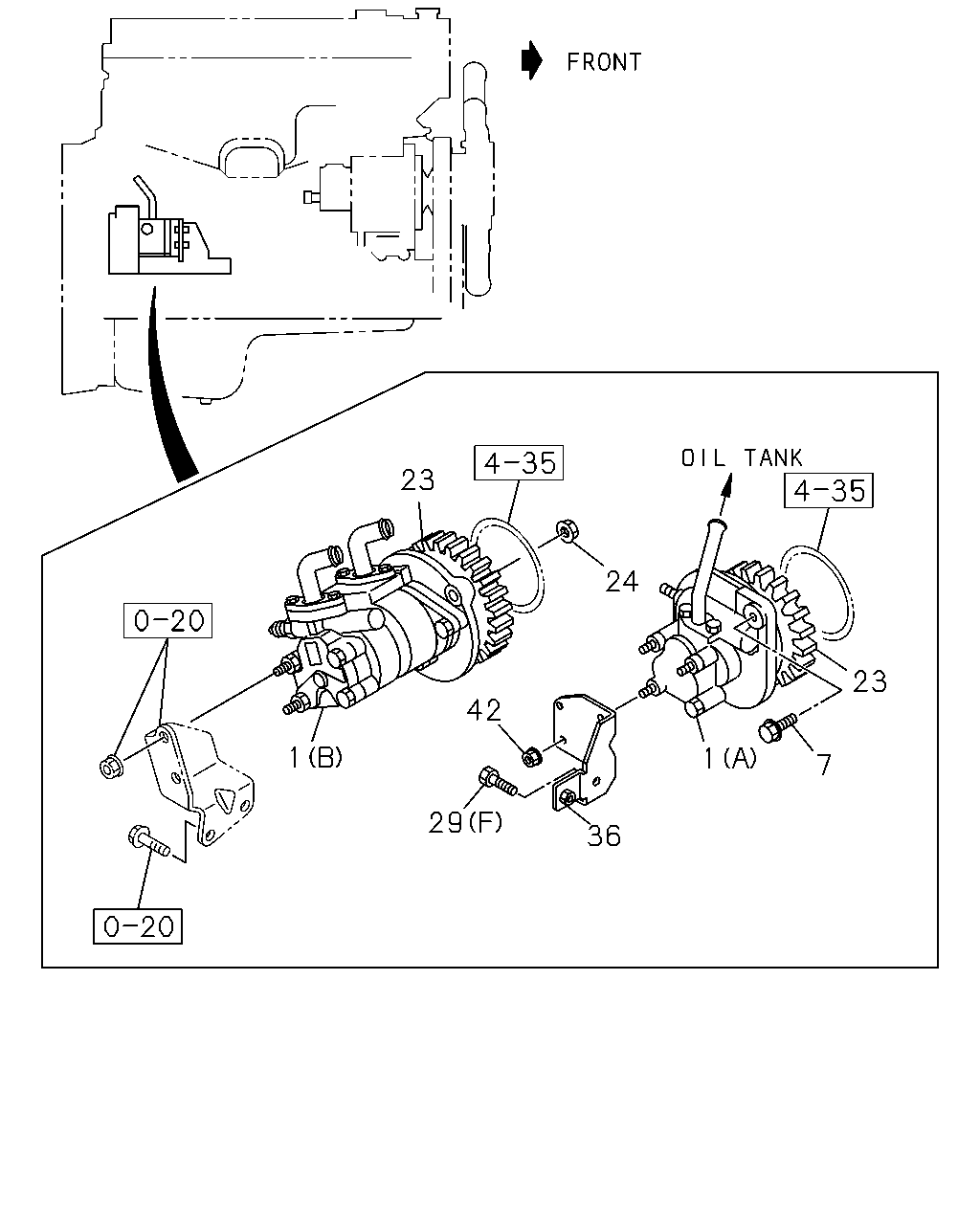

4-36 — POWER STEERING CONTROL; ENGINE SIDE (#43404) — 127 parça

23 24 23 42 1 1 7 29 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC) POWER STEERING<N40> (C)	8-97084-207-0	01	1	9812-9903	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC) POWER STEERING<N40> (C)	8-97226-344-0	01	1	9904-9905	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> (C)	8-97226-344-0	01	1	9906-0001	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> (C)	8-97247-061-1	01	1	0002-0105	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JH1 ENG(RJX) (C)	8-97247-061-2	01	1	0106-0206	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JH1 ENG(RJX) (C)	8-97354-730-0	01	1	0207-	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97136-574-1	01	1	9812-9903	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) POWER STEERING<N40> EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97136-574-1	01	1	9904-0105	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97136-574-1	01	1	0106-0207	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6R(RNW),M/T MZZ6F(RSR) EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97136-574-1	01	1	0208-	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) POWER STEERING<N40> HYDRO BRAKE BOOSTER<7QQ> (B)	8-97175-115-0	01	1	9812-0105	●		●		●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> (B)	8-97175-115-0	01	1	0106-0207	●		●		●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6R(RNW) HYDRO BRAKE BOOSTER<7QQ> (B)	8-97175-115-0	01	1	0208-	●		●		●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) M/T MZZ6F(RSR) HYDRO BRAKE BOOSTER<7QQ> (B)	8-97258-461-0	01	1	0208-	●		●		●	●	●
7	09.181 BOLT; OIL PUMP,P/S 4HE1 ENG(RLY) 00.685 M10X28 FLANGE	0-28181-028-0	02	1	9812-	●	●	●	●	●	●	●
23	06.660 GEAR; OIL PUMP 4HE1 ENG(RLY)	8-97114-550-0	01	1	9812-0103	●	●	●	●	●	●
23	06.660 GEAR; OIL PUMP 4HE1 ENG(RLY) POWER STEERING<N40> HYDRO BRAKE BOOSTER<7QQ>	8-97114-550-0	01	1	0104-0104	●		●		●	●
23	06.660 GEAR; OIL PUMP 4HE1 ENG(RLY)	8-97114-550-0	01	1	0105-0105	●	●	●	●	●	●
23	06.660 GEAR; OIL PUMP 4HE1 ENG(RLY)	8-97114-550-0	01	1	0106-	●	●	●	●	●	●	●
23	06.660 GEAR; OIL PUMP 4HE1 ENG(RLY) POWER STEERING<N40> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97262-856-0	01	1	0104-0104	●	●	●	●
24	06.673 NUT; GEAR,P/S PUMP 4HE1 ENG(RLY) POWER STEERING<N40> HYDRO BRAKE BOOSTER<7QQ> 07.243 M12 FLANGE	0-91150-212-0	01	1	9812-0105	●		●		●	●
24	06.673 NUT; GEAR,P/S PUMP 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> 07.243 M12 FLANGE	0-91150-212-0	01	1	0106-	●		●		●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) POWER STEERING<N40> 03.278 (D) M8X100 FLANGE	0-28080-800-0	01	1	9812-9905	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 03.278 (D) M8X100 FLANGE	0-28080-800-0	01	1	9906-0105	●
29	09.171 BOLT; BRKT,POWER STRG 4JH1 ENG(RJX) 03.278 (D) M8X100 FLANGE	0-28080-800-0	01	1	0106-	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) POWER STEERING<N40> 01.062 (A) M8X16 FLANGE	0-28080-816-0	03	1	9812-9905	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 01.062 (A) M8X16 FLANGE	0-28080-816-0	03	1	9906-0105	●
29	09.171 BOLT; BRKT,POWER STRG 4JH1 ENG(RJX) 01.062 (A) M8X16 FLANGE	0-28080-816-0	03	1	0106-	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) POWER STEERING<N40> 01.251 (E) M8X60 FLANGE	0-28080-860-0	01	1	9812-9905	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 01.251 (E) M8X60 FLANGE	0-28080-860-0	01	1	9906-0105	●
29	09.171 BOLT; BRKT,POWER STRG 4JH1 ENG(RJX) 01.251 (E) M8X60 FLANGE	0-28080-860-0	01	1	0106-	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) POWER STEERING<N40> 09.198 (C) M10X100 FLANGE	0-28081-000-0	01	1	9812-9905	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 09.198 (C) M10X100 FLANGE	0-28081-000-0	01	1	9906-0105	●
29	09.171 BOLT; BRKT,POWER STRG 4JH1 ENG(RJX) 09.198 (C) M10X100 FLANGE	0-28081-000-0	01	1	0106-	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) POWER STEERING<N40> 03.611 (B) M10X20 FLANGE	0-28681-020-0	05	1	9812-9905	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 03.611 (B) M10X20 FLANGE	0-28681-020-0	05	1	9906-0105	●
29	09.171 BOLT; BRKT,POWER STRG 4JH1 ENG(RJX) 03.611 (B) M10X20 FLANGE	0-28681-020-0	05	1	0106-	●
29	09.171 BOLT; BRKT,POWER STRG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> (F) M14X20 FLANGE	0-28881-420-0	01	1	9812-9901	●		●
29	09.171 BOLT; BRKT,POWER STRG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> (F) M14X20 FLANGE	0-28881-420-0	01	1	9902-9903	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> (F) M14X20 FLANGE	0-28881-420-0	01	1	9904-9904	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4HE1 ENG(RLY) POWER STEERING<N40> EXC. HYDRO BRAKE BOOSTER<7QQ> (F) M14X20 FLANGE	0-28881-420-0	01	1	9904-0105	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4HE1 ENG(RLY) EXC. HYDRO BRAKE BOOSTER<7QQ> (F) M14X20 FLANGE	0-28881-420-0	01	1	0106-0207	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6R(RNW),M/T MZZ6F(RSR) EXC. HYDRO BRAKE BOOSTER<7QQ> (F) M14X20 FLANGE	0-28881-420-0	01	1	0208-	●	●	●	●
36	06.606 BRACKET; PLATE,P/S PUMP 4HE1 ENG(RLY) POWER STEERING<N40> EXC. CHARGE AIR COOLER<6PL>	8-97112-866-0	01	1	9812-9812	●		●		●	●
36	06.606 BRACKET; PLATE,P/S PUMP 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97112-866-0	01	1	9812-9812	●		●
36	06.606 BRACKET; PLATE,P/S PUMP 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97112-866-0	01	1	9812-9901	●		●
36	06.606 BRACKET; PLATE,P/S PUMP 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97112-866-0	01	1	9902-9903	●	●	●
36	06.606 BRACKET; PLATE,P/S PUMP 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97112-866-0	01	1	9904-9904	●	●	●	●
36	06.606 BRACKET; PLATE,P/S PUMP 4HE1 ENG(RLY) POWER STEERING<N40> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97112-866-0	01	1	9904-0006	●	●	●	●
36	06.606 BRACKET; PLATE,P/S PUMP 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97112-866-0	01	1	0007-0007	●	●	●	●	●	●	●
36	06.606 BRACKET; PLATE,P/S PUMP 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97112-866-0	01	1	0007-0007	●	●	●	●	●	●	●
36	06.606 BRACKET; PLATE,P/S PUMP 4HE1 ENG(RLY) POWER STEERING<N40> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97112-866-0	01	1	0008-0105	●	●	●	●
36	06.606 BRACKET; PLATE,P/S PUMP 4HE1 ENG(RLY) EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97112-866-0	01	1	0106-0207	●	●	●	●
36	06.606 BRACKET; PLATE,P/S PUMP 4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6R(RNW),M/T MZZ6F(RSR) EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97112-866-0	01	1	0208-	●	●	●	●
42	06.672 NUT; ADJ PLATE 4JG2 ENG(RJC) POWER STEERING<N40> 04.785 M10 FLANGE	0-91150-110-0	01	1	9812-9905	●
42	06.672 NUT; ADJ PLATE 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 04.785 M10 FLANGE	0-91150-110-0	01	1	9906-0105	●
42	06.672 NUT; ADJ PLATE 4JH1 ENG(RJX) 04.785 M10 FLANGE	0-91150-110-0	01	1	0106-	●
42	06.672 NUT; ADJ PLATE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	9812-9903	●	●	●	●
42	06.672 NUT; ADJ PLATE 4HE1 ENG(RLY) POWER STEERING<N40> EXC. HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	9904-0105	●	●	●	●
42	06.672 NUT; ADJ PLATE 4HE1 ENG(RLY) EXC. HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-0207	●	●	●	●
42	06.672 NUT; ADJ PLATE 4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6R(RNW),M/T MZZ6F(RSR) EXC. HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0208-	●	●	●	●

47 42 29 25 17 29 25 1 25 29 29 25 29 29 32 32 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC) POWER STEERING<N40> (C)	8-97084-207-0	01	1	9812-9903	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC) POWER STEERING<N40> (C)	8-97226-344-0	01	1	9904-9905	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> (C)	8-97226-344-0	01	1	9906-0001	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> (C)	8-97247-061-1	01	1	0002-0105	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JH1 ENG(RJX) (C)	8-97247-061-2	01	1	0106-0206	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JH1 ENG(RJX) (C)	8-97354-730-0	01	1	0207-	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97136-574-1	01	1	9812-9903	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) POWER STEERING<N40> EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97136-574-1	01	1	9904-0105	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97136-574-1	01	1	0106-0207	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6R(RNW),M/T MZZ6F(RSR) EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97136-574-1	01	1	0208-	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) POWER STEERING<N40> HYDRO BRAKE BOOSTER<7QQ> (B)	8-97175-115-0	01	1	9812-0105	●		●		●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> (B)	8-97175-115-0	01	1	0106-0207	●		●		●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6R(RNW) HYDRO BRAKE BOOSTER<7QQ> (B)	8-97175-115-0	01	1	0208-	●		●		●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) M/T MZZ6F(RSR) HYDRO BRAKE BOOSTER<7QQ> (B)	8-97258-461-0	01	1	0208-	●		●		●	●	●
17	06.606 NUT; POWER STRG PUMP 4JG2 ENG(RJC) POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-9905	●
17	06.606 NUT; POWER STRG PUMP 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	01	1	9906-0105	●
17	06.606 NUT; POWER STRG PUMP 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-	●
19	07.874 NUT; PULLEY,OIL PUMP 4JG2 ENG(RJC) POWER STEERING<N40> 06.606 M12	8-94139-015-0	01	1	9812-9905	●
19	07.874 NUT; PULLEY,OIL PUMP 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 06.606 M12	8-94139-015-0	01	1	9906-0105	●
19	07.874 NUT; PULLEY,OIL PUMP 4JH1 ENG(RJX) 06.606 M12	8-94139-015-0	01	1	0106-	●
25	06.606 BRACKET; P/S PUMP 4JG2 ENG(RJC) POWER STEERING<N40> (B)	8-97065-974-0	01	1	9812-9905	●
25	06.606 BRACKET; P/S PUMP 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> (B)	8-97065-974-0	01	1	9906-0105	●
25	06.606 BRACKET; P/S PUMP 4JH1 ENG(RJX) (B)	8-97065-974-0	01	1	0106-	●
25	06.606 BRACKET; P/S PUMP 4JG2 ENG(RJC) POWER STEERING<N40> (A)	8-97107-869-0	01	1	9812-9905	●
25	06.606 BRACKET; P/S PUMP 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> (A)	8-97107-869-0	01	1	9906-0105	●
25	06.606 BRACKET; P/S PUMP 4JH1 ENG(RJX) (A)	8-97107-869-0	01	1	0106-	●
25	06.606 BRACKET; P/S PUMP 4JG2 ENG(RJC) POWER STEERING<N40> (C)	8-97107-872-0	01	1	9812-9905	●
25	06.606 BRACKET; P/S PUMP 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> (C)	8-97107-872-0	01	1	9906-0105	●
25	06.606 BRACKET; P/S PUMP 4JH1 ENG(RJX) (C)	8-97107-872-0	01	1	0106-	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) POWER STEERING<N40> 03.278 (D) M8X100 FLANGE	0-28080-800-0	01	1	9812-9905	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 03.278 (D) M8X100 FLANGE	0-28080-800-0	01	1	9906-0105	●
29	09.171 BOLT; BRKT,POWER STRG 4JH1 ENG(RJX) 03.278 (D) M8X100 FLANGE	0-28080-800-0	01	1	0106-	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) POWER STEERING<N40> 01.062 (A) M8X16 FLANGE	0-28080-816-0	03	1	9812-9905	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 01.062 (A) M8X16 FLANGE	0-28080-816-0	03	1	9906-0105	●
29	09.171 BOLT; BRKT,POWER STRG 4JH1 ENG(RJX) 01.062 (A) M8X16 FLANGE	0-28080-816-0	03	1	0106-	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) POWER STEERING<N40> 01.251 (E) M8X60 FLANGE	0-28080-860-0	01	1	9812-9905	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 01.251 (E) M8X60 FLANGE	0-28080-860-0	01	1	9906-0105	●
29	09.171 BOLT; BRKT,POWER STRG 4JH1 ENG(RJX) 01.251 (E) M8X60 FLANGE	0-28080-860-0	01	1	0106-	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) POWER STEERING<N40> 09.198 (C) M10X100 FLANGE	0-28081-000-0	01	1	9812-9905	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 09.198 (C) M10X100 FLANGE	0-28081-000-0	01	1	9906-0105	●
29	09.171 BOLT; BRKT,POWER STRG 4JH1 ENG(RJX) 09.198 (C) M10X100 FLANGE	0-28081-000-0	01	1	0106-	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) POWER STEERING<N40> 03.611 (B) M10X20 FLANGE	0-28681-020-0	05	1	9812-9905	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 03.611 (B) M10X20 FLANGE	0-28681-020-0	05	1	9906-0105	●
29	09.171 BOLT; BRKT,POWER STRG 4JH1 ENG(RJX) 03.611 (B) M10X20 FLANGE	0-28681-020-0	05	1	0106-	●
29	09.171 BOLT; BRKT,POWER STRG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> (F) M14X20 FLANGE	0-28881-420-0	01	1	9812-9901	●		●
29	09.171 BOLT; BRKT,POWER STRG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> (F) M14X20 FLANGE	0-28881-420-0	01	1	9902-9903	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> (F) M14X20 FLANGE	0-28881-420-0	01	1	9904-9904	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4HE1 ENG(RLY) POWER STEERING<N40> EXC. HYDRO BRAKE BOOSTER<7QQ> (F) M14X20 FLANGE	0-28881-420-0	01	1	9904-0105	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4HE1 ENG(RLY) EXC. HYDRO BRAKE BOOSTER<7QQ> (F) M14X20 FLANGE	0-28881-420-0	01	1	0106-0207	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6R(RNW),M/T MZZ6F(RSR) EXC. HYDRO BRAKE BOOSTER<7QQ> (F) M14X20 FLANGE	0-28881-420-0	01	1	0208-	●	●	●	●
32	06.665 PULLEY; IDLER,P/S 4JG2 ENG(RJC) POWER STEERING<N40> 06.655 (A)	8-94128-866-0	01	1	9812-9905	●
32	06.665 PULLEY; IDLER,P/S 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 06.655 (A)	8-94128-866-0	01	1	9906-0105	●
32	06.665 PULLEY; IDLER,P/S 4JH1 ENG(RJX) 06.655 (A)	8-94128-866-0	01	1	0106-	●
32	06.665 PULLEY; IDLER,P/S 4JG2 ENG(RJC) POWER STEERING<N40> (B)	8-97084-332-0	01	1	9812-9905	●
32	06.665 PULLEY; IDLER,P/S 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> (B)	8-97084-332-0	01	1	9906-0105	●
32	06.665 PULLEY; IDLER,P/S 4JH1 ENG(RJX) (B)	8-97084-332-2	01	1	0106-	●
42	06.672 NUT; ADJ PLATE 4JG2 ENG(RJC) POWER STEERING<N40> 04.785 M10 FLANGE	0-91150-110-0	01	1	9812-9905	●
42	06.672 NUT; ADJ PLATE 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 04.785 M10 FLANGE	0-91150-110-0	01	1	9906-0105	●
42	06.672 NUT; ADJ PLATE 4JH1 ENG(RJX) 04.785 M10 FLANGE	0-91150-110-0	01	1	0106-	●
42	06.672 NUT; ADJ PLATE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	9812-9903	●	●	●	●
42	06.672 NUT; ADJ PLATE 4HE1 ENG(RLY) POWER STEERING<N40> EXC. HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	9904-0105	●	●	●	●
42	06.672 NUT; ADJ PLATE 4HE1 ENG(RLY) EXC. HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-0207	●	●	●	●
42	06.672 NUT; ADJ PLATE 4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6R(RNW),M/T MZZ6F(RSR) EXC. HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0208-	●	●	●	●
47	01.066 BELT; P/S PUMP 4JG2 ENG(RJC) POWER STEERING<N40>	8-97085-131-0	01	1	9812-9905	●
47	01.066 BELT; P/S PUMP 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97085-131-0	01	1	9906-0105	●
47	01.066 BELT; P/S PUMP 4JH1 ENG(RJX)	8-97085-131-0	01	1	0106-	●
