◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10720 - CXZ RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-37A - MANUAL TRANSMISSION CONT; MISSION SIDE ▶
2-37A — MANUAL TRANSMISSION CONT; MISSION SIDE (#4340) — 280 parça
çizim 4511
57 39 58 39
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
39 GASKET; FLEX HOSE
SHIFT CONTROL ASSISTER<WX8> ID=11 OD=18 		9-09572-510-0 02 1 9603-9706 ● ● ● ● ●
39 GASKET; FLEX HOSE
SHIFT CONTROL ASSISTER<WX8> ID=11 OD=18 		9-09572-510-0 02 1 9707-9904 ● ● ● ● ●
39 GASKET; FLEX HOSE
FIRE TRUCK<RA9> PASSENGER SEAT MULTI USED(WX9) ID=11 OD=18 		9-09572-510-0 02 1 9707-9904 ●
39 GASKET; FLEX HOSE
SHIFT CONTROL ASSISTER<WX8> ID=11 OD=18 		9-09572-510-0 02 1 9905- ● ● ● ● ●
39 GASKET; FLEX HOSE
FIRE TRUCK<RA9> ID=11 OD=18 		9-09572-510-0 02 1 9905- ●
57 NIPPLE; POWER ASSISTOR
SHIFT CONTROL ASSISTER<WX8> M20 & PT1/4 ELBOW 		1-09660-681-0 01 1 9603-9910 ● ● ● ● ●
57 NIPPLE; POWER ASSISTOR
SHIFT CONTROL ASSISTER<WX8> M20 & PT1/4 ELBOW 		1-09660-681-0 01 1 9911- ● ● ● ● ● ●
58 HOSE; FLEX,POWER ASSISTOR
SHIFT CONTROL ASSISTER<WX8> L=360 		0-07150-360-0 01 1 9603-9910 ●
58 HOSE; FLEX,POWER ASSISTOR
SHIFT CONTROL ASSISTER<WX8> L=360 		0-07150-360-0 01 1 9911- ● ● ●
58 HOSE; FLEX,POWER ASSISTOR
8PE1S(59L),10PE1S(60L) SHIFT CONTROL ASSISTER<WX8> L=230 		0-07150-230-0 01 1 9603- ● ● ●
58 HOSE; FLEX,POWER ASSISTOR
FIRE TRUCK<RA9> SHIFT CONTROL ASSISTER<WX8> L=270 		0-07150-270-0 01 1 9707-9904 ●
58 HOSE; FLEX,POWER ASSISTOR
FIRE TRUCK<RA9> L=270 		0-07150-270-0 01 1 9905- ●

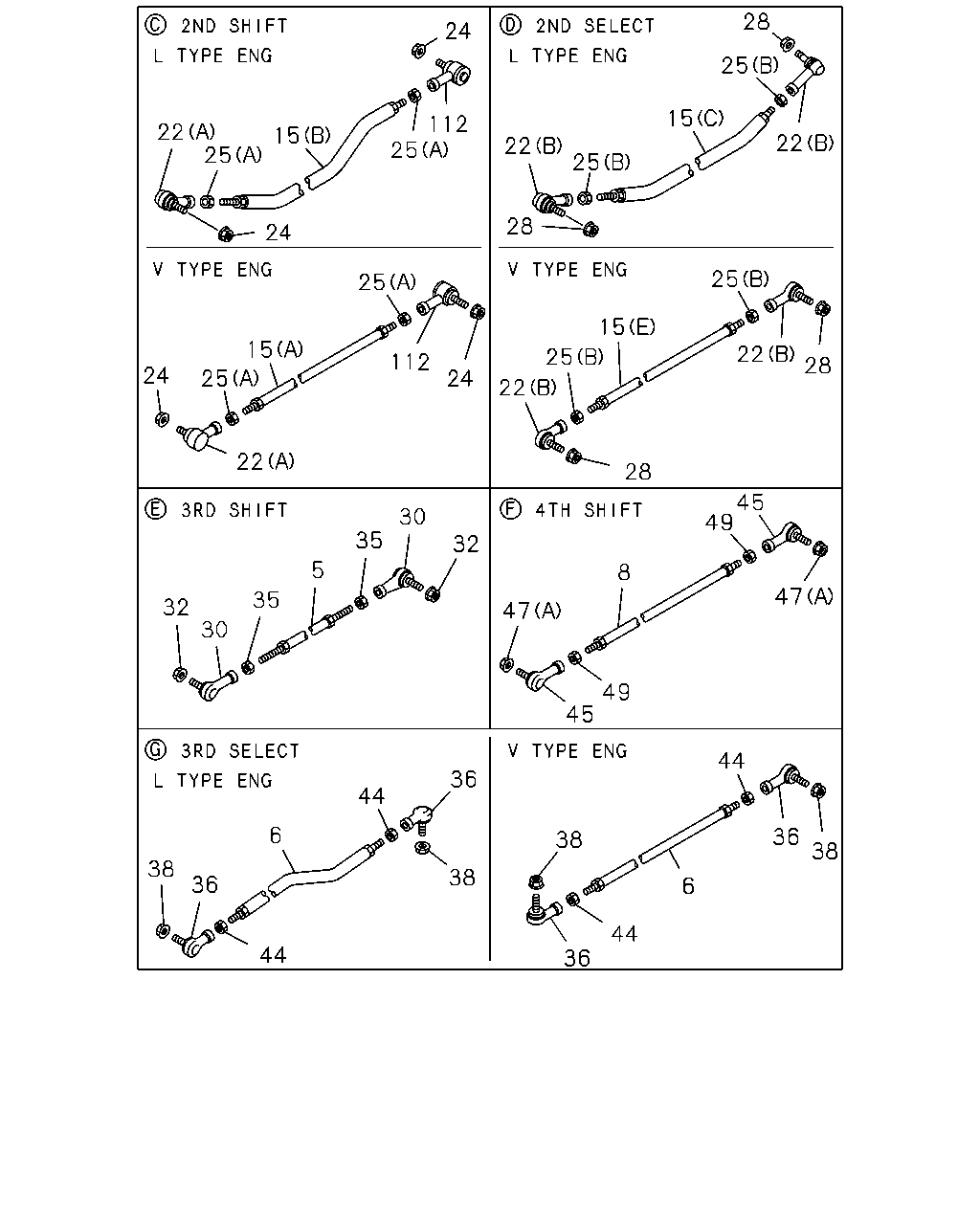

çizim 6922
28 24 25 15 112 25 22 25 15 22 22 25 28 24 25 25 15 15 22 28 25 112 24 25 24 22 22 28 45 49 30 35 32 5 8 47 35 32 47 30 49 45 44 36 44 6 36 38 38 38 38 36 6 44 44 36
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 ROD; LINK,3RD SHIFT
L TYPE ENG<90L> CAB UP +110MM<TGG> L=1120 		1-33652-603-0 01 1 9905-9909 ● ● ● ● ● ●
5 ROD; LINK,3RD SHIFT
L TYPE ENG<90L> CAB UP +110MM<TGG> EXC. MIXER TRUCK<RA2> L=1120 		1-33652-603-0 01 1 9910- ● ● ● ● ● ●
5 ROD; LINK,3RD SHIFT
L TYPE ENG<90L> MIXER TRUCK<RA2> CAB UP +110MM<TGG> L=1190 		1-33652-922-0 01 1 9907- ● ● ● ● ● ●
5 ROD; LINK,3RD SHIFT
6WA1 TC-S(56L) L=1110 		1-33652-623-0 01 1 9603-9702 ●
5 ROD; LINK,3RD SHIFT
6WA1 TC-S(56L) EXC. MIXER TRUCK<RA2> L=1110 		1-33652-623-0 01 1 9703-9706 ●
5 ROD; LINK,3RD SHIFT
6WA1 TC-S(56L) L=1110 		1-33652-623-0 01 1 9707-9904 ●
5 ROD; LINK,3RD SHIFT
L TYPE ENG<90L> EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> L=1110 		1-33652-623-0 01 1 9905- ● ● ● ● ● ●
5 ROD; LINK,3RD SHIFT
6WA1 TC-S(56L) MIXER TRUCK<RA2> L=1170 		1-33652-547-0 01 1 9703-9904 ●
5 ROD; LINK,3RD SHIFT
L TYPE ENG<90L> MIXER TRUCK<RA2> L=1170 		1-33652-547-0 01 1 9905-9906 ● ● ● ● ● ●
5 ROD; LINK,3RD SHIFT
L TYPE ENG<90L> MIXER TRUCK<RA2> EXC. CAB UP +110MM<TGG> L=1170 		1-33652-547-0 01 1 9907- ● ● ● ● ● ●
5 ROD; LINK,3RD SHIFT
8PE1S(59L),10PE1S(60L) L=855 		1-33652-321-0 01 1 9603-9904 ● ● ● ● ●
5 ROD; LINK,3RD SHIFT
V TYPE ENG<91L> L=855 		1-33652-321-0 01 1 9905- ● ● ● ● ●
6 ROD; LINK,3RD SELECT
L TYPE ENG<90L> MIXER TRUCK<RA2> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE SPICER(TEY) CAB UP +110MM<TGG> L=1696 		1-33652-923-0 01 1 9907-9910 ● ●
6 ROD; LINK,3RD SELECT
L TYPE ENG<90L> MIXER TRUCK<RA2> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE SPICER(TEY) CAB UP +110MM<TGG> L=1696 		1-33652-923-0 01 1 9911- ● ● ●
6 ROD; LINK,3RD SELECT
6WA1 TC-S(56L) L=1585 		1-33652-660-0 01 1 9603-9702 ●
6 ROD; LINK,3RD SELECT
6WA1 TC-S(56L) EXC. MIXER TRUCK<RA2> L=1585 		1-33652-660-0 01 1 9703-9904 ●
6 ROD; LINK,3RD SELECT
L TYPE ENG<90L> EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> L=1585 		1-33652-660-0 01 1 9905-9910 ● ●
6 ROD; LINK,3RD SELECT
L TYPE ENG<90L> EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> L=1585 		1-33652-660-0 01 1 9911- ● ● ●
6 ROD; LINK,3RD SELECT
6WA1 TC-S(56L) MIXER TRUCK<RA2> L=1654 		1-33652-770-0 01 1 9703-9904 ●
6 ROD; LINK,3RD SELECT
L TYPE ENG<90L> MIXER TRUCK<RA2> L=1654 		1-33652-770-0 01 1 9905-9906 ●
6 ROD; LINK,3RD SELECT
L TYPE ENG<90L> MIXER TRUCK<RA2> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE SPICER(TEY),CAB UP +110MM<TGG> L=1654 		1-33652-770-0 01 1 9907-9910 ●
6 ROD; LINK,3RD SELECT
L TYPE ENG<90L> MIXER TRUCK<RA2> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE SPICER(TEY),CAB UP +110MM<TGG> L=1654 		1-33652-770-0 01 1 9911- ● ●
6 ROD; LINK,3RD SELECT
L TYPE ENG<90L> CAB UP +110MM<TGG> EXC. MIXER TRUCK<RA2> L=1594 		1-33652-881-0 01 1 9905-9910 ● ●
6 ROD; LINK,3RD SELECT
L TYPE ENG<90L> CAB UP +110MM<TGG> EXC. MIXER TRUCK<RA2> L=1594 		1-33652-881-0 01 1 9911- ● ● ●
6 ROD; LINK,3RD SELECT
8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> SHIFT CONTROL ASSISTER<WX8> L=1308 		1-33652-708-0 01 1 9603-9807 ● ●
6 ROD; LINK,3RD SELECT
8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> SHIFT CONTROL ASSISTER<WX8> L=1384 		1-33652-819-0 01 1 9808-9904 ● ●
6 ROD; LINK,3RD SELECT
V TYPE ENG<91L> SHIFT CONTROL ASSISTER<WX8> FRAME ENG MTG SEPARATE TYPE<SGM> L=1384 		1-33652-819-0 01 1 9905- ● ●
6 ROD; LINK,3RD SELECT
8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> EXC. SHIFT CONTROL ASSISTER<WX8> L=1389 		1-33652-758-0 01 1 9603-9904 ● ●
6 ROD; LINK,3RD SELECT
V TYPE ENG<91L> FRAME ENG MTG SEPARATE TYPE<SGM> EXC. SHIFT CONTROL ASSISTER<WX8> L=1389 		1-33652-758-0 01 1 9905- ● ●
6 ROD; LINK,3RD SELECT
8PE1S(59L),10PE1S(60L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,SHIFT CONTROL ASSISTER<WX8> L=1409 		1-33652-444-0 01 1 9603-9904 ● ●
6 ROD; LINK,3RD SELECT
FIRE TRUCK<RA9> EXC. SHIFT CONTROL ASSISTER<WX8> L=1409 		1-33652-444-0 01 1 9603-9904 ●
6 ROD; LINK,3RD SELECT
V TYPE ENG<91L> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> L=1409 		1-33652-444-0 01 1 9905- ● ●
6 ROD; LINK,3RD SELECT
FIRE TRUCK<RA9> EXC. SHIFT CONTROL ASSISTER<WX8> L=1409 		1-33652-444-0 01 1 9905- ●
6 ROD; LINK,3RD SELECT
8PE1S(59L),10PE1S(60L) SHIFT CONTROL ASSISTER<WX8> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> L=1400 		1-33652-735-0 01 1 9603-9807 ● ●
6 ROD; LINK,3RD SELECT
8PE1S(59L),10PE1S(60L) SHIFT CONTROL ASSISTER<WX8> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> L=1403 		1-33652-824-1 01 1 9808-9904 ● ●
6 ROD; LINK,3RD SELECT
V TYPE ENG<91L> SHIFT CONTROL ASSISTER<WX8> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> L=1403 		1-33652-824-1 01 1 9905- ● ●
6 ROD; LINK,3RD SELECT
8PE1S(59L),10PE1S(60L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,SHIFT CONTROL ASSISTER<WX8> L=1255 		1-33652-330-0 01 1 9603-9904 ● ● ●
6 ROD; LINK,3RD SELECT
V TYPE ENG<91L> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,SHIFT CONTROL ASSISTER<WX8> L=1255 		1-33652-330-0 01 1 9905- ● ● ●
6 ROD; LINK,3RD SELECT
8PE1S(59L),10PE1S(60L) SHIFT CONTROL ASSISTER<WX8> EXC. FIRE TRUCK<RA9>,FRAME ENG MTG SEPARATE TYPE<SGM> L=1245 		1-33652-673-0 01 1 9603-9807 ● ● ●
6 ROD; LINK,3RD SELECT
8PE1S(59L),10PE1S(60L) SHIFT CONTROL ASSISTER<WX8> EXC. FIRE TRUCK<RA9>,FRAME ENG MTG SEPARATE TYPE<SGM> L=1246 		1-33652-822-0 01 1 9808-9904 ● ● ●
6 ROD; LINK,3RD SELECT
V TYPE ENG<91L> SHIFT CONTROL ASSISTER<WX8> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> L=1246 		1-33652-822-0 01 1 9905- ● ● ●
6 ROD; LINK,3RD SELECT
FIRE TRUCK<RA9> SHIFT CONTROL ASSISTER<WX8> L=1395 		1-33652-594-0 01 1 9603-9904 ●
6 ROD; LINK,3RD SELECT
FIRE TRUCK<RA9> SHIFT CONTROL ASSISTER<WX8> L=1395 		1-33652-594-0 01 1 9905- ● ● ●
6 ROD; LINK,3RD SELECT
L TYPE ENG<90L> CAB UP +110MM<TGG> EXC. MIXER TRUCK<RA2> L=1656 		1-33671-483-0 01 1 9911- ● ● ●
8 ROD; LINK,4TH SHIFT
8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> SHIFT CONTROL ASSISTER<WX8> L=324 		1-33652-643-1 01 1 9603-9904 ● ●
8 ROD; LINK,4TH SHIFT
V TYPE ENG<91L> FRAME ENG MTG SEPARATE TYPE<SGM> SHIFT CONTROL ASSISTER<WX8> L=324 		1-33652-643-1 01 1 9905-9910 ● ●
8 ROD; LINK,4TH SHIFT
V TYPE ENG<91L> FRAME ENG MTG SEPARATE TYPE<SGM> SHIFT CONTROL ASSISTER<WX8> L=324 		1-33652-643-1 01 1 9911- ● ● ●
8 ROD; LINK,4TH SHIFT
8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> EXC. SHIFT CONTROL ASSISTER<WX8> L=494 		1-33652-664-1 01 1 9603-9904 ● ●
8 ROD; LINK,4TH SHIFT
V TYPE ENG<91L> FRAME ENG MTG SEPARATE TYPE<SGM> EXC. SHIFT CONTROL ASSISTER<WX8> L=494 		1-33652-664-1 01 1 9905- ● ●
8 ROD; LINK,4TH SHIFT
8PE1S(59L),10PE1S(60L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,SHIFT CONTROL ASSISTER<WX8> L=490 		1-33652-749-0 01 1 9603-9904 ● ●
8 ROD; LINK,4TH SHIFT
8PE1S(59L),10PE1S(60L) FIRE TRUCK<RA9> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,SHIFT CONTROL ASSISTER<WX8> L=490 		1-33652-749-0 01 1 9603-9904 ● ● ●
8 ROD; LINK,4TH SHIFT
V TYPE ENG<91L> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,SHIFT CONTROL ASSISTER<WX8> L=490 		1-33652-749-0 01 1 9905- ● ●
8 ROD; LINK,4TH SHIFT
FIRE TRUCK<RA9> L=490 		1-33652-749-0 01 1 9905- ●
8 ROD; LINK,4TH SHIFT
8PE1S(59L),10PE1S(60L) SHIFT CONTROL ASSISTER<WX8> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> L=330 		1-33652-653-1 01 1 9603-9904 ● ●
8 ROD; LINK,4TH SHIFT
6WA1 TC-S(56L) L=330 		1-33652-653-1 01 1 9603-9904 ●
8 ROD; LINK,4TH SHIFT
V TYPE ENG<91L> SHIFT CONTROL ASSISTER<WX8> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> L=330 		1-33652-653-1 01 1 9905-9910 ● ●
8 ROD; LINK,4TH SHIFT
L TYPE ENG<90L> L=330 		1-33652-653-1 01 1 9905-9910 ●
8 ROD; LINK,4TH SHIFT
V TYPE ENG<91L> SHIFT CONTROL ASSISTER<WX8> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> L=330 		1-33652-653-1 01 1 9911- ● ●
8 ROD; LINK,4TH SHIFT
L TYPE ENG<90L> L=330 		1-33652-653-1 01 1 9911- ● ●
8 ROD; LINK,4TH SHIFT
8PE1S(59L),10PE1S(60L) EXC. MIXER TRUCK<RA2>,FRAME ENG MTG SEPARATE TYPE<SGM>,SHIFT CONTROL ASSISTER<WX8> L=337 		1-33652-767-0 01 1 9603-9904 ● ● ●
8 ROD; LINK,4TH SHIFT
EXC. SHIFT CONTROL ASSISTER<WX8> L=337 		1-33652-767-0 01 1 9905- ● ● ●
8 ROD; LINK,4TH SHIFT
8PE1S(59L),10PE1S(60L) SHIFT CONTROL ASSISTER<WX8> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> L=165 		1-09765-249-1 01 1 9603-9904 ● ● ●
8 ROD; LINK,4TH SHIFT
SHIFT CONTROL ASSISTER<WX8> L=165 		1-09765-249-1 01 1 9905- ● ● ●
8 ROD; LINK,4TH SHIFT
FIRE TRUCK<RA9> SHIFT CONTROL ASSISTER<WX8> L=320 		1-33652-648-1 01 1 9603- ●
15 ROD; LINK 1ST SHIFT
HONG KONG EQUIPMENT(PQ1) (F) L=345 		1-33652-736-0 01 1 9603-9904 ●
15 ROD; LINK 1ST SHIFT
PARKING BRAKE VALVE LEVER TYPE<W48> (F) L=345 		1-33652-736-0 01 1 9905- ●
15 ROD; LINK 1ST SHIFT
HONG KONG EQUIPMENT(PQ1) (G) L=88 		1-33652-740-0 01 1 9603-9904 ●
15 ROD; LINK 1ST SHIFT
PARKING BRAKE VALVE LEVER TYPE<W48> (G) L=88 		1-33652-740-0 01 1 9905- ●
15 ROD; LINK 1ST SHIFT
EXC. HONG KONG EQUIPMENT(PQ1) (D) L=435 		1-33652-696-0 01 1 9603-9904 ●
15 ROD; LINK 1ST SHIFT
(D) L=435 		1-33652-696-0 01 1 9603-9904 ● ● ● ●
15 ROD; LINK 1ST SHIFT
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (D) L=435 		1-33652-696-0 01 1 9905- ●
15 ROD; LINK 1ST SHIFT
(D) L=435 		1-33652-696-0 01 1 9905- ● ● ● ● ●
15 ROD; LINK 1ST SHIFT
6WA1 TC-S(56L) (C) L=438 		1-33652-682-0 01 1 9603-9711 ●
15 ROD; LINK 1ST SHIFT
6WA1 TC-S(56L) (C) L=428 		1-33652-781-0 01 1 9712-9904 ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (C) L=428 		1-33652-781-1 01 1 9905- ● ● ● ● ● ●
15 ROD; LINK 1ST SHIFT
6WA1 TC-S(56L) (B) L=497 		1-33652-716-0 01 1 9603-9711 ●
15 ROD; LINK 1ST SHIFT
6WA1 TC-S(56L) (B) L=490 		1-33652-780-0 01 1 9712-9904 ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (B) L=490 		1-33652-780-0 01 1 9905- ● ● ● ● ● ●
15 ROD; LINK 1ST SHIFT
8PE1S(59L),10PE1S(60L) (E) L=440 		1-33652-672-0 01 1 9603-9904 ● ● ● ● ●
15 ROD; LINK 1ST SHIFT
V TYPE ENG<91L> (E) L=440 		1-33652-672-0 01 1 9905- ● ● ● ● ● ●
15 ROD; LINK 1ST SHIFT
8PE1S(59L),10PE1S(60L) (A) L=490 		1-33652-700-0 01 1 9603-9904 ● ● ● ● ●
15 ROD; LINK 1ST SHIFT
V TYPE ENG<91L> (A) L=490 		1-33652-700-0 01 1 9905- ● ● ● ● ● ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> CAB UP +110MM<TGG> (C) L=423 		1-33652-804-1 01 1 9905- ● ● ● ● ● ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> CAB UP +110MM<TGG> (B) L=474 		1-33652-803-0 01 1 9905- ● ● ● ● ● ●
22 JOINT; BALL,SCREW,LINK ROD
6WA1 TC-S(56L) (B) SELECT 		1-09760-109-0 02 1 9603-9706 ●
22 JOINT; BALL,SCREW,LINK ROD
6WA1 TC-S(56L) (B) SELECT 		1-09760-109-0 02 1 9707-9904 ●
22 JOINT; BALL,SCREW,LINK ROD
L TYPE ENG<90L> (B) SELECT 		1-09760-109-0 02 1 9905- ● ● ● ● ● ●
22 JOINT; BALL,SCREW,LINK ROD
(A) SHIFT L=64.5 		1-09760-111-0 01 1 9603-9706 ● ● ● ● ●
22 JOINT; BALL,SCREW,LINK ROD
(A) SHIFT L=64.5 		1-09760-111-0 01 1 9707-9710 ● ● ● ● ●
22 JOINT; BALL,SCREW,LINK ROD
8PE1S(59L),10PE1S(60L) (B) SELECT 		1-09760-108-0 02 1 9603-9904 ● ● ● ● ●
22 JOINT; BALL,SCREW,LINK ROD
V TYPE ENG<91L> (B) SELECT 		1-09760-108-0 02 1 9905- ● ● ● ● ● ●
22 JOINT; BALL,SCREW,LINK ROD
(A) SHIFT 		1-09760-125-0 01 1 9711-9904 ● ● ● ● ●
22 JOINT; BALL,SCREW,LINK ROD
(A) SHIFT 		1-09760-125-0 01 1 9905- ● ● ● ● ● ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-050-0 02 1 9603-9708 ● ● ● ● ● ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-050-0 01 1 9709-9710 ● ● ● ● ● ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-056-0 01 1 9709-9710 ● ● ● ● ● ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-056-0 02 1 9711-9802 ● ● ● ● ● ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 9803- ● ● ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
HONG KONG EQUIPMENT(PQ1) (C) M10 LH THREAD 		9-09840-167-0 02 1 9603-9904 ●
25 NUT; LK,RIGHT SCREW,LINK ROD
PARKING BRAKE VALVE LEVER TYPE<W48> (C) M10 LH THREAD 		9-09840-167-0 02 1 9905- ●
25 NUT; LK,RIGHT SCREW,LINK ROD
6WA1 TC-S(56L) (B) M10 		9-09111-410-0 02 1 9603-9904 ●
25 NUT; LK,RIGHT SCREW,LINK ROD
L TYPE ENG<90L> (B) M10 		9-09111-410-0 02 1 9905- ● ● ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
(A) M12 		9-99111-412-0 02 1 9603-9706 ● ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
(A) M12 		9-99111-412-0 02 1 9707-9904 ● ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
(A) M12 		9-99111-412-0 02 1 9905- ● ● ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
8PE1S(59L),10PE1S(60L) (B) M8 		9-09111-408-0 02 1 9603-9904 ● ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
V TYPE ENG<91L> (B) M8 		9-09111-408-0 02 1 9905- ● ● ● ● ● ●
28 NUT; 2ND LINK ROD
M8 FLANGE 		1-09440-049-0 02 1 9603-9804 ● ● ● ● ● ●
28 NUT; 2ND LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9805- ● ● ● ● ● ●
30 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-110-0 02 1 9603-9706 ● ● ● ● ●
30 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-110-0 02 1 9707-9710 ● ● ● ● ●
30 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-124-0 02 1 9711-9904 ● ● ● ● ●
30 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-124-0 02 1 9905-9909 ● ● ● ● ●
30 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-124-0 02 1 9910- ● ● ● ● ● ●
32 NUT; 3RD LINK ROD
M10 FLANGE 		1-09440-050-0 02 1 9603-9710 ● ● ● ● ● ●
32 NUT; 3RD LINK ROD
M10 FLANGE 		1-09440-056-0 02 1 9711-9802 ● ● ● ● ● ●
32 NUT; 3RD LINK ROD
M10 FLANGE 		1-09440-061-0 02 1 9803- ● ● ● ● ● ●
35 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9603-9706 ● ● ● ● ●
35 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9707-9904 ● ● ● ● ●
35 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9905-9909 ● ● ● ● ●
35 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9910- ● ● ● ● ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> 		1-09760-109-0 02 1 9603-9706 ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
6WA1 TC-S(56L) 		1-09760-109-0 02 1 9603-9706 ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> 		1-09760-109-0 02 1 9707-9904 ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
6WA1 TC-S(56L) 		1-09760-109-0 02 1 9707-9904 ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
8PE1S(59L),10PE1S(60L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> 		1-09760-108-0 02 1 9603-9807 ● ● ● ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
8PE1S(59L),10PE1S(60L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> 		1-09760-108-0 02 1 9808-9904 ● ● ● ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> 		1-09760-108-0 02 1 9905- ● ● ● ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
FIRE TRUCK<RA9> 		1-09760-108-0 02 1 9905- ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) FRAME ENG MTG SEPARATE TYPE<SGM> 		1-09760-109-0 02 1 9905-9906 ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
L TYPE ENG<90L> 		1-09760-109-0 02 1 9905-9906 ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) FRAME ENG MTG SEPARATE TYPE<SGM> 		1-09760-109-0 02 1 9907-9910 ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
L TYPE ENG<90L> 		1-09760-109-0 02 1 9907-9910 ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
L TYPE ENG<90L> 		1-09760-109-0 02 1 9911- ● ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) FRAME ENG MTG SEPARATE TYPE<SGM> 		1-09760-109-0 02 1 9911- ● ●
38 NUT; 3RD LINK ROD
M8 FLANGE 		1-09440-049-0 02 1 9603-9804 ● ● ● ● ●
38 NUT; 3RD LINK ROD
M8 FLANGE 		1-09440-062-0 02 1 9805-9807 ● ● ● ● ●
38 NUT; 3RD LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9905-9906 ● ● ● ● ●
38 NUT; 3RD LINK ROD
FIRE TRUCK<RA9> M8 FLANGE 		1-09440-062-1 02 1 9905-9906 ●
38 NUT; 3RD LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 0001- ● ● ● ● ● ●
38 NUT; 3RD LINK ROD
FIRE TRUCK<RA9> M8 FLANGE 		1-09440-062-1 02 1 0001- ●
38 NUT; 3RD LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9808-9904 ● ● ● ● ●
38 NUT; 3RD LINK ROD
FIRE TRUCK<RA9> M8 FLANGE 		1-09440-062-1 02 1 9808-9904 ●
38 NUT; 3RD LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9907-9912 ● ● ● ● ● ●
38 NUT; 3RD LINK ROD
FIRE TRUCK<RA9> M8 FLANGE 		1-09440-062-1 02 1 9907-9912 ●
44 NUT; LK,RIGHT SCREW,LINK ROD
8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> M10 		9-09111-410-0 02 1 9603-9706 ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
6WA1 TC-S(56L) M10 		9-09111-410-0 02 1 9603-9706 ●
44 NUT; LK,RIGHT SCREW,LINK ROD
8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> M10 		9-09111-410-0 02 1 9707-9904 ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
6WA1 TC-S(56L) M10 		9-09111-410-0 02 1 9707-9904 ●
44 NUT; LK,RIGHT SCREW,LINK ROD
8PE1S(59L),10PE1S(60L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M8 		9-09111-408-0 02 1 9603-9807 ● ● ● ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
8PE1S(59L),10PE1S(60L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M8 		9-09111-408-0 02 1 9808-9904 ● ● ● ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M8 		9-09111-408-0 02 1 9905- ● ● ● ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
FIRE TRUCK<RA9> M8 		9-09111-408-0 02 1 9905- ●
44 NUT; LK,RIGHT SCREW,LINK ROD
8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) FRAME ENG MTG SEPARATE TYPE<SGM> M10 		9-09111-410-0 02 1 9905-9906 ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
L TYPE ENG<90L> M10 		9-09111-410-0 02 1 9905-9906 ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) FRAME ENG MTG SEPARATE TYPE<SGM> M10 		9-09111-410-0 02 1 9907-9910 ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
L TYPE ENG<90L> M10 		9-09111-410-0 02 1 9907-9910 ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
L TYPE ENG<90L> M10 		9-09111-410-0 02 1 9911- ● ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) FRAME ENG MTG SEPARATE TYPE<SGM> M10 		9-09111-410-0 02 1 9911- ● ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-117-0 02 1 9603-9706 ● ● ● ● ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD
8PE1S(59L),10PE1S(60L) 		1-09760-117-0 02 1 9603-9706 ● ● ● ● ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD
V TYPE ENG<91L> 		1-09760-117-0 02 1 9707-9710 ● ● ● ● ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD
6WA1 TC-S(56L) 		1-09760-117-0 02 1 9707-9710 ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD
V TYPE ENG<91L> FIRE TRUCK<RA9> 		1-09760-117-0 02 1 9707-9710 ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD
V TYPE ENG<91L> 		1-09760-125-0 02 1 9711-9904 ● ● ● ● ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD
6WA1 TC-S(56L) 		1-09760-125-0 02 1 9711-9904 ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD
V TYPE ENG<91L> FIRE TRUCK<RA9> 		1-09760-125-0 02 1 9711-9904 ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-125-0 02 1 9905-9910 ● ● ● ● ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-125-0 02 1 9911- ● ● ● ● ● ●
47 NUT; 4TH LINK ROD
(A) M10 FLANGE 		1-09440-050-0 02 1 9603-9710 ● ● ● ● ●
47 NUT; 4TH LINK ROD
(A) M10 FLANGE 		1-09440-056-0 02 1 9711-9802 ● ● ● ● ●
47 NUT; 4TH LINK ROD
(A) M10 FLANGE 		1-09440-061-0 02 1 9803-9904 ● ● ● ● ●
47 NUT; 4TH LINK ROD
(A) M10 FLANGE 		1-09440-061-0 02 1 9905- ● ● ● ● ● ●
47 NUT; 4TH LINK ROD
FIRE TRUCK<RA9> (A) M10 FLANGE 		1-09440-061-0 02 1 9905- ●
49 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 02 1 9603-9706 ● ● ● ● ●
49 NUT; LK,RIGHT SCREW,LINK ROD
8PE1S(59L),10PE1S(60L) M12 		9-99111-412-0 02 1 9603-9706 ● ● ● ● ●
49 NUT; LK,RIGHT SCREW,LINK ROD
V TYPE ENG<91L> M12 		9-99111-412-0 02 1 9707-9904 ● ● ● ● ●
49 NUT; LK,RIGHT SCREW,LINK ROD
6WA1 TC-S(56L) M12 		9-99111-412-0 02 1 9707-9904 ●
49 NUT; LK,RIGHT SCREW,LINK ROD
V TYPE ENG<91L> FIRE TRUCK<RA9> M12 		9-99111-412-0 02 1 9707-9904 ●
49 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 02 1 9905-9910 ● ● ● ● ●
49 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 02 1 9911- ● ● ● ● ● ●
112 JOINT; RUBBER 1-33670-413-1 01 1 9603-9706 ● ● ● ● ●
112 JOINT; RUBBER
8PE1S(59L),10PE1S(60L) 		1-33670-413-1 01 1 9603-9706 ● ● ● ● ●
112 JOINT; RUBBER 1-33670-413-1 01 1 9707-9708 ● ● ● ● ●
112 JOINT; RUBBER 1-33670-413-1 01 1 9707-9708 ● ● ● ● ●
112 JOINT; RUBBER 1-33670-413-1 01 1 9709-9904 ● ● ● ● ●
112 JOINT; RUBBER 1-33670-413-1 01 1 9709-9904 ● ● ● ● ●
112 JOINT; RUBBER 1-33670-413-1 01 1 9905- ● ● ● ● ● ●
112 JOINT; RUBBER 1-33670-413-1 01 1 9905- ● ● ● ● ● ●

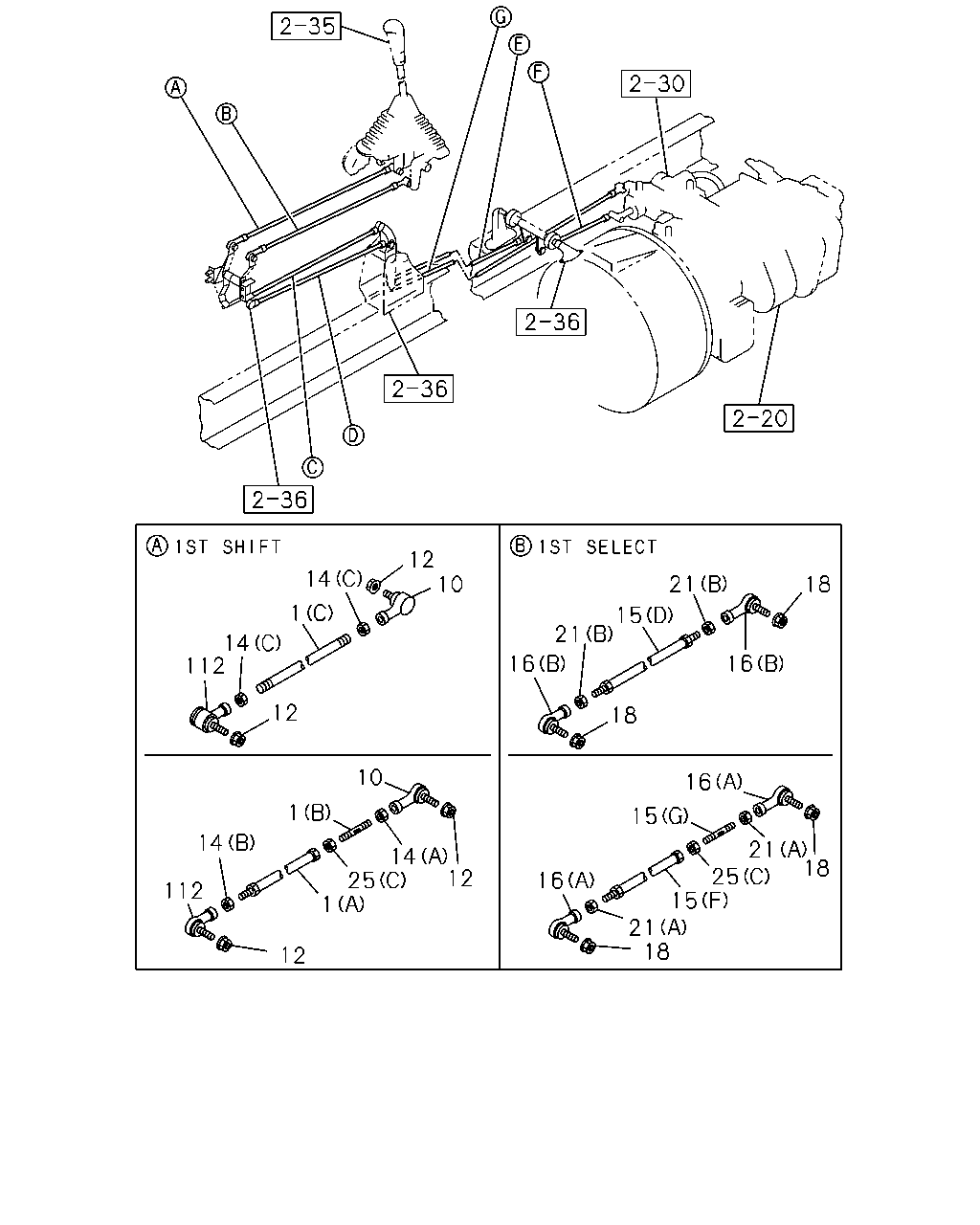

çizim 38784
12 10 14 21 18 1 15 21 14 112 16 16 12 18 10 16 1 15 14 21 25 15 21 18 18 14 25 1 12 16 112 12
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 ROD; LINK,1ST SHIFT
HONG KONG EQUIPMENT(PQ1) (A) L=421 		1-33652-738-0 01 1 9603-9904 ●
1 ROD; LINK,1ST SHIFT
PARKING BRAKE VALVE LEVER TYPE<W48> (A) L=421 		1-33652-738-0 01 1 9905- ●
1 ROD; LINK,1ST SHIFT
HONG KONG EQUIPMENT(PQ1) (B) L=88 		1-33652-740-0 01 1 9603-9904 ●
1 ROD; LINK,1ST SHIFT
PARKING BRAKE VALVE LEVER TYPE<W48> (B) L=88 		1-33652-740-0 01 1 9905- ●
1 ROD; LINK,1ST SHIFT
EXC. HONG KONG EQUIPMENT(PQ1) (C) L=480 		9-08401-248-0 01 1 9603-9904 ●
1 ROD; LINK,1ST SHIFT
(C) L=480 		9-08401-248-0 01 1 9603-9904 ● ● ● ●
1 ROD; LINK,1ST SHIFT
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C) L=480 		9-08401-248-0 01 1 9905- ●
1 ROD; LINK,1ST SHIFT
(C) L=480 		9-08401-248-0 01 1 9905- ● ● ● ● ●
10 JOINT ASM; BALL,SELECT ROD
HONG KONG EQUIPMENT(PQ1) 		1-09760-110-0 01 1 9603-9710 ●
10 JOINT ASM; BALL,SELECT ROD
HONG KONG EQUIPMENT(PQ1) 		1-09760-124-0 01 1 9711-9904 ●
10 JOINT ASM; BALL,SELECT ROD
PARKING BRAKE VALVE LEVER TYPE<W48> 		1-09760-124-0 01 1 9905- ●
10 JOINT ASM; BALL,SELECT ROD
EXC. HONG KONG EQUIPMENT(PQ1) 		1-09760-117-0 01 1 9603-9710 ●
10 JOINT ASM; BALL,SELECT ROD 1-09760-117-0 01 1 9603-9710 ● ● ● ●
10 JOINT ASM; BALL,SELECT ROD
EXC. HONG KONG EQUIPMENT(PQ1) 		1-09760-125-0 01 1 9711-9904 ●
10 JOINT ASM; BALL,SELECT ROD 1-09760-125-0 01 1 9711-9904 ● ● ● ●
10 JOINT ASM; BALL,SELECT ROD
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> 		1-09760-125-0 01 1 9905- ●
10 JOINT ASM; BALL,SELECT ROD 1-09760-125-0 01 1 9905- ● ● ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
M10 FLANGE 		1-09440-050-0 02 1 9603-9708 ● ● ● ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
M10 FLANGE 		1-09440-056-0 02 1 9709-9802 ● ● ● ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 9803- ● ● ● ● ● ●
14 NUT; LK,RIGHT SCREW,LINK ROD
HONG KONG EQUIPMENT(PQ1) (A) M10 		9-09111-410-0 01 1 9603-9904 ●
14 NUT; LK,RIGHT SCREW,LINK ROD
PARKING BRAKE VALVE LEVER TYPE<W48> (A) M10 		9-09111-410-0 01 1 9905- ●
14 NUT; LK,RIGHT SCREW,LINK ROD
HONG KONG EQUIPMENT(PQ1) (B) M12 		9-99111-412-0 01 1 9603-9904 ●
14 NUT; LK,RIGHT SCREW,LINK ROD
PARKING BRAKE VALVE LEVER TYPE<W48> (B) M12 		9-99111-412-0 01 1 9905- ●
14 NUT; LK,RIGHT SCREW,LINK ROD
EXC. HONG KONG EQUIPMENT(PQ1) (C) M12 		9-99111-412-0 02 1 9603-9904 ●
14 NUT; LK,RIGHT SCREW,LINK ROD
(C) M12 		9-99111-412-0 02 1 9603-9904 ● ● ● ●
14 NUT; LK,RIGHT SCREW,LINK ROD
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C) M12 		9-99111-412-0 02 1 9905- ●
14 NUT; LK,RIGHT SCREW,LINK ROD
(C) M12 		9-99111-412-0 02 1 9905- ● ● ● ● ●
15 ROD; LINK 1ST SHIFT
HONG KONG EQUIPMENT(PQ1) (F) L=345 		1-33652-736-0 01 1 9603-9904 ●
15 ROD; LINK 1ST SHIFT
PARKING BRAKE VALVE LEVER TYPE<W48> (F) L=345 		1-33652-736-0 01 1 9905- ●
15 ROD; LINK 1ST SHIFT
HONG KONG EQUIPMENT(PQ1) (G) L=88 		1-33652-740-0 01 1 9603-9904 ●
15 ROD; LINK 1ST SHIFT
PARKING BRAKE VALVE LEVER TYPE<W48> (G) L=88 		1-33652-740-0 01 1 9905- ●
15 ROD; LINK 1ST SHIFT
EXC. HONG KONG EQUIPMENT(PQ1) (D) L=435 		1-33652-696-0 01 1 9603-9904 ●
15 ROD; LINK 1ST SHIFT
(D) L=435 		1-33652-696-0 01 1 9603-9904 ● ● ● ●
15 ROD; LINK 1ST SHIFT
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (D) L=435 		1-33652-696-0 01 1 9905- ●
15 ROD; LINK 1ST SHIFT
(D) L=435 		1-33652-696-0 01 1 9905- ● ● ● ● ●
15 ROD; LINK 1ST SHIFT
6WA1 TC-S(56L) (C) L=438 		1-33652-682-0 01 1 9603-9711 ●
15 ROD; LINK 1ST SHIFT
6WA1 TC-S(56L) (C) L=428 		1-33652-781-0 01 1 9712-9904 ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (C) L=428 		1-33652-781-1 01 1 9905- ● ● ● ● ● ●
15 ROD; LINK 1ST SHIFT
6WA1 TC-S(56L) (B) L=497 		1-33652-716-0 01 1 9603-9711 ●
15 ROD; LINK 1ST SHIFT
6WA1 TC-S(56L) (B) L=490 		1-33652-780-0 01 1 9712-9904 ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (B) L=490 		1-33652-780-0 01 1 9905- ● ● ● ● ● ●
15 ROD; LINK 1ST SHIFT
8PE1S(59L),10PE1S(60L) (E) L=440 		1-33652-672-0 01 1 9603-9904 ● ● ● ● ●
15 ROD; LINK 1ST SHIFT
V TYPE ENG<91L> (E) L=440 		1-33652-672-0 01 1 9905- ● ● ● ● ● ●
15 ROD; LINK 1ST SHIFT
8PE1S(59L),10PE1S(60L) (A) L=490 		1-33652-700-0 01 1 9603-9904 ● ● ● ● ●
15 ROD; LINK 1ST SHIFT
V TYPE ENG<91L> (A) L=490 		1-33652-700-0 01 1 9905- ● ● ● ● ● ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> CAB UP +110MM<TGG> (C) L=423 		1-33652-804-1 01 1 9905- ● ● ● ● ● ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> CAB UP +110MM<TGG> (B) L=474 		1-33652-803-0 01 1 9905- ● ● ● ● ● ●
16 JOINT ASM; BALL,CONT ROD
HONG KONG EQUIPMENT(PQ1) (A) 		1-09760-109-0 02 1 9603-9904 ●
16 JOINT ASM; BALL,CONT ROD
PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-09760-109-0 02 1 9905- ●
16 JOINT ASM; BALL,CONT ROD
EXC. HONG KONG EQUIPMENT(PQ1) (B) 		1-09760-108-0 02 1 9603-9904 ●
16 JOINT ASM; BALL,CONT ROD
(B) 		1-09760-108-0 02 1 9603-9904 ● ● ● ●
16 JOINT ASM; BALL,CONT ROD
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) 		1-09760-108-0 02 1 9905- ●
16 JOINT ASM; BALL,CONT ROD
(B) 		1-09760-108-0 02 1 9905- ● ● ● ● ●
18 NUT; 1ST LINK ROD
M8 FLANGE 		1-09440-049-0 02 1 9603-9804 ● ● ● ● ● ●
18 NUT; 1ST LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9805- ● ● ● ● ● ●
21 NUT; LK,RIGHT SCREW,LINK ROD
HONG KONG EQUIPMENT(PQ1) (A) M10 		9-09111-410-0 02 1 9603-9904 ●
21 NUT; LK,RIGHT SCREW,LINK ROD
PARKING BRAKE VALVE LEVER TYPE<W48> (A) M10 		9-09111-410-0 02 1 9905- ●
21 NUT; LK,RIGHT SCREW,LINK ROD
EXC. HONG KONG EQUIPMENT(PQ1) (B) M8 		9-09111-408-0 02 1 9603-9904 ●
21 NUT; LK,RIGHT SCREW,LINK ROD
(B) M8 		9-09111-408-0 02 1 9603-9904 ● ● ● ●
21 NUT; LK,RIGHT SCREW,LINK ROD
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) M8 		9-09111-408-0 02 1 9905- ●
21 NUT; LK,RIGHT SCREW,LINK ROD
(B) M8 		9-09111-408-0 02 1 9905- ● ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
HONG KONG EQUIPMENT(PQ1) (C) M10 LH THREAD 		9-09840-167-0 02 1 9603-9904 ●
25 NUT; LK,RIGHT SCREW,LINK ROD
PARKING BRAKE VALVE LEVER TYPE<W48> (C) M10 LH THREAD 		9-09840-167-0 02 1 9905- ●
25 NUT; LK,RIGHT SCREW,LINK ROD
6WA1 TC-S(56L) (B) M10 		9-09111-410-0 02 1 9603-9904 ●
25 NUT; LK,RIGHT SCREW,LINK ROD
L TYPE ENG<90L> (B) M10 		9-09111-410-0 02 1 9905- ● ● ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
(A) M12 		9-99111-412-0 02 1 9603-9706 ● ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
(A) M12 		9-99111-412-0 02 1 9707-9904 ● ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
(A) M12 		9-99111-412-0 02 1 9905- ● ● ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
8PE1S(59L),10PE1S(60L) (B) M8 		9-09111-408-0 02 1 9603-9904 ● ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
V TYPE ENG<91L> (B) M8 		9-09111-408-0 02 1 9905- ● ● ● ● ● ●
112 JOINT; RUBBER 1-33670-413-1 01 1 9603-9706 ● ● ● ● ●
112 JOINT; RUBBER
8PE1S(59L),10PE1S(60L) 		1-33670-413-1 01 1 9603-9706 ● ● ● ● ●
112 JOINT; RUBBER 1-33670-413-1 01 1 9707-9708 ● ● ● ● ●
112 JOINT; RUBBER 1-33670-413-1 01 1 9707-9708 ● ● ● ● ●
112 JOINT; RUBBER 1-33670-413-1 01 1 9709-9904 ● ● ● ● ●
112 JOINT; RUBBER 1-33670-413-1 01 1 9709-9904 ● ● ● ● ●
112 JOINT; RUBBER 1-33670-413-1 01 1 9905- ● ● ● ● ● ●
112 JOINT; RUBBER 1-33670-413-1 01 1 9905- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
