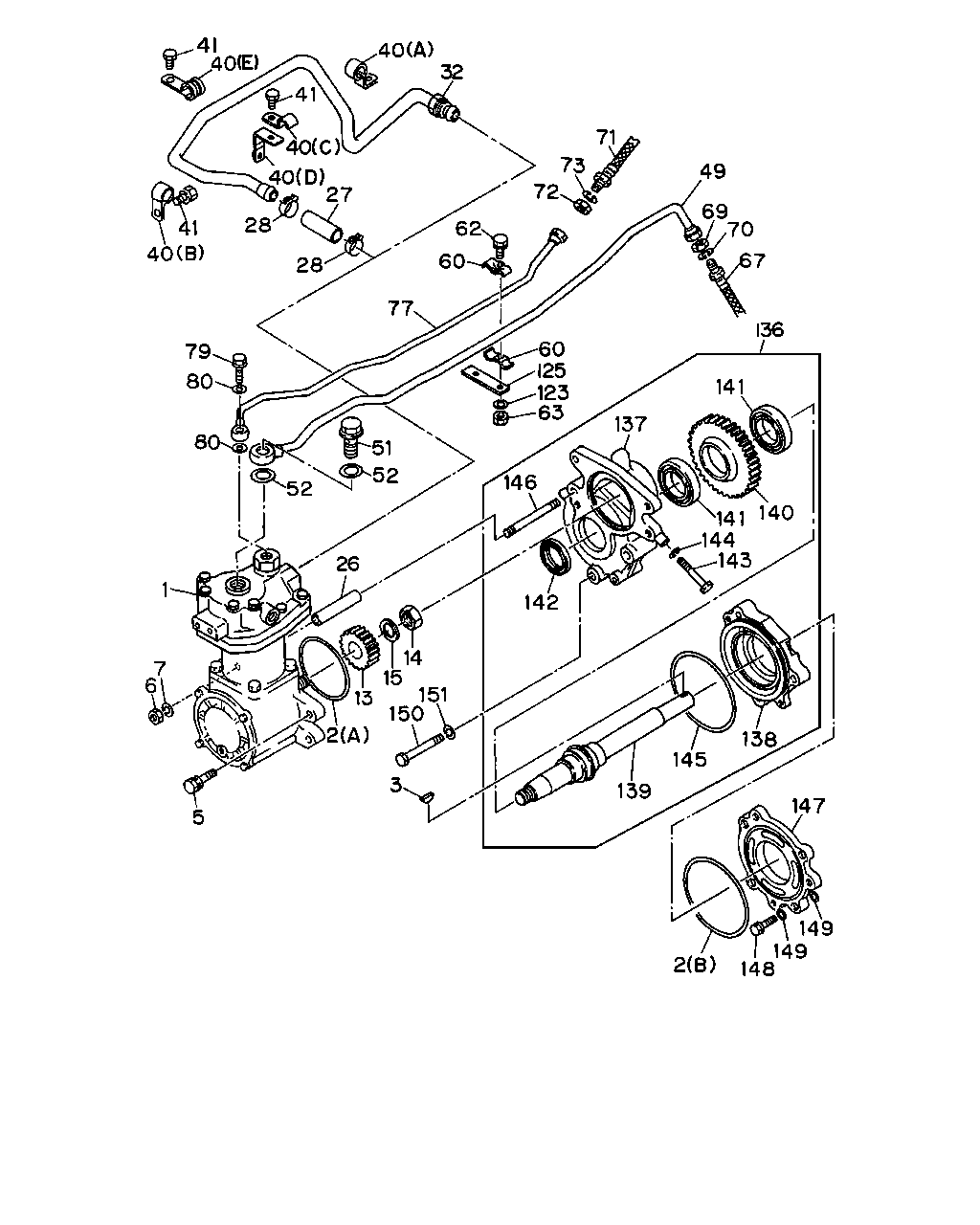

0-38A — AIR COMPRESSOR PIPING; ENGINE SIDE
(#434) — 77 parça
Tümü
A - 6RA1TC ENG
B - 6RB1TC ENG
C - 6RB1 TURBO ENG
41
40
40
40
41
40
27
28
41
32
28
40
71
49
73
72
62
60
77
79
69
70
67
136
60
141
125
123
63
137
51
80
52
80
52
146
140
141
143
144
142
26
1
6
5
2
14
15
13
150
151
3
139
145
138
147
149
149
148
2
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
1-19100-218-6
01
1
8712-
●
●
●
2
GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=124.6
1-09623-228-0
02
1
8712-8810
●
●
●
2
GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=124.6
1-09623-468-0
02
1
8811-
●
●
●
2
GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=105.6
1-09623-247-0
01
1
8712-
●
●
●
3
KEY; COUPLING,INJ PUMP
9-08055-622-0
01
1
8712-
●
●
●
5
BOLT; AIR CMPR FIX
M12X45
9-01991-245-0
03
1
8712-9005
●
●
●
5
BOLT; AIR CMPR FIX
M12X45
0-50151-245-0
03
1
9006-
●
●
6
NUT; AIR CMPR
M12
9-99110-512-0
01
1
8712-
●
●
●
7
WASHER; LK,AIR CMPR
ID=12.2
9-09150-512-0
01
1
8712-
●
●
●
13
GEAR; AIR CMPR DRIVE
1-19372-007-0
01
1
8712-
●
●
●
14
NUT; GEAR
M20
9-99111-520-0
01
1
8712-
●
●
●
15
WASHER; GEAR
ID=21
9-09164-520-0
01
1
8712-
●
●
●
26
COLLAR; DIST,AIR CMPR
1-19189-003-1
01
1
8712-
●
●
●
27
HOSE; AIR CMPR,SUCTION
9-09919-310-0
01
1
8712-9001
●
●
●
27
HOSE; AIR CMPR,SUCTION
1-09360-826-0
01
1
9002-
●
●
27
HOSE; AIR CMPR,SUCTION
1-09360-128-2
01
1
8712-9205
●
27
HOSE; AIR CMPR,SUCTION
1-09360-916-0
01
1
9206-9306
●
28
CLIP; HOSE,AIR CMPR
ID=20
1-09707-084-1
02
1
8712-9001
●
●
●
28
CLIP; HOSE,AIR CMPR
ID=28.5
1-09707-150-0
02
1
9002-
●
●
32
PIPE; AIR,AIR CMPR
1-19192-301-0
01
1
8712-9001
●
●
●
32
PIPE; AIR,AIR CMPR
1-19192-332-0
01
1
9002-
●
●
40
CLIP; AIR PIPE
(A) ID=19 H=32 L=26
1-09700-830-0
02
1
8712-9001
●
●
●
40
CLIP; AIR PIPE
(B)
9-09525-876-0
01
1
8712-9001
●
●
●
40
CLIP; AIR PIPE
(C)
1-09701-048-0
03
1
9002-
●
●
40
CLIP; AIR PIPE
(E)
1-09701-049-0
01
1
9002-
●
●
40
CLIP; AIR PIPE
(D)
1-19199-160-1
02
1
9002-
●
●
41
BOLT; CLIP
M8X16 W/LK WASHER
9-01900-816-0
03
1
8712-9204
●
●
●
41
BOLT; CLIP
M8X16 W/LK WASHER
0-50040-816-0
03
1
9205-
●
●
49
PIPE; AIR,CHARGE
1-19192-296-0
01
1
8712-9212
●
●
●
49
PIPE; AIR,CHARGE
1-19192-725-0
01
1
9301-
●
●
51
BOLT; EYE,AIR PIPE TO CMPR
M24X39
1-09675-132-0
01
1
8712-8909
●
●
●
51
BOLT; EYE,AIR PIPE TO CMPR
M24X39
1-09675-175-1
01
1
8910-
●
●
●
52
GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32
9-09571-424-0
02
1
8712-
●
●
●
60
CLIP; AIR PIPE
(A) WO/NUT
1-09700-547-0
06
1
8902-
●
●
●
60
CLIP; AIR PIPE
(B) W/NUT
1-09700-550-0
02
1
8902-
●
●
●
62
BOLT; CLIP
M6X30
9-01910-630-0
01
1
8712-9005
●
62
BOLT; CLIP
M6X30 W/LK WASHER
0-50040-630-0
01
1
9006-
●
62
BOLT; CLIP
M6X25 W/LK WASHER
0-50040-625-0
02
1
9307-
●
62
BOLT; CLIP
M6X25
9-01910-625-0
03
1
8712-9005
●
62
BOLT; CLIP
M6X25 W/LK WASHER
0-50040-625-0
03
1
9006-9306
●
62
BOLT; CLIP
M6X25
9-01910-625-0
02
1
8906-9005
●
●
62
BOLT; CLIP
M6X25 W/LK WASHER
0-50040-625-0
02
1
9006-9306
●
63
NUT; CLIP
M6
9-09110-406-0
03
1
8712-
●
●
63
NUT; CLIP
M6
9-09110-406-0
01
1
8712-9306
●
67
HOSE; FLEX,AIR CHARGE
L=630
0-07806-630-1
01
1
8712-
●
●
●
69
NUT; FLEX HOSE
M20
9-99111-420-0
01
1
8712-
●
●
●
70
WASHER; LK
ID=20.2
9-09150-520-0
01
1
8712-
●
●
●
71
HOSE; FLEX,AIR GOV
L=570
0-07120-570-0
01
1
8712-9312
●
●
●
71
HOSE; FLEX,AIR GOV
L=450
0-07120-450-0
01
1
9401-
●
72
NUT; GOV HOSE
M12
9-09840-280-0
01
1
8712-
●
●
●
73
WASHER; LK,GOV HOSE
ID=12.2
9-09150-512-0
01
1
8712-
●
●
●
77
PIPE; AIR,GOV
1-19192-298-0
01
1
8712-
●
●
●
79
BOLT; EYE,AIR PIPE TO CMPR
M14X27 FLANGE
1-09675-086-0
01
1
8712-
●
●
●
80
GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
02
1
8712-
●
●
●
123
WASHER; LK,CLIP
ID=6.1
9-09150-506-0
01
1
8712-
●
●
●
125
CLIP; AIR PIPE
1-19199-074-0
01
1
8712-9306
●
136
BOX ASM; GEAR,AIR CMPR
1-19371-019-1
01
1
8712-9001
●
●
●
136
BOX ASM; GEAR,AIR CMPR
1-19371-021-0
01
1
9002-
●
●
137
BODY; GEAR BOX
1-19371-010-0
01
1
8712-
●
●
●
138
BODY; GEAR BOX
1-19371-011-0
01
1
8712-
●
●
●
139
SHAFT; GEAR BOX
1-19373-004-1
01
1
8712-
●
●
●
140
GEAR; GEAR BOX
1-19372-008-0
01
1
8712-
●
●
●
141
BEARING; BALL,GEAR BOX
9-00090-071-0
02
1
8712-
●
●
●
142
SEAL; OIL,GEAR BOX
1-09625-347-0
01
1
8712-
●
●
●
143
BOLT; BODY
M8X60
9-01055-860-0
02
1
8712-9005
●
●
●
143
BOLT; BODY
M8X60
0-10805-860-0
02
1
9006-
●
●
144
WASHER; LK,BODY
ID=8.2
9-09150-508-0
02
1
8712-
●
●
●
145
GASKET; BODY
1-09623-353-0
01
1
8712-9001
●
●
●
145
GASKET; BODY
1-09623-472-0
01
1
9002-
●
●
146
STUD; AIR CMPR
1-09302-097-1
01
1
8712-
●
●
●
147
SPACER; GEAR BOX
1-19371-009-0
01
1
8712-
●
●
●
148
BOLT; SPACER
8-94257-289-0
04
1
8712-
●
●
●
149
GASKET; SPACER
1-09623-229-0
08
1
8712-8810
●
●
●
149
GASKET; SPACER
ID=11
1-09623-469-0
08
1
8811-
●
●
●
150
BOLT; GEAR BOX
M12X85
9-01666-285-0
03
1
8712-
●
●
●
150
BOLT; GEAR BOX
M12X35
9-02361-235-0
02
1
8712-
●
●
●
151
WASHER; PL,GEAR BOX
ID=12.2
1-09503-008-0
05
1
8712-
●
●
●
