1 |

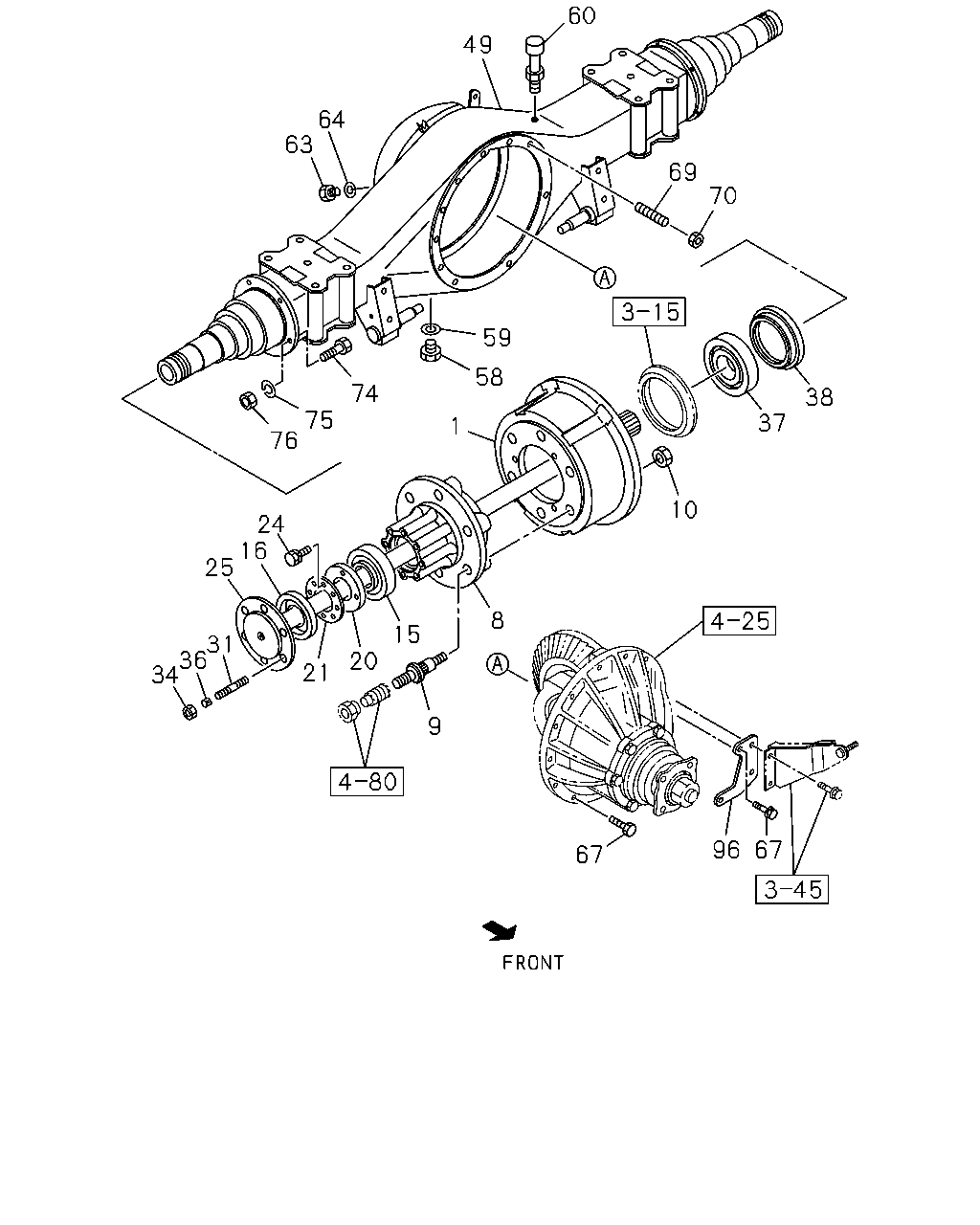

05.809 DRUM; BRK,RR
G.V.W. 6.0-6.5TON(RPV)
DISC BRAKE FRT<J52>
|
8-97081-219-2 |
02 |
1 |
9812-0105 |
● |
● |
● |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 7.0-7.5TON(RPX)
|
8-97081-219-2 |
02 |
1 |
9812-0105 |
● |
● |
● |
|
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>,HYDRO
BRAKEBOOSTER<7QQ>
|
8-97081-219-2 |
02 |
1 |
9812-0105 |
|
● |
● |
|
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 7.5-8.0TON(RPY)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97081-219-2 |
02 |
1 |
9812-0105 |
|
● |
|
|
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4HE1 ENG(RLY)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
|
8-97081-219-2 |
02 |
1 |
0106- |
● |
● |
● |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4HE1 ENG(RLY)
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>
|
8-97034-770-2 |
02 |
1 |
9812-9912 |
● |
● |
● |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4JG2 ENG(RJC)
DISC BRAKE FRT<J52>
|
8-97034-770-2 |
02 |
1 |
9812-9912 |
|
● |
|
|
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4HE1 ENG(RLY)
G.V.W. 5.0-5.5TON(RPT)
|
8-97034-770-2 |
02 |
1 |
9812-9912 |
|
● |
|
|
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4HE1 ENG(RLY)
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>
|
8-97034-770-2 |
02 |
1 |
0001-0105 |
● |
● |
● |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4JG2 ENG(RJC),4JB1 ENG(RLF)
|
8-97034-770-2 |
02 |
1 |
0001-0105 |
|
● |
|
|
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4HE1 ENG(RLY)
G.V.W. 5.0-5.5TON(RPT)
|
8-97034-770-2 |
02 |
1 |
0001-0105 |
|
● |
|
|
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4JH1 ENG(RJX)
|
8-97034-770-3 |
02 |
1 |
0106- |
|
● |
|
|
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 8.0-8.5TON(RPZ)
|
8-97102-001-2 |
02 |
1 |
9812-0005 |
|
● |
● |
|
● |
● |
|
| |
1 |
05.809 DRUM; BRK,RR
4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
DISC BRAKE FRT<J52>
FRAME STRAIGHT TYPE<7KJ>
|
8-97102-001-2 |
02 |
1 |
9812-0005 |
|
● |
● |
|
● |
● |
|
| |
1 |
05.809 DRUM; BRK,RR
4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO BRAKE BOOSTER<7QQ>
EXC. DISC BRAKE FRT<J52>
|
8-97102-001-2 |
02 |
1 |
9812-0005 |
|
● |
● |
|
● |
● |
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 8.0-8.5TON(RPZ)
|
8-97102-001-2 |
02 |
1 |
0006-0105 |
|
● |
● |
|
● |
● |
|
| |
1 |
05.809 DRUM; BRK,RR
4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
DISC BRAKE FRT<J52>
FRAME STRAIGHT TYPE<7KJ>
|
8-97102-001-2 |
02 |
1 |
0006-0105 |
|
● |
● |
|
● |
● |
|
| |
1 |
05.809 DRUM; BRK,RR
4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
VEHICLE CATEGORY NQR<7NQ>
EXC. DISC BRAKE FRT<J52>
|
8-97102-001-2 |
02 |
1 |
0006-0105 |
|
● |
● |
|
● |
● |
|
| |
1 |
05.809 DRUM; BRK,RR
4HE1 ENG(RLY)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
|
8-97102-001-3 |
02 |
1 |
0106- |
|
● |
● |
|
● |
● |
● |
| |
8 |
05.809 HUB; RR AXLE
4JG2 ENG(RJC)
DISC BRAKE FRT<J52>
|
8-97026-139-2 |
02 |
1 |
9812-9903 |
|
● |
|
|
|
|
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT
TYPE<7KJ>
|
8-97026-139-2 |
02 |
1 |
9812-9903 |
|
● |
|
|
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4JG2 ENG(RJC),4JB1 ENG(RLF)
DISC BRAKE FRT<J52>
|
8-97026-139-2 |
02 |
1 |
9904-9912 |
|
● |
|
|
|
|
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT
TYPE<7KJ>
|
8-97026-139-2 |
02 |
1 |
9904-9912 |
|
● |
|
|
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4JG2 ENG(RJC),4JB1 ENG(RLF)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 43/7(R42)
|
8-97026-139-2 |
02 |
1 |
0001-0105 |
|
● |
|
|
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4JG2 ENG(RJC),4JB1 ENG(RLF)
FINAL GEAR RATIO 41/7(R41)
DISC BRAKE FRT<J52>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97026-139-2 |
02 |
1 |
0001-0105 |
|
● |
|
|
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4HE1 ENG(RLY)
G.V.W. 6.0-6.5TON(RPV)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
ENGINE POWER N-SPEC(7QV)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT
TYPE<7KJ>
|
8-97026-139-2 |
02 |
1 |
0001-0105 |
|
● |
|
|
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4JH1 ENG(RJX)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
LIMITED SLIP DIFF<6LV>
|
8-97026-139-2 |
02 |
1 |
0106-0202 |
|
● |
|
|
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4JH1 ENG(RJX)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97026-139-2 |
02 |
1 |
0203-0212 |
|
● |
|
|
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4JH1 ENG(RJX)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97026-139-3 |
02 |
1 |
0301- |
|
● |
|
|
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4JG2 ENG(RJC),4JB1 ENG(RLF)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
BRK WHL LK CONT LSPV<6PH>
|
8-97034-406-3 |
02 |
1 |
0001-0105 |
|
● |
|
|
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4JH1 ENG(RJX)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/8(RU1),FINAL
GEAR RATIO 43/9(S2J)
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97034-406-3 |
02 |
1 |
0106-0202 |
|
● |
|
|
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4JH1 ENG(RJX)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/8(RU1),FINAL
GEAR RATIO 43/9(S2J)
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97034-406-4 |
02 |
1 |
0203- |
|
● |
|
|
|
|
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 6.0-6.5TON(RPV)
DISC BRAKE FRT<J52>
|
8-97081-323-2 |
02 |
1 |
9812-9912 |
● |
● |
● |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 7.0-7.5TON(RPX)
|
8-97081-323-2 |
02 |
1 |
9812-9912 |
● |
● |
● |
|
|
|
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>,HYDRO
BRAKEBOOSTER<7QQ>
|
8-97081-323-2 |
02 |
1 |
9812-9912 |
|
● |
● |
|
|
|
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 7.5-8.0TON(RPY)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97081-323-2 |
02 |
1 |
9812-9912 |
|
● |
|
|
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4HE1 ENG(RLY)
G.V.W. 6.0-6.5TON(RPV)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41)
DISC BRAKE FRT<J52>
|
8-97081-323-2 |
02 |
1 |
0001-0105 |
● |
● |
● |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4HE1 ENG(RLY)
G.V.W. 6.0-6.5TON(RPV)
FINAL GEAR RATIO 41/9(HC6)
DISC BRAKE FRT<J52>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97081-323-2 |
02 |
1 |
0001-0105 |
● |
● |
● |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 7.0-7.5TON(RPX)
|
8-97081-323-2 |
02 |
1 |
0001-0105 |
● |
● |
● |
|
|
|
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>,HYDRO
BRAKEBOOSTER<7QQ>
|
8-97081-323-2 |
02 |
1 |
0001-0105 |
|
● |
● |
|
|
|
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 7.5-8.0TON(RPY)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97081-323-2 |
02 |
1 |
0001-0105 |
|
● |
|
|
|
|
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 8.0-8.5TON(RPZ)
|
8-97107-549-0 |
02 |
1 |
9812-9912 |
|
● |
● |
|
● |
● |
|
| |
8 |
05.809 HUB; RR AXLE
4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
DISC BRAKE FRT<J52>
FRAME STRAIGHT TYPE<7KJ>
|
8-97107-549-0 |
02 |
1 |
9812-9912 |
|
● |
● |
|
● |
● |
|
| |
8 |
05.809 HUB; RR AXLE
4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO BRAKE BOOSTER<7QQ>
EXC. DISC BRAKE FRT<J52>
|
8-97107-549-0 |
02 |
1 |
9812-9912 |
|
● |
● |
|
● |
● |
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 8.0-8.5TON(RPZ)
|
8-97107-549-0 |
02 |
1 |
0001-0005 |
|
● |
● |
|
● |
● |
|
| |
8 |
05.809 HUB; RR AXLE
4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
DISC BRAKE FRT<J52>
FRAME STRAIGHT TYPE<7KJ>
FINAL GEAR RATIO 43/9(S2J)
|
8-97107-549-0 |
02 |
1 |
0001-0005 |
|
● |
● |
|
● |
● |
|
| |
8 |
05.809 HUB; RR AXLE
4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
DISC BRAKE FRT<J52>
FRAME STRAIGHT TYPE<7KJ>
FINAL GEAR RATIO 43/10(S7C)
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97107-549-0 |
02 |
1 |
0001-0005 |
|
● |
● |
|
● |
● |
|
| |
8 |
05.809 HUB; RR AXLE
4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO BRAKE BOOSTER<7QQ>
EXC. DISC BRAKE FRT<J52>
|
8-97107-549-0 |
02 |
1 |
0001-0005 |
|
● |
● |
|
● |
● |
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 8.0-8.5TON(RPZ)
|
8-97107-549-1 |
02 |
1 |
0006-0105 |
|
● |
● |
|
● |
● |
|
| |
8 |
05.809 HUB; RR AXLE
4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
DISC BRAKE FRT<J52>
FRAME STRAIGHT TYPE<7KJ>
FINAL GEAR RATIO 43/9(S2J)
|
8-97107-549-1 |
02 |
1 |
0006-0105 |
|
● |
● |
|
● |
● |
|
| |
8 |
05.809 HUB; RR AXLE
4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
DISC BRAKE FRT<J52>
FRAME STRAIGHT TYPE<7KJ>
FINAL GEAR RATIO 43/10(S7C)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97107-549-1 |
02 |
1 |
0006-0105 |
|
● |
● |
|
● |
● |
|
| |
8 |
05.809 HUB; RR AXLE
4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
VEHICLE CATEGORY NQR<7NQ>
EXC. DISC BRAKE FRT<J52>
|
8-97107-549-1 |
02 |
1 |
0006-0105 |
|
● |
● |
|
● |
● |
|
| |
8 |
05.809 HUB; RR AXLE
4HE1 ENG(RLY)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 43/10(S7C)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
|
8-97250-321-0 |
02 |
1 |
0001-0105 |
|
● |
● |
|
● |
● |
|
| |
8 |
05.809 HUB; RR AXLE
4HE1 ENG(RLY)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
|
8-97250-321-1 |
02 |
1 |
0106- |
|
● |
● |
|
● |
● |
● |
| |
8 |
05.809 HUB; RR AXLE
4HE1 ENG(RLY)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/9(HC6)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 6.0-6.5TON(RPV)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
|
8-97172-164-0 |
02 |
1 |
0001-0105 |
● |
● |
● |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4HE1 ENG(RLY)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
|
8-97172-164-0 |
02 |
1 |
0106- |
● |
● |
● |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,FRAME
STRAIGHT TYPE<7KJ>,ENGINE POWER
N-SPEC(7QV)
|
8-94382-893-3 |
02 |
1 |
9812-0105 |
● |
● |
|
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4HE1 ENG(RLY)
G.V.W. 5.0-5.5TON(RPT)
|
8-94382-893-3 |
02 |
1 |
9812-0105 |
|
● |
|
|
|
|
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
|
8-94382-893-3 |
02 |
1 |
9812-0105 |
|
● |
|
|
|
|
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>
|
8-94382-893-3 |
02 |
1 |
9812-0105 |
|
|
● |
|
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4HE1 ENG(RLY)
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-1 |
05 |
1 |
9812-9912 |
● |
● |
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4JG2 ENG(RJC)
DISC BRAKE FRT<J52>
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-1 |
05 |
1 |
9812-9912 |
|
● |
|
|
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4HE1 ENG(RLY)
G.V.W. 5.0-5.5TON(RPT)
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-1 |
05 |
1 |
9812-9912 |
|
● |
|
|
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4HE1 ENG(RLY)
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-1 |
05 |
1 |
0001-0105 |
● |
● |
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4JG2 ENG(RJC),4JB1 ENG(RLF)
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-1 |
05 |
1 |
0001-0105 |
|
● |
|
|
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4HE1 ENG(RLY)
G.V.W. 5.0-5.5TON(RPT)
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-1 |
05 |
1 |
0001-0105 |
|
● |
|
|
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4JH1 ENG(RJX)
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-1 |
05 |
1 |
0106- |
|
● |
|
|
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4HE1 ENG(RLY)
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>
M18X29,M20X43.5 RH THREAD
|
8-94383-436-1 |
05 |
1 |
9812-9912 |
● |
● |
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4JG2 ENG(RJC)
DISC BRAKE FRT<J52>
M18X29,M20X43.5 RH THREAD
|
8-94383-436-1 |
05 |
1 |
9812-9912 |
|
● |
|
|
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4HE1 ENG(RLY)
G.V.W. 5.0-5.5TON(RPT)
M18X29,M20X43.5 RH THREAD
|
8-94383-436-1 |
05 |
1 |
9812-9912 |
|
● |
|
|
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4HE1 ENG(RLY)
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>
M18X29,M20X43.5 RH THREAD
|
8-94383-436-1 |
05 |
1 |
0001-0105 |
● |
● |
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4JG2 ENG(RJC),4JB1 ENG(RLF)
M18X29,M20X43.5 RH THREAD
|
8-94383-436-1 |
05 |
1 |
0001-0105 |
|
● |
|
|
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4HE1 ENG(RLY)
G.V.W. 5.0-5.5TON(RPT)
M18X29,M20X43.5 RH THREAD
|
8-94383-436-1 |
05 |
1 |
0001-0105 |
|
● |
|
|
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4JH1 ENG(RJX)
M18X29,M20X43.5 RH THREAD
|
8-94383-436-1 |
05 |
1 |
0106- |
|
● |
|
|
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9812-0105 |
● |
● |
● |
|
● |
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
DISC BRAKE FRT<J52>
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9812-0105 |
● |
● |
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4HE1 ENG(RLY)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.5-8.0TON(RPY)
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
0106- |
● |
● |
● |
● |
● |
● |
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9812-0105 |
● |
● |
● |
|
● |
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
DISC BRAKE FRT<J52>
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9812-0105 |
● |
● |
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4HE1 ENG(RLY)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.5-8.0TON(RPY)
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
0106- |
● |
● |
● |
● |
● |
● |
● |
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
4HE1 ENG(RLY)
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>
00.050
M20
|
9-99110-520-0 |
10 |
1 |
9812-9912 |
● |
● |
● |
● |
|
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
4JG2 ENG(RJC)
DISC BRAKE FRT<J52>
00.050
M20
|
9-99110-520-0 |
10 |
1 |
9812-9912 |
|
● |
|
|
|
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
4HE1 ENG(RLY)
G.V.W. 5.0-5.5TON(RPT)
00.050
M20
|
9-99110-520-0 |
10 |
1 |
9812-9912 |
|
● |
|
|
|
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
4HE1 ENG(RLY)
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>
00.050
M20
|
9-99110-520-0 |
10 |
1 |
0001-0105 |
● |
● |
● |
● |
|
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
4JG2 ENG(RJC),4JB1 ENG(RLF)
00.050
M20
|
9-99110-520-0 |
10 |
1 |
0001-0105 |
|
● |
|
|
|
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
4HE1 ENG(RLY)
G.V.W. 5.0-5.5TON(RPT)
00.050
M20
|
9-99110-520-0 |
10 |
1 |
0001-0105 |
|
● |
|
|
|
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
4JH1 ENG(RJX)
00.050
M20
|
9-99110-520-0 |
10 |
1 |
0106- |
|
● |
|
|
|
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
M22
|
9-09110-522-0 |
12 |
1 |
9812-0105 |
● |
● |
● |
|
● |
● |
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
DISC BRAKE FRT<J52>
M22
|
9-09110-522-0 |
12 |
1 |
9812-0105 |
● |
● |
● |
● |
|
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
4HE1 ENG(RLY)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.5-8.0TON(RPY)
M22
|
9-09110-522-0 |
12 |
1 |
0106- |
● |
● |
● |
● |
● |
● |
● |
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
NSK
|
9-00093-607-0 |
02 |
1 |
9812-0105 |
|
● |
|
|
|
|
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
BRK WHL LK CONT LSPV<6PH>
EXC. DISC BRAKE FRT<J52>,FRAME
STRAIGHT TYPE<7KJ>
NSK
|
9-00093-607-0 |
02 |
1 |
9812-0105 |
|
● |
|
|
|
|
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT
TYPE<7KJ>,ENGINE POWER N-SPEC(7QV)
NSK
|
9-00093-607-0 |
02 |
1 |
9812-0105 |
|
● |
|
|
|
|
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
DISC BRAKE FRT<J52>
NSK
|
9-00093-607-0 |
02 |
1 |
9812-0105 |
|
● |
|
|
|
|
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
4HE1 ENG(RLY)
G.V.W. 5.0-5.5TON(RPT),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V
.W. 8.0-8.5TON(RPZ)
NSK
|
9-00093-607-0 |
02 |
1 |
9812-0105 |
|
● |
|
|
|
|
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
4HE1 ENG(RLY)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
NSK
|
9-00093-607-0 |
02 |
1 |
9812-0105 |
● |
|
● |
● |
● |
● |
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
NSK
|
9-00093-607-0 |
02 |
1 |
9812-0105 |
|
|
● |
|
|
|
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
4HE1 ENG(RLY)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.5-8.0TON(RPY)
NSK
|
9-00093-607-0 |
02 |
1 |
0106- |
● |
● |
● |
● |
● |
● |
● |
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
4JG2 ENG(RJC)
DISC BRAKE FRT<J52>
NSK
|
9-00093-082-0 |
02 |
1 |
9812-9903 |
|
● |
|
|
|
|
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT
TYPE<7KJ>
NSK
|
9-00093-082-0 |
02 |
1 |
9812-9903 |
|
● |
|
|
|
|
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
4JG2 ENG(RJC),4JB1 ENG(RLF)
DISC BRAKE FRT<J52>
NSK
|
9-00093-082-0 |
02 |
1 |
9904-9912 |
|
● |
|
|
|
|
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT
TYPE<7KJ>
NSK
|
9-00093-082-0 |
02 |
1 |
9904-9912 |
|
● |
|
|
|
|
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
4JG2 ENG(RJC),4JB1 ENG(RLF)
DISC BRAKE FRT<J52>
NSK
|
9-00093-082-0 |
02 |
1 |
0001-0105 |
|
● |
|
|
|
|
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
4HE1 ENG(RLY)
G.V.W. 6.0-6.5TON(RPV)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
ENGINE POWER N-SPEC(7QV)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT
TYPE<7KJ>
NSK
|
9-00093-082-0 |
02 |
1 |
0001-0105 |
|
● |
|
|
|
|
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
4JH1 ENG(RJX)
NSK
|
9-00093-082-0 |
02 |
1 |
0106-0212 |
|
● |
|
|
|
|
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
4JH1 ENG(RJX)
NSK
|
9-00093-082-0 |
04 |
1 |
0301- |
|
● |
|
|
|
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
TKK
|
8-94336-317-2 |
02 |
1 |
9812-0105 |
|
● |
|
|
|
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
G.V.W. 6.0-6.5TON(RPV)
BRK WHL LK CONT LSPV<6PH>
EXC. DISC BRAKE FRT<J52>,FRAME
STRAIGHT TYPE<7KJ>
TKK
|
8-94336-317-2 |
02 |
1 |
9812-0105 |
|
● |
|
|
|
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT
TYPE<7KJ>,ENGINE POWER N-SPEC(7QV)
TKK
|
8-94336-317-2 |
02 |
1 |
9812-0105 |
|
● |
|
|
|
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
G.V.W. 6.0-6.5TON(RPV)
DISC BRAKE FRT<J52>
TKK
|
8-94336-317-2 |
02 |
1 |
9812-0105 |
|
● |
|
|
|
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4HE1 ENG(RLY)
G.V.W. 5.0-5.5TON(RPT),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V
.W. 8.0-8.5TON(RPZ)
TKK
|
8-94336-317-2 |
02 |
1 |
9812-0105 |
|
● |
|
|
|
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4HE1 ENG(RLY)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
TKK
|
8-94336-317-2 |
02 |
1 |
9812-0105 |
● |
|
● |
● |
● |
● |
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
G.V.W. 6.0-6.5TON(RPV)
TKK
|
8-94336-317-2 |
02 |
1 |
9812-0105 |
|
|
● |
|
|
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4HE1 ENG(RLY)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.5-8.0TON(RPY)
TKK
|
8-94336-317-2 |
02 |
1 |
0106- |
● |
● |
● |
● |
● |
● |
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4HE1 ENG(RLY)
G.V.W. 5.0-5.5TON(RPT)
NOK
|
8-94367-960-1 |
02 |
1 |
9812-0105 |
|
● |
|
|
|
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT
TYPE<7KJ>,ENGINE POWER N-SPEC(7QV)
NOK
|
8-94367-960-1 |
02 |
1 |
9812-0105 |
|
● |
|
|
|
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
G.V.W. 6.0-6.5TON(RPV)
BRK WHL LK CONT LSPV<6PH>
EXC. FRAME STRAIGHT TYPE<7KJ>
NOK
|
8-94367-960-1 |
02 |
1 |
9812-0105 |
|
● |
|
|
|
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>,FRAME
STRAIGHT TYPE<7KJ>
NOK
|
8-94367-960-1 |
02 |
1 |
9812-0105 |
|
● |
|
|
|
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. FRAME STRAIGHT TYPE<7KJ>
NOK
|
8-94367-960-1 |
02 |
1 |
9812-0105 |
|
● |
|
|
|
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4JG2 ENG(RJC)
DISC BRAKE FRT<J52>
TKK
|
8-94336-315-1 |
02 |
1 |
9812-9903 |
|
● |
|
|
|
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT
TYPE<7KJ>
TKK
|
8-94336-315-1 |
02 |
1 |
9812-9903 |
|
● |
|
|
|
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4JG2 ENG(RJC),4JB1 ENG(RLF)
DISC BRAKE FRT<J52>
TKK
|
8-94336-315-2 |
02 |
1 |
9904-9912 |
|
● |
|
|
|
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT
TYPE<7KJ>
TKK
|
8-94336-315-2 |
02 |
1 |
9904-9912 |
|
● |
|
|
|
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4JG2 ENG(RJC),4JB1 ENG(RLF)
DISC BRAKE FRT<J52>
TKK
|
8-94336-315-2 |
02 |
1 |
0001-0105 |
|
● |
|
|
|
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4HE1 ENG(RLY)
G.V.W. 6.0-6.5TON(RPV)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
ENGINE POWER N-SPEC(7QV)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT
TYPE<7KJ>
TKK
|
8-94336-315-2 |
02 |
1 |
0001-0105 |
|
● |
|
|
|
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4JH1 ENG(RJX)
TKK
|
8-94336-315-2 |
02 |
1 |
0106- |
|
● |
|
|
|
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4JG2 ENG(RJC)
DISC BRAKE FRT<J52>
NOK
|
8-94367-961-1 |
02 |
1 |
9812-9903 |
|
● |
|
|
|
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT
TYPE<7KJ>
NOK
|
8-94367-961-1 |
02 |
1 |
9812-9903 |
|
● |
|
|
|
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4JG2 ENG(RJC),4JB1 ENG(RLF)
DISC BRAKE FRT<J52>
NOK
|
8-94367-961-1 |
02 |
1 |
9904-9912 |
|
● |
|
|
|
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT
TYPE<7KJ>
NOK
|
8-94367-961-1 |
02 |
1 |
9904-9912 |
|
● |
|
|
|
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4JG2 ENG(RJC),4JB1 ENG(RLF)
DISC BRAKE FRT<J52>
NOK
|
8-94367-961-1 |
02 |
1 |
0001-0105 |
|
● |
|
|
|
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4HE1 ENG(RLY)
G.V.W. 6.0-6.5TON(RPV)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
ENGINE POWER N-SPEC(7QV)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT
TYPE<7KJ>
NOK
|
8-94367-961-1 |
02 |
1 |
0001-0105 |
|
● |
|
|
|
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4JH1 ENG(RJX)
NOK
|
8-94367-961-1 |
02 |
1 |
0106- |
|
● |
|
|
|
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
M55
|
8-97137-094-0 |
02 |
1 |
9812-0105 |
|
● |
|
|
|
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
G.V.W. 6.0-6.5TON(RPV)
BRK WHL LK CONT LSPV<6PH>
EXC. DISC BRAKE FRT<J52>,FRAME
STRAIGHT TYPE<7KJ>
M55
|
8-97137-094-0 |
02 |
1 |
9812-0105 |
|
● |
|
|
|
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT
TYPE<7KJ>,ENGINE POWER N-SPEC(7QV)
M55
|
8-97137-094-0 |
02 |
1 |
9812-0105 |
|
● |
|
|
|
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
G.V.W. 6.0-6.5TON(RPV)
DISC BRAKE FRT<J52>
M55
|
8-97137-094-0 |
02 |
1 |
9812-0105 |
|
● |
|
|
|
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
4HE1 ENG(RLY)
G.V.W. 5.0-5.5TON(RPT),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V
.W. 8.0-8.5TON(RPZ)
M55
|
8-97137-094-0 |
02 |
1 |
9812-0105 |
|
● |
|
|
|
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
4HE1 ENG(RLY)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
M55
|
8-97137-094-0 |
02 |
1 |
9812-0105 |
● |
|
● |
● |
● |
● |
|
| |
20 |
05.830 NUT; BRG,RR HUB
G.V.W. 6.0-6.5TON(RPV)
M55
|
8-97137-094-0 |
02 |
1 |
9812-0105 |
|
|
● |
|
|
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
4HE1 ENG(RLY)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.5-8.0TON(RPY)
M55
|
8-97137-094-0 |
02 |
1 |
0106- |
● |
● |
● |
● |
● |
● |
● |
| |
20 |
05.830 NUT; BRG,RR HUB
4JG2 ENG(RJC)
DISC BRAKE FRT<J52>
M52
|
8-97137-092-0 |
02 |
1 |
9812-9903 |
|
● |
|
|
|
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT
TYPE<7KJ>
M52
|
8-97137-092-0 |
02 |
1 |
9812-9903 |
|
● |
|
|
|
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
4JG2 ENG(RJC),4JB1 ENG(RLF)
DISC BRAKE FRT<J52>
M52
|
8-97137-092-0 |
02 |
1 |
9904-9912 |
|
● |
|
|
|
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT
TYPE<7KJ>
M52
|
8-97137-092-0 |
02 |
1 |
9904-9912 |
|
● |
|
|
|
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
4JG2 ENG(RJC),4JB1 ENG(RLF)
DISC BRAKE FRT<J52>
M52
|
8-97137-092-0 |
02 |
1 |
0001-0105 |
|
● |
|
|
|
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
4HE1 ENG(RLY)
G.V.W. 6.0-6.5TON(RPV)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
ENGINE POWER N-SPEC(7QV)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT
TYPE<7KJ>
M52
|
8-97137-092-0 |
02 |
1 |
0001-0105 |
|
● |
|
|
|
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
4JH1 ENG(RJX)
M52
|
8-97137-092-0 |
02 |
1 |
0106- |
|
● |
|
|
|
|
|
| |
21 |
05.830 WASHER; LK,BRG NUT
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
ID=55
|
9-09653-002-0 |
02 |
1 |
9812-0105 |
|
● |
|
|
|
|
|
| |
21 |
05.830 WASHER; LK,BRG NUT
G.V.W. 6.0-6.5TON(RPV)
BRK WHL LK CONT LSPV<6PH>
EXC. DISC BRAKE FRT<J52>,FRAME
STRAIGHT TYPE<7KJ>
ID=55
|
9-09653-002-0 |
02 |
1 |
9812-0105 |
|
● |
|
|
|
|
|
| |
21 |
05.830 WASHER; LK,BRG NUT
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT
TYPE<7KJ>,ENGINE POWER N-SPEC(7QV)
ID=55
|
9-09653-002-0 |
02 |
1 |
9812-0105 |
|
● |
|
|
|
|
|
| |
21 |
05.830 WASHER; LK,BRG NUT
G.V.W. 6.0-6.5TON(RPV)
DISC BRAKE FRT<J52>
ID=55
|
9-09653-002-0 |
02 |
1 |
9812-0105 |
|
● |
|
|
|
|
|
| |
21 |
05.830 WASHER; LK,BRG NUT
4HE1 ENG(RLY)
G.V.W. 5.0-5.5TON(RPT),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V
.W. 8.0-8.5TON(RPZ)
ID=55
|
9-09653-002-0 |
02 |
1 |
9812-0105 |
|
● |
|
|
|
|
|
| |
21 |
05.830 WASHER; LK,BRG NUT
4HE1 ENG(RLY)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
ID=55
|
9-09653-002-0 |
02 |
1 |
9812-0105 |
● |
|
● |
● |
● |
● |
|
| |
21 |
05.830 WASHER; LK,BRG NUT
G.V.W. 6.0-6.5TON(RPV)
ID=55
|
9-09653-002-0 |
02 |
1 |
9812-0105 |
|
|
● |
|
|
|
|
| |
21 |
05.830 WASHER; LK,BRG NUT
4HE1 ENG(RLY)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.5-8.0TON(RPY)
ID=55
|
9-09653-002-0 |
02 |
1 |
0106- |
● |
● |
● |
● |
● |
● |
● |
| |
21 |
05.830 WASHER; LK,BRG NUT
4JG2 ENG(RJC)
DISC BRAKE FRT<J52>
ID=52
|
9-09853-214-0 |
02 |
1 |
9812-9903 |
|
● |
|
|
|
|
|
| |
21 |
05.830 WASHER; LK,BRG NUT
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT
TYPE<7KJ>
ID=52
|
9-09853-214-0 |
02 |
1 |
9812-9903 |
|
● |
|
|
|
|
|
| |
21 |
05.830 WASHER; LK,BRG NUT
4JG2 ENG(RJC),4JB1 ENG(RLF)
DISC BRAKE FRT<J52>
ID=52
|
9-09853-214-0 |
02 |
1 |
9904-9912 |
|
● |
|
|
|
|
|
| |
21 |
05.830 WASHER; LK,BRG NUT
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT
TYPE<7KJ>
ID=52
|
9-09853-214-0 |
02 |
1 |
9904-9912 |
|
● |
|
|
|
|
|
| |
21 |
05.830 WASHER; LK,BRG NUT
4JG2 ENG(RJC),4JB1 ENG(RLF)
DISC BRAKE FRT<J52>
ID=52
|
9-09853-214-0 |
02 |
1 |
0001-0105 |
|
● |
|
|
|
|
|
| |
21 |
05.830 WASHER; LK,BRG NUT
4HE1 ENG(RLY)
G.V.W. 6.0-6.5TON(RPV)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
ENGINE POWER N-SPEC(7QV)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT
TYPE<7KJ>
ID=52
|
9-09853-214-0 |
02 |
1 |
0001-0105 |
|
● |
|
|
|
|
|
| |
21 |
05.830 WASHER; LK,BRG NUT
4JH1 ENG(RJX)
ID=52
|
9-09853-214-0 |
02 |
1 |
0106- |
|
● |
|
|
|
|
|
| |
24 |
05.830 BOLT; LK WASHER
00.685
M6X12 W/LK WASHER
|
0-50040-612-0 |
04 |
1 |
9812- |
● |
● |
● |
● |
● |
● |
● |
| |
25 |
05.420 SHAFT; AXLE,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. FRAME STRAIGHT TYPE<7KJ>
L=822
|
8-97079-903-1 |
02 |
1 |
9812-0105 |
|
● |
|
|
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
4HE1 ENG(RLY)
G.V.W. 5.0-5.5TON(RPT)
L=830
|
8-94341-974-1 |
02 |
1 |
9812-0105 |
|
● |
|
|
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT
TYPE<7KJ>,ENGINE POWER N-SPEC(7QV)
L=830
|
8-94341-974-1 |
02 |
1 |
9812-0105 |
|
● |
|
|
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>,FRAME
STRAIGHT TYPE<7KJ>
L=830
|
8-94341-974-1 |
02 |
1 |
9812-0105 |
|
● |
|
|
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
G.V.W. 6.0-6.5TON(RPV)
BRK WHL LK CONT LSPV<6PH>
EXC. FRAME STRAIGHT TYPE<7KJ>
L=830
|
8-94341-974-1 |
02 |
1 |
9812-0105 |
|
● |
|
|
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
4JG2 ENG(RJC)
DISC BRAKE FRT<J52>
L=804.5
|
8-97032-497-0 |
02 |
1 |
9812-9903 |
|
● |
|
|
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT
TYPE<7KJ>
L=804.5
|
8-97032-497-0 |
02 |
1 |
9812-9903 |
|
● |
|
|
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
4JG2 ENG(RJC),4JB1 ENG(RLF)
DISC BRAKE FRT<J52>
L=804.5
|
8-97032-497-0 |
02 |
1 |
9904-9912 |
|
● |
|
|
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT
TYPE<7KJ>
L=804.5
|
8-97032-497-0 |
02 |
1 |
9904-9912 |
|
● |
|
|
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
4JG2 ENG(RJC),4JB1 ENG(RLF)
DISC BRAKE FRT<J52>
L=804.5
|
8-97032-497-0 |
02 |
1 |
0001-0105 |
|
● |
|
|
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
4HE1 ENG(RLY)
G.V.W. 6.0-6.5TON(RPV)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
ENGINE POWER N-SPEC(7QV)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT
TYPE<7KJ>
L=804.5
|
8-97032-497-0 |
02 |
1 |
0001-0105 |
|
● |
|
|
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
4JH1 ENG(RJX)
L=804.5
|
8-97032-497-0 |
02 |
1 |
0106- |
|
● |
|
|
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
L=885
|
8-97134-439-0 |
02 |
1 |
9812-9903 |
|
● |
● |
|
● |
● |
|
| |
25 |
05.420 SHAFT; AXLE,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
L=885
|
8-97134-439-0 |
02 |
1 |
9904-0105 |
|
● |
● |
|
● |
● |
|
| |
25 |
05.420 SHAFT; AXLE,RR
4HE1 ENG(RLY)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.5-8.0TON(RPY)
L=885
|
8-97134-439-0 |
02 |
1 |
0106- |
● |
● |
● |
● |
● |
● |
● |
| |
25 |
05.420 SHAFT; AXLE,RR
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
L=893
|
8-97073-871-1 |
02 |
1 |
9812-0105 |
● |
● |
● |
● |
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
L=893
|
8-97073-871-1 |
02 |
1 |
9812-0105 |
● |
● |
● |
|
|
|
|
| |
31 |
05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49
|
5-09300-066-1 |
16 |
1 |
9812- |
● |
● |
● |
● |
● |
● |
● |
| |
34 |
05.387 NUT; AXLE SHAFT
08.917
M10 FLANGE
|
0-91150-210-0 |
16 |
1 |
9812- |
● |
● |
● |
● |
● |
● |
● |
| |
36 |
05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5
|
9-09855-207-0 |
16 |
1 |
9812- |
● |
● |
● |
● |
● |
● |
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4JG2 ENG(RJC)
DISC BRAKE FRT<J52>
NSK
|
9-00093-081-0 |
02 |
1 |
9812-9903 |
|
● |
|
|
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT
TYPE<7KJ>
NSK
|
9-00093-081-0 |
02 |
1 |
9812-9903 |
|
● |
|
|
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4JG2 ENG(RJC),4JB1 ENG(RLF)
DISC BRAKE FRT<J52>
NSK
|
9-00093-081-0 |
02 |
1 |
9904-9912 |
|
● |
|
|
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT
TYPE<7KJ>
NSK
|
9-00093-081-0 |
02 |
1 |
9904-9912 |
|
● |
|
|
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4JG2 ENG(RJC),4JB1 ENG(RLF)
DISC BRAKE FRT<J52>
NSK
|
9-00093-081-0 |
02 |
1 |
0001-0105 |
|
● |
|
|
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4HE1 ENG(RLY)
G.V.W. 6.0-6.5TON(RPV)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
ENGINE POWER N-SPEC(7QV)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT
TYPE<7KJ>
NSK
|
9-00093-081-0 |
02 |
1 |
0001-0105 |
|
● |
|
|
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4JH1 ENG(RJX)
NSK
|
9-00093-081-0 |
02 |
1 |
0106- |
|
● |
|
|
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 8.0-8.5TON(RPZ)
NSK
|
8-97122-938-0 |
02 |
1 |
9812-0005 |
|
● |
● |
|
● |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
DISC BRAKE FRT<J52>
FRAME STRAIGHT TYPE<7KJ>
NSK
|
8-97122-938-0 |
02 |
1 |
9812-0005 |
|
● |
● |
|
● |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO BRAKE BOOSTER<7QQ>
EXC. DISC BRAKE FRT<J52>
NSK
|
8-97122-938-0 |
02 |
1 |
9812-0005 |
|
● |
● |
|
● |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 8.0-8.5TON(RPZ)
NSK
|
8-97122-938-0 |
02 |
1 |
0006-0105 |
|
● |
● |
|
● |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
DISC BRAKE FRT<J52>
FRAME STRAIGHT TYPE<7KJ>
NSK
|
8-97122-938-0 |
02 |
1 |
0006-0105 |
|
● |
● |
|
● |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
VEHICLE CATEGORY NQR<7NQ>
EXC. DISC BRAKE FRT<J52>
NSK
|
8-97122-938-0 |
02 |
1 |
0006-0105 |
|
● |
● |
|
● |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4HE1 ENG(RLY)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
NSK
|
8-97122-938-0 |
02 |
1 |
0106- |
|
● |
● |
|
● |
● |
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 8.0-8.5TON(RPZ)
KOYO
|
8-97123-119-0 |
02 |
1 |
9812-0005 |
|
● |
● |
|
● |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
DISC BRAKE FRT<J52>
FRAME STRAIGHT TYPE<7KJ>
KOYO
|
8-97123-119-0 |
02 |
1 |
9812-0005 |
|
● |
● |
|
● |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO BRAKE BOOSTER<7QQ>
EXC. DISC BRAKE FRT<J52>
KOYO
|
8-97123-119-0 |
02 |
1 |
9812-0005 |
|
● |
● |
|
● |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 8.0-8.5TON(RPZ)
KOYO
|
8-97123-119-0 |
02 |
1 |
0006-0105 |
|
● |
● |
|
● |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
DISC BRAKE FRT<J52>
FRAME STRAIGHT TYPE<7KJ>
KOYO
|
8-97123-119-0 |
02 |
1 |
0006-0105 |
|
● |
● |
|
● |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
VEHICLE CATEGORY NQR<7NQ>
EXC. DISC BRAKE FRT<J52>
KOYO
|
8-97123-119-0 |
02 |
1 |
0006-0105 |
|
● |
● |
|
● |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4HE1 ENG(RLY)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
KOYO
|
8-97123-119-0 |
02 |
1 |
0106- |
|
● |
● |
|
● |
● |
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4HE1 ENG(RLY)
G.V.W. 6.0-6.5TON(RPV)
DISC BRAKE FRT<J52>
NSK
|
9-00093-624-0 |
02 |
1 |
9812-0105 |
● |
● |
● |
● |
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
BRK WHL LK CONT LSPV<6PH>
NSK
|
9-00093-624-0 |
02 |
1 |
9812-0105 |
● |
● |
● |
● |
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W.
7.0-7.5TON(RPX)
NSK
|
9-00093-624-0 |
02 |
1 |
9812-0105 |
● |
● |
● |
|
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
EXC. BRK WHL LK CONT LSPV<6PH>
NSK
|
9-00093-624-0 |
02 |
1 |
9812-0105 |
● |
● |
|
● |
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 7.5-8.0TON(RPY)
EXC. FRAME STRAIGHT TYPE<7KJ>
NSK
|
9-00093-624-0 |
02 |
1 |
9812-0105 |
|
● |
|
|
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>,HYDRO
BRAKEBOOSTER<7QQ>
NSK
|
9-00093-624-0 |
02 |
1 |
9812-0105 |
|
● |
|
|
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT
TYPE<7KJ>,ENGINE POWER N-SPEC(7QV)
NSK
|
9-00093-624-0 |
02 |
1 |
9812-0105 |
|
● |
|
|
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4HE1 ENG(RLY)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
NSK
|
9-00093-624-0 |
02 |
1 |
0106- |
● |
● |
● |
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HE1 ENG(RLY)
G.V.W. 5.0-5.5TON(RPT)
NOK
|
8-94367-958-0 |
02 |
1 |
9812-0105 |
|
● |
|
|
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT
TYPE<7KJ>,ENGINE POWER N-SPEC(7QV)
NOK
|
8-94367-958-0 |
02 |
1 |
9812-0105 |
|
● |
|
|
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 6.0-6.5TON(RPV)
BRK WHL LK CONT LSPV<6PH>
EXC. FRAME STRAIGHT TYPE<7KJ>
NOK
|
8-94367-958-0 |
02 |
1 |
9812-0105 |
|
● |
|
|
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>,FRAME
STRAIGHT TYPE<7KJ>
NOK
|
8-94367-958-0 |
02 |
1 |
9812-0105 |
|
● |
|
|
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. FRAME STRAIGHT TYPE<7KJ>
NOK
|
8-94367-958-0 |
02 |
1 |
9812-0105 |
|
● |
|
|
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HE1 ENG(RLY)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
NOK
|
8-94367-958-0 |
02 |
1 |
0106- |
● |
● |
● |
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4JG2 ENG(RJC)
DISC BRAKE FRT<J52>
TKK
|
8-94336-314-1 |
02 |
1 |
9812-9903 |
|
● |
|
|
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT
TYPE<7KJ>
TKK
|
8-94336-314-1 |
02 |
1 |
9812-9903 |
|
● |
|
|
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4JG2 ENG(RJC),4JB1 ENG(RLF)
DISC BRAKE FRT<J52>
TKK
|
8-94336-314-1 |
02 |
1 |
9904-9912 |
|
● |
|
|
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT
TYPE<7KJ>
TKK
|
8-94336-314-1 |
02 |
1 |
9904-9912 |
|
● |
|
|
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4JG2 ENG(RJC),4JB1 ENG(RLF)
DISC BRAKE FRT<J52>
TKK
|
8-94336-314-1 |
02 |
1 |
0001-0105 |
|
● |
|
|
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HE1 ENG(RLY)
G.V.W. 6.0-6.5TON(RPV)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
ENGINE POWER N-SPEC(7QV)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT
TYPE<7KJ>
TKK
|
8-94336-314-1 |
02 |
1 |
0001-0105 |
|
● |
|
|
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4JH1 ENG(RJX)
TKK
|
8-94336-314-1 |
02 |
1 |
0106- |
|
● |
|
|
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4JG2 ENG(RJC)
DISC BRAKE FRT<J52>
NOK
|
8-94367-959-0 |
02 |
1 |
9812-9903 |
|
● |
|
|
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT
TYPE<7KJ>
NOK
|
8-94367-959-0 |
02 |
1 |
9812-9903 |
|
● |
|
|
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4JG2 ENG(RJC),4JB1 ENG(RLF)
DISC BRAKE FRT<J52>
NOK
|
8-94367-959-0 |
02 |
1 |
9904-9912 |
|
● |
|
|
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT
TYPE<7KJ>
NOK
|
8-94367-959-0 |
02 |
1 |
9904-9912 |
|
● |
|
|
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4JG2 ENG(RJC),4JB1 ENG(RLF)
DISC BRAKE FRT<J52>
NOK
|
8-94367-959-0 |
02 |
1 |
0001-0105 |
|
● |
|
|
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HE1 ENG(RLY)
G.V.W. 6.0-6.5TON(RPV)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
ENGINE POWER N-SPEC(7QV)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT
TYPE<7KJ>
NOK
|
8-94367-959-0 |
02 |
1 |
0001-0105 |
|
● |
|
|
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4JH1 ENG(RJX)
NOK
|
8-94367-959-0 |
02 |
1 |
0106- |
|
● |
|
|
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HE1 ENG(RLY)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,HYDRO BRAKE
BOOSTER<7QQ>
|
8-97023-977-1 |
02 |
1 |
0102-0105 |
|
● |
● |
|
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 8.0-8.5TON(RPZ)
NOK
|
8-97122-937-0 |
02 |
1 |
9812-0005 |
|
● |
● |
|
● |
● |
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
DISC BRAKE FRT<J52>
FRAME STRAIGHT TYPE<7KJ>
NOK
|
8-97122-937-0 |
02 |
1 |
9812-0005 |
|
● |
● |
|
● |
● |
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO BRAKE BOOSTER<7QQ>
EXC. DISC BRAKE FRT<J52>
NOK
|
8-97122-937-0 |
02 |
1 |
9812-0005 |
|
● |
● |
|
● |
● |
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 8.0-8.5TON(RPZ)
NOK
|
8-97122-937-0 |
02 |
1 |
0006-0105 |
|
● |
● |
|
● |
● |
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
DISC BRAKE FRT<J52>
FRAME STRAIGHT TYPE<7KJ>
NOK
|
8-97122-937-0 |
02 |
1 |
0006-0105 |
|
● |
● |
|
● |
● |
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
VEHICLE CATEGORY NQR<7NQ>
EXC. DISC BRAKE FRT<J52>
NOK
|
8-97122-937-0 |
02 |
1 |
0006-0105 |
|
● |
● |
|
● |
● |
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HE1 ENG(RLY)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
NOK
|
8-97122-937-0 |
02 |
1 |
0106- |
|
● |
● |
|
● |
● |
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HE1 ENG(RLY)
G.V.W. 6.0-6.5TON(RPV)
DISC BRAKE FRT<J52>
TKK
|
8-94336-316-1 |
02 |
1 |
9812-0101 |
● |
● |
● |
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 6.0-6.5TON(RPV)
BRK WHL LK CONT LSPV<6PH>
TKK
|
8-94336-316-1 |
02 |
1 |
9812-0101 |
● |
● |
● |
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 5.0-5.5TON(RPT),G.V.W.
7.0-7.5TON(RPX)
TKK
|
8-94336-316-1 |
02 |
1 |
9812-0101 |
● |
● |
● |
|
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
EXC. BRK WHL LK CONT LSPV<6PH>
TKK
|
8-94336-316-1 |
02 |
1 |
9812-0101 |
● |
● |
|
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 7.5-8.0TON(RPY)
EXC. FRAME STRAIGHT TYPE<7KJ>
TKK
|
8-94336-316-1 |
02 |
1 |
9812-0101 |
|
● |
|
|
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>,HYDRO
BRAKEBOOSTER<7QQ>
TKK
|
8-94336-316-1 |
02 |
1 |
9812-0101 |
|
● |
|
|
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT
TYPE<7KJ>,ENGINE POWER N-SPEC(7QV)
TKK
|
8-94336-316-1 |
02 |
1 |
9812-0101 |
|
● |
|
|
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 5.0-5.5TON(RPT),G.V.W.
6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX)
TKK
|
8-94336-316-1 |
02 |
1 |
0102-0105 |
● |
● |
● |
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 7.5-8.0TON(RPY)
EXC. FRAME STRAIGHT TYPE<7KJ>
TKK
|
8-94336-316-1 |
02 |
1 |
0102-0105 |
|
● |
|
|
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HE1 ENG(RLY)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
TKK
|
8-94336-316-1 |
02 |
1 |
0106- |
● |
● |
● |
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97048-635-5 |
01 |
1 |
9812-0105 |
|
● |
|
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4HE1 ENG(RLY)
G.V.W. 5.0-5.5TON(RPT)
|
8-97036-560-2 |
01 |
1 |
9812-0105 |
|
● |
|
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT
TYPE<7KJ>,ENGINE POWER N-SPEC(7QV)
|
8-97036-560-2 |
01 |
1 |
9812-0105 |
|
● |
|
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>,FRAME
STRAIGHT TYPE<7KJ>
|
8-97036-560-2 |
01 |
1 |
9812-0105 |
|
● |
|
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
G.V.W. 6.0-6.5TON(RPV)
BRK WHL LK CONT LSPV<6PH>
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97036-560-2 |
01 |
1 |
9812-0105 |
|
● |
|
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4JG2 ENG(RJC)
DISC BRAKE FRT<J52>
|
8-97036-556-2 |
01 |
1 |
9812-9903 |
|
● |
|
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT
TYPE<7KJ>
|
8-97036-556-2 |
01 |
1 |
9812-9903 |
|
● |
|
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4JG2 ENG(RJC),4JB1 ENG(RLF)
DISC BRAKE FRT<J52>
|
8-97036-556-2 |
01 |
1 |
9904-9912 |
|
● |
|
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
G.V.W. 6.0-6.5TON(RPV)
ENGINE POWER N-SPEC(7QV)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT
TYPE<7KJ>
|
8-97036-556-2 |
01 |
1 |
9904-9912 |
|
● |
|
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4JG2 ENG(RJC),4JB1 ENG(RLF)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 43/7(R42)
|
8-97036-556-2 |
01 |
1 |
0001-0105 |
|
● |
|
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4JG2 ENG(RJC),4JB1 ENG(RLF)
FINAL GEAR RATIO 41/7(R41)
DISC BRAKE FRT<J52>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97036-556-2 |
01 |
1 |
0001-0105 |
|
● |
|
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4HE1 ENG(RLY)
G.V.W. 6.0-6.5TON(RPV)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
ENGINE POWER N-SPEC(7QV)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,FRAME STRAIGHT
TYPE<7KJ>
|
8-97036-556-2 |
01 |
1 |
0001-0105 |
|
● |
|
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4JH1 ENG(RJX)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
LIMITED SLIP DIFF<6LV>
|
8-97036-556-2 |
01 |
1 |
0106-0202 |
|
● |
|
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4JH1 ENG(RJX)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97036-556-2 |
01 |
1 |
0203-0212 |
|
● |
|
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4JH1 ENG(RJX)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97036-556-2 |
01 |
1 |
0301- |
|
● |
|
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4JG2 ENG(RJC),4JB1 ENG(RLF)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
BRK WHL LK CONT LSPV<6PH>
|
8-97036-558-4 |
01 |
1 |
0001-0006 |
|
● |
|
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4JG2 ENG(RJC),4JB1 ENG(RLF)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
BRK WHL LK CONT LSPV<6PH>
|
8-97251-369-0 |
01 |
1 |
0007-0105 |
|
● |
|
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4JH1 ENG(RJX)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/8(RU1),FINAL
GEAR RATIO 43/9(S2J)
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97251-369-0 |
01 |
1 |
0106-0202 |
|
● |
|
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4JH1 ENG(RJX)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/8(RU1),FINAL
GEAR RATIO 43/9(S2J)
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97251-369-0 |
01 |
1 |
0203-0203 |
|
● |
|
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4JH1 ENG(RJX)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/8(RU1),FINAL
GEAR RATIO 43/9(S2J)
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. LIMITED SLIP DIFF<6LV>
|
8-97251-369-0 |
01 |
1 |
0204-0206 |
|
● |
|
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4JH1 ENG(RJX)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/8(RU1),FINAL
GEAR RATIO 43/9(S2J)
4 WHEEL ANTI LOCK BRAKE<JE5>
LIMITED SLIP DIFF<6LV>
|
8-97321-625-0 |
01 |
1 |
0204-0206 |
|
● |
|
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4JH1 ENG(RJX)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/8(RU1),FINAL
GEAR RATIO 43/9(S2J)
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97321-625-1 |
01 |
1 |
0207- |
|
● |
|
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>,HYDRO
BRAKEBOOSTER<7QQ>
|
8-97212-607-0 |
01 |
1 |
9812-9812 |
|
● |
● |
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>,HYDRO
BRAKEBOOSTER<7QQ>
|
8-97222-080-1 |
01 |
1 |
9812-0101 |
|
● |
● |
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4HE1 ENG(RLY)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/8(RU1),FINAL
GEAR RATIO 43/9(S2J)
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>,HYDRO
BRAKEBOOSTER<7QQ>
|
8-97222-080-1 |
01 |
1 |
0102-0105 |
|
● |
● |
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4HE1 ENG(RLY)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 43/7(R42)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,HYDRO BRAKE
BOOSTER<7QQ>
|
8-97262-091-0 |
01 |
1 |
0102-0105 |
|
● |
● |
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
G.V.W. 8.0-8.5TON(RPZ)
|
8-97203-500-0 |
01 |
1 |
9812-9812 |
|
● |
● |
|
● |
● |
|
| |
49 |
05.387 CASE; RR AXLE
4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
DISC BRAKE FRT<J52>
FRAME STRAIGHT TYPE<7KJ>
|
8-97203-500-0 |
01 |
1 |
9812-9812 |
|
● |
● |
|
● |
● |
|
| |
49 |
05.387 CASE; RR AXLE
4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO BRAKE BOOSTER<7QQ>
EXC. DISC BRAKE FRT<J52>
|
8-97203-500-0 |
01 |
1 |
9812-9812 |
|
● |
● |
|
● |
● |
|
| |
49 |
05.387 CASE; RR AXLE
G.V.W. 8.0-8.5TON(RPZ)
|
8-97222-079-1 |
01 |
1 |
9812-9912 |
|
● |
● |
|
● |
● |
|
| |
49 |
05.387 CASE; RR AXLE
4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
DISC BRAKE FRT<J52>
FRAME STRAIGHT TYPE<7KJ>
|
8-97222-079-1 |
01 |
1 |
9812-9912 |
|
● |
● |
|
● |
● |
|
| |
49 |
05.387 CASE; RR AXLE
4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO BRAKE BOOSTER<7QQ>
EXC. DISC BRAKE FRT<J52>
|
8-97222-079-1 |
01 |
1 |
9812-9912 |
|
● |
● |
|
● |
● |
|
| |
49 |
05.387 CASE; RR AXLE
G.V.W. 8.0-8.5TON(RPZ)
|
8-97222-079-1 |
01 |
1 |
0001-0005 |
|
● |
● |
|
● |
● |
|
| |
49 |
05.387 CASE; RR AXLE
4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
DISC BRAKE FRT<J52>
FRAME STRAIGHT TYPE<7KJ>
FINAL GEAR RATIO 43/9(S2J)
|
8-97222-079-1 |
01 |
1 |
0001-0005 |
|
● |
● |
|
● |
● |
|
| |
49 |
05.387 CASE; RR AXLE
4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
DISC BRAKE FRT<J52>
FRAME STRAIGHT TYPE<7KJ>
FINAL GEAR RATIO 43/10(S7C)
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97222-079-1 |
01 |
1 |
0001-0005 |
|
● |
● |
|
● |
● |
|
| |
49 |
05.387 CASE; RR AXLE
4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO BRAKE BOOSTER<7QQ>
EXC. DISC BRAKE FRT<J52>
|
8-97222-079-1 |
01 |
1 |
0001-0005 |
|
● |
● |
|
● |
● |
|
| |
49 |
05.387 CASE; RR AXLE
G.V.W. 8.0-8.5TON(RPZ)
|
8-97222-079-1 |
01 |
1 |
0006-0105 |
|
● |
● |
|
● |
● |
|
| |
49 |
05.387 CASE; RR AXLE
4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
DISC BRAKE FRT<J52>
FRAME STRAIGHT TYPE<7KJ>
FINAL GEAR RATIO 43/9(S2J)
|
8-97222-079-1 |
01 |
1 |
0006-0105 |
|
● |
● |
|
● |
● |
|
| |
49 |
05.387 CASE; RR AXLE
4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
DISC BRAKE FRT<J52>
FRAME STRAIGHT TYPE<7KJ>
FINAL GEAR RATIO 43/10(S7C)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97222-079-1 |
01 |
1 |
0006-0105 |
|
● |
● |
|
● |
● |
|
| |
49 |
05.387 CASE; RR AXLE
4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
VEHICLE CATEGORY NQR<7NQ>
EXC. DISC BRAKE FRT<J52>
|
8-97222-079-1 |
01 |
1 |
0006-0105 |
|
● |
● |
|
● |
● |
|
| |
49 |
05.387 CASE; RR AXLE
4HE1 ENG(RLY)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 43/10(S7C)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
|
8-97250-319-0 |
01 |
1 |
0001-0105 |
|
● |
● |
|
● |
● |
|
| |
49 |
05.387 CASE; RR AXLE
4HE1 ENG(RLY)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
|
8-97250-319-0 |
01 |
1 |
0106- |
|
● |
● |
|
● |
● |
● |
| |
49 |
05.387 CASE; RR AXLE
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
|
8-97206-373-0 |
01 |
1 |
9812-9812 |
● |
● |
● |
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
|
8-97206-373-0 |
01 |
1 |
9812-9812 |
● |
● |
● |
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
|
8-97222-081-1 |
01 |
1 |
9812-9912 |
● |
● |
● |
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
|
8-97222-081-1 |
01 |
1 |
9812-9912 |
● |
● |
● |
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4HE1 ENG(RLY)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
|
8-97222-081-1 |
01 |
1 |
0001-0105 |
● |
● |
● |
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4HE1 ENG(RLY)
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
FINAL GEAR RATIO 41/9(HC6)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97222-081-1 |
01 |
1 |
0001-0105 |
● |
● |
● |
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4HE1 ENG(RLY)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/9(HC6)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 6.0-6.5TON(RPV)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
|
8-97250-339-0 |
01 |
1 |
0001-0105 |
● |
● |
● |
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4HE1 ENG(RLY)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
|
8-97302-439-0 |
01 |
1 |
0106- |
● |
● |
● |
● |
|
|
|
| |
58 |
05.508 PLUG; DRAIN,AXLE CASE
M16X12.5
|
8-97109-869-0 |
01 |
1 |
9812- |
● |
● |
● |
● |
● |
● |
● |
| |
59 |
05.400 GASKET; DRAIN PLUG
01.252
ID=16.2 OD=24
|
9-09571-416-0 |
01 |
1 |
9812- |
● |
● |
● |
● |
● |
● |
● |
| |
60 |
05.387 BREATHER; RR AXLE CASE
L=30
|
8-94416-611-1 |
01 |
1 |
9812- |
● |
● |
● |
● |
● |
● |
● |
| |
63 |
05.400 PLUG; OIL FILLER,AXLE CASE
04.103
M20X10.5
|
9-09662-005-0 |
01 |
1 |
9812- |
● |
● |
● |
● |
● |
● |
● |
| |
64 |
05.400 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30
|
8-94462-734-0 |
01 |
1 |
9812- |
● |
● |
● |
● |
● |
● |
● |
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
M10X40 W/LK WASHER
|
0-50061-040-0 |
11 |
1 |
9812-9903 |
● |
● |
● |
|
|
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
4HE1 ENG(RLY)
REAR AXLE HEAVY DUTY 292MM(G73)
M10X40 W/LK WASHER
|
0-50061-040-0 |
11 |
1 |
9904-9912 |
|
● |
|
|
|
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
M10X40 W/LK WASHER
|
0-50061-040-0 |
11 |
1 |
9904-9912 |
● |
|
● |
● |
|
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
M10X40 W/LK WASHER
|
0-50061-040-0 |
11 |
1 |
0101-0105 |
● |
● |
● |
● |
|
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
4HE1 ENG(RLY)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.5-8.0TON(RPY)
M10X40 W/LK WASHER
|
0-50061-040-0 |
07 |
1 |
0106- |
● |
● |
● |
● |
● |
● |
● |
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
M10X40 W/LK WASHER
|
0-50061-040-0 |
07 |
1 |
9812-0105 |
|
● |
● |
|
● |
● |
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
4JH1 ENG(RJX)
M10X40 W/LK WASHER
|
0-50061-040-0 |
11 |
1 |
0106- |
|
● |
|
|
|
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
M10X50 W/LK WASHER
|
0-50061-050-0 |
04 |
1 |
9812-0105 |
|
● |
● |
|
● |
● |
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
4HE1 ENG(RLY)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.5-8.0TON(RPY)
M10X50 W/LK WASHER
|
0-50061-050-0 |
04 |
1 |
0106- |
● |
● |
● |
● |
● |
● |
● |
| |
69 |
05.387 STUD; AXLE CASE
M10X40.5 L=52.5
|
8-97026-282-0 |
02 |
1 |
9812- |
● |
● |
● |
● |
● |
● |
● |
| |
70 |
05.387 NUT; CARRIER
08.917
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
9812- |
● |
● |
● |
● |
● |
● |
● |
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
G.V.W. 8.0-8.5TON(RPZ)
M14X35
|
8-97122-853-2 |
12 |
1 |
9812-0005 |
|
● |
● |
|
● |
● |
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
DISC BRAKE FRT<J52>
FRAME STRAIGHT TYPE<7KJ>
M14X35
|
8-97122-853-2 |
12 |
1 |
9812-0005 |
|
● |
● |
|
● |
● |
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO BRAKE BOOSTER<7QQ>
EXC. DISC BRAKE FRT<J52>
M14X35
|
8-97122-853-2 |
12 |
1 |
9812-0005 |
|
● |
● |
|
● |
● |
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
G.V.W. 8.0-8.5TON(RPZ)
M14X35
|
8-97122-853-2 |
12 |
1 |
0006-0105 |
|
● |
● |
|
● |
● |
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
DISC BRAKE FRT<J52>
FRAME STRAIGHT TYPE<7KJ>
M14X35
|
8-97122-853-2 |
12 |
1 |
0006-0105 |
|
● |
● |
|
● |
● |
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
VEHICLE CATEGORY NQR<7NQ>
EXC. DISC BRAKE FRT<J52>
M14X35
|
8-97122-853-2 |
12 |
1 |
0006-0105 |
|
● |
● |
|
● |
● |
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
4HE1 ENG(RLY)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
M14X35
|
8-97122-853-2 |
12 |
1 |
0106- |
|
● |
● |
|
● |
● |
● |
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
M12X32
|
5-09000-078-0 |
12 |
1 |
9812-0105 |
● |
● |
● |
● |
|
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>,HYDRO
BRAKEBOOSTER<7QQ>
M12X32
|
5-09000-078-0 |
12 |
1 |
9812-0105 |
|
● |
● |
|
|
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. FRAME STRAIGHT TYPE<7KJ>
M12X32
|
5-09000-078-0 |
12 |
1 |
9812-0105 |
|
● |
|
|
|
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
4HE1 ENG(RLY)
G.V.W. 6.0-6.5TON(RPV)
M12X32
|
5-09000-078-0 |
12 |
1 |
0106- |
● |
● |
● |
● |
|
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
4JH1 ENG(RJX)
M12X32
|
5-09000-078-0 |
12 |
1 |
0106- |
|
● |
|
|
|
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>,HYDRO
BRAKEBOOSTER<7QQ>
00.002
ID=12.2
|
9-09150-812-0 |
12 |
1 |
9812-0101 |
|
● |
● |
|
|
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
G.V.W. 8.0-8.5TON(RPZ)
05.422
ID=14.2
|
9-09150-814-0 |
12 |
1 |
9812-0005 |
|
● |
● |
|
● |
● |
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
DISC BRAKE FRT<J52>
FRAME STRAIGHT TYPE<7KJ>
05.422
ID=14.2
|
9-09150-814-0 |
12 |
1 |
9812-0005 |
|
● |
● |
|
● |
● |
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO BRAKE BOOSTER<7QQ>
EXC. DISC BRAKE FRT<J52>
05.422
ID=14.2
|
9-09150-814-0 |
12 |
1 |
9812-0005 |
|
● |
● |
|
● |
● |
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
G.V.W. 8.0-8.5TON(RPZ)
05.422
ID=14.2
|
9-09150-814-0 |
12 |
1 |
0006-0105 |
|
● |
● |
|
● |
● |
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
DISC BRAKE FRT<J52>
FRAME STRAIGHT TYPE<7KJ>
05.422
ID=14.2
|
9-09150-814-0 |
12 |
1 |
0006-0105 |
|
● |
● |
|
● |
● |
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
VEHICLE CATEGORY NQR<7NQ>
EXC. DISC BRAKE FRT<J52>
05.422
ID=14.2
|
9-09150-814-0 |
12 |
1 |
0006-0105 |
|
● |
● |
|
● |
● |
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
4HE1 ENG(RLY)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
05.422
ID=14.2
|
9-09150-814-0 |
12 |
1 |
0106- |
|
● |
● |
|
● |
● |
● |
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
06.515
ID=12.2
|
9-09150-612-0 |
12 |
1 |
9812-0101 |
● |
● |
● |
● |
|
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. FRAME STRAIGHT TYPE<7KJ>
06.515
ID=12.2
|
9-09150-612-0 |
12 |
1 |
9812-0101 |
|
● |
|
|
|
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
06.515
ID=12.2
|
9-09150-612-0 |
12 |
1 |
0102-0105 |
● |
● |
● |
● |
|
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>,HYDRO
BRAKEBOOSTER<7QQ>
06.515
ID=12.2
|
9-09150-612-0 |
12 |
1 |
0102-0105 |
|
● |
● |
|
|
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. FRAME STRAIGHT TYPE<7KJ>
06.515
ID=12.2
|
9-09150-612-0 |
12 |
1 |
0102-0105 |
|
● |
|
|
|
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
4HE1 ENG(RLY)
G.V.W. 6.0-6.5TON(RPV)
06.515
ID=12.2
|
9-09150-612-0 |
12 |
1 |
0106- |
● |
● |
● |
● |
|
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
4JH1 ENG(RJX)
06.515
ID=12.2
|
9-09150-612-0 |
12 |
1 |
0106- |
|
● |
|
|
|
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
G.V.W. 8.0-8.5TON(RPZ)
07.529
M14
|
9-99110-514-0 |
12 |
1 |
9812-0005 |
|
● |
● |
|
● |
● |
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
DISC BRAKE FRT<J52>
FRAME STRAIGHT TYPE<7KJ>
07.529
M14
|
9-99110-514-0 |
12 |
1 |
9812-0005 |
|
● |
● |
|
● |
● |
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO BRAKE BOOSTER<7QQ>
EXC. DISC BRAKE FRT<J52>
07.529
M14
|
9-99110-514-0 |
12 |
1 |
9812-0005 |
|
● |
● |
|
● |
● |
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
G.V.W. 8.0-8.5TON(RPZ)
07.529
M14
|
9-99110-514-0 |
12 |
1 |
0006-0105 |
|
● |
● |
|
● |
● |
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
DISC BRAKE FRT<J52>
FRAME STRAIGHT TYPE<7KJ>
07.529
M14
|
9-99110-514-0 |
12 |
1 |
0006-0105 |
|
● |
● |
|
● |
● |
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
VEHICLE CATEGORY NQR<7NQ>
EXC. DISC BRAKE FRT<J52>
07.529
M14
|
9-99110-514-0 |
12 |
1 |
0006-0105 |
|
● |
● |
|
● |
● |
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
4HE1 ENG(RLY)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
07.529
M14
|
9-99110-514-0 |
12 |
1 |
0106- |
|
● |
● |
|
● |
● |
● |
| |
76 |
05.002 NUT; RR BRK ASM SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
04.634
M12
|
9-99110-512-0 |
12 |
1 |
9812-0105 |
● |
● |
● |
● |
|
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>,HYDRO
BRAKEBOOSTER<7QQ>
04.634
M12
|
9-99110-512-0 |
12 |
1 |
9812-0105 |
|
● |
● |
|
|
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. FRAME STRAIGHT TYPE<7KJ>
04.634
M12
|
9-99110-512-0 |
12 |
1 |
9812-0105 |
|
● |
|
|
|
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
4HE1 ENG(RLY)
G.V.W. 6.0-6.5TON(RPV)
04.634
M12
|
9-99110-512-0 |
12 |
1 |
0106- |
● |
● |
● |
● |
|
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
4JH1 ENG(RJX)
04.634
M12
|
9-99110-512-0 |
12 |
1 |
0106- |
|
● |
|
|
|
|
|
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
REAR AXLE HEAVY DUTY 320MM(6CP)
BRK WHL LK CONT LSPV<6PH>
|
8-97145-451-2 |
01 |
1 |
9812-0105 |
|
● |
● |
|
● |
● |
|
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
4HE1 ENG(RLY)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.5-8.0TON(RPY)
|
8-97145-451-2 |
01 |
1 |
0106- |
● |
● |
● |
● |
● |
● |
● |
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
REAR AXLE HEAVY DUTY 292MM(G73)
BRK WHL LK CONT LSPV<6PH>
|
8-97011-997-3 |
01 |
1 |
9812-0105 |
● |
● |
● |
● |
|
|
|
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
4JH1 ENG(RJX)
|
8-97011-997-3 |
01 |
1 |
0106- |
|
● |
|
|
|
|
|
