9-32 — REAR BODY; GUARD FRAME (#43396) — 91 parça

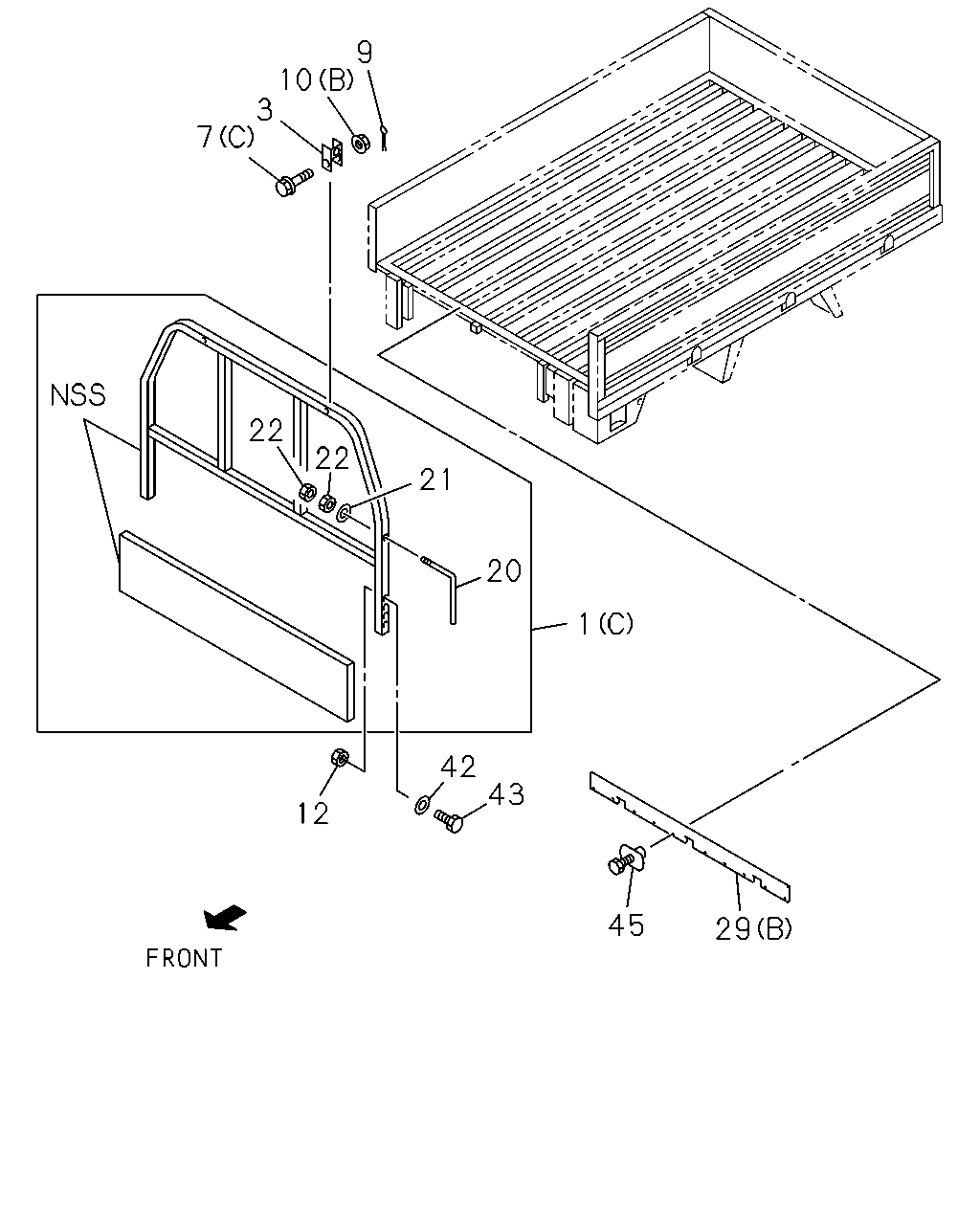

çizim 55748
9 10 3 7 22 22 21 20 1 42 43 12 45 29
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 17.455 FRAME; GUARD,RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (C) 		8-97356-791-0 01 1 0807- ●
1 17.455 FRAME; GUARD,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-97310-075-2 01 1 0307- ● ● ● ●
1 17.455 FRAME; GUARD,RR BODY
REAR BODY FLAT BED(E39) (C) 		8-97356-791-0 01 1 0307-0709 ●
1 17.455 FRAME; GUARD,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-97236-678-5 01 1 0307- ● ●
3 17.447 STOPPER; GUARD FRAME,RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-97354-208-0 02 1 0807- ●
3 17.447 STOPPER; GUARD FRAME,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-97352-624-0 02 1 0307- ● ● ● ● ● ●
3 17.447 STOPPER; GUARD FRAME,RR BODY
REAR BODY FLAT BED(E39) 		8-97354-208-0 02 1 0307-0709 ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (C) M10X60 		8-94197-069-0 02 1 0807- ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) M6X45 		8-94481-022-0 02 1 0307-0611 ● ● ● ● ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) M6X45 		8-98056-129-0 02 1 0612- ● ● ● ● ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) 01.269 (A) M8X16.5 		1-09104-027-1 06 1 0307-0611 ● ● ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 01.269 (A) M8X16.5 		1-09104-027-1 06 1 0307-0611 ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) 17.400 (A) M8X16.5 		8-98058-001-0 06 1 0612- ● ● ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 17.400 (A) M8X16.5 		8-98058-001-0 06 1 0612- ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY FLAT BED(E39) (C) M10X60 		8-94197-069-0 02 1 0307-0709 ●
9 17.447 PIN; SPLIT,GUARD FRAME
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) OD=1.8 L=20 		0-81122-020-0 02 1 0807- ●
9 17.447 PIN; SPLIT,GUARD FRAME
REAR BODY FLAT BED(E39) 06.234 OD=1.8 L=20 		9-08112-020-0 02 1 0307-0607 ●
9 17.447 PIN; SPLIT,GUARD FRAME
REAR BODY FLAT BED(E39) OD=1.8 L=20 		0-81122-020-0 02 1 0608-0709 ●
10 17.447 NUT; GUARD FRAME STOPPER
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (B) M10 		8-94197-072-0 02 1 0807- ●
10 17.447 NUT; GUARD FRAME STOPPER
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M6 FLANGE 		8-94481-428-0 02 1 0307-0611 ● ● ● ● ● ●
10 17.447 NUT; GUARD FRAME STOPPER
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M6 		8-98056-127-0 02 1 0612- ● ● ● ● ● ●
10 17.447 NUT; GUARD FRAME STOPPER
REAR BODY FLAT BED(E39) (B) M10 		8-94197-072-0 02 1 0307-0709 ●
12 17.455 NUT; GUARD FRAME
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) M10 FLANGE 		8-97065-439-0 08 1 0807- ●
12 17.455 NUT; GUARD FRAME
REAR BODY FLAT BED(E39) M10 FLANGE 		8-97065-439-0 08 1 0307-0709 ●
20 17.455 HANDLE; FRT,RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-94197-048-0 02 1 0807- ●
20 17.455 HANDLE; FRT,RR BODY
REAR BODY FLAT BED(E39) 		8-94197-048-0 02 1 0307-0709 ●
21 17.455 WASHER; LK,FRT HANDLE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 06.172 ID=12.5 		9-09164-512-0 02 1 0807-0902 ●
21 17.455 WASHER; LK,FRT HANDLE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 17.204 ID=12.5 		0-91614-512-0 02 1 0903-0909 ●
21 17.455 WASHER; LK,FRT HANDLE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 06.172 ID=12.5 		9-09164-512-0 02 1 0910- ●
21 17.455 WASHER; LK,FRT HANDLE
REAR BODY FLAT BED(E39) 06.172 ID=12.5 		9-09164-512-0 02 1 0307-0709 ●
22 17.455 NUT; FRT HANDLE
REAR BODY FLAT BED(E39) 07.347 M12 		9-99111-412-0 04 1 0307-0601 ●
22 17.455 NUT; FRT HANDLE
REAR BODY FLAT BED(E39) 04.439 M12 		0-91111-512-0 04 1 0602-0709 ●
29 17.455 COVER; GUARD FRAME
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (B) 		8-97354-207-0 01 1 0807- ●
29 17.455 COVER; GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-97918-416-0 02 1 0307- ● ● ● ● ● ●
29 17.455 COVER; GUARD FRAME
REAR BODY FLAT BED(E39) (B) 		8-97354-207-0 01 1 0307-0709 ●
42 17.447 WASHER; PL
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 17.455 		8-97065-438-0 12 1 0807- ●
42 17.447 WASHER; PL
REAR BODY FLAT BED(E39) 17.455 		8-97065-438-0 12 1 0307-0709 ●
43 17.447 BOLT; GUARD FRAME,RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 06.216 M8X25 FLANGE 		0-28650-825-0 07 1 0807- ●
43 17.447 BOLT; GUARD FRAME,RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 17.455 M10X22 FLANGE 		8-97065-440-0 12 1 0807- ●
43 17.447 BOLT; GUARD FRAME,RR BODY
REAR BODY FLAT BED(E39) 02.559 M8X25 FLANGE 		0-28680-825-0 07 1 0307-0601 ●
43 17.447 BOLT; GUARD FRAME,RR BODY
REAR BODY FLAT BED(E39) 06.216 M8X25 FLANGE 		0-28650-825-0 07 1 0602-0709 ●
43 17.447 BOLT; GUARD FRAME,RR BODY
REAR BODY FLAT BED(E39) 17.455 M10X22 FLANGE 		8-97065-440-0 12 1 0307-0709 ●
45 08.131 RIVET; DUST SHIELD COVER,RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 08.154 		8-94221-150-0 10 1 0807- ●
45 08.131 RIVET; DUST SHIELD COVER,RR BODY
REAR BODY FLAT BED(E39) 08.154 		8-94221-150-0 10 1 0307-0709 ●

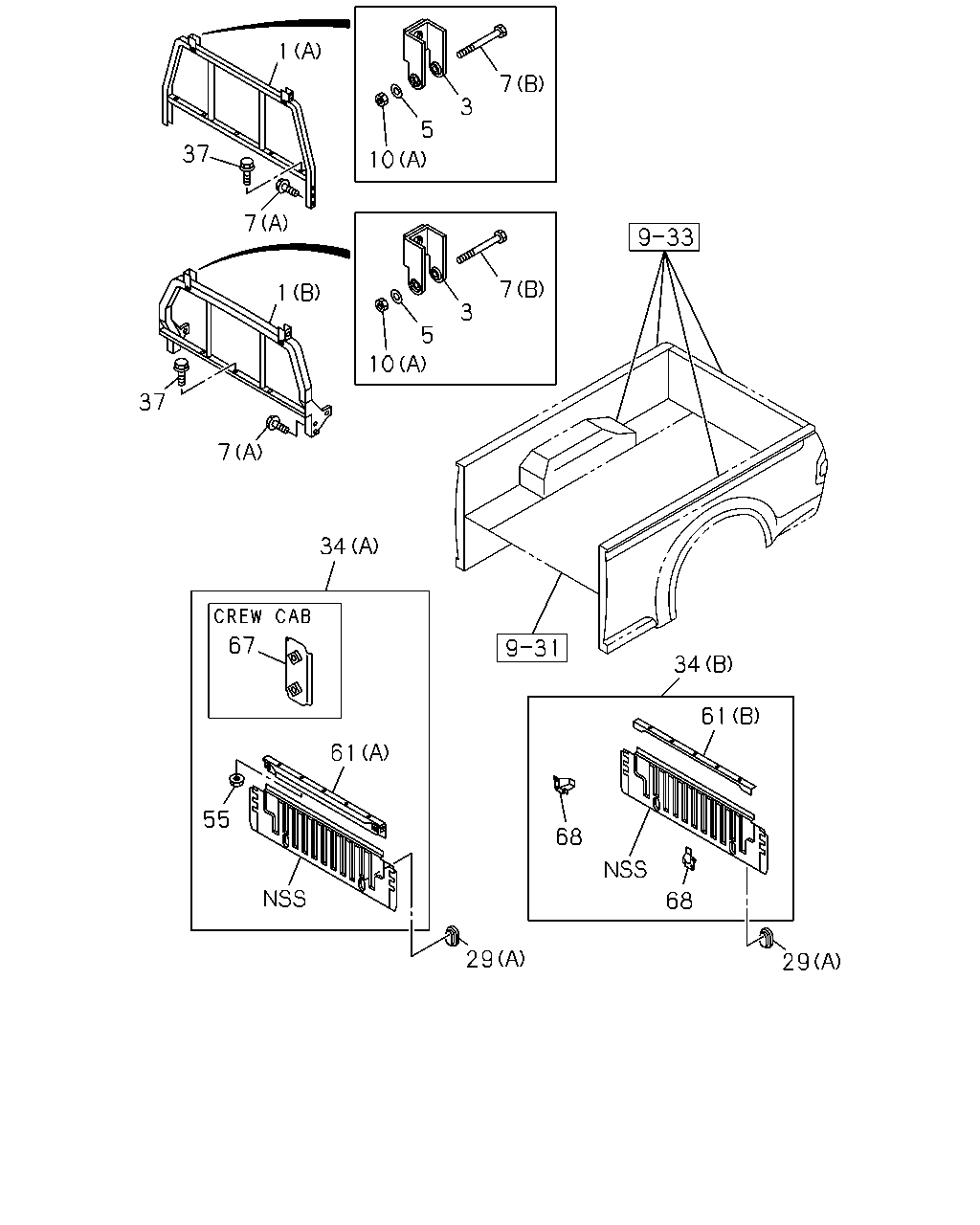

çizim 56112
7 3 5 10 1 37 7 1 7 3 5 10 37 7 34 67 55 61 29 68 68 61 34 29
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 17.455 FRAME; GUARD,RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (C) 		8-97356-791-0 01 1 0807- ●
1 17.455 FRAME; GUARD,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-97310-075-2 01 1 0307- ● ● ● ●
1 17.455 FRAME; GUARD,RR BODY
REAR BODY FLAT BED(E39) (C) 		8-97356-791-0 01 1 0307-0709 ●
1 17.455 FRAME; GUARD,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-97236-678-5 01 1 0307- ● ●
3 17.447 STOPPER; GUARD FRAME,RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-97354-208-0 02 1 0807- ●
3 17.447 STOPPER; GUARD FRAME,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-97352-624-0 02 1 0307- ● ● ● ● ● ●
3 17.447 STOPPER; GUARD FRAME,RR BODY
REAR BODY FLAT BED(E39) 		8-97354-208-0 02 1 0307-0709 ●
5 17.447 WASHER; PL,GUARD FRAME STOPPER
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-94481-019-0 02 1 0307-0612 ● ● ● ● ● ●
5 17.447 WASHER; PL,GUARD FRAME STOPPER
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98056-308-0 02 1 0701- ● ● ● ● ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (C) M10X60 		8-94197-069-0 02 1 0807- ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) M6X45 		8-94481-022-0 02 1 0307-0611 ● ● ● ● ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) M6X45 		8-98056-129-0 02 1 0612- ● ● ● ● ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) 01.269 (A) M8X16.5 		1-09104-027-1 06 1 0307-0611 ● ● ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 01.269 (A) M8X16.5 		1-09104-027-1 06 1 0307-0611 ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) 17.400 (A) M8X16.5 		8-98058-001-0 06 1 0612- ● ● ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 17.400 (A) M8X16.5 		8-98058-001-0 06 1 0612- ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY FLAT BED(E39) (C) M10X60 		8-94197-069-0 02 1 0307-0709 ●
10 17.447 NUT; GUARD FRAME STOPPER
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (B) M10 		8-94197-072-0 02 1 0807- ●
10 17.447 NUT; GUARD FRAME STOPPER
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M6 FLANGE 		8-94481-428-0 02 1 0307-0611 ● ● ● ● ● ●
10 17.447 NUT; GUARD FRAME STOPPER
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M6 		8-98056-127-0 02 1 0612- ● ● ● ● ● ●
10 17.447 NUT; GUARD FRAME STOPPER
REAR BODY FLAT BED(E39) (B) M10 		8-94197-072-0 02 1 0307-0709 ●
29 17.455 COVER; GUARD FRAME
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (B) 		8-97354-207-0 01 1 0807- ●
29 17.455 COVER; GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-97918-416-0 02 1 0307- ● ● ● ● ● ●
29 17.455 COVER; GUARD FRAME
REAR BODY FLAT BED(E39) (B) 		8-97354-207-0 01 1 0307-0709 ●
34 17.455 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-97327-406-0 01 1 0307-0309 ● ●
34 17.455 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-97373-643-1 01 1 0310- ● ●
34 17.455 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN <V89> (A) 		8-97236-255-2 01 1 0307-0309 ● ●
34 17.455 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN <V89> (A) 		8-97369-725-1 01 1 0310- ● ●
34 17.455 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-97236-254-3 01 1 0307-0309 ● ●
34 17.455 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-97369-723-1 01 1 0310-0402 ● ●
34 17.455 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-97369-723-1 01 1 0403- ● ●
34 17.455 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-97327-407-0 01 1 0307-0309 ● ●
34 17.455 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-97373-644-1 01 1 0310- ● ●
34 17.455 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN <V89> (A) 		8-93358-340-2 01 1 0307-0309 ● ●
34 17.455 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN <V89> (A) 		8-97369-727-1 01 1 0310- ● ●
37 17.455 BOLT; GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 01.428 M6X12 FLANGE 		0-28080-612-0 07 1 0307-0601 ● ● ● ● ● ●
37 17.455 BOLT; GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 03.162 M6X12 FLANGE 		0-28050-612-0 07 1 0602- ● ● ● ● ● ●
55 17.070 NUT; MEMBER
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 16.545 M6 		9-09114-086-0 05 1 0307- ● ● ● ●
61 17.447 BAR ASM
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-97326-371-0 01 1 0307- ● ● ● ●
61 17.447 BAR ASM
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN <V89> (A) 		8-97236-715-0 01 1 0307- ● ● ● ●
61 17.447 BAR ASM
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-97252-308-1 01 1 0307-0402 ● ●
61 17.447 BAR ASM
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-97252-308-2 01 1 0403- ● ●
67 17.455 PLATE; RR BODY FRONT
REAR BODY DBL WALL CTR PULL(E63) 		8-93326-173-1 02 1 0307- ● ●
68 17.455 EXTENSION; FRONT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-97287-179-1 01 1 0307-0402 ● ●
68 17.455 EXTENSION; FRONT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-97287-179-1 01 1 0403- ● ●
68 17.455 EXTENSION; FRONT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-97287-178-1 01 1 0307-0402 ● ●
68 17.455 EXTENSION; FRONT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-97287-178-1 01 1 0403- ● ●
