Sayfa 9-31 - Isuzu EPC

9-31 — REAR BODY; FLOOR AND FENDER (#43395) — 63 parça

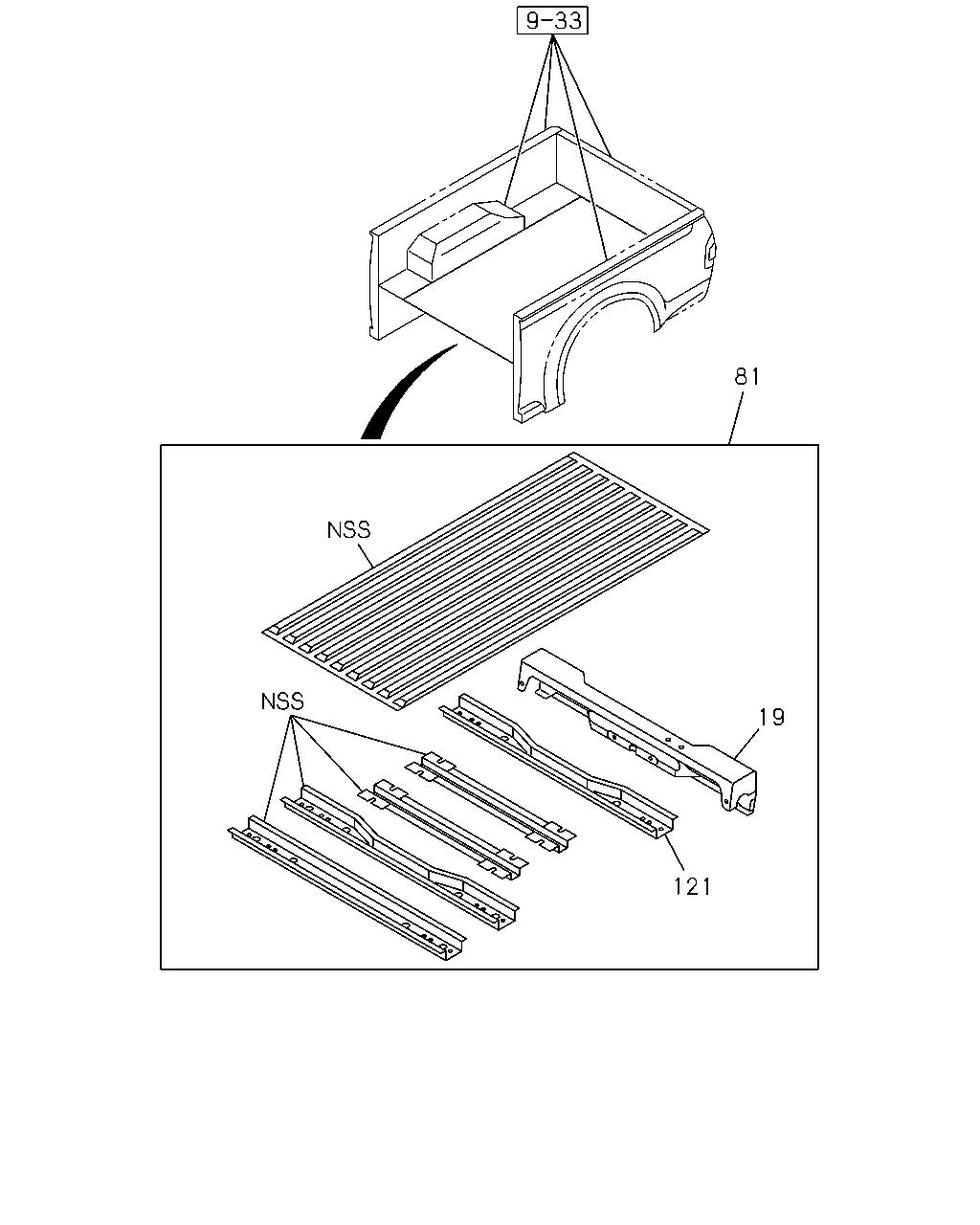

81 19 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
19	17.208 BOLSTER; RR END,RR BODY REAR BODY DBL WALL CTR PULL(E63)	8-97236-648-7	01	1	0307-	●	●	●	●
19	17.208 BOLSTER; RR END,RR BODY REAR BODY DBL WALL CTR PULL(E63)	8-97251-570-7	01	1	0307-					●	●
81	17.400 FLOOR ASM; RR BODY BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39)	8-97244-823-2	01	1	0807-					●
81	17.400 FLOOR ASM; RR BODY REAR BODY DBL WALL CTR PULL(E63)	8-97236-640-5	01	1	0307-	●		●
81	17.400 FLOOR ASM; RR BODY REAR BODY FLAT BED(E39)	8-97244-823-2	01	1	0307-0709					●
81	17.400 FLOOR ASM; RR BODY REAR BODY DBL WALL CTR PULL(E63)	8-97236-639-5	01	1	0307-					●	●
81	17.400 FLOOR ASM; RR BODY REAR BODY DBL WALL CTR PULL(E63)	8-93333-729-7	01	1	0307-		●		●
121	17.208 BOLSTER; RR BODY REAR BODY DBL WALL CTR PULL(E63)	8-97236-647-2	01	1	0307-	●	●	●	●	●	●

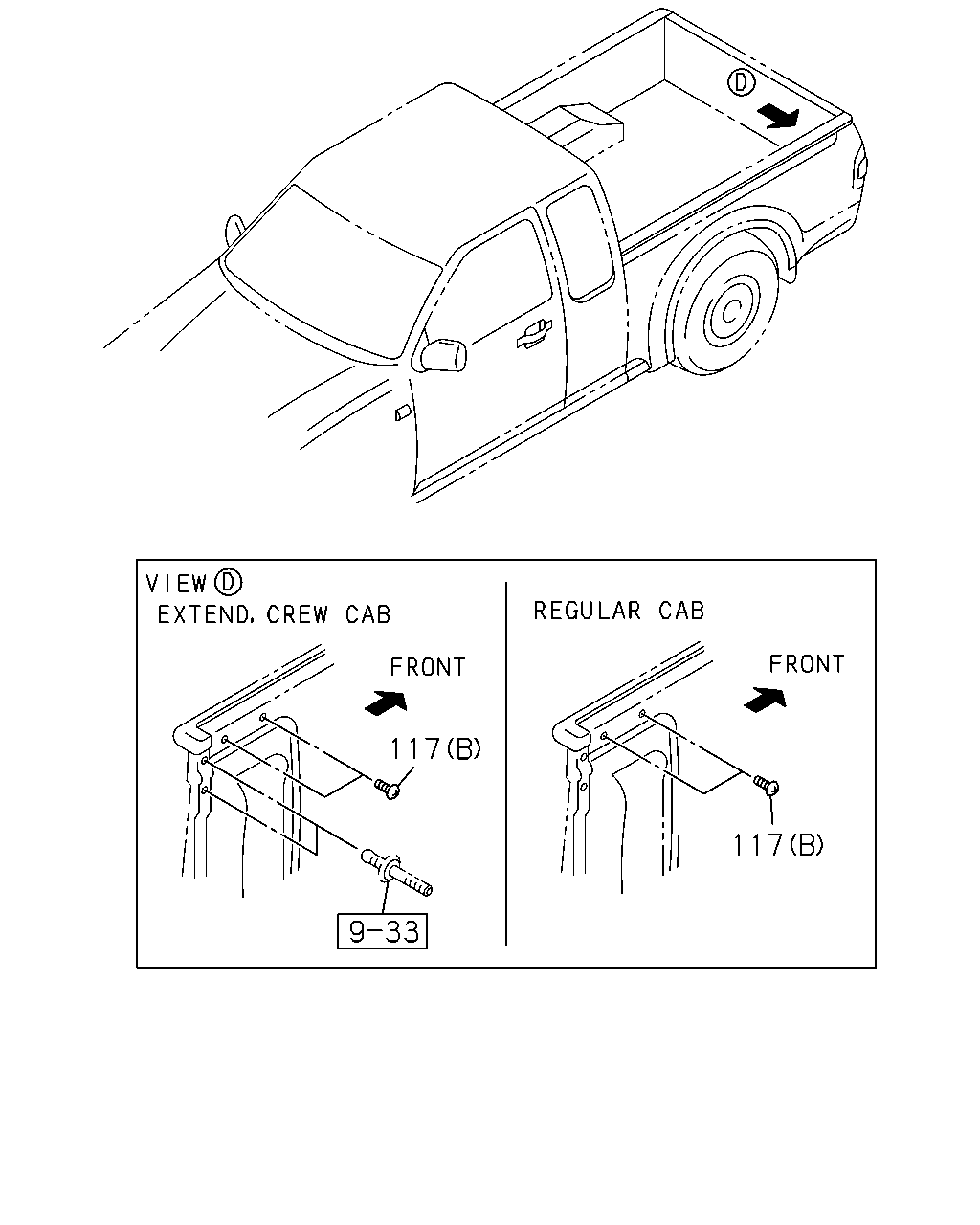

117 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 02.559 (A) M8X25 FLANGE	0-28680-825-0	04	1	0307-0511	●	●	●	●	●	●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 02.559 (A) M8X25 FLANGE	0-28680-825-0	04	1	0307-0511	●		●		●	●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 06.216 (A) M8X25 FLANGE	0-28650-825-0	04	1	0512-	●	●	●	●	●	●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 06.216 (A) M8X25 FLANGE	0-28650-825-0	04	1	0512-	●		●		●	●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 01.269 (B) M8X16.5	1-09104-027-1	04	1	0307-0611	●	●	●	●	●	●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X16.5	8-98058-001-0	04	1	0612-	●	●	●	●	●	●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0307-0511					●	●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0512-					●	●

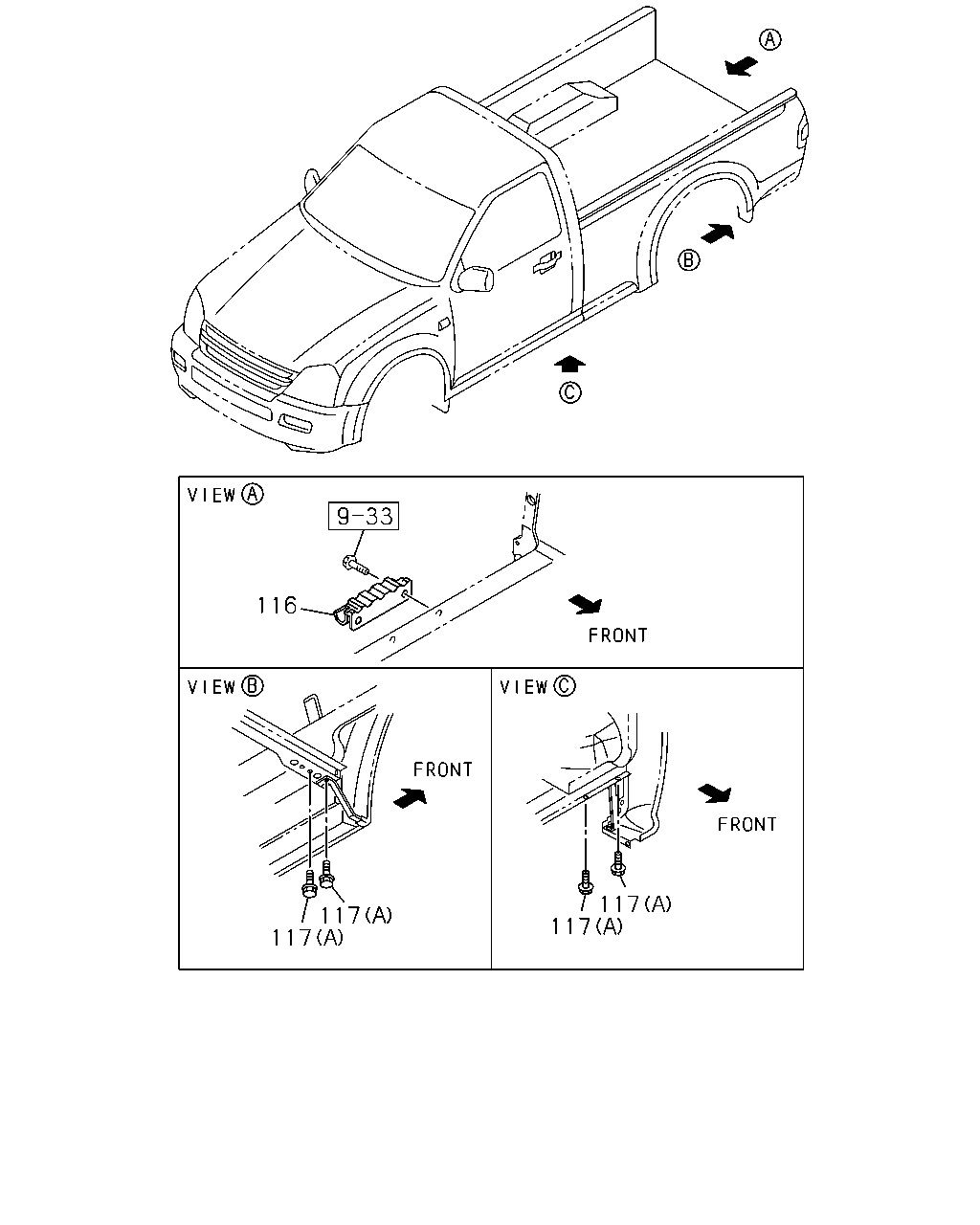

116 117 117 117 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
116	17.400 SUPPORT; RR BODY,SILL REAR BODY DBL WALL CTR PULL(E63)	8-97289-528-0	01	1	0307-0611					●	●
116	17.400 SUPPORT; RR BODY,SILL REAR BODY DBL WALL CTR PULL(E63)	8-98053-898-0	01	1	0612-					●	●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 02.559 (A) M8X25 FLANGE	0-28680-825-0	04	1	0307-0511	●	●	●	●	●	●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 02.559 (A) M8X25 FLANGE	0-28680-825-0	04	1	0307-0511	●		●		●	●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 06.216 (A) M8X25 FLANGE	0-28650-825-0	04	1	0512-	●	●	●	●	●	●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 06.216 (A) M8X25 FLANGE	0-28650-825-0	04	1	0512-	●		●		●	●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 01.269 (B) M8X16.5	1-09104-027-1	04	1	0307-0611	●	●	●	●	●	●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X16.5	8-98058-001-0	04	1	0612-	●	●	●	●	●	●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0307-0511					●	●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0512-					●	●

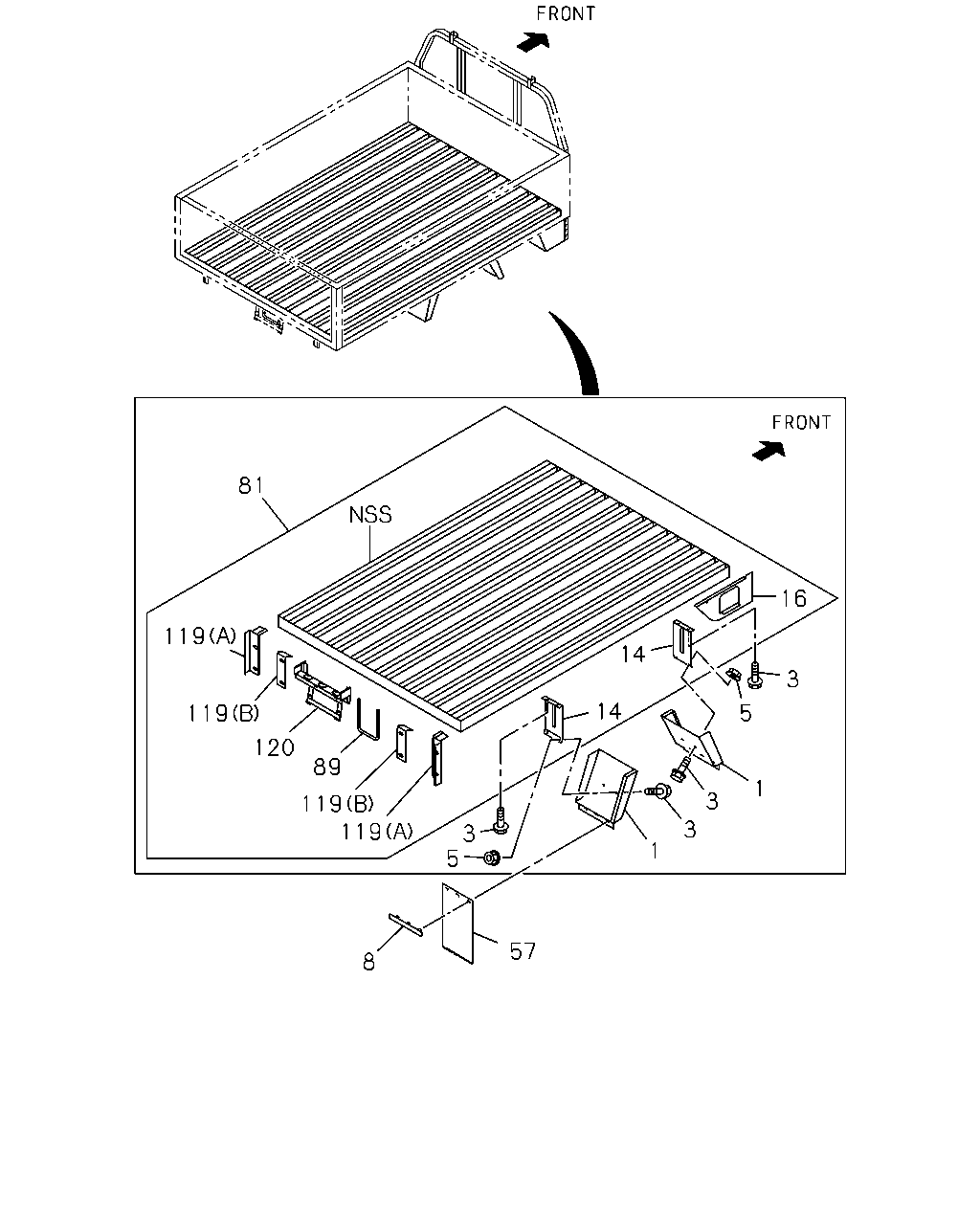

81 119 119 120 89 119 119 8 57 5 3 1 3 3 1 5 3 16 14 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	08.203 FENDER; RR,RR BODY BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) FRONT	8-97263-540-2	01	1	0807-					●
1	08.203 FENDER; RR,RR BODY BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) FRONT	8-97263-541-2	01	1	0807-					●
1	08.203 FENDER; RR,RR BODY BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) REAR	8-97263-542-2	01	1	0807-					●
1	08.203 FENDER; RR,RR BODY BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) REAR	8-97263-543-2	01	1	0807-					●
1	08.203 FENDER; RR,RR BODY REAR BODY FLAT BED(E39) FRONT	8-97263-541-2	01	1	0307-0709					●
1	08.203 FENDER; RR,RR BODY REAR BODY FLAT BED(E39) REAR	8-97263-543-2	01	1	0307-0709					●
1	08.203 FENDER; RR,RR BODY REAR BODY FLAT BED(E39) FRONT	8-97263-540-2	01	1	0307-0709					●
1	08.203 FENDER; RR,RR BODY REAR BODY FLAT BED(E39) REAR	8-97263-542-2	01	1	0307-0709					●
3	08.203 BOLT; FENDER TO RR BODY BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 17.208 M6X12 W/LK&PL WASHER	8-94197-192-0	16	1	0807-					●
3	08.203 BOLT; FENDER TO RR BODY REAR BODY FLAT BED(E39) 17.208 M6X12 W/LK&PL WASHER	8-94197-192-0	16	1	0307-0709					●
5	17.447 NUT; FENDER TO BRKT BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 17.208 M6 FLANGE	8-94197-193-0	08	1	0807-					●
5	17.447 NUT; FENDER TO BRKT REAR BODY FLAT BED(E39) 17.208 M6 FLANGE	8-94197-193-0	08	1	0307-0709					●
8	08.212 HOLDER; FLAP RUBBER BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39)	8-97354-203-0	02	1	0807-					●
8	08.212 HOLDER; FLAP RUBBER REAR BODY FLAT BED(E39)	8-97354-203-0	02	1	0307-0709					●
14	08.212 SUPPORT; RR FENDER BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39)	8-97356-079-0	04	1	0807-					●
14	08.212 SUPPORT; RR FENDER REAR BODY FLAT BED(E39)	8-97356-079-0	04	1	0307-0709					●
16	17.455 CONNECTOR; GUARD FRAME BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39)	8-97245-189-1	01	1	0807-					●
16	17.455 CONNECTOR; GUARD FRAME BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39)	8-97245-190-1	01	1	0807-					●
16	17.455 CONNECTOR; GUARD FRAME REAR BODY FLAT BED(E39)	8-97245-190-1	01	1	0307-0709					●
16	17.455 CONNECTOR; GUARD FRAME REAR BODY FLAT BED(E39)	8-97245-189-1	01	1	0307-0709					●
57	08.214 RUBBER; FLAP RR BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39)	8-97354-206-0	02	1	0807-					●
57	08.214 RUBBER; FLAP RR REAR BODY FLAT BED(E39)	8-97354-206-0	02	1	0307-0709					●
81	17.400 FLOOR ASM; RR BODY BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39)	8-97244-823-2	01	1	0807-					●
81	17.400 FLOOR ASM; RR BODY REAR BODY DBL WALL CTR PULL(E63)	8-97236-640-5	01	1	0307-	●		●
81	17.400 FLOOR ASM; RR BODY REAR BODY FLAT BED(E39)	8-97244-823-2	01	1	0307-0709					●
81	17.400 FLOOR ASM; RR BODY REAR BODY DBL WALL CTR PULL(E63)	8-97236-639-5	01	1	0307-					●	●
81	17.400 FLOOR ASM; RR BODY REAR BODY DBL WALL CTR PULL(E63)	8-93333-729-7	01	1	0307-		●		●
89	17.400 STEP; RR BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39)	8-97262-129-0	01	1	0807-					●
89	17.400 STEP; RR REAR BODY FLAT BED(E39)	8-97262-129-0	01	1	0307-0709					●
119	02.662 BRACKET; COMB LAMP BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (A)	8-97263-708-0	01	1	0807-					●
119	02.662 BRACKET; COMB LAMP BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (A)	8-97263-709-0	01	1	0807-					●
119	02.662 BRACKET; COMB LAMP BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (B)	8-97322-728-0	02	1	0807-					●
119	02.662 BRACKET; COMB LAMP REAR BODY FLAT BED(E39) (B)	8-97322-728-0	02	1	0307-0709					●
119	02.662 BRACKET; COMB LAMP REAR BODY FLAT BED(E39) (A)	8-97263-709-0	01	1	0307-0709					●
119	02.662 BRACKET; COMB LAMP REAR BODY FLAT BED(E39) (A)	8-97263-708-0	01	1	0307-0709					●
120	07.800 BRACKET; NUMBER PLATE BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39)	8-97263-719-0	01	1	0807-					●
120	07.800 BRACKET; NUMBER PLATE REAR BODY FLAT BED(E39)	8-97263-719-0	01	1	0307-0709					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
