9-01 — TOOLS (#43393) — 71 parça

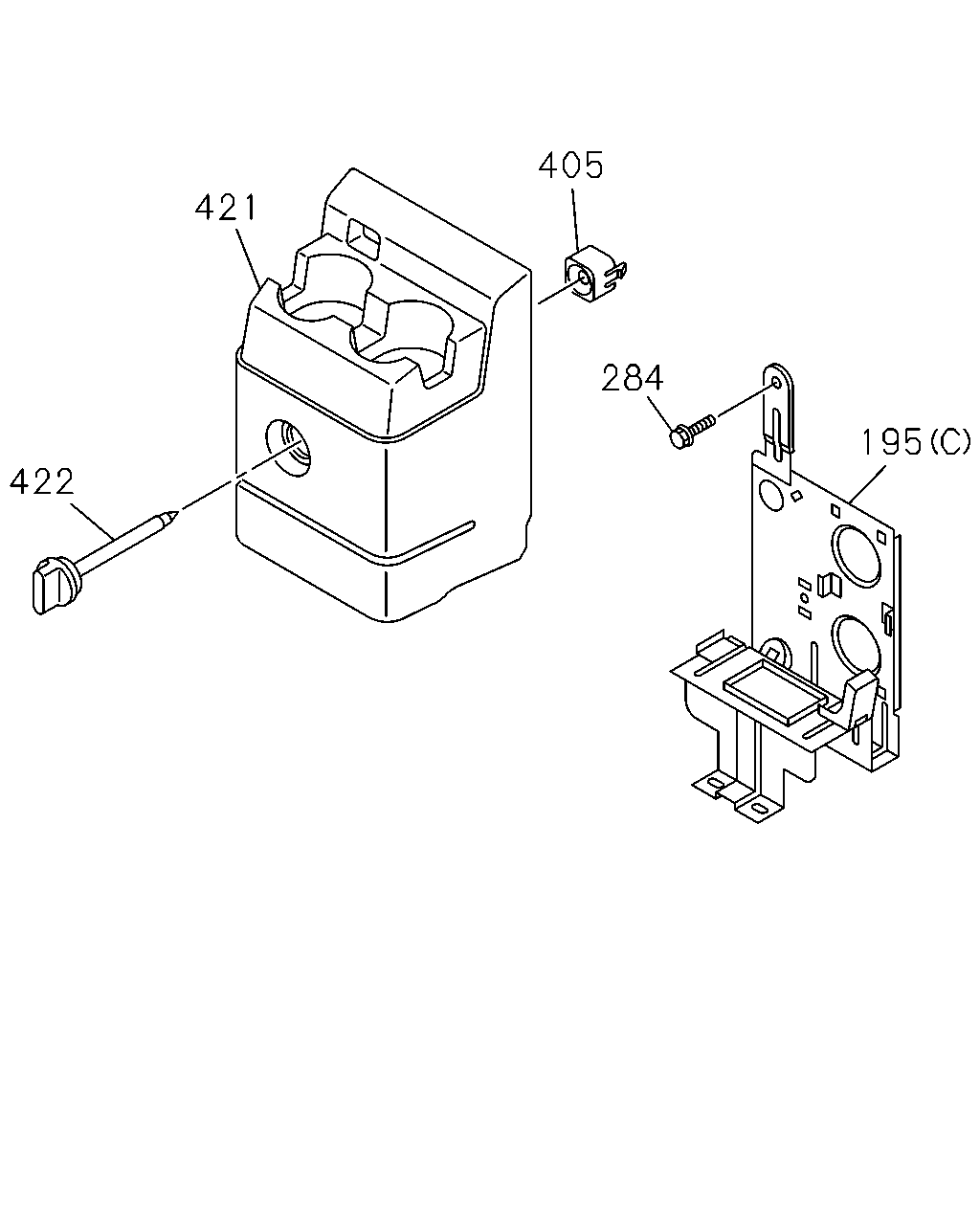

405 421 422 284 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
195	08.820 BRACKET; JACK (C)	8-97249-694-5	01	1	0307-	●	●	●
195	08.820 BRACKET; JACK (A)	8-97249-692-2	01	1	0307-				●	●	●
195	08.820 BRACKET; JACK (B)	8-97249-698-2	01	1	0307-							●	●
284	08.821 BOLT; TOOL BOX 16.550 M6X16 W/PL WASHER	1-09981-438-0	03	1	0307-0609	●	●	●	●	●	●
284	08.821 BOLT; TOOL BOX M6X16 W/PL WASHER	8-98049-085-0	03	1	0610-	●	●	●	●	●	●
284	08.821 BOLT; TOOL BOX 16.550 M6X16 W/PL WASHER	1-09981-438-0	02	1	0307-0609							●	●
284	08.821 BOLT; TOOL BOX M6X16 W/PL WASHER	8-98049-085-0	02	1	0610-							●	●
405	08.821 GUIDE; COUNTER	8-97328-053-0	01	1	0307-	●	●	●
421	08.820 COVER; JACK DARK GRAY	8-97392-412-1	01	1	0307-0609	●	●	●
421	08.820 COVER; JACK DARK GRAY	8-97409-188-1	01	1	0610-	●	●	●
422	08.820 RETAINER; JACK DARK GRAY	8-97392-413-1	01	1	0307-0609	●	●	●
422	08.820 RETAINER; JACK DARK GRAY	8-97409-189-0	01	1	0610-	●	●	●

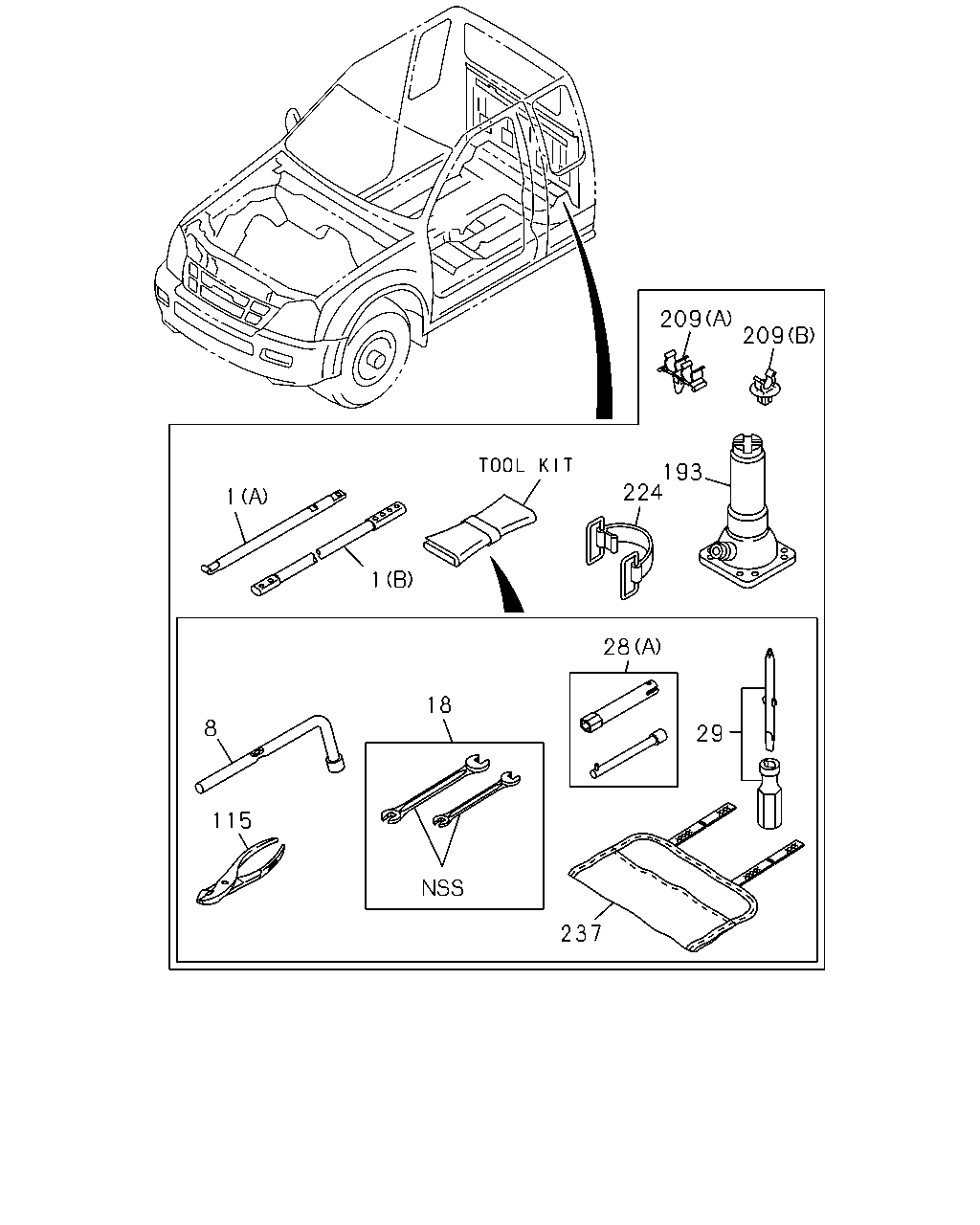

209 209 193 224 1 1 8 115 18 28 29 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	07.629 HANDLE; SPARE TIRE CARRIER (A)	8-97215-330-0	01	1	0307-	●	●	●	●	●	●	●	●
1	07.629 HANDLE; SPARE TIRE CARRIER (B)	8-97215-332-0	03	1	0307-	●	●	●	●	●	●	●	●
8	08.821 WRENCH; WHEEL	8-97217-790-0	01	1	0307-0609	●	●	●	●	●	●	●	●
8	08.821 WRENCH; WHEEL L=19	8-98027-834-0	01	1	0610-	●	●	●	●	●	●	●	●
18	08.821 WRENCH KIT	8-97248-884-0	01	1	0307-0609	●	●	●	●	●	●	●	●
18	08.821 WRENCH KIT 8X10,12X14	8-97945-273-0	01	1	0610-	●	●	●	●	●	●	●	●
28	08.821 WRENCH; SPARK PLUG 6VE1 ENG(LX5) (A)	8-97248-867-0	01	1	0307-0508	●	●	●	●	●	●	●	●
28	08.821 WRENCH; SPARK PLUG HF V6 ENG(LCA) (A)	8-97248-867-0	01	1	0509-0609	●	●	●	●	●	●	●
28	08.821 WRENCH; SPARK PLUG 4X4 CREW CAB LONG(TFS*WF) HF V6 ENG(LCA),6VE1 ENG(LX5) (A)	8-97248-867-0	01	1	0509-0609								●
28	08.821 WRENCH; SPARK PLUG CREW CAB EXTRA LONG(TF**WK) HF V6 ENG(LCA) (A)	8-97248-867-0	01	1	0509-0609								●
28	08.821 WRENCH; SPARK PLUG HF V6 ENG(LCA) (A)	8-98027-836-0	01	1	0610-	●	●	●	●	●	●	●	●
28	08.821 WRENCH; SPARK PLUG C24SE ENG(LG1) (B)	8-97248-865-0	01	1	0307-0609				●	●	●	●	●
28	08.821 WRENCH; SPARK PLUG C24SE ENG(LG1) (B)	8-98027-835-0	01	1	0610-				●	●	●	●	●
29	08.821 DRIVER; SCREW	8-97248-870-0	01	1	0307-0609	●	●	●	●	●	●	●	●
29	08.821 DRIVER; SCREW	8-98027-833-0	01	1	0610-	●	●	●	●	●	●	●	●
115	08.821 PLIER	8-97248-869-0	01	1	0307-0609	●	●	●	●	●	●	●	●
115	08.821 PLIER	8-98027-832-0	01	1	0610-1002	●	●	●	●	●	●	●	●
115	08.821 PLIER	8-98099-659-0	01	1	1003-	●	●	●	●	●	●	●	●
193	08.820 JACK ASM HIGH RIDE SUSPENSION(7YC)	8-97217-788-1	01	1	0307-	●	●		●	●		●
193	08.820 JACK ASM	8-97217-788-1	01	1	0307-			●			●		●
193	08.820 JACK ASM EXC. HIGH RIDE SUSPENSION(7YC)	8-97217-789-1	01	1	0307-	●	●		●	●		●
209	08.820 CLIP; JACK HANDLE (A)	8-97264-777-0	04	1	0307-	●	●	●
209	08.820 CLIP; JACK HANDLE (B)	8-97264-782-0	02	1	0307-	●	●	●
224	08.821 BAND; RUBBER,JACK	8-97248-864-0	01	1	0307-0609	●	●	●	●	●	●	●	●
224	08.821 BAND; RUBBER,JACK	8-98027-837-0	01	1	0610-	●	●	●	●	●	●	●	●
237	08.821 BAG; TOOL	8-97248-885-1	01	1	0307-0609	●	●	●	●	●	●	●	●
237	08.821 BAG; TOOL	8-97945-395-0	01	1	0610-	●	●	●	●	●	●	●	●

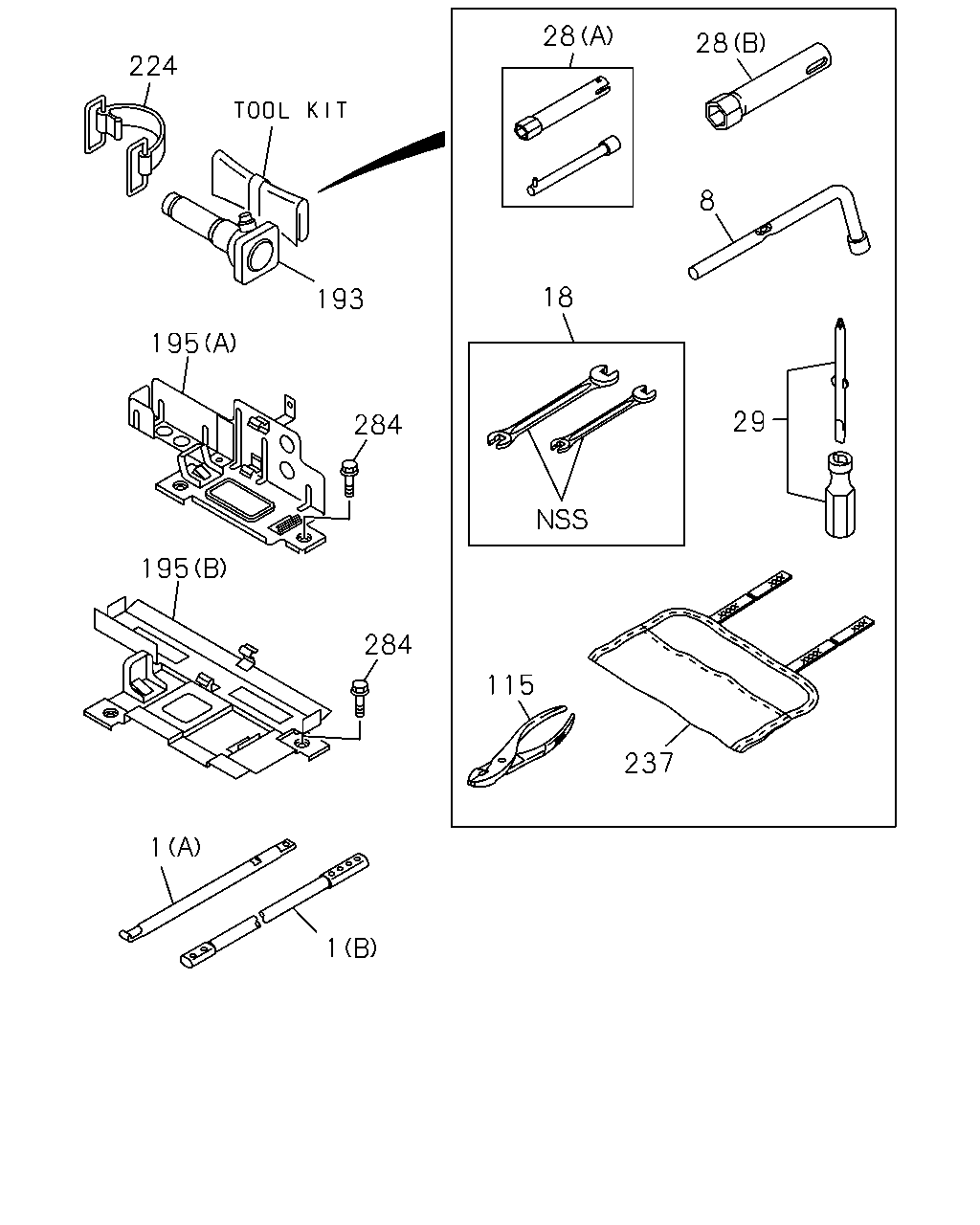

28 28 8 18 29 237 115 284 195 1 1 284 195 193 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	07.629 HANDLE; SPARE TIRE CARRIER (A)	8-97215-330-0	01	1	0307-	●	●	●	●	●	●	●	●
1	07.629 HANDLE; SPARE TIRE CARRIER (B)	8-97215-332-0	03	1	0307-	●	●	●	●	●	●	●	●
8	08.821 WRENCH; WHEEL	8-97217-790-0	01	1	0307-0609	●	●	●	●	●	●	●	●
8	08.821 WRENCH; WHEEL L=19	8-98027-834-0	01	1	0610-	●	●	●	●	●	●	●	●
18	08.821 WRENCH KIT	8-97248-884-0	01	1	0307-0609	●	●	●	●	●	●	●	●
18	08.821 WRENCH KIT 8X10,12X14	8-97945-273-0	01	1	0610-	●	●	●	●	●	●	●	●
28	08.821 WRENCH; SPARK PLUG 6VE1 ENG(LX5) (A)	8-97248-867-0	01	1	0307-0508	●	●	●	●	●	●	●	●
28	08.821 WRENCH; SPARK PLUG HF V6 ENG(LCA) (A)	8-97248-867-0	01	1	0509-0609	●	●	●	●	●	●	●
28	08.821 WRENCH; SPARK PLUG 4X4 CREW CAB LONG(TFS*WF) HF V6 ENG(LCA),6VE1 ENG(LX5) (A)	8-97248-867-0	01	1	0509-0609								●
28	08.821 WRENCH; SPARK PLUG CREW CAB EXTRA LONG(TF**WK) HF V6 ENG(LCA) (A)	8-97248-867-0	01	1	0509-0609								●
28	08.821 WRENCH; SPARK PLUG HF V6 ENG(LCA) (A)	8-98027-836-0	01	1	0610-	●	●	●	●	●	●	●	●
28	08.821 WRENCH; SPARK PLUG C24SE ENG(LG1) (B)	8-97248-865-0	01	1	0307-0609				●	●	●	●	●
28	08.821 WRENCH; SPARK PLUG C24SE ENG(LG1) (B)	8-98027-835-0	01	1	0610-				●	●	●	●	●
29	08.821 DRIVER; SCREW	8-97248-870-0	01	1	0307-0609	●	●	●	●	●	●	●	●
29	08.821 DRIVER; SCREW	8-98027-833-0	01	1	0610-	●	●	●	●	●	●	●	●
115	08.821 PLIER	8-97248-869-0	01	1	0307-0609	●	●	●	●	●	●	●	●
115	08.821 PLIER	8-98027-832-0	01	1	0610-1002	●	●	●	●	●	●	●	●
115	08.821 PLIER	8-98099-659-0	01	1	1003-	●	●	●	●	●	●	●	●
193	08.820 JACK ASM HIGH RIDE SUSPENSION(7YC)	8-97217-788-1	01	1	0307-	●	●		●	●		●
193	08.820 JACK ASM	8-97217-788-1	01	1	0307-			●			●		●
193	08.820 JACK ASM EXC. HIGH RIDE SUSPENSION(7YC)	8-97217-789-1	01	1	0307-	●	●		●	●		●
195	08.820 BRACKET; JACK (C)	8-97249-694-5	01	1	0307-	●	●	●
195	08.820 BRACKET; JACK (A)	8-97249-692-2	01	1	0307-				●	●	●
195	08.820 BRACKET; JACK (B)	8-97249-698-2	01	1	0307-							●	●
224	08.821 BAND; RUBBER,JACK	8-97248-864-0	01	1	0307-0609	●	●	●	●	●	●	●	●
224	08.821 BAND; RUBBER,JACK	8-98027-837-0	01	1	0610-	●	●	●	●	●	●	●	●
237	08.821 BAG; TOOL	8-97248-885-1	01	1	0307-0609	●	●	●	●	●	●	●	●
237	08.821 BAG; TOOL	8-97945-395-0	01	1	0610-	●	●	●	●	●	●	●	●
284	08.821 BOLT; TOOL BOX 16.550 M6X16 W/PL WASHER	1-09981-438-0	03	1	0307-0609	●	●	●	●	●	●
284	08.821 BOLT; TOOL BOX M6X16 W/PL WASHER	8-98049-085-0	03	1	0610-	●	●	●	●	●	●
284	08.821 BOLT; TOOL BOX 16.550 M6X16 W/PL WASHER	1-09981-438-0	02	1	0307-0609							●	●
284	08.821 BOLT; TOOL BOX M6X16 W/PL WASHER	8-98049-085-0	02	1	0610-							●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
