◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50965 - TFR/TFS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-90 - RADIO AND TV ▶
8-90 — RADIO AND TV (#43392) — 120 parça

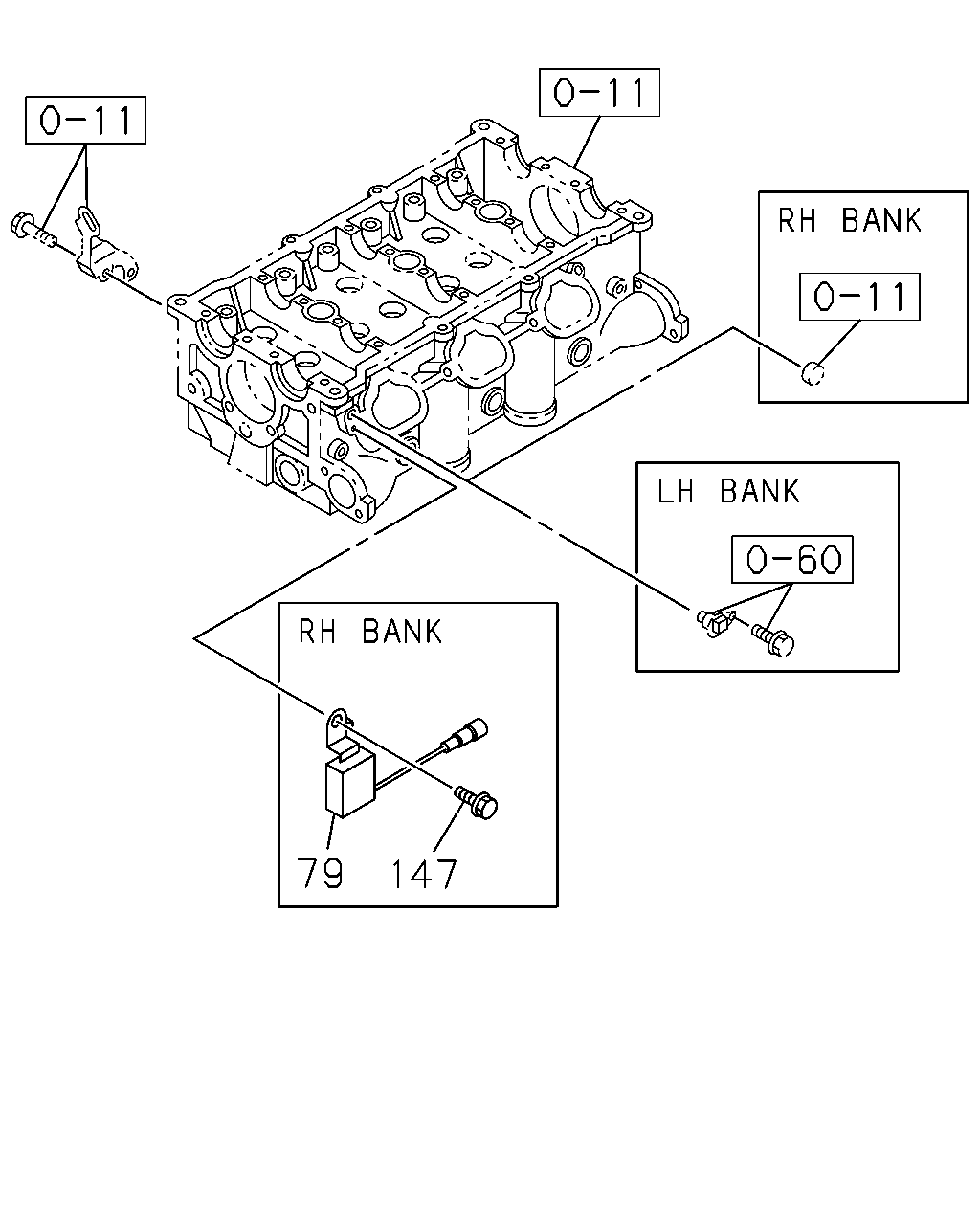

çizim 11106
79 147
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
79 02.319 CONDENSER; RADIO
6VE1 ENG(LX5) 		8-97174-553-1 01 1 0307-0508 ● ● ● ● ● ● ● ●
79 02.319 CONDENSER; RADIO
6VE1 ENG(LX5) 		8-97174-553-1 01 1 0509-0609 ●
147 09.663 BOLT; CONDENSER
6VE1 ENG(LX5) 02.500 M6X10 FLANGE 		0-28080-610-0 01 1 0307-0508 ● ● ● ● ● ● ● ●
147 09.663 BOLT; CONDENSER
6VE1 ENG(LX5) 02.500 M6X10 FLANGE 		0-28080-610-0 01 1 0509-0512 ●
147 09.663 BOLT; CONDENSER
6VE1 ENG(LX5) 03.671 M6X10 FLANGE 		0-28050-610-0 01 1 0601-0609 ●

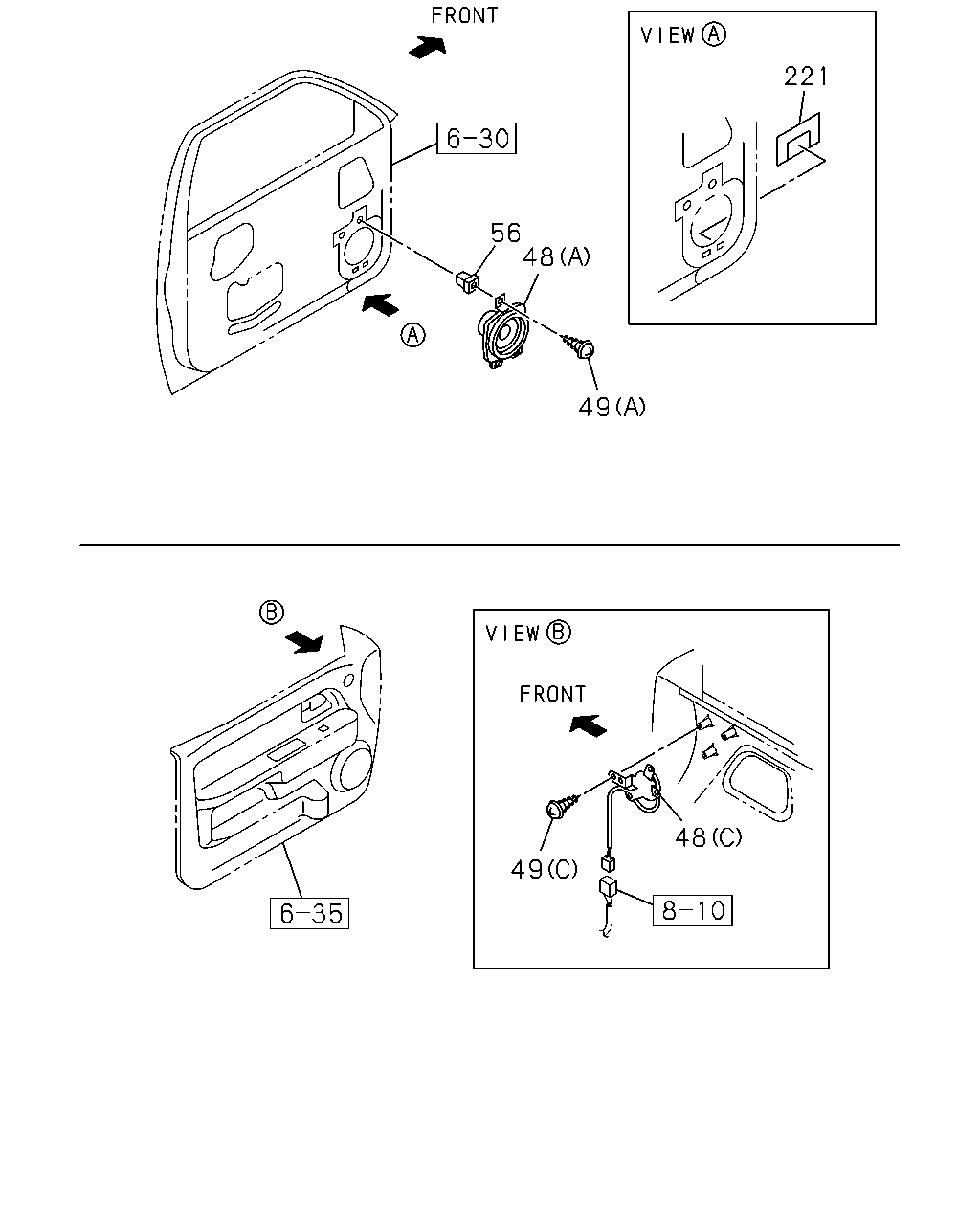

çizim 11828
221 48 56 49 49 48
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
48 09.650 SPEAKER; AUDIO
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5>,2-SPEAKER SYSTEMBASE<U95> (A) 		8-97357-982-0 02 1 0307-0508 ● ● ● ● ● ● ● ●
48 09.650 SPEAKER; AUDIO
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5>,2-SPEAKER SYSTEMBASE<U95> (A) 		8-97373-521-0 02 1 0509-0612 ● ● ● ● ● ● ● ●
48 09.650 SPEAKER; AUDIO
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5>,2-SPEAKER SYSTEMBASE<U95> (A) 		8-98073-396-0 02 1 0701-0709 ● ● ● ● ● ● ● ●
48 09.650 SPEAKER; AUDIO
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5>,2-SPEAKER SYSTEMBASE<U95> (A) 		8-98061-046-0 02 1 0710- ● ● ● ● ● ● ● ●
48 09.650 SPEAKER; AUDIO
6-SPEAKER SYSTEM BASE<UW5> (C) 		8-97238-543-0 01 1 0307-0612 ● ● ● ● ●
48 09.650 SPEAKER; AUDIO
4-SPEAKER SYSTEM BASE<UQ4> (C) 		8-97238-543-0 01 1 0307-0612 ● ● ●
48 09.650 SPEAKER; AUDIO
6-SPEAKER SYSTEM BASE<UW5> (C) 		8-98073-394-0 01 1 0701-0709 ● ● ● ● ●
48 09.650 SPEAKER; AUDIO
4-SPEAKER SYSTEM BASE<UQ4> (C) 		8-98073-394-0 01 1 0701-0709 ● ● ●
48 09.650 SPEAKER; AUDIO
6-SPEAKER SYSTEM BASE<UW5> (C) 		8-98061-044-0 01 1 0710- ● ● ● ● ●
48 09.650 SPEAKER; AUDIO
4-SPEAKER SYSTEM BASE<UQ4> (C) 		8-98061-044-0 01 1 0710- ● ● ●
48 09.650 SPEAKER; AUDIO
6-SPEAKER SYSTEM BASE<UW5> (C) 		8-97259-628-0 01 1 0307-0612 ● ● ● ● ●
48 09.650 SPEAKER; AUDIO
4-SPEAKER SYSTEM BASE<UQ4> (C) 		8-97259-628-0 01 1 0307-0612 ● ● ●
48 09.650 SPEAKER; AUDIO
6-SPEAKER SYSTEM BASE<UW5> (C) 		8-98073-395-0 01 1 0701-0709 ● ● ● ● ●
48 09.650 SPEAKER; AUDIO
4-SPEAKER SYSTEM BASE<UQ4> (C) 		8-98073-395-0 01 1 0701-0709 ● ● ●
48 09.650 SPEAKER; AUDIO
6-SPEAKER SYSTEM BASE<UW5> (C) 		8-98061-045-0 01 1 0710- ● ● ● ● ●
48 09.650 SPEAKER; AUDIO
4-SPEAKER SYSTEM BASE<UQ4> (C) 		8-98061-045-0 01 1 0710- ● ● ●
48 09.650 SPEAKER; AUDIO
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5> (B) 		8-97315-216-0 02 1 0307-0612 ● ●
48 09.650 SPEAKER; AUDIO
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5> (B) 		8-98073-397-0 02 1 0701-0709 ● ●
48 09.650 SPEAKER; AUDIO
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5> (B) 		8-98061-047-0 02 1 0710- ● ●
49 09.655 SCREW; SPEAKER
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5>,2-SPEAKER SYSTEMBASE<U95> 12.182 (A) M5X14 		8-94152-495-0 02 1 0307- ● ● ● ● ● ● ● ●
49 09.655 SCREW; SPEAKER
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5> 12.182 (A) M5X14 		8-94152-495-0 02 1 0307- ● ●
49 09.655 SCREW; SPEAKER
6-SPEAKER SYSTEM BASE<UW5> 16.115 (C) M4X10 		9-93497-410-0 06 1 0307-0606 ● ● ● ● ●
49 09.655 SCREW; SPEAKER
4-SPEAKER SYSTEM BASE<UQ4> 16.115 (C) M4X10 		9-93497-410-0 06 1 0307-0606 ● ● ●
49 09.655 SCREW; SPEAKER
6-SPEAKER SYSTEM BASE<UW5> (C) M4X10 		0-34218-410-0 06 1 0607- ● ● ● ● ●
49 09.655 SCREW; SPEAKER
4-SPEAKER SYSTEM BASE<UQ4> (C) M4X10 		0-34218-410-0 06 1 0607- ● ● ●
49 09.655 SCREW; SPEAKER
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 06 1 0307-0612 ● ● ●
49 09.655 SCREW; SPEAKER
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5> 08.083 (B) M5X16 TAPPING 		8-98061-685-0 06 1 0701-1004 ● ● ●
49 09.655 SCREW; SPEAKER
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5> 08.083 (B) M5X16 TAPPING 		8-98167-449-0 06 1 1005- ● ● ●
56 09.655 NUT; SPEAKER,RADIO OR STEREO
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5>,2-SPEAKER SYSTEMBASE<U95> 10.565 		8-94152-494-0 02 1 0307- ● ● ● ● ● ● ● ●
56 09.655 NUT; SPEAKER,RADIO OR STEREO
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5> 10.565 		8-94152-494-0 02 1 0307- ● ●
221 16.165 SEAL; SPEAKER PANEL
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5>,2-SPEAKER SYSTEMBASE<U95> 		8-97328-113-0 02 1 0307- ● ● ● ● ● ● ● ●

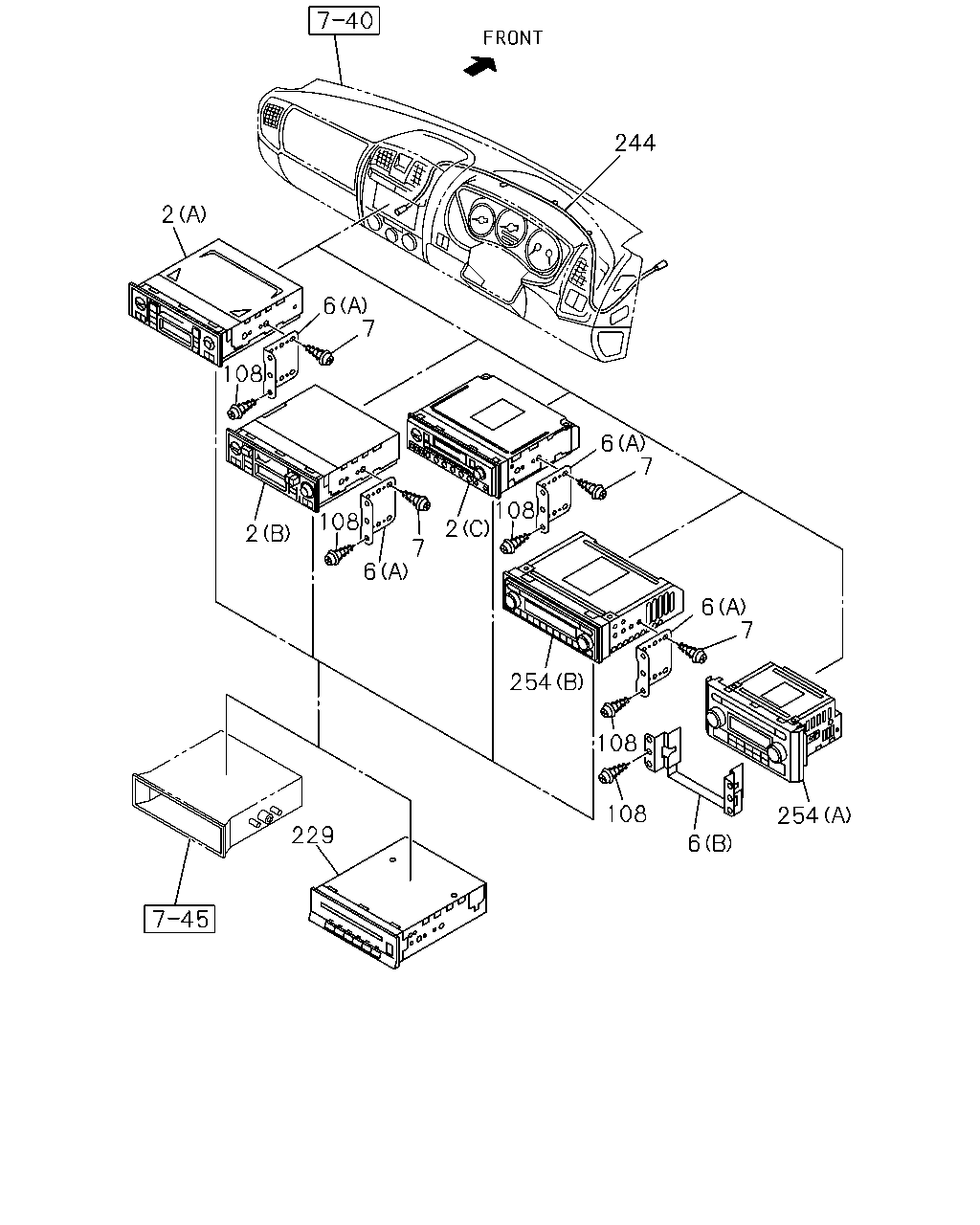

çizim 55899
244 2 6 7 108 2 108 6 7 2 108 6 7 6 7 254 6 108 108 254 229
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 09.645 RADIO & CASSETTE DECK ASM
AM/FM ASIA/OCEANIA BAND W/CASSETTE FULL LOGIC(UX5) (A) 		8-97238-478-2 01 1 0307-0508 ● ● ● ● ● ● ● ●
2 09.645 RADIO & CASSETTE DECK ASM
GRADE LT/LS(RBD) AM/FM W/CASSETTE AUTO LOUDNESS 4 SP EAKERS(UU1) (C) 		8-97369-700-0 01 1 0509-0609 ● ● ● ● ● ●
2 09.645 RADIO & CASSETTE DECK ASM
AM/FM ASIA/OCEANIA BAND W/CASSETTE SEMI LOGIC(7AU) TUNER BAND LATIN AMERICA<7DM> (B) 		8-97315-544-0 01 1 0307-0508 ● ● ● ● ● ● ● ●
2 09.645 RADIO & CASSETTE DECK ASM
GRADE LX(RBB) AM/FM W/CASSETTE AUTO LOUDNESS 4 SP EAKERS(UU1) (C) 		8-97369-699-0 01 1 0509-0609 ● ● ● ● ●
2 09.645 RADIO & CASSETTE DECK ASM
GRADE DX(RBA),GRADE LX(RBB) AM/FM W/CASSETTE AUTO LOUDNESS 4 SP EAKERS(UU1) (C) 		8-97369-699-0 01 1 0509-0609 ● ● ●
2 09.645 RADIO & CASSETTE DECK ASM
AM/FM ASIA/OCEANIA BAND W/CASSETTE SEMI LOGIC(7AU) EXC. TUNER BAND LATIN AMERICA<7DM> (B) 		8-97301-140-1 01 1 0307-0508 ● ● ● ● ● ● ● ●
2 09.645 RADIO & CASSETTE DECK ASM
AM/FM W/CASSETTE 4 SPEAKERS(UM6) (B) 		8-97301-141-1 01 1 0307-0508 ● ● ● ● ● ● ● ●
2 09.645 RADIO & CASSETTE DECK ASM
AM/FM W/CASSETTE 2 SPEAKERS(UN6) (C) 		8-97369-698-0 01 1 0509-0609 ● ● ● ● ● ● ●
2 09.645 RADIO & CASSETTE DECK ASM
AM/FM W/CASSETTE 2 SPEAKERS(UN6) (C) 		8-97369-698-0 01 1 0610- ● ● ● ● ● ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
RADIO DELETE(UL5),AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ASIA/OCEANIA BAND W/CASSETTE FULL LOGIC(UX5), AM/FM ASIA/OCEANIA BAND W/CASSETTE SEM I LOGIC(7AU) (A) 		8-97238-471-0 02 1 0307-0508 ● ● ● ● ● ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS(UU1) (A) 		8-97238-471-0 02 1 0509-0609 ● ● ● ● ● ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) (A) 		8-98007-736-0 02 1 0610- ● ● ● ● ● ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
RADIO AM/FM W/CD,W/MP3(ULA) (B) 		8-98004-773-0 01 1 0610- ● ● ● ● ● ●
7 09.650 SCREW; RADIO
AM/FM W/CASSETTE 4 SPEAKERS(UM6), AM/FM ASIA/OCEANIA BAND W/CASSETTE FU LL LOGIC(UX5),AM/FM ASIA/OCEANIA BAND W/CASSETTE SEMI LOGIC(7AU) 04.054 M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 0307-0402 ● ● ● ● ● ● ● ●
7 09.650 SCREW; RADIO
MULTI CD PLAYER<U1S> 04.054 M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 0307-0402 ● ● ● ● ● ● ● ●
7 09.650 SCREW; RADIO
AM/FM W/CASSETTE 4 SPEAKERS(UM6), AM/FM ASIA/OCEANIA BAND W/CASSETTE FU LL LOGIC(UX5),AM/FM ASIA/OCEANIA BAND W/CASSETTE SEMI LOGIC(7AU) 04.054 M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 0403-0508 ● ● ● ● ● ● ● ●
7 09.650 SCREW; RADIO
AM/FM ASIA/OCEANIA BAND W/CASSETTE FULL LOGIC(UX5) MULTI CD PLAYER<U1S> 04.054 M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 0403-0508 ● ● ● ● ● ● ● ●
7 09.650 SCREW; RADIO
AM/FM W/CASSETTE 2 SPEAKERS(UN6), AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEA KERS(UU1) 04.054 M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 0509-0605 ● ● ● ● ● ● ● ●
7 09.650 SCREW; RADIO
AM/FM W/CASSETTE 2 SPEAKERS(UN6), AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEA KERS(UU1) 03.680 M5X10 W/LK+PL WASHER 		0-36230-510-0 04 1 0606-0609 ● ● ● ● ● ● ● ●
7 09.650 SCREW; RADIO
AM/FM W/CASSETTE 2 SPEAKERS(UN6), RADIO AM/FM STEREO,SEEK/SCAN,CD, CLOCK(U1C) 03.680 M5X10 W/LK+PL WASHER 		0-36230-510-0 04 1 0610- ● ● ● ● ● ● ● ●
108 09.645 SCREW; BRKT
RADIO DELETE(UL5),AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ASIA/OCEANIA BAND W/CASSETTE FULL LOGIC(UX5), AM/FM ASIA/OCEANIA BAND W/CASSETTE SEM I LOGIC(7AU) 16.085 M5X16 TAPPING 		9-09829-323-1 04 1 0307-0508 ● ● ● ● ● ● ● ●
108 09.645 SCREW; BRKT
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS(UU1) 16.085 M5X16 TAPPING 		9-09829-323-1 04 1 0509-0609 ● ● ● ● ● ● ● ●
108 09.645 SCREW; BRKT
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) 16.085 M5X16 TAPPING 		9-09829-323-1 04 1 0610-0612 ● ● ● ● ● ● ● ●
108 09.645 SCREW; BRKT
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) 08.083 M5X16 TAPPING 		8-98061-685-0 04 1 0701-1004 ● ● ● ● ● ● ● ●
108 09.645 SCREW; BRKT
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) 08.083 M5X16 TAPPING 		8-98167-449-0 04 1 1005- ● ● ● ● ● ● ● ●
108 09.645 SCREW; BRKT
RADIO AM/FM W/CD,W/MP3(ULA) 16.085 M5X16 TAPPING 		9-09829-323-1 08 1 0610-0612 ● ● ● ● ● ●
108 09.645 SCREW; BRKT
RADIO AM/FM W/CD,W/MP3(ULA) 08.083 M5X16 TAPPING 		8-98061-685-0 08 1 0701-1004 ● ● ● ● ● ●
108 09.645 SCREW; BRKT
RADIO AM/FM W/CD,W/MP3(ULA) 08.083 M5X16 TAPPING 		8-98167-449-0 08 1 1005- ● ● ● ● ● ●
229 09.647 PLAYER; CD
MULTI CD PLAYER<U1S> 		8-97238-480-0 01 1 0307-0402 ● ● ● ● ● ● ● ●
229 09.647 PLAYER; CD
AM/FM ASIA/OCEANIA BAND W/CASSETTE FULL LOGIC(UX5) MULTI CD PLAYER<U1S> 		8-97238-480-0 01 1 0403-0508 ● ● ● ● ● ● ● ●
244 09.647 CABLE; FEEDER 8-97238-487-1 01 1 0307- ● ● ● ● ● ● ● ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
RADIO AM/FM STEREO,SEEK/SCAN,CD, CLOCK(U1C) (B) 		8-98007-739-0 01 1 0610- ● ● ● ● ● ● ● ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
RADIO AM/FM W/CD,W/MP3(ULA) (A) LIGHT GRAY 		8-97409-206-0 01 1 0610- ● ● ● ● ● ●

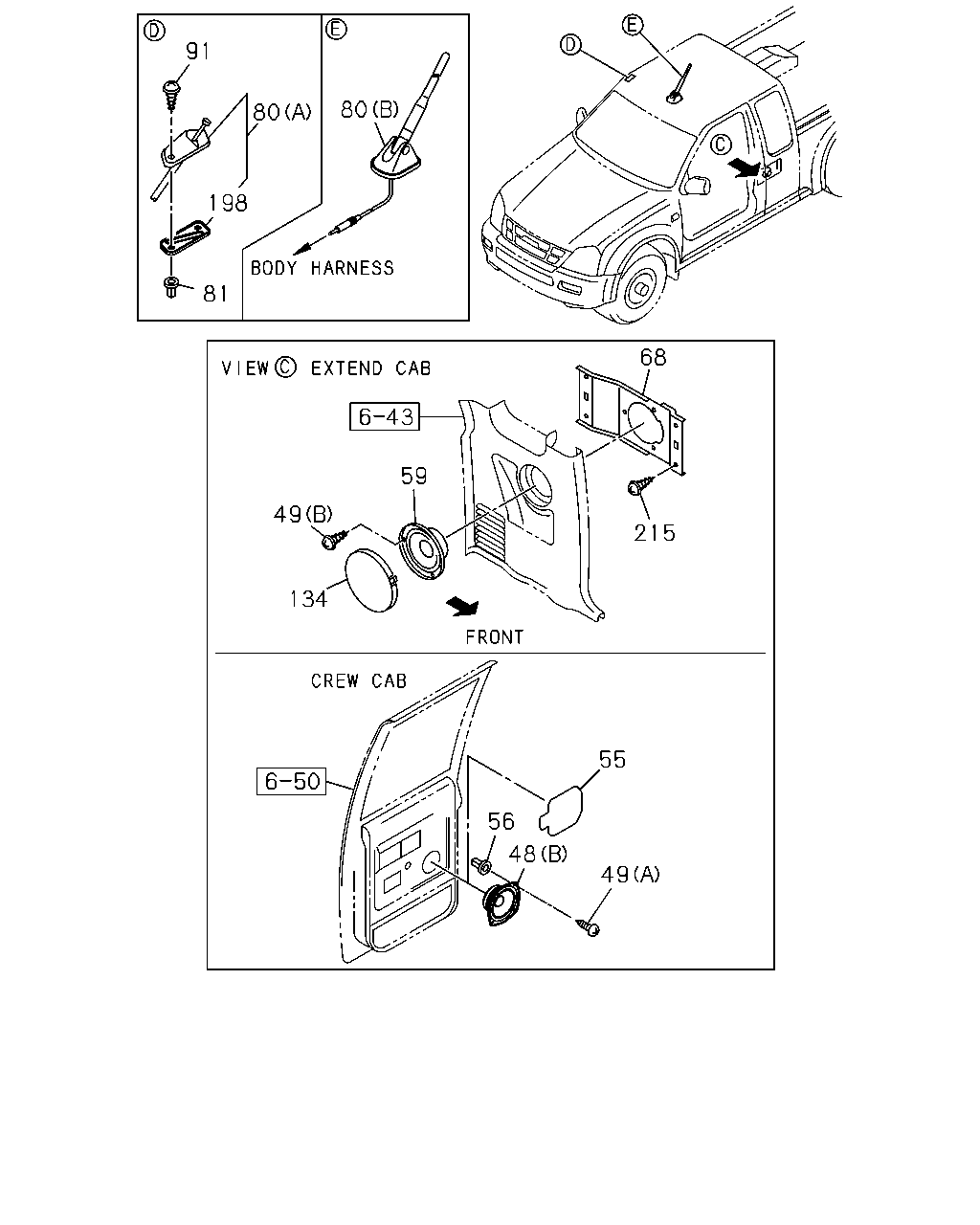

çizim 57038
91 80 80 198 81 59 49 134 215 68 55 56 48 49
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
48 09.650 SPEAKER; AUDIO
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5>,2-SPEAKER SYSTEMBASE<U95> (A) 		8-97357-982-0 02 1 0307-0508 ● ● ● ● ● ● ● ●
48 09.650 SPEAKER; AUDIO
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5>,2-SPEAKER SYSTEMBASE<U95> (A) 		8-97373-521-0 02 1 0509-0612 ● ● ● ● ● ● ● ●
48 09.650 SPEAKER; AUDIO
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5>,2-SPEAKER SYSTEMBASE<U95> (A) 		8-98073-396-0 02 1 0701-0709 ● ● ● ● ● ● ● ●
48 09.650 SPEAKER; AUDIO
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5>,2-SPEAKER SYSTEMBASE<U95> (A) 		8-98061-046-0 02 1 0710- ● ● ● ● ● ● ● ●
48 09.650 SPEAKER; AUDIO
6-SPEAKER SYSTEM BASE<UW5> (C) 		8-97238-543-0 01 1 0307-0612 ● ● ● ● ●
48 09.650 SPEAKER; AUDIO
4-SPEAKER SYSTEM BASE<UQ4> (C) 		8-97238-543-0 01 1 0307-0612 ● ● ●
48 09.650 SPEAKER; AUDIO
6-SPEAKER SYSTEM BASE<UW5> (C) 		8-98073-394-0 01 1 0701-0709 ● ● ● ● ●
48 09.650 SPEAKER; AUDIO
4-SPEAKER SYSTEM BASE<UQ4> (C) 		8-98073-394-0 01 1 0701-0709 ● ● ●
48 09.650 SPEAKER; AUDIO
6-SPEAKER SYSTEM BASE<UW5> (C) 		8-98061-044-0 01 1 0710- ● ● ● ● ●
48 09.650 SPEAKER; AUDIO
4-SPEAKER SYSTEM BASE<UQ4> (C) 		8-98061-044-0 01 1 0710- ● ● ●
48 09.650 SPEAKER; AUDIO
6-SPEAKER SYSTEM BASE<UW5> (C) 		8-97259-628-0 01 1 0307-0612 ● ● ● ● ●
48 09.650 SPEAKER; AUDIO
4-SPEAKER SYSTEM BASE<UQ4> (C) 		8-97259-628-0 01 1 0307-0612 ● ● ●
48 09.650 SPEAKER; AUDIO
6-SPEAKER SYSTEM BASE<UW5> (C) 		8-98073-395-0 01 1 0701-0709 ● ● ● ● ●
48 09.650 SPEAKER; AUDIO
4-SPEAKER SYSTEM BASE<UQ4> (C) 		8-98073-395-0 01 1 0701-0709 ● ● ●
48 09.650 SPEAKER; AUDIO
6-SPEAKER SYSTEM BASE<UW5> (C) 		8-98061-045-0 01 1 0710- ● ● ● ● ●
48 09.650 SPEAKER; AUDIO
4-SPEAKER SYSTEM BASE<UQ4> (C) 		8-98061-045-0 01 1 0710- ● ● ●
48 09.650 SPEAKER; AUDIO
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5> (B) 		8-97315-216-0 02 1 0307-0612 ● ●
48 09.650 SPEAKER; AUDIO
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5> (B) 		8-98073-397-0 02 1 0701-0709 ● ●
48 09.650 SPEAKER; AUDIO
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5> (B) 		8-98061-047-0 02 1 0710- ● ●
49 09.655 SCREW; SPEAKER
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5>,2-SPEAKER SYSTEMBASE<U95> 12.182 (A) M5X14 		8-94152-495-0 02 1 0307- ● ● ● ● ● ● ● ●
49 09.655 SCREW; SPEAKER
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5> 12.182 (A) M5X14 		8-94152-495-0 02 1 0307- ● ●
49 09.655 SCREW; SPEAKER
6-SPEAKER SYSTEM BASE<UW5> 16.115 (C) M4X10 		9-93497-410-0 06 1 0307-0606 ● ● ● ● ●
49 09.655 SCREW; SPEAKER
4-SPEAKER SYSTEM BASE<UQ4> 16.115 (C) M4X10 		9-93497-410-0 06 1 0307-0606 ● ● ●
49 09.655 SCREW; SPEAKER
6-SPEAKER SYSTEM BASE<UW5> (C) M4X10 		0-34218-410-0 06 1 0607- ● ● ● ● ●
49 09.655 SCREW; SPEAKER
4-SPEAKER SYSTEM BASE<UQ4> (C) M4X10 		0-34218-410-0 06 1 0607- ● ● ●
49 09.655 SCREW; SPEAKER
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 06 1 0307-0612 ● ● ●
49 09.655 SCREW; SPEAKER
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5> 08.083 (B) M5X16 TAPPING 		8-98061-685-0 06 1 0701-1004 ● ● ●
49 09.655 SCREW; SPEAKER
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5> 08.083 (B) M5X16 TAPPING 		8-98167-449-0 06 1 1005- ● ● ●
55 09.650 COVER; SPEAKER HOLE
EXC. 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5>,2-SPEAKER SYSTEM BASE<U95> 		8-97238-485-1 02 1 0307- ● ● ● ● ● ● ● ●
55 09.650 COVER; SPEAKER HOLE
EXC. 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5> 		8-97238-485-1 02 1 0307- ● ●
56 09.655 NUT; SPEAKER,RADIO OR STEREO
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5>,2-SPEAKER SYSTEMBASE<U95> 10.565 		8-94152-494-0 02 1 0307- ● ● ● ● ● ● ● ●
56 09.655 NUT; SPEAKER,RADIO OR STEREO
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5> 10.565 		8-94152-494-0 02 1 0307- ● ●
59 09.665 SPEAKER; AUDIO
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5> 		8-97238-483-1 02 1 0307-0612 ● ● ●
59 09.665 SPEAKER; AUDIO
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5> 		8-98073-393-0 02 1 0701-0709 ● ● ●
59 09.665 SPEAKER; AUDIO
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5> 		8-98061-043-0 02 1 0710- ● ● ●
68 09.667 BRACKET; RR SPEAKER
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5> 		8-97238-486-1 02 1 0307- ● ● ●
80 09.645 ANTENNA
(A) 		8-97238-488-3 01 1 0307-0308 ● ● ● ● ● ● ● ●
80 09.645 ANTENNA
(A) 		8-97357-027-0 01 1 0309-0608 ● ● ● ● ● ● ● ●
80 09.645 ANTENNA
(A) 		8-98044-180-0 01 1 0609-0709 ● ● ● ● ● ● ● ●
80 09.645 ANTENNA
EXC. ROOF RADIO ANTENNA<U71> (A) 		8-98044-180-0 01 1 0710- ● ● ● ● ● ● ● ●
80 09.645 ANTENNA
ROOF RADIO ANTENNA<U71> (B) 		8-98053-513-0 01 1 0710- ● ● ● ●
81 09.647 NUT; ANTENNA POLE
M5 POP NUT 		8-97249-574-0 02 1 0307-0709 ● ● ● ● ● ● ● ●
81 09.647 NUT; ANTENNA POLE
EXC. ROOF RADIO ANTENNA<U71> M5 POP NUT 		8-97249-574-0 02 1 0710- ● ● ● ● ● ● ● ●
91 09.663 BOLT; ANTENNA
M5X19 		8-97310-469-0 02 1 0307-0403 ● ● ● ● ● ● ● ●
91 09.663 BOLT; ANTENNA
M5X16 		8-97375-569-0 02 1 0404-0709 ● ● ● ● ● ● ● ●
91 09.663 BOLT; ANTENNA
EXC. ROOF RADIO ANTENNA<U71> M5X16 		8-97375-569-0 02 1 0710- ● ● ● ● ● ● ● ●
134 09.665 GRILLE; SPEAKER,RR
DARK GRAY 		8-97293-989-1 02 1 0307-0609 ● ● ●
134 09.665 GRILLE; SPEAKER,RR
DARK GRAY 		8-97403-886-1 02 1 0610- ● ● ●
198 09.647 SHEET; ANTENNA 8-97354-772-0 01 1 0307-0709 ● ● ● ● ● ● ● ●
198 09.647 SHEET; ANTENNA
EXC. ROOF RADIO ANTENNA<U71> 		8-97354-772-0 01 1 0710- ● ● ● ● ● ● ● ●
215 09.645 SCREW; BRKT,SPEAKER
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5> 09.242 M6X12 		9-09829-330-1 08 1 0307- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
