8-80 — WINDSHIELD WIPER AND WASHER (#43391) — 117 parça

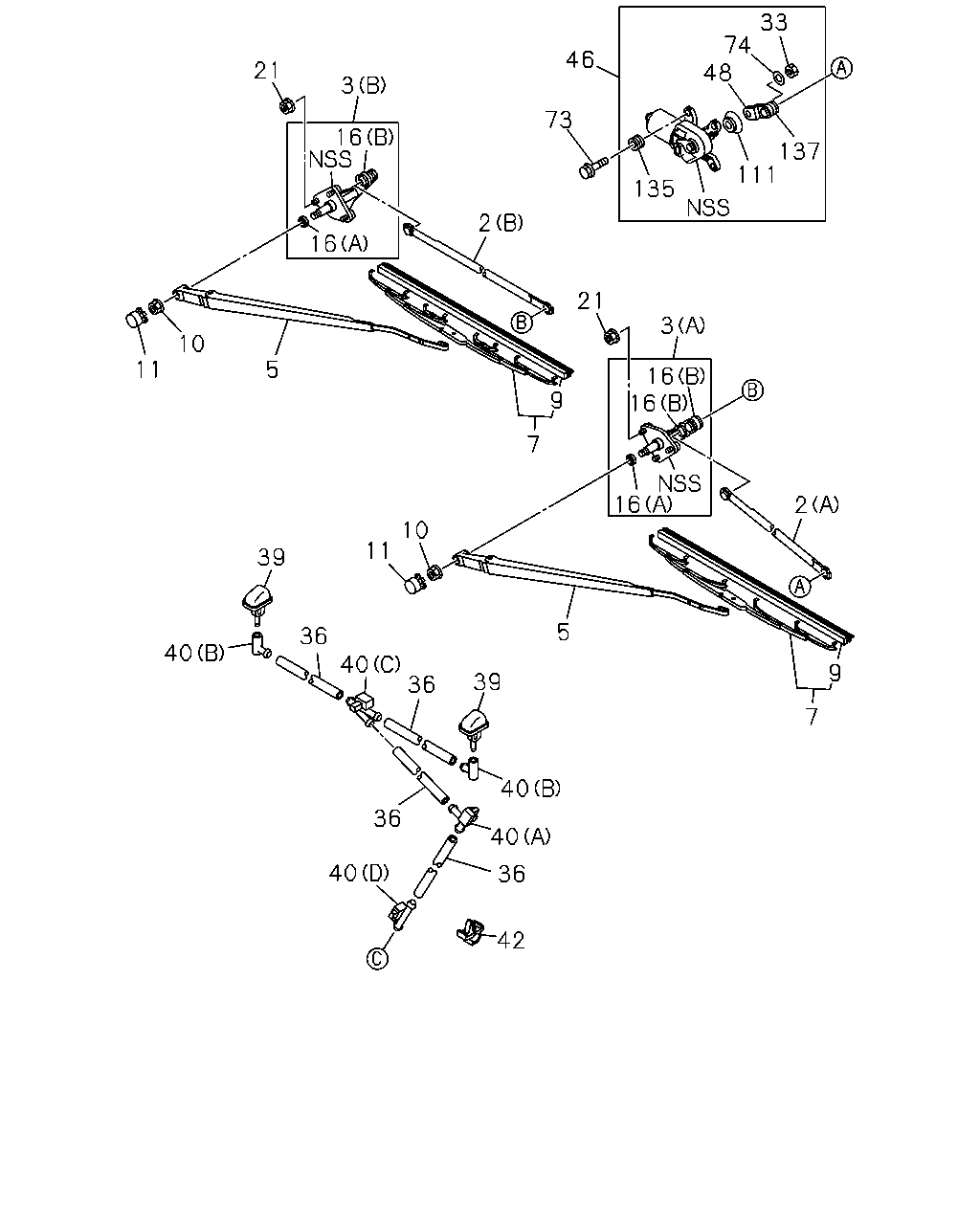

33 74 48 137 111 135 73 46 3 21 16 5 10 11 2 21 9 7 3 16 16 16 2 7 9 5 10 11 39 40 36 40 36 39 40 40 36 42 40 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
2	16.063 LINK; FRT WIPER (A)	8-97349-892-0	01	1	0307-	●	●	●	●	●	●	●	●
2	16.063 LINK; FRT WIPER (B)	8-97349-893-0	01	1	0307-	●	●	●	●	●	●	●	●
3	16.063 PIVOT ASM; FRT WIPER (A)	8-97349-890-0	01	1	0307-0609	●	●	●	●	●	●	●	●
3	16.063 PIVOT ASM; FRT WIPER (A)	8-98057-712-0	01	1	0610-	●	●	●	●	●	●	●	●
3	16.063 PIVOT ASM; FRT WIPER (B)	8-97349-891-0	01	1	0307-0609	●	●	●	●	●	●	●	●
3	16.063 PIVOT ASM; FRT WIPER (B)	8-98057-714-0	01	1	0610-	●	●	●	●	●	●	●	●
5	16.063 ARM; WIPER	8-97349-902-0	01	1	0307-	●	●	●	●	●	●	●	●
5	16.063 ARM; WIPER	8-97349-899-0	01	1	0307-	●	●	●	●	●	●	●	●
7	16.062 BLADE; WIPER L=475	8-97349-903-0	01	1	0307-	●	●	●	●	●	●	●	●
7	16.062 BLADE; WIPER L=550	8-97349-900-0	01	1	0307-	●	●	●	●	●	●	●	●
9	16.062 RUBBER; FRT WIPER BLADE L=475	8-97349-904-0	01	1	0307-	●	●	●	●	●	●	●	●
9	16.062 RUBBER; FRT WIPER BLADE L=550	8-97349-901-0	01	1	0307-	●	●	●	●	●	●	●	●
10	16.063 NUT; WIPER ARM TO WIPER PIVOT 07.347 M10 FLANGE	8-94144-220-0	02	1	0307-0610	●	●	●	●	●	●	●	●
10	16.063 NUT; WIPER ARM TO WIPER PIVOT M10 FLANGE	8-98049-367-0	02	1	0611-	●	●	●	●	●	●	●	●
11	16.063 COVER; WIPER ARM 10.147	8-94367-999-0	02	1	0307-	●	●	●	●	●	●	●	●
16	16.063 SEAL; BALL JOINT 10.159 (B)	8-97025-889-0	03	1	0307-	●	●	●	●	●	●	●	●
16	16.063 SEAL; BALL JOINT (A)	8-97349-894-0	02	1	0307-	●	●	●	●	●	●	●	●
21	16.063 NUT; WIPER LINK PIVOT 10.147 M6 W/DISHED WASHER	8-94423-325-0	06	1	0307-0509	●	●	●	●	●	●	●	●
21	16.063 NUT; WIPER LINK PIVOT 04.594 M6 FLANGE	0-91150-106-0	06	1	0510-0603	●	●	●	●	●	●	●	●
21	16.063 NUT; WIPER LINK PIVOT 01.062 M6 FLANGE	0-91180-106-0	06	1	0604-	●	●	●	●	●	●	●	●
33	16.064 NUT; MOTOR TO ARM	8-97349-898-0	01	1	0307-	●	●	●	●	●	●	●	●
36	16.065 HOSE; WASHER SERVICED BY L=10000	8-97349-607-0	01	1	0307-	●	●	●	●	●	●	●	●
39	16.065 NOZZLE; WINDSHIELD WASHER	8-97238-519-0	02	1	0307-0609	●	●	●	●	●	●	●	●
39	16.065 NOZZLE; WINDSHIELD WASHER	8-98008-112-0	02	1	0610-	●	●	●	●	●	●	●	●
40	16.065 JOINT; WASHER HOSE 10.155 (A)	8-94335-627-0	01	1	0307-0709	●	●	●	●	●	●	●	●
40	16.065 JOINT; WASHER HOSE (B)	8-97178-847-0	02	1	0307-	●	●	●	●	●	●	●	●
40	16.065 JOINT; WASHER HOSE (C)	8-97215-337-0	01	1	0307-	●	●	●	●	●	●	●	●
40	16.065 JOINT; WASHER HOSE (D)	8-97314-270-0	01	1	0307-0709	●	●	●	●	●	●	●	●
42	16.065 CLIP; WASHER HOSE 10.156 ID=5.8 L=8	8-94155-681-0	01	1	0307-0609	●	●	●	●	●	●	●	●
42	16.065 CLIP; WASHER HOSE 10.156 ID=5.8 L=8	8-94155-681-0	03	1	0610-	●	●	●	●	●	●	●	●
46	16.064 MOTOR ASM; FRT WINDSHIELD WIPER	8-97364-369-0	01	1	0307-0609	●	●	●	●	●	●	●	●
46	16.064 MOTOR ASM; FRT WINDSHIELD WIPER	8-98057-621-0	01	1	0610-	●	●	●	●	●	●	●	●
48	16.063 ARM; WIPER MOTOR	8-97349-895-0	01	1	0307-0609	●	●	●	●	●	●	●	●
48	16.063 ARM; WIPER MOTOR	8-98057-654-0	01	1	0610-	●	●	●	●	●	●	●	●
73	16.063 BOLT M6X33 W/PL WASHER	8-97164-266-0	04	1	0307-0609	●	●	●	●	●	●	●	●
73	16.063 BOLT M6X33 W/PL WASHER	8-98048-997-0	04	1	0610-	●	●	●	●	●	●	●	●
74	16.063 WASHER; ARM TO MOTOR	8-97349-897-0	01	1	0307-	●	●	●	●	●	●	●	●
111	16.064 SEAL; FRT WIPER MOTOR TO BRKT	8-97349-896-0	01	1	0307-	●	●	●	●	●	●	●	●
135	16.250 RUBBER; CUSHION,WIPER MOTOR 10.152	8-94387-088-0	04	1	0307-0609	●	●	●	●	●	●	●	●
135	16.250 RUBBER; CUSHION,WIPER MOTOR	8-98057-655-0	04	1	0610-	●	●	●	●	●	●	●	●
137	16.063 SEAL; JOINT,WIPER MOTOR 10.159	8-97025-889-0	01	1	0307-	●	●	●	●	●	●	●	●

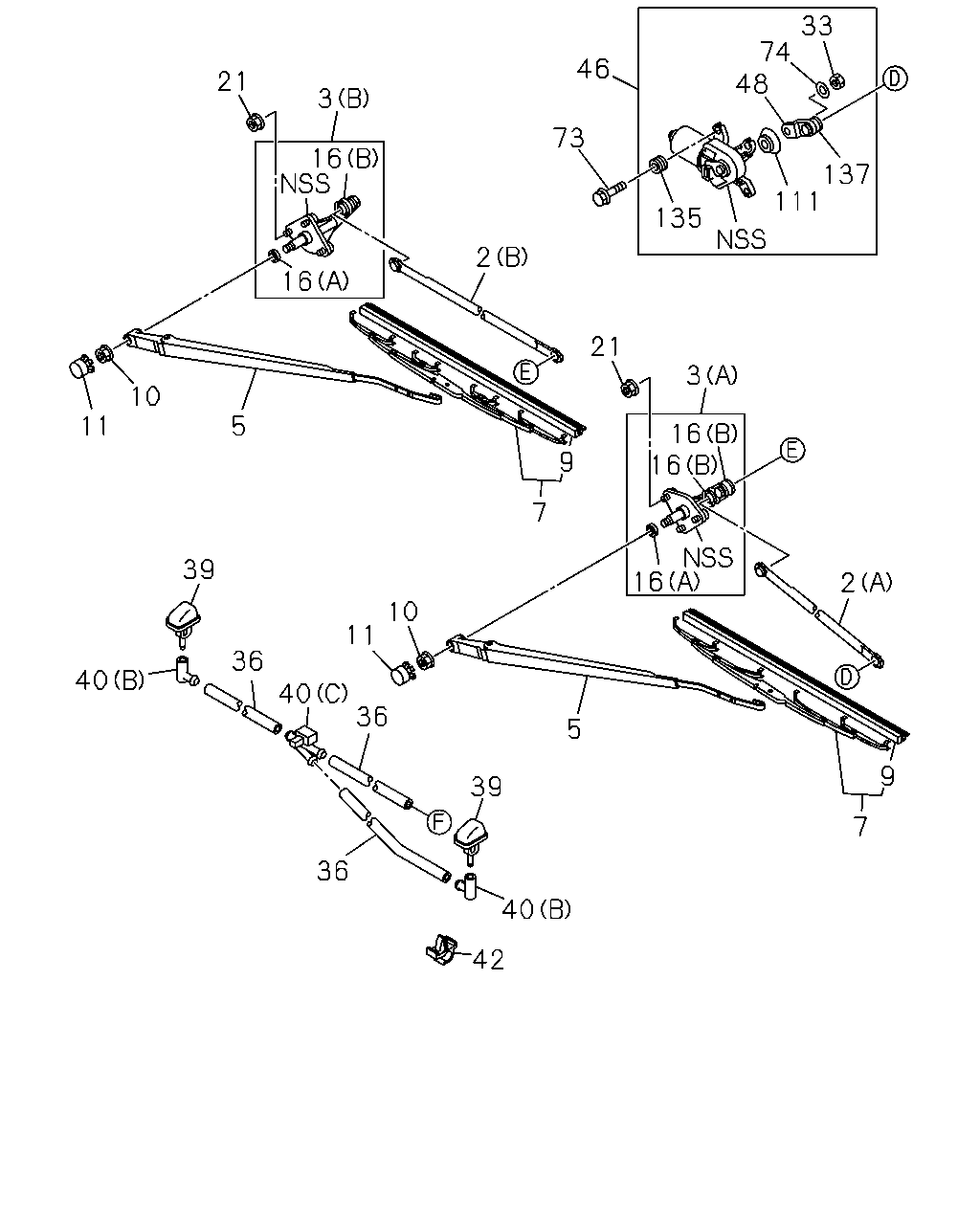

42 40 39 5 36 36 40 36 39 40 11 10 7 9 2 3 16 16 16 7 9 21 2 3 21 16 16 5 10 11 73 46 135 111 137 48 74 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
2	16.063 LINK; FRT WIPER (A)	8-97349-892-0	01	1	0307-	●	●	●	●	●	●	●	●
2	16.063 LINK; FRT WIPER (B)	8-97349-893-0	01	1	0307-	●	●	●	●	●	●	●	●
3	16.063 PIVOT ASM; FRT WIPER (A)	8-97349-890-0	01	1	0307-0609	●	●	●	●	●	●	●	●
3	16.063 PIVOT ASM; FRT WIPER (A)	8-98057-712-0	01	1	0610-	●	●	●	●	●	●	●	●
3	16.063 PIVOT ASM; FRT WIPER (B)	8-97349-891-0	01	1	0307-0609	●	●	●	●	●	●	●	●
3	16.063 PIVOT ASM; FRT WIPER (B)	8-98057-714-0	01	1	0610-	●	●	●	●	●	●	●	●
5	16.063 ARM; WIPER	8-97349-902-0	01	1	0307-	●	●	●	●	●	●	●	●
5	16.063 ARM; WIPER	8-97349-899-0	01	1	0307-	●	●	●	●	●	●	●	●
7	16.062 BLADE; WIPER L=475	8-97349-903-0	01	1	0307-	●	●	●	●	●	●	●	●
7	16.062 BLADE; WIPER L=550	8-97349-900-0	01	1	0307-	●	●	●	●	●	●	●	●
9	16.062 RUBBER; FRT WIPER BLADE L=475	8-97349-904-0	01	1	0307-	●	●	●	●	●	●	●	●
9	16.062 RUBBER; FRT WIPER BLADE L=550	8-97349-901-0	01	1	0307-	●	●	●	●	●	●	●	●
10	16.063 NUT; WIPER ARM TO WIPER PIVOT 07.347 M10 FLANGE	8-94144-220-0	02	1	0307-0610	●	●	●	●	●	●	●	●
10	16.063 NUT; WIPER ARM TO WIPER PIVOT M10 FLANGE	8-98049-367-0	02	1	0611-	●	●	●	●	●	●	●	●
11	16.063 COVER; WIPER ARM 10.147	8-94367-999-0	02	1	0307-	●	●	●	●	●	●	●	●
16	16.063 SEAL; BALL JOINT 10.159 (B)	8-97025-889-0	03	1	0307-	●	●	●	●	●	●	●	●
16	16.063 SEAL; BALL JOINT (A)	8-97349-894-0	02	1	0307-	●	●	●	●	●	●	●	●
21	16.063 NUT; WIPER LINK PIVOT 10.147 M6 W/DISHED WASHER	8-94423-325-0	06	1	0307-0509	●	●	●	●	●	●	●	●
21	16.063 NUT; WIPER LINK PIVOT 04.594 M6 FLANGE	0-91150-106-0	06	1	0510-0603	●	●	●	●	●	●	●	●
21	16.063 NUT; WIPER LINK PIVOT 01.062 M6 FLANGE	0-91180-106-0	06	1	0604-	●	●	●	●	●	●	●	●
33	16.064 NUT; MOTOR TO ARM	8-97349-898-0	01	1	0307-	●	●	●	●	●	●	●	●
36	16.065 HOSE; WASHER SERVICED BY L=10000	8-97349-607-0	01	1	0307-	●	●	●	●	●	●	●	●
39	16.065 NOZZLE; WINDSHIELD WASHER	8-97238-519-0	02	1	0307-0609	●	●	●	●	●	●	●	●
39	16.065 NOZZLE; WINDSHIELD WASHER	8-98008-112-0	02	1	0610-	●	●	●	●	●	●	●	●
40	16.065 JOINT; WASHER HOSE 10.155 (A)	8-94335-627-0	01	1	0307-0709	●	●	●	●	●	●	●	●
40	16.065 JOINT; WASHER HOSE (B)	8-97178-847-0	02	1	0307-	●	●	●	●	●	●	●	●
40	16.065 JOINT; WASHER HOSE (C)	8-97215-337-0	01	1	0307-	●	●	●	●	●	●	●	●
40	16.065 JOINT; WASHER HOSE (D)	8-97314-270-0	01	1	0307-0709	●	●	●	●	●	●	●	●
42	16.065 CLIP; WASHER HOSE 10.156 ID=5.8 L=8	8-94155-681-0	01	1	0307-0609	●	●	●	●	●	●	●	●
42	16.065 CLIP; WASHER HOSE 10.156 ID=5.8 L=8	8-94155-681-0	03	1	0610-	●	●	●	●	●	●	●	●
46	16.064 MOTOR ASM; FRT WINDSHIELD WIPER	8-97364-369-0	01	1	0307-0609	●	●	●	●	●	●	●	●
46	16.064 MOTOR ASM; FRT WINDSHIELD WIPER	8-98057-621-0	01	1	0610-	●	●	●	●	●	●	●	●
48	16.063 ARM; WIPER MOTOR	8-97349-895-0	01	1	0307-0609	●	●	●	●	●	●	●	●
48	16.063 ARM; WIPER MOTOR	8-98057-654-0	01	1	0610-	●	●	●	●	●	●	●	●
73	16.063 BOLT M6X33 W/PL WASHER	8-97164-266-0	04	1	0307-0609	●	●	●	●	●	●	●	●
73	16.063 BOLT M6X33 W/PL WASHER	8-98048-997-0	04	1	0610-	●	●	●	●	●	●	●	●
74	16.063 WASHER; ARM TO MOTOR	8-97349-897-0	01	1	0307-	●	●	●	●	●	●	●	●
111	16.064 SEAL; FRT WIPER MOTOR TO BRKT	8-97349-896-0	01	1	0307-	●	●	●	●	●	●	●	●
135	16.250 RUBBER; CUSHION,WIPER MOTOR 10.152	8-94387-088-0	04	1	0307-0609	●	●	●	●	●	●	●	●
135	16.250 RUBBER; CUSHION,WIPER MOTOR	8-98057-655-0	04	1	0610-	●	●	●	●	●	●	●	●
137	16.063 SEAL; JOINT,WIPER MOTOR 10.159	8-97025-889-0	01	1	0307-	●	●	●	●	●	●	●	●

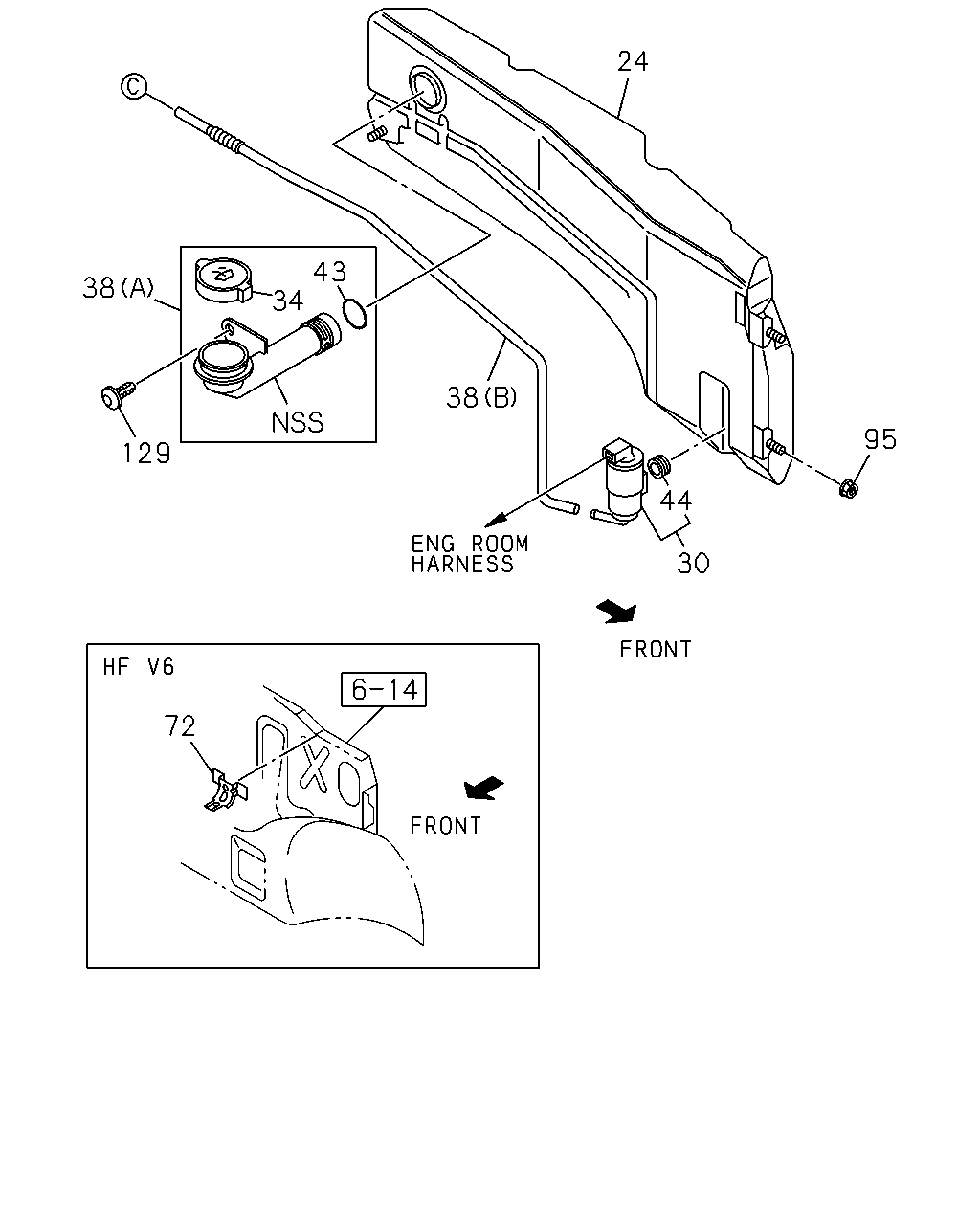

24 95 30 44 38 43 34 38 129 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
24	16.065 TANK ASM; WASHER	8-97314-347-0	01	1	0307-0609	●	●	●	●	●	●	●	●
24	16.065 TANK ASM; WASHER	8-98057-609-0	01	1	0610-	●	●	●	●	●	●	●	●
30	16.065 MOTOR ASM; FRT WASHER TANK	8-97314-350-0	01	1	0307-	●	●	●	●	●	●	●	●
34	16.065 CAP; WASHER TANK	8-97349-905-0	01	1	0307-	●	●	●	●	●	●	●	●
38	16.065 HOSE; JOINT,TANK (A)	8-97310-064-1	01	1	0307-	●	●	●	●	●	●	●	●
38	16.065 HOSE; JOINT,TANK (B)	8-97361-901-0	01	1	0307-0504	●	●	●	●	●	●	●	●
38	16.065 HOSE; JOINT,TANK (B)	8-98011-321-0	01	1	0505-	●	●	●	●	●	●	●	●
38	16.065 HOSE; JOINT,TANK (C)	8-98051-635-0	01	1	0610-0709	●	●	●	●	●	●	●	●
43	16.065 RUBBER; GASKET,TANK	8-97349-906-0	01	1	0307-	●	●	●	●	●	●	●	●
44	16.065 GASKET; MOTOR TO TANK 10.154	8-94352-050-0	01	1	0307-	●	●	●	●	●	●	●	●
72	16.064 BRACKET; WIPER MOTOR HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) DRIVER SIDE FOOT REST<7NU>	8-97309-543-1	01	1	0509-0609	●			●	●			●
72	16.064 BRACKET; WIPER MOTOR HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) DRIVER SIDE FOOT REST<7NU> EXC. SHIPPING EQUIPMENT SPECIAL VAR 1<VK5>	8-97309-543-1	01	1	0610-	●	●		●	●			●
95	16.065 NUT; WASHER TANK 07.833 M6 W/DISHED WASHER	8-94170-192-0	03	1	0307-0610	●	●	●	●	●	●	●	●
95	16.065 NUT; WASHER TANK M6 W/DISHED WASHER	8-98049-368-0	03	1	0611-	●	●	●	●	●	●	●	●
129	16.065 CLIP; JOINT HOSE 16.800 L=19 BLACK	8-94363-776-0	01	1	0307-	●	●	●	●	●	●	●	●

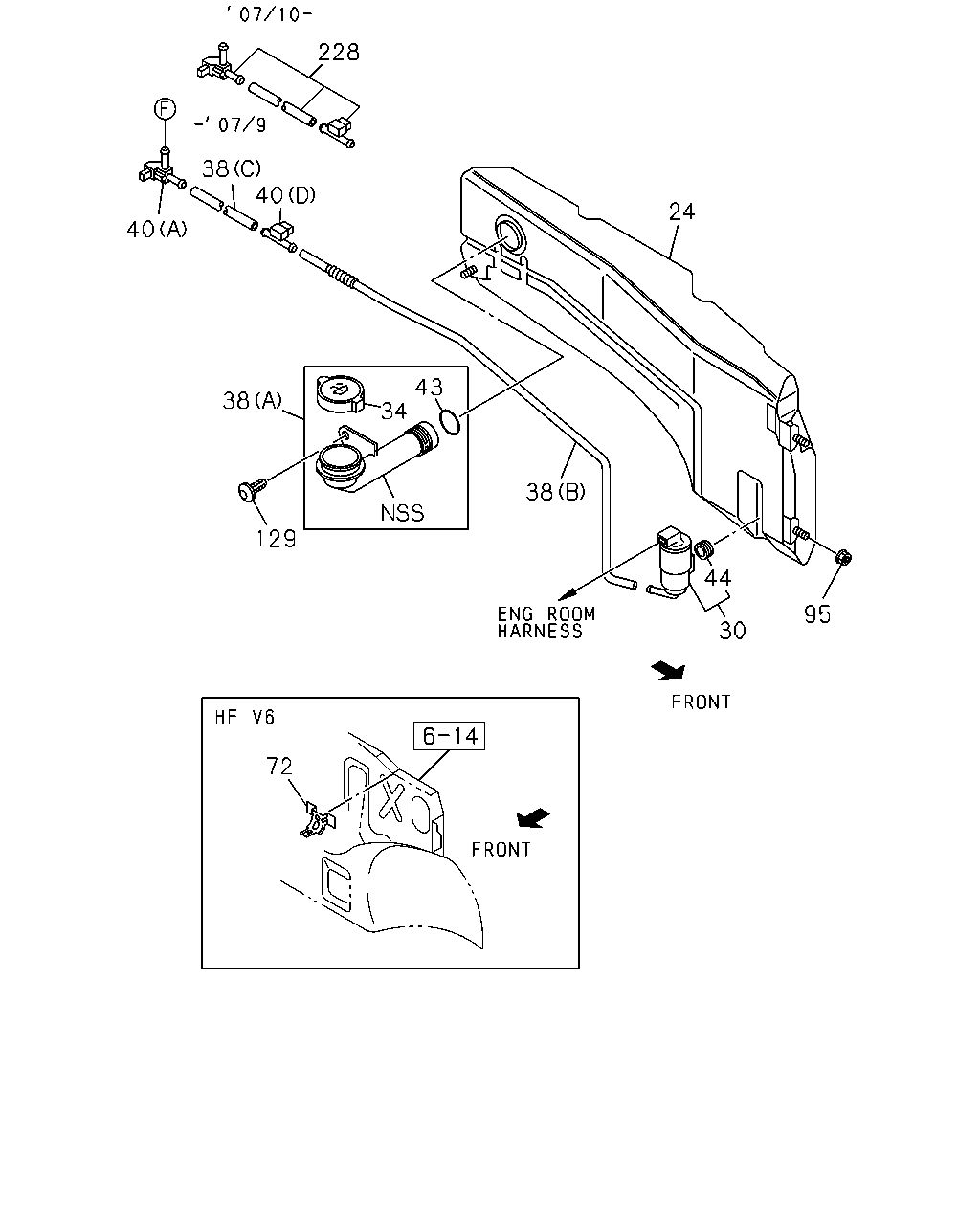

228 38 40 40 38 34 43 24 38 44 95 30 72 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
24	16.065 TANK ASM; WASHER	8-97314-347-0	01	1	0307-0609	●	●	●	●	●	●	●	●
24	16.065 TANK ASM; WASHER	8-98057-609-0	01	1	0610-	●	●	●	●	●	●	●	●
30	16.065 MOTOR ASM; FRT WASHER TANK	8-97314-350-0	01	1	0307-	●	●	●	●	●	●	●	●
34	16.065 CAP; WASHER TANK	8-97349-905-0	01	1	0307-	●	●	●	●	●	●	●	●
38	16.065 HOSE; JOINT,TANK (A)	8-97310-064-1	01	1	0307-	●	●	●	●	●	●	●	●
38	16.065 HOSE; JOINT,TANK (B)	8-97361-901-0	01	1	0307-0504	●	●	●	●	●	●	●	●
38	16.065 HOSE; JOINT,TANK (B)	8-98011-321-0	01	1	0505-	●	●	●	●	●	●	●	●
38	16.065 HOSE; JOINT,TANK (C)	8-98051-635-0	01	1	0610-0709	●	●	●	●	●	●	●	●
40	16.065 JOINT; WASHER HOSE 10.155 (A)	8-94335-627-0	01	1	0307-0709	●	●	●	●	●	●	●	●
40	16.065 JOINT; WASHER HOSE (B)	8-97178-847-0	02	1	0307-	●	●	●	●	●	●	●	●
40	16.065 JOINT; WASHER HOSE (C)	8-97215-337-0	01	1	0307-	●	●	●	●	●	●	●	●
40	16.065 JOINT; WASHER HOSE (D)	8-97314-270-0	01	1	0307-0709	●	●	●	●	●	●	●	●
43	16.065 RUBBER; GASKET,TANK	8-97349-906-0	01	1	0307-	●	●	●	●	●	●	●	●
44	16.065 GASKET; MOTOR TO TANK 10.154	8-94352-050-0	01	1	0307-	●	●	●	●	●	●	●	●
72	16.064 BRACKET; WIPER MOTOR HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) DRIVER SIDE FOOT REST<7NU>	8-97309-543-1	01	1	0509-0609	●			●	●			●
72	16.064 BRACKET; WIPER MOTOR HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) DRIVER SIDE FOOT REST<7NU> EXC. SHIPPING EQUIPMENT SPECIAL VAR 1<VK5>	8-97309-543-1	01	1	0610-	●	●		●	●			●
95	16.065 NUT; WASHER TANK 07.833 M6 W/DISHED WASHER	8-94170-192-0	03	1	0307-0610	●	●	●	●	●	●	●	●
95	16.065 NUT; WASHER TANK M6 W/DISHED WASHER	8-98049-368-0	03	1	0611-	●	●	●	●	●	●	●	●
129	16.065 CLIP; JOINT HOSE 16.800 L=19 BLACK	8-94363-776-0	01	1	0307-	●	●	●	●	●	●	●	●
228	16.065 HOSE ASM; WASHER	8-98115-892-0	01	1	0710-	●	●	●	●	●	●	●	●
