Sayfa 8-75 - Isuzu EPC

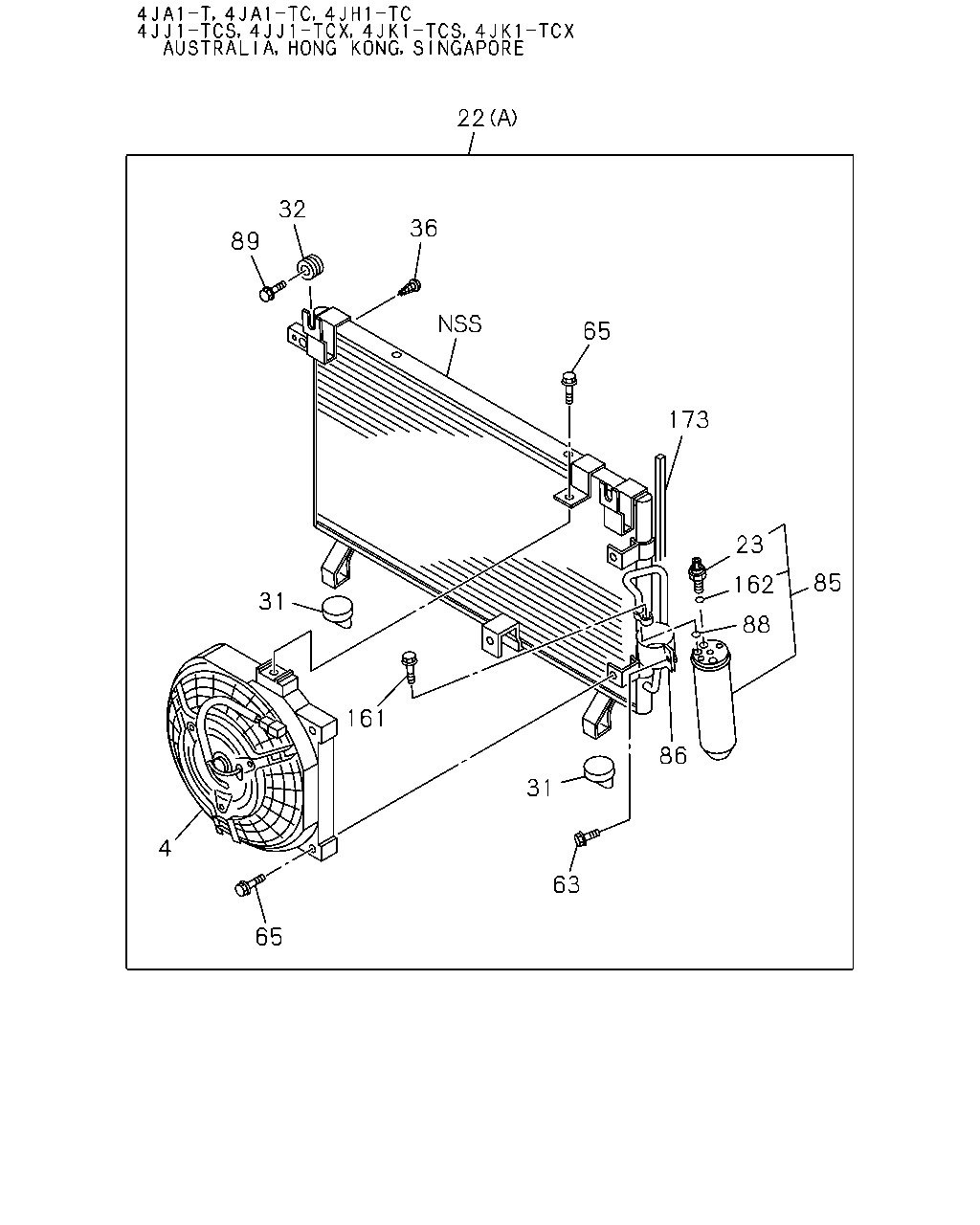

8-75 — CONDENSER (#43390) — 374 parça

22 89 32 36 173 86 23 85 162 88 31 63 161 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) IDENTIFICATION LABEL FOR KD<6UT> (A)	8-98163-507-0	01	1	1004-	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98163-506-0	01	1	1004-		●	●		●	●	●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97363-953-0	01	1	0307-0508	●	●	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> (B)	8-98008-961-0	01	1	0509-0606		●	●		●	●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> (B)	8-98039-425-0	01	1	0607-0609		●	●		●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97363-952-0	01	1	0307-0508	●	●	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. FACE LIFT MODEL<TX7> (A)	8-98000-108-0	01	1	0509-0606	●	●	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. FACE LIFT MODEL<TX7> (A)	8-98039-413-0	01	1	0607-0609	●	●	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98039-413-0	01	1	0610-0703	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98071-128-0	01	1	0704-1003	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-98071-128-0	01	1	1004-	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> (A)	8-98008-963-0	01	1	0509-0606	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> (A)	8-98039-417-0	01	1	0607-0609	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (C)	8-98000-112-0	01	1	0610-0612	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (C)	8-98000-112-0	01	1	0701-0703	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (C)	8-98071-118-0	01	1	0704-0912	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (C)	8-98071-118-0	01	1	1001-	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> (A)	8-98008-515-0	01	1	0509-0608	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> (A)	8-98039-415-0	01	1	0609-0609	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98000-111-0	01	1	0610-0612	●	●	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98000-111-0	01	1	0701-0703	●	●	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98071-120-0	01	1	0704-0912	●	●	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98071-120-0	01	1	1001-	●	●	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. FACE LIFT MODEL<TX7> (B)	8-98000-110-0	01	1	0509-0609		●	●		●	●	●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-98000-110-0	01	1	0610-0611		●	●		●	●	●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-98039-424-0	01	1	0612-0703		●	●		●	●	●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-98071-123-0	01	1	0704-1003		●	●		●	●	●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98071-123-0	01	1	1004-		●	●		●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-465-0	01	1	0307-0508	●	●	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-465-0	01	1	0509-0606		●	●		●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-465-0	01	1	0607-0609	●	●	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-465-0	01	1	0610-0703	●	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-465-0	01	1	0704-0912	●	●	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-465-0	01	1	0704-0912	●	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-465-0	01	1	1001-	●	●	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-465-0	01	1	1001-	●	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97380-449-0	01	1	0509-0606	●	●	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7>	8-97380-449-0	01	1	0607-0608	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97380-449-0	01	1	0610-0612	●	●	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97380-449-0	01	1	0701-0703	●	●	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)	8-97375-560-0	01	1	0610-0612	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)	8-97375-560-0	01	1	0701-0912	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)	8-97375-560-0	01	1	1001-1003	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)	8-97375-560-0	01	1	1004-	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) IDENTIFICATION LABEL FOR KD<6UT>	8-97375-560-0	01	1	1004-	●	●	●	●	●	●
31	09.190 RUBBER; MTG,CONDENSER AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-319-0	02	1	0307-0508	●	●	●	●	●	●	●	●
31	09.190 RUBBER; MTG,CONDENSER C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-319-0	02	1	0509-0609	●	●	●	●	●	●	●	●
31	09.190 RUBBER; MTG,CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-319-0	02	1	0610-0612	●	●	●	●	●	●	●	●
31	09.190 RUBBER; MTG,CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-319-0	02	1	0701-0912	●	●	●	●	●	●	●	●
31	09.190 RUBBER; MTG,CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-319-0	02	1	1001-	●	●	●	●	●	●	●	●
32	09.190 GROMMET; CONDENSER AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-320-0	02	1	0307-0508	●	●	●	●	●	●	●	●
32	09.190 GROMMET; CONDENSER C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-320-0	02	1	0509-0609	●	●	●	●	●	●	●	●
32	09.190 GROMMET; CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-320-0	02	1	0610-0612	●	●	●	●	●	●	●	●
32	09.190 GROMMET; CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-320-0	02	1	0701-0912	●	●	●	●	●	●	●	●
32	09.190 GROMMET; CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-320-0	02	1	1001-	●	●	●	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M4X25	8-98071-148-0	09	1	0704-0912	●	●	●	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M4X25	8-98071-148-0	09	1	0704-0912	●	●	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M4X25	8-98071-148-0	09	1	1001-1003	●	●	●	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M4X25	8-98071-148-0	09	1	1001-1003	●	●	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) M4X25	8-98071-148-0	06	1	1004-	●	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) IDENTIFICATION LABEL FOR KD<6UT> M4X25	8-98071-148-0	06	1	1004-	●	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) M4X25	8-98071-148-0	06	1	0704-0912	●	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) M4X25	8-98071-148-0	06	1	1001-1003	●	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M4X25	8-98071-148-0	09	1	1004-	●	●	●	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M4X25	8-98071-148-0	09	1	1004-	●	●	●	●	●	●	●
63	09.175 BOLT; RECEIVER TANK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X16	8-98071-146-0	03	1	0704-0912	●	●	●	●	●	●	●	●
63	09.175 BOLT; RECEIVER TANK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X16	8-98071-146-0	03	1	1001-	●	●	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) IDENTIFICATION LABEL FOR KD<6UT>	8-98071-280-0	01	1	1004-	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-576-0	01	1	0307-0508	●	●	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-576-0	01	1	0509-0606		●	●		●	●	●
85	09.172 DRYER; RECEIVER C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-576-0	01	1	0607-0609	●	●	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-576-0	01	1	0610-1003	●	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97381-576-0	01	1	1004-	●	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97380-448-2	01	1	0509-0606	●	●	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7>	8-97380-448-2	01	1	0607-0609	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97380-448-2	01	1	0610-0612	●	●	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97380-448-2	01	1	0701-0912	●	●	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97380-448-2	01	1	1001-	●	●	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)	8-97375-558-2	01	1	0610-0612	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)	8-97375-558-2	01	1	0701-0912	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)	8-97375-558-2	01	1	1001-	●	●	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-318-0	01	1	0307-0508	●	●	●	●	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-318-0	01	1	0509-0606		●	●		●	●	●
86	09.196 BRACKET; RECEIVER DRYER C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. FACE LIFT MODEL<TX7>	8-97333-318-0	01	1	0607-0609		●	●		●	●	●
86	09.196 BRACKET; RECEIVER DRYER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-318-0	01	1	0610-0611		●	●		●	●	●
86	09.196 BRACKET; RECEIVER DRYER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98049-150-0	01	1	0612-0703		●	●		●	●	●
86	09.196 BRACKET; RECEIVER DRYER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98071-269-0	01	1	0704-		●	●		●	●	●
86	09.196 BRACKET; RECEIVER DRYER 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97380-437-0	01	1	0509-0609	●	●	●	●	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97380-437-0	01	1	0610-0612	●	●	●	●	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97380-437-0	01	1	0701-0912	●	●	●	●	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97380-437-0	01	1	1001-	●	●	●	●	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7>	8-98049-150-0	01	1	0607-0609		●	●		●	●
88	09.190 GASKET; PRESSURE SW AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-321-0	01	1	0307-0508	●	●	●	●	●	●	●	●
88	09.190 GASKET; PRESSURE SW C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-321-0	01	1	0509-0609	●	●	●	●	●	●	●	●
88	09.190 GASKET; PRESSURE SW 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-321-0	01	1	0610-0612	●	●	●	●	●	●	●	●
88	09.190 GASKET; PRESSURE SW 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-321-0	01	1	0701-0912	●	●	●	●	●	●	●	●
88	09.190 GASKET; PRESSURE SW 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-321-0	01	1	1001-	●	●	●	●	●	●	●	●
89	09.190 BOLT; CONDENSER TO BODY AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X35	8-97333-317-0	02	1	0307-0508	●	●	●	●	●	●	●	●
89	09.190 BOLT; CONDENSER TO BODY C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X35	8-97333-317-0	02	1	0509-0609	●	●	●	●	●	●	●	●
89	09.190 BOLT; CONDENSER TO BODY 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X35	8-97333-317-0	02	1	0610-0612	●	●	●	●	●	●	●	●
89	09.190 BOLT; CONDENSER TO BODY 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X35	8-97333-317-0	02	1	0701-0703	●	●	●	●	●	●	●	●
89	09.190 BOLT; CONDENSER TO BODY 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X35	8-98071-149-0	02	1	0704-0912	●	●	●	●	●	●	●	●
89	09.190 BOLT; CONDENSER TO BODY 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X35	8-98071-149-0	02	1	1001-	●	●	●	●	●	●	●	●
161	02.559 BOLT; PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.175 M6X16	8-98071-146-0	01	1	0710-0912	●	●	●	●	●	●	●	●
161	02.559 BOLT; PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.175 M6X16	8-98071-146-0	01	1	1001-	●	●	●	●	●	●	●	●
161	02.559 BOLT; PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X20	8-98071-147-0	01	1	0704-0709	●	●	●	●	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.190	8-97333-321-0	01	1	0307-0508	●	●	●	●	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.190	8-97333-321-0	01	1	0509-0609	●	●	●	●	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.190	8-97333-321-0	01	1	0610-0612	●	●	●	●	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.190	8-97333-321-0	01	1	0701-0912	●	●	●	●	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.190	8-97333-321-0	01	1	1001-	●	●	●	●	●	●	●	●
173	09.190 INSULATOR; CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)	8-98034-693-0	02	1	0610-0611	●	●	●	●	●	●	●	●
173	09.190 INSULATOR; CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)	8-98034-693-0	02	1	0612-0612	●	●	●	●	●	●
173	09.190 INSULATOR; CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)	8-98034-693-0	02	1	0701-0703	●	●	●	●	●	●
173	09.190 INSULATOR; CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98034-693-0	02	1	0704-0912	●	●	●	●	●	●	●	●
173	09.190 INSULATOR; CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98034-693-0	02	1	1001-	●	●	●	●	●	●	●	●

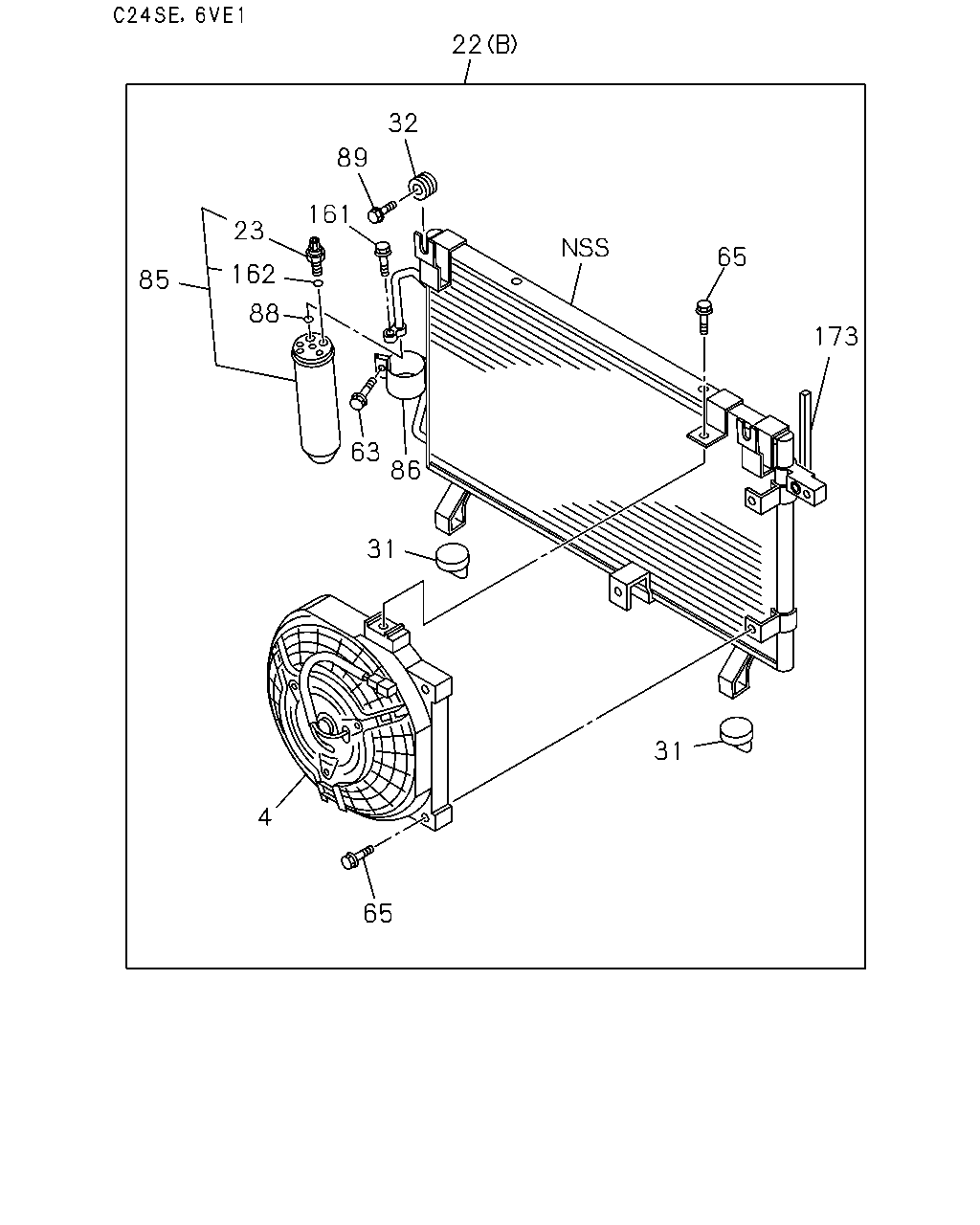

22 89 32 36 65 173 85 23 162 88 86 63 31 31 161 4 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
4	09.216 MOTOR ASM; FAN AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97356-646-0	01	1	0307-0508	●	●	●	●	●	●	●	●
4	09.216 MOTOR ASM; FAN C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97356-646-0	01	1	0509-0609	●	●	●	●	●	●	●	●
4	09.216 MOTOR ASM; FAN 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97356-646-0	01	1	0610-0612	●	●	●	●	●	●	●	●
4	09.216 MOTOR ASM; FAN C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97356-646-0	01	1	0610-0612	●	●	●	●	●	●	●
4	09.216 MOTOR ASM; FAN 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97356-646-0	01	1	0701-0912	●	●	●	●	●	●	●	●
4	09.216 MOTOR ASM; FAN C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97356-646-0	01	1	0701-0912	●	●	●	●	●	●	●
4	09.216 MOTOR ASM; FAN 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97356-646-0	01	1	1001-	●	●	●	●	●	●	●	●
4	09.216 MOTOR ASM; FAN C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97356-646-0	01	1	1001-	●	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) IDENTIFICATION LABEL FOR KD<6UT> (A)	8-98163-507-0	01	1	1004-	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98163-506-0	01	1	1004-		●	●		●	●	●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97363-953-0	01	1	0307-0508	●	●	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> (B)	8-98008-961-0	01	1	0509-0606		●	●		●	●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> (B)	8-98039-425-0	01	1	0607-0609		●	●		●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97363-952-0	01	1	0307-0508	●	●	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. FACE LIFT MODEL<TX7> (A)	8-98000-108-0	01	1	0509-0606	●	●	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. FACE LIFT MODEL<TX7> (A)	8-98039-413-0	01	1	0607-0609	●	●	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98039-413-0	01	1	0610-0703	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98071-128-0	01	1	0704-1003	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-98071-128-0	01	1	1004-	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> (A)	8-98008-963-0	01	1	0509-0606	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> (A)	8-98039-417-0	01	1	0607-0609	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (C)	8-98000-112-0	01	1	0610-0612	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (C)	8-98000-112-0	01	1	0701-0703	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (C)	8-98071-118-0	01	1	0704-0912	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (C)	8-98071-118-0	01	1	1001-	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> (A)	8-98008-515-0	01	1	0509-0608	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> (A)	8-98039-415-0	01	1	0609-0609	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98000-111-0	01	1	0610-0612	●	●	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98000-111-0	01	1	0701-0703	●	●	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98071-120-0	01	1	0704-0912	●	●	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98071-120-0	01	1	1001-	●	●	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. FACE LIFT MODEL<TX7> (B)	8-98000-110-0	01	1	0509-0609		●	●		●	●	●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-98000-110-0	01	1	0610-0611		●	●		●	●	●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-98039-424-0	01	1	0612-0703		●	●		●	●	●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-98071-123-0	01	1	0704-1003		●	●		●	●	●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98071-123-0	01	1	1004-		●	●		●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-465-0	01	1	0307-0508	●	●	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-465-0	01	1	0509-0606		●	●		●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-465-0	01	1	0607-0609	●	●	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-465-0	01	1	0610-0703	●	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-465-0	01	1	0704-0912	●	●	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-465-0	01	1	0704-0912	●	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-465-0	01	1	1001-	●	●	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-465-0	01	1	1001-	●	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97380-449-0	01	1	0509-0606	●	●	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7>	8-97380-449-0	01	1	0607-0608	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97380-449-0	01	1	0610-0612	●	●	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97380-449-0	01	1	0701-0703	●	●	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)	8-97375-560-0	01	1	0610-0612	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)	8-97375-560-0	01	1	0701-0912	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)	8-97375-560-0	01	1	1001-1003	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)	8-97375-560-0	01	1	1004-	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) IDENTIFICATION LABEL FOR KD<6UT>	8-97375-560-0	01	1	1004-	●	●	●	●	●	●
31	09.190 RUBBER; MTG,CONDENSER AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-319-0	02	1	0307-0508	●	●	●	●	●	●	●	●
31	09.190 RUBBER; MTG,CONDENSER C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-319-0	02	1	0509-0609	●	●	●	●	●	●	●	●
31	09.190 RUBBER; MTG,CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-319-0	02	1	0610-0612	●	●	●	●	●	●	●	●
31	09.190 RUBBER; MTG,CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-319-0	02	1	0701-0912	●	●	●	●	●	●	●	●
31	09.190 RUBBER; MTG,CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-319-0	02	1	1001-	●	●	●	●	●	●	●	●
32	09.190 GROMMET; CONDENSER AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-320-0	02	1	0307-0508	●	●	●	●	●	●	●	●
32	09.190 GROMMET; CONDENSER C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-320-0	02	1	0509-0609	●	●	●	●	●	●	●	●
32	09.190 GROMMET; CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-320-0	02	1	0610-0612	●	●	●	●	●	●	●	●
32	09.190 GROMMET; CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-320-0	02	1	0701-0912	●	●	●	●	●	●	●	●
32	09.190 GROMMET; CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-320-0	02	1	1001-	●	●	●	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M4X25	8-98071-148-0	09	1	0704-0912	●	●	●	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M4X25	8-98071-148-0	09	1	0704-0912	●	●	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M4X25	8-98071-148-0	09	1	1001-1003	●	●	●	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M4X25	8-98071-148-0	09	1	1001-1003	●	●	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) M4X25	8-98071-148-0	06	1	1004-	●	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) IDENTIFICATION LABEL FOR KD<6UT> M4X25	8-98071-148-0	06	1	1004-	●	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) M4X25	8-98071-148-0	06	1	0704-0912	●	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) M4X25	8-98071-148-0	06	1	1001-1003	●	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M4X25	8-98071-148-0	09	1	1004-	●	●	●	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M4X25	8-98071-148-0	09	1	1004-	●	●	●	●	●	●	●
63	09.175 BOLT; RECEIVER TANK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X16	8-98071-146-0	03	1	0704-0912	●	●	●	●	●	●	●	●
63	09.175 BOLT; RECEIVER TANK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X16	8-98071-146-0	03	1	1001-	●	●	●	●	●	●	●	●
65	09.216 BOLT; SHROUD AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X16	8-97356-647-0	04	1	0307-0508	●	●	●	●	●	●	●	●
65	09.216 BOLT; SHROUD C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X16	8-97356-647-0	04	1	0509-0609	●	●	●	●	●	●	●	●
65	09.216 BOLT; SHROUD 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X16	8-97356-647-0	04	1	0610-0612	●	●	●	●	●	●	●	●
65	09.216 BOLT; SHROUD C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X16	8-97356-647-0	04	1	0610-0612	●	●	●	●	●	●	●
65	09.216 BOLT; SHROUD 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X16	8-97356-647-0	04	1	0701-0703	●	●	●	●	●	●	●	●
65	09.216 BOLT; SHROUD C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X16	8-97356-647-0	04	1	0701-0703	●	●	●	●	●	●	●
65	09.216 BOLT; SHROUD 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X18	8-98071-145-0	04	1	0704-0912	●	●	●	●	●	●	●	●
65	09.216 BOLT; SHROUD C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X18	8-98071-145-0	04	1	0704-0912	●	●	●	●	●	●	●
65	09.216 BOLT; SHROUD 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X18	8-98071-145-0	04	1	1001-	●	●	●	●	●	●	●	●
65	09.216 BOLT; SHROUD C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X18	8-98071-145-0	04	1	1001-	●	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) IDENTIFICATION LABEL FOR KD<6UT>	8-98071-280-0	01	1	1004-	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-576-0	01	1	0307-0508	●	●	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-576-0	01	1	0509-0606		●	●		●	●	●
85	09.172 DRYER; RECEIVER C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-576-0	01	1	0607-0609	●	●	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-576-0	01	1	0610-1003	●	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97381-576-0	01	1	1004-	●	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97380-448-2	01	1	0509-0606	●	●	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7>	8-97380-448-2	01	1	0607-0609	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97380-448-2	01	1	0610-0612	●	●	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97380-448-2	01	1	0701-0912	●	●	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97380-448-2	01	1	1001-	●	●	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)	8-97375-558-2	01	1	0610-0612	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)	8-97375-558-2	01	1	0701-0912	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)	8-97375-558-2	01	1	1001-	●	●	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-318-0	01	1	0307-0508	●	●	●	●	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-318-0	01	1	0509-0606		●	●		●	●	●
86	09.196 BRACKET; RECEIVER DRYER C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. FACE LIFT MODEL<TX7>	8-97333-318-0	01	1	0607-0609		●	●		●	●	●
86	09.196 BRACKET; RECEIVER DRYER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-318-0	01	1	0610-0611		●	●		●	●	●
86	09.196 BRACKET; RECEIVER DRYER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98049-150-0	01	1	0612-0703		●	●		●	●	●
86	09.196 BRACKET; RECEIVER DRYER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98071-269-0	01	1	0704-		●	●		●	●	●
86	09.196 BRACKET; RECEIVER DRYER 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97380-437-0	01	1	0509-0609	●	●	●	●	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97380-437-0	01	1	0610-0612	●	●	●	●	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97380-437-0	01	1	0701-0912	●	●	●	●	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97380-437-0	01	1	1001-	●	●	●	●	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7>	8-98049-150-0	01	1	0607-0609		●	●		●	●
88	09.190 GASKET; PRESSURE SW AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-321-0	01	1	0307-0508	●	●	●	●	●	●	●	●
88	09.190 GASKET; PRESSURE SW C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-321-0	01	1	0509-0609	●	●	●	●	●	●	●	●
88	09.190 GASKET; PRESSURE SW 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-321-0	01	1	0610-0612	●	●	●	●	●	●	●	●
88	09.190 GASKET; PRESSURE SW 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-321-0	01	1	0701-0912	●	●	●	●	●	●	●	●
88	09.190 GASKET; PRESSURE SW 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-321-0	01	1	1001-	●	●	●	●	●	●	●	●
89	09.190 BOLT; CONDENSER TO BODY AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X35	8-97333-317-0	02	1	0307-0508	●	●	●	●	●	●	●	●
89	09.190 BOLT; CONDENSER TO BODY C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X35	8-97333-317-0	02	1	0509-0609	●	●	●	●	●	●	●	●
89	09.190 BOLT; CONDENSER TO BODY 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X35	8-97333-317-0	02	1	0610-0612	●	●	●	●	●	●	●	●
89	09.190 BOLT; CONDENSER TO BODY 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X35	8-97333-317-0	02	1	0701-0703	●	●	●	●	●	●	●	●
89	09.190 BOLT; CONDENSER TO BODY 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X35	8-98071-149-0	02	1	0704-0912	●	●	●	●	●	●	●	●
89	09.190 BOLT; CONDENSER TO BODY 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X35	8-98071-149-0	02	1	1001-	●	●	●	●	●	●	●	●
161	02.559 BOLT; PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.175 M6X16	8-98071-146-0	01	1	0710-0912	●	●	●	●	●	●	●	●
161	02.559 BOLT; PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.175 M6X16	8-98071-146-0	01	1	1001-	●	●	●	●	●	●	●	●
161	02.559 BOLT; PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X20	8-98071-147-0	01	1	0704-0709	●	●	●	●	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.190	8-97333-321-0	01	1	0307-0508	●	●	●	●	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.190	8-97333-321-0	01	1	0509-0609	●	●	●	●	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.190	8-97333-321-0	01	1	0610-0612	●	●	●	●	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.190	8-97333-321-0	01	1	0701-0912	●	●	●	●	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.190	8-97333-321-0	01	1	1001-	●	●	●	●	●	●	●	●
173	09.190 INSULATOR; CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)	8-98034-693-0	02	1	0610-0611	●	●	●	●	●	●	●	●
173	09.190 INSULATOR; CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)	8-98034-693-0	02	1	0612-0612	●	●	●	●	●	●
173	09.190 INSULATOR; CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)	8-98034-693-0	02	1	0701-0703	●	●	●	●	●	●
173	09.190 INSULATOR; CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98034-693-0	02	1	0704-0912	●	●	●	●	●	●	●	●
173	09.190 INSULATOR; CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98034-693-0	02	1	1001-	●	●	●	●	●	●	●	●

22 32 89 161 23 162 85 88 63 86 31 4 65 31 173 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
4	09.216 MOTOR ASM; FAN AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97356-646-0	01	1	0307-0508	●	●	●	●	●	●	●	●
4	09.216 MOTOR ASM; FAN C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97356-646-0	01	1	0509-0609	●	●	●	●	●	●	●	●
4	09.216 MOTOR ASM; FAN 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97356-646-0	01	1	0610-0612	●	●	●	●	●	●	●	●
4	09.216 MOTOR ASM; FAN C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97356-646-0	01	1	0610-0612	●	●	●	●	●	●	●
4	09.216 MOTOR ASM; FAN 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97356-646-0	01	1	0701-0912	●	●	●	●	●	●	●	●
4	09.216 MOTOR ASM; FAN C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97356-646-0	01	1	0701-0912	●	●	●	●	●	●	●
4	09.216 MOTOR ASM; FAN 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97356-646-0	01	1	1001-	●	●	●	●	●	●	●	●
4	09.216 MOTOR ASM; FAN C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97356-646-0	01	1	1001-	●	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) IDENTIFICATION LABEL FOR KD<6UT> (A)	8-98163-507-0	01	1	1004-	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98163-506-0	01	1	1004-		●	●		●	●	●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97363-953-0	01	1	0307-0508	●	●	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> (B)	8-98008-961-0	01	1	0509-0606		●	●		●	●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> (B)	8-98039-425-0	01	1	0607-0609		●	●		●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97363-952-0	01	1	0307-0508	●	●	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. FACE LIFT MODEL<TX7> (A)	8-98000-108-0	01	1	0509-0606	●	●	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. FACE LIFT MODEL<TX7> (A)	8-98039-413-0	01	1	0607-0609	●	●	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98039-413-0	01	1	0610-0703	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98071-128-0	01	1	0704-1003	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-98071-128-0	01	1	1004-	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> (A)	8-98008-963-0	01	1	0509-0606	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> (A)	8-98039-417-0	01	1	0607-0609	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (C)	8-98000-112-0	01	1	0610-0612	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (C)	8-98000-112-0	01	1	0701-0703	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (C)	8-98071-118-0	01	1	0704-0912	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (C)	8-98071-118-0	01	1	1001-	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> (A)	8-98008-515-0	01	1	0509-0608	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7> (A)	8-98039-415-0	01	1	0609-0609	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98000-111-0	01	1	0610-0612	●	●	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98000-111-0	01	1	0701-0703	●	●	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98071-120-0	01	1	0704-0912	●	●	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98071-120-0	01	1	1001-	●	●	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. FACE LIFT MODEL<TX7> (B)	8-98000-110-0	01	1	0509-0609		●	●		●	●	●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-98000-110-0	01	1	0610-0611		●	●		●	●	●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-98039-424-0	01	1	0612-0703		●	●		●	●	●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-98071-123-0	01	1	0704-1003		●	●		●	●	●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98071-123-0	01	1	1004-		●	●		●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-465-0	01	1	0307-0508	●	●	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-465-0	01	1	0509-0606		●	●		●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-465-0	01	1	0607-0609	●	●	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-465-0	01	1	0610-0703	●	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-465-0	01	1	0704-0912	●	●	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-465-0	01	1	0704-0912	●	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-465-0	01	1	1001-	●	●	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-465-0	01	1	1001-	●	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97380-449-0	01	1	0509-0606	●	●	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7>	8-97380-449-0	01	1	0607-0608	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97380-449-0	01	1	0610-0612	●	●	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97380-449-0	01	1	0701-0703	●	●	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)	8-97375-560-0	01	1	0610-0612	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)	8-97375-560-0	01	1	0701-0912	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)	8-97375-560-0	01	1	1001-1003	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)	8-97375-560-0	01	1	1004-	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) IDENTIFICATION LABEL FOR KD<6UT>	8-97375-560-0	01	1	1004-	●	●	●	●	●	●
31	09.190 RUBBER; MTG,CONDENSER AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-319-0	02	1	0307-0508	●	●	●	●	●	●	●	●
31	09.190 RUBBER; MTG,CONDENSER C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-319-0	02	1	0509-0609	●	●	●	●	●	●	●	●
31	09.190 RUBBER; MTG,CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-319-0	02	1	0610-0612	●	●	●	●	●	●	●	●
31	09.190 RUBBER; MTG,CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-319-0	02	1	0701-0912	●	●	●	●	●	●	●	●
31	09.190 RUBBER; MTG,CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-319-0	02	1	1001-	●	●	●	●	●	●	●	●
32	09.190 GROMMET; CONDENSER AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-320-0	02	1	0307-0508	●	●	●	●	●	●	●	●
32	09.190 GROMMET; CONDENSER C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-320-0	02	1	0509-0609	●	●	●	●	●	●	●	●
32	09.190 GROMMET; CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-320-0	02	1	0610-0612	●	●	●	●	●	●	●	●
32	09.190 GROMMET; CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-320-0	02	1	0701-0912	●	●	●	●	●	●	●	●
32	09.190 GROMMET; CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-320-0	02	1	1001-	●	●	●	●	●	●	●	●
63	09.175 BOLT; RECEIVER TANK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X16	8-98071-146-0	03	1	0704-0912	●	●	●	●	●	●	●	●
63	09.175 BOLT; RECEIVER TANK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X16	8-98071-146-0	03	1	1001-	●	●	●	●	●	●	●	●
65	09.216 BOLT; SHROUD AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X16	8-97356-647-0	04	1	0307-0508	●	●	●	●	●	●	●	●
65	09.216 BOLT; SHROUD C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X16	8-97356-647-0	04	1	0509-0609	●	●	●	●	●	●	●	●
65	09.216 BOLT; SHROUD 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X16	8-97356-647-0	04	1	0610-0612	●	●	●	●	●	●	●	●
65	09.216 BOLT; SHROUD C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X16	8-97356-647-0	04	1	0610-0612	●	●	●	●	●	●	●
65	09.216 BOLT; SHROUD 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X16	8-97356-647-0	04	1	0701-0703	●	●	●	●	●	●	●	●
65	09.216 BOLT; SHROUD C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X16	8-97356-647-0	04	1	0701-0703	●	●	●	●	●	●	●
65	09.216 BOLT; SHROUD 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X18	8-98071-145-0	04	1	0704-0912	●	●	●	●	●	●	●	●
65	09.216 BOLT; SHROUD C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X18	8-98071-145-0	04	1	0704-0912	●	●	●	●	●	●	●
65	09.216 BOLT; SHROUD 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X18	8-98071-145-0	04	1	1001-	●	●	●	●	●	●	●	●
65	09.216 BOLT; SHROUD C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X18	8-98071-145-0	04	1	1001-	●	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) IDENTIFICATION LABEL FOR KD<6UT>	8-98071-280-0	01	1	1004-	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-576-0	01	1	0307-0508	●	●	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-576-0	01	1	0509-0606		●	●		●	●	●
85	09.172 DRYER; RECEIVER C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-576-0	01	1	0607-0609	●	●	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-576-0	01	1	0610-1003	●	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97381-576-0	01	1	1004-	●	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97380-448-2	01	1	0509-0606	●	●	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7>	8-97380-448-2	01	1	0607-0609	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97380-448-2	01	1	0610-0612	●	●	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97380-448-2	01	1	0701-0912	●	●	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97380-448-2	01	1	1001-	●	●	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)	8-97375-558-2	01	1	0610-0612	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)	8-97375-558-2	01	1	0701-0912	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)	8-97375-558-2	01	1	1001-	●	●	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-318-0	01	1	0307-0508	●	●	●	●	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-318-0	01	1	0509-0606		●	●		●	●	●
86	09.196 BRACKET; RECEIVER DRYER C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. FACE LIFT MODEL<TX7>	8-97333-318-0	01	1	0607-0609		●	●		●	●	●
86	09.196 BRACKET; RECEIVER DRYER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-318-0	01	1	0610-0611		●	●		●	●	●
86	09.196 BRACKET; RECEIVER DRYER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98049-150-0	01	1	0612-0703		●	●		●	●	●
86	09.196 BRACKET; RECEIVER DRYER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98071-269-0	01	1	0704-		●	●		●	●	●
86	09.196 BRACKET; RECEIVER DRYER 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97380-437-0	01	1	0509-0609	●	●	●	●	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97380-437-0	01	1	0610-0612	●	●	●	●	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97380-437-0	01	1	0701-0912	●	●	●	●	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97380-437-0	01	1	1001-	●	●	●	●	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER C24SE ENG(LG1),6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) FACE LIFT MODEL<TX7>	8-98049-150-0	01	1	0607-0609		●	●		●	●
88	09.190 GASKET; PRESSURE SW AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-321-0	01	1	0307-0508	●	●	●	●	●	●	●	●
88	09.190 GASKET; PRESSURE SW C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-321-0	01	1	0509-0609	●	●	●	●	●	●	●	●
88	09.190 GASKET; PRESSURE SW 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-321-0	01	1	0610-0612	●	●	●	●	●	●	●	●
88	09.190 GASKET; PRESSURE SW 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-321-0	01	1	0701-0912	●	●	●	●	●	●	●	●
88	09.190 GASKET; PRESSURE SW 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-321-0	01	1	1001-	●	●	●	●	●	●	●	●
89	09.190 BOLT; CONDENSER TO BODY AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X35	8-97333-317-0	02	1	0307-0508	●	●	●	●	●	●	●	●
89	09.190 BOLT; CONDENSER TO BODY C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X35	8-97333-317-0	02	1	0509-0609	●	●	●	●	●	●	●	●
89	09.190 BOLT; CONDENSER TO BODY 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X35	8-97333-317-0	02	1	0610-0612	●	●	●	●	●	●	●	●
89	09.190 BOLT; CONDENSER TO BODY 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X35	8-97333-317-0	02	1	0701-0703	●	●	●	●	●	●	●	●
89	09.190 BOLT; CONDENSER TO BODY 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X35	8-98071-149-0	02	1	0704-0912	●	●	●	●	●	●	●	●
89	09.190 BOLT; CONDENSER TO BODY 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X35	8-98071-149-0	02	1	1001-	●	●	●	●	●	●	●	●
161	02.559 BOLT; PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.175 M6X16	8-98071-146-0	01	1	0710-0912	●	●	●	●	●	●	●	●
161	02.559 BOLT; PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.175 M6X16	8-98071-146-0	01	1	1001-	●	●	●	●	●	●	●	●
161	02.559 BOLT; PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X20	8-98071-147-0	01	1	0704-0709	●	●	●	●	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.190	8-97333-321-0	01	1	0307-0508	●	●	●	●	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER C24SE ENG(LG1),4JA1-T ENG(LP0), 6VE1ENG(LX5),4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.190	8-97333-321-0	01	1	0509-0609	●	●	●	●	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.190	8-97333-321-0	01	1	0610-0612	●	●	●	●	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.190	8-97333-321-0	01	1	0701-0912	●	●	●	●	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.190	8-97333-321-0	01	1	1001-	●	●	●	●	●	●	●	●
173	09.190 INSULATOR; CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)	8-98034-693-0	02	1	0610-0611	●	●	●	●	●	●	●	●
173	09.190 INSULATOR; CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)	8-98034-693-0	02	1	0612-0612	●	●	●	●	●	●
173	09.190 INSULATOR; CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)	8-98034-693-0	02	1	0701-0703	●	●	●	●	●	●
173	09.190 INSULATOR; CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98034-693-0	02	1	0704-0912	●	●	●	●	●	●	●	●
173	09.190 INSULATOR; CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98034-693-0	02	1	1001-	●	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
